Page 201 of 664

Continued199
uuInterior Convenience Items uOther Interior Convenience Items
Controls

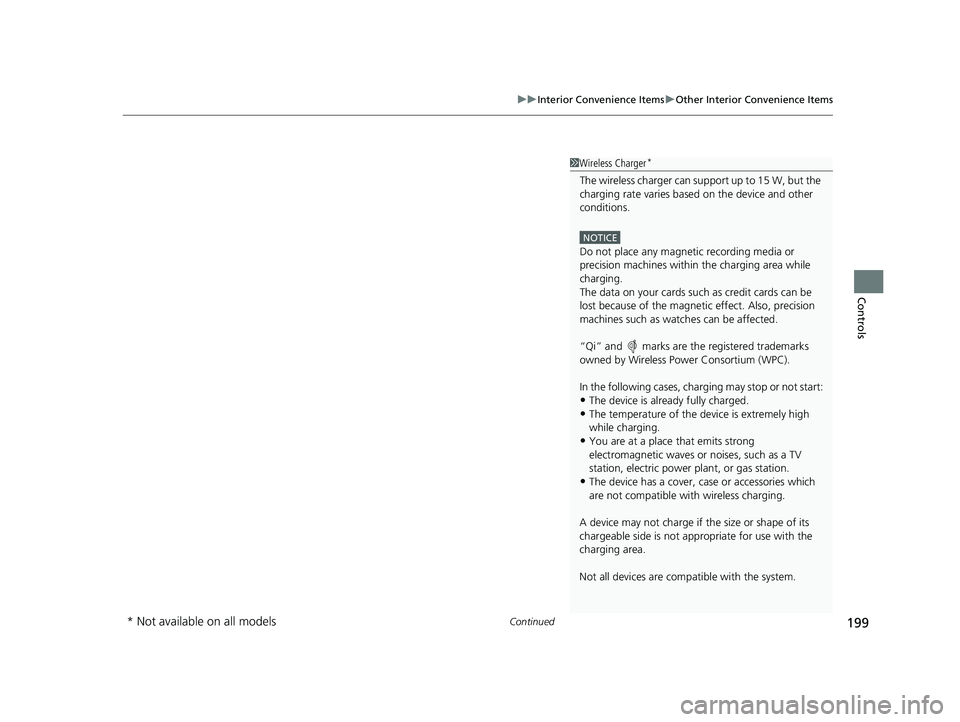

1Wireless Charger*
The wireless charger can su pport up to 15 W, but the
charging rate varies base d on the device and other
conditions.
/ 0 5 * $ &
Do not place any magneti c recording media or
precision machines within the charging area while
charging.
The data on your cards such as credit cards can be
lost because of the magneti c effect. Also, precision
machines such as watc hes can be affected.
“Qi” and marks are the registered trademarks
owned by Wire less Power Consortium (WPC).
In the following cases, ch arging may stop or not start:
•The device is already fully charged.•The temperature of the device is extremely high
while charging.
•You are at a place that emits strong
electromagnetic waves or noises, such as a TV
station, electric power plant, or gas station.
•The device has a cover, case or accessories which
are not compatible wi th wireless charging.
A device may not charge if the size or shape of its
chargeable side is not a ppropriate for use with the
charging area.
Not all devices are compatible with the system.
* Not available on all models
23 HR-V-313V06000_01.book 199 ページ 2022年4月4日 月曜日 午前10時49分
Page 202 of 664

uuInterior Convenience Items uOther Interior Convenience Items
200
Controls

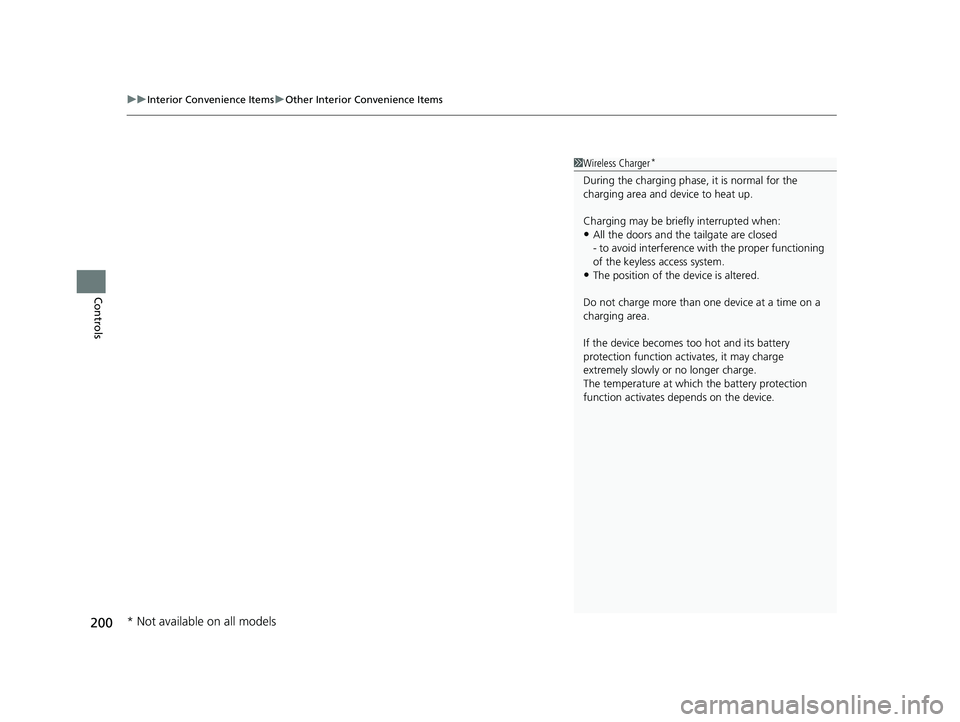

1Wireless Charger*
During the charging phase, it is normal for the
charging area and de vice to heat up.
Charging may be briefl y interrupted when:
•All the doors and the tailgate are closed
- to avoid interference with the proper functioning
of the keyless access system.
•The position of the device is altered.
Do not charge more than one device at a time on a
charging area.
If the device becomes too hot and its battery
protection function activa tes, it may charge
extremely slowly or no longer charge.
The temperature at which the battery protection
function activates de pends on the device.
* Not available on all models
23 HR-V-313V06000_01.book 200 ページ 2022年4月4日 月曜日 午前10時49分
Page 203 of 664

Continued201
uuInterior Convenience Items uOther Interior Convenience Items
Controls

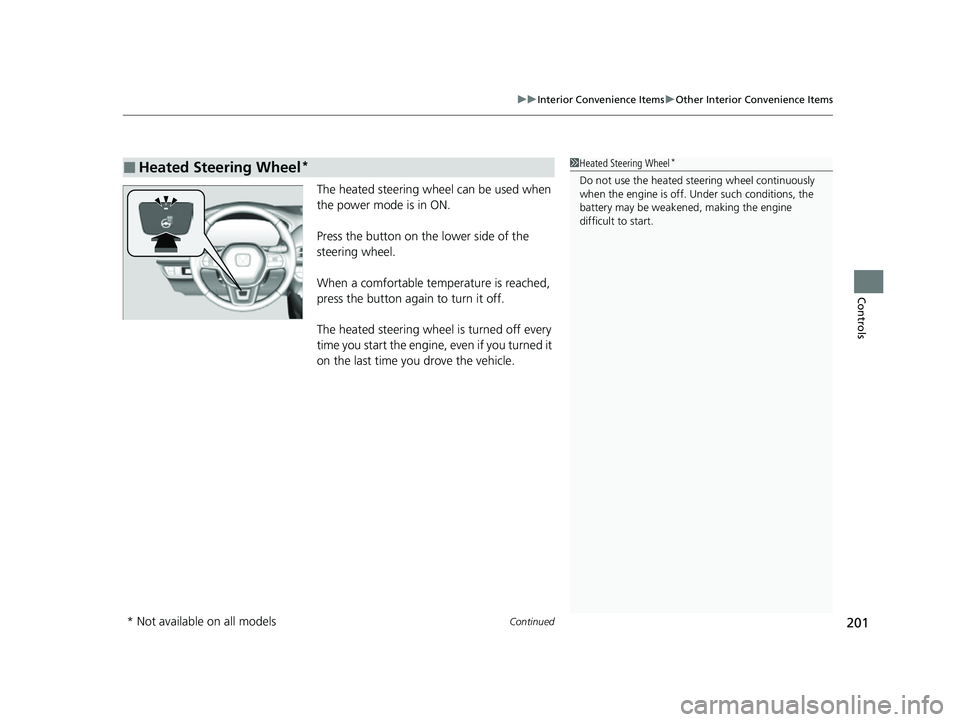

The heated steering wheel can be used when
the power mode is in ON.
Press the button on the lower side of the
steering wheel.
When a comfortable temp erature is reached,
press the button again to turn it off.
The heated steering wheel is turned off every
time you start the engine, even if you turned it
on the last time you drove the vehicle.
■Heated Steering Wheel*1 Heated Steering Wheel*
Do not use the heated st eering wheel continuously
when the engine is off. Under such conditions, the
battery may be weaken ed, making the engine
difficult to start.
* Not available on all models
23 HR-V-313V06000_01.book 201 ページ 2022年4月4日 月曜日 午前10時49分
Page 204 of 664

uuInterior Convenience Items uOther Interior Convenience Items
202
Controls

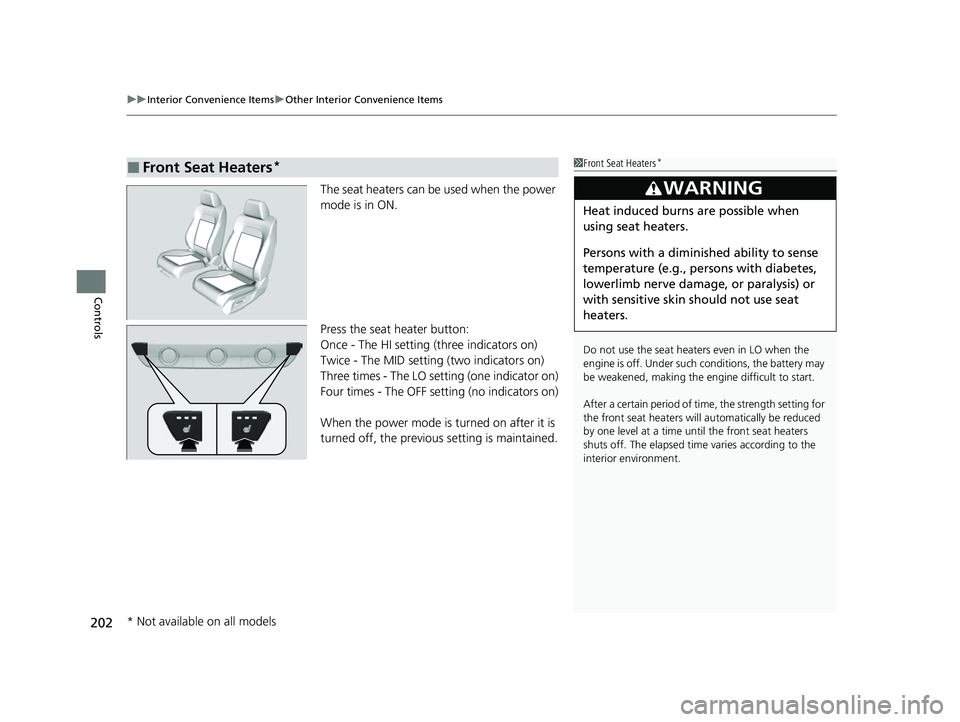

The seat heaters can be used when the power
mode is in ON.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF se tting (no indicators on)
When the power mode is turned on after it is
turned off, the previous setting is maintained.
■Front Seat Heaters*1Front Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
After a certain period of time, the strength setting for
the front seat heaters will automatically be reduced
by one level at a time unt il the front seat heaters
shuts off. The elapsed time varies according to the
interior environment.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lowerlimb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
23 HR-V-313V06000_01.book 202 ページ 2022年4月4日 月曜日 午前10時49分
Page 205 of 664

203Continued
Controls

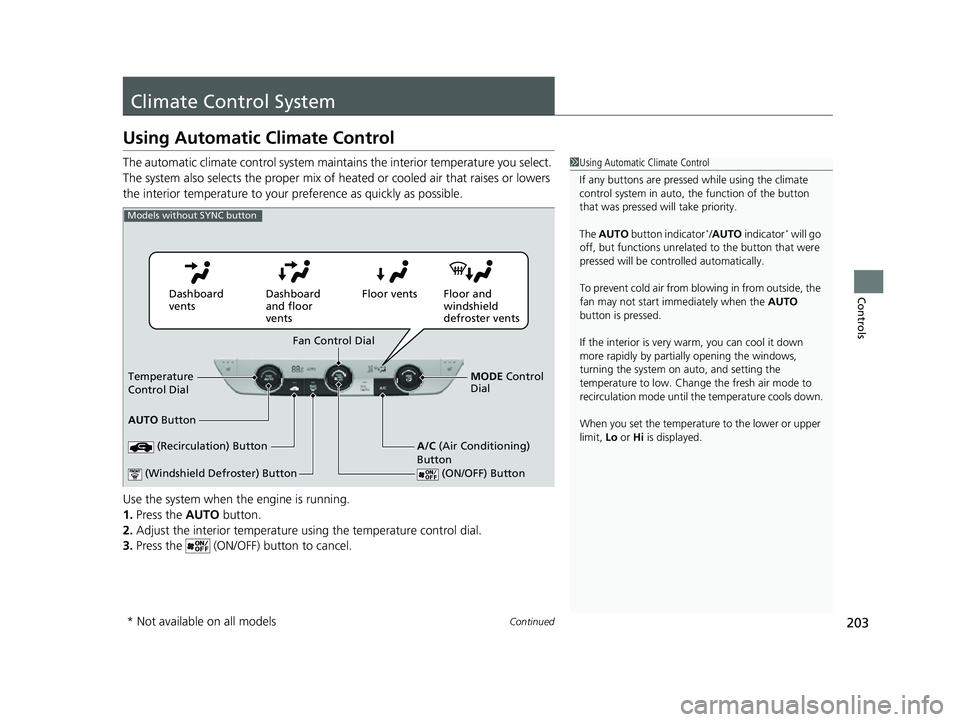

Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature us ing the temperature control dial.
3. Press the (ON/OFF) button to cancel.1Using Automatic Climate Control
If any buttons are presse d while using the climate
control system in auto, the function of the button
that was pressed will take priority.
The AUTO button indicator
*/AUTO indicator* will go
off, but functions unrelated to the button that were
pressed will be cont rolled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh air mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
Models without SYNC button
Dashboard
vents Dashboard
and floor
ventsFloor vents Floor and
windshield
defroster vents
(Windshield Defroster) Button
Temperature
Control Dial (Recirculation) Button
AUTO Button Fan Control Dial
(ON/OFF) Button
A/C (Air Conditioning)
Button MODE
Control
Dial
* Not available on all models
23 HR-V-313V06000_01.book 203 ページ 2022年4月4日 月曜日 午前10時49分
Page 206 of 664

uuClimate Control System uUsing Automatic Climate Control
204
Controls

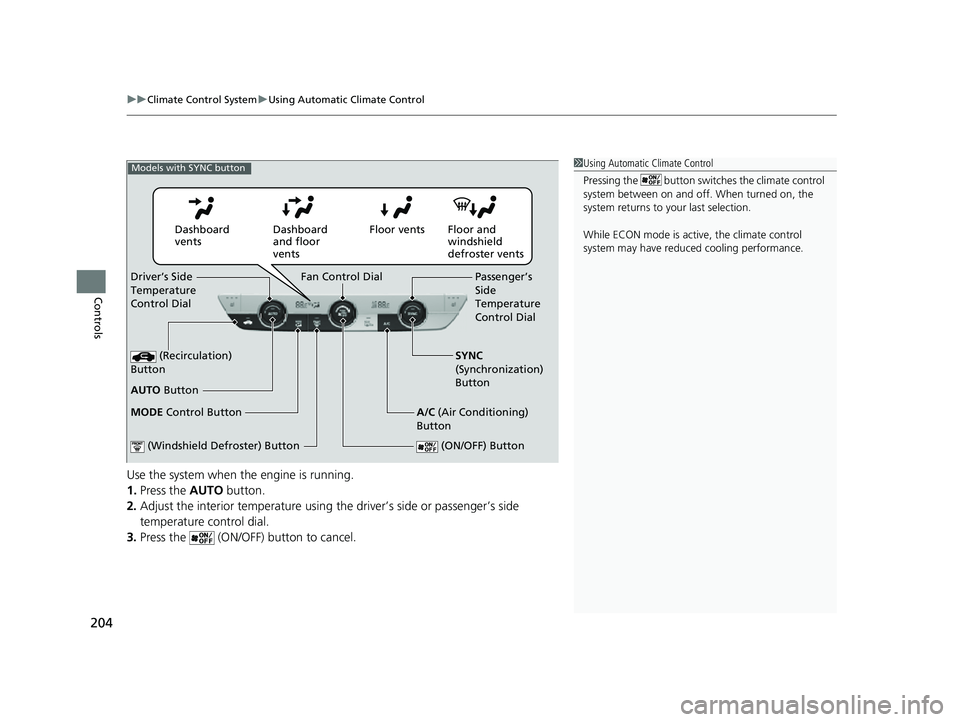

Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the driver’s side or passenger’s side
temperature control dial.
3. Press the (ON/OFF) button to cancel.
1Using Automatic Climate Control
Pressing the button switches the climate control
system between on and off. When turned on, the
system returns to your last selection.
While ECON mode is active, the climate control
system may have reduced cooling performance.Models with SYNC button
Dashboard
ventsDashboard
and floor
ventsFloor vents Floor and
windshield
defroster vents
(Windshield Defroster) Button
Driver’s Side
Temperature
Control Dial
AUTO Button
MODE Control Button
(R
ecircu
lation)
Button
(ON/OFF) Button
A/C (Air Conditioning)
Button Passenger’s
Side
Temperature
Control Dial
SYNC
(Synchronization)
Button
Fan Control Dial
23 HR-V-313V06000_01.book 204 ページ 2022年4月4日 月曜日 午前10時49分
Page 207 of 664

205
uuClimate Control System uUsing Automatic Climate Control
Continued
Controls

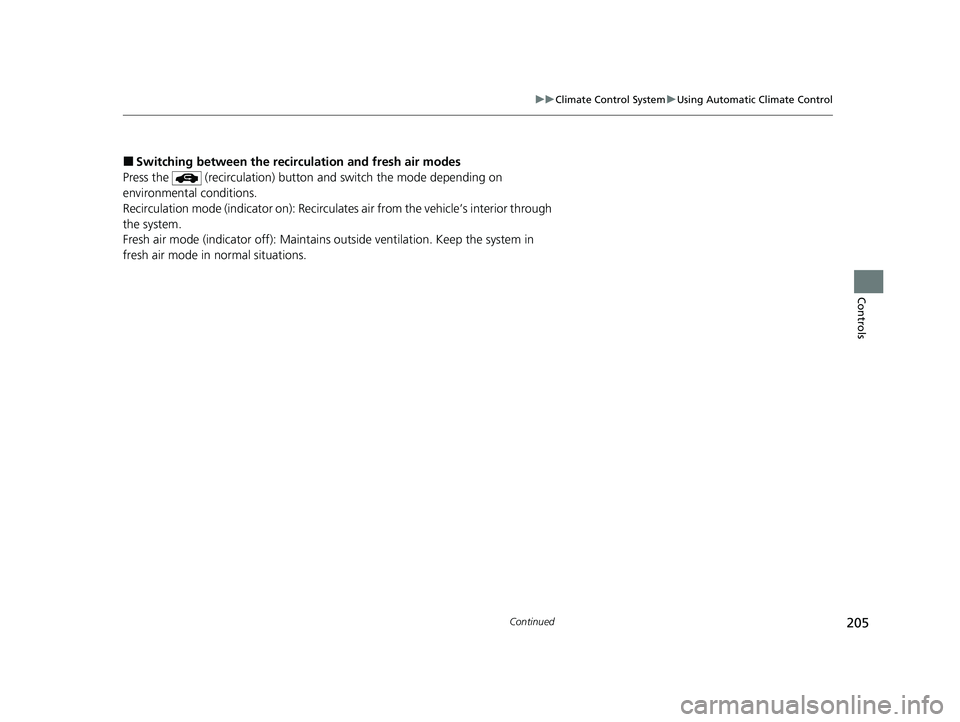

■Switching between the recirculation and fresh air modes
Press the (recirculation) button a nd switch the mode depending on
environmental conditions.
Recirculation mode (indicator on): Recirculates air from the vehicle’s interior through
the system.
Fresh air mode (indicator off): Maintains outside ventilation. Keep the system in
fresh air mode in normal situations.
23 HR-V-313V06000_01.book 205 ページ 2022年4月4日 月曜日 午前10時49分
Page 208 of 664

uuClimate Control System uUsing Automatic Climate Control
206
Controls

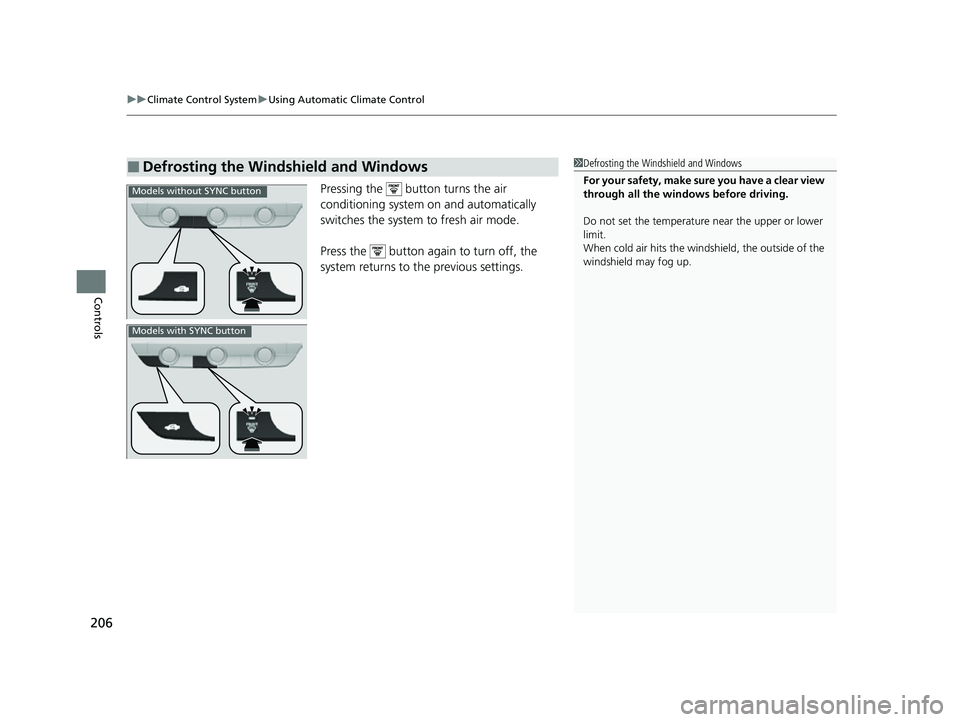

Pressing the button turns the air
conditioning system on and automatically
switches the system to fresh air mode.
Press the button again to turn off, the
system returns to the previous settings.
■Defrosting the Windshield and Windows1 Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
Models without SYNC button
Models with SYNC button
23 HR-V-313V06000_01.book 206 ページ 2022年4月4日 月曜日 午前10時49分
Page 209 of 664

Continued207
uuClimate Control System uUsing Automatic Climate Control
Controls

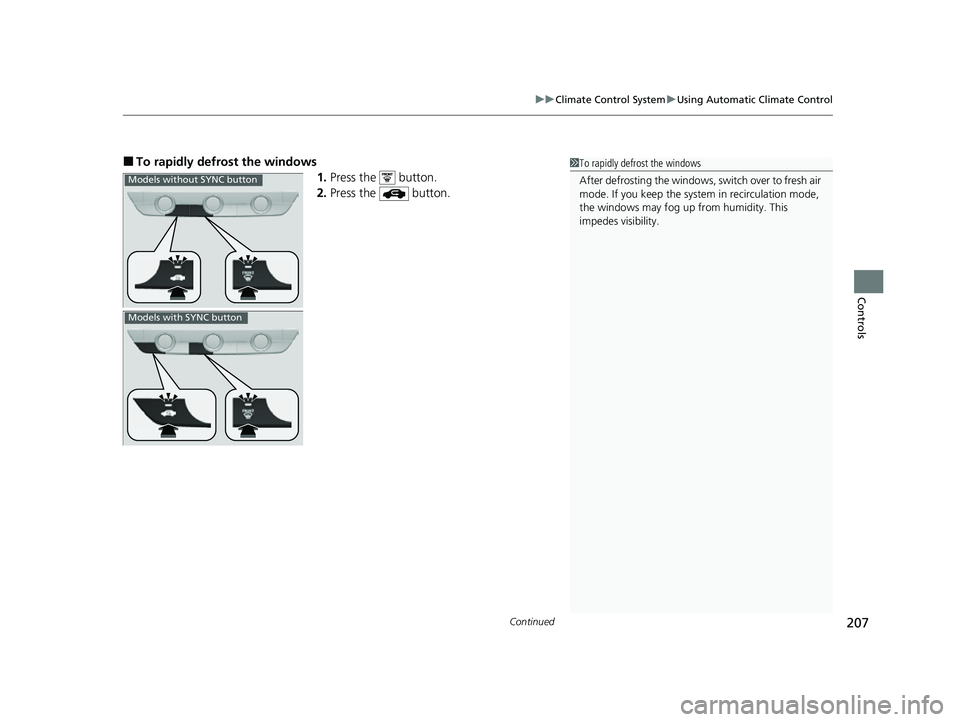

■To rapidly defrost the windows
1.Press the button.
2. Press the button.1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode. If you keep the syst em in recirculation mode,
the windows may fog up from humidity. This
impedes visibility.
Models without SYNC button
Models with SYNC button
23 HR-V-313V06000_01.book 207 ページ 2022年4月4日 月曜日 午前10時49分
Page 210 of 664

uuClimate Control System uUsing Automatic Climate Control
208
Controls

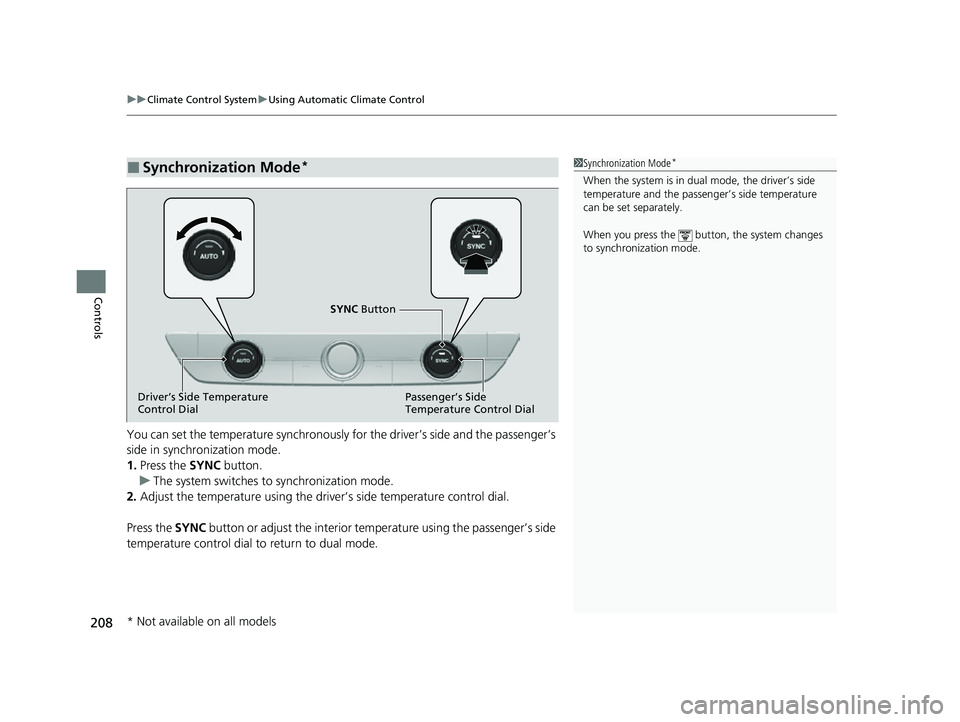

You can set the temperature synchronously fo r the driver’s side and the passenger’s
side in synchronization mode.
1. Press the SYNC button.
u The system switches to synchronization mode.
2. Adjust the temperature using the driv er’s side temperature control dial.
Press the SYNC button or adjust the interior temperature using the passenger’s side
temperature control dial to return to dual mode.
■Synchronization Mode*1Synchronization Mode*
When the system is in dua l mode, the driver’s side
temperature and the passe nger’s side temperature
can be set separately.
When you press the button, the system changes
to synchronization mode.
Driver’s Side Temperature
Control Dial Passenger’s Side
Temperature Control Dial
SYNC
Button
* Not available on all models
