uuFuses uFuse Locations
Continued
Handling the Unexpected

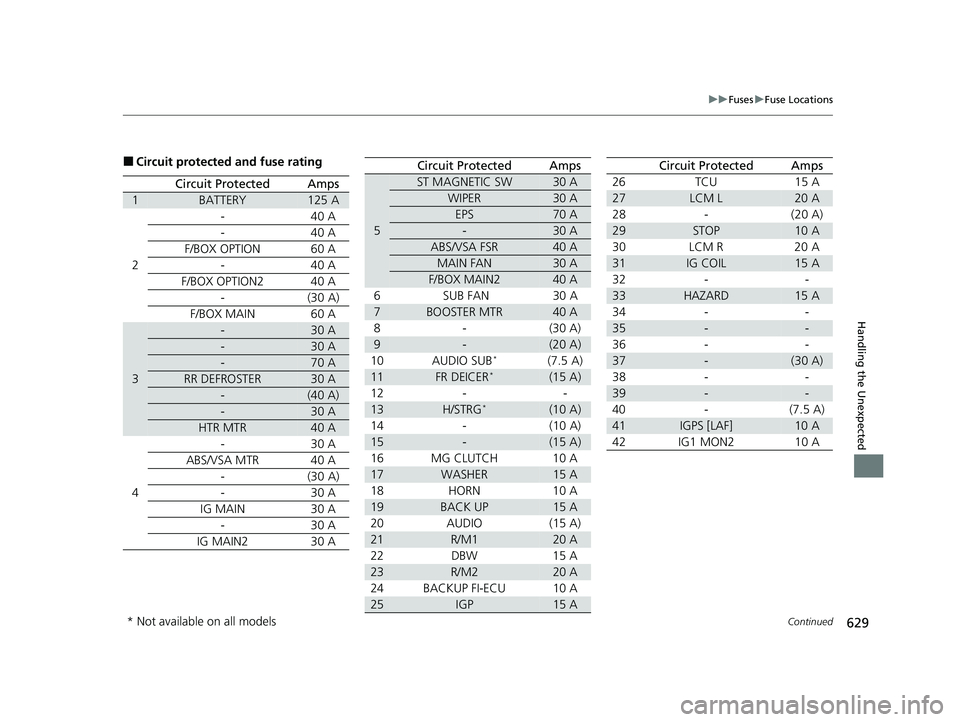

■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY125 A
2 - 40 A
- 40 A
F/BOX OPTION 60 A - 40 A
F/BOX OPTION2 40 A - (30 A)
F/BOX MAIN 60 A
3
-30 A
-30 A
-70 A
RR DEFROSTER30 A
-(40 A)
-30 A
HTR MTR40 A
4 - 30 A
ABS/VSA MTR 40 A - (30 A)
- 30 A
IG MAIN 30 A - 30 A
IG MAIN2 30 A
5
ST MAGNETIC SW30 A
WIPER30 A
EPS70 A
-30 A
ABS/VSA FSR40 A
MAIN FAN30 A
F/BOX MAIN240 A
6 SUB FAN 30 A
7BOOSTER MTR40 A
8- (30 A)
9-(20 A)
10 AUDIO SUB*(7.5 A)
11FR DEICER*(15 A)
12 - -
13H/STRG*(10 A)
14 - (10 A)
15-(15 A)
16 MG CLUTCH 10 A
17WASHER15 A
18 HORN 10 A
19BACK UP15 A
20 AUDIO (15 A)
21R/M120 A
22 DBW 15 A
23R/M220 A
24 BACKUP FI-ECU 10 A
25IGP15 A
Circuit ProtectedAmps
26 TCU 15 A
27LCM L20 A
28 - (20 A)
29STOP10 A
30 LCM R 20 A
31IG COIL15 A
32 - -
33HAZARD15 A
34 - -
35--
36 - -
37-(30 A)
38 - -
39--
40 - (7.5 A)
41IGPS [LAF]10 A
42 IG1 MON2 10 A
Circuit ProtectedAmps
* Not available on all models
23 HR-V-313V06000_01.book 629 ページ ２０２２年４月４日　月曜日　午前１０時４９分

630
uuFuses uFuse Locations
Handling the Unexpected

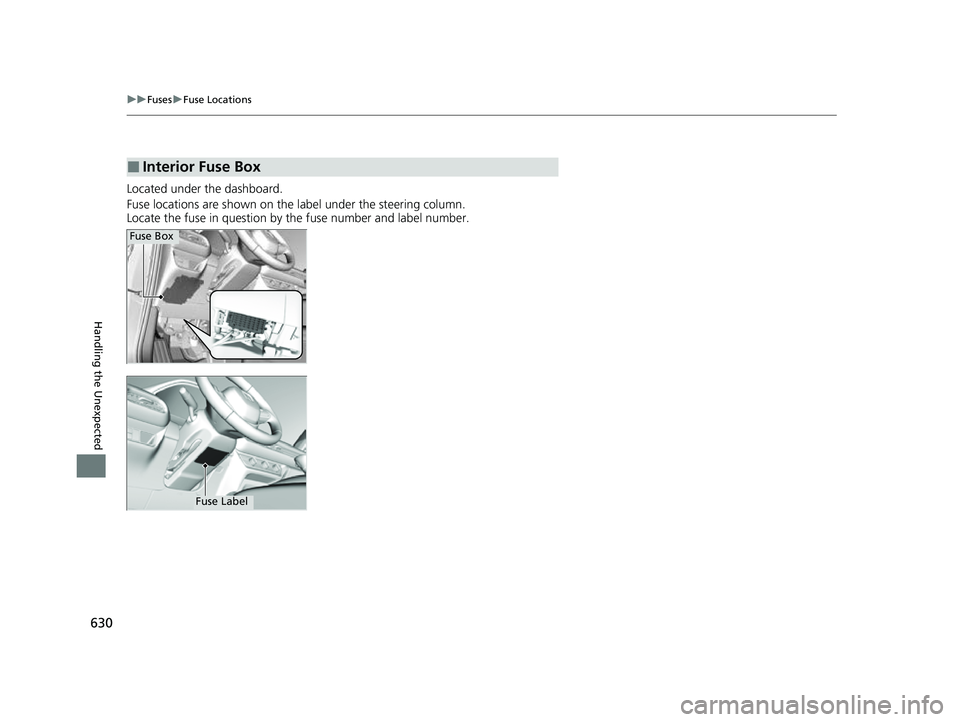

Located under the dashboard.
Fuse locations are shown on the label under the steering column.
Locate the fuse in question by the fuse number and label number.
■Interior Fuse Box
Fuse Box
Fuse Label
23 HR-V-313V06000_01.book 630 ページ ２０２２年４月４日　月曜日　午前１０時４９分

631
uuFuses uFuse Locations
Handling the Unexpected

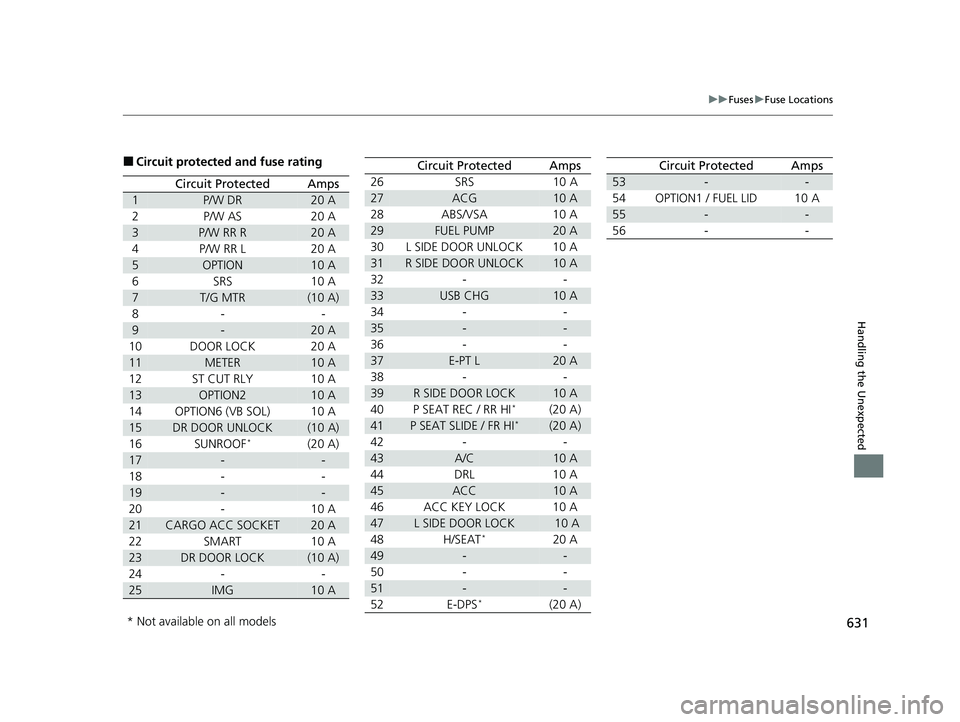

■Circuit protected and fuse rating
Circuit ProtectedAmps
1P/W DR20 A
2 P/W AS 20 A
3P/W RR R20 A
4 P/W RR L 20 A
5OPTION10 A
6 SRS 10 A
7T/G MTR(10 A)
8- -
9-20 A
10 DOOR LOCK 20 A
11METER10 A
12 ST CUT RLY 10 A
13OPTION210 A
14 OPTION6 (VB SOL) 10 A
15DR DOOR UNLOCK(10 A)
16 SUNROOF*(20 A)
17--
18 - -
19--
20 - 10 A
21CARGO ACC SOCKET20 A
22 SMART 10 A
23DR DOOR LOCK(10 A)
24 - -
25IMG10 A
26 SRS 10 A
27ACG10 A
28 ABS/VSA 10 A
29FUEL PUMP20 A
30 L SIDE DOOR UNLOCK 10 A
31R SIDE DOOR UNLOCK10 A
32 - -
33USB CHG10 A
34 - -
35--
36 - -
37E-PT L20 A
38 - -
39R SIDE DOOR LOCK10 A
40 P SEAT REC / RR HI*(20 A)
41P SEAT SLIDE / FR HI*(20 A)
42 - -
43A/C10 A
44 DRL 10 A
45ACC10 A
46 ACC KEY LOCK 10 A
47L SIDE DOOR LOCK 10 A
48 H/SEAT*20 A
49--
50 - -
51--
52 E-DPS*(20 A)
Circuit ProtectedAmps
53--
54 OPTION1 / FUEL LID 10 A
55--
56 - -
Circuit ProtectedAmps
* Not available on all models
23 HR-V-313V06000_01.book 631 ページ ２０２２年４月４日　月曜日　午前１０時４９分

632
uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses

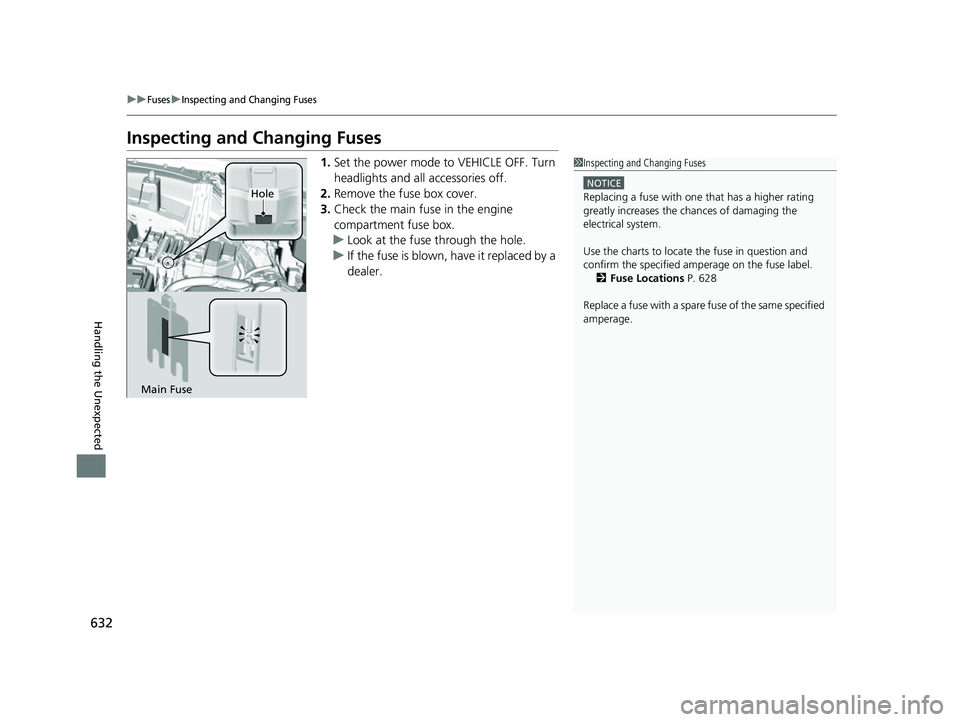

1.Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the main fuse in the engine
compartment fuse box.
u Look at the fuse through the hole.
u If the fuse is blown, have it replaced by a
dealer.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse labelM 2 Fuse Locations P. 628
Replace a fuse with a spare fuse of the same specified
amperage.Hole
Main Fuse
23 HR-V-313V06000_01.book 632 ページ ２０２２年４月４日　月曜日　午前１０時４９分

633
uuFuses uInspecting and Changing Fuses
Handling the Unexpected

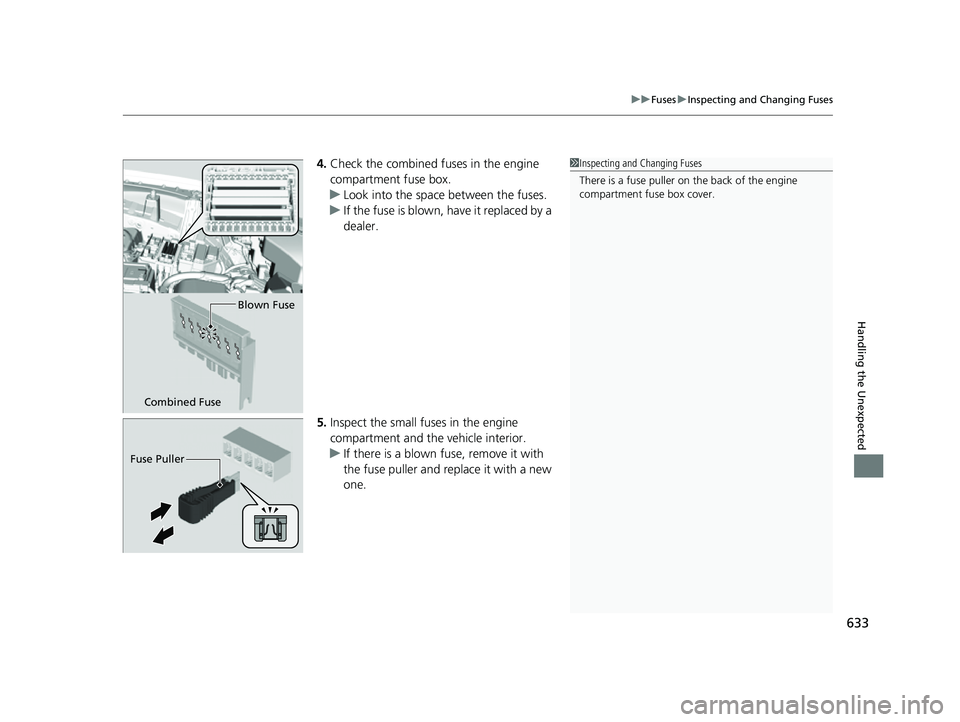

4. Check the combined fu ses in the engine
compartment fuse box.
u Look into the space between the fuses.
u If the fuse is blown, have it replaced by a
dealer.
5. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined Fuse Blown Fuse
Fuse Puller
23 HR-V-313V06000_01.book 633 ページ ２０２２年４月４日　月曜日　午前１０時４９分

634
Handling the Unexpected

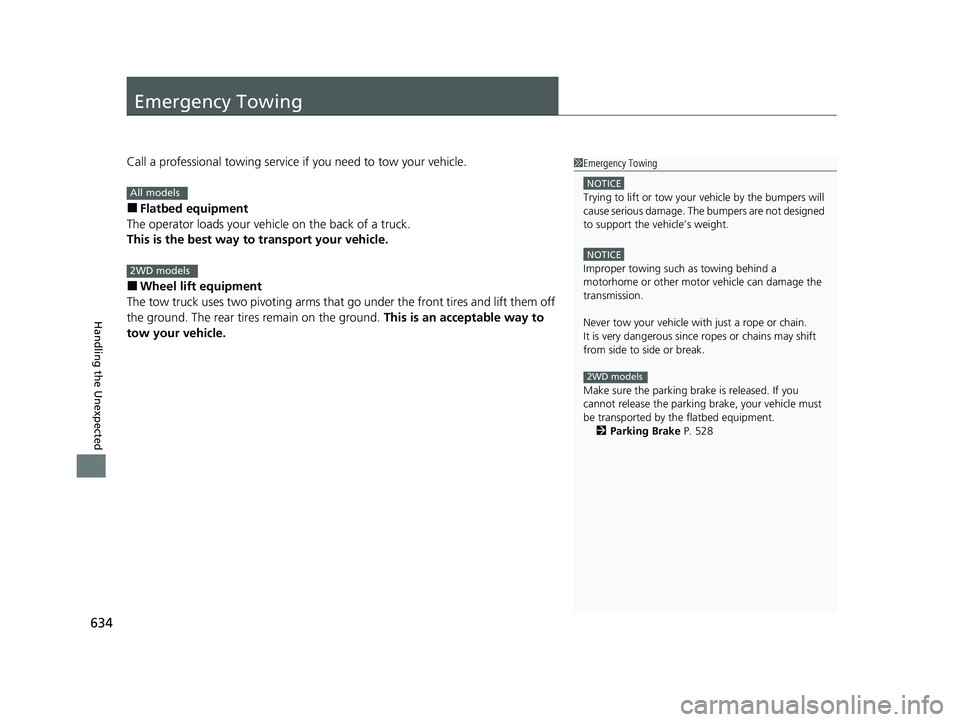

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flatbed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flatbed equipment. 2 Parking Brake P. 528
2WD models
All models
2WD models
23 HR-V-313V06000_01.book 634 ページ ２０２２年４月４日　月曜日　午前１０時４９分

635
Handling the Unexpected
If You Cannot Unlock the Fuel Fill Door

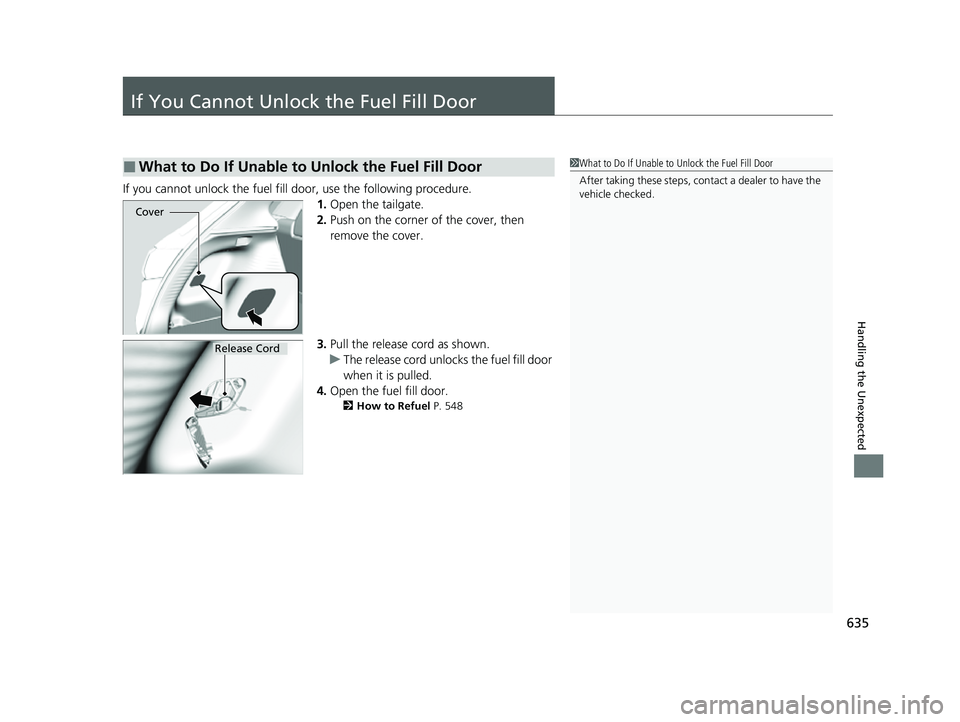

If you cannot unlock the fuel fill door, use the following procedure.1.Open the tailgate.
2. Push on the corner of the cover, then
remove the cover.
3. Pull the release cord as shown.
u The release cord unlocks the fuel fill door
when it is pulled.
4. Open the fuel fill door.
2 How to Refuel P. 548
■What to Do If Unable to Unlock the Fuel Fill Door1What to Do If Unable to Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Release Cord
23 HR-V-313V06000_01.book 635 ページ ２０２２年４月４日　月曜日　午前１０時４９分

636
Handling the Unexpected
If You Cannot Open the Tailgate

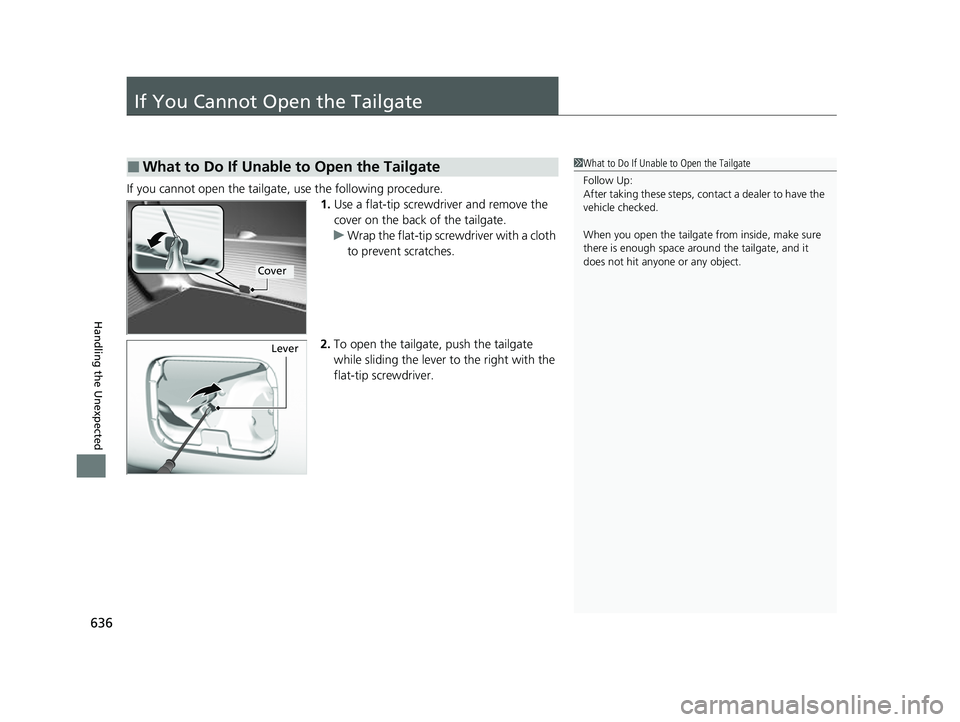

If you cannot open the tailgate, use the following procedure.1.Use a flat-tip screwdriver and remove the
cover on the back of the tailgate.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the tailgat e, push the tailgate
while sliding the lever to the right with the
flat-tip screwdriver.
■What to Do If Unable to Open the Tailgate1 What to Do If Unable to Open the Tailgate
Follow Up:
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
23 HR-V-313V06000_01.book 636 ページ ２０２２年４月４日　月曜日　午前１０時４９分

637
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container

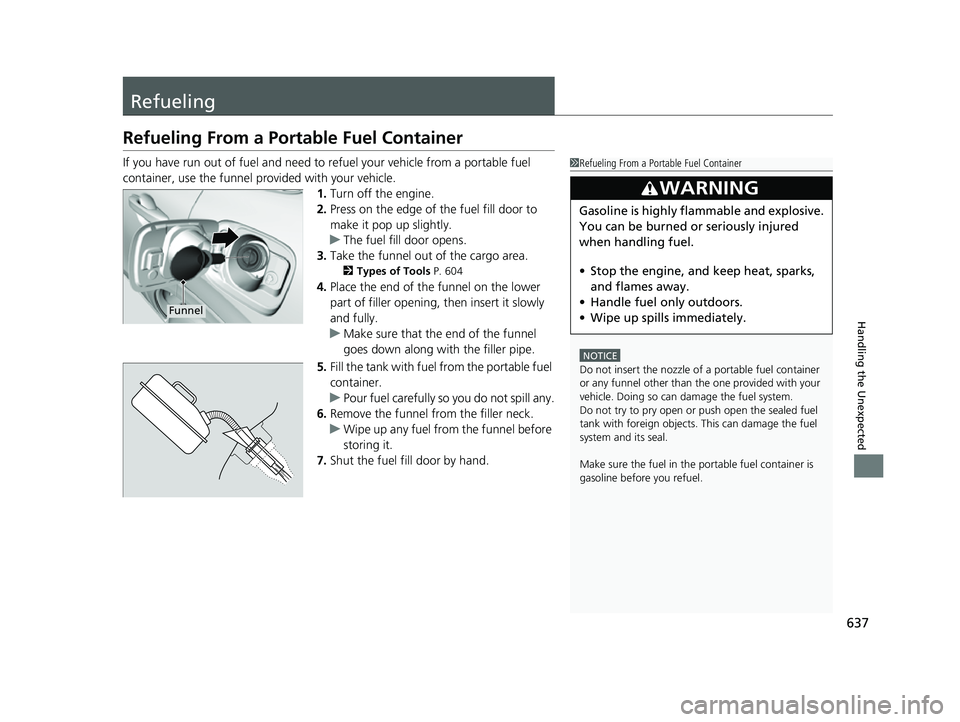

If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
u The fuel fill door opens.
3. Take the funnel out of the cargo area.
2 Types of Tools P. 604
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel systemM
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuelM
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flames away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
23 HR-V-313V06000_01.book 637 ページ ２０２２年４月４日　月曜日　午前１０時４９分
