fuses HONDA HRV 2023 Owners Manual

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
The Navigation Manual is available online at honda.ca. If you are
the first registered owner of your vehicle, you may request a
complimentary printed copy of the Navigation Manual within
the first six months of vehicle purchase. Please request a copy
from your Honda dealer.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s ma nual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 33
For Safe Driving P. 34 Seat Belts P. 39 Airbags P. 50
2Instrument Panel P. 85
Indicators P. 86 Gauges and Driver Information Interface P. 104
2Controls P. 133
Clock P. 134 Locking and Unlocking the Doors P. 136
Moonroof* P. 162
Seats P. 180 Interior Convenience Items P. 189
2 Features P. 211
Audio System P. 212 Audio System Basic Operation P. 219, 244
Customized Features P. 337, 345 Bluetooth® HandsFreeLink ® P. 369, 389
2 Driving P. 409
Before Driving P. 410 Towing a Trailer P. 415
Braking P. 528 Parking Your Vehicle P. 537
2Maintenance P. 551
Before Performing Maintenance P. 552 Maintenance MinderTM P. 555
Checking and Maintaining Wiper Blades P. 577
Climate Control System Maintenance P. 595
2Handling the Unexpected P. 603
Tools P. 604If a Tire Goes Flat P. 605
Overheating P. 620 Indicator, Coming On/Blinking P. 622 Fuses P. 628
If You Cannot Open the Ta ilgate P. 636 Refueling P. 637
2Information P. 639
Specifications P. 640 Identification Numbers P. 642
Emissions Testing P. 645 Warranty Coverages P. 647
23 HR-V-313V06000_01.book 6 ページ ２０２２年４月４日　月曜日　午前１０時４９分

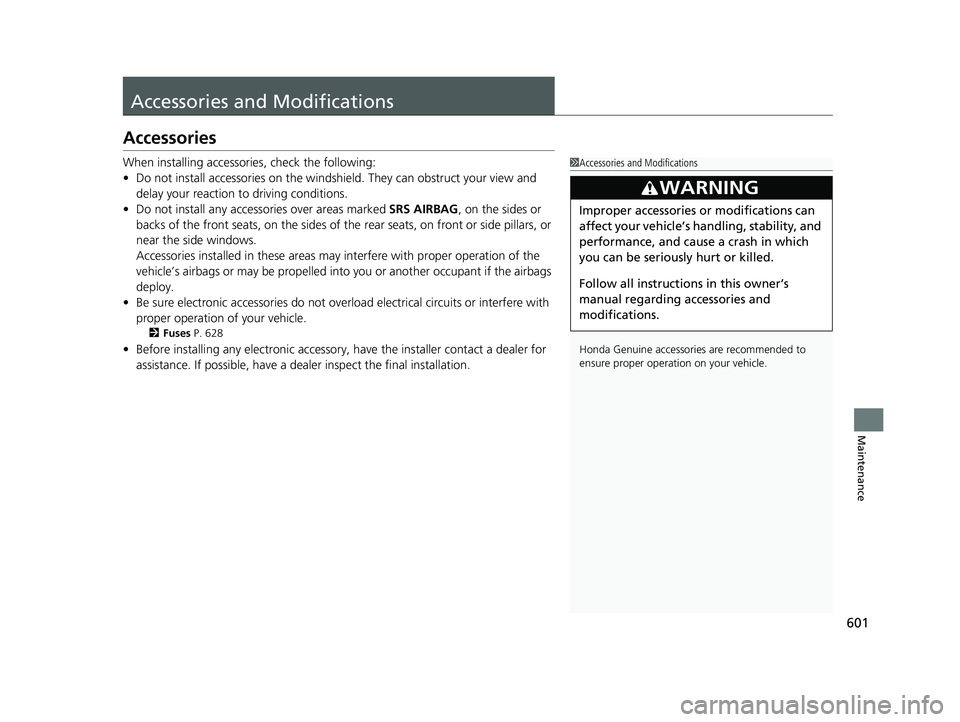

601
Maintenance
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windsh ield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any accessories over areas marked SRS AIRBAG, on the sides or
backs of the front seats, on the sides of the rear seats, on front or side pillars, or
near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not overload electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 628
•Before installing any electro nic accessory, have the installer contact a dealer for
assistance. If possible, have a deal er inspect the final installation.
1Accessories and Modifications
Honda Genuine accessor ies are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding accessories and
modifications.
23 HR-V-313V06000_01.book 601 ページ ２０２２年４月４日　月曜日　午前１０時４９分

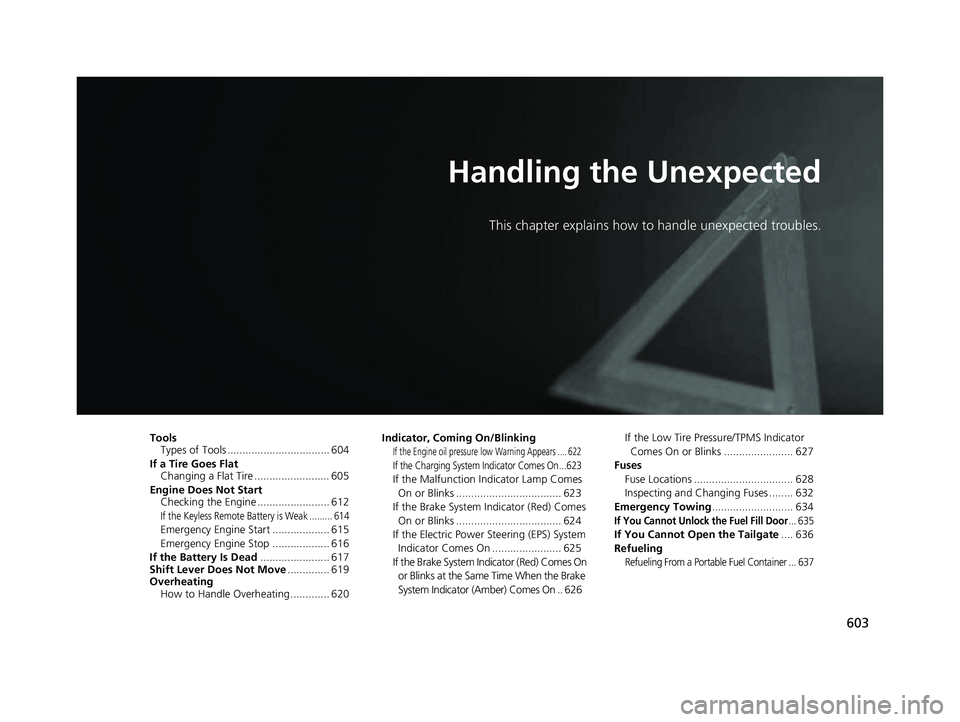

603
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 604
If a Tire Goes Flat Changing a Flat Tire ......................... 605
Engine Does Not Start Checking the Engine ........................ 612
If the Keyless Remote Battery is Weak ......... 614
Emergency Engine Start ................... 615
Emergency Engine Stop ................... 616
If the Battery Is Dead ....................... 617
Shift Lever Does Not Move .............. 619
Overheating How to Handle Overheating ............. 620 Indicator, Coming On/Blinking
If the Engine oil pressure low Warning Appears .... 622
If the Charging System Indicator Comes On ...623
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 623
If the Brake System Indicator (Red) Comes On or Blinks ................................... 624
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 625
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .. 626 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 627
Fuses Fuse Locations ................................. 628
Inspecting and Changing Fuses ........ 632
Emergency Towing ........................... 634
If You Cannot Unlock the Fuel Fill Door... 635
If You Cannot Open the Tailgate .... 636
Refueling
Refueling From a Portable Fuel Container ... 637
23 HR-V-313V06000_01.book 603 ページ ２０２２年４月４日　月曜日　午前１０時４９分

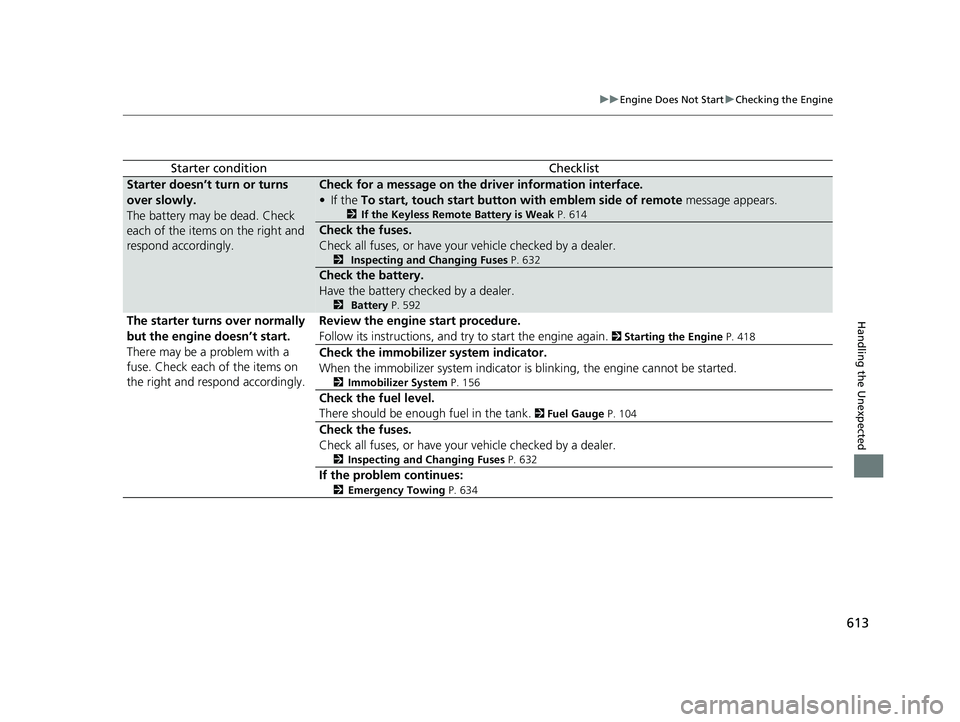

613
uuEngine Does Not Start uChecking the Engine
Handling the Unexpected
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the dr iver information interface.
• If the To start, touch start button with emblem side of remote message appears.
2If the Keyless Remote Battery is Weak P. 614
Check the fuses.
Check all fuses, or have your vehicle checked by a dealer.
2 Inspecting and Changing Fuses P. 632
Check the battery.
Have the battery checked by a dealer.
2 Battery P. 592
The starter turns over normally
but the engine doesn’t start.
There may be a problem with a
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 418
Check the immobilize r system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2 Immobilizer System P. 156
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 104
Check the fuses.
Check all fuses, or have your vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 632
If the problem continues:
2Emergency Towing P. 634
23 HR-V-313V06000_01.book 613 ページ ２０２２年４月４日　月曜日　午前１０時４９分

628
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set the power mode to VEHICLE OFF and
check to see if any app licable fuse is blown.
Located near the battery. Push the tabs to open the box.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
Fuse Box
Tab
23 HR-V-313V06000_01.book 628 ページ ２０２２年４月４日　月曜日　午前１０時４９分

629
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY125 A
2 - 40 A
- 40 A
F/BOX OPTION 60 A - 40 A
F/BOX OPTION2 40 A - (30 A)
F/BOX MAIN 60 A
3
-30 A
-30 A
-70 A
RR DEFROSTER30 A
-(40 A)
-30 A
HTR MTR40 A
4 - 30 A
ABS/VSA MTR 40 A - (30 A)
- 30 A
IG MAIN 30 A - 30 A
IG MAIN2 30 A
5
ST MAGNETIC SW30 A
WIPER30 A
EPS70 A
-30 A
ABS/VSA FSR40 A
MAIN FAN30 A
F/BOX MAIN240 A
6 SUB FAN 30 A
7BOOSTER MTR40 A
8- (30 A)
9-(20 A)
10 AUDIO SUB*(7.5 A)
11FR DEICER*(15 A)
12 - -
13H/STRG*(10 A)
14 - (10 A)
15-(15 A)
16 MG CLUTCH 10 A
17WASHER15 A
18 HORN 10 A
19BACK UP15 A
20 AUDIO (15 A)
21R/M120 A
22 DBW 15 A
23R/M220 A
24 BACKUP FI-ECU 10 A
25IGP15 A
Circuit ProtectedAmps
26 TCU 15 A
27LCM L20 A
28 - (20 A)
29STOP10 A
30 LCM R 20 A
31IG COIL15 A
32 - -
33HAZARD15 A
34 - -
35--
36 - -
37-(30 A)
38 - -
39--
40 - (7.5 A)
41IGPS [LAF]10 A
42 IG1 MON2 10 A
Circuit ProtectedAmps
* Not available on all models
23 HR-V-313V06000_01.book 629 ページ ２０２２年４月４日　月曜日　午前１０時４９分

630
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label under the steering column.
Locate the fuse in question by the fuse number and label number.
■Interior Fuse Box
Fuse Box
Fuse Label
23 HR-V-313V06000_01.book 630 ページ ２０２２年４月４日　月曜日　午前１０時４９分

631
uuFuses uFuse Locations
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1P/W DR20 A
2 P/W AS 20 A
3P/W RR R20 A
4 P/W RR L 20 A
5OPTION10 A
6 SRS 10 A
7T/G MTR(10 A)
8- -
9-20 A
10 DOOR LOCK 20 A
11METER10 A
12 ST CUT RLY 10 A
13OPTION210 A
14 OPTION6 (VB SOL) 10 A
15DR DOOR UNLOCK(10 A)
16 SUNROOF*(20 A)
17--
18 - -
19--
20 - 10 A
21CARGO ACC SOCKET20 A
22 SMART 10 A
23DR DOOR LOCK(10 A)
24 - -
25IMG10 A
26 SRS 10 A
27ACG10 A
28 ABS/VSA 10 A
29FUEL PUMP20 A
30 L SIDE DOOR UNLOCK 10 A
31R SIDE DOOR UNLOCK10 A
32 - -
33USB CHG10 A
34 - -
35--
36 - -
37E-PT L20 A
38 - -
39R SIDE DOOR LOCK10 A
40 P SEAT REC / RR HI*(20 A)
41P SEAT SLIDE / FR HI*(20 A)
42 - -
43A/C10 A
44 DRL 10 A
45ACC10 A
46 ACC KEY LOCK 10 A
47L SIDE DOOR LOCK 10 A
48 H/SEAT*20 A
49--
50 - -
51--
52 E-DPS*(20 A)
Circuit ProtectedAmps
53--
54 OPTION1 / FUEL LID 10 A
55--
56 - -
Circuit ProtectedAmps
* Not available on all models
23 HR-V-313V06000_01.book 631 ページ ２０２２年４月４日　月曜日　午前１０時４９分

632
uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1.Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the main fuse in the engine
compartment fuse box.
u Look at the fuse through the hole.
u If the fuse is blown, have it replaced by a
dealer.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse labelM 2 Fuse Locations P. 628
Replace a fuse with a spare fuse of the same specified
amperage.Hole
Main Fuse
23 HR-V-313V06000_01.book 632 ページ ２０２２年４月４日　月曜日　午前１０時４９分

633
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
4. Check the combined fu ses in the engine
compartment fuse box.
u Look into the space between the fuses.
u If the fuse is blown, have it replaced by a
dealer.
5. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined Fuse Blown Fuse
Fuse Puller
23 HR-V-313V06000_01.book 633 ページ ２０２２年４月４日　月曜日　午前１０時４９分
