ÎÎIf you must drive the car a short
distance in this condition, drive
slowly and cautiously.
Slow down by shif ting to a lower
gear, and pull to the side of the road
when it is saf e. Because of the
longer distance needed to stop, it is
hazardous to drive the car. You
should have it towed, and repaired as
soon as possible. (See
on page .)
However, if the brake pedal does not
f eel normal, you should take
immediate action. Because of the
brake system’s dual-circuit design, a
problem in one part of the system
will still give you braking at two
wheels. You will f eel the brake pedal
go down much f arther bef ore the car
begins to slow down, and you will
have to press harder on the pedal.
The distance needed to stop will be
much longer.
If it comes on at any other time, it
indicates a problem with the car’s
brake system. In most cases, the
problem is a low f luid level in the
brake f luid reservoir. Press lightly on
the brake pedal to see if it f eels
normal. If it does, check the brake
f luid level the next time you stop at a
service station (see page ). If the
fluid level is low, take the car to your
dealer and have the brake system
inspected f or leaks or worn brake
pads.
The Brake System Indicator is a
reminder to check the parking brake.
It comes on and stays lit if you do not
f ully release the parking brake. 181
239
Emergency
Towing
Brake System Indicator
T aking Care of t he Unexpect ed
232
BBRRAAKKEESSYYSSTTEEMMIINNDDIICCAATTOORR
UU..SS..iinnddiiccaattoorrsshhoowwnn

All the electrical circuits in your car
have fuses to protect them from a
short circuit or overload. These
f uses are located in two f use boxes.The interior f use is underneath the
dashboard on the driver’s side.
Remove the storage pocket by
swinging the lid down, pushing up,
and pulling it straight out of its
hinges.The under-hood f use box is located
in the engine compartment. To open
it, push the tab as shown.
Fuses
T aking Care of t he Unexpect ed
233
IINNTTEERRIIOORRTTAABBUUNNDDEERR--HHOOOODD

If something electrical in your car
stops working, the f irst thing you
should check f or is a blown f use.
Determine f rom the chart on pagesand , or the diagram on the
fuse box lid, which fuse or fuses
control that component. Check those
f uses f irst, but check all the f uses
bef ore deciding that a blown f use is
not the cause. Replace any blown
f uses and check the component’s
operation.
Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are off.
Remove the cover f rom the f use
box. Check each of the large f uses in
the under-hood f use box by
looking through the top at the wire
inside. Removing these f uses
requires a Phillips-head screw-
driver.
Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse boxes by
pulling out each f use with the f use
puller provided in the under-hood
fuse box.
3.
1. 2. 4.
235 236
Checking and Replacing Fuses
Fuses
T aking Care of t he Unexpect ed
234

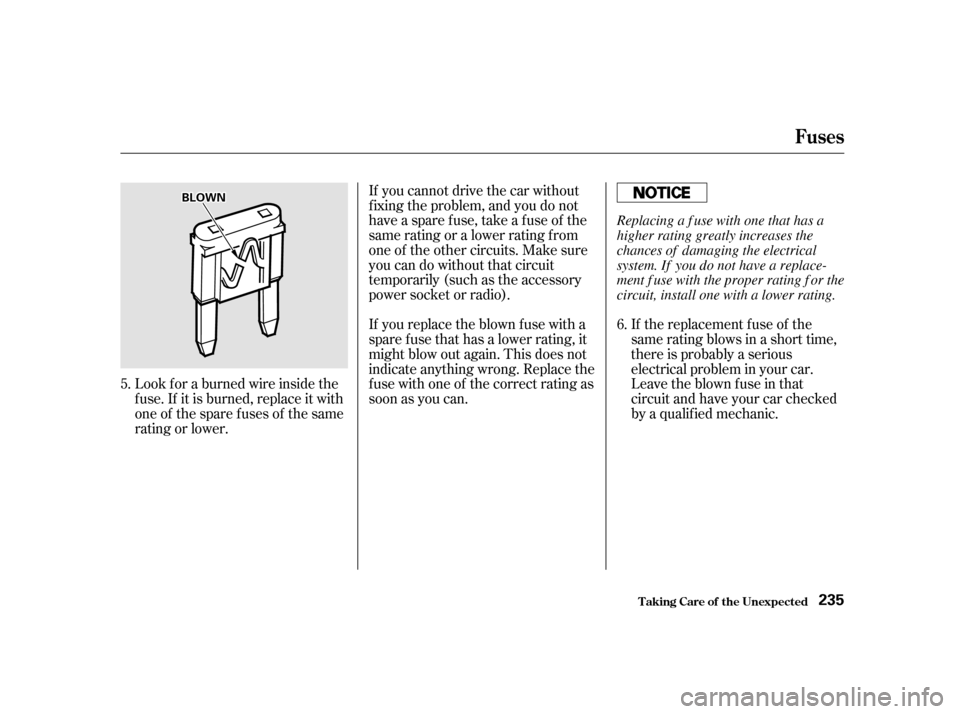

BBLLOOWWNN
FFUUSSEEPPUULLLLEERR
FFUUSSEE

Look f or a burned wire inside the
f use. If it is burned, replace it with
oneof thesparefusesof thesame
rating or lower.If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your car.
Leave the blown fuse in that
circuit and have your car checked
by a qualif ied mechanic.
If you cannot drive the car without
f ixing the problem, and you do not
have a spare fuse, take a fuse of the
same rating or a lower rating f rom
one of the other circuits. Make sure
youcandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can.
5. 6.
Fuses
T aking Care of t he Unexpect ed
235
BBLLOOWWNN
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a replace-
ment f use with the proper rating f or the
circuit, install one with a lower rating.

Î Î
µ µ µ
Î
No. Amps. Circuits Protected Circuits Protected
No. Amps.
1 23456789
10 10 A
15 A
20 A
7.5 A
7.5 A
7.5 A 15 A
20 A
7.5 A 20 A SRS
Fuel Pump, SRS
Front Wiper
FI-ECU
Turn Light
Meter
IG Coil
Power Window, Passenger
Starter Signal
Power Window, Driver ACC Radio
ACC Socket
Not used
Not used
Small Light
Air Conditioning, R/C
Mirror
Daytime Running Light
Back Up Light
Interior Light
Radio
Daytime Running Light
Door Lock
Tailgate Lock
IMA
Not used
Rear Wiper
Back Light
111213141516 17 18192021222324252627
7.5 A
10 A
10 A
7.5 A
7.5 A
7.5 A
7.5 A 10 A
10 A
20 A
7.5 A
7.5 A
10 A
7.5 A
: Canadian model only
Fuses
T aking Care of t he Unexpect ed
236
INTERIOR FUSE BOX

µµ
No. Amps. Circuits Protected No. Amps. Circuits Protected
1 23456789
10 50 A
80 A
30 A
10 A
15 A
10 A
15 A
15 A
15 A IG1 Main
Battery
ABS Motor
Hazard
IMA
Horn Stop
Fuel Pump
Lef t Headlight
Not used
Right Headlight 1112131415161718192030 A
40 A
30 A
20 A
40 A
30 A
40 A
7.5 A 20 A Cooling Fan
Heater Motor
Rear Defroster
ABS F/S
Power Steering
Back Up, ACC
Power Window
IMA ECU
Condenser Fan
Spare Fuse
Fuses
T aking Care of t he Unexpect ed
237
UNDER-HOOD FUSE BOX

If your car gets stuck in sand, mud,
or snow, call a towing service to pull

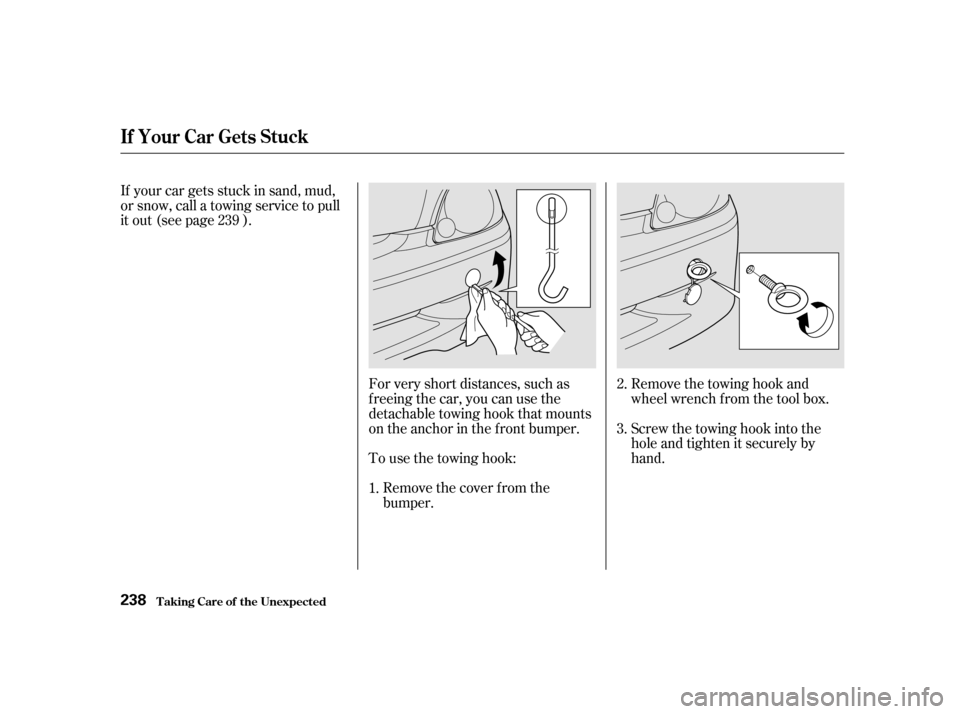

it out (see page ).To use the towing hook:Remove the cover f rom the
bumper. Remove the towing hook and
wheel wrench f rom the tool box.
Screw the towing hook into the
hole and tighten it securely by
hand.
For very short distances, such as
freeing the car, you can use the
detachable towing hook that mounts
on the anchor in the f ront bumper. 1. 2. 3.
239
If Your Car Gets Stuck
T aking Care of t he Unexpect ed
238

µ
µ
µ
There are three popular types of
prof essional towing equipment.
The tow
truck uses two pivoting arms that go
under the tires (f ront or rear) and lif t
them of f the ground. The other two
tires remain on the ground.
If your car needs to be towed, call a
prof essional towing service or, if you
belong to one, an organization that
provides roadside assistance. Never
tow your car behind another vehicle
with just a rope or chain. It is very
dangerous.
The operator
loads your car on the back of a truck.
The tow
truck uses metal cables with hooks on the ends. These hooks go around
parts of the f rame or suspension and
the cables lif t that end of the car of f
the ground. Your car’s suspension
and body can be seriously damaged.
If your Honda cannot be transported
by f lat-bed, it should be towed by
wheel-lif t equipment with the f ront
wheels of f the ground. If due to
damage, your car must be towed
with the f ront wheels on the ground,
do the f ollowing:
With the f ront wheels on the ground,
it is best to tow the car no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
If your car is equipped with a f ront
spoiler, remove it bef ore towing so it
is not damaged.
Release the parking brake.
Shif t the transmission to Neutral.
Release the parking brake.
Start the engine.
ShifttoD,thentoN.
Turn of f the engine.
CONT INUED
5-speed Manual Transmission
Automatic Transmission
Wheel-lif t Equipment
Flat -bed Equipment
Sling-t ype Equipment
T his is
an acceptable way to tow your
Honda.
This is the best way to transport
your Honda. T his method of towing is
unacceptable.
Emergency T owing
T aking Care of t he Unexpect ed
239
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission, your car must be
transported with the f ront wheels of f
the ground.

If you decide to tow your car with all
f our wheels on the ground, make
sure you use a properly-designed and
attached tow bar. Prepare the car for
towing as described above, and leave
the ignition switch in Accessory (I)
so the steering wheel does not lock.
Make sure the radio and any items
plugged into the accessory power
socket are turned of f so they do not
rundownthebattery.
Emergency T owing
T aking Care of t he Unexpect ed
240 Trying to lif t or tow your car by the
bumpers will cause serious damage.
The bumpers are not designed to
support the car’s weight.
The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in Accessory (I), and
make sure the steering wheel turns
f reely bef ore you begin towing.

Thediagramsinthissectiongive
you the dimensions and capacities of
your Honda, and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.................
Identif ication Numbers . 242
................................
Specif ications . 244
DOT Tire Quality Grading
......................
(U.S. Vehicles) . 246
Unif orm Tire Quality
..................................
Grading . 246
.................................
Treadwear . 246
......................................
Traction . 246
.............................
Temperature . 247 .........................
Oxygenated Fuels . 248
......
Driving in Foreign Countries . 249
.......................
Emissions Controls . 250
.....................
The Clean Air Act . 250
Crankcase Emissions Control
....................................
System . 250
Evaporative Emissions Control ....................................
System . 250
Onboard Ref ueling Vapor ................................
Recovery . 250
...
Exhaust Emissions Controls . 251
....................
PGM-FI System . 251
Ignition Timing Control
................................
System . 251
Three Way Catalytic ...........................
Converter . 251
....................
Replacement Parts . 251
..
Three Way Catalytic Converter . 252
..............
State Emissions Testing . 253
T echnical Inf ormat ion
