bulb HONDA INSIGHT 2002 1.G Owners Manual

If the indicator remains lit after
you have f ully released the
parking brake while the engine is
running, or if it comes on while
driving, it can indicate a problem
in the brake system. For complete
inf ormation, see page .
See page .
This light normally comes on f or a
f ew seconds when you turn the
ignition switch ON (II), and when
the ignition switch is turned to
START (III). If this light comes on at
any other time, there is a problem in
theABS.If thishappens,takethecartoyourdealertohaveitchecked.
With the light on, your car still has
normal braking ability but no anti-
lock. For complete inf ormation, see
page .
On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights
(DRL) are on (see page ). This light comes on with the high
beam headlights. See page for
inf ormation on the headlight
controls.
WhenyouturnontheHazard
Warning switch, both turn signal
lights blink. All turn signals on the outside of the car should f lash.
The lef t or right turn signal light
blinks when you signal a lane change
or turn. If the light does not blink or
blinks rapidly, it usually means one
of the turn signal bulbs is burned out
(see page ). Replace the bulb as
soon as possible, since other drivers
cannot see that you are signalling. This light comes on as a reminder
that you must ref uel soon. This light comes on if either door or
the hatch is not closed tightly.
2.
61
62
230
228
199 148
Malf unction Indicator
Lamp
Anti-lock Brake System (ABS)
IndicatorHigh Beam Indicator
Turn Signal and
Hazard Warning
Indicators Low Fuel Indicator Door-open Indicator
Indicator L ights
Inst rument s and Cont rols48
U.S. Canada

This section also includes
Maintenance Schedules f or normal
driving and severe driving conditions,
a Maintenance Record, and instruc-
tions f or simple maintenance tasks
you may want to take care of
yourself .
If you have the skills and tools to per-
f orm more complex maintenance
tasks on your Honda, you may want
to purchase the Service Manual. See
page f or inf ormation on how to
obtain a copy, or see your Honda
dealer. This section explains why it is
important to keep your car well
maintained and to f ollow basic
maintenance saf ety precautions.......................
Maintenance Saf ety .152
.
Important Safety Precautions . 153
.................
Maintenance Schedule . 154
...
Required Maintenance Record . 161
.......
Owner Maintenance Checks . 163
..............................
Fluid Locations .164
......................................
Engine Oil .165
..................................
Adding Oil .165
....................
Recommended Oil .165
..............................
Synthetic Oil .166
....................................
Additives .166
.....
Changing the Oil and Filter . 167
.............................
Cooling System .169
............
Adding Engine Coolant . 169
.......
Replacing Engine Coolant . 171
....................
Windshield Washers .175
.......................
Transmission Fluid .176
Automatic Transmission .....................................
(CVT) .176
5-speed Manual .........................
Transmission .178
................
Brake and Clutch Fluid . 179
............................
Brake System .179
...........................
Clutch System .180
.....................
Air Cleaner Element .181
....................................
Hood Latch .182 ...........................................
Battery .183
.................................
Wiper Blades .185
..............
Air Conditioning System . 188
..................
DustandPollenFilter . 189
.....................................
Drive Belts .189
...............................................
Tires .190
......................................
Inf lation .190
Recommended Tire Pressures f or Normal ...............................
Driving .191
..................................
Inspection .192
..............................
Maintenance .192
.............................
Tire Rotation .193
...
Replacing Tires and Wheels . 193
......................
Wheels and Tires .194
..........................
Winter Driving .194
.............................
Snow Tires .195
............................
Tire Chains .195
.............................................
Lights .196
........................
Replacing Bulbs .198
...........................
Storing Your Car .204
259
Maintenance
Maint enance151

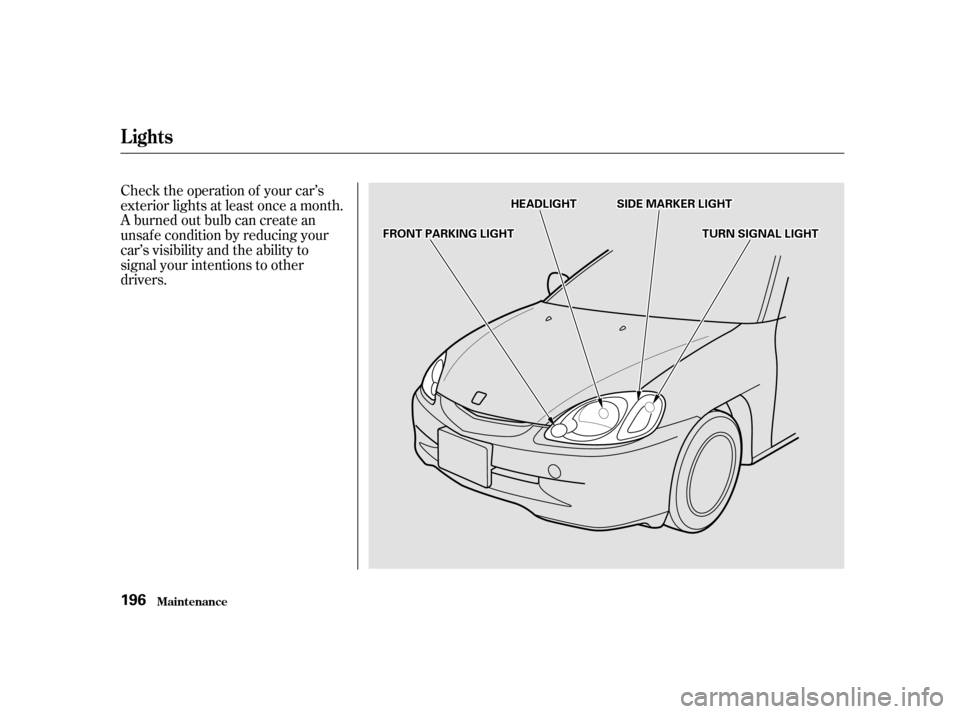

Check the operation of your car’s
exterior lights at least once a month.
A burned out bulb can create an
unsaf e condition by reducing your
car’s visibility and the ability to
signal your intentions to other
drivers.
Lights
Maint enance196
S SIIDD E
E M
M A
AR
RKKEER
R L
LIIGGH HT
T
T
T U
UR RNN S
SIIGGN NAAL
L L
LIIGGH HT
T
F
FR RO ON NTT P
PA
A R
RKKIINNG G L
LIIGGH HT
TH
H
E
EA
A D
DL
LIIGGH HT
T

Check the f ollowing:Headlights (low and high beam)
Parking lights
Taillights
Brake lights
High-mount brake light
Turn signals
Back-up lights
Hazard light f unction
License plate light
Side marker lights
Daytime running lights
(Canadian models)
If youfindanybulbsareburnedout,
replace them as soon as possible.
Refer to the chart on page to
determinewhattypeof replacement
bulb is needed. 243
Lights
Maint enance197
H H
I
IGGH H-
-M
M O
OUUNNTT B
BRRAA K
KEE L
LIIGGH HT
T
S
STTO
OP P/
/T
T A
A I
ILLL LIIGGH HT
T
T
T U
UR RNN S
SIIGGN NAAL
L
L
LI IGGH HT
T
B
BA A C
CKK--U
UP P L
LIIGGH HT
T
L
LI
ICCE EN
NS SEE P
PL
LAA T
TE
E L
LIIGGH HT
T

Open the hood.Remove the electrical connector
f rom the bulb by squeezing the
connector on both sides to unlock
the tab. Pull the connector straight
off.
Remove the rubber weather seal
by pulling on the tab.
If you need to change the head-
light bulb on the driver’s side,
remove the engine coolant
reservoir tank by pulling it out of
its holder.
Your car has halogen headlight
bulbs, one on each side. When
replacing a bulb, handle it by its steel
base and protect the glass from
contactwithyourskinorhard
objects. If you touch the glass, clean
it with denatured alcohol and a clean
cloth. Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
cargo area, readjustment may be
required. Adjustment of the
headlights should be perf ormed by a
Honda technician or other qualif ied
mechanic.
1.2.
3.
Lights
Maint enance
Headlight A iming
Replacing a Headlight Bulb
198
H HO
OL LDD E
ER
R W
WEEA
A T
TH
H E
ER
R S
SEEA
A L
L B
BUUL LBB
C
CO ON NNNEEC
CT TO
OR R H
HO
OL LDD -
-D
D O
OW WN N W
WIIRRE E
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.

CONT INUED
Unclip the end of the hold-down
wire f rom its slot. Pivot it out of
the way and remove the bulb.
Insert the new bulb into the hole,
making sure the tabs are in their
slots. Pivot the hold-down wire
back in place and clip the end into
the slot.
Install the rubber seal over the
back of the headlight assembly.
Make sure it is right side up; it is
marked ‘‘TOP.’’
Push the electrical connector onto
the tabs of the new bulb. Make
sure it locks in place.
Turn on the headlights to test the
new bulb.
Reinstall the radiator reserve tank.Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket.
Install the new bulb into the
socket.Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Testthelightstomakesurethe
new bulb is working.
If you are changing the bulb on
the driver’s side, start the engine,
turn the steering wheel all the way
to the right, and turn off the
engine. If you are changing the
bulb on the passenger’s side, turn
the steering wheel to the left.
4.
5.
6.
7.
8.
1.
1.
2.
3. 4.
5.
Lights
Maint enance
Replacing the Front Parking
Lights
Replacing the Front Side Marker/
Turn Signal and Parking L ight
Bulb
199

Pull the inner f ender cover back.Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Remove the burned out bulb f rom
thesocketbypushingitinand
turning the bulb counterclockwise
until it unlocks.Install the new bulb in the socket.
Turn it clockwise to lock it in place.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Testthelightstomakesurethe
new bulb is working.
Use a Phillips-head screwdriver to
remove the screw f rom the top of
the f ender. Put the inner f ender cover in place.
Tighten the screw securely.
3. 2. 4.
5.6.
7.
8.
9.
Lights
Maint enance200

CONT INUED
Open the hatch.Determine which bulb, stop/
taillight, back-up light, side marker
light or turn signal is burned out.
Remove the socket f or that bulb
by turning counterclockwise.
Pull the cover back.
Loosen the nut holding the rear
light assembly. Remove the two covers. Remove
the two screws holding the rear
light assembly. Remove the light
assembly.
Push the new bulb straight into
the socket until it bottoms. Pull the bulb straight out of its
socket.
3. 2.
4.
5.
6.
7.
1.
Lights
Maint enance
Replacing Rear Bulbs
201
C CO
OV VE
ER
R

Reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Testthelightstomakesurethe
new bulb is working.
Reinstall the light assembly and
tighten the two screws and nut.
Reinstall the two covers.Push the new bulb straight into
the socket until it bottoms.
Use a Phillips-head screwdriver to
remove the two screws holding
the license plate light lens.
Pull the bulb straight out of its
socket.
Turn on the parking lights and
check that the new bulb is
working.
Reinstall the two screws and
tighten them securely.
3. 2.
4.
5.
1.
8.
9.
11. 10.
Lights
Maint enance
Replacing a Rear License Plate
Bulb
202

Removethelensbycarefully
prying on the edge of the lens in
the middle with a f ingernail f ile or
a small f lat-tip screwdriver. Do not
pry on the edge of the housing
around the lens.
Remove the bulb by pulling it
straight out of its metal tabs.
Push the new bulb into the metal
tabs. Snap the lens back in place.Removethelensbycarefully
prying on the edge of the lens in
the middle with a f ingernail f ile or
a small f lat-tip screwdriver. Do not
pry on the edge of the housing
around the lens.
1.
2.
3. 1.
Lights
Maint enance

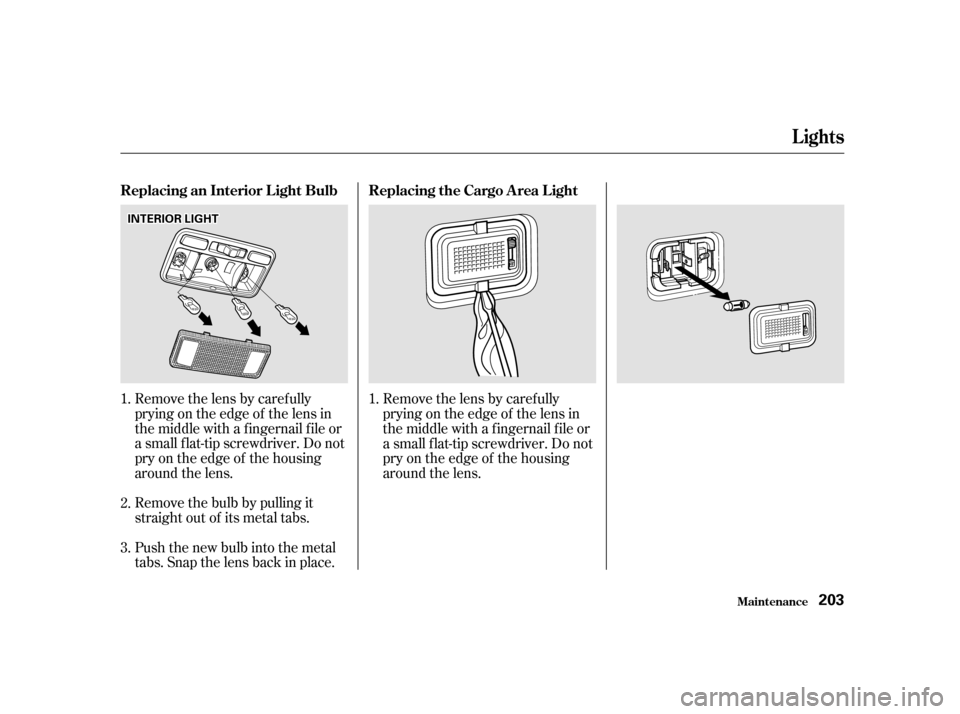

Replacing an Interior L ight Bulb Replacing the Cargo A rea L ight
203
I IN
NT TE
ER
RI IOOR R L
LIIGGH HT
T
