clock HONDA INSIGHT 2002 1.G Owners Manual

The rear window def ogger will clear
fog,frost,andthinicefromthe
window. Push the def ogger button to
turn it on and of f . The light in the
button lights to show the def ogger is
on. If you do not turn it of f , the
def ogger will shut itself of f af ter
about25minutes.Italsoshutsoff
when you turn of f the ignition. You
have to turn it on again when you
restart the car.

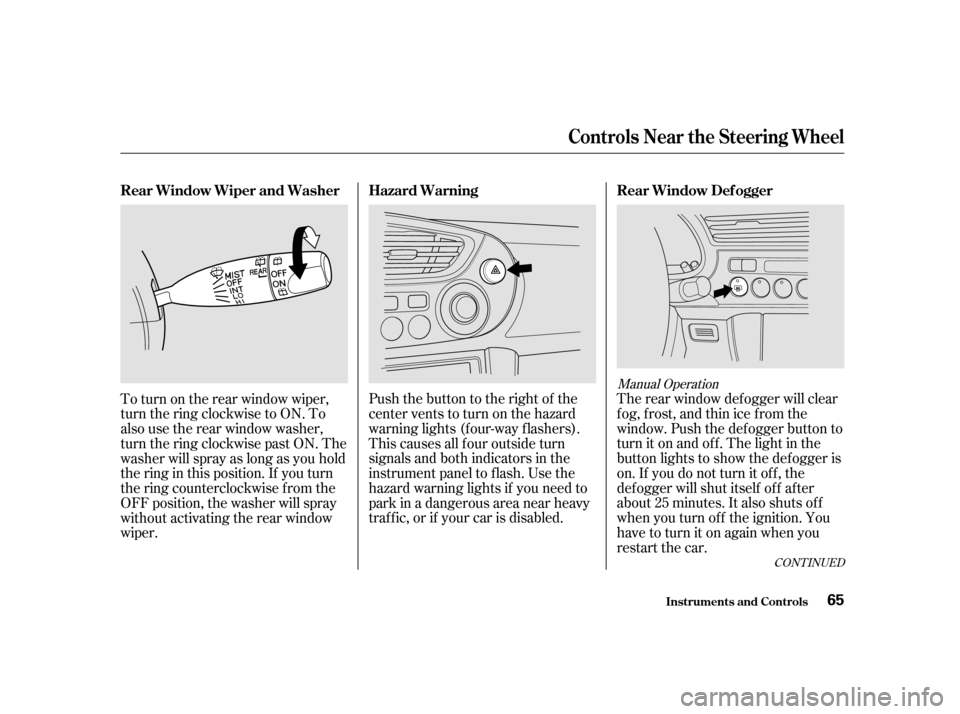

Push the button to the right of the
center vents to turn on the hazard
warning lights (f our-way f lashers).
This causes all f our outside turn
signals and both indicators in the
instrument panel to f lash. Use the
hazard warning lights if you need to
park in a dangerous area near heavy
traf f ic, or if your car is disabled.
To turn on the rear window wiper,
turn the ring clockwise to ON. To
also use the rear window washer,
turn the ring clockwise past ON. The
washer will spray as long as you hold
the ring in this position. If you turn
the ring counterclockwise f rom the
OFF position, the washer will spray
without activating the rear window
wiper.
CONT INUED
Manual Operation
Rear Window Def ogger
Hazard Warning
Rear Window Wiper and Washer
Controls Near the Steering Wheel
Inst rument s and Cont rols65

The doors can also be locked and
unlocked f rom the outside with the
key.Usethemasterkeytolockand
unlock the hatch. The valet key does
not work in this lock.
To lock the hatch, turn the key
counterclockwise. To unlock the
hatch, turn it clockwise.
Each door has a lock tab next to the
inside door handle. Push the tab in to
lock the door, and pull it out to
unlock.
To lock the passenger’s door when
getting out of the car, push the lock
tab in and close the door. To lock the
driver’s door, pull the door handle
andpushthelocktabin.Releasethe
handle, then close the door.
CONT INUED
Hatch
Door L ocks
Keys and Locks
Inst rument s and Cont rols71
L LO OC CKK T
TA
A B
B

See page f or cargo loading and
weight limit inf ormation. Keep the
hatch closed at all times while
driving to avoid damaging the hatch
and to prevent exhaust gas from
getting into the interior. Seeon page .
To open the hatch, push the lever
behind the hatch’s back edge. To
close the hatch, push down on the
back edge. If you need to use this procedure to
open the hatch, your car may be
developing a problem. Have the
vehicle checked by your Honda
dealer. If an unlocked hatch does not open,
turn the key clockwise past the
unlock position. Open the hatch as
youholdthekeyinthatposition.
40
129
Carbon
Monoxide Hazard
Inst rument s and Cont rols
Keys and Locks
72
L LO OC CKK
M
M A
AS
STTE
ER
R K
KEEY
Y U
UN
NLLOOC CKK
P
P O
OS SIITT I
IOON N

When the remote transmitter’s
battery begins to get weak, it may
take several pushes on the button to
lock or unlock the doors, and the
LED will get dim. Replace the
battery as soon as possible.
Battery type: CR2025To replace the battery, remove the
round cover on the back of the trans-
mitter by turning it counterclockwise
with a coin.
Panic mode allows you to remotely
activate your car’s security system to
attract attention. When activated, the
horn will sound, and the exterior
lights will f lash f or about 30 seconds.
To activate panic mode, press and
hold the PANIC button for about one
second.
To cancel Panic mode bef ore 30
seconds, press any button on the
remote transmitter. You can also
turn the ignition switch to ON (II).
Panic Mode
Replacing t he Bat t ery
Keys and Locks
Inst rument s and Cont rols74
O Oppe
enn
C
Cl loo s
see

´
Ü
Õ
Remove the old battery and note the
polarity. Make sure the polarity of
the new battery is the same ( side
f acing up), then insert it in the
transmitter. Avoid severe shock to the trans-
mitter, such as dropping or throwing
it. Also, protect it f rom extreme hot
or cold temperatures.
Clean the transmitter case with a
sof t cloth. Do not use strong
cleaners or solvents that could harm
the case. Immersing the transmitter
in any liquid will harm the trans-
mitter and cause it to not f unction
properly.
If you lose a transmitter, you will
need to have the replacement
programmed to your vehicle’s
system by your Honda dealer. Any
other transmitters you have will also
need to be reprogrammed.
Align the mark on the cover
with the mark on the
transmitter, then set the cover in
place and turn it clockwise.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Transmitter Care
Keys and Locks
Inst rument s and Cont rols75
B BA
A T
TT
TE
ER
RY Y R
ROOU UNNDD
C
CO OV VE
ER
R

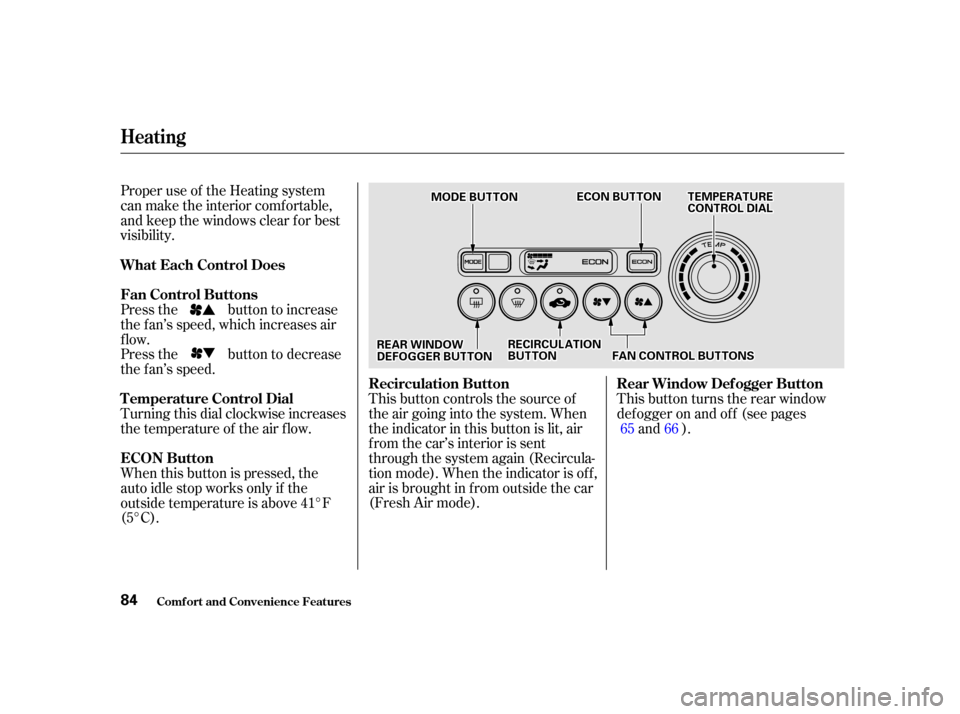

This button controls the source of
the air going into the system. When
the indicator in this button is lit, air
from the car’s interior is sent
through the system again (Recircula-
tion mode). When the indicator is off,
air is brought in f rom outside the car
(Fresh Air mode).
Proper use of the Heating system
can make the interior comf ortable,
and keep the windows clear f or best
visibility.
This button turns the rear window
def ogger on and of f (see pagesand ).
Press the button to increase
the f an’s speed, which increases air
flow.
Press the button to decrease
the f an’s speed.
When this button is pressed, the
auto idle stop works only if the
outside temperature is above 41°F
(5°C). Turning this dial clockwise increases
the temperature of the air flow.
65 66
Comf ort and Convenience Feat ures
Recirculation ButtonRear Window Def ogger Button
What Each Control Does
Fan Control Buttons
ECON Button T emperature Control Dial
Heating
84
R RE
EC
CI IRRC CUUL LAA T
TI
IOON N
B
BU UT TT
TO
ON N E
E
C
CO ON N B
BUUT TT
TO
ON N
R
RE EA
A R
R W
WI INND DO
OW W
D
D E
EF
FOOG GGGEER
R B
BUUT TT
TO
ON N
M
M
O
ODDE
E B
BUUT TT
TO
ON N
F
FAA N
N C
COON NTTR
RO OL L B
BUUT TT
TO
ON NSS
T
T
E
EM
M P
PE
ER
RA A T
TU
UR REE
C
CO ON NTTR
RO OL L D
DI
IAA L
L

For inf ormation, See page .To set the time, press the CLOCK
(TAPE/CD) button for more than
twoseconds.Tosetthehours,press
the H (Preset 4) button. The hour
numbers will begin blinking. Keep
pressing the button until the
numbers advance to the desired time.To set the minutes, press the M
(Preset 5) button. The minutes
numbers will begin blinking. Keep
pressing the button until the
numbers advance to the desired time.
You can use the instrument panel
brightness control buttons to adjust
the illumination of the audio system
(see page ). The audio system
illuminates when the parking lights
are on, even if the radio is turned of f .
The audio system usually shows the
time when the ignition switch is in
ACCESSORY (I) or ON (II). It
shows the operation mode of the
radio, cassette player, or optional CD
changer when you operate them,
then goes back to the time display
af ter f ive seconds.
If an error occurs while operating
the optional CD changer, the display
will keep showing the error code and
will not switch to the time display
until the error is corrected. 112
62
CONT INUED
Radio Frequencies and Reception
A udio System L ighting
Digital Clock
Audio System
Comf ort and Convenience Feat ures103
C CL LOOC CKK B
BUUT TT
TO
ON N
M
MB
BUUT TT
TO
ON NR
RE
ES
SE ET
T B
BUUT TT
TO
ON N
H
H B
BUUT TT
TO
ON N

Û
For example:
1:06 would RESET to 1:00
1:52 would RESET to 2:00
You can use the RESET (Preset 6)
button to quickly set the time to the
nearest hour. If the displayed time is
bef ore the half hour, pressing
RESETsetstheclockbacktothe
previous hour. If the displayed time
is af ter the half hour, pressing
RESET sets the clock f orward to the
beginning of the next hour.
The tape direction indicator will light
to show you which side of the
cassette is playing. The indicates
thesideyouinsertedfacingupward
is now playing. If you want to play
the other side, press the PROG
button.
Turn the audio system ON. Make
sure the tape opening on the cassette
is f acing to the right, then insert the
cassette most of the way into the slot.
The system will pull it in the rest of
the way, and begin to play.
The blinking stops and the time is
set when you press any buttons
other than the time setting buttons
(Presets 4, 5 and 6).
Operating the Cassette Player
Audio System
Comf ort and Convenience Feat ures104
S SK
KIIPP
B
BU UT TT
TO
ON N F
FF
F B
BUUT TT
TO
ON N
E
E
J
JEE C
CT T
B
BU UT TT
TO
ON N T
T
A
A P
PE
E D
DI
IRRE EC
CT TI
IOON N I
INND DI
ICCA A T
TO
OR R
C
CA A S
SSSEET
TT
TE
E
S
SL LOOT T
R
RE
EW
W B
BUUT TT
TO
ON N
R
RP PT
T
B
BU UT TT
TO
ON N
D
DO
OL LBBY Y B
BUUT TT
TO
ON N
P
P L
LAA Y
Y B
BUUT TT
TO
ON N
P
P
R
RO OG G B
BUUT TT
TO
ON N

Remove the radiator cap by
pushing down and turning
counterclockwise. Turn the radiator cap counter-
clockwise, without pressing down
on it, until it stops. This relieves
any pressure remaining in the
cooling system. Make sure the engine and radiator
are cool.Pour coolant into the reserve tank.
Fill it to half way between the MAX
and MIN marks. Put the cap back
on the reserve tank. Put the radiator cap back on.
Tighten it f ully. The coolant level should be up to
the base of the f iller neck. Add
coolant if it is low.Do not add any rust inhibitors or
other additives to your car’s cooling
system. They may not be compatible
with the coolant or engine compo-
nents.
2.
3. 4.
5.
6.
1.
Cooling Syst em
Maint enance170
R RA
A D
DI
IAA T
TO
OR R C
CAA P
P R
REES
SE ER
RV V E
E T
TA
A N
NK K

CONT INUED
Unclip the end of the hold-down
wire f rom its slot. Pivot it out of
the way and remove the bulb.
Insert the new bulb into the hole,
making sure the tabs are in their
slots. Pivot the hold-down wire
back in place and clip the end into
the slot.
Install the rubber seal over the
back of the headlight assembly.
Make sure it is right side up; it is
marked ‘‘TOP.’’
Push the electrical connector onto
the tabs of the new bulb. Make
sure it locks in place.
Turn on the headlights to test the
new bulb.
Reinstall the radiator reserve tank.Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket.
Install the new bulb into the
socket.Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Testthelightstomakesurethe
new bulb is working.
If you are changing the bulb on
the driver’s side, start the engine,
turn the steering wheel all the way
to the right, and turn off the
engine. If you are changing the
bulb on the passenger’s side, turn
the steering wheel to the left.
4.
5.
6.
7.
8.
1.
1.
2.
3. 4.
5.
Lights
Maint enance
Replacing the Front Parking
Lights
Replacing the Front Side Marker/
Turn Signal and Parking L ight
Bulb
199
