headlight bulb HONDA INSIGHT 2002 1.G Owners Manual

If the indicator remains lit after
you have f ully released the
parking brake while the engine is
running, or if it comes on while
driving, it can indicate a problem
in the brake system. For complete
inf ormation, see page .
See page .
This light normally comes on f or a
f ew seconds when you turn the
ignition switch ON (II), and when
the ignition switch is turned to
START (III). If this light comes on at
any other time, there is a problem in
theABS.If thishappens,takethecartoyourdealertohaveitchecked.
With the light on, your car still has
normal braking ability but no anti-
lock. For complete inf ormation, see
page .
On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights
(DRL) are on (see page ). This light comes on with the high
beam headlights. See page for
inf ormation on the headlight
controls.
WhenyouturnontheHazard
Warning switch, both turn signal
lights blink. All turn signals on the outside of the car should f lash.
The lef t or right turn signal light
blinks when you signal a lane change
or turn. If the light does not blink or
blinks rapidly, it usually means one
of the turn signal bulbs is burned out
(see page ). Replace the bulb as
soon as possible, since other drivers
cannot see that you are signalling. This light comes on as a reminder
that you must ref uel soon. This light comes on if either door or
the hatch is not closed tightly.
2.
61
62
230
228
199 148
Malf unction Indicator
Lamp
Anti-lock Brake System (ABS)
IndicatorHigh Beam Indicator
Turn Signal and
Hazard Warning
Indicators Low Fuel Indicator Door-open Indicator
Indicator L ights
Inst rument s and Cont rols48
U.S. Canada

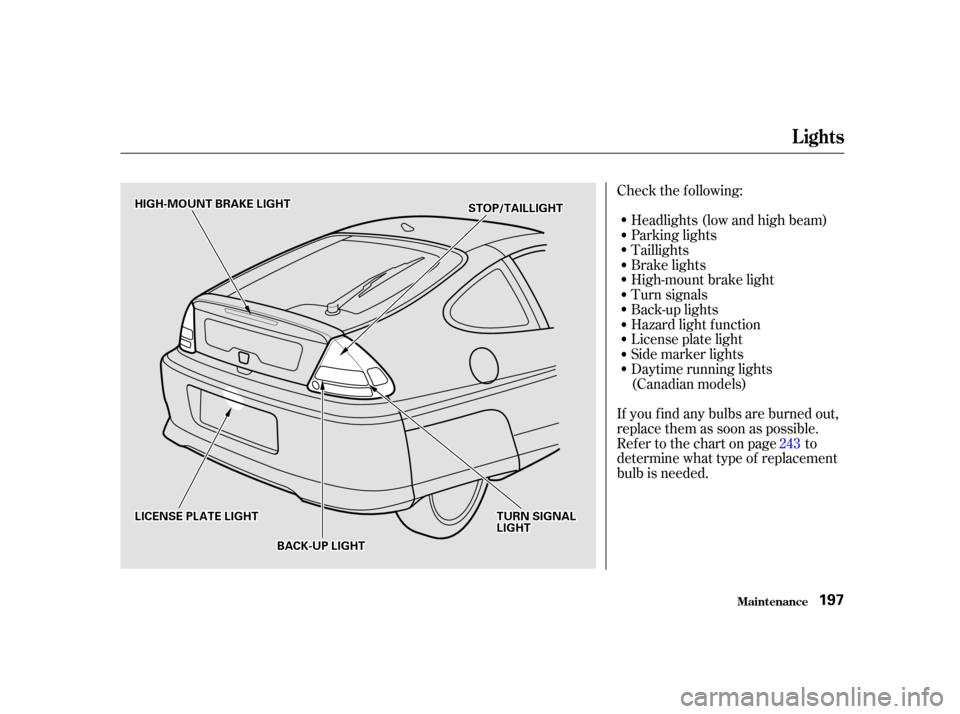

Check the f ollowing:Headlights (low and high beam)
Parking lights
Taillights
Brake lights
High-mount brake light
Turn signals
Back-up lights
Hazard light f unction
License plate light
Side marker lights
Daytime running lights
(Canadian models)
If youfindanybulbsareburnedout,
replace them as soon as possible.
Refer to the chart on page to
determinewhattypeof replacement
bulb is needed. 243
Lights
Maint enance197
H H
I
IGGH H-
-M
M O
OUUNNTT B
BRRAA K
KEE L
LIIGGH HT
T
S
STTO
OP P/
/T
T A
A I
ILLL LIIGGH HT
T
T
T U
UR RNN S
SIIGGN NAAL
L
L
LI IGGH HT
T
B
BA A C
CKK--U
UP P L
LIIGGH HT
T
L
LI
ICCE EN
NS SEE P
PL
LAA T
TE
E L
LIIGGH HT
T

Open the hood.Remove the electrical connector
f rom the bulb by squeezing the
connector on both sides to unlock
the tab. Pull the connector straight
off.
Remove the rubber weather seal
by pulling on the tab.
If you need to change the head-
light bulb on the driver’s side,
remove the engine coolant
reservoir tank by pulling it out of
its holder.
Your car has halogen headlight
bulbs, one on each side. When
replacing a bulb, handle it by its steel
base and protect the glass from
contactwithyourskinorhard
objects. If you touch the glass, clean
it with denatured alcohol and a clean
cloth. Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
cargo area, readjustment may be
required. Adjustment of the
headlights should be perf ormed by a
Honda technician or other qualif ied
mechanic.
1.2.
3.
Lights
Maint enance
Headlight A iming
Replacing a Headlight Bulb
198
H HO
OL LDD E
ER
R W
WEEA
A T
TH
H E
ER
R S
SEEA
A L
L B
BUUL LBB
C
CO ON NNNEEC
CT TO
OR R H
HO
OL LDD -
-D
D O
OW WN N W
WIIRRE E
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.

CONT INUED
Unclip the end of the hold-down
wire f rom its slot. Pivot it out of
the way and remove the bulb.
Insert the new bulb into the hole,
making sure the tabs are in their
slots. Pivot the hold-down wire
back in place and clip the end into
the slot.
Install the rubber seal over the
back of the headlight assembly.
Make sure it is right side up; it is
marked ‘‘TOP.’’
Push the electrical connector onto
the tabs of the new bulb. Make
sure it locks in place.
Turn on the headlights to test the
new bulb.
Reinstall the radiator reserve tank.Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket.
Install the new bulb into the
socket.Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Testthelightstomakesurethe
new bulb is working.
If you are changing the bulb on
the driver’s side, start the engine,
turn the steering wheel all the way
to the right, and turn off the
engine. If you are changing the
bulb on the passenger’s side, turn
the steering wheel to the left.
4.
5.
6.
7.
8.
1.
1.
2.
3. 4.
5.
Lights
Maint enance
Replacing the Front Parking
Lights
Replacing the Front Side Marker/
Turn Signal and Parking L ight
Bulb
199

Pull the inner f ender cover back.Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Remove the burned out bulb f rom
thesocketbypushingitinand
turning the bulb counterclockwise
until it unlocks.Install the new bulb in the socket.
Turn it clockwise to lock it in place.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Testthelightstomakesurethe
new bulb is working.
Use a Phillips-head screwdriver to
remove the screw f rom the top of
the f ender. Put the inner f ender cover in place.
Tighten the screw securely.
3. 2. 4.
5.6.
7.
8.
9.
Lights
Maint enance200
