display HONDA INSIGHT 2003 1.G Owners Manual

ÛÝ

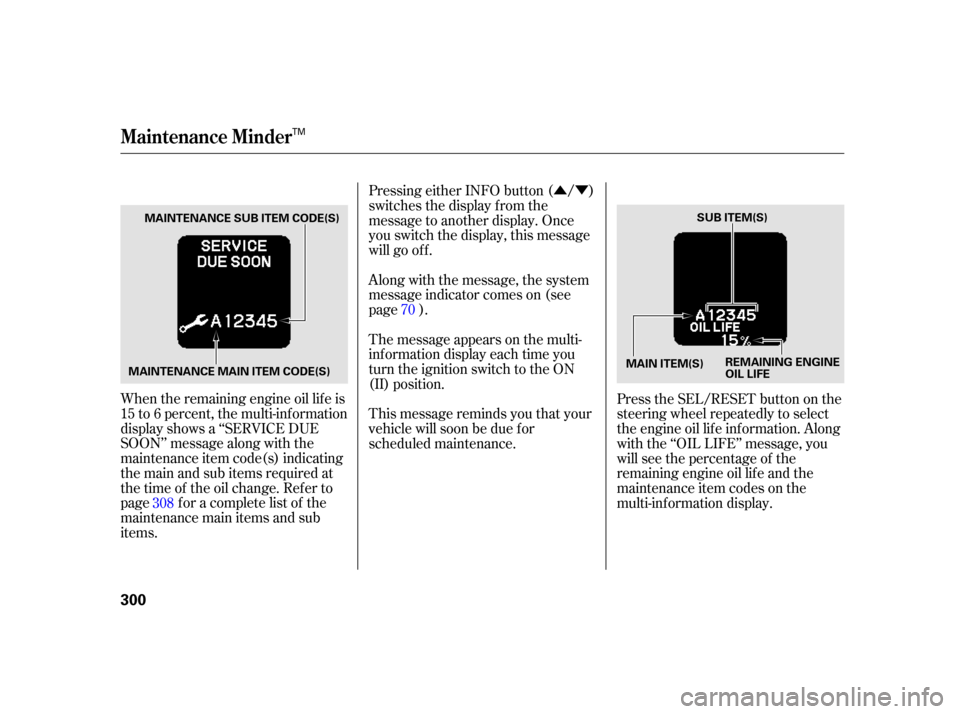

When the remaining engine oil lif e is
15 to 6 percent, the multi-inf ormation
display shows a ‘‘SERVICE DUE
SOON’’ message along with the
maintenance item code(s) indicating
themainandsubitemsrequiredat
thetimeof theoilchange.Referto
page f or a complete list of the
maintenance main items and sub
items. Pressing either INFO button ( / )
switches the display f rom the
message to another display. Once
you switch the display, this message
will go of f .
Along with the message, the system
message indicator comes on (see
page ).
The message appears on the multi-
inf ormation display each time you
turn the ignition switch to the ON
(II) position.
This message reminds you that your
vehicle will soon be due f or
scheduled maintenance.
Press the SEL/RESET button on the
steering wheel repeatedly to select
the engine oil lif e inf ormation. Along
with the ‘‘OIL LIFE’’ message, you
will see the percentage of the
remaining engine oil lif e and the
maintenance item codes on the
multi-inf ormation display.
70
308
Maintenance Minder
300
REMAINING ENGINE
OIL LIFE
MAINTENANCE SUB ITEM CODE(S)
MAINTENANCE MAIN ITEM CODE(S) MAIN ITEM(S)SUB ITEM(S)
TM

µ
ÛÝ

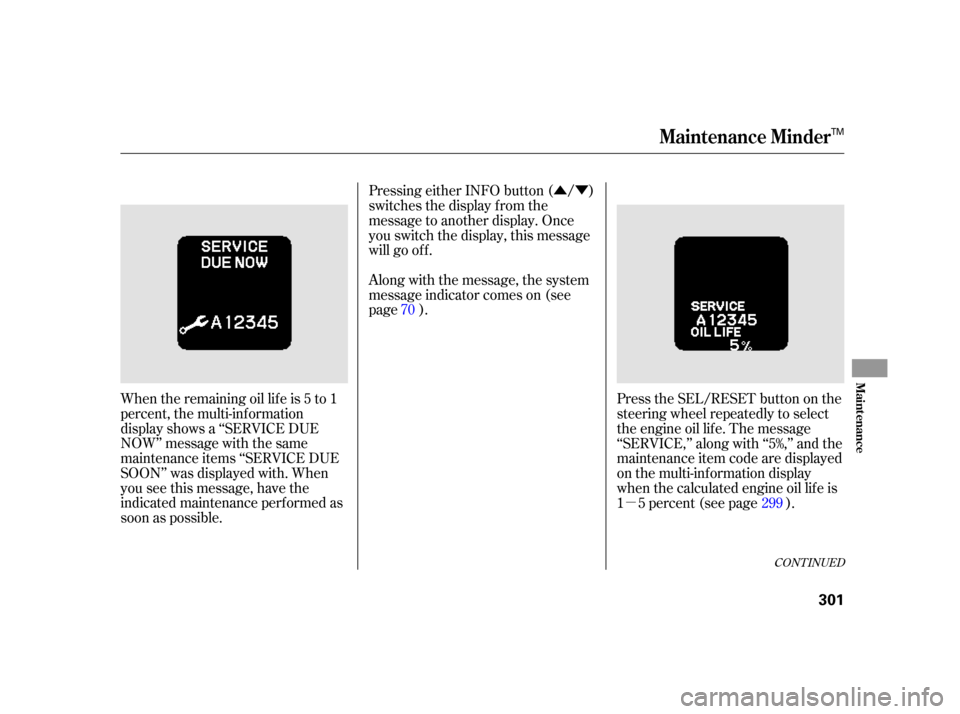

When the remaining oil lif e is 5 to 1
percent, the multi-information
display shows a ‘‘SERVICE DUE
NOW’’ message with the same
maintenance items ‘‘SERVICE DUE
SOON’’ was displayed with. When
you see this message, have the
indicated maintenance perf ormed as
soon as possible. Press the SEL/RESET button on the
steering wheel repeatedly to select
the engine oil lif e. The message
‘‘SERVICE,’’ along with ‘‘5%,’’ and the
maintenance item code are displayed
on the multi-information display
when the calculated engine oil lif e is
1 5 percent (see page ).
Pressing either INFO button ( / )
switches the display f rom the
message to another display. Once
you switch the display, this message
will go of f .
Along with the message, the system
message indicator comes on (see
page ).
70
299
CONT INUED
Maintenance Minder
Maint enance
301
TM

Ûݵ

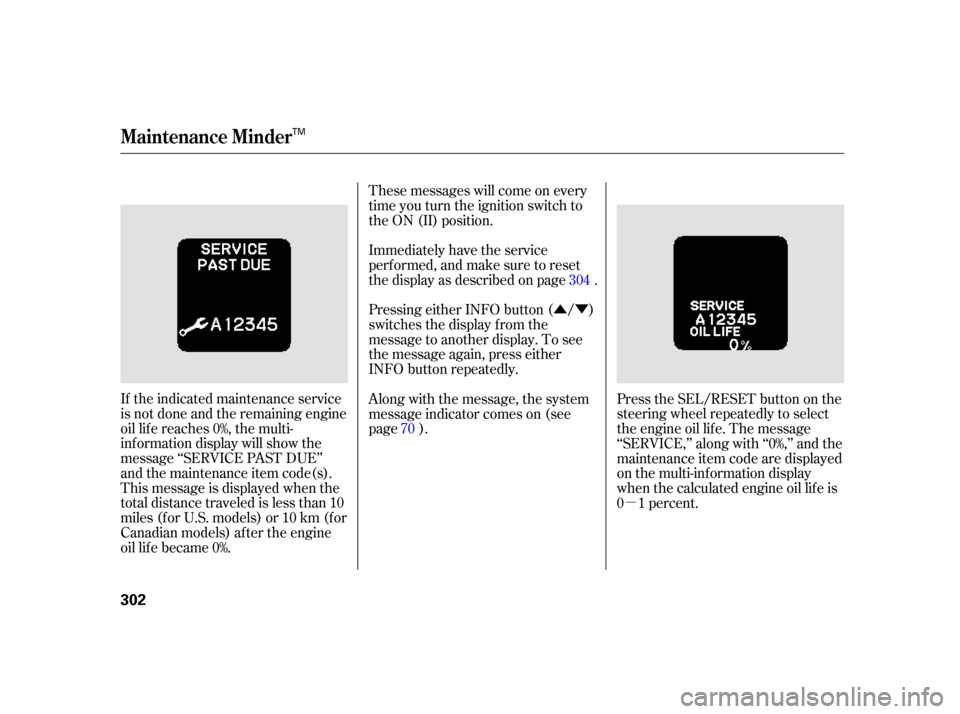

If the indicated maintenance service
is not done and the remaining engine
oil lif e reaches 0%, the multi-
inf ormation display will show the
message ‘‘SERVICE PAST DUE’’
and the maintenance item code(s).
This message is displayed when the
total distance traveled is less than 10
miles (f or U.S. models) or 10 km (f or
Canadian models) af ter the engine
oillifebecame0%. These messages will come on every
time you turn the ignition switch to
the ON (II) position.
Immediately have the service
perf ormed, and make sure to reset
the display as described on page .
Pressing either INFO button ( / )
switches the display f rom the
message to another display. To see
the message again, press either
INFO button repeatedly.
Press the SEL/RESET button on the
steering wheel repeatedly to select
the engine oil lif e. The message
‘‘SERVICE,’’ along with ‘‘0%,’’ and the
maintenance item code are displayed
on the multi-information display
when the calculated engine oil lif e is
01percent.
Along with the message, the system
message indicator comes on (see
page ).
70 304
Maintenance Minder
302
TM

ÛÝ

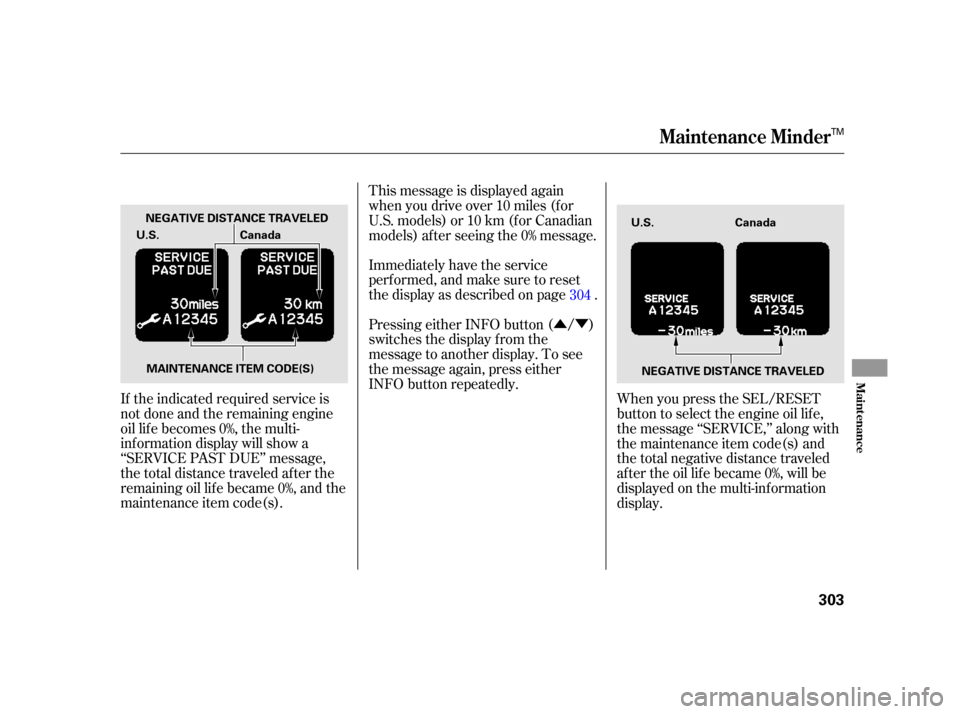

If the indicated required service is
not done and the remaining engine
oil lif e becomes 0%, the multi-
inf ormation display will show a
‘‘SERVICE PAST DUE’’ message,
the total distance traveled after the
remaining oil lif e became 0%, and the
maintenance item code(s). Immediately have the service
perf ormed, and make sure to reset
the display as described on page .
Pressing either INFO button ( / )
switches the display f rom the
message to another display. To see
the message again, press either
INFO button repeatedly.
When you press the SEL/RESET
button to select the engine oil lif e,
the message ‘‘SERVICE,’’ along with
the maintenance item code(s) and
the total negative distance traveled
after the oil life became 0%, will be
displayed on the multi-inf ormation
display.
This message is displayed again
when you drive over 10 miles (f or
U.S. models) or 10 km (f or Canadian
models) af ter seeing the 0% message.
304
Maintenance Minder
Maint enance
303
U.S.
U.S. NEGATIVE DISTANCE TRAVELED
NEGATIVE DISTANCE TRAVELED
MAINTENANCE ITEM CODE(S) Canada
Canada
TM

ÛÝ
All the maintenance items displayed
in the multi-information display are
in code.
For an explanation of the
maintenance codes, see page .Your dealer will reset the display
af ter completing the required
maintenance service. You will see
‘‘OIL LIFE 100%’’ on the display the
next time you turn the ignition
switch to the ON (II) position.

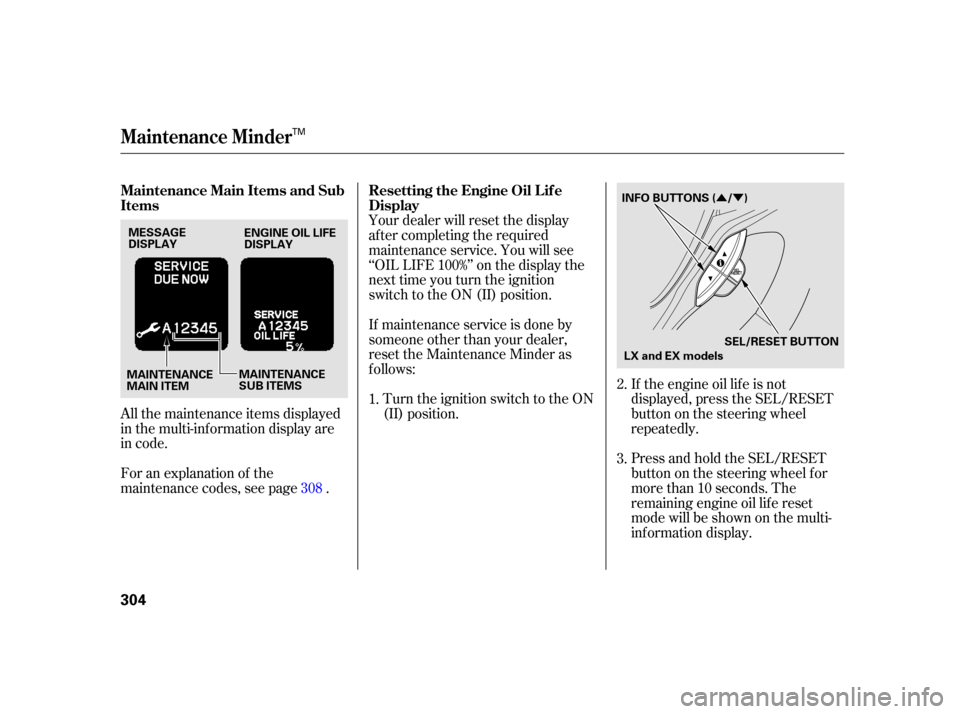

Turn the ignition switch to the ON
(II) position. If the engine oil lif e is not
displayed, press the SEL/RESET
buttononthesteeringwheel
repeatedly.
Press and hold the SEL/RESET
button on the steering wheel f or
more than 10 seconds. The
remaining engine oil lif e reset
modewillbeshownonthemulti-
inf ormation display.
If maintenance service is done by
someone other than your dealer,
reset the Maintenance Minder as
f ollows:
1.
2.
3.
308
Maintenance Main Items and Sub
Items
Resetting the Engine Oil Lif e
Display
Maintenance Minder
304
ENGINE OIL LIFE
DISPLAY
MESSAGE
DISPLAY
MAINTENANCE
SUB ITEMS SEL/RESET BUTTON
INFO BUTTONS ( / )
MAINTENANCE
MAIN ITEM LX and EX models
TM

ÛÝ
ÛÝ
CONT INUED
If you have the required service
done but do not reset the display, or
reset the display without doing the
service, the system will not show the
correct maintenance intervals. This
canleadtoseriousmechanical
problems because you will no longer
have an accurate record of when
maintenance is needed.
Select ‘‘RESET’’ by pressing the
INFO ( / ) button, then press
the SEL/RESET button to reset
the engine oil lif e display. The
maintenance item code(s) will
disappear, and the engine oil lif e
will reset to ‘‘100.’’ If you want to
cancel the oil lif e reset mode,
select ‘‘CANCEL.’’
4.
Maintenance Minder
Important Maintenance
Precautions
Maint enance
305
INFO BUTTON
(/)
SEL/RESET
BUTTON
DX model
TM

We recommend using Honda parts
and fluids whenever you have
maintenance done. These are
manuf actured to the same high
quality standards as the original
components, so you can be conf ident
of their perf ormance and durability.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualif ied service f acility or
person who is skilled in this type of
automotive service. Make sure to
have the service f acility or person
reset the display as previously
described. Keep all receipts as proof
of completion, and have the person
who does the work f ill out your
Honda Service History or Canadian
Maintenance Log. Check your
warranty booklet f or more
inf ormation. Your authorized Honda dealer
knows your vehicle best and can
provide competent, ef f icient service.
Maintenance Minder
306
TM

µµµ
µ
µ
Ì
µ
Youshouldcheckthefollowing
items at the specif ied intervals. If
you are unsure of how to perf orm
any check, turn to the appropriate
page listed.
Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
youfillthefueltank.Seepage .
Automatic transmission Check
the f luid level monthly. See page .
Brakes Check the f luid level
monthly. See page .
Tires Check the tire pressure
monthly. Examine the tread f or
wear and foreign objects. See page .
U.S. Vehicles:
According to state and federal
regulations, f ailure to perf orm
maintenance on the items marked
with will not void your emissions
warranties. However, all
maintenance services should be
perf ormed in accordance with the
intervals indicated by the multi-
inf ormation display.
Lights Check the operation of
all the lights monthly. See page
.
249 250
318 319
338 321
CONT INUED
Owner’s Maintenance Checks
Maintenance Minder
Maint enance
307
TM

Î
Î
Ì Ì
Î
Ì
Maintenance Minder
308
:
TM
Maintenance Main Items
Replace engine oil
Replace engine oil and oil filter
Inspect front and rear brakes
Check parking brake adjustment
Inspect these items: Tie rod ends, steering gear box, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS/VSA)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections Maintenance Sub Items
Rotate tires
Replace air cleaner element If you drive in dusty conditions, replace every 15,000
miles (24,000 km).
Replace dust and pollen filter If you drive primarily in urban areas that have high
concentrations of soot in the air from industry and
from diesel-powered vehicles, replace every 15,000
miles (24,000 km).
Inspect drive belt
Replace transmission fluid
Replace spark plugs
Inspect valve clearance
Replace engine coolant
A
B
Symbol
Symbol
1
2
3
4
5
Inspect idle speed every 160,000 miles (256,000 km).
See information on maintenance and emissions warranty in the first column
on page .
Independent of the Maintenance Minder information, replace the brake
fluid every 3 years.
If the message ‘‘SERVICE’’ does not appear more than 12 months after the
display is reset, change the engine oil every year.
Adjust the valves during services A, B, 1, 2, or 3 if they are noisy.
NOTE: :
307
Maintenance Minder

Unscrew and remove the engine oil
fill cap on the valve cover. Pour the
oil slowly and caref ully so you do not
spill any. Clean up any spills
immediately. Spilled oil could
damage components in the engine
compartment.Oil is a major contributor to your
engine’s perf ormance and longevity.
Always use a premium-grade 0W-20
detergent oil displaying the API
Certif ication Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements.
Reinstall the engine oil f ill cap, and
tighten it securely. Wait a f ew
minutes, and recheck the oil level on
the engine oil dipstick. Do not f ill
above the upper mark; you could
damage the engine.
A dding Engine Oil
Recommended Engine Oil
310
ENGINE OIL FILL CAP
