display HONDA INSIGHT 2003 1.G Service Manual

ÛÝÛÝ
Language Selection
There are three language selections
you can make: English, French, and
Spanish. To choose the language you
want, f ollow these instructions:
You can choose this item to
customize f rom ‘‘METER SETUP’’
by pressing the INFO ( / ) button
repeatedly. Press the SEL/RESET button to see
the selections.
Select the desired language by
pressing the INFO ( / ) button,
then enter your selection by pressing
the SEL/RESET button.
When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customizable item screen.
If the ‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘LANGUAGE SELECTION’’ and
repeat the procedure again.
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
97

ÛÝ
ÛÝ

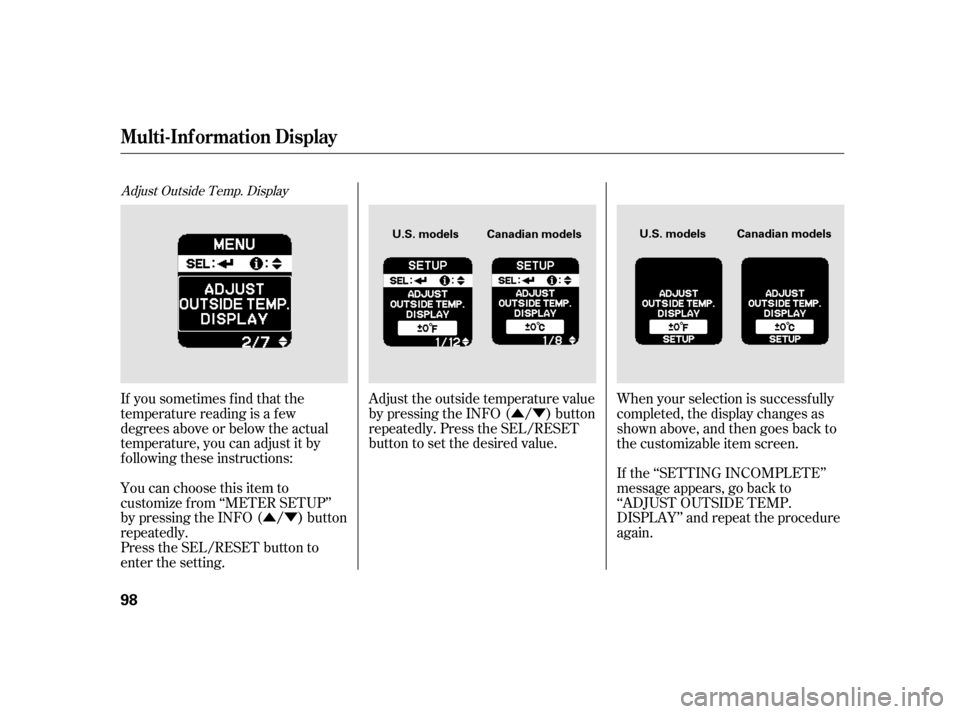

Adjust Outside Temp. Display
If you sometimes f ind that the
temperature reading is a f ew
degrees above or below the actual
temperature, you can adjust it by
f ollowing these instructions: Adjust the outside temperature value
by pressing the INFO ( / ) button
repeatedly. Press the SEL/RESET
button to set the desired value.
When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customizable item screen.
If the ‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘ADJUST OUTSIDE TEMP.
DISPLAY’’ and repeat the procedure
again.
You can choose this item to
customize f rom ‘‘METER SETUP’’
by pressing the INFO ( / ) button
repeatedly.
Press the SEL/RESET button to
enter the setting.
Multi-Inf ormation Display
98
Canadian models
Canadian models
U.S. models
U.S. models

ÛÝ
ÛÝ Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO ( / ) button, then enter
your selection by pressing the SEL/
RESET button.
When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customizable item screen.

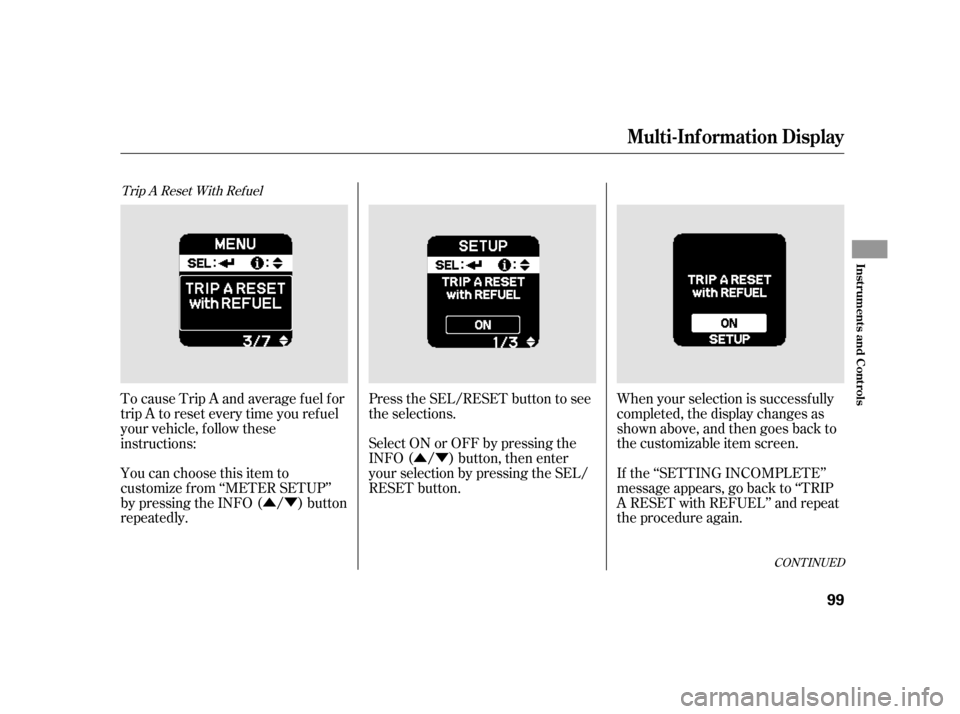

To cause Trip A and average fuel for
trip A to reset every time you ref uel
your vehicle, f ollow these
instructions:
You can choose this item to
customize f rom ‘‘METER SETUP’’
by pressing the INFO ( / ) button
repeatedly. If the ‘‘SETTING INCOMPLETE’’
message appears, go back to ‘‘TRIP
A RESET with REFUEL’’ and repeat
the procedure again.
Trip A Reset With Ref uel
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
99

ÛÝÛÝ
µ
µ
µ

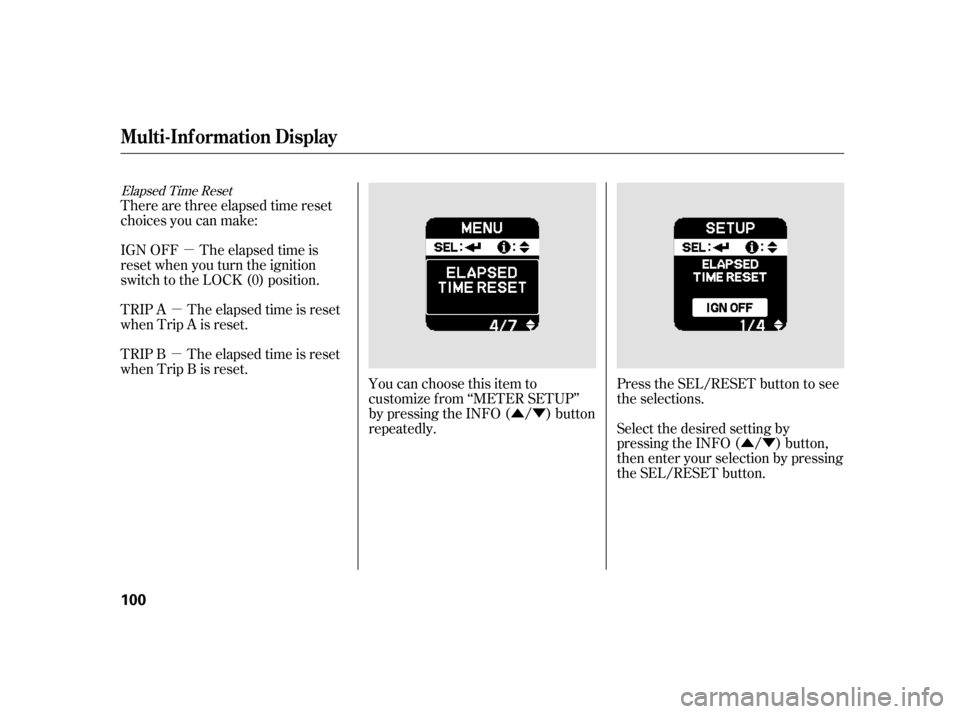

Elapsed Time Reset
You can choose this item to
customize f rom ‘‘METER SETUP’’
by pressing the INFO ( / ) button
repeatedly. Press the SEL/RESET button to see
the selections.
Select the desired setting by
pressing the INFO ( / ) button,
then enter your selection by pressing
the SEL/RESET button.
There are three elapsed time reset
choices you can make:
IGN OFF The elapsed time is
reset when you turn the ignition
switch to the LOCK (0) position.
TRIP A The elapsed time is reset
when Trip A is reset.
TRIP B The elapsed time is reset
when Trip B is reset.
Multi-Inf ormation Display
100

ÛÝ

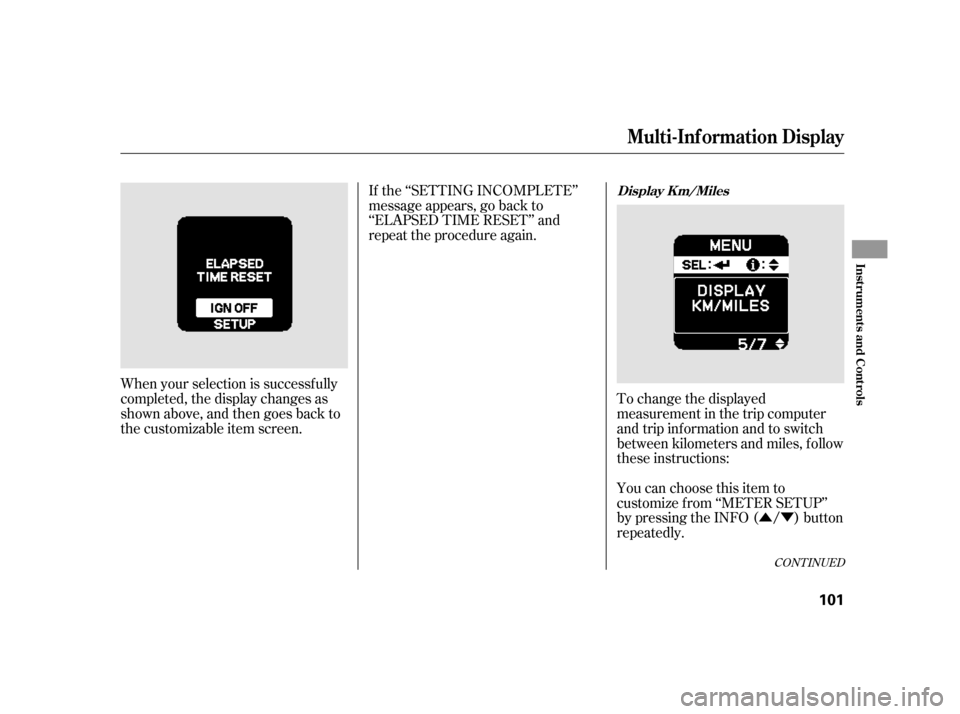

When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customizable item screen. If the ‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘ELAPSED TIME RESET’’ and
repeat the procedure again.
To change the displayed
measurement in the trip computer
and trip inf ormation and to switch
between kilometers and miles, f ollow
these instructions:
You can choose this item to
customize f rom ‘‘METER SETUP’’
by pressing the INFO ( / ) button
repeatedly.
CONT INUED
Multi-Inf ormation Display

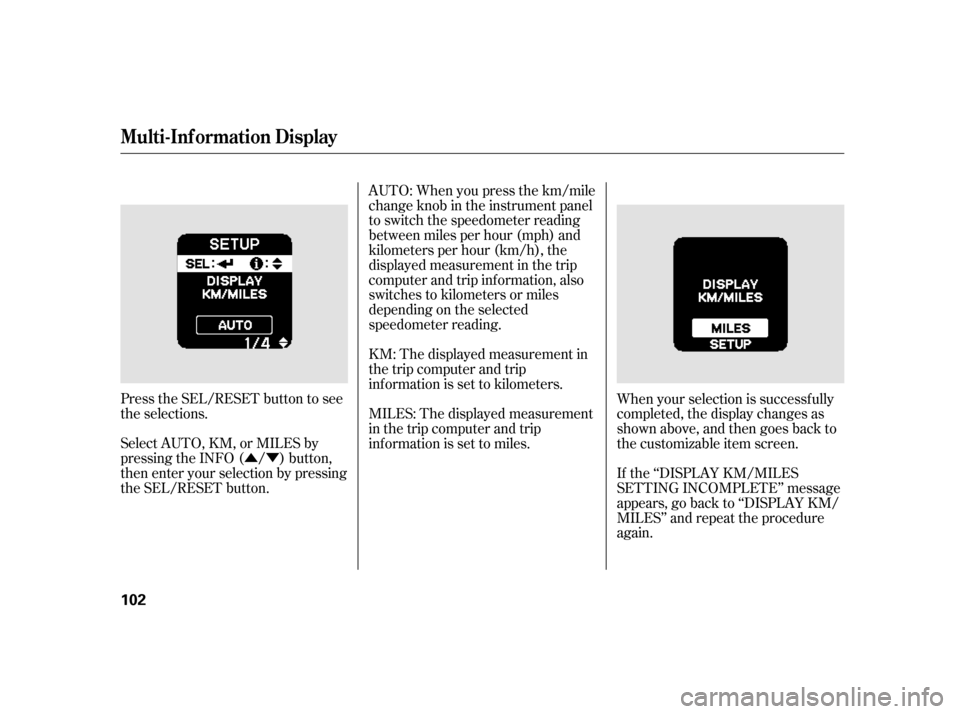

Display K m/Miles
Inst rument s and Cont rols
101

ÛÝ
Press the SEL/RESET button to see
the selections.
Select AUTO, KM, or MILES by
pressing the INFO ( / ) button,
then enter your selection by pressing
the SEL/RESET button. AUTO: When you press the km/mile
change knob in the instrument panel
to switch the speedometer reading
between miles per hour (mph) and
kilometers per hour (km/h), the
displayed measurement in the trip
computer and trip inf ormation, also
switches to kilometers or miles
depending on the selected
speedometer reading.
KM: The displayed measurement in
the trip computer and trip
inf ormation is set to kilometers.
MILES: The displayed measurement
in the trip computer and trip
inf ormation is set to miles.
When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customizable item screen.
If the ‘‘DISPLAY KM/MILES
SETTING INCOMPLETE’’ message
appears, go back to ‘‘DISPLAY KM/
MILES’’ and repeat the procedure
again.
Multi-Inf ormation Display
102

ÛÝÛÝ
You can turn the ambient meter
feature on or off (see page ).
You can choose this item to
customize f rom ‘‘METER SETUP’’
by pressing the INFO ( / ) button
repeatedly. Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO ( / ) button, then enter
your selection by pressing the SEL/
RESET button.When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customizable item screen.
If the ‘‘METER COLOR CHANGE
SETTING INCOMPLETE’’ message
appears, go back to ‘‘METER
COLOR CHANGE’’ and repeat the
procedure again.
72
Met er Color Change
Multi-Inf ormation Display
Inst rument s and Cont rols
103

Û
Ý
ÛÝ
Ý
Û

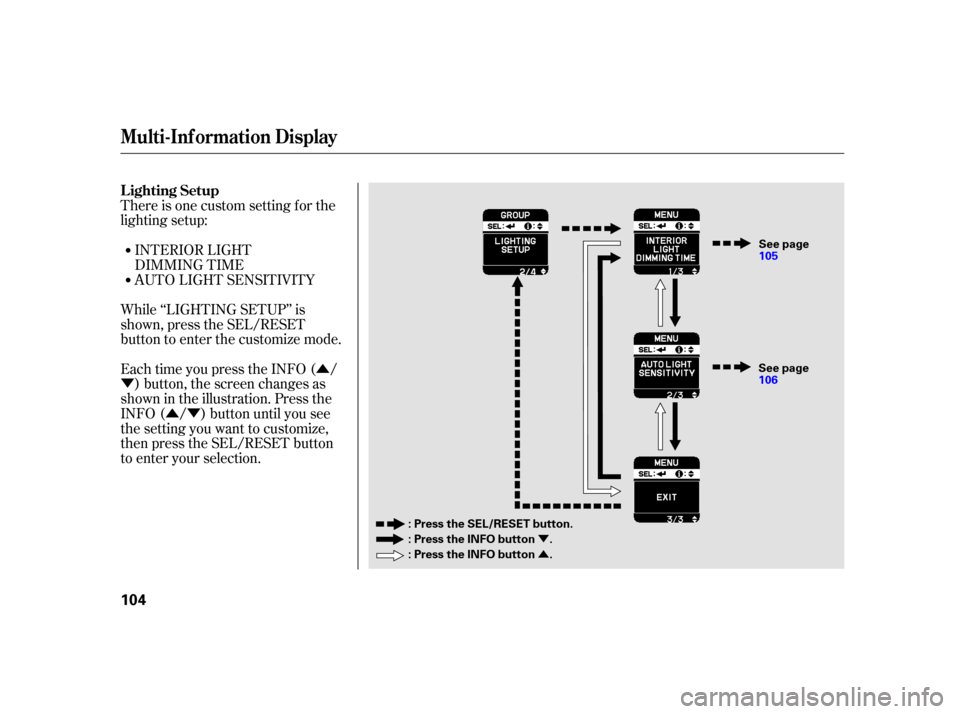

There is one custom setting f or the
lighting setup:
Each time you press the INFO ( /) button, the screen changes as
shown in the illustration. Press the
INFO ( / ) button until you see
the setting you want to customize,
then press the SEL/RESET button
to enter your selection. While ‘‘LIGHTING SETUP’’ is
shown, press the SEL/RESET
button to enter the customize mode. INTERIOR LIGHT
DIMMING TIME
AUTO LIGHT SENSITIVITY
Lighting Setup
Multi-Inf ormation Display
104
: Press the SEL/RESET button.
: Press the INFO button .
: Press the INFO button . See page
105
See page
106

Û
Ý ÛÝ

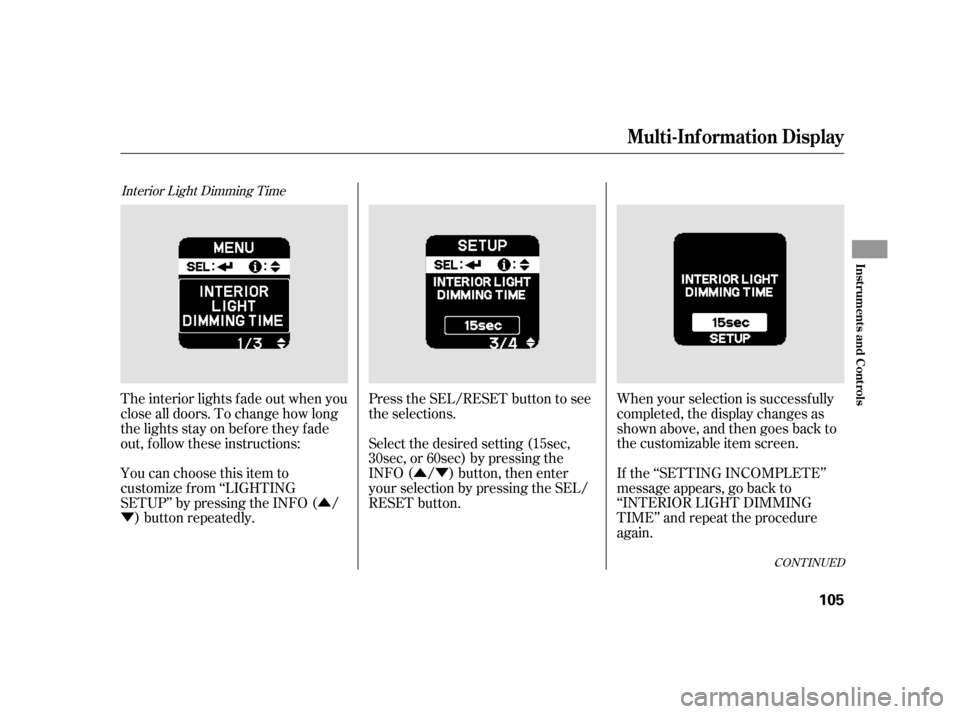

Interior Light Dimming Time
Press the SEL/RESET button to see
the selections.
When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customizable item screen.
If the ‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘INTERIOR LIGHT DIMMING
TIME’’ and repeat the procedure
again.
The interior lights f ade out when you
close all doors. To change how long
thelightsstayonbeforetheyfade
out, f ollow these instructions:
You can choose this item to
customize f rom ‘‘LIGHTING
SETUP’’ by pressing the INFO ( /
) button repeatedly. Select the desired setting (15sec,
30sec, or 60sec) by pressing the
INFO ( / ) button, then enter
your selection by pressing the SEL/
RESET button.
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
105

µµ
µ µ
µ Û
Ý
ÛÝ
The headlights automatically come
on when the headlight switch is in
the AUTO position and the ambient
light reaches a changeable level. You
can select the auto light sensitivity
f rom the f ollowing f ive levels:
MAX
Theheadlightscomeonwhenitis
bright.
HIGH
Theheadlightscomeonwhenitis
somewhat bright.
MID
Theheadlightscomeonwhenitisas
bright as sunset or sunrise.
LOW
Theheadlightscomeonwhenitis
somewhat dark.
MIN
Theheadlightscomeonwhenitis
dark.
You can choose this item to
customize f rom ‘‘LIGHTING
SETUP’’ by pressing the INFO ( /
) button repeatedly. Press the SEL/RESET button to see
the selections.
Select the desired setting (MAX,
HIGH, MID, LOW or MIN) by
pressing the INFO ( / ) button,
then enter your selection by pressing
the SEL/RESET button.

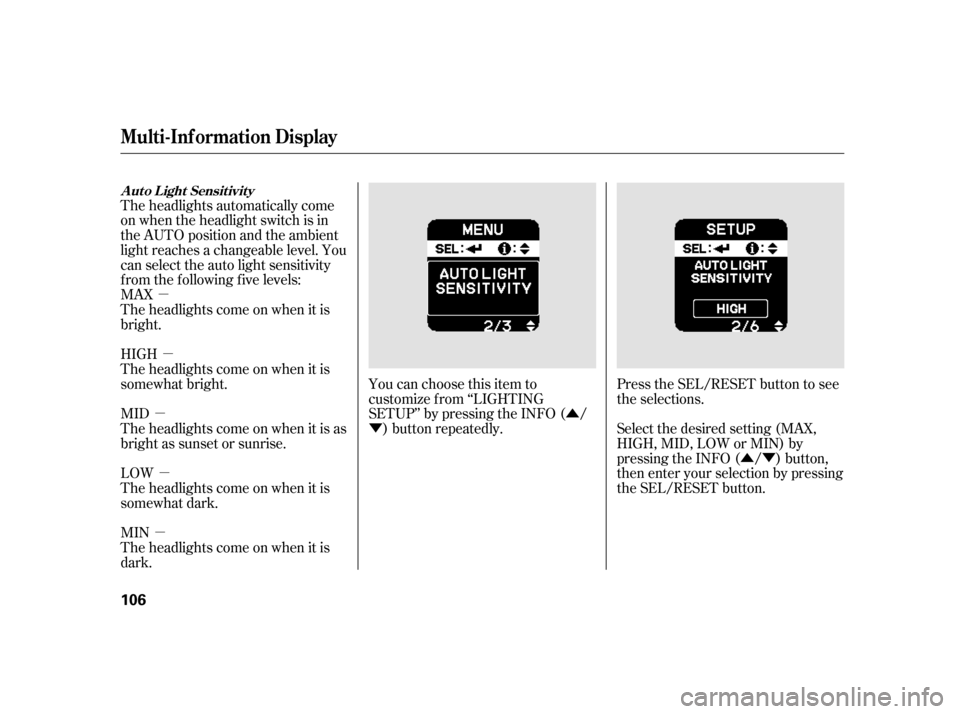

Auto Light Sensitivity
Multi-Inf ormation Display
106
