Page 13 of 218
Always wear
your seat belt properly, and sit
upright and as f ar back f rom the
steering wheel while allowing f ull
control of the vehicle. A passenger
should move the seat as far back
f rom the dashboard as possible. The rest of this section gives more
detailed inf ormation about how you
can maximize your saf ety.
Remember however, that no saf ety
system can prevent all injures or
deaths that can occur in severe
crashes, even where seat belts are
properly worn and the airbags deploy.
Your Vehicle’s Saf ety Features
What you should do:
Driver and Passenger Saf ety10
Page 15 of 218
If you sit too close to the steering
wheel or dashboard, you can be
seriously injured by an inf lating
airbag, or by striking the steering
wheel or dashboard.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that drivers
allow at least 10 inches (25 cm)
between the center of the steering
wheel and the chest.
If you cannot get f ar enough away
f rom the steering wheel and still
reach the controls, we recommend
that you investigate whether some
type of adaptive equipment may help.

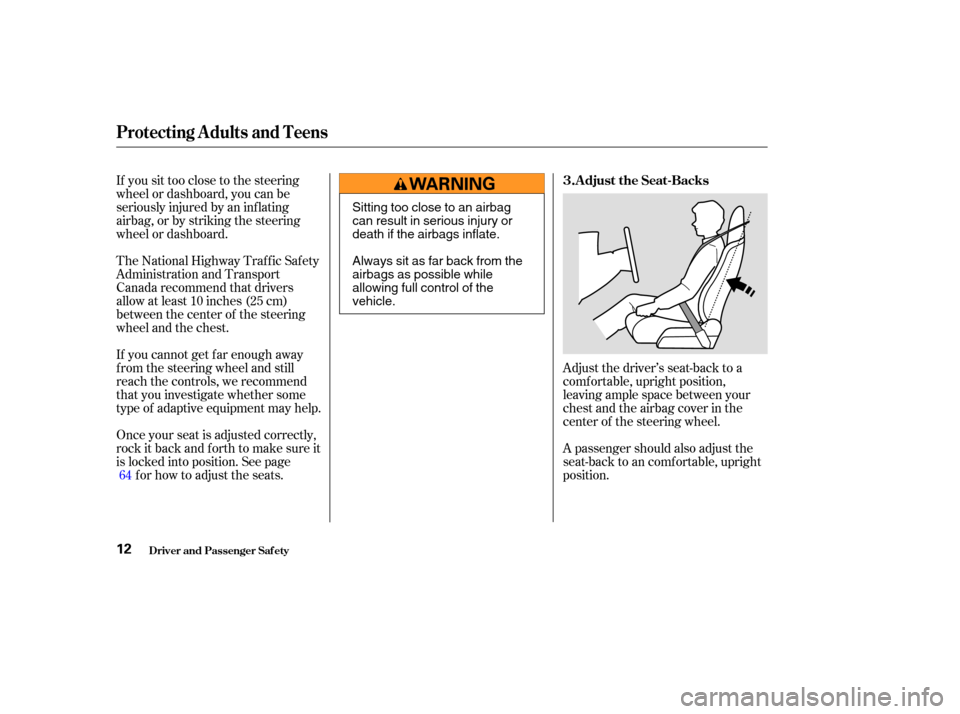

Once your seat is adjusted correctly,
rock it back and f orth to make sure it
is locked into position. See pagefor how to adjust the seats. Adjust the driver’s seat-back to a
comf ortable, upright position,
leaving ample space between your
chest and the airbag cover in the
center of the steering wheel.
A passenger should also adjust the
seat-back to an comfortable, upright
position.
64
Protecting A dults and Teens
Driver and Passenger Saf ety
Adjust the Seat-Backs
3.
12
Sitting too close to an airbag
can result in serious injury or
death if the airbags inflate.
Always sit as far back from the
airbags as possible while
allowing full control of the
vehicle.
Page 22 of 218
Your airbag system includes:Two SRS (Supplemental Restraint
System) airbags. The driver’s
airbag is stored in the center of
the steering wheel; the passenger’s
airbag is stored in the dashboard.
Both are marked ‘‘SRS AIRBAG.’’
Sensors that can detect a
moderate to severe frontal
collision. A sophisticated electronic system
that continually monitors and
records inf ormation about the
sensors, the control unit, the
airbag activators, and driver and
passenger seat belt use when the
ignition is in the ON (II) position.
An indicator on the instrument
panel that alerts you to a possible
problem with your airbags (see
page ).
Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.
If you ever have a moderate to
severe f rontal collision, sensors will
detect the vehicle’s rapid
deceleration. If the rate of
deceleration is high enough, the
control unit will instantly inf late the
driver’s and passenger’s airbags.
Automatic seat belt tensioners
that tighten the seat belts during a
moderate to severe frontal
collision.
21
CONT INUED
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
A irbag System Components
How Your A irbags Work
19
Page 29 of 218
µ
Never hold a small child on your
lap. If you are not wearing a seat
belt in crash, you could be thrown
f orward and crush the child
against the dashboard. If you are
wearing a seat belt, the child can
be torn f rom your arms and be
seriously hurt or killed.
Never put a seat belt over yourself
and a child. During a crash, the
belt could press deep into the child
and cause serious or fatal injuries.
Never let two children use the
same seat belt. If they do, they
could be very seriously injured in a
crash.Keep vehicle keys and remote
transmitters out of reach of
children. Even very young
children learn how to unlock
vehicle doors, turn on the ignition,
and open the hatch, which can
lead to accidental injury or death.
Do not leave children alone in a
vehicle. Leaving children without
adult supervision is illegal in most
states and Canadian provinces,
and can be very hazardous.
Lock both doors and the hatch
when your vehicle is not in use.
Children who play in vehicles can
accidentally get trapped inside the
vehicle. Teach your children not to
play in or around vehicles. For example, a small child lef t in a
vehicle on a hot day can die f rom
heatstroke. A child lef t alone with
the key in the ignition can
accidentally set the vehicle in
motion, possibly injuring himself
or others.
Protecting Children General Guidelines
Driver and Passenger Saf ety
Additional Saf ety Precautions
26
Page 40 of 218
These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels caref ully.
If a label comes of f or becomes hard
to read (except for the U.S.
dashboard label which is removed by
the owner), contact your Honda
dealer f or a replacement.U.S. modelsCanadian models
U.S. models only
Saf ety L abels
Driver and Passenger Saf ety37
BATTERY
SUN VISOR
GLOVE BOX
HOOD RADIATOR CAP
Page 68 of 218
µ
Your vehicle’s windows are
electrically-powered. Turn the
ignition switch to ON (II) to raise or
lower either window.
There is a master power window
control panel on the dashboard. To
open the passenger’s window, push
down on the switch and hold it down
until the window reaches the desired
position. To close the window, push
up on the window switch. Release
the switch when the window gets to
the position you want. To open the driver’s
window f ully, push the window
switch f irmly down and release it.
The window automatically goes all
the way down. To stop the window
f rom going all the way down, push
up on the window switch brief ly. To
open the driver’s window only
partially, push the window switch
down lightly and hold it. The window
will stop as soon as you release the
switch. The AUTO f unction only works to
lower the driver’s window. To raise
the window, you must push the
window switch up and hold it until
the window reaches the desired
position.
The MAIN switch controls power to
the passenger’s window. With this
switch of f , the passenger’s window
cannot be raised or lowered. The
MAIN switch does not af f ect the
driver’s window. Keep the MAIN
switch of f when you have a child in
the vehicle so the child does not get
injured by operating the window
unintentionally.
Power Windows
Inst rument s and Cont rols
AUTO

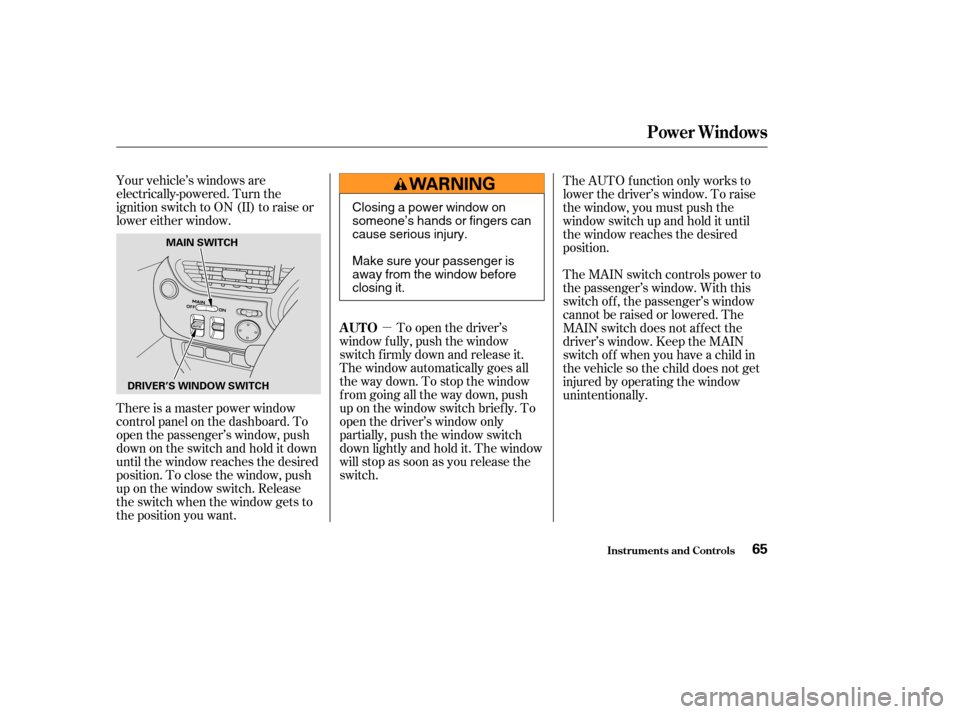

65
MAIN SWITCH
DRIVER’S WINDOW SWITCH
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passenger is
away from the window before
closing it.
Page 76 of 218
On vehicles with automatic
transmission (CVT), see page f or
Automatic Climate Control and
Manual Operations inf ormation.
You can manually select the f an
speed by pressing the f an control
button ( / or ). The
fanspeedisshownbybarsinthe
display.
Turning this dial clockwise increases
the temperature of the airflow.Switch to Recirculation mode when
driving through dusty or smoky
conditions, then return to Fresh Air
mode.
This button turns the rear window
def ogger of f and on (see page ).
The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris. If thecoolingprovidedinECON
mode is not adequate, press the Auto
button (see page ). This button turns the air
conditioning on and of f . When the
air conditioning is turned on with
this button, the auto idle stop works
only if the outside temperature is
above 41°F (5°C).
Press the mode control button to
select the vents the air flows from.
Some air will flow from the
dashboard corner vents in all modes.Air flows from the center
and corner vents in the dashboard.
When the indicator in the button is
on, air f rom the vehicle’s interior is
recirculated throughout the system.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (Fresh Air mode). ThesystemshouldbeleftinFresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, can cause the windows to f og
up.
When this button is pressed, the
auto idle stop works only if the
outside temperature is above 41°F
(5°C). 76
56
76
CONT INUED
On vehicles with automatic
transmission
On vehicles with manual transmission and no A/C
Comf ort and Convenience Feat ures
Vents, Heating, and A/C
Fan Control
T emperature Control Dial Rear Window Def ogger Button
Recirculation Button
ECON Button Mode Control Button
73
Page 77 of 218
The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear window.Turn the temperature control dial
all the way to the lef t.
Select and Fresh Air mode.
Set the f an to the desired speed.
On vehicles with automatic
transmission (CVT), make sure the
display shows A/C OFF.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming through the
system. Select and Fresh Air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
Airf low is divided between
the vents in the dashboard and the
f loor vents.
Airf low is divided between
the f loor vents and the def roster
vents at the base of the windshield.
Air f lows f rom the def roster
vents at the base of the windshield.
When you select or ,
the system automatically switches to
Fresh Air mode and turns on the
A/C (on CVT model only).
When mode is selected, the
auto idle stop f unction will not
activate. you can
cool it down more rapidly by partially
opening the windows, turning on the
AUTO, and setting the fan to
maximum speed in Fresh Air mode. Turn on the A/C by pressing the
ECON button. The display shows
A/CONwhenafanspeedis
selected.
Make sure the temperature
control dial is all the way to the left.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn of f the A/C until the gauge
reads normally.
Air f lows f rom the f loor
vents.
1.
2.
3.
4.
5.
1.
2.
3. 1.
2.
3. 47
If the interior is very warm,
On vehicles with automatic
transmission (CVT)
Vents, Heating, and A/C
Comf ort and Convenience Feat ures
Ventilation
Using the Heater Using the A /C in ECON Mode
74
Page 78 of 218
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C).Switch the f an on.
Turn on the air conditioning.
Select and Fresh Air mode.
Adjust the temperature control
dial to your pref erence. Select . The system
automatically switches to Fresh
Air mode. On vehicles with
climate control, the system also
turns on the A/C. The A/C
indicator will not come on, if it was
off to start with.
Select .
Set the f an and temperature
controls to the maximum level.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving. To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel next it. This will
send more warm air to the
windshield def roster vents. Once the
windshield is clear, select the Fresh
Air mode to avoid f ogging the
windows.
To remove f og f rom the inside of the
windows:
Set the f an to the desired speed.
Select , the system
automatically switches to Fresh
Air mode. On vehicles with
climate control, the system also
turns on the A/C. The A/C indicator will not come on, if it was
off to start with.
Adjust the temperature control
dial so the airflow feels warm.
Select to help clear the
rear window.
When mode is selected, the
auto idle stop f unction will not
activate.
When you switch to another mode
f rom , the A/C stays on.
Press the ECON button to turn it of f .
When you turn of f by
pressing the button again, the
system returns to its former settings.
1.
2.
3.
4.
1.
2.
3.
1.
2. 3.
4.
On vehicles with climate control
Vents, Heating, and A/C
Comf ort and Convenience Feat ures
T o Remove Exterior Frost or Ice
From the Windows
T o Def og and Def rost To Dehumidif y the Interior
75
