Page 1 of 218
2005 Insight Online Reference Owner's Manual
Use these links (and links throughout this manual) to navigate through\
this reference.
For a printed owner's manual, click on authorized manuals or go to www.h\
elminc.com. Contents
Introduction ........................................................................\
................................................................. i
A Few Words About Safety........................................................................\
........................................ .ii
Your Vehicle at a Glance........................................................................\
............................................ .4
Driver and Passenger Safety ........................................................................\
..................................... .7
Seat belts, SRS, and child protection
Instruments and Controls........................................................................\
........................................ .41
Indicators, gauges, dashboard, and steering column
Comfort and Convenience Features ........................................................................\
........................ 73
Climate, audio, steering wheel, security, cruise control, and HomeLink
Before Driving........................................................................\
........................................................... .93
Fuel, vehicle break-in, and cargo loading
Driving ........................................................................\
..................................................................... .107
Engine and transmission operation
Maintenance........................................................................\
.............................................................125
Schedules, fluid checking, minor services, and vehicle storage
Taking Care of the Unexpected........................................................................\
..............................165
Flat tire, dead battery, overheating, fuses
Technical Information........................................................................\
............................................ .191
Vehicle specifications, tires, fuels, and emissions controls
Warranty and Customer Relations (U.S. and Canada Only).......................................................203
Warranty and contact information
Authorized Manuals (U.S. only)........................................................................\
..............................207
How to order
Index........................................................................\
........................................................................\
...... I
Service Information Summary
Fluid capacities and tire pressures
Owner's Identification Form
Page 8 of 218
µ
This section gives you important
inf ormation about how to protect
yourself and your passenger. It
shows you how to use seat belts. It
explains how your airbags work. And
it tells you how to properly restrain
children in your vehicle. .........
Important Safety Precautions . 8
.......
Your Vehicle’s Saf ety Features . 9
.....................................
Seat Belts .10
.........................................
Airbags .11
.........
Protecting Adults and Teens . 12
.....
1. Close and Lock the Doors . 12
......................
2. Adjust the Seats .12
............
3. Adjust the Seat-Backs . 13
4. Fasten and Position the .............................
Seat Belts .14
5. Maintain a Proper Sitting ................................
Position .15
.....
Advice f or Pregnant Women . 16
...
Additional Safety Precautions . 17
Additional Inf ormation About Your .................................
Seat Belts .18
..
Seat Belt System Components . 18
......................
Lap/Shoulder Belt .18
Automatic Seat Belt ...........................
Tensioners .19
...............
Seat Belt Maintenance . 19
Additional Inf ormation About ...........................
Your Airbags .21
......
Airbag System Components . 21
How Your Front Airbags .........................................
Work .21 ..
How the SRS Indicator Works . 23
.............................
Airbag Service .23
...
Additional Safety Precautions . 24
Protecting Children .................
General Guidelines . 25
All Children Must Be ...............................
Restrained .25
Your Vehicle is Not Recommended f or Child ..........................
Passengers .26
The Passenger’s Front Airbag ................
Poses Serious Risks . 26
...
Additional Safety Precautions . 28
.............
Protecting Small Children . 29
.....................
Selecting a Child Seat .30
....................
Installing a Child Seat .30
...........
Protecting Larger Children . 34
...............
Checking Seat Belt Fit . 34
..................
Using a Booster Seat . 35
When Can a Larger Child ...............
Ride in This Vehicle . 36
...
Additional Safety Precautions . 37
.............
Carbon Monoxide Hazard . 38
...................................
Saf ety Labels .39
Driver and Passenger Saf ety
Driver and Passenger Saf ety
7
Page 24 of 218
The SRS indicator alerts
you to a potential problem
with your airbags or seat belt
tensioners (see page ).
If the indicator comes on at any
other time, or does not come on at all,
you should have the system checked
by your dealer. For example:
If the indicator stays on after the
engine starts.
When you turn the ignition switch to
ON (II), this indicator will come on
brief ly then go out. This tells you the
system is working properly.
If the SRS indicator does not come
on after you turn the ignition
switch to ON (II).
If the indicator comes on or
flashesonandoff whileyoudrive. If you see any of these indications,
the airbags and seat belt tensioners
may not work properly when you
need them.
Your airbag system is virtually
maintenance-f ree, and there are no
parts you can saf ely service.
However, you must have your
vehicle serviced if:
Any airbag
that has deployed must be
replaced, along with the control
unit and seat belt tensioner. Do
not try to remove or replace any
airbag by yourself.
This must be done by your dealer
or a knowledgeable body shop.
Take your vehicle to an
authorized dealer as soon as
possible. If you ignore this
indication, your airbags may not
operate properly.
19
How the SRS Indicator Works
A irbag Service
An airbag ever inf lates.
T he SRS indicat or alert s you t o aproblem.
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
23
Ignoring the SRS indicator can
result in serious injury or death
if the airbag systems or
tensioners do not work properly.
Have your vehicle checked by a
dealer as soon as possible if
the SRS indicator alerts you to
a possible problem.
Page 95 of 218
Help assure your vehicle’s f uture
reliability and perf ormance by paying
extra attention to how you drive
during the f irst 600 miles (1,000 km).
During this period:Avoid full-throttle starts and rapid
acceleration.
Do not change the oil until the
scheduled maintenance time.
Avoidhardbrakingforthefirst
200 miles (300 km).
You should also f ollow these
recommendations with an
overhauled or exchanged engine, or
when the brakes are replaced. Use of gasoline with these additives
may adversely af f ect perf ormance,
and cause the Malfunction Indicator
Lamp on your instrument panel to
come on. If this happens, contact
your dealer f or service.
Your vehicle is designed to operate
on unleaded gasoline with a pump
octane number of 86 or higher. Use
of a lower octane gasoline can cause
occasional metallic knocking noises
in the engine and will result in
decreased engine perf ormance.
In addition, in order to maintain good
perf ormance, f uel economy, and
emissions control, we strongly
recommend, in areas where it is
available, the use of gasoline that
does NOT contain manganese-based
f uel additives such as MMT. Some gasoline today is blended with
oxygenates such as ethanol or
MTBE. Your vehicle is designed to
operate on oxygenated gasoline
containing up to 10 percent ethanol
by volume and up to 15 percent
MTBE by volume. Do not use
gasoline containing methanol.
If you notice any undesirable
operating symptoms, try another
service station or switch to another
brand of gasoline.
For f urther important f uel-related
inf ormation, please ref er to your
.
We recommended using a quality
gasoline containing detergent
additives that help prevent fuel
system and engine deposits.
Break-in Period
Fuel Recommendation
Quick Start Guide
Break-in Period, Fuel Recommendation
94
Page 97 of 218
Screw the fuel fill cap back on
until it clicks at least three times.
If you do not properly tighten the
cap, the Malf unction Indicator
Lampmaycomeon(seepage).
Push the f uel f ill door closed until
it latches.

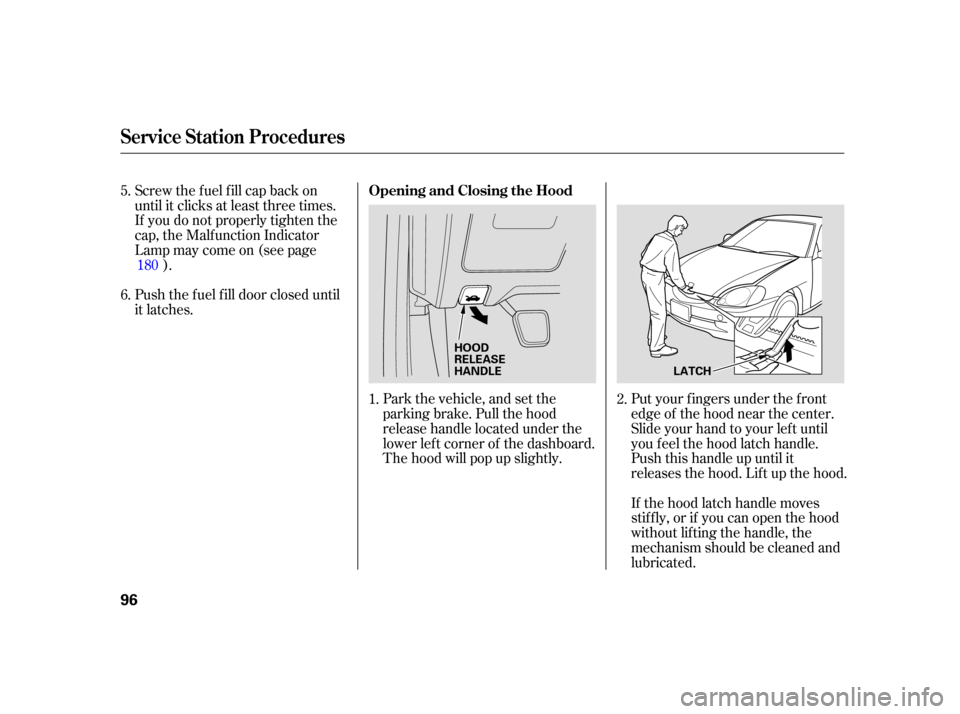

Park the vehicle, and set the
parking brake. Pull the hood
release handle located under the
lower lef t corner of the dashboard.
The hood will pop up slightly.Put your f ingers under the f ront
edge of the hood near the center.
Slide your hand to your lef t until
you f eel the hood latch handle.
Push this handle up until it
releases the hood. Lif t up the hood.
If the hood latch handle moves
stif f ly, or if you can open the hood
without lifting the handle, the
mechanism should be cleaned and
lubricated.
1.
2.
5.
6.
180
Service Station Procedures
Opening and Closing the Hood
96
HOOD
RELEASE
HANDLE
LATCH
Page 181 of 218
If you have recently ref ueled your
vehicle, the indicator could come on
because of a loose or missing f uel f ill
cap. Tighten the cap until it clicks at
least three times. Tightening the cap
will not turn the indicator of f
immediately; it takes at least three
days of normal driving.If the indicator remains on, or the
f uel cap was not loose or missing,
have your vehicle checked by the
dealer as soon as possible.
If the indicator comes on
while driving, it means one
of the engine’s emissions control
systems may have a problem. Even
though you may f eel no dif f erence in
your vehicle’s perf ormance, it can
reduce your f uel economy and cause
increased emissions. Continued
operation may cause serious damage.
Immediately turn of f all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly. If the charging system
indicator comes on brightly
when the engine is running, the
battery is not being charged.
Go to a service station or garage
where you can get technical
assistance. This indicator may also come on
along with the ‘‘D’’ indicator.
Charging System Indicator, Malf unction Indicator L amp
Malf unction Indicator L amp
Charging System Indicator
180
If you keep driving with the
Malf unction Indicator Lamp on, you
can damage your vehicle’s emissions
controls and the engine. Those repairs
may not be covered by your vehicle’s
warranties.
Page 183 of 218
The brake system
indicator normally
comesonwhenyou
turn the ignition switch to ON (II)
and as a reminder to check the
parking brake. It will stay lit if you do
not f ully release the parking brake.
If the brake system indicator comes
on while driving, the brake f luid level
is probably low. Press lightly on the
brake pedal to see if it f eels normal.
If it does, check the brake f luid level
thenexttimeyoustopataservice
station (see page ).
If the f luid level is low, take your
vehicle to a dealer, and have the
brake system inspected f or leaks or
worn brake pads. However, if the brake pedal does not
f eel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will f eel the brake
pedal go down much f arther bef ore
the vehicle begins to slow down, and
you will have to press harder on the
pedal.
Slow down by shif ting to a lower
gear, and pull to the side of the road
when it is saf e. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (see
on page ). If you must drive the vehicle a short
distance in this condition, drive
slowly and caref ully.
145 183
Brake System Indicator
Emergency
Towing
182
U.S. Canada
Page 210 of 218
CONT INUED
BatteryCharging System ...........................
Indicator .44, 180
............................
Jump Starting .175
..............................
Maintenance .162
............................
Specif ications .195
................................
Bef ore Driving .93
..................................
Belts, Seat .10, 18
.............................
Beverage Holder .71
..................................
Booster Seats .35 Brakes
...........
Anti-lock System (ABS) . 122
................
Break-in, New Linings . 94
....................
Bulb Replacement .149
...........................................
Fluid .144
.........................................
Parking .69
.................
System Indicator . 45,182
........................
Wear Indicators .121
.............................
Braking System .121
...................
Break-in, New Vehicle . 94
..
Brightness Control, Instruments . 57
........................
Brights, Headlights .56
Bulb Replacement ..........................
Back-up Lights .149
..............................
Brake Lights .149
................
Front Parking Lights . 147
........
Front Side Marker Lights . 148
.................................
Headlights .146
............................
Specif ications .195
....................
Turn Signal Lights . 148
..............................
Bulbs, Halogen .146
....................................
Accessories .101
ACCESSORY (Ignition Key .......................................
Position) .61
...............
Accessory Power Socket . 71
....................
Additives, Engine Oil . 136
.............................
Airbag (SRS) .11, 21
...
Airbags, Additional Information . 21
...
Additional Safety Precautions . 24
.............................
Airbag Service .23
..
How the SRS Indicator Works . 23
How Your Front Airbags .........................................
Work .21
........................
SRS Components .21
................
Air Conditioning System . 74
.....................................
Usage .75, 78
.......................
Air Pressure, Tires .156
.........................
Normal Driving .157
.........................
Alcohol in Gasoline .94
......................................
Antif reeze .139
Anti-lock Brakes (ABS) ...............................
Indicator .45, 122
....................................
Operation .122
................
Anti-theft, Audio System . 90Anti-thef t Steering Column
..............................................
Lock .61
..................................
Audio System .80
........................
Auto Idle Stop .111, 118
...
Automatic Seat Belt Tensioners . 19
..............
Automatic Transmission . 113
..........................
Capacity,Fluid .194
...............
Checking Fluid Level . 142
.......................................
Shif ting .114
Shif t Lever Position ...............................
Indicators .113
................
Shif t Lever Positions . 114
....................
Shif t Lock Release . 117
Index
A
B
INDEX
I
Page 211 of 218
Î
............................
Capacities Chart .194
.............
Carbon Monoxide Hazard . 38
.............................
Carrying Cargo .103
..............
CAUTION, Explanation of . ii
...........................................
CD Care .87
.............
CD Player Error Message . 88
.........
CD Changer Error Message . 89
.........................................
CD Player .85
....................................
Ceiling Light .72
........................
Certif ication Label .192
.................................
Chains, Tires .161
....................
Charge/Assist Gauge .53 ................
DANGER, Explanation of . ii
...................................
Dashboard .4, 42
................
Daytime Running Lights . 56
Daytime Running Lights .......................................
Indicator .46
.................................
Dead Battery .175
............
Def ects, Reporting Saf ety . 206
..........................
Def og and Def rost .77
................
Def ogger, Rear Window . 58
................
Def rosting the Windows . 77
....................................
Dimensions .194
...............
Dimming the Headlights . 56
Dipstick Automatic Transmission .....................................
(CVT) .142
....................................
Engine Oil .97
..........................
Directional Signals .56
........
Disc Brake Wear Indicators . 121
.....................
Disposal of Used Oil .138
..................
Display Change Button . 49
Doors ..............
Locking and Unlocking . 62
......................
Power Door Locks .62
..........
DOT Tire Quality Grading . 196
....................
Changing a Flat Tire .167
Changing Oil ........................................
How to .136
......................................
When to .129
...
Charging System Indicator . 44,180
............
Checklist, Bef ore Driving . 108
.....................................
Child Saf ety .25
..............................
Booster Seats .35
...................................
Child Seats .30
.....
Important Saf ety Reminders . 28
..........................................
Inf ants .26
............................
Large Children .34 ......................
Risks with Airbags .26
.............................
Small Children .29
.........................................
Tethers .33
.........
Where Should a Child Sit? . 25
Child Seats ................
Installing a Child Seat . 30
....................
Selecting Child Seat . 30
..........
Tether Anchorage Points . 33
.................................................
Clock .91
...................................
Clutch Fluid .145
........................
CO in the Exhaust .199
............
Cold Weather, Starting in . 109
......................
Compact Spare Tire .166
...............
Consumer Inf ormation . 204
.............
Controls, Instruments and . 41
Coolant ........................................
Adding .139
......................................
Checking .98
.........................
Proper Solution .139
...................
Temperature Gauge . 49
Crankcase Emissions Control ........................................
System .199
.....................................
Cup Holders .71
.....................
Current Fuel Mileage .50
.............
Customer Service Of f ice . 204
Index
D
C
II
Page 216 of 218
Î
CONT INUED
...................................
Seat Belts .10, 18
...............
Additional Information . 18
Automatic Seat Belt ...............................
Tensioners .19
.....................................
Cleaning .151
......................
Lap/Shoulder Belt .18
................................
Maintenance .19
Reminder Indicator and ................................
Beeper .18, 44
...................
System Components . 18
...............
Use During Pregnancy . 16
...
Wearing a Lap/Shoulder Belt . 14
........................
Seats, Adjusting the .66
...............................
Serial Number .192
...........................
Service Intervals .129
...........................
Service Manual .207
...........
Service Station Procedures . 95
............................
Setting the Clock .91
...
Shif t Lever Position Indicators . 113
........................
Shif t Lock Release .117
Side Marker Lights, Bulb ......................
Replacement .148, 149
...............................
Signaling Turns .56
.....................................
Snow Tires .161
..................................
Sound System .80 Spare Tire
......................................
Inf lating .166
............................
Specif ications .195
....................
Specif ications Charts . 194
.........................................
Spotlights .72
..........
SRS, Additional Inf ormation . 21
...
Additional Safety Precautions . 24
.............................
Airbag Service .23
How the SRS Indicator .......................................
Works .23
How Your Front Airbags .........................................
Work .21
........................
SRS Components .21
.............................
SRS Indicator .23 ,44
....
START (Ignition Key Position) . 61
.......................
Starting the Engine .109
In Cold Weather at High ..................................
Altitude .109
................
With a Dead Battery . 175
..............
State Emissions Testing . 202
........
Steam Coming f rom Engine . 177
Steering Wheel .............
Anti-theft Column Lock . 61
.....................
Stereo Sound System .80
....................
Storing Your Vehicle .163 Supplemental Restraint
................................
System .11, 21
......................................
Servicing .23
.........................
SRS Indicator .23, 44
...................
System Components . 21
..................................
Synthetic Oil .136
......
Taillights, Changing Bulbs in . 149
Taking Care of the ...............................
Unexpected .165
Technical Descriptions ......
DOT Tire Quality Grading . 196
.....
Emissions Control Systems . 199
..........
State Emissions Testing . 202
Three Way Catalytic ...............................
Converter .201
.......................
Temperature Gauge .49
..........
Temperature, Inside Sensor . 79
..............
Tether Anchorage Points . 33
..............................
Thef t Protection .90
..
Three Way Catalytic Converter . 201
............................
Time, Setting the .91
Index
T
INDEX
VII
