Navigation System3
Table of Contents
Customer Assistance ................103
Reporting Errors .......................... 103
Honda Automobile Customer
Service ...................................... 103
Visiting Your Dealer ................... 104
Obtaining a Navigation Update DVD ......................................... 104
Changing the DVD ...................... 105
PC Card Operation ...................... 106
Inserting the PC Card.................... 106
Voice Control of PC Card
Functions .................................... 106
CD/CD-R Operation .................... 106
Voice Control of CD Functions ..... 107
Coverage Areas .........................108
Map Coverage ............................. 108
U.S. Detailed Coverage Areas....... 108
Canada Detailed Coverage Areas .......................................... 113
Operation in Alaska and Hawaii ...................................... 121
Alaska ............................................ 121
Hawaii ........................................... 121
Shipping a Vehicle To or From
Hawaii ........................................ 122
Frequently Asked Questions ............................... 123
Troubleshooting ....................... 133
Glossary .................................... 135
Glossary .......................................135
Voice Command Index ............ 138
Global Commands .......................138
Navigation General Commands ................................138
Navigation Display Commands ................................139
Find Place Commands .................140
Climate Control Commands ........141
Temperature Voice Commands ................................142
Radio Voice Commands ..............142
CD Voice Commands ..................143
PC Card Voice Commands ..........143
AUX Voice Commands ...............143
Information Screen Voice Commands ................................144
Setup Screen (first) Commands ................................144
On-Screen Commands .................145
On-Screen Commands Assist ......... 145
Index ......................................... 147

12Navigation System
Getting Started
Voice Control Basics
Your vehicle has a voice control system
that allows hands-free operation of most
of the navigation system functions. You
can also control the audio and climate
control system. The voice control
system uses the NAVI TALK and NAVI
BACK buttons on the steering wheel
and a microphone near the map lights on
the ceiling.
NOTE:
While using the voice control system,
the audio system is muted.
NAVI TALK button
This button activates the voice control
system. Press and release it when you
want to give a voice command. See
Voice Command Index on page 138 for
a list of voice commands.
NAVI BACK button
This button has the same function as the
CANCEL button. When you press and
release it, the display returns to the
previous screen. When the previous
screen appears, the system replays the
last prompt. This button is enabled for
navigation system commands only.
However, it can be used to cancel an
audio or climate control voice command
up to one second after the command
confirmation.
NOTE:
The NAVI TALK and NAVI BACK
buttons are deactivated while using the
Bluetooth® HandsFreeLink® feature.
See your Owner’s Manual and the
official website
(handsfreelink.honda.com ) for
information on this system.
NAVI BACK button HFL TALK
button
NAVI TALK
button
HFL BACK button
Microphone
(on the ceiling)

Navigation System21
Getting Started
System Function Diagram
This diagram shows the navigation
system features, starting at the center
and working outward in layers. The
navigation program starts at “Key ON,”
and then displays the globe screen
(blue). If OK is selected on the
Disclaimer screen, the functions in the
yellow segments of the diagram become
available in the Setup and Information
screens.The white segments of the
diagram are available anytime, even if
you do not select OK.
The items above the map screen show
various methods to begin driving to
your destination (orange). You are
provided with map/voice guidance,
routing cautions, and a direction list.
While driving to your destination, use
the voice control system as much as
possible to interact with the navigation,
audio, and climat e control systems
(green).
KEY ONGLOBESCREENPRESS
OK
OKNOT
PRESSED
THEDISCLAIMERSCREEN(pg.16)
CALENDAR
REMINDERS(pg.17)-THEMAPSCREEN(pg.19)-
AUDIO
BUTTO N
(pg. 11)
INFO
BUTTON (pg. 6 9)
Formoreinformation,see
yourOwner’sManual
VOICECOMMANDS
NAVI AUDIO
CLIMATE (pg. 69)
ENTER (pg. 71)
LIST (pg. 71)
MATH (pg. 72)
CONVERT (pg. 73)
LIST (pg. 70)
CALENDAR
CALCUL ATOR
MAP LEGEN D
VOICE: "FIND
NEAREST..." ATM, ETC.(pg. 140)
SELECT A
DESTINATION WITH
JOYSTICK (pg. 66)
VOICE:
"GO HOME" (pg. 44)
VOICE:
"MENU" FOR ENTER
DESTINATION SCREEN(pg. 22)
CONTINUE TO THE
DESTINATION (RESUME)
AFTER RESTART
(pg. 68)
VOICE HE LP
SELECT
BAND/
FREQUENCYVOL
BALANCECD
FUNCTIONSOTHER AUDIO
VOICE:
"ZOOM IN/ZOO M OUT"
(pg. 54, 13 9)
VOICE:
"HIDE/DISPLAY ICONS" (pg. 57, 13 9
)
INFORMATION SCREEN
(pg. 144)
AUDIO (pg. 142 - 143)
-DRIVINGTOYOURDESTINATION-
(MAP/VOICEGUIDANCE,ROUTINGCAUTIONS,DIRECTIONLIST)VOICE:
"HELP" (ALL)
(pg. 138)
VOICE:
"INFORMATION SCREEN"(pg. 6 9)
VOICE:
"MENU" (to
change route) (pg. 63)
VOICE:
"HOW FAR TO THE DESTINATION?" (pg. 138)VOICE:
"DISPLAY (OR SAVE)
CURRENT LOCATION" (pg.61)VOICE:"SET WAYPOINT"(pg. 63)
VOICE:
"WHAT TIME IS IT?"
(pg. 138)
VOICE:
AUDIO
(pg. 142 - 143)
ADD BOOK (pg. 77)PINs (pg. 81)UNITS MI/KM (pg. 93)
PERSONALBASIC
UNVERIFIED (pg. 84)AVOID AREAS (pg. 88)ADJ. TIME (pg. 94)CLOCK TYPE
(pg. 95)
ROUTING
GUIDANCE
CLOC K
SETTINGS
OFF-ROAD TRA CKING
(pg. 60, 91)CORRECT VEHICL E
POSITION (p g. 92)MAP COLOR (pg. 96)MENU COLOR (pg. 96)
VEHICLECOLOR
GUIDE. PROMPTS
(pg. 76)
SETUP
SCREEN (FIRST)
OKNOTPRESSED
VERSION ( pg. 93)
SYSTEM INF O.
BRIGHTNESS (pg. 74)VOLUME (pg. 74)DISPLAY (pg . 75)CONTRAST (pg. 76)
SETUP(pg.74)
BRIGHTNESS
ZOOM IN/OUT REAR CAMERA
(REVERSE)
IMPORT, SEA RCH,
DELETE (pg. 6 9)
PHONEBOOK
CLIMATE CONTROL
(pg. 141 - 142)
VOICE:
CLIMATE
FAN, TEMP
(pg. 141 - 142)

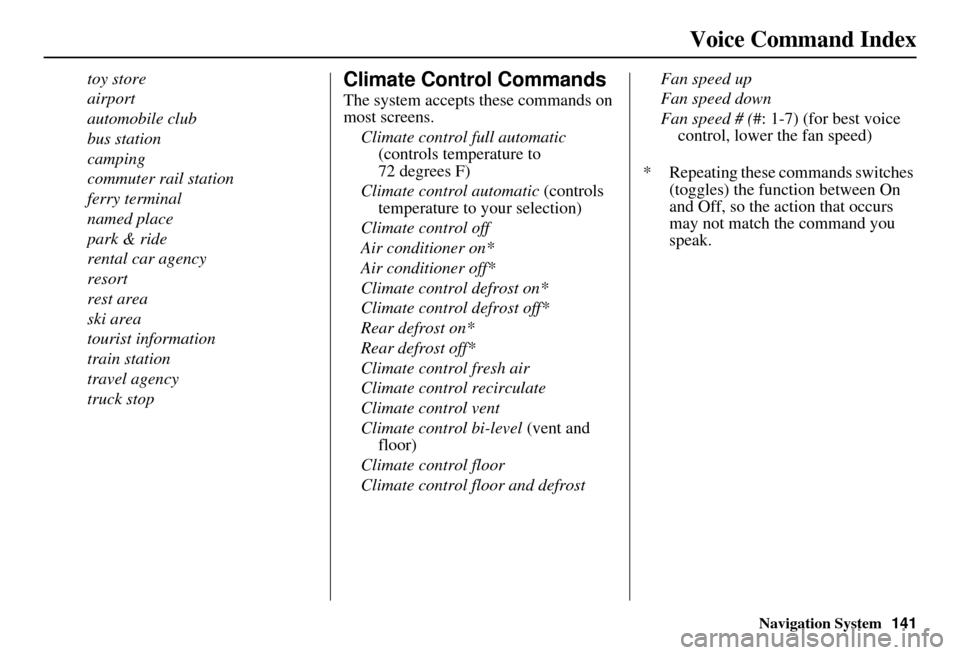

Navigation System141
Voice Command Index
toy store
airport
automobile club
bus station
camping
commuter rail station
ferry terminal
named place
park & ride
rental car agency
resort
rest area
ski area
tourist information
train station
travel agency
truck stopClimate Control Commands
The system accepts these commands on
most screens.
Climate control full automatic (controls temperature to
72 degrees F)
Climate control automatic (controls
temperature to your selection)
Climate control off
Air conditioner on*
Air conditioner off*
Climate control defrost on*
Climate control defrost off*
Rear defrost on*
Rear defrost off*
Climate control fresh air
Climate control recirculate
Climate control vent
Climate control bi-level (vent and
floor)
Climate control floor
Climate control floor and defrost Fan speed up
Fan speed down
Fan speed # (
#: 1-7) (for best voice
control, lower the fan speed)
* Repeating these commands switches (toggles) the function between On
and Off, so the action that occurs
may not match the command you
speak.

Navigation System147
Index
A
Accessing the Address Book List
.....78
ADD TO Today’s Destinations
...........................42, 45
Adding Destinations to the List........42
Address..............................22, 23, 79
Address Book.....................22, 43, 77
Address Book PIN..........................81
Advanced.......................................33
Alaska (Operation)........................121
Auto Daylight Saving Time.............94
Auto Service...................................33
Auto Time Zone by GPS.................95
AUX Voice Commands.................143
Avoid Streets..................................65
B
Back to Current Route
.....................66
Banking..........................................33
Basic Settings.................................93
Bluetooth® HandsFreeLink®..........18
Breadcrumbs.......................19, 60, 91
Brightness......................................74
By Address.....................................23
By Address Book............................43
By Go Home...................................44
By Intersection................................27
By Map Input................................. 36
By Places....................................... 32
By Previous Destinations................ 40
By Today’s Destinations................. 41
C
Calculator
...................................... 72
Calendar.................................. 17, 71
CALL............................................ 18
CANCEL button............................ 11
Cancel Current Route..................... 66
Category............................ 32, 43, 80
CD Voice Commands................... 143
Cellular Phonebook........................ 69
Change Method.............................. 46
Change State............................ 23, 28
Changing the DVD....................... 105
Changing the Route........................ 63
Changing the Routing Method........ 46
Changing Your Destination............. 66
City................................... 23, 28, 38
City Vicinity............................ 34, 35
Climate Control Commands.......... 141
Clock Adjustment.......................... 94
Clock Screen........................... 17, 76
Clock Settings.......................... 17, 76
Clock Type.............................. 17, 76
CLOSE button....................... 10, 105
Color............................................. 96
Community.................................... 33
Continental USA............................ 39
Contrast......................................... 76
Convert (Unit)................................ 73
Correct Vehicle Position................. 92
Coverage Areas............................ 108
Current Location...................... 20, 61
Current Position....................... 37, 79
Current Street................................... 6
Customer Assistance.................... 103
D
Database Limitations
.................... 101
Daylight Saving Time (DST) Selection
..................................... 95
Delete Previous Destination............ 82
Destination........................ 22, 45, 66
Destination Icon............................. 55
Destination Map............................. 48
Detailed Coverage Areas...... 108, 113
Detour........................................... 65
Direct Route.................................. 46
Direction List................................. 52
Display.......................................... 75
Driving to Your Destination............ 45
