HONDA INSIGHT 2011 2.G Owners Manual

´
µ

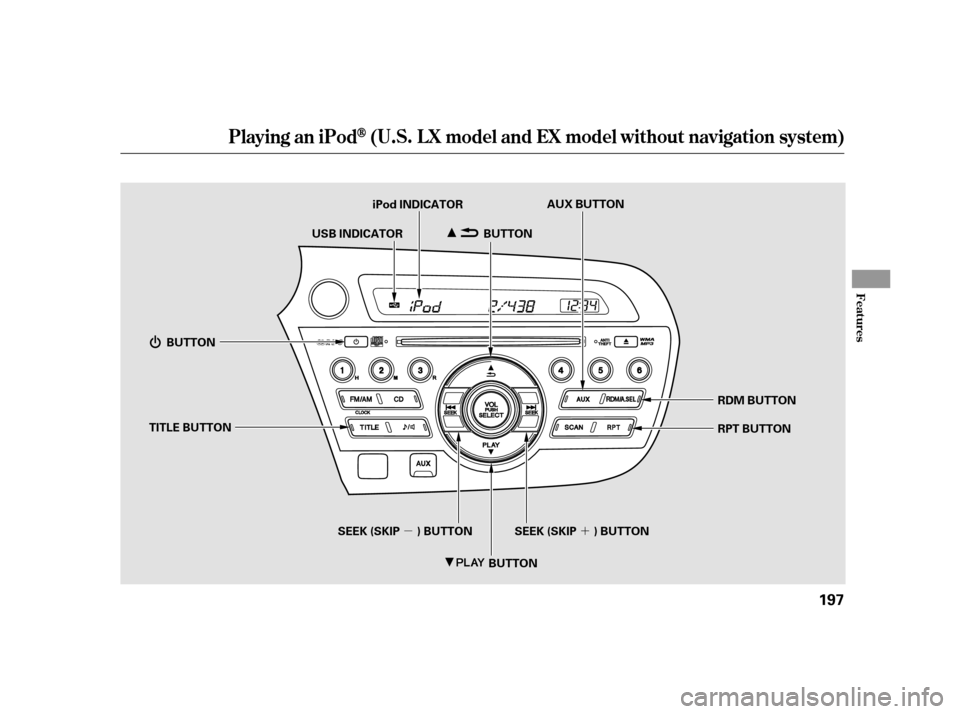

Playing an iPod(U.S. L X model and EX model wit hout navigat ion syst em)
Features
197
BUTTON
BUTTON
TITLE BUTTON
BUTTON AUX BUTTON
iPod INDICATOR
USB INDICATOR
RDM BUTTON
RPT BUTTON
SEEK (SKIP ) BUTTON
SEEK (SKIP ) BUTTON

Do not connect your iPod using a hub.
DonotkeeptheiPodinthe
vehicle. Direct sunlight and high
heat will damage it.
Do not use an extension cable
between the USB adapter cable
equipped with your vehicle and
your dock connector.
We recommend backing up your
data bef ore playing it.
Some devices cannot be powered
or charged via the USB adapter. If
this is the case, use the accessory
adapter to supply power to your
device.
iPod models conf irmed to be
compatible with your audio system
using the USB adapter cable are:
This audio system can play the audio
f iles on the iPod
with the same
controls used f or the in-dash disc
player. To play an iPod, connect it to
the USB adapter cable in the console
compartment by using your dock
connector, then press the AUX
button. The ignition switch must be
in the ACCESSORY (I) or ON (II)
position. The iPod will also be
recharged with the ignition switch in
these positions.
The system will only play songs
stored on the iPod with iTunes.
iPod and iTunes are registered
trademarks owned by Apple Inc. This system may not work with all
sof tware versions of these devices.Model
iPod classic 80/160 G
iPod classic 120 G
iPod classic 160 G (launch in 2009)
iPod (5th generation)
iPod nano
iPod touch
Playing an iPod(U.S. L X model and EX model wit hout navigat ion syst em)
To Play an iPod
198 NOTE:

Unclip the USB connector by
pivoting it, and pull out the USB
adapter cable in the console
compartment.Connect your dock connector to
the iPod correctly and securely.
Install the dock connector to the
USB adapter cable securely.If the iPod indicator does not appear
in the audio display, check the
connections, and try to reconnect the
iPod a f ew times.
If the audio system still does not
recognize the iPod, the iPod may
need to be reset. Follow the
instructions that came with your
iPod, or you can f ind reset
instructions online at
1. 2. 3.
www.apple.com/
CONT INUED

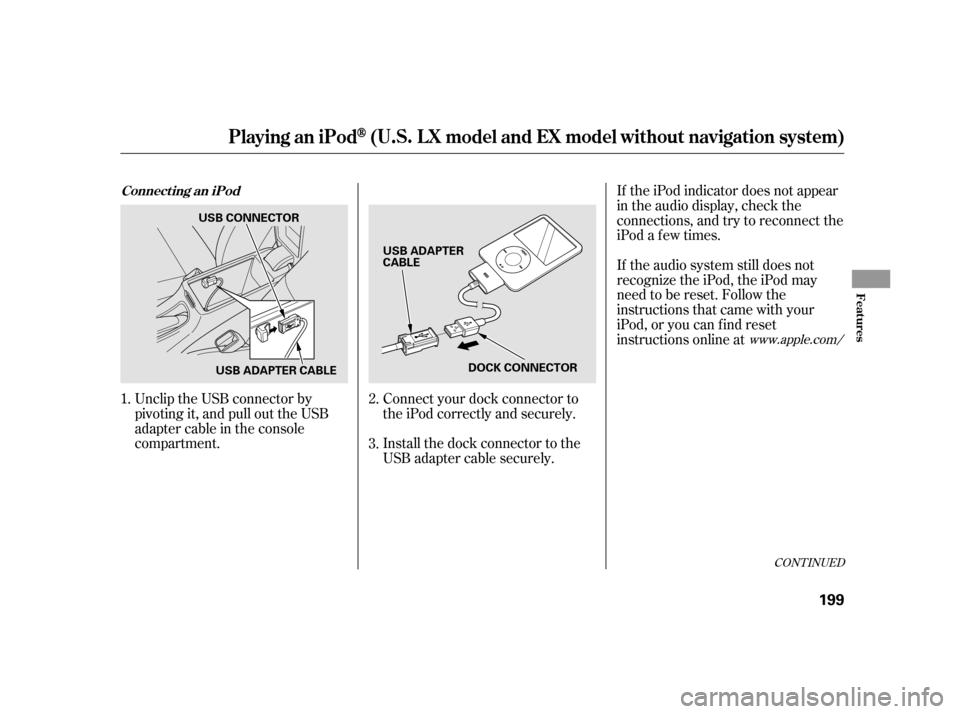

Connect ing an iPod
Playing an iPod(U.S. L X model and EX model wit hout navigat ion syst em)
Features
199
DOCK CONNECTOR
USB ADAPTER
CABLE
USB CONNECTOR
USB ADAPTER CABLE

µ´
µ
¼ Use the SKIP button while an iPod is
playing to change f iles.
Each time you press the
(SKIP ) button, the system
skips forward to the beginning of the
next f ile. Press the (SKIP )
button, to skip backward to the
beginning of the current f ile. Press it
again to skip to the beginning of the
previous f ile.
To move rapidly within a f ile, press
andholdeitherside( or )
of the SKIP button.
Each time you press the TITLE
button the display mode switches
between the album name, the song
name, the artist name, or name of f
(which turns off the text display).
The display shows up to 16
characters of the selected data. If the
text data has more than 16
characters, you will see the first 15
characters and the indicator in
the display. Press and hold the
TITLE button until the next 16
characters are shown.
T o Change or Select Files
T ext Dat a Display Funct ion
SK IP
Playing an iPod(U.S. L X model and EX model wit hout navigat ion syst em)
200

µµ
You can also select a file from any
list on the iPod menu: playlists,
artists, albums and songs, by using
the VOL/SELECT knob. Push the
VOL/SELECT knob to switch the
display to an iPod menu, then turn
the VOL/SELECT knob to select a
desired list. Press the VOL/SELECT
knob to set your selection. The display shows items on the
selected list. Turn the VOL/
SELECT knob to select an item, then
press the VOL/SELECT knob to set
your selection.
If you select ‘‘ALL,’’ all available f iles
on the selected list are played.
Pressing the button goes back
to the previous display and pressing
the TITLE button cancels this
setting mode.
You can select any type of repeat and
shufflemodebyusingtheRPT
button or the RDM button.
This feature
continuously plays a f ile. To activate
the repeat f eature, press the RPT
button. You will see ‘‘RPT’’ in the
display. To turn it of f , press the RPT
button again.
This feature
plays all available f iles in a selected
list (playlists, artists, albums or
songs) in random order. To activate
the shuffle all feature, press the
RDM button. You will see ‘‘RDM’’ in
the display. To turn it of f , press and
hold the RDM button.
CONT INUED
T o Select Repeat or Shuf f le Mode:
REPEAT
SHUFFLE ALL
Playing an iPod(U.S. L X model and EX model wit hout navigat ion syst em)
Features
201

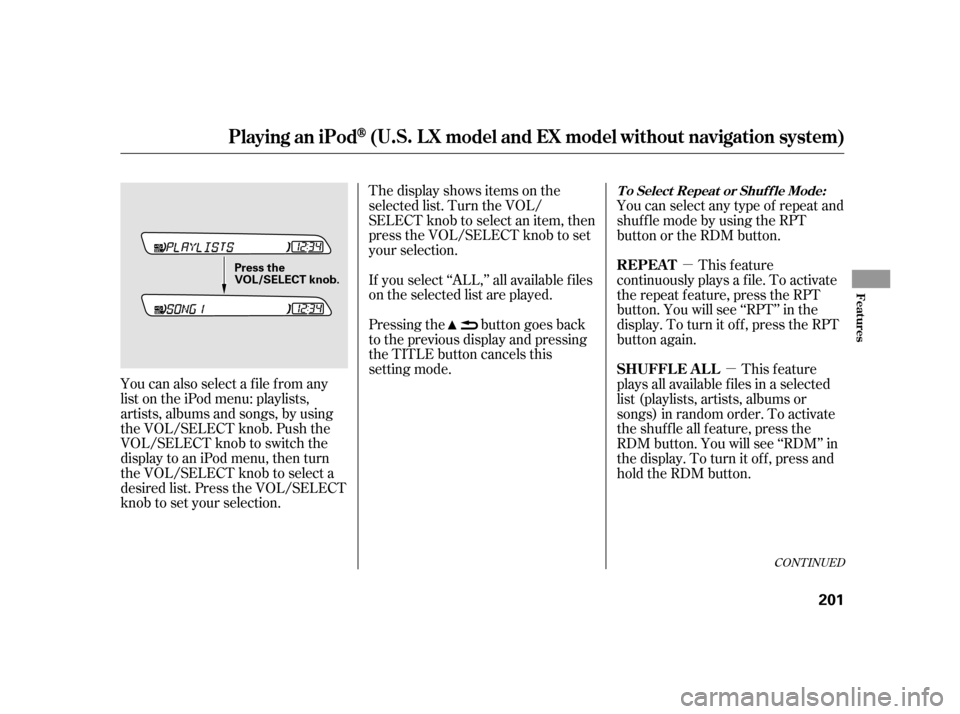

Press the
VOL/SELECT knob.

µÎ Î
This feature
plays all available albums in a
selected list (playlists, artists, albums
or songs) in random order. The f iles
in each album are played in the
recorded order. To activate the
shuf f le album f eature, press the
RDM button repeatedly. You will see
‘‘F-RDM’’ in the display. To turn it
of f , press and hold the RDM button.
Each time you press the RDM
button, the mode changes f rom
shuffle all play to shuffle album play,
then to normal play. To play the radio when an iPod is
playing, press the FM/AM button. If
a disc is in the audio unit, press the
CD button to play the disc.
You can disconnect the iPod at any
time when you see the ‘‘OK to
disconnect’’ message in the iPod
display. Always make sure you see
the ‘‘OK to disconnect’’ message in
the iPod display bef ore you
disconnect it. Make sure to f ollow
the iPod’s instructions on how to
disconnect the dock connector f rom
the USB adapter cable.
The displayed message may
vary on models or versions. On
some models, there is no
message to disconnect. If you reconnect the same iPod, the
system may begin playing where it
lef t of f , depending on what mode the
iPod is in when it is reconnected.
When you disconnect the iPod while
it is playing, the display shows ‘‘USB
NO DATA.’’
:
SHUFFL E A L BUM T o Stop Playing Your iPod
Disconnect ing an iPod
Playing an iPod(U.S. L X model and EX model wit hout navigat ion syst em)
202

If you see an error message on the
audio display while playing an iPod,
findthesolutioninthecharttothe
right. If you cannot clear the error
message, take your vehicle to your
dealer.Cause
Error Message Solution
USB ROM Error
Appears when an
incompatible device is
connected
No files in iPod
Use of unsupported
iPod
Recognition failure of
iPod There is a problem with the USB adapter unit.
Disconnect the device. Then, turn the audio
systemoff,andturnitonagain.Donot
reconnect the device that caused the error.
Appears when the iPod is empty. Store some
files in the iPod.
Appears when an unsupported iPod is
connected. See page 198 for the specification
information for iPods. If it appears when a
supported iPod is connected, update the iPod
software to the newer version.
Appears when the system dose not
acknowledge the iPod. Reconnect the iPod.
iPodError Messages (U.S. L X model and EX model wit hout navigation syst em)
Features
203
USB ERROR
BAD USBDEVICE
PLEASE CHECK OWNERS
MANUAL
iPod NO SONG
UNSUPPORTED VER.
CONNECT RETRY

´
µ

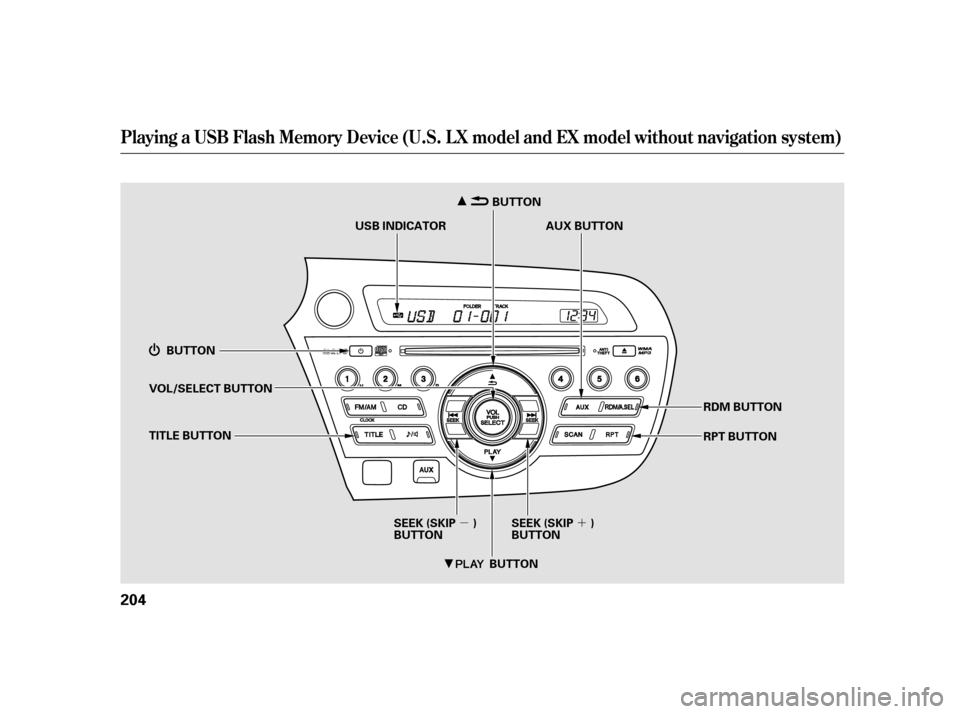

Playing a USB Flash Memory Device (U.S. L X model and EX model without navigation system)
204 TITLE BUTTON
SEEK (SKIP )
BUTTON
USB INDICATOR AUX BUTTON
SEEK (SKIP )
BUTTON RDM BUTTON
RPT BUTTON
VOL/SELECT BUTTON
BUTTON
BUTTONBUTTON

Î
Î
CONT INUED
The recommended USB f lash
memory devices are 256 MB or
higher, and f ormatted with the FAT
f ile system. Some digital audio
players may be compatible as well.
Some USB f lash memory devices
(such as devices with security lock-
out f eatures, etc.) will not work in
this audio unit.
The audio system reads and plays
the audio f iles on the USB f lash
memory device in MP3, WMA or
AAC f ormats. Depending on the
f ormat, the display shows MP3,
WMA or AAC when a USB flash
memory device is playing.
This audio system can operate the
audio f iles on a USB f lash memory
device with the same controls used
f or the in-dash disc player. To play a
USB f lash memory device, connect it
to the USB adapter cable in the
console compartment, then press the
AUX button.
Only AAC f ormat f iles recorded
with iTunes are playable on this
audio unit.
:
To Play a USB Flash Memory
Device
Playing a USB Flash Memory Device (U.S. L X model and EX model without navigation system)
Features
205

Do not use a device such as a card
reader or hard drive as the device
or your f iles may be damaged.
Do not connect your USB f lash
memory device using a hub.
Do not use an extension cable to
the USB adapter cable equipped
with your vehicle.Do not keep a USB f lash memory
device in the vehicle. Direct
sunlight and high heat will damage
it.
Depending on the type and
number of f iles, it may take some
time before they begin to play.Depending on the sof tware the
f iles were made with, it may not be
possible to play some f iles, or
displaysometextdata.
Depending on the type of
encoding and writing sof tware
used, there may be cases where
character inf ormation does not
display properly.
We recommend backing up your
data bef ore playing a USB f lash
memory device.
Some devices cannot be powered
or charged via the USB adapter. If
this is the case, use the accessory
adapter to supply power to your
device.
Playing a USB Flash Memory Device (U.S. L X model and EX model without navigation system)
206
NOTE:
