Parking Brake . 151
.........
Interior Convenience Items . 152
.....................
Cargo Area Cover . 153
...............
Under Floor Storages . 155
.
Floor Storage Compartments . 155
.....................
Beverage Holders . 156
.........
Accessory Power Socket . 157
.............
Console Compartment . 157
..................................
Glove Box . 158
...............................
Center Tray . 158
..........................
Center Pockets . 159
..................................
Coat Hook . 160
..................................
Sun Visors . 160
............................
Vanity Mirror . 160
...............................
Interior Lights . 161
Instruments and Controls
Inst rument s and Cont rols
59

Î ÎÎ
Î
Î
If equipped
Ref er to the navigation system manual.
1:2:
Control L ocat ions
60 (P.72)
(P.72, 75)
EX model with navigation system is shown. HAZARD WARNING BUTTON
MULTI-INFORMATION DISPLAY
INSTRUMENT PANEL INDICATORS
GAUGES
ECON BUTTON DOOR LOCK TAB
POWER WINDOW
SWITCHES
HOOD RELEASE HANDLE AUDIO SYSTEM
PASSENGER AIRBAG
OFF INDICATOR
(P.35)
PARKING BRAKE LEVER
AUTOMATIC
TRANSMISSION (CVT)
CLIMATE CONTROL
SYSTEM
(P.62)
MIRROR CONTROLS
(P.147)
(P.127)
(P.133)
(P.133)
(P.149)
(P.250) NAVIGATION SYSTEM
(P.170)
(P.164)
(P.273)
(P.151)
USB ADAPTER CABLE
PADDLE SHIFTERS
(P.278)
POWER DOOR LOCK
MASTER SWITCH
(P.199, 207)(P.125)
2
1
1

ÎÎ
Î
Î Î
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the tex t.
Instrument Panel
Inst rument s and Cont rols
61

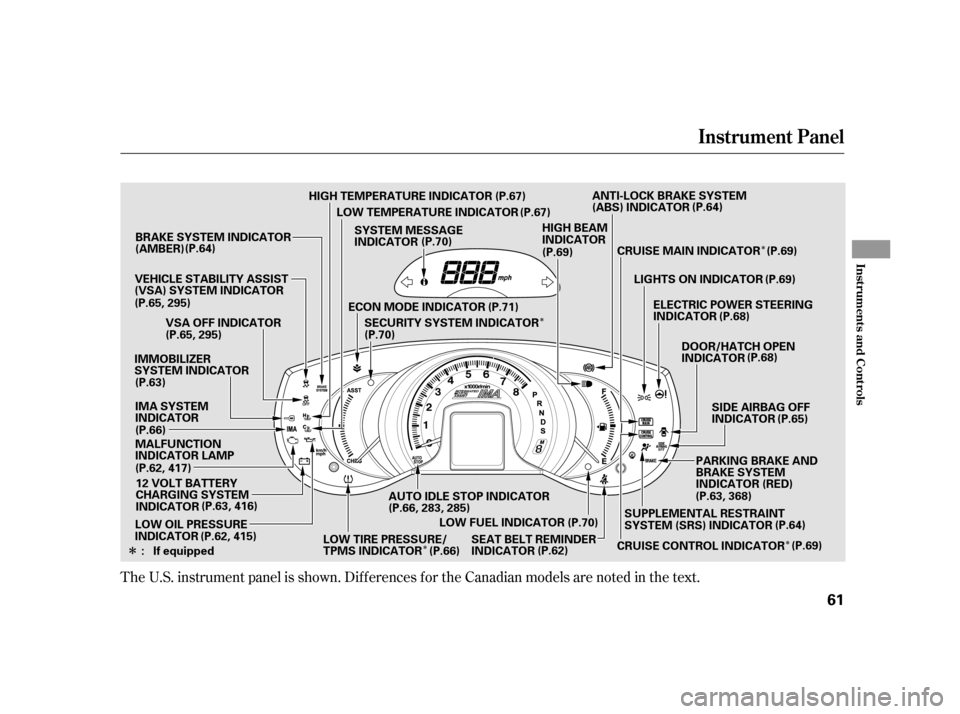

LIGHTS ON INDICATOR
SEAT BELT REMINDER
INDICATOR ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS) INDICATOR
SYSTEM MESSAGE
INDICATOR
BRAKE SYSTEM INDICATOR
(AMBER)
VSA OFF INDICATOR
MALFUNCTION
INDICATOR LAMP PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR (RED)
DOOR/HATCH OPEN
INDICATOR
SIDE AIRBAG OFF
INDICATOR
IMMOBILIZER
SYSTEM INDICATOR
IMA SYSTEM
INDICATOR HIGH BEAM
INDICATOR
ELECTRIC POWER STEERING
INDICATOR
(P.64)
(P.63) (P.66)
: If equipped (P.62)(P.64)(P.65)
(P.68)
(P.68)
(P.69)
(P.64)
(P.69)
HIGH TEMPERATURE INDICATOR (P.67)
LOW TEMPERATURE INDICATOR (P.67)
(P.70)
(P.66) CRUISE MAIN INDICATOR (P.69)
CRUISE CONTROL INDICATOR (P.69)
LOW OIL PRESSURE
INDICATOR
LOW TIRE PRESSURE/
TPMS INDICATOR
12 VOLT BATTERY
CHARGING SYSTEM
INDICATOR (P.70)
ECON MODE INDICATOR (P.71)
(P.70)
AUTO IDLE STOP INDICATOR
LOW FUEL INDICATOR
VEHICLE STABILITY ASSIST
(VSA) SYSTEM INDICATOR
SECURITY SYSTEM INDICATOR
(P.63, 416)
(P.62, 415)
(P.65, 295)
(P.65, 295)
(P.62, 417) (P.66, 283, 285) (P.63, 368)

If it stays on after you have fully
released the parking brake while
the engine is running, or if it
comes on while driving, it can
indicate a problem in the brake
system. You will also see a
‘‘BRAKE FLUID LOW’’ or
‘‘CHECK BRAKE SYSTEM’’
message on the multi-inf ormation
display. For more inf ormation, see
page .
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. It will then go of f if
you have inserted a properly coded
ignition key. If it is not a properly
coded key, the indicator will blink,
and the engine’s f uel system will be
disabled (see page ).
If this indicator comes on when the
engine is running, the 12 volt battery
is not being charged, and you will
also see a ‘‘CHECK CHARGING
SYSTEM’’ message on the multi-
inf ormation display. For more
inf ormation, see page .
This indicator has two f unctions:
Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. Driving with
the parking brake not f ully
released can damage the brakes
and tires.
If you drive without releasing the
parking brake, a beeper will sound,
and you will also see a ‘‘RELEASE
PARKING BRAKE’’ message on
the multi-information display (see
page ).
1.
2.
366
130 151 368
Instrument Panel Indicators
Immobilizer System
Indicator
12 Volt Battery Charging
System Indicator
Parking Brake and
Brake System
Indicator (Red)
Inst rument s and Cont rols
63
U.S. Canada

With the headlight switch of f or in
the position, the high beam
headlights and the high beam
indicator come on with reduced
brightness when you turn the
ignition switch to the ON (II)
position and release the parking
brake. They remain on until you turn
the ignition switch of f , even if you
set the parking brake.
The headlights revert to normal
operation when you turn them on

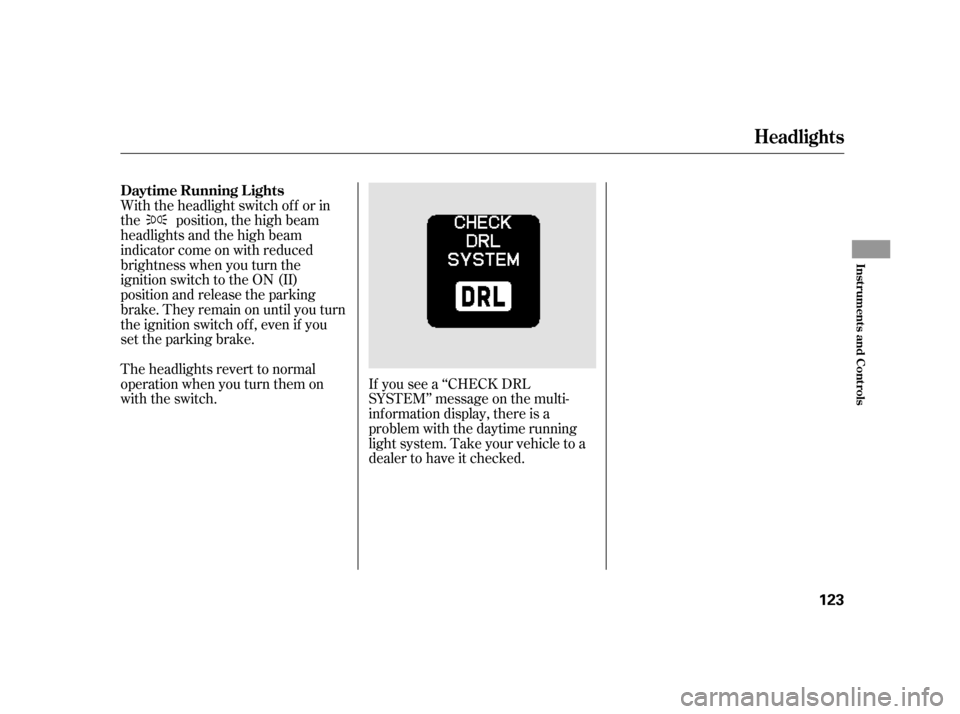

with the switch.If you see a ‘‘CHECK DRL
SYSTEM’’ message on the multi-
inf ormation display, there is a
problem with the daytime running
light system. Take your vehicle to a
dealer to have it checked.
Daytime Running L ights
Headlights
Inst rument s and Cont rols
123

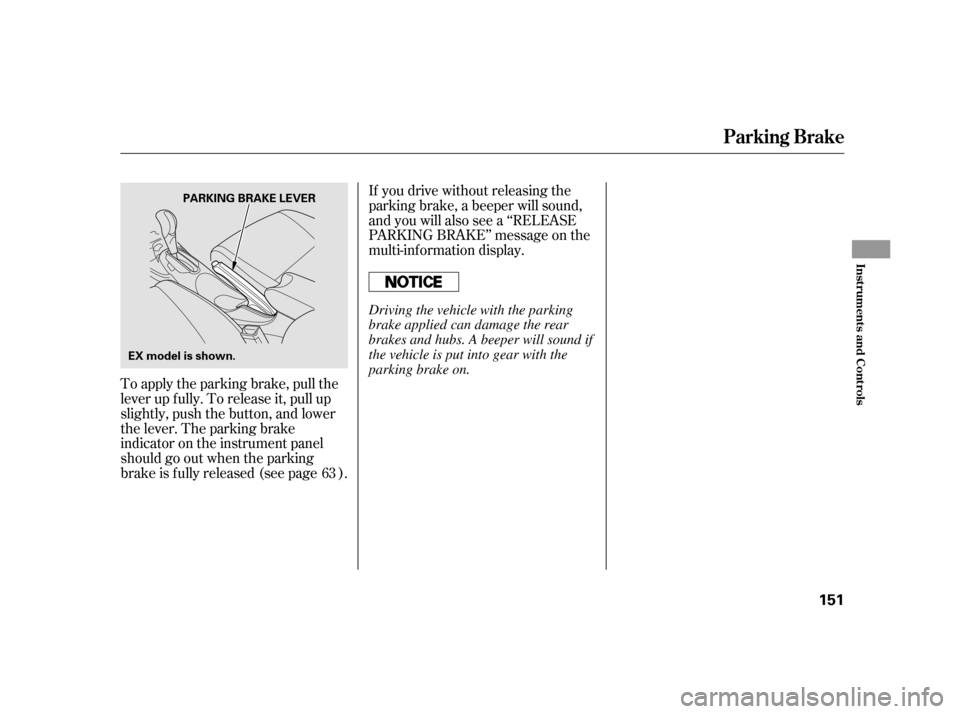

To apply the parking brake, pull the
lever up f ully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake
indicator on the instrument panel
should go out when the parking
brake is f ully released (see page ).If you drive without releasing the
parking brake, a beeper will sound,
and you will also see a ‘‘RELEASE
PARKING BRAKE’’ message on the
multi-inf ormation display.
63
Parking Brake
Inst rument s and Cont rols
151
PARKING BRAKE LEVER
EX model is shown. Driving the vehicle with the parking
brake applied can damage the rear
brakes and hubs. A beeper will sound if
the vehicle is put into gear with the
parking brake on.

Park the vehicle, and set the

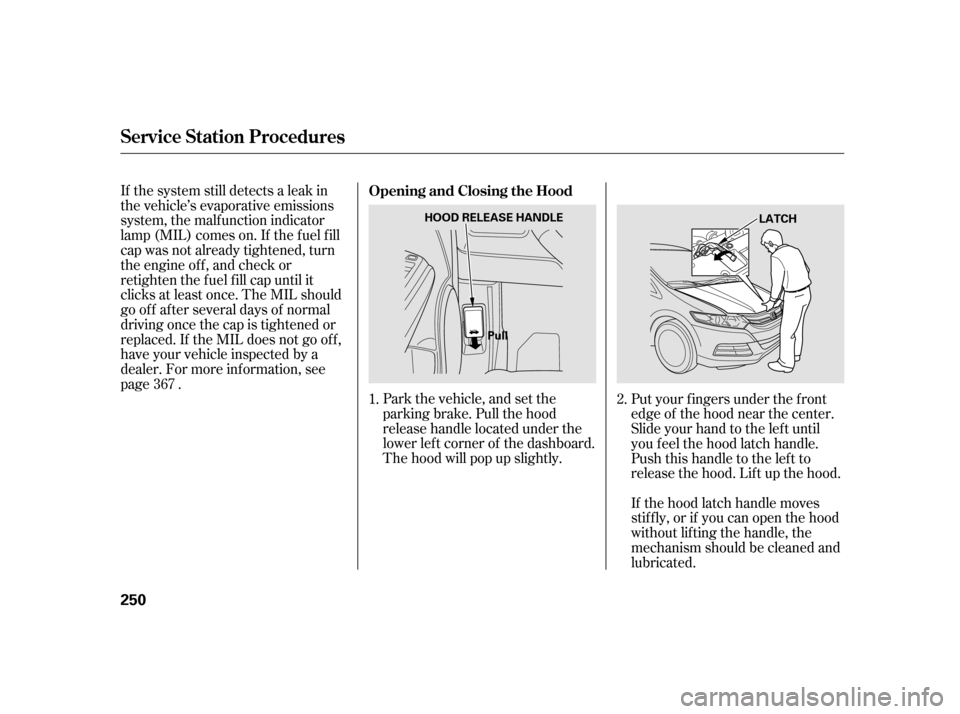

parking brake. Pull the hood
release handle located under the
lower lef t corner of the dashboard.
The hood will pop up slightly.
If the system still detects a leak in
the vehicle’s evaporative emissions
system, the malf unction indicator
lamp (MIL) comes on. If the f uel f ill
cap was not already tightened, turn
the engine of f , and check or
retighten the f uel f ill cap until it
clicks at least once. The MIL should
go off after several days of normal
driving once the cap is tightened or
replaced. If the MIL does not go of f ,
have your vehicle inspected by a
dealer. For more inf ormation, see
page .
If the hood latch handle moves
stif f ly, or if you can open the hood
without lifting the handle, the
mechanism should be cleaned and
lubricated.
Put your f ingers under the f ront
edge of the hood near the center.
Slide your hand to the lef t until
you f eel the hood latch handle.
Push this handle to the lef t to
release the hood. Lif t up the hood.
1.
2.
367 Opening and Closing the Hood
Service Station Procedures
250 LATCH
HOOD RELEASE HANDLE
Pull

This section gives you tips on
starting the engine under various
conditions, and how to operate the
automatic transmissions (CVT). It
also includes important inf ormation
on parking your vehicle, the braking
system, the vehicle stability assist
(VSA
) system, and the tire pressure
monitoring system (TPMS). ........................
Preparing to Drive . 264
.......................
Starting the Engine . 265
........................
Eco Assist System . 266
.
Automatic Transmission (CVT) . 273
Driving with the Paddle
.......................................
Shif ters . 278
................................
Auto Idle Stop . 283
...........................................
Parking . 286
.............................
Braking System . 287
...............
Anti-lock Brakes (ABS) . 289
Tire Pressure Monitoring System
......................................
(TPMS) . 291
Vehicle Stability Assist (VSA
),
aka Electronic Stability
....
Control (ESC), System . 295
...........
Hill Start Assist System . 297
...........................
Towing a Trailer . 298
Driving
Driving
263

Apply the parking brake.
In cold weather, turn of f all
electrical accessories to reduce
the drain on the battery.In cold weather, the conventional
starter is used instead of the IMA
system starter. This is normal.
Make sure the shif t lever is in
Park. Press on the brake pedal.
Without touching the accelerator
pedal, turn the ignition key to the
START (III) position. Do not hold
the key in the START (III)
position f or more than 15 seconds
at a time. If the engine does not
start right away, pause for at least
10 seconds bef ore trying again.
1. 2. 3. 4.
Starting the Engine
Starting in Cold Weather
Driving
265
The engine is harder to start in cold
weather. Also, the thinner air f ound at
altitudes above 8,000 f eet (2,400
meters) adds to this problem.
T he immobilizer system protects your
vehicle f rom thef t. If an improperly
coded key (or other device) is used, the
engine’s f uel system is disabled. For
more inf ormation, see page .
130

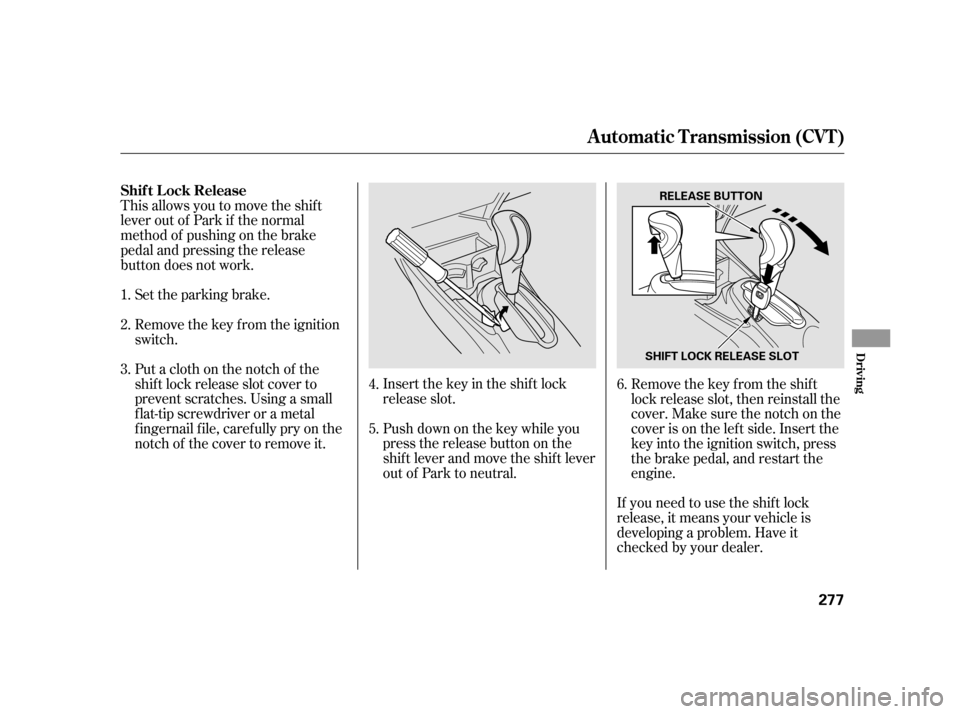

If you need to use the shif t lock
release, it means your vehicle is
developing a problem. Have it
checked by your dealer.
Push down on the key while you
pressthereleasebuttononthe
shif t lever and move the shif t lever
out of Park to neutral.
Insert the key in the shift lock
release slot.
This allows you to move the shif t
lever out of Park if the normal
method of pushing on the brake
pedal and pressing the release
button does not work.
Putaclothonthenotchof the
shif t lock release slot cover to
prevent scratches. Using a small
f lat-tip screwdriver or a metal
f ingernail f ile, caref ully pry on the
notch of the cover to remove it.
Remove the key from the ignition
switch.
Set the parking brake.
Remove the key from the shift
lock release slot, then reinstall the
cover. Make sure the notch on the
cover is on the lef t side. Insert the
key into the ignition switch, press
the brake pedal, and restart the
engine.
1. 2. 3.
4.5. 6.
Shif t L ock Release
Automatic Transmission (CVT)
Driving
277
SHIFT LOCK RELEASE SLOT
RELEASE BUTTON
