flat tire HONDA INSIGHT 2012 2.G User Guide

CONT INUED

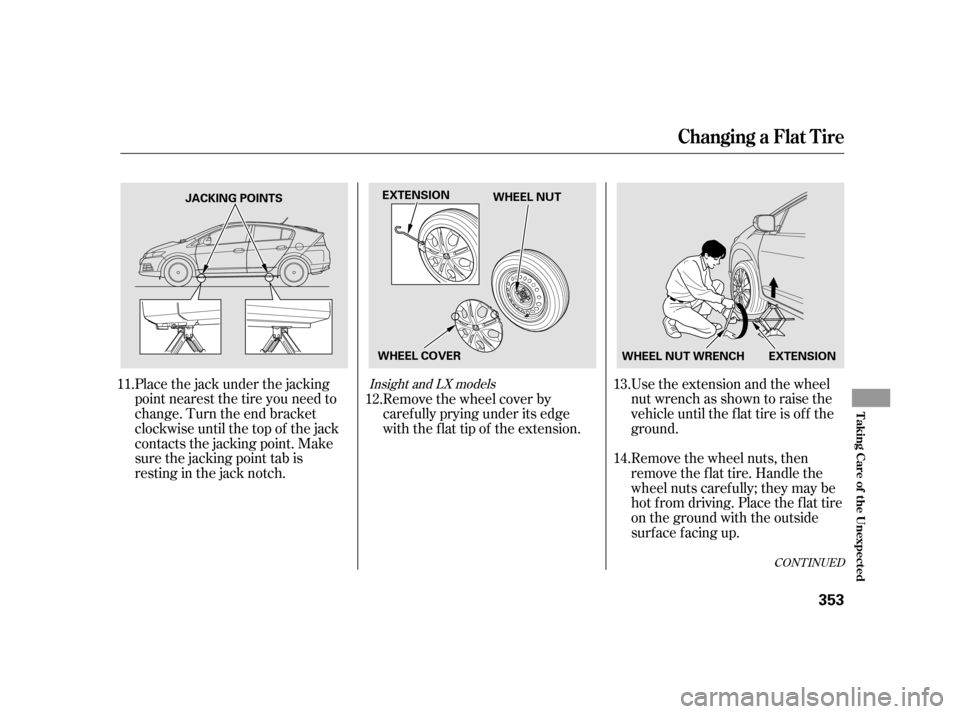

Remove the wheel nuts, then
remove the f lat tire. Handle the
wheel nuts caref ully; they may be
hot f rom driving. Place the f lat tire
on the ground with the outside
surface facing up. Use the extension and the wheel
nut wrench as shown to raise the
vehicle until the f lat tire is of f the
ground.
Place the jack under the jacking
point nearest the tire you need to
change. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
restinginthejacknotch. Remove the wheel cover by
caref ully prying under its edge
with the flat tip of the extension.
11.
13.
14.
12.
Insight and LX models
Changing a Flat Tire
T aking Care of t he Unexpect ed
353
WHEEL NUT WRENCH EXTENSION
JACKING POINTS
EXTENSION
WHEEL NUT
WHEEL COVER

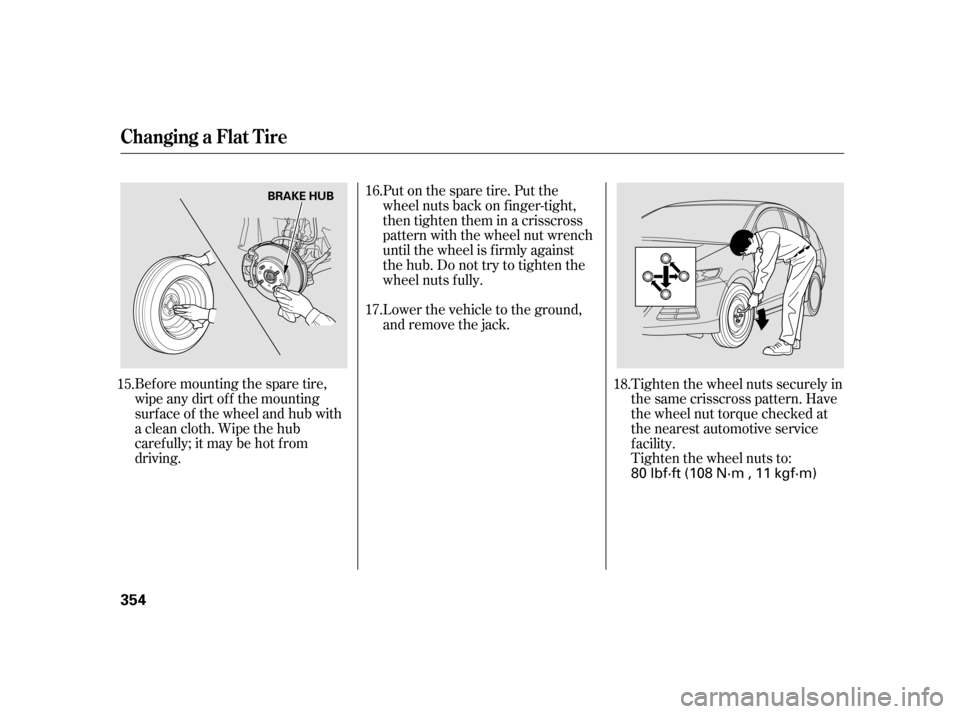

Bef ore mounting the spare tire,
wipeanydirtoff themounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving.Lower the vehicle to the ground,
and remove the jack. Put on the spare tire. Put the
wheel nuts back on f inger-tight,
then tighten them in a crisscross
pattern with the wheel nut wrench
until the wheel is f irmly against
the hub. Do not try to tighten the
wheel nuts f ully.
Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
f acility.
Tighten the wheel nuts to:
18.
17. 16.
15.
Changing a Flat Tire
354
BRAKE HUB
80 lbf·ft (108 N·m , 11 kgf·m)

CONT INUED

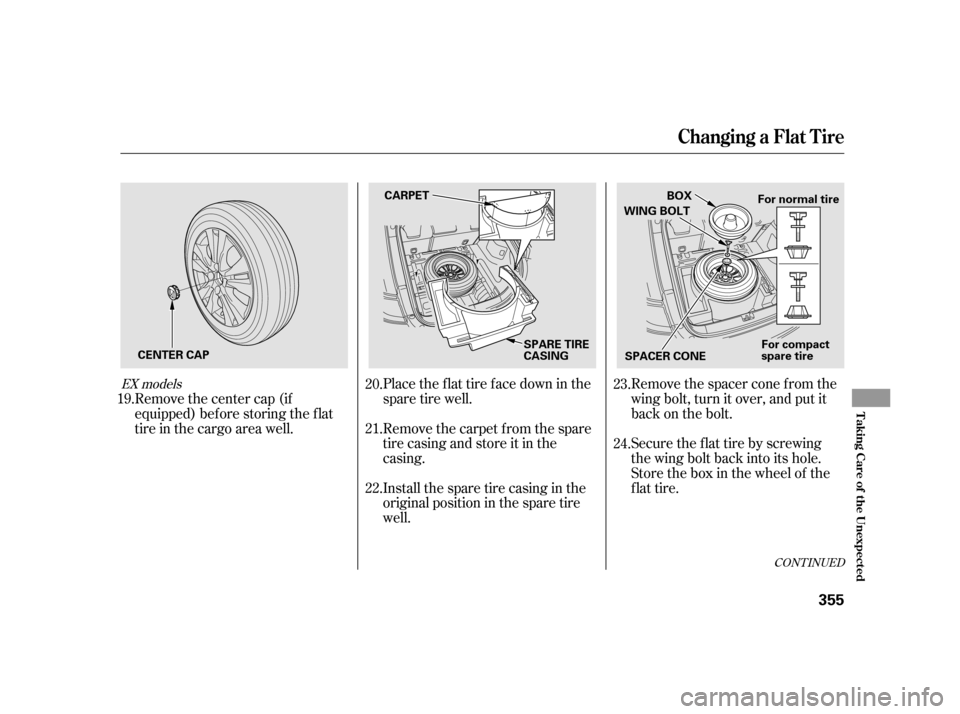

Place the flat tire face down in the
spare tire well.Remove the spacer cone f rom the
wing bolt, turn it over, and put it
back on the bolt.
Remove the carpet from the spare
tire casing and store it in the
casing. Securetheflattirebyscrewing
the wing bolt back into its hole.
Store the box in the wheel of the
flat tire.
Remove the center cap (if
equipped) bef ore storing the f lat
tire in the cargo area well.
Install the spare tire casing in the
original position in the spare tire
well.
20.
21.
19.
22.23.
24.EX models
Changing a Flat Tire
T aking Care of t he Unexpect ed
355
SPACER CONE
WING BOLT
For normal tire
For compact
spare tire
CARPET
SPARE TIRE
CASING
CENTER CAP BOX

Your vehicle’s original tire has a
tire pressure monitoring system
sensor. To replace a tire, ref er to(see
page ).
Store the center cap in the cargo
area. Make sure it does not get
scratched or damaged.
Store the tools in the spare tire
casing and the jack in its holder.
Turn the jack’s end bracket
clockwise to lock it in place, and
reinstall the cover.
Place the cargo area f loor in its
original position. Close the hatch.
25.
26.27.
28.
293
U.S. models only
Changing a Flat Tire
Changing a T ire with T PMS
356
FLOOR
Loose items can fly around the
interior in a crash and could
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.

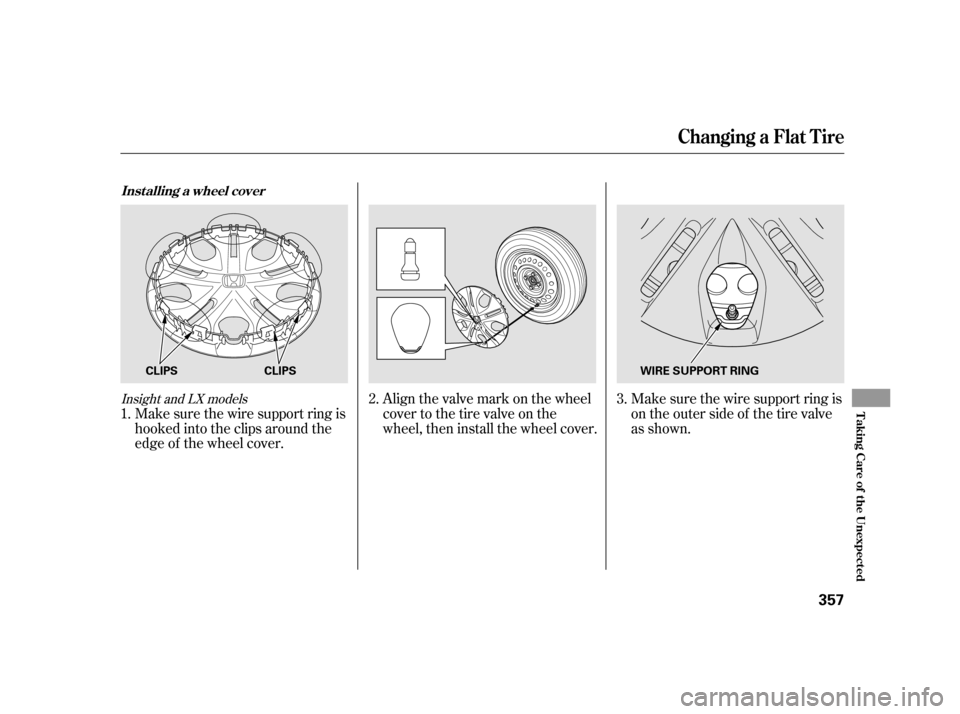

Make sure the wire support ring is
hooked into the clips around the
edge of the wheel cover.Align the valve mark on the wheel
cover to the tire valve on the
wheel, then install the wheel cover.
Make sure the wire support ring is
ontheoutersideof thetirevalve
as shown.
1. 2. 3.
Insight and LX models
Changing a Flat Tire
Inst alling a wheel cover
T aking Care of t he Unexpect ed
357
CLIPS
CLIPS WIRE SUPPORT RING

µ
µ If , due to damage, your vehicle must
be towed with the f ront wheels on
the ground, do this:
With the f ront wheels on the ground,
it is best to tow the vehicle no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
Therearetwowaystotowyour
vehicle:
The tow
truck uses two pivoting arms that go
under the tires (f ront) and lif t them
of f the ground. The other two tires
remain on the ground. The operator
loads your vehicle on the back of a
truck. Start the engine.
Shif t to the D position and hold f or
5 seconds, then to N.
Turn of f the engine.
Release the parking brake.
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.Wheel-lif t Equipment
Flat -bed Equipment
T his is an
acceptable way to tow your
vehicle. T his is the best way to
transport your vehicle.
Emergency Towing
376
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine, your vehicle must be
transported with the f ront wheels of f
the ground.

.............................
