Some examples are: Removing parts f rom your vehicle,
or replacing components with
non-Honda components could
seriously af f ect your vehicle’s
handling, stability, and reliability.
If you plan to modif y your vehicle,
consult your dealer.Modif ying your steering wheel or
any other part of your vehicle’s
safety features can make the
systems inef f ective. Larger or smaller wheels and tires
can interf ere with the operation of
your vehicle’s anti-lock brakes and
other systems. Non-Honda wheels, because they
are a universal design, can cause
excessive stress on suspension
components and will not be
compatible with the tire pressure
monitoring system (TPMS) .
Raising your vehicle with a
non-Honda suspension kit can
af f ect the handling, stability, and
reliability. Lowering your vehicle with a
non-Honda suspension kit that
signif icantly reduces ground
clearance can allow the
undercarriage to hit speed bumps
or other raised objects, which
could cause the airbags to deploy. : U.S. models
Modif ying Your Vehicle
A ccessories and Modif ications
Bef ore Driving
257

Î
Î
Î
Î ÎÎ
Î
Î

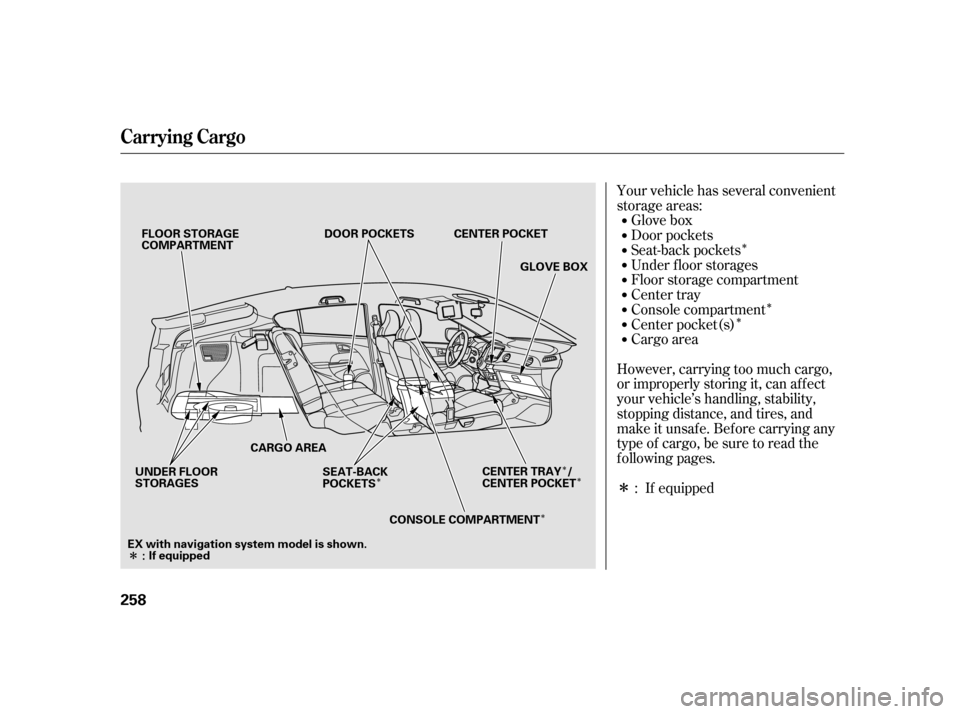

Î Your vehicle has several convenient
storage areas:Glove box
Door pockets
Cargo area Center tray Floor storage compartment
Under f loor storages
However, carrying too much cargo,
or improperly storing it, can af f ect
your vehicle’s handling, stability,
stopping distance, and tires, and
make it unsaf e. Bef ore carrying any
type of cargo, be sure to read the
f ollowing pages. Console compartment Seat-back pockets
Center pocket(s)
: If equipped
Carrying Cargo
258
CARGO AREA DOOR POCKETS
GLOVE BOX
FLOOR STORAGE
COMPARTMENT
UNDER FLOOR
STORAGES SEAT-BACK
POCKETS
CONSOLE COMPARTMENT
: If equipped
EX with navigation system model is shown. CENTER POCKET
CENTER TRAY /
CENTER POCKET

µ·
µ The resulting f igure equals the
available amount of cargo and
luggage load capacity. For
example, if the ‘‘XXX’’ amount
equals 1,400 lbs. and there will be
f ive 150 lb. passengers in your
vehicle, the amount of available
cargo and luggage load capacity is
650 lbs.
(1,400 750 (5 150) = 650 lbs.)
Determine the combined weight
of luggage and cargo being loaded
on the vehicle. That weight may
not saf ely exceed the available
cargo and luggage load capacity
calculated in Step 4.
If yourvehiclewillbetowinga
trailer, load f rom your trailer will
be transf erred to your vehicle.
Consult this manual to determine
how this reduces the available
cargo and luggage load capacity of
your vehicle.
Subtract the combined weight of
the driver and passengers f rom
XXX kg or XXX lbs. Locate the statement ‘‘The
combined weight of occupants and
cargo should never exceed XXX
kg or XXX lbs.’’ on your vehicle’s
placard.
Steps f or Determining Correct Load
Limit
Determine the combined weight
of the driver and passengers that
will be riding in your vehicle.
The maximum load f or your vehicle
is 850 lbs (385 kg).
See Tire And Loading Inf ormation
label attached to the driver’s
doorjamb.
Label Example
This f igure includes the total weight
of all occupants, cargo, and
accessories, and the tongue load if
you are towing a trailer.
(1)
(2)
(3)
(6) (5) (4)
CONT INUED
Load Limits
Carrying Cargo
Bef ore Driving
259
Overloading or improper
loading can affect handling and
stability and cause a crash in
which you can be hurt or killed.
Follow all load limits and other
loading guidelines in this
manual.

In addition, the total weight of the
vehicle, all occupants, accessories,
cargo, and trailer tongue load must
not exceed the Gross Vehicle
Weight Rating (GVWR) or the Gross
Axle Weight Rating (GAWR). Both
areonalabelonthedriver’s
doorjamb.
Example 1
Example 2
Example 3
Carrying Cargo
260
Max Load 850 lbs
(385 kg)
Max Load 850 lbs (385 kg)
Max Load 850 lbs (385 kg) Cargo Weight
250 lbs
(113 kg)
Cargo Weight
100 lbs
(45 kg)
Passenger Weight
150 lbs x 2 = 300 lbs
(68kgx2=136kg)
Passenger Weight
150 lbs x 4 = 600 lbs
(68kgx4=272kg)
Passenger Weight
150 lbs x 5 = 750 lbs
(68kgx5=340kg) Cargo Weight
550 lbs
(249 kg)

Store or secure all items that could
be thrown around and hurt
someone during a crash.
Be sure items placed on the f loor
behind the f ront seats cannot roll
under the seats and interf ere with
the driver’s ability to operate the
pedals, the operation of the seats,
or the operation of the sensors
under the seats.
Keep the glove box closed while
driving. If it is open, a passenger
could injure their knees during a
crash or sudden stop.Distribute cargo evenly on the
f loor of the hatch, placing the
heaviest items on the bottom and
as far forward as possible.
Trytosecuretheitemswithrope
or cord so they will not shif t while
you are driving.
Do not place items on the cargo
area cover (if equipped), or stack
objects higher than the top of the
back seat. They could block your
view and be thrown about the
vehicle during a crash or sudden
stop.If you carry large items that
prevent you f rom closing the
hatch, exhaust gas can enter the
passenger area. To avoid the
possibility of
, f ollow the instructions
on page .
If youfoldtherearseatsdown,tie
down items that could be thrown
about the vehicle during a crash or
sudden stop. Keep all cargo below
the bottom of the windows. If it is
higher, it could interf ere with
proper operation of the side
curtain airbags.
Refer to page for folding rear
seats.
Do not spill any liquids on or
around the IMA battery. Spilled
liquids may damage the IMA
battery. If you accidentally spill
liquids on or around the battery,
ensure that the spill is completely
wiped up at the earliest possible
time. 56
145
Carrying Items in the Passenger
Compartment
Carrying Cargo in the Cargo A rea
carbon monoxide
poisoning
Carrying Cargo
Bef ore Driving
261

Do not spill any liquids over the air
intake or insert any f oreign objects
in it. This may damage the IMA
battery and the power control unit.

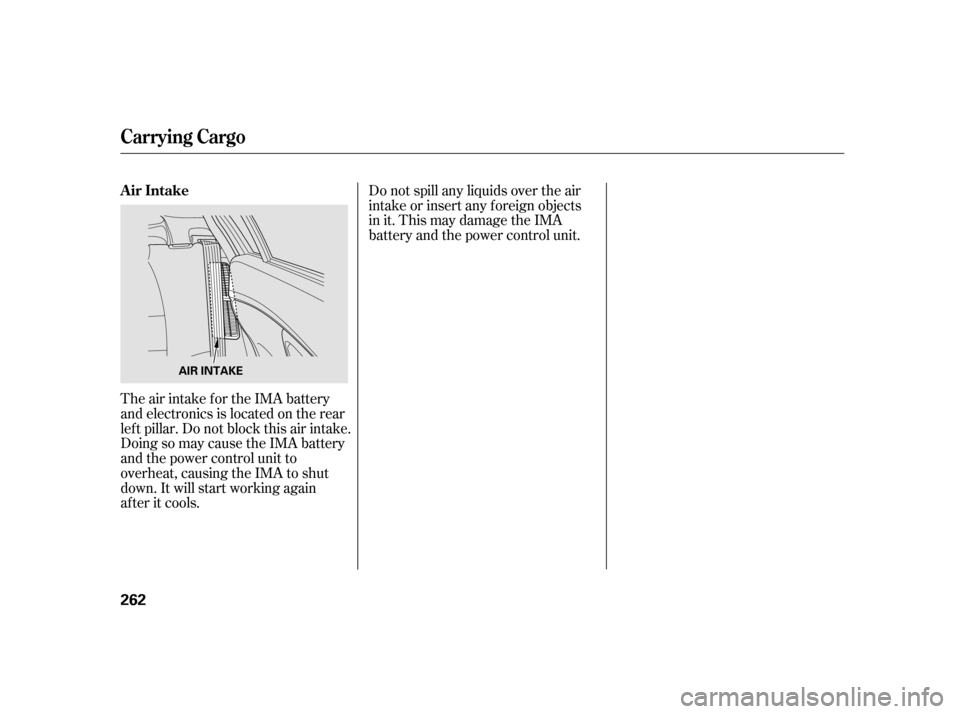

The air intake for the IMA battery
and electronics is located on the rear
lef t pillar. Do not block this air intake.
Doing so may cause the IMA battery
and the power control unit to
overheat, causing the IMA to shut
down. It will start working again
af ter it cools. Air Intake
Carrying Cargo
262
AIR INTAKE

This section gives you tips on
starting the engine under various
conditions, and how to operate the
automatic transmissions (CVT). It
also includes important inf ormation
on parking your vehicle, the braking
system, the vehicle stability assist
(VSA
) system, and the tire pressure
monitoring system (TPMS). ........................
Preparing to Drive . 264
.......................
Starting the Engine . 265
........................
Eco Assist System . 266
.
Automatic Transmission (CVT) . 273
Driving with the Paddle
.......................................
Shif ters . 278
................................
Auto Idle Stop . 283
...........................................
Parking . 286
.............................
Braking System . 287
...............
Anti-lock Brakes (ABS) . 289
Tire Pressure Monitoring System
......................................
(TPMS) . 291
Vehicle Stability Assist (VSA
),
aka Electronic Stability ....
Control (ESC), System . 295
...........
Hill Start Assist System . 297
...........................
Towing a Trailer . 298
Driving
Driving
263

Make sure all windows, mirrors,
and outside lights are clean and
unobstructed. Remove f rost, snow,
or ice.Check that any items you may be
carrying are stored properly or
f astened down securely.
Check the seat adjustment (see
page ).
Check the adjustment of the
inside and outside mirrors (see
page ).
Check the steering wheel
adjustment (see page ).
Make sure the doors are securely
closed and locked.Fasten your seat belt. Check that
your passengers have f astened
their seat belts (see page ).
Youshoulddothefollowingchecks
and adjustments bef ore you drive
your vehicle.
Visually check the tires. If a tire
looks low, use a gauge to check its
pressure (see page ). Check that the hood and hatch are
f ully closed. When you start the engine, check
the gauges and indicators in the
instrument panel, and the
messages on the multi-inf ormation
display (see pages , and
).
1.
2.
3.
8. 7. 6.9.
4.
5.
61 7217
10.
340 141
147
128 89
Preparing to Drive
264

Apply the parking brake.
In cold weather, turn of f all
electrical accessories to reduce
the drain on the battery.In cold weather, the conventional
starter is used instead of the IMA
system starter. This is normal.
Make sure the shif t lever is in
Park. Press on the brake pedal.
Without touching the accelerator
pedal, turn the ignition key to the
START (III) position. Do not hold
the key in the START (III)
position f or more than 15 seconds
at a time. If the engine does not
start right away, pause for at least
10 seconds bef ore trying again.
1.
2.
3.
4.
Starting the Engine
Starting in Cold Weather
Driving
265
The engine is harder to start in cold
weather. Also, the thinner air f ound at
altitudes above 8,000 f eet (2,400
meters) adds to this problem.
T he immobilizer system protects your
vehicle f rom thef t. If an improperly
coded key (or other device) is used, the
engine’s f uel system is disabled. For
more inf ormation, see page .
130

The multi-inf ormation display (see
page ).
Your vehicle’s f uel economy may
improve more with the ECON mode
on (see page ).
The driver f eedback inf ormation is
shownintwolocations:
The ambient meter, located
behind the speedometer (see page ).
The system monitors your driving
style, and can display how it impacts
your vehicle’s f uel economy. You can
then make adjustments to your
driving style to maximize f uel
economy. (For additional
inf ormation on f uel economy, see
page .)

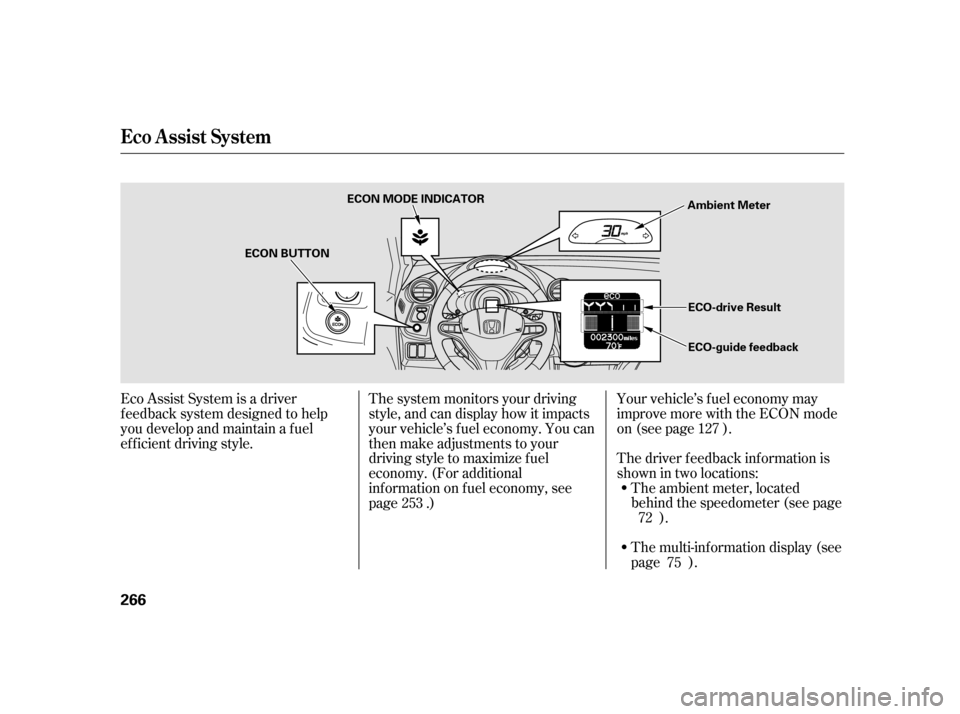

Eco Assist System is a driver
f eedback system designed to help
you develop and maintain a f uel
ef f icient driving style.
7275 127
253
Eco A ssist System
266
ECO-drive Result
ECON BUTTON
ECO-guide feedback
ECON MODE INDICATOR
Ambient Meter
