If the indicator comes on repeatedly,
even though it may turn of f as you
continue driving, have your vehicle
checked by your dealer as soon as
possible.
Your vehicle has certain ‘‘readiness
codes’’ that are part of the on-board
diagnostics f or the emissions
systems. In some states, part of the
emissions testing is to make sure
these codes are set. If they are not
set, the test cannot be completed.
If the indicator comes on
while driving, it means one
of the engine’s emissions control
systems may have a problem. Even
though you may f eel no dif f erence in
your vehicle’s perf ormance, it can
reduce your f uel economy and cause
increased emissions. Continued
operation may cause serious damage. If your vehicle’s battery has been
disconnected or gone dead, these
codes are erased. It can take several
days of driving under various
conditions to set the codes again.
To check if they are set, turn the
ignition switch to the ON (II)
position, without starting the engine.
The malf unction indicator lamp will
come on f or 20 seconds. If it then
goes of f , the readiness codes are set.
If it blinks f ive times, the readiness
codes are not set. If possible, do not
take your vehicle f or an emissions
test until the readiness codes are set.
Refer to for
more information (see page ).
If you have recently ref ueled your
vehicle, the indicator coming on
could be due to a loose or missing
f uel f ill cap. You will also see a
‘‘TIGHTEN FUEL CAP’’ message on
the multi-information display.
Tighten the cap until it clicks at least
once (see page ). Tightening the
cap will not turn the indicator of f
immediately; it can take several days
of normal driving.
You will also see a ‘‘CHECK
EMISSION SYSTEM’’ message on
the multi-information display. For
more information, see page .
89
249
392
Malf unction Indicator L amp
Readiness CodeEmissions T esting
T aking Care of t he Unexpect ed
367
If you keep driving with the
Malf unction Indicator Lamp on, you
can damage your vehicle’s emissions
controls and engine. Those repairs may
not be covered by your vehicle’s
warranties. This indicator may also
come on with the ‘‘D’’ indicator.

However, if the brake pedal does not
f eel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will f eel the brake
pedal go down much f arther bef ore
the vehicle begins to slow down, and
you will have to press harder on the
pedal.
Slow down and pull to the side of the
road when it is saf e. Because of the
long distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (seeon page ). If this indicator comes on f or any
other reason, have your vehicle
inspected by your dealer. There may
be a malfunction with the electric
brake distribution (EBD) system.
Avoidhardbrakingandhighspeed
driving.
If the f luid level is low, take your
vehicle to a dealer, and have the
brake system inspected f or leaks or
worn brake pads. If the brake system indicator comes
on while driving, the brake f luid level
is probably low. Press lightly on the
brake pedal to see if it f eels normal.
If it does, check the brake f luid level
thenexttimeyoustopataservice
station (see page ). The brake system indicator normally
comes on when you turn the ignition
switch to the ON (II) position and as
a reminder to check the parking
brake. If you do not release the
parking brake, the indicator will stay
on, and you will see a ‘‘RELEASE
PARKING BRAKE’’ message on the
multi-inf ormation display. You will also see a ‘‘BRAKE FLUID
LOW’’ or ‘‘CHECK BRAKE
SYSTEM’’ message on the multi-
inf ormation display (see page ).
If you must drive the vehicle a short
distance in this condition, drive
slowly and caref ully.
If the ABS indicator comes on with
the brake system indicator, have
your vehicle inspected by your
dealer immediately.89
321 376
Brake System Indicator
Emergency
Towing
(Red)
368
U.S.
Canada

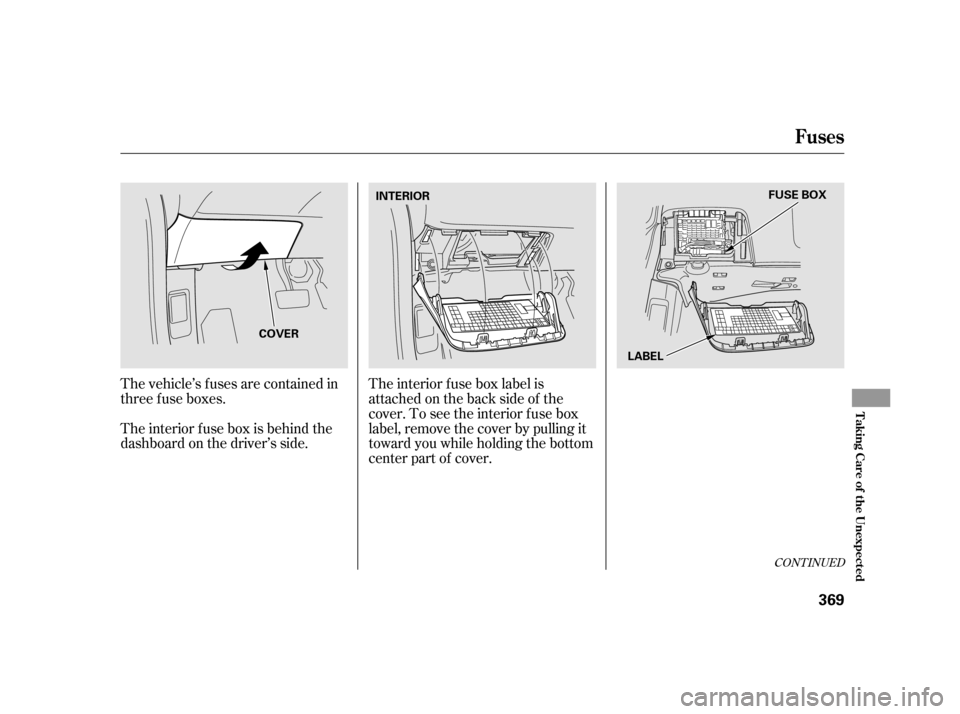

The vehicle’s f uses are contained in
threefuseboxes.
The interior f use box is behind the
dashboard on the driver’s side.The interior f use box label is
attached on the back side of the
cover. To see the interior f use box
label, remove the cover by pulling it
toward you while holding the bottom
center part of cover.
CONT INUED
Fuses
T aking Care of t he Unexpect ed
369
INTERIOR
COVER LABELFUSE BOX

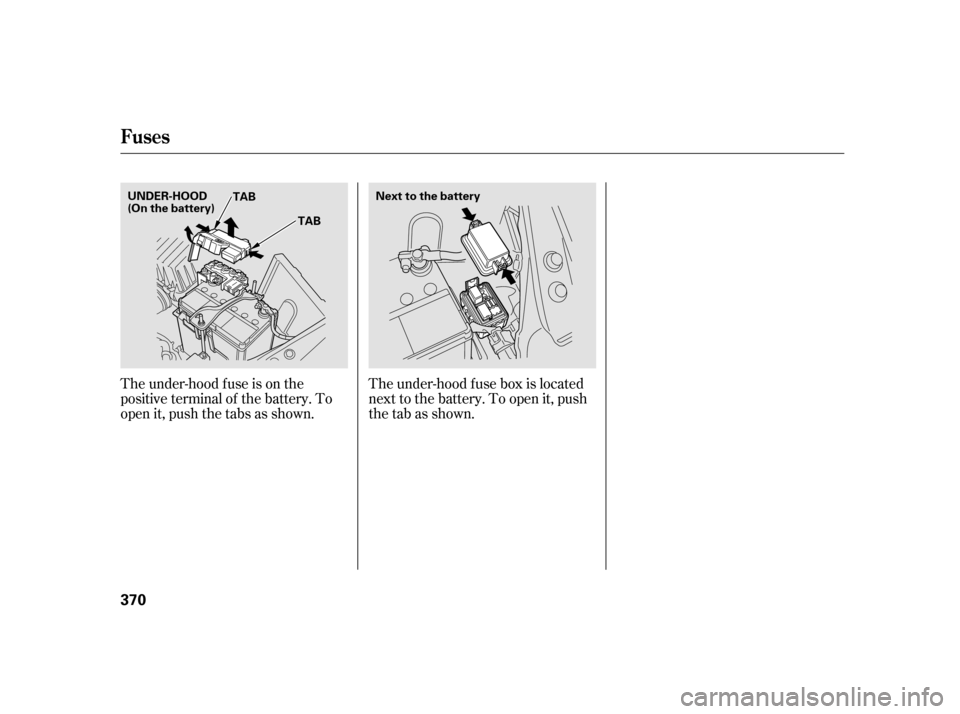

The under-hood f use box is located
next to the battery. To open it, push
the tab as shown.
The under-hood f use is on the
positive terminal of the battery. To
open it, push the tabs as shown.
Fuses
370
TAB
UNDER-HOOD
TAB
(On the battery)
Next to the battery

If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine f rom the chart on pagesand , or the diagram on the
fuse box lid, which fuse or fuses
control that device. Check those
f uses f irst, but check all the f uses
bef ore deciding that a blown f use is
the cause. Replace any blown f uses,
and check if the device works.
Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are of f . Remove the cover f rom the under-
hood f use box located on the
battery (see page ).

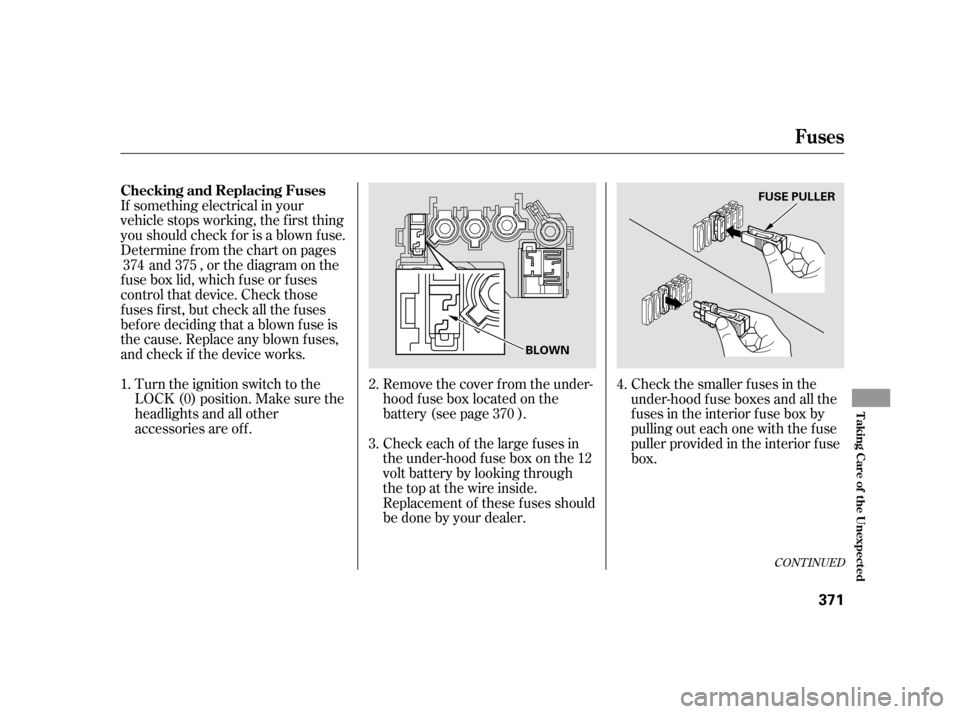

Check each of the large f uses in
the under-hood f use box on the 12
volt battery by looking through
thetopatthewireinside.
Replacement of these f uses should
be done by your dealer.Check the smaller f uses in the
under-hood f use boxes and all the
fuses in the interior fuse box by
pulling out each one with the f use
puller provided in the interior f use
box.
1. 2. 4.
3.
374 375
370
CONT INUED
Checking and Replacing Fuses
Fuses
T aking Care of t he Unexpect ed
371
BLOWNFUSE PULLER

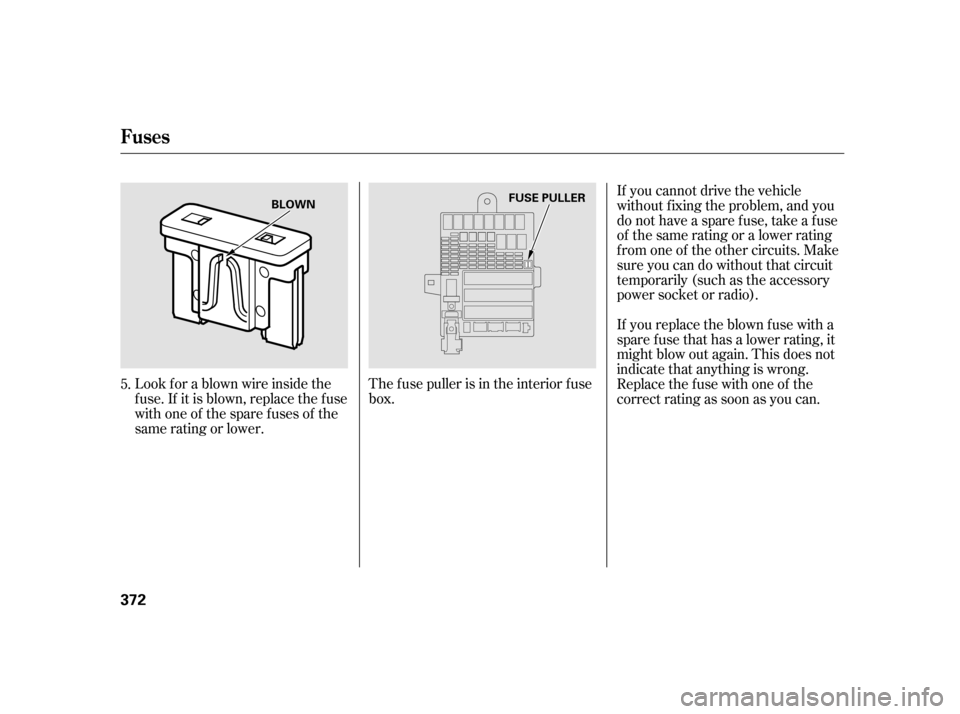

Look f or a blown wire inside the
fuse.If itisblown,replacethefuse
withoneof thesparefusesof the
same rating or lower.The f use puller is in the interior f use
box. If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate that anything is wrong.
Replace the f use with one of the
correct rating as soon as you can.
5.
Fuses
372
BLOWN
FUSE PULLER

If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualif ied technician.
When the audio system is disabled,
the clock setting in the audio system
is canceled. You need to reset the
clock according to the instructions in
the audio system section in this
owner’s manual. 6.
Fuses
T aking Care of t he Unexpect ed
373
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.

µ
µ
µ
µ
µ
Î
Î
No. No. Amps.
Amps. Circuits Protected
Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22 23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
10 A
10 A
10 A
30 A
20 A
10 A
30 A
7.5 A 10 A
20 A
10 A
15 A
15 A
30 A
15 A
15 A
10 A
7.5 A
7.5 A
15 A
(7.5 A) 20 A
10 A
10 A
10 A
7.5 A
7.5 A
7.5 A 10 A
20 A
7.5 A
7.5 A 10 A
20 A
20 A
20 A
15 A
15 A
7.5 A Hazard
Stop/Horn
Not Used
LAF
Door Lock Main
Headlight Main
Small Light
Radiator Fan Motor
IGPS
Right Headlight Low Beam
IG Coil
Left Headlight Low Beam
Door Lock Motor 2 (Lock)
Door Lock Motor 1 (Lock)
ABS/VSA FSR
Selectable Door Lock
IGP
Not Used
Not Used
IMA 1
MG Clutch
STS
Back Up
TPMS
Driver’s Power Window
Not Used
Back Up Light
SRS
T ransmission SOL
OPDS
Not Used
A/C
ABS/VSA
IMA
ACC Socket
Accessory
Daytime Running Light
Rear Wiper
Front Passenger’s Power
Window
Rear Passenger’s Side
Power Window
Rear Driver’s Side Power
Window
Fuel Pump
Washer
Meter
: U.S. models
Fuse Locations
374
INTERIOR FUSE BOX

µ
µ
µ
Î
Î
Î
ÎÎ
Î
ÎÎ
No. Circuits Protected
No.
Amps.
Amps.
No. Amps. Circuits Protected
Circuits Protected
1
2
Ignition Coil (EX)
Ignition Coil (IN)
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
15 A
15 A
7.5 A
30 A
10 A
15 A
15 A
10 A
15 A
10 A
10 A
30 A
30 A
30 A
30 A
40 A
50 A 1
2
3100 A
60 A
20 A Battery, Main, ACG
EPS
Horn, Stop, Hazard
Hatch Lock
Not Used
Condenser Fan Motor
Left Headlight High Beam
Door Lock Motor 2 (Unlock)
Door Lock Motor 1 (Unlock)
Right Headlight High Beam
DBW
IMA 2
Not Used
Heated Mirror
Front Wiper
Blower Motor
ABS/VSA Motor
Rear Defogger
Rear Defogger
Not Used
IG Main
1:
2:
3: Insight model and U.S. LX model
Canadian models
EX models
2, 3
1
2, 3
Fuse Locations
T aking Care of t he Unexpect ed
375
UNDER-HOOD FUSE BOXES On the battery Next to the battery

µ
µ If , due to damage, your vehicle must
be towed with the f ront wheels on
the ground, do this:
With the f ront wheels on the ground,
it is best to tow the vehicle no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
Therearetwowaystotowyour
vehicle:
The tow
truck uses two pivoting arms that go
under the tires (f ront) and lif t them
of f the ground. The other two tires
remain on the ground. The operator
loads your vehicle on the back of a
truck. Start the engine.
Shif t to the D position and hold f or
5 seconds, then to N.
Turn of f the engine.
Release the parking brake.
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.Wheel-lif t Equipment
Flat -bed Equipment
T his is an
acceptable way to tow your
vehicle. T his is the best way to
transport your vehicle.
Emergency Towing
376
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine, your vehicle must be
transported with the f ront wheels of f
the ground.
