steering HONDA INSIGHT 2012 2.G Owners Manual

(seat belts, SRS, and child protection)(f luid capacities and tire pressures)
(main controls)
(indicators, gauges, multi-inf ormation display, dashboard, and steering column)
(climate control, audio, steering wheel, security, cruise control, and other convenience items) (fuel, vehicle break-in, and cargo loading)
(engine and transmission operation) (minder, f luid checking, minor services, and vehicle storage) (f lat tire, jump starting, overheating, and f uses)
(vehicle specif ications, tires, and emissions controls) (warranty and contact inf ormation)
(how to order)
Contents
............................................................
Driver and Passenger Saf ety .5
........................................................................\
........................................................................
Index .I
..................................................
Service Inf ormation Summary . last page
........................................................................\
.......................
Your Vehicle at a Glance .3
.......
Instruments and Controls .59
............
Features . 163
.......................................................................
Bef ore Driving . 245
........................................................................\
.................
Driving . 263
.................................................
Maintenance . 299
........................................
T aking Care of the Unexpected . 349
..............................................
T echnical Inf ormation . 379
..................
Warranty and Customer Relations (U.S. and Canada only) . 395
........................................................................\
..........
A uthorized Manuals (U.S. only) . 399
INDEX
1

A summary of the inf ormation you
need when you pull up to the f uel
pump. How to order manuals and other
technical literature.
A convenient ref erence to the
sections in this manual.
A quick ref erence to the main
controls in your vehicle.
What gasoline to use, how to break-
in your new vehicle, and how to load
luggage and other cargo.
The proper way to start the engine,
shif t the transmission, and park.
A summary of the warranties
covering your new vehicle, and how
to contact us for any reason. Refer to
your warranty manual f or detailed
inf ormation.
The Maintenance Minder shows
you when you need to take your
vehicle to the dealer for maintenance
service. There is also a list of things
to check and instructions on how to
check them.
ID numbers, dimensions, capacities,
and technical information. This section covers several problems
motorists sometimes experience,
and details how to handle them.
Important inf ormation about the
proper use and care of your vehicle’s
seat belts, an overview of the
supplemental restraint system, and
valuable inf ormation on how to
protect children with child restraints.
Explains the purpose of each
instrument panel indicator and gauge,
the multi-information display, and
how to use the controls on the
dashboard and steering column.
How to operate the climate control
system, the audio system, and other
convenience f eatures.
Overview of Contents
Contents
Your Vehicle at a Glance
Driver and Passenger Saf ety
Instruments and Controls Bef ore Driving
Driving
Maintenance
Warranty and Customer
Relations
(U.S. and Canada only)
Authorized Manuals
(U.S. only)
Index
Service Inf ormation Summary
T echnical Inf ormation T aking Care of the Unexpected
Features
2
TM

Î
Î
Î
Î
Î
Î Î
Î
Î
Î Î
Î
Î
Only on vehicles equipped with navigation system. Ref er to the navigation system manual. To use the horn, press the center pad of the steering wheel.
1:
2:
3: If equipped
Your Vehicle at a Glance
4
MULTI-INFORMATION BUTTONS
HORN (P.76)
STEERING WHEEL
ADJUSTMENTS WINDSHIELD
WIPERS/WASHERS
INSTRUMENT PANEL
BRIGHTNESS CONTROL KNOB
(P.76)
MULTI-INFORMATION
BUTTONS
KM/MILE CHANGE KNOB
(P.73)
PASSENGER AIRBAG
OFF INDICATOR
(P.35)
REAR WINDOW DEFOGGER/
HEATED MIRROR
EX model with navigation system is shown. REMOTE AUDIO
CONTROL BUTTONS
NAVIGATION SYSTEM VOICE
CONTROL BUTTONS HEADLIGHTS/
TURN SIGNALS
(P.120)
(P.219)
VEHICLE STABILITY
ASSIST (VSA) OFF
SWITCH
(P.296)
BLUETOOTH
HANDSFREELINKSYSTEM VOICE CONTROL
BUTTONS
(P.227) (P.124)
(P.119)CRUISE CONTROL BUTTONS (P.224)
NAVIGATION SYSTEM /
AUDIO SYSTEM
(P.126/148)
ACCESSORY POWER SOCKET
(P.157)
AUXILIARY INPUT JACK
(P.220)
(P.128) (P.170)
2
1
2 2
2
3
2 2
3
2

Your vehicle is equipped with many
features that work together to
protect you and your passengers
during a crash.
The f ollowing pages explain how you
cantakeanactiveroleinprotecting
yourself and your passengers. Some f eatures do not require any
action on your part. These include a
strong steel f ramework that f orms a
saf ety cage around the passenger
compartment, front and rear crush
zones, a collapsible steering column,
and tensioners that tighten the f ront
seat belts in a crash.
However, you and your passengers
can’t take full advantage of these
f eatures unless you remain sitting in
the correct position and. In fact, some safety
f eatures can contribute to injuries if
they are not used properly.
Your Vehicle’s Saf ety Features
always wear
your seat belts
8
(2) (6)
(4)
(2) (10) (8)
(5) (11)
(8)
(3)
(9)
(1)
(10)
(7) (7)
(9) (12)
(1) Safety Cage
(2) Crush Zones
(3) Seats and Seat-Backs
(4) Head Restraints
(5) Collapsible Steering Column
(6) Seat Belts
(7) Front Airbags
(8) Side Airbags
(9) Side Curtain Airbags
(10) Door Locks
(11) Seat Belt Tensioners
(12) Occupant Position Detection
System (OPDS) Sensor

The most important things you need
to know about your airbags are:They are designed to supplement
the seat belts.
To do
their job, airbags must inf late with
tremendous f orce. So while
airbags help save lives, they can
cause minor injuries or more
serious or even fatal injuries if
occupants are not properly
restrained or sitting properly. Always wear
your seat belt properly, and sit
upright and as f ar back f rom the
steering wheel as possible while
allowing f ull control of the vehicle. A
f ront passenger should move their
seat as far back from the dashboard
as possible. The rest of this section gives more
detailed inf ormation about how you
can maximize your saf ety.
Remember, however, that no saf ety
system can prevent all injuries or
deaths that can occur in a severe
crash, even when seat belts are
properly worn and the airbags deploy.
Airbags do not replace seat belts.
A irbags of f er no prot ect ion in rearcollisions, or minor f ront al or sidecollisions.
A irbags can pose hazards. What you should do:
Your Vehicle’s Saf ety Features
Driver and Passenger Saf ety
11

Adjust the driver’s seat as far to the
rear as possible while allowing you to
maintain f ull control of the vehicle.
Have a f ront passenger adjust their
seat as far to the rear as possible.If you sit too close to the steering
wheel or dashboard, you can be
seriously injured by an inf lating f ront
airbag, or by striking the steering
wheel or dashboard.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that drivers
allow at least 10 inches (25 cm)
between the center of the steering
wheel and the chest. In addition to
adjusting the seat, you can adjust the
steering wheel up and down, and in
and out (see page ).
If you cannot get f ar enough away
f rom the steering wheel and still
reach the controls, we recommend
that you investigate whether some
type of adaptive equipment may help.
Once a seat is adjusted correctly,
rock it back and f orth to make sure it
is locked in position.
See page f or how to adjust the
f ront seats.
128
141
Adjust the Front Seats
2.
Protecting A dults and Teens
14
Sitting too close to a front
airbag can result in serious
injury or death if the front
airbags inflate.
Always sit as far back from the
front airbags as possible.

Adjust the driver’s seat-back to a
comf ortable, upright position,
leaving ample space between your
chest and the airbag cover in the
center of the steering wheel.
Passengers with adjustable seat-
backs should also adjust their seat-
back to a comf ortable, upright
position.Reclining a seat-back so that the
shoulder part of the belt no longer
rests against the occupant’s chest
reduces the protective capability of
the belt. It also increases the chance
of sliding under the belt in a crash
and being seriously injured. The
farther a seat-back is reclined, the
greater the risk of injury.
See page f or how to adjust the
seat-backs.
141
Adjust the Seat-Backs
3.
Protecting A dults and Teens
Driver and Passenger Saf ety
15
Reclining the seat-back too far
can result in serious injury or
death in a crash.
Adjust the seat-back to an
upright position, and sit well
back in the seat.

Your Airbag System includes:Two SRS (supplemental restraint
system) f ront airbags. The driver’s
airbag is stored in the center of
the steering wheel; the f ront
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG’’ (see page ).
Two side airbags, one f or the
driver and one f or a f ront
passenger. The airbags are stored
in the outer edges of the seat-
backs. Both are marked ‘‘SIDE
AIRBAG’’ (see page ).
Two side curtain airbags, one f or
each side of the vehicle. The
airbags are stored in the ceiling,
above the side windows. The f ront
and rear pillars are marked ‘‘SIDE
CURTAIN AIRBAG’’ (see page ). Automatic front seat belt
tensioners (see page ).
Sensors that can detect a
moderate to severe front impact or
side impact.
Sensors that can detect whether a
child is in the passenger’s side
airbag path and signal the control
unit to turn the airbag of f (see
page ).
Sensors that can detect whether
the driver’s seat belt and the f ront
passenger’s seat belt are latched
or unlatched (see page ).
A driver’s seat position sensor that
monitors the distance of the seat
from the front airbag. If the seat is
too far forward, the airbag will
inf late with less f orce (see page
).
28
32
33 23
32 21
30
Additional Inf ormation About Your Airbags
26

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations . 60
............................
Instrument Panel . 61
..........
Instrument Panel Indicators . 62
.............................................
Gauges . 72
.............
Multi-Inf ormation Display . 75
Controls Near the Steering
.........................................
Wheel . 118
Windshield Wipers and .....................................
Washers . 119
.......
Turn Signals and Headlights . 120
.........
Daytime Running Lights . 123
......
Instrument Panel Brightness . 124
...............
Hazard Warning Button . 125
...............
Rear Window Def ogger . 126
................................
ECON Button . 127
......
Steering Wheel Adjustments . 128
.............................
Keys and Locks . 129
......................
Immobilizer System . 130
..............................
Ignition Switch . 131
....................................
Door Locks . 133
............
Childproof Door Locks . 134
.....................
Remote Transmitter . 135
..............................................
Hatch . 139
................
Unlocking the Hatch . 140
...............................................
Seats . 141
...........
Front Seat Adjustments . 141 Driver’s Seat Height
............................
Adjustment . 141
........................
Head Restraints . 142
.
Folding the Rear Seats Down . 145
......................................
Armrest . 146
...........................................
Mirrors . 147
..
Adjusting the Power Mirrors . 147
..............
Power Mirror Heaters . 148
............................
Power Windows . 149
...............................
Parking Brake . 151
.........
Interior Convenience Items . 152
.....................
Cargo Area Cover . 153
...............
Under Floor Storages . 155
.
Floor Storage Compartments . 155
.....................
Beverage Holders . 156
.........
Accessory Power Socket . 157
.............
Console Compartment . 157
..................................
Glove Box . 158
...............................
Center Tray . 158
..........................
Center Pockets . 159
..................................
Coat Hook . 160
..................................
Sun Visors . 160
............................
Vanity Mirror . 160
...............................
Interior Lights . 161
Instruments and Controls
Inst rument s and Cont rols
59

Î
ÎÎ
Î Î
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.

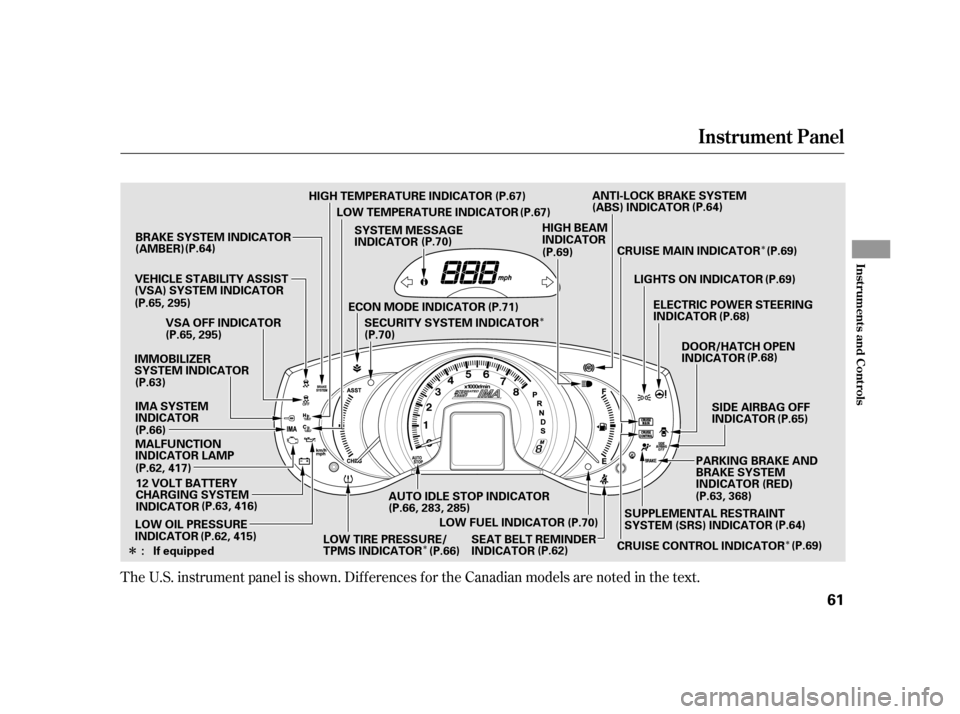

Instrument Panel
Inst rument s and Cont rols
61
LIGHTS ON INDICATOR
SEAT BELT REMINDER
INDICATOR ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS) INDICATOR
SYSTEM MESSAGE
INDICATOR
BRAKE SYSTEM INDICATOR
(AMBER)
VSA OFF INDICATOR
MALFUNCTION
INDICATOR LAMP PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR (RED)
DOOR/HATCH OPEN
INDICATOR
SIDE AIRBAG OFF
INDICATOR
IMMOBILIZER
SYSTEM INDICATOR
IMA SYSTEM
INDICATOR HIGH BEAM
INDICATOR
ELECTRIC POWER STEERING
INDICATOR
(P.64)
(P.63) (P.66)
: If equipped (P.62)(P.64)(P.65)
(P.68)
(P.68)
(P.69)
(P.64)
(P.69)
HIGH TEMPERATURE INDICATOR (P.67)
LOW TEMPERATURE INDICATOR (P.67)
(P.70)
(P.66) CRUISE MAIN INDICATOR (P.69)
CRUISE CONTROL INDICATOR (P.69)
LOW OIL PRESSURE
INDICATOR
LOW TIRE PRESSURE/
TPMS INDICATOR
12 VOLT BATTERY
CHARGING SYSTEM
INDICATOR (P.70)
ECON MODE INDICATOR (P.71)
(P.70)
AUTO IDLE STOP INDICATOR
LOW FUEL INDICATOR
VEHICLE STABILITY ASSIST
(VSA) SYSTEM INDICATOR
SECURITY SYSTEM INDICATOR
(P.63, 416)
(P.62, 415)
(P.65, 295)
(P.65, 295)
(P.62, 417) (P.66, 283, 285) (P.63, 368)
