HONDA INSIGHT 2020 Owner's Manual (in English)

Continued219
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

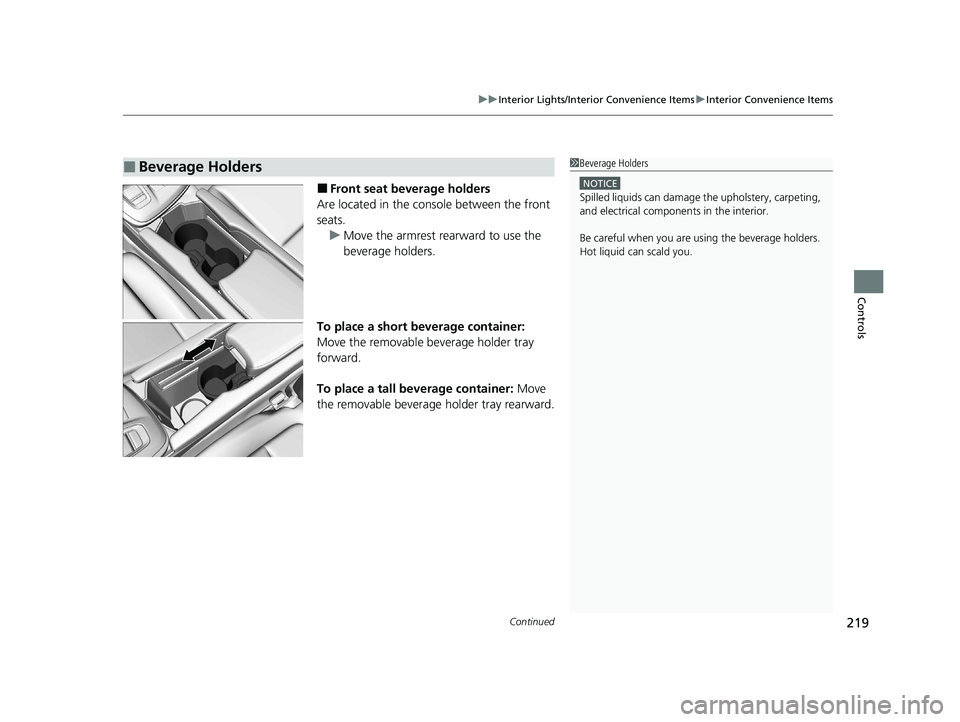

■Front seat beverage holders
Are located in the console between the front
seats. u Move the armrest rearward to use the
beverage holders.
To place a short beverage container:
Move the removable beverage holder tray
forward.
To place a tall beverage container: Move
the removable beverage holder tray rearward.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
20 INSIGHT-31TXM6100.book 219 ページ ２０１９年４月２４日　水曜日　午後２時２分

220
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

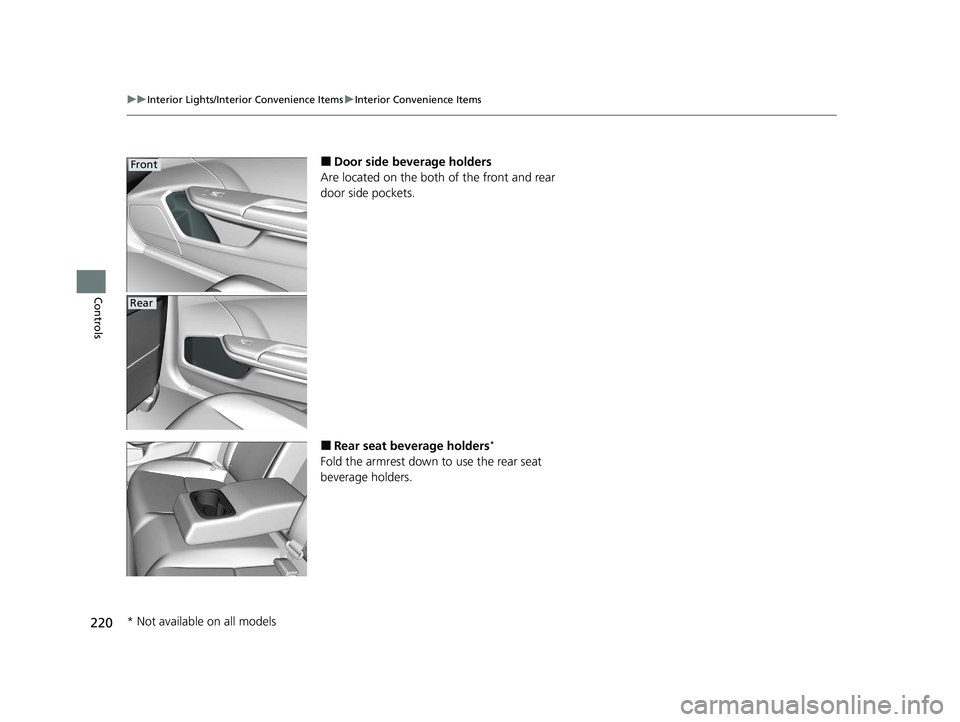

■Door side beverage holders
Are located on the both of the front and rear
door side pockets.
■Rear seat beverage holders*
Fold the armrest down to use the rear seat
beverage holders.
Front
Rear
* Not available on all models
20 INSIGHT-31TXM6100.book 220 ページ ２０１９年４月２４日　水曜日　午後２時２分

Continued221
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

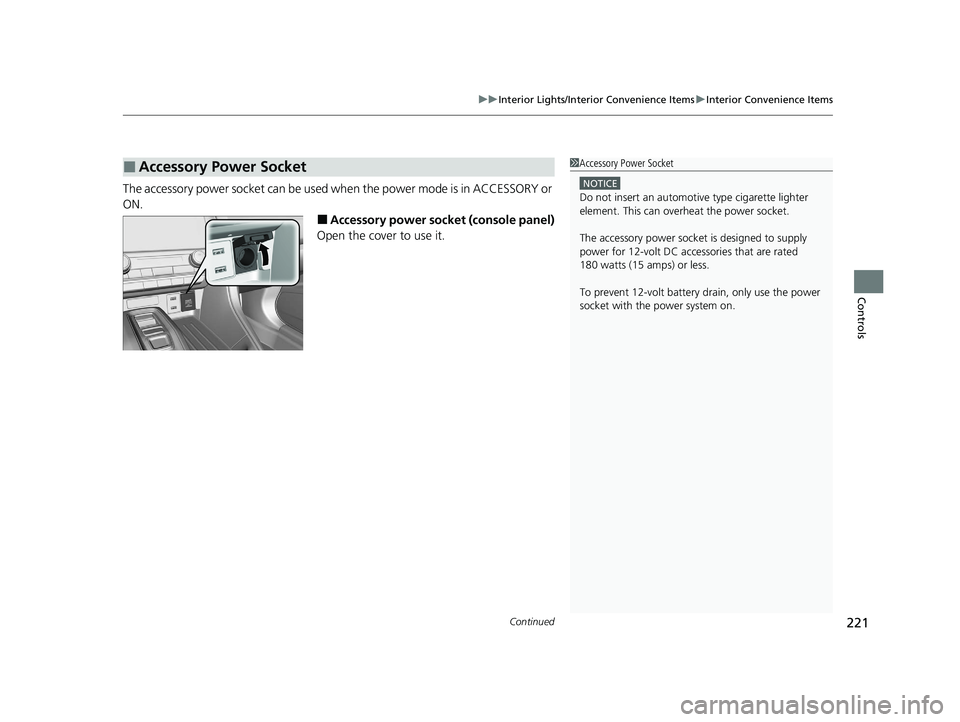

The accessory power socket can be used when the power mode is in ACCESSORY or
ON.
■Accessory power socket (console panel)
Open the cover to use it.
■Accessory Power Socket1 Accessory Power Socket
NOTICE
Do not insert an automotive type cigarette lighter
element. This can overheat the power socket.
The accessory power socket is designed to supply
power for 12-volt DC accessories that are rated
180 watts (15 amps) or less.
To prevent 12-volt battery drain, only use the power
socket with the power system on.
20 INSIGHT-31TXM6100.book 221 ページ ２０１９年４月２４日　水曜日　午後２時２分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
222
Controls

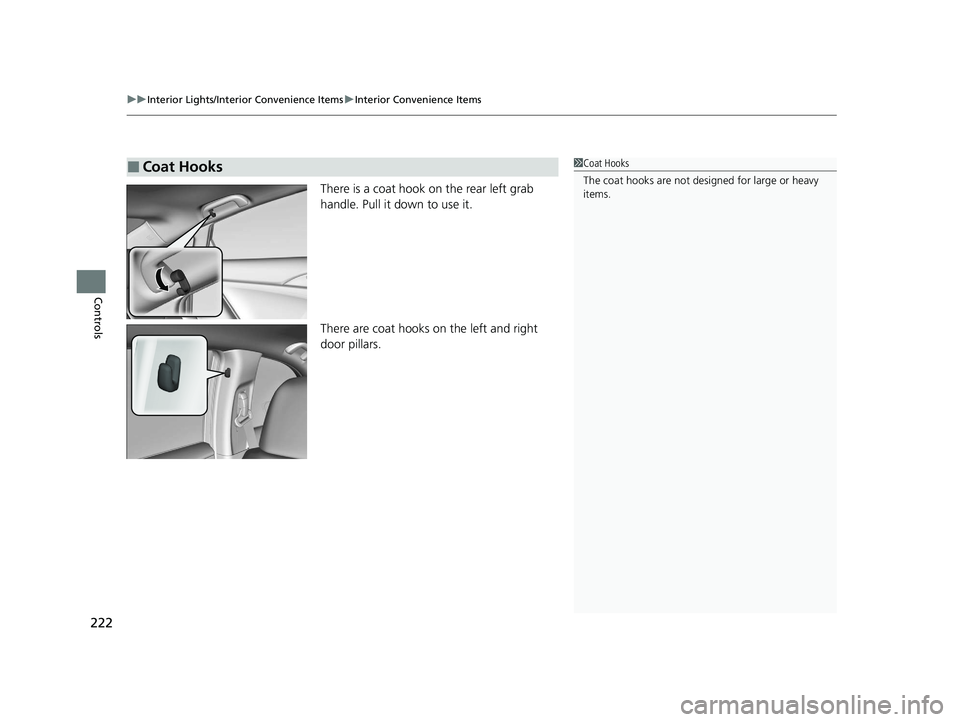

There is a coat hook on the rear left grab
handle. Pull it down to use it.
There are coat hooks on the left and right
door pillars.
■Coat Hooks1Coat Hooks
The coat hooks are not desi gned for large or heavy
items.
20 INSIGHT-31TXM6100.book 222 ページ ２０１９年４月２４日　水曜日　午後２時２分

Continued223
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

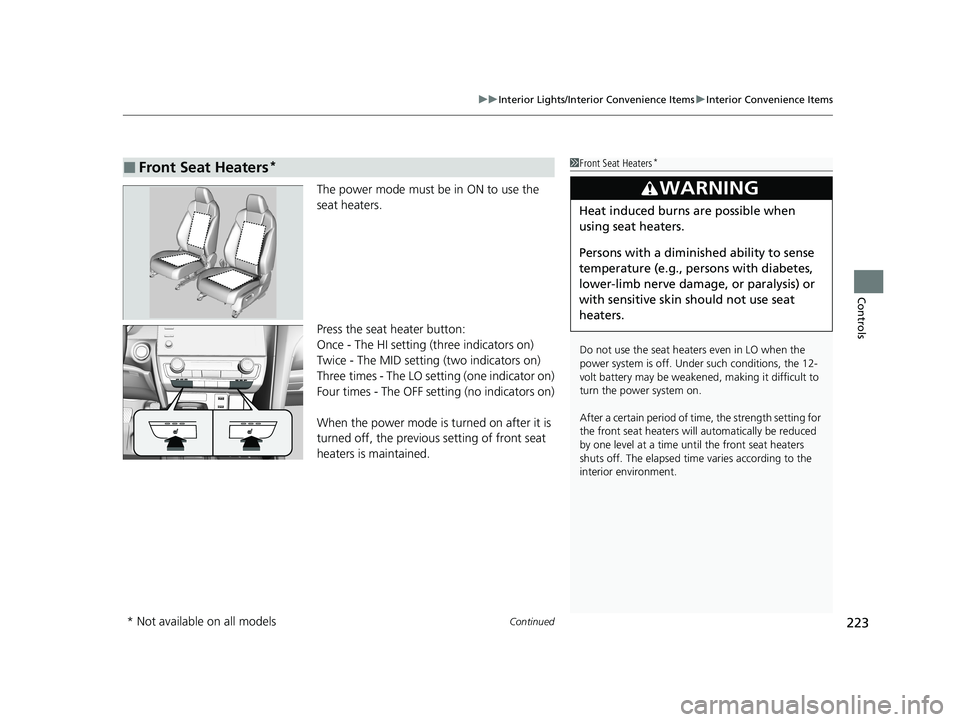

The power mode must be in ON to use the
seat heaters.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF setting (no indicators on)
When the power mode is turned on after it is
turned off, the previous setting of front seat
heaters is maintained.
■Front Seat Heaters*1Front Seat Heaters*
Do not use the seat heaters even in LO when the
power system is off. U nder such conditions, the 12-
volt battery may be weakened , making it difficult to
turn the power system on.
After a certain period of time, the strength setting for
the front seat heaters will automatically be reduced
by one level at a time unt il the front seat heaters
shuts off. The elapsed time varies according to the
interior environment.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
20 INSIGHT-31TXM6100.book 223 ページ ２０１９年４月２４日　水曜日　午後２時２分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
224
Controls
The power mode must be in ON to use the
seat heaters.
There is no heater in the rear center seating
position.
While in HI, the heater cycles on and off.
u The appropriate indicator will be on
while the seat heater is on. Briefly press
the switch on the opposite side to turn
the heater off. The indicator will be off.
■Rear Seat Heaters*1Rear Seat Heaters*
Do not use the seat heaters even in LO when the
power system is off. U nder such conditions, the 12-
volt battery may be weakened , making it difficult to
turn the power system on.
In the LO setting, the heater runs continuously and
does not automatically turn off.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
20 INSIGHT-31TXM6100.book 224 ページ ２０１９年４月２４日　水曜日　午後２時２分

225Continued
Controls
Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the power system is on.
1. Press the AUTO button.
2. Adjust the interior temperature us ing the temperature control dial.
3. Press the (ON/OFF) button to cancel.1Using Automatic Climate Control
If any buttons are presse d while using the climate
control system in auto, the function of the button
that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button th at was pressed will be
controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh air mode to
recirculation mode until the temperature cools down.
When you set the temperature to the lower or upper
limit, Lo or Hi is displayed.
Pressing the button switches the climate
control system between on and off. When turned on,
the system returns to your last selection.
While ECON mode is active, the climate control
system may have reduced cooling performance.
Floor and
defroster
vents
Floor vents
Dashboard
and floor
vents
Dashboard
vents
AUTO Button
(Recirculation)
Button
Fan Control
Dial
A/C (Air Conditioning)
Button (ON/OFF)
ButtonTemperature
Control Dial
Models without SYNC button
20 INSIGHT-31TXM6100.book 225 ページ ２０１９年４月２４日　水曜日　午後２時２分

226
uuClimate Control System uUsing Automatic Climate Control
Controls

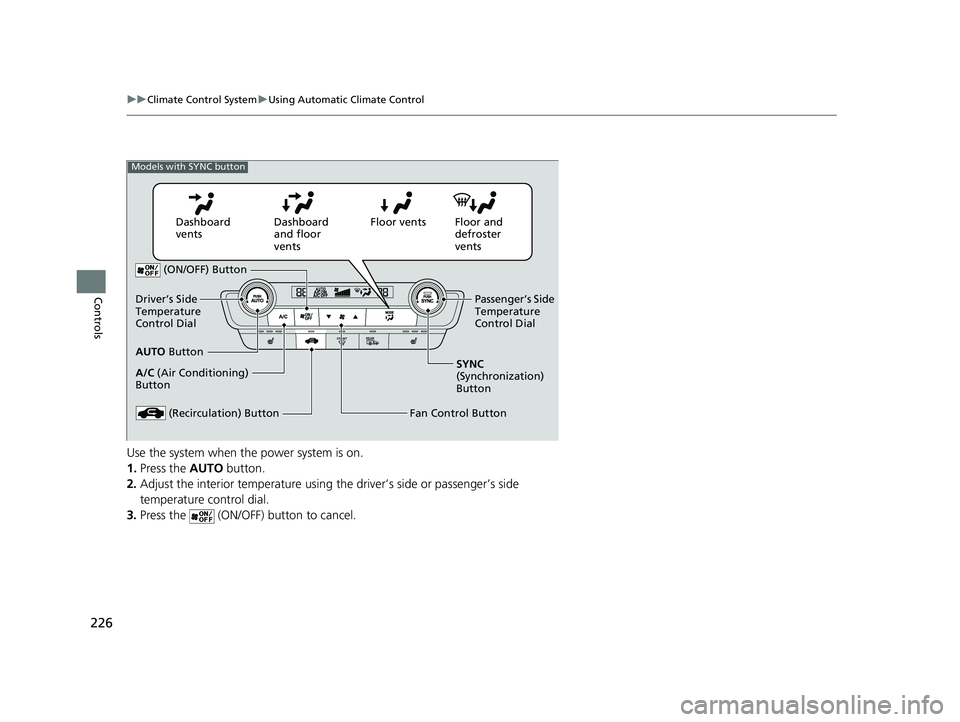

Use the system when the power system is on.
1. Press the AUTO button.
2. Adjust the interior temperature using the driver’s side or passenger’s side
temperature control dial.
3. Press the (ON/OFF) button to cancel.
Models with SYNC button
Floor and
defroster
vents
Floor vents
Dashboard
and floor
vents
Dashboard
vents
(ON/OFF) Button
Driver’s Side
Temperature
Control Dial
AUTO Button
A/C (Air Conditioning)
Button Passenger’s Side
Temperature
Control Dial
SYNC
(Synchronization)
Button
Fan Control Button
(Recirculation) Button
20 INSIGHT-31TXM6100.book 226 ページ ２０１９年４月２４日　水曜日　午後２時２分

227
uuClimate Control System uUsing Automatic Climate Control
Continued
Controls
■Switching between the recirc ulation and fresh air modes
Press the (recirculation) button and switch the mode depending on
environmental conditions.
Recirculation mode (indicator on): Recirculates air from the vehicle’s interior through
the system.
Fresh air mode (indicator off): Maintains outside ventilation. Keep the system in
fresh air mode in normal situations.
20 INSIGHT-31TXM6100.book 227 ページ ２０１９年４月２４日　水曜日　午後２時２分

uuClimate Control System uUsing Automatic Climate Control
228
Controls

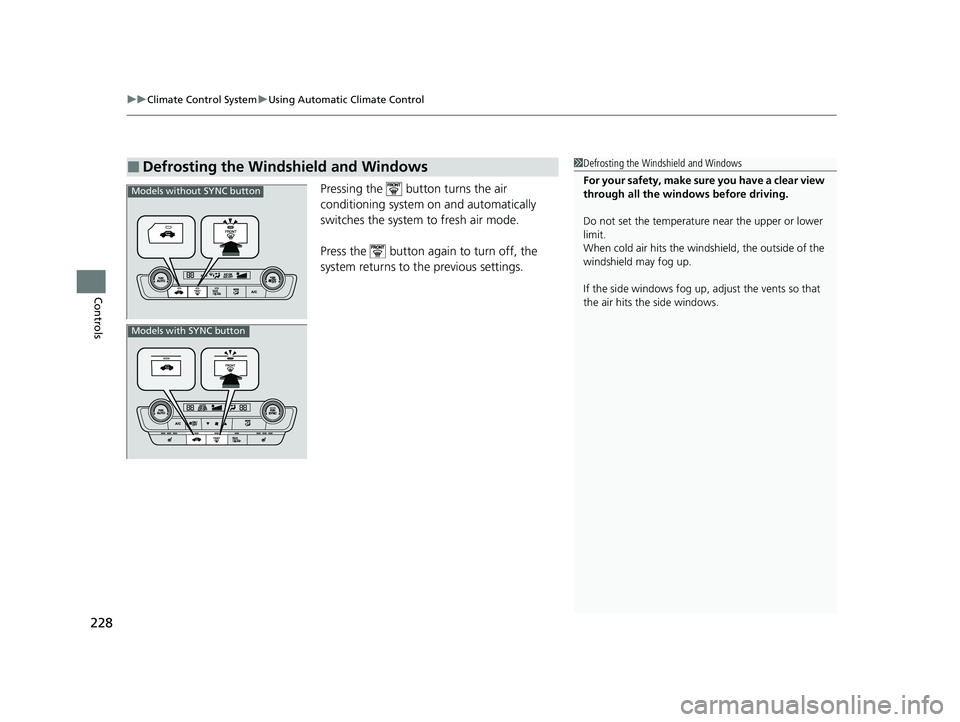

Pressing the button turns the air
conditioning system on and automatically
switches the system to fresh air mode.
Press the button again to turn off, the
system returns to the previous settings.
■Defrosting the Windshield and Windows1 Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
Models without SYNC button
Models with SYNC button
20 INSIGHT-31TXM6100.book 228 ページ ２０１９年４月２４日　水曜日　午後２時２分
