TPMS HONDA INSIGHT 2020 (in English) Owner's Guide

592
uu12-Volt Battery uCharging the AGM Battery
Maintenance
Charging the AGM Battery
AGM labeled batteries like those installe d in your vehicle require a compatible
charger to be properly charged. Damage to the battery can result if the battery is
charged improperly or with the wrong equi pment. For more information on how to
charge your vehicle’s AGM battery, consult a dealer.112-Volt Battery
The vehicle stability assist ® (VSA ®) system, vehicle
stability assist ® (VSA ®) OFF, adaptive cruise control
(ACC) with low speed follow, safety support and low
tire pressure/TPMS indicato rs may come on in amber
along with a message in the driver information
interface when you set the power mode to ON after
re-connecting a battery.
Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not, have
your vehicle checked by a dealer.
3WARNING
• Use of a battery not designed for this
vehicle could cause a hydrogen gas leak
inside the vehicle, resulting in a fire or
explosion that may cause injury or death.
• Only install a 12V AGM battery designed
for use in this vehicle.
• Contact your Honda dealer for more
information.
20 INSIGHT-31TXM6100.book 592 ページ ２０１９年４月２４日　水曜日　午後２時２分

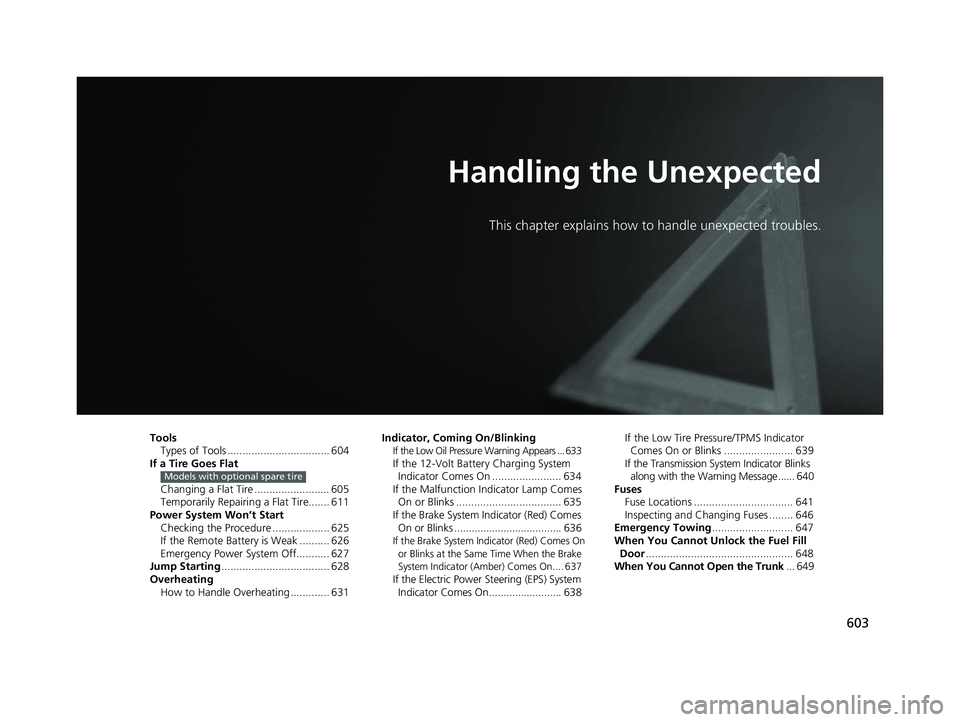

603
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 604
If a Tire Goes Flat
Changing a Flat Tire ......................... 605
Temporarily Repairi ng a Flat Tire....... 611
Power System Won’t Start Checking the Procedure ................... 625
If the Remote Battery is Weak .......... 626
Emergency Power System Off........... 627
Jump Starting .................................... 628
Overheating
How to Handle Overheating ............. 631
Models with optional spare tire
Indicator, Coming On/BlinkingIf the Low Oil Pressure Warning Appears ... 633If the 12-Volt Battery Charging System Indicator Comes On ....................... 634
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 635
If the Brake System Indicator (Red) Comes On or Blinks ..................................... 636
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On.... 637
If the Electric Power Steering (EPS) System Indicator Comes On......................... 638 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 639
If the Transmission System Indicator Blinks
along with the Warning Message ...... 640
Fuses Fuse Locations ................................. 641
Inspecting and Changing Fuses ........ 646
Emergency Towing ........................... 647
When You Cannot Unlock the Fuel Fill
Door ................................................. 648
When You Cannot Open the Trunk ... 649
20 INSIGHT-31TXM6100.book 603 ページ ２０１９年４月２４日　水曜日　午後２時２分

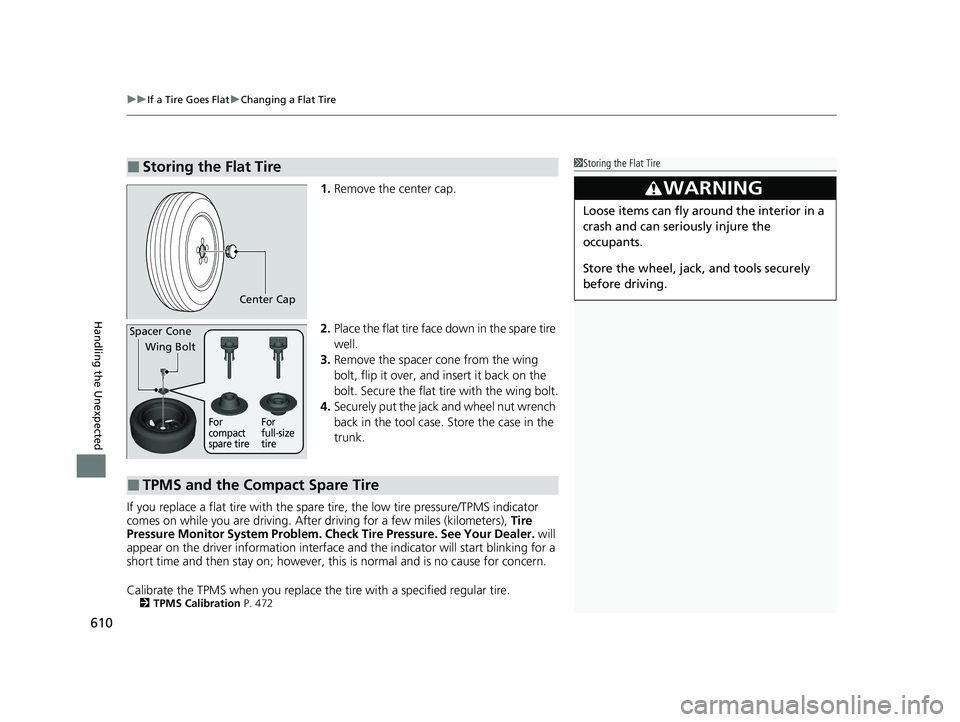

uuIf a Tire Goes Flat uChanging a Flat Tire
610
Handling the Unexpected
1. Remove the center cap.
2. Place the flat tire face down in the spare tire
well.
3. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
4. Securely put the jack and wheel nut wrench
back in the tool case. Store the case in the
trunk.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. Afte r driving for a few miles (kilometers), Tire
Pressure Monitor System Problem. Ch eck Tire Pressure. See Your Dealer. will
appear on the driver information interface and the indicator will start blinking for a
short time and then stay on; however, this is normal and is no cause for concern.
Calibrate the TPMS when you replace the tire with a specified regular tire.
2TPMS Calibration P. 472
■Storing the Flat Tire1Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Center Cap
Spacer Cone
Wing Bolt
For
compact
spare tire For
full-size
tire
■TPMS and the Compact Spare Tire
20 INSIGHT-31TXM6100.book 610 ページ ２０１９年４月２４日　水曜日　午後２時２分

uuJump Starting u
630
Handling the Unexpected
Once your vehicle’s engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s jump start box + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts1What to Do After the Engine Starts
The vehicle stability assist ® (VSA ®) system, vehicles
stability assist ® (VSA ®) OFF, adaptive cruise control
(ACC) with low speed follow, safety support and low
tire pressure/TPMS indicato rs may come on in amber
along with a message in the driver information
interface when you set the power mode to ON after
re-connecting a battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
20 INSIGHT-31TXM6100.book 630 ページ ２０１９年４月２４日　水曜日　午後２時２分

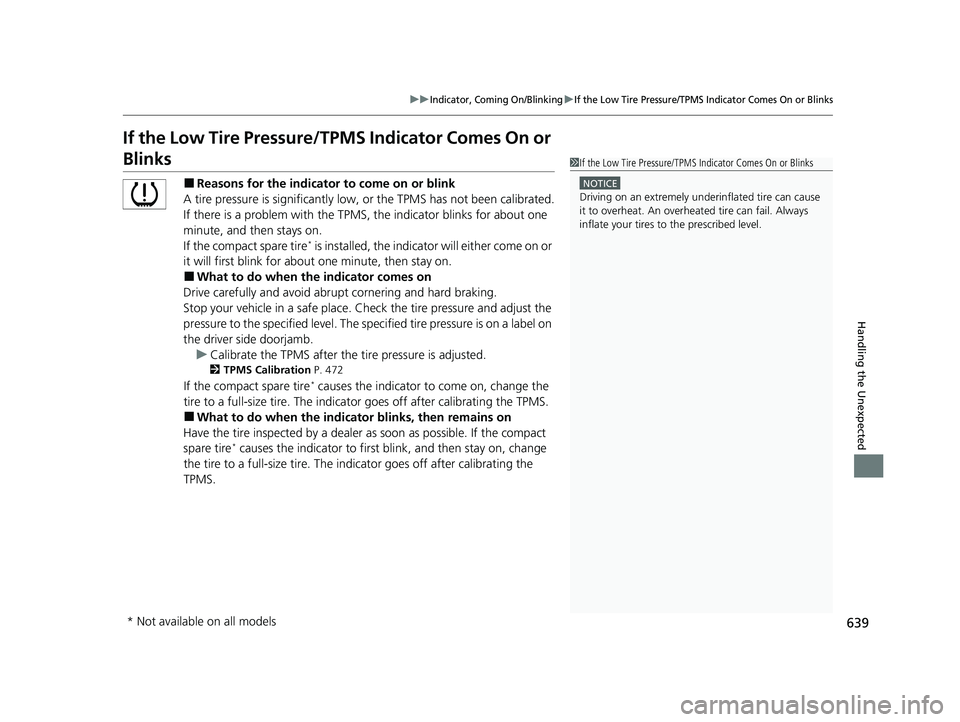

639
uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is signif icantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.
If the compact spare tire
* is installed, the indicator will either come on or
it will first blink for about one minute, then stay on.
■What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver side doorjamb. u Calibrate the TPMS after the tire pressure is adjusted.
2 TPMS Calibration P. 472
If the compact spare tire* causes the indicator to come on, change the
tire to a full-size tire. The indicato r goes off after calibrating the TPMS.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to first b link, and then stay on, change
the tire to a full-size tire. The indi cator goes off after calibrating the
TPMS.
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
* Not available on all models
20 INSIGHT-31TXM6100.book 639 ページ ２０１９年４月２４日　水曜日　午後２時２分

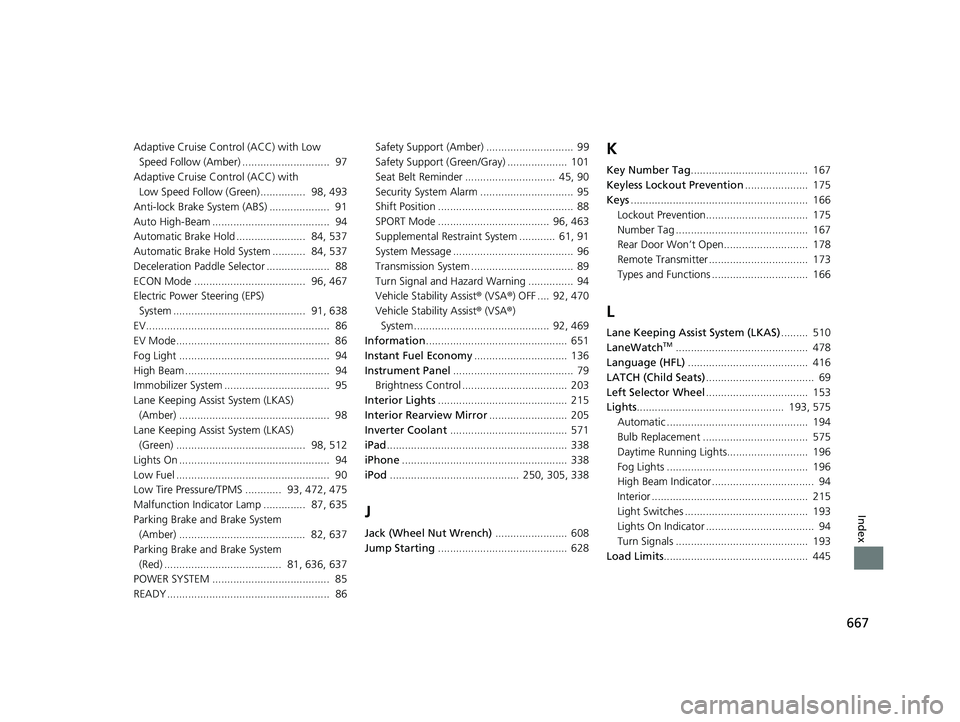

667
Index
Adaptive Cruise Control (ACC) with Low Speed Follow (Amber) ............................. 97
Adaptive Cruise Control (ACC) with Low Speed Follow (Green)............... 98, 493
Anti-lock Brake System (ABS) .................... 91
Auto High-Beam ....................................... 94
Automatic Brake Hold ....................... 84, 537
Automatic Brake Hold System ........... 84, 537
Deceleration Paddle Selector ..................... 88
ECON Mode ..................................... 96, 467
Electric Power Steering (EPS)
System ............................................ 91, 638
EV............................................................. 86
EV Mode................................................... 86
Fog Light .................................................. 94
High Beam ................................................ 94
Immobilizer System ................................... 95
Lane Keeping Assist System (LKAS) (Amber) .................................................. 98
Lane Keeping Assist System (LKAS) (Green) ........................................... 98, 512
Lights On .................................................. 94
Low Fuel ................................................... 90
Low Tire Pressure/TPMS ............ 93, 472, 475
Malfunction Indicator Lamp .............. 87, 635
Parking Brake and Brake System (Amber) .......................................... 82, 637
Parking Brake and Brake System
(Red) ....................................... 81, 636, 637
POWER SYSTEM ....................................... 85
READY ...................................................... 86 Safety Support (Amber) ............................. 99
Safety Support (Green/Gray) .................... 101
Seat Belt Reminder .............................. 45, 90
Security System Alarm ............................... 95
Shift Position ............................................. 88
SPORT Mode ..................................... 96, 463
Supplemental Restraint System ............ 61, 91
System Message ........................................ 96
Transmission System .................................. 89
Turn Signal and Haza
rd Warning ............... 94
Vehicle Stability Assist ® (VSA ®) OFF .... 92, 470
Vehicle Stability Assist ® (VSA ®)
System............................................. 92, 469
Information ............................................... 651
Instant Fuel Economy ............................... 136
Instrument Panel ........................................ 79
Brightness Control ................................... 203
Interior Lights ........................................... 215
Interior Rearview Mirror .......................... 205
Inverter Coolant ....................................... 571
iPad ............................................................ 338
iPhone ....................................................... 338
iPod ........................................... 250, 305, 338
J
Jack (Wheel Nut Wrench) ........................ 608
Jump Starting ........................................... 628
K
Key Number Tag ....................................... 167
Keyless Lockout Prevention ..................... 175
Keys ........................................................... 166
Lockout Prevention.................................. 175
Number Tag ............................................ 167
Rear Door Won’t Open............................ 178
Remote Transmitter ................................. 173
Types and Functions ................................ 166
L
Lane Keeping Assist System (LKAS) ......... 510
LaneWatchTM............................................ 478
Language (HFL) ........................................ 416
LATCH (Child Seats) .................................... 69
Left Selector Wheel .................................. 153
Lights ................................................. 193, 575
Automatic ............................................... 194
Bulb Replacement ................................... 575
Daytime Running Lights........................... 196
Fog Lights ............................................... 196
High Beam Indicator .................................. 94
Interior .................................................... 215
Light Switches ......................................... 193
Lights On Indicator .................................... 94
Turn Signals ............................................ 193
Load Limits ................................................ 445
20 INSIGHT-31TXM6100.book 667 ページ ２０１９年４月２４日　水曜日　午後２時２分

670
Index
Summer Tires............................................ 590
Supplemental Restraint System (SRS) ........ 54
Switches (Around the Steering Wheel) ............................................. 4, 5, 190
System Message Indicator .......................... 96
System Updates ......................................... 278
T
Temperature
Outside Temperature Display ................... 134
Temperature Sensor ......................... 134, 231
Temporary Tire Repair Kit ........................ 612
Time (Adjusting) ....................................... 164
Tire Pressure Monitoring System (TPMS) ...................................................... 472
Indicator ............................................ 93, 639
Tires ........................................................... 582
Air Pressure ..................................... 583, 653
Checking and Maintaining ....................... 582
Inspection ................................................ 582
Labeling................................................... 583
Puncture (Flat Tire) ................................... 605
Regulations.............................................. 585
Rotation .................................................. 589
Spare Tire ........................................ 605, 653
Summer................................................... 590
Temporary Tire Repair Kit......................... 612
Tire Chains .............................................. 590
Wear Indicators ....................................... 587
Winter ..................................................... 590 Tools
.......................................................... 604
Towing a Trailer ....................................... 447
Towing Your Vehicle ................................ 447
Emergency .............................................. 647
TPMS (Tire Pressure Monitoring
System) .................................................... 472
Indicator............................................ 93, 639
Traffic Sign Recognition System .............. 523
Transmission ............................................. 457
Automatic ............................................... 457
Creeping ................................................. 456
Gear Position Indicator .............................. 88
Number................................................... 654
Shift Operation........................................ 459
Shifting ................................................... 457
Transmission System Indicator.................................................... 89
TRIP Button ............................................... 133
Trip Computer .................................. 135, 137
Trip Meter ................................. 134, 136, 138
Troubleshooting ....................................... 603
Blown Fuse...................................... 641, 645
Brake Pedal Vibrates .................................. 35
Buzzer Sounds When Opening Door.......... 35
Emergency Towing .................................. 647
Noise When Braking ............................ 36, 37
Overheating ............................................ 631
Power System Won’t Start ....................... 625
Puncture/Flat Tire .................................... 605
Rear Door Won’t Open...................... 35, 178
Warning Indicators .................................... 80 Trunk
........................................................ 180
Lid .......................................................... 180
Light Bulb ............................................... 652
Unable to Open ...................................... 649
Turn Signals .............................................. 193
Indicators (Instru ment Panel) ..................... 94
Turning on the Power ............................. 448
Jump Starting ......................................... 628U
Unlocking the Doors ................................ 169
Unlocking the Fron t Doors from the
Inside ......................................................... 22
USB Flash Drives ....................... 255, 308, 338
USB Ports .................................................. 235
Using the Smart Entr y with Push Button
Start System ............................................ 169
V
Vanity Mirrors .............................................. 7
Vehicle Identification Number ................ 654
Vehicle Stability Assist (VSA ®) ................. 469
Off Button .............................................. 470
Off Indicator ............................................. 92
System Indicator ....................................... 92
Viscosity (Oil) .................................... 564, 653
Voice Control Operation ......................... 287
Voice Portal Screen ................................. 288
Voice Recognition ................................... 287
20 INSIGHT-31TXM6100.book 670 ページ ２０１９年４月２４日　水曜日　午後２時２分
