Continued505
uuHonda Sensing ®u Adaptive Cruise Control (ACC) with Low Speed Follow
Driving
To cancel ACC with Low Speed Follow, do any
of the following:
• Press the CANCEL button.
• Press the MAIN button.
u The ACC with Low Speed Follow
indicator (green) goes off.
• Depress the brake pedal.
u When the Low Speed Follow function
has stopped the vehicle, you cannot
cancel ACC with Low Speed Follow by
depressing the brake pedal.
■To Cancel1 To Cancel
Resuming the prior set speed: After you have
canceled ACC with Low Speed Follow, you can
resume the prior set speed while it is still displayed.
Press the RES /+ button.
The set speed cannot be set or resumed when ACC
with Low Speed Follow has been turned off using the
MAIN button. Press the MAIN button to activate the
system, then set the desired speed.
CANCEL
Button
MAIN
Button
20 INSIGHT-31TXM6100.book 505 ページ ２０１９年４月２４日　水曜日　午後２時２分

uuHonda Sensing ®u Adaptive Cruise Control (ACC) with Low Speed Follow
506
Driving
■Automatic cancellation
The beeper sounds and a message appears on the driver information interface when
ACC with Low Speed Follow is automaticall y canceled. Any of these conditions may
cause the ACC with Low Speed Fo llow to automatically cancel:
• Bad weather (rain, fog, snow, etc.)
• When the radar sensor at the lower part of the front bumper gets dirty.
• The vehicle ahead of you cannot be detected.
• An abnormal tire condition is detected, or the tires are skidding.
• Driving on a mountainous road, or driving off road for extended periods.
• Abrupt steering wheel movement.
• When the ABS, VSA ® or CMBS
TM is activated.
• When the ABS or VSA ® system indicator comes on.
• When the vehicle is stopped on a very steep slope.
• When you manually apply the parking brake.
• When the detected vehicle within the ACC with Low Speed Follow range is too
close to your vehicle.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
• When the Maximum Load Limit is exceeded.
• When passing through an enclos ed space, such as tunnel.
1Automatic cancellation
Even though ACC with Low Speed Follow has been
automatically canceled, you can still resume the prior
set speed. Wait until the condition that caused ACC
with Low Speed Follow to cancel improves, then
press the SET/– button.
20 INSIGHT-31TXM6100.book 506 ページ ２０１９年４月２４日　水曜日　午後２時２分

507
uuHonda Sensing ®u Adaptive Cruise Control (ACC) with Low Speed Follow
Continued
Driving
In the following cases, a bu zzer sounds, ACC with Low Speed Follow is deactivated,
and the Cruise Cancelled: Slope Too Steep. Watch Downhill Speed message
appears in the driver information interface.
• While descending a long slope and the ve hicle has repeatedly applied the brakes
to maintain the set speed.
The ACC with Low Speed Follow automatic cancellation can be also triggered by the
following causes. In these cases, the parking brake will be automatically applied.
• The driver’s seat belt is unfastened when the vehicle is stationary.
• The vehicle stops for more than 10 minutes.
• The power system is turned off.
20 INSIGHT-31TXM6100.book 507 ページ ２０１９年４月２４日　水曜日　午後２時２分

uuHonda Sensing ®u Adaptive Cruise Control (ACC) with Low Speed Follow
508
Driving
Press and hold the (interval) button for one
second. Cruise Mode Selected appears on
the driver information interface for two
seconds, and then the mode switches to
Cruise.
To switch back to ACC with Low Speed
Follow, press and hold the button again for
one second.
■When to use
Desired speed in a range above roughly 25 mph (40 km/h) ~.
Take your foot off the pedal and press the SET/– button when you reach the desired
speed.
The moment you release the SET /– button, the set speed is fixed, and cruise control
begins. The CRUISE CONTROL indicator comes on.
When you use cruise control, Straight Driv ing Assist (a feature of the Electric Power
Steering system) is activated.
By enabling the steering system to automa tically compensate for natural steering
pull, Straight Driving Assist makes it easier for you to keep your vehicle in a straight
line.
■To Switch ACC with Low Speed Follow to Cruise Control1 To Switch ACC with Low Speed Follow to Cruise Control
Always be aware which mode you are in. When you
are driving in Cruise mode, the system will not assist
you to maintain a followi ng interval from a vehicle
ahead of you.
You can switch the displayed set speed
measurements on the driver information interface or
audio/information screen between mph and km/h. 2 Speed Unit P. 130
2 Customized Features
* P. 153, 366
ACC with
Low Speed
Follow ON Cruise
Control ON
■To Set the Vehicle Speed
* Not available on all models
20 INSIGHT-31TXM6100.book 508 ページ ２０１９年４月２４日　水曜日　午後２時２分

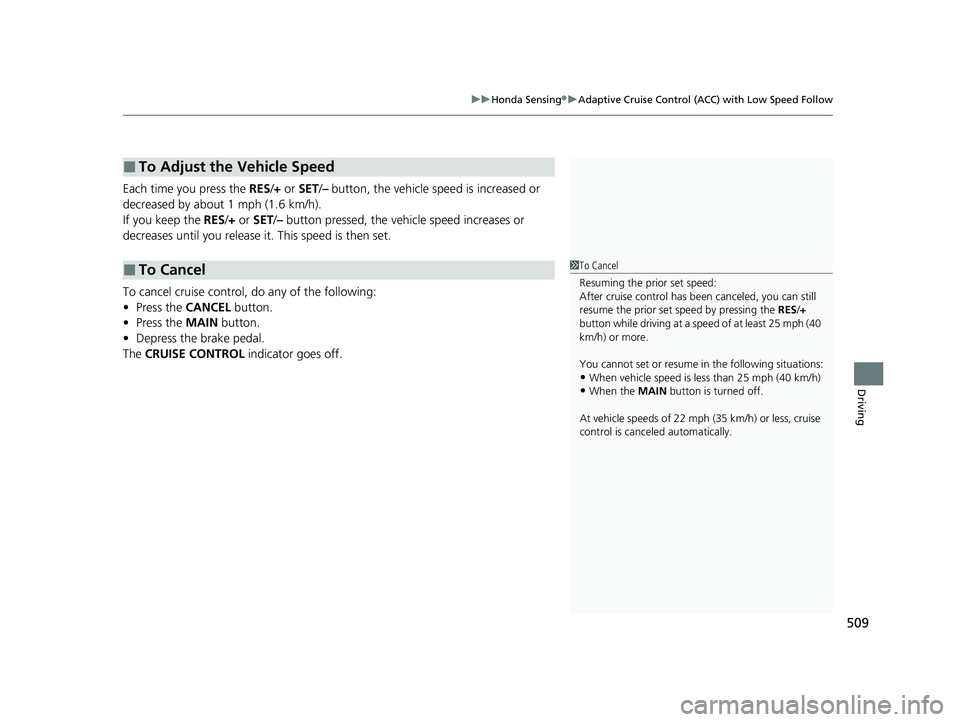

509
uuHonda Sensing ®u Adaptive Cruise Control (ACC) with Low Speed Follow
Driving
Each time you press the RES/+ or SET/ – button, the vehicle speed is increased or
decreased by about 1 mph (1.6 km/h).
If you keep the RES/+ or SET/– button pressed, the vehi cle speed increases or
decreases until you release it . This speed is then set.
To cancel cruise control, do any of the following:
• Press the CANCEL button.
• Press the MAIN button.
• Depress the brake pedal.
The CRUISE CONTROL indicator goes off.
■To Adjust the Vehicle Speed
■To Cancel1To Cancel
Resuming the prior set speed:
After cruise control has be en canceled, you can still
resume the prior set speed by pressing the RES/+
button while driving at a speed of at least 25 mph (40
km/h) or more.
You cannot set or resume in the following situations:
•When vehicle speed is less than 25 mph (40 km/h)•When the MAIN button is turned off.
At vehicle speeds of 22 m ph (35 km/h) or less, cruise
control is canceled automatically.
20 INSIGHT-31TXM6100.book 509 ページ ２０１９年４月２４日　水曜日　午後２時２分

uuHonda Sensing ®u Road Departure Mitigation (RDM) System
520
Driving
When you turn the RDM on and off, do the
following.
1. Press the safety support switch.
2. Roll the left selector wheel to the
symbol and push it.
u The message appears on the driver
information interface when the system
becomes on or off.
The RDM is in the previously selected ON or
OFF setting each time you turn the power
system on.
■RDM On and Off1 RDM On and Off
When you have selected Warning Only from the
customized options using the driver information
interface or audio/information screen, the system
does not operate the steering wheel and braking. 2 Customized Features
* P. 153, 366
The vehicle stability assist ® (VSA ®) system, vehicle
stability assist ® (VSA ®) OFF, adaptive cruise control
(ACC) with low speed follow, safety support and low
tire pressure/TPMS indicato rs may come on in amber
along with a message in the driver information
interface when you set the power mode to ON after
re-connecting the 12-volt battery.
Drive a short distance at mo re than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
Safety Support Switch Left Selector Wheel
* Not available on all models
20 INSIGHT-31TXM6100.book 520 ページ ２０１９年４月２４日　水曜日　午後２時２分

592
uu12-Volt Battery uCharging the AGM Battery
Maintenance
Charging the AGM Battery
AGM labeled batteries like those installe d in your vehicle require a compatible
charger to be properly charged. Damage to the battery can result if the battery is
charged improperly or with the wrong equi pment. For more information on how to
charge your vehicle’s AGM battery, consult a dealer.112-Volt Battery
The vehicle stability assist ® (VSA ®) system, vehicle
stability assist ® (VSA ®) OFF, adaptive cruise control
(ACC) with low speed follow, safety support and low
tire pressure/TPMS indicato rs may come on in amber
along with a message in the driver information
interface when you set the power mode to ON after
re-connecting a battery.
Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not, have
your vehicle checked by a dealer.
3WARNING
• Use of a battery not designed for this
vehicle could cause a hydrogen gas leak
inside the vehicle, resulting in a fire or
explosion that may cause injury or death.
• Only install a 12V AGM battery designed
for use in this vehicle.
• Contact your Honda dealer for more
information.
20 INSIGHT-31TXM6100.book 592 ページ ２０１９年４月２４日　水曜日　午後２時２分

uuJump Starting u
630
Handling the Unexpected
Once your vehicle’s engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s jump start box + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts1What to Do After the Engine Starts
The vehicle stability assist ® (VSA ®) system, vehicles
stability assist ® (VSA ®) OFF, adaptive cruise control
(ACC) with low speed follow, safety support and low
tire pressure/TPMS indicato rs may come on in amber
along with a message in the driver information
interface when you set the power mode to ON after
re-connecting a battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
20 INSIGHT-31TXM6100.book 630 ページ ２０１９年４月２４日　水曜日　午後２時２分

Index
663
Index
Index
Numbers
12-Volt Battery................................... 10, 591
Charging System Indicator ................ 88, 634
High Voltage..................................... 10, 477
Jump Starting ......................................... 628
Maintenance (Checking the Battery) ....... 591
Maintenance (Replacing) ......................... 593
A
ABS (Anti-lock Brake System) .................. 540
Accessories and Modifications ................ 601
Accessory Power Socket ........................... 221
Acoustic Vehicle Alerting System ............ 468
Adaptive Cruise Control (ACC) ............ 97, 98
Adaptive Cruise Control (ACC)
with Low Speed Follow ............. 97, 98, 492
Additives
Coolant .................................................. 569
Engine Oil ............................................... 564
Washer ................................................... 574
Additives, Engine Oil ............................... 564
Adjusting Armrest .................................................. 214
Front Seats.............................................. 207
Head Restraints ....................................... 212
Mirrors.................................................... 205
Rear Seats ............................................... 210
Steering Wheel ....................................... 204
Adjusting the Sound ................................ 246
Agile Handling Assist ............................... 471 Air Conditioning System (Climate Control
System) .................................................... 225
Changing the Mode ................................ 227
Defrosting the Windshield and Windows ............................................... 228
Dust and Pollen Filter ............................... 594
Recirculation/Fresh Air Mode ................... 227
Sensors .................................................... 231
Synchronized Mode ................................. 230
Using Automatic Climate Control ............ 225
Air Pressure ....................................... 583, 653
Airbags ........................................................ 51
Advanced Airbags ..................................... 57
After a Collision ......................................... 54
Airbag Care ............................................... 63
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 54
Indicator .............................................. 61, 91
Passenger Front Airbag Off Indicator ......... 62
Sensors ...................................................... 51
Side Airbags .............................................. 58
Side Curtain Airbags .................................. 60
AM/FM Radio .................................... 248, 290
Android Auto ............................................ 328
Anti-lock Brake System (ABS) .................. 540
Indicator .................................................... 91
Apple CarPlay ........................................... 325
Armrest ..................................................... 214
Audio Remote Controls ............................ 237
Audio System .................................... 234, 241
Adjusting the Sound ........................ 246, 284 AM/FM Radio .......................................... 248
Audio/Information Screen................ 242, 263
Display Setup .................................. 247, 285
Error Messages ........................................ 332
General Information ................................ 337
Home Screen........................................... 271
How to Update Wirelessly ....................... 278
How to Update with a USB Device........... 282
How to use Siri Eyes Free ................. 261, 324
iPod ................................................ 250, 305
Limitations for Manual Operation ............ 286
MP3/WMA/AAC .............................. 255, 308
Pandora
®............................................... 253
Playing Bluetooth ® Audio ........................ 258
Reactivating ............................................ 236
Remote Controls ..................................... 237
Security Code .......................................... 236
Selecting an Audio Source ....................... 286
Status Area ............................................. 276
System Updates....................................... 278
Theft Protection ...................................... 236
USB Flash Drives ...................... 255, 308, 338
USB Ports ................................................ 235
Wallpaper Setup.............................. 244, 269
Audio/Information Screen ............... 242, 263
Authorized Manuals ................................ 660
Auto Door Locking/Unlocking ................. 179
Customize ....................................... 159, 383
Auto High-Beam ....................................... 197
Indicator.................................................... 94
20 INSIGHT-31TXM6100.book 663 ページ ２０１９年４月２４日　水曜日　午後２時２分

667
Index
Adaptive Cruise Control (ACC) with Low Speed Follow (Amber) ............................. 97
Adaptive Cruise Control (ACC) with Low Speed Follow (Green)............... 98, 493
Anti-lock Brake System (ABS) .................... 91
Auto High-Beam ....................................... 94
Automatic Brake Hold ....................... 84, 537
Automatic Brake Hold System ........... 84, 537
Deceleration Paddle Selector ..................... 88
ECON Mode ..................................... 96, 467
Electric Power Steering (EPS)
System ............................................ 91, 638
EV............................................................. 86
EV Mode................................................... 86
Fog Light .................................................. 94
High Beam ................................................ 94
Immobilizer System ................................... 95
Lane Keeping Assist System (LKAS) (Amber) .................................................. 98
Lane Keeping Assist System (LKAS) (Green) ........................................... 98, 512
Lights On .................................................. 94
Low Fuel ................................................... 90
Low Tire Pressure/TPMS ............ 93, 472, 475
Malfunction Indicator Lamp .............. 87, 635
Parking Brake and Brake System (Amber) .......................................... 82, 637
Parking Brake and Brake System
(Red) ....................................... 81, 636, 637
POWER SYSTEM ....................................... 85
READY ...................................................... 86 Safety Support (Amber) ............................. 99
Safety Support (Green/Gray) .................... 101
Seat Belt Reminder .............................. 45, 90
Security System Alarm ............................... 95
Shift Position ............................................. 88
SPORT Mode ..................................... 96, 463
Supplemental Restraint System ............ 61, 91
System Message ........................................ 96
Transmission System .................................. 89
Turn Signal and Haza
rd Warning ............... 94
Vehicle Stability Assist ® (VSA ®) OFF .... 92, 470
Vehicle Stability Assist ® (VSA ®)
System............................................. 92, 469
Information ............................................... 651
Instant Fuel Economy ............................... 136
Instrument Panel ........................................ 79
Brightness Control ................................... 203
Interior Lights ........................................... 215
Interior Rearview Mirror .......................... 205
Inverter Coolant ....................................... 571
iPad ............................................................ 338
iPhone ....................................................... 338
iPod ........................................... 250, 305, 338
J
Jack (Wheel Nut Wrench) ........................ 608
Jump Starting ........................................... 628
K
Key Number Tag ....................................... 167
Keyless Lockout Prevention ..................... 175
Keys ........................................................... 166
Lockout Prevention.................................. 175
Number Tag ............................................ 167
Rear Door Won’t Open............................ 178
Remote Transmitter ................................. 173
Types and Functions ................................ 166
L
Lane Keeping Assist System (LKAS) ......... 510
LaneWatchTM............................................ 478
Language (HFL) ........................................ 416
LATCH (Child Seats) .................................... 69
Left Selector Wheel .................................. 153
Lights ................................................. 193, 575
Automatic ............................................... 194
Bulb Replacement ................................... 575
Daytime Running Lights........................... 196
Fog Lights ............................................... 196
High Beam Indicator .................................. 94
Interior .................................................... 215
Light Switches ......................................... 193
Lights On Indicator .................................... 94
Turn Signals ............................................ 193
Load Limits ................................................ 445
20 INSIGHT-31TXM6100.book 667 ページ ２０１９年４月２４日　水曜日　午後２時２分
