service indicator HONDA INSIGHT 2020 Owner's Manual (in English)

34
Quick Reference Guide
Handling the Unexpected (P 603)
Flat Tire (P 605)
●Park in a safe location and replace the
flat tire with the compact spare tire in the
trunk.
●Park in a safe location and repair the flat
tire using the temporary tire repair kit.
Indicators Come On
(P 633)
●Identify the indicator and consult the
owner’s manual.
Models with optional spare tire
Power System Won’t
Start
(P 625)
●If the 12-volt battery is dead, jump start
using a booster battery.
Blown Fuse (P 641)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P 631)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P 647)
●Call a professional towing service if you
need to tow your vehicle.
20 INSIGHT-31TXM6100.book 34 ページ ２０１９年４月２４日　水曜日　午後２時２分

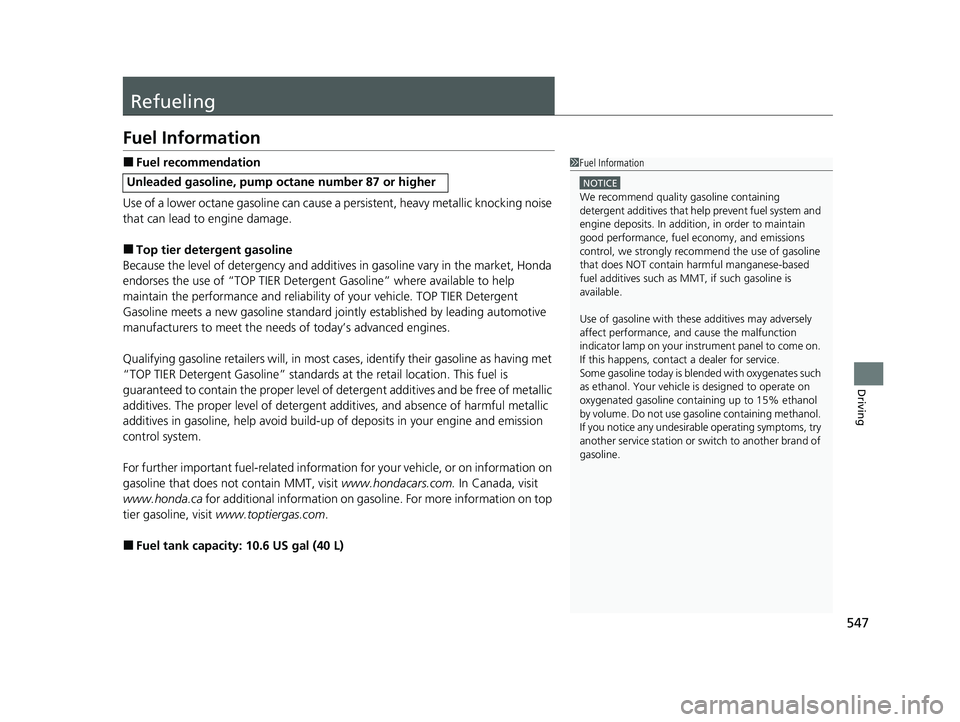

547
Driving
Refueling
Fuel Information
■Fuel recommendation
Use of a lower octane gasoline can cause a persistent, heavy metallic knocking noise
that can lead to engine damage.
■Top tier detergent gasoline
Because the level of detergency and additive s in gasoline vary in the market, Honda
endorses the use of “TOP TIER Detergent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard jointly established by leading automotive
manufacturers to meet the needs of today’s advanced engines.
Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of de tergent additives and be free of metallic
additives. The proper level of detergent ad ditives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.
For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, visit www.hondacars.com. In Canada, visit
www.honda.ca for additional information on gaso line. For more information on top
tier gasoline, visit www.toptiergas.com .
■Fuel tank capacity: 10.6 US gal (40 L)
Unleaded gasoline, pump octane number 87 or higher
1Fuel Information
NOTICE
We recommend quality ga soline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly reco mmend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.
Use of gasoline with these additives may adversely
affect performance, a nd cause the malfunction
indicator lamp on your inst rument panel to come on.
If this happens, contact a dealer for service.
Some gasoline today is blended with oxygenates such
as ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gaso line containing methanol.
If you notice any undesira ble operating symptoms, try
another service station or sw itch to another brand of
gasoline.
20 INSIGHT-31TXM6100.book 547 ページ ２０１９年４月２４日　水曜日　午後２時２分

551
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 552
Safety When Performing Maintenance ...553Parts and Fluids Used in Maintenance Service ........................................... 554
Maintenance Minder
TM..................... 555
Maintenance Under the Hood Maintenance Items Under the Hood .. 562
Opening the Hood ........................... 563
Recommended Engine Oil ................ 564
Oil Check ......................................... 565
Adding Engine Oil ............................ 566
Changing the Engine Oil and Oil Filter ..... 567
Cooling System ................................ 569
Inverter Coolant ............................... 571
Transmission Fluid ............................ 572
Brake Fluid ....................................... 573
Refilling Window Washer Fluid......... 574
Replacing Light Bulbs ....................... 575
Checking and Maintaining Wiper
Blades .......................................... 579
Checking and Maintaining Tires
Checking Tires ................................. 582
Tire and Loading Information Label .. 583
Tire Labeling .................................... 583
DOT Tire Quality Grading (U.S. Vehicles) .. 585
Wear Indicators ............................... 587
Tire Service Life ................................ 587
Tire and Wheel Replacement ........... 588
Tire Rotation .................................... 589
Winter Tires ..................................... 590
12-Volt Battery ................................. 591
Remote Transmitter Care Replacing the Button Battery ........... 593
Climate Control System Maintenance.. 594Cleaning
Interior Care .................................... 595
Exterior Care.................................... 597
Accessories and Modifications ........ 601
20 INSIGHT-31TXM6100.book 551 ページ ２０１９年４月２４日　水曜日　午後２時２分

557
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Minder Messages on the Driver Information
Interface
Maintenance MessageOil Life DisplayExplanationInformation
—
When you select the Maintenance
screen, it displays codes for
maintenance items due at the next
engine oil change, along with the
percentage of engine oil life
remaining.
—
Maintenance Due Soon15 %The engine oil life indicator starts to
appear along with other due-soon
maintenance item codes when the
remaining oil life drops to 15
percent.The engine oil is approaching the end
of its service life.
20 INSIGHT-31TXM6100.book 557 ページ ２０１９年４月２４日　水曜日　午後２時２分

558
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
The system message indicator ( ) comes on along with the Maintenance Minder
message.
Maintenance Due Now5 %The remaining engine oil life is 5 to 1
percent. Press the (home)
button to switch to another display.The engine oil has almost reached the
end of its service life, and the
maintenance items should be inspected
and serviced as soon as possible.
Maintenance Past DueNegative DistanceThe engine oil has passed its service
life, and a negative distance appears
after driving over 10 miles (U.S.
models) or 10 km (Canadian
models). The negative distance on
the display blinks.The engine oil life has passed.
The maintenance items must be
inspected and serviced immediately.
Maintenance MessageOil Life DisplayExplanationInformation
5 %
20 INSIGHT-31TXM6100.book 558 ページ ２０１９年４月２４日　水曜日　午後２時２分

559
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 658.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiry date for tire repair kit bottle●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 47,500 miles or 3 years (76,000 km or 3 years).
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
3●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
20 INSIGHT-31TXM6100.book 559 ページ ２０１９年４月２４日　水曜日　午後２時２分

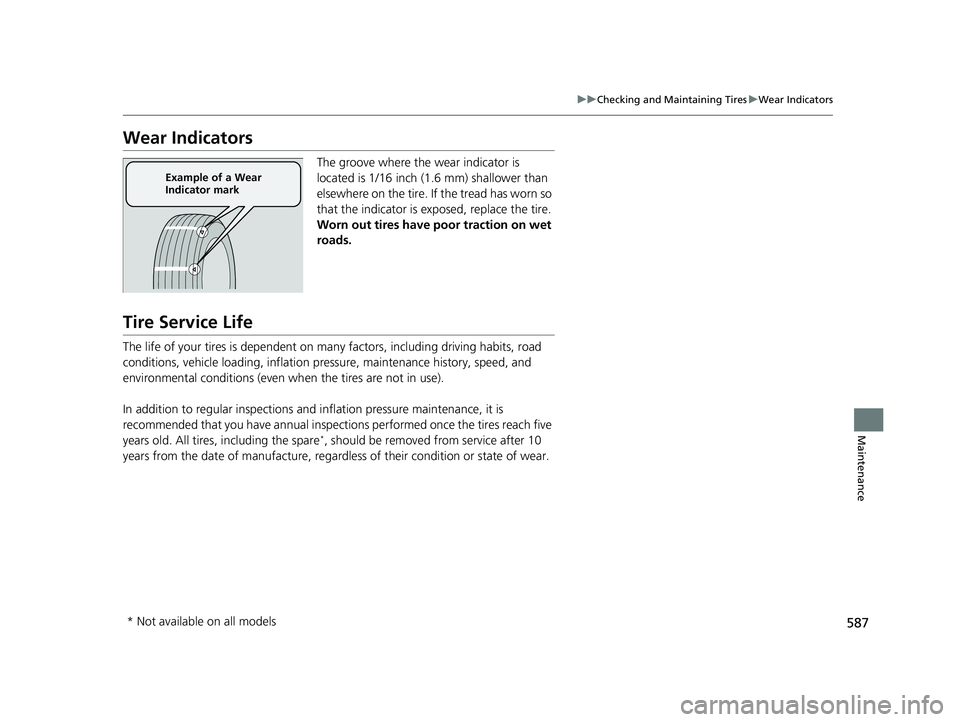

587
uuChecking and Maintaining Tires uWear Indicators
Maintenance
Wear Indicators
The groove where the wear indicator is
located is 1/16 inch (1.6 mm) shallower than
elsewhere on the tire. If the tread has worn so
that the indicator is ex posed, replace the tire.
Worn out tires have po or traction on wet
roads.
Tire Service Life
The life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even wh en the tires are not in use).
In addition to regular inspections and inflation pressure maintenance, it is
recommended that you have annual inspections performed once the tires reach five
years old. All tires, including the spare
*, should be removed from service after 10
years from the date of manufacture, regardle ss of their condition or state of wear.
Example of a Wear
Indicator mark
* Not available on all models
20 INSIGHT-31TXM6100.book 587 ページ ２０１９年４月２４日　水曜日　午後２時２分

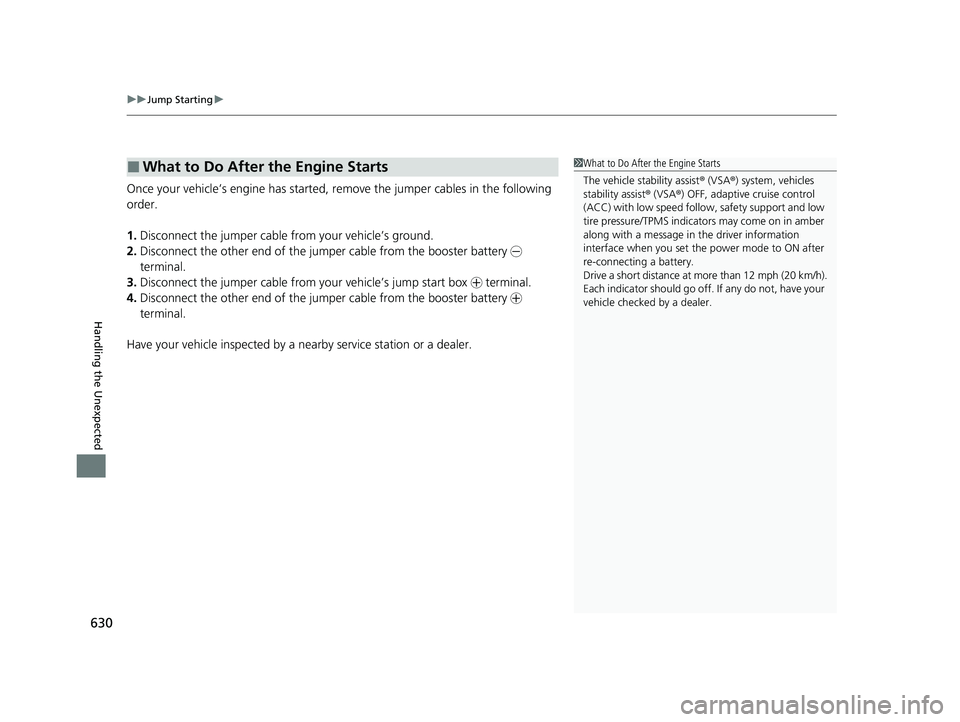

uuJump Starting u
630
Handling the Unexpected
Once your vehicle’s engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s jump start box + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts1What to Do After the Engine Starts
The vehicle stability assist ® (VSA ®) system, vehicles
stability assist ® (VSA ®) OFF, adaptive cruise control
(ACC) with low speed follow, safety support and low
tire pressure/TPMS indicato rs may come on in amber
along with a message in the driver information
interface when you set the power mode to ON after
re-connecting a battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
20 INSIGHT-31TXM6100.book 630 ページ ２０１９年４月２４日　水曜日　午後２時２分

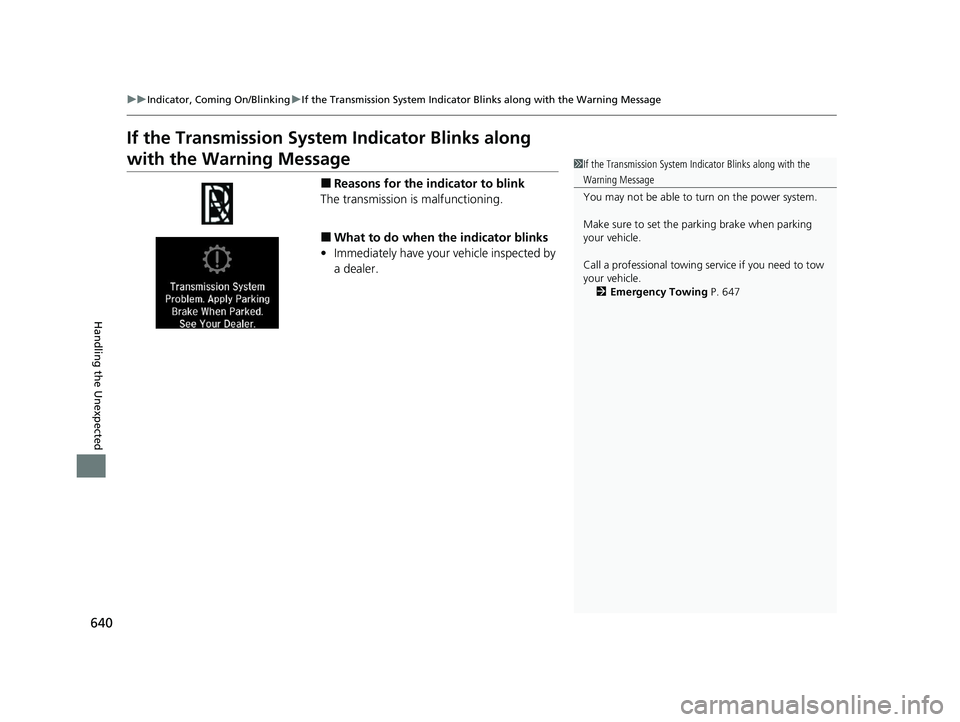

640
uuIndicator, Coming On/Blinking uIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the in dicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by
a dealer.
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 647
20 INSIGHT-31TXM6100.book 640 ページ ２０１９年４月２４日　水曜日　午後２時２分

665
Index
Customer Service Information................ 661
Customized Features ............... 153, 359, 366
D
Daytime Running Lights .......................... 196
Dead Battery ............................................ 628
Deceleration Paddle Selector .................. 464
Defaulting All the Settings ...................... 385
Defrosting the Windshield and
Windows ................................................. 228
Devices that Emit Radio Waves ............... 655
Dimming
Headlights .............................................. 193
Rearview Mirror ...................................... 205
Dipstick (Engine Oil) ................................ 565
Directional Signals (Turn Signal) ............. 193
Display Setup ............................................ 247
Door Mirrors ............................................. 206
Doors ........................................................ 166
Auto Door Locking.................................. 179
Auto Door Unlocking .............................. 179
Door and Trunk Open Message................. 43
Keys........................................................ 166
Locking/Unlocking the Doors from the Inside .................................................... 176
Locking/Unlocking the Doors from the
Outside ................................................. 169
Lockout Prevention System ..................... 175
DOT Tire Quality Grading ........................ 585
Driver Attention Monitor ........................ 144Driver Information Interface
................... 131
Switching the Display .............................. 131
Warning and Information Messages ........ 102
Driving ....................................................... 441
Braking .................................................... 532
Shifting Gear ........................................... 457
Transmission ............................................ 456
Turning on the Power .............................. 448
Driving Support Information ................... 147
Dust and Pollen Filter ............................... 594
E
Eco Assist® System ...................................... 16
Eco Drive Display/Drive Cycle Score/ Lifetime Points ........................................ 150
ECON Mode .............................................. 467
Indicator .................................................... 96
Elapsed Time ............................................. 138
Electric Power Steering (EPS) System Indicator ............................................ 91, 638
Electronic Stability Control (ESC) ............. 469
Emergency ................................................ 647
Emergency Power System Off .................. 627
Emergency Trunk Opener ........................ 182
Emissions Testing (Readiness Codes) ....... 657
Engine ....................................................... 654
Coolant ................................................... 569
Jump Starting .......................................... 628
Oil ........................................................... 564
Starting ................................................... 448 Engine Oil
................................................. 564
Adding .................................................... 566
Checking................................................. 565
Displaying Oil Life .................................... 556
Low Oil Pressure Warning........................ 633
Recommended Engine Oil ....................... 564
EPS (Electric Power Steering) System ...... 638
EV Button .................................................... 12
Exhaust Gas Hazard (Carbon Monoxide) .. 77
Exterior Care (Cleaning) ........................... 597
Exterior Mirrors ........................................ 206F
Features.................................................... 233
Filters
Dust and Pollen ....................................... 594
Oil ........................................................... 567
Flat Tire ..................................................... 605
Floor Mats ................................................. 596
Fluids
Brake ...................................................... 573
Engine Coolant ....................................... 569
Inverter Coolant ...................................... 571
Windshield Washer ................................. 574
FM/AM Radio .................................... 248, 290
Fog Lights ................................................. 196
Indicator.................................................... 94
Folding Down the Rear Seat .................... 210
Foot Brake ................................................ 536
Front Airbags (SRS) ..................................... 54
20 INSIGHT-31TXM6100.book 665 ページ ２０１９年４月２４日　水曜日　午後２時２分
