fuse box HONDA INSIGHT 2021 Owner's Manual (in English)

Visual Index
8
Quick Reference Guide❚Power Window Switches (P 192)
❚Master Door Lock Switch (P 184)
❚Door Mirror Controls (P 213)
❚Trunk Opener (P 186)
❚Interior Fuse Box (P 655)
❚Hood Release Handle (P 573)
❚Driver’s Front Airbag (P 56)
❚Rearview Mirror (P 212)
❚HomeLink® Buttons* (P 393)
❚Accessory Power Socket (P 228)
❚Passenger’s Front Airbag (P 56)
❚USB Port(s) (P 241)
❚Glove Box (P 224)
❚ECON Button (P 473)
❚SPORT Button (P 469)
❚EV Button (P 14)
❚Shift Button
Electronic Gear Selector
(P 463)
❚Rear Seat Heater Buttons* (P 231)
❚Automatic Brake Hold Button (P 544)
❚Electric Parking Brake Switch (P 539)
21 INSIGHT-31TXM6200.book 8 ページ ２０２０年２月５日　水曜日　午前１０時０分

651Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set the power mode to VEHICLE OFF and
check to see if any applicable fuse is blown.
Located near the washer fluid. Push the tabs to open the box.
Fuse locations are shown on the fuse box cove r. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box Type A
Tab
21 INSIGHT-31TXM6200.book 651 ページ ２０２０年２月５日　水曜日　午前１０時０分

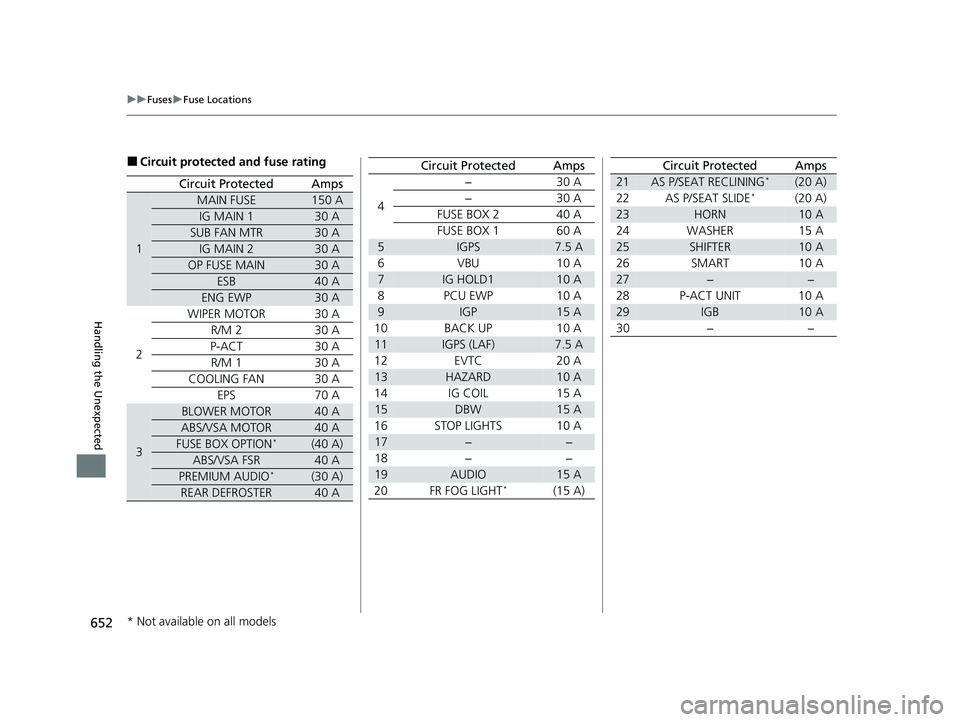

652
uuFuses uFuse Locations
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
MAIN FUSE150 A
IG MAIN 130 A
SUB FAN MTR30 A
IG MAIN 230 A
OP FUSE MAIN30 A
ESB40 A
ENG EWP30 A
2
WIPER MOTOR30 A
R/M 230 A
P-ACT 30 A R/M 1 30 A
COOLING FAN 30 A EPS 70 A
3
BLOWER MOTOR40 A
ABS/VSA MOTOR40 A
FUSE BOX OPTION*(40 A)
ABS/VSA FSR40 A
PREMIUM AUDIO*(30 A)
REAR DEFROSTER40 A
4−30 A
−30 A
FUSE BOX 2 40 A
FUSE BOX 1 60 A
5IGPS7.5 A
6VBU 10 A
7IG HOLD110 A
8 PCU EWP 10 A
9IGP15 A
10 BACK UP 10 A
11IGPS (LAF)7.5 A
12 EVTC 20 A
13HAZARD10 A
14 IG COIL 15 A
15DBW15 A
16 STOP LIGHTS 10 A
17−−
18 − −
19AUDIO15 A
20 FR FOG LIGHT*(15 A)
Circuit ProtectedAmps
21AS P/SEAT RECLINING*(20 A)
22 AS P/SEAT SLIDE*(20 A)
23HORN10 A
24 WASHER 15 A
25SHIFTER10 A
26 SMART 10 A
27−−
28 P-ACT UNIT 10 A
29IGB10 A
30 − −
Circuit ProtectedAmps
* Not available on all models
21 INSIGHT-31TXM6200.book 652 ページ ２０２０年２月５日　水曜日　午前１０時０分

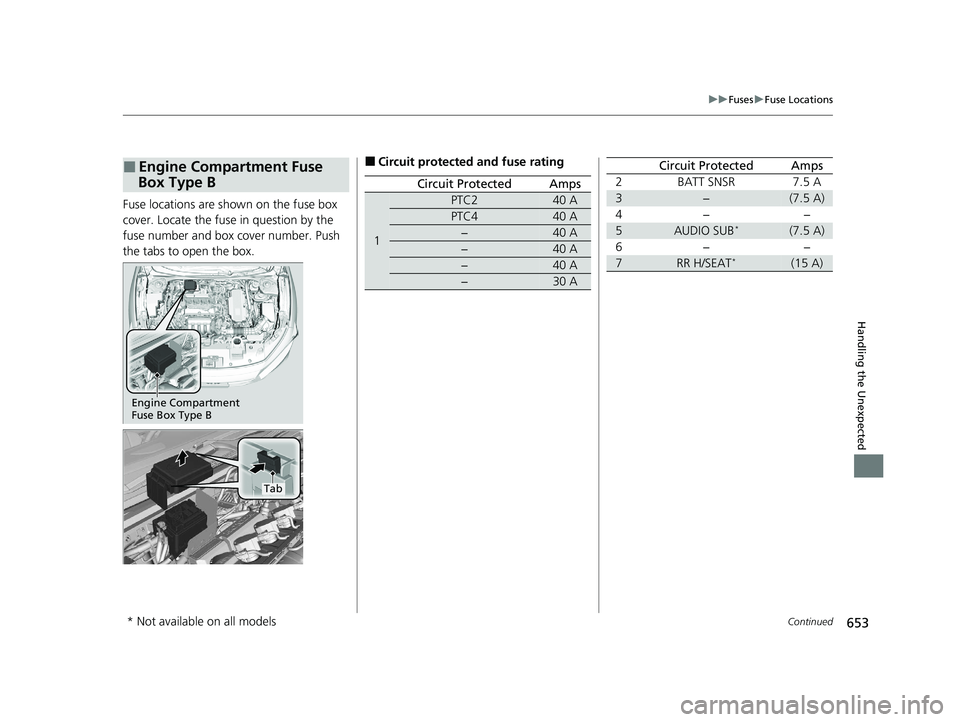

653
uuFuses uFuse Locations
Continued
Handling the Unexpected
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number. Push
the tabs to open the box.
■Engine Compartment Fuse
Box Type B
Engine Compartment
Fuse Box Type B
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
PTC240 A
PTC440 A
−40 A
−40 A
−40 A
−30 A
2 BATT SNSR 7.5 A
3−(7.5 A)
4− −
5AUDIO SUB*(7.5 A)
6− −
7RR H/SEAT*(15 A)
Circuit ProtectedAmps
* Not available on all models
21 INSIGHT-31TXM6200.book 653 ページ ２０２０年２月５日　水曜日　午前１０時０分

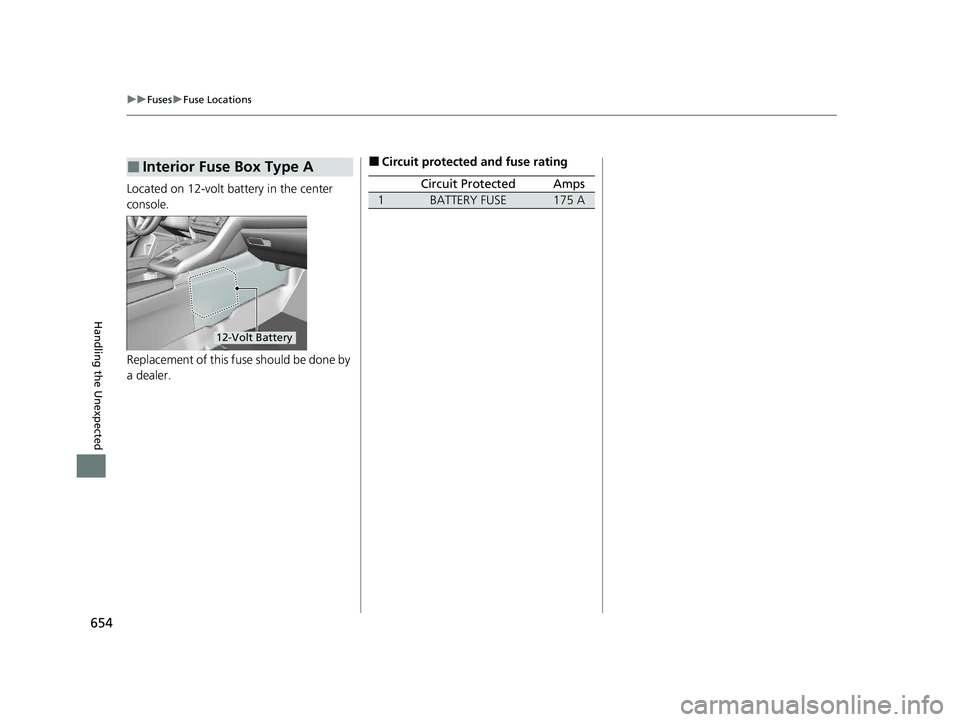

654
uuFuses uFuse Locations
Handling the Unexpected
Located on 12-volt battery in the center
console.
Replacement of this fuse should be done by
a dealer.
■Interior Fuse Box Type A
12-Volt Battery
■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY FUSE175 A
21 INSIGHT-31TXM6200.book 654 ページ ２０２０年２月５日　水曜日　午前１０時０分

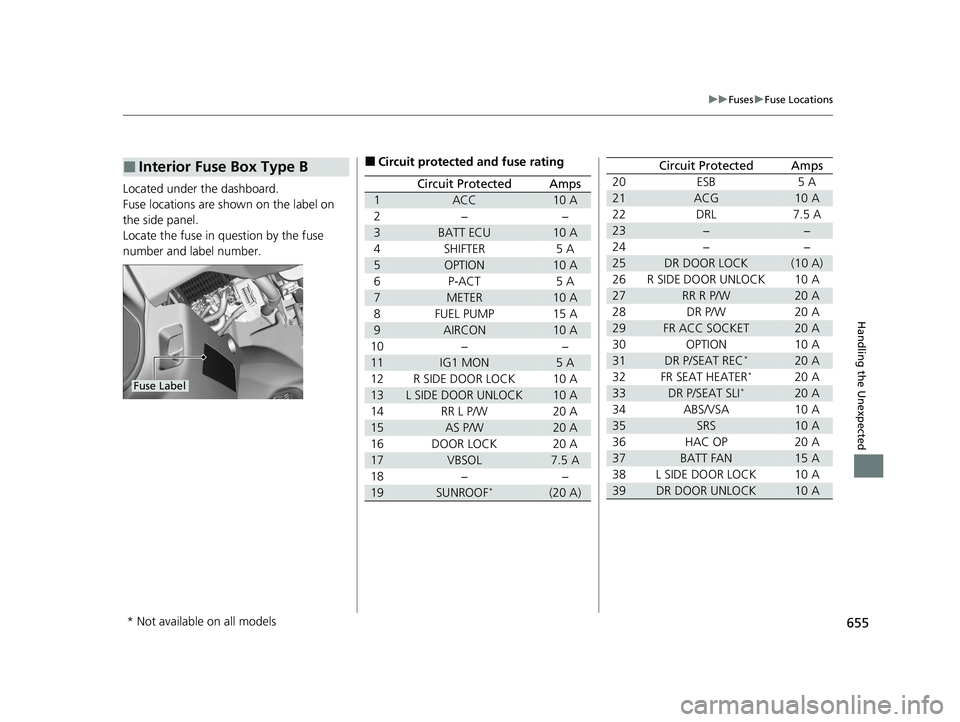

655
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box Type B
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1ACC10 A
2−−
3BATT ECU10 A
4SHIFTER5 A
5OPTION10 A
6P-ACT5 A
7METER10 A
8FUEL PUMP15 A
9AIRCON10 A
10−−
11IG1 MON5 A
12R SIDE DOOR LOCK10 A
13L SIDE DOOR UNLOCK10 A
14RR L P/W20 A
15AS P/W20 A
16DOOR LOCK20 A
17VBSOL7.5 A
18−−
19SUNROOF*(20 A)
20ESB5 A
21ACG10 A
22DRL7.5 A
23−−
24−−
25DR DOOR LOCK(10 A)
26R SIDE DOOR UNLOCK10 A
27RR R P/W20 A
28DR P/W20 A
29FR ACC SOCKET20 A
30OPTION10 A
31DR P/SEAT REC*20 A
32FR SEAT HEATER*20 A
33DR P/SEAT SLI*20 A
34ABS/VSA10 A
35SRS10 A
36HAC OP20 A
37BATT FAN15 A
38L SIDE DOOR LOCK10 A
39DR DOOR UNLOCK10 A
Circuit ProtectedAmps
* Not available on all models
21 INSIGHT-31TXM6200.book 655 ページ ２０２０年２月５日　水曜日　午前１０時０分

656
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
5. Check the large fuse in the vehicle interior.
u If the fuse is blown, use a phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
6. Inspect the small fuses in the vehicle
interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 651
There is a fuse puller on the back of the cover of the
engine compartment fuse box type A.
Combined
Fuse Blown Fuse
Fuse Puller
21 INSIGHT-31TXM6200.book 656 ページ ２０２０年２月５日　水曜日　午前１０時０分

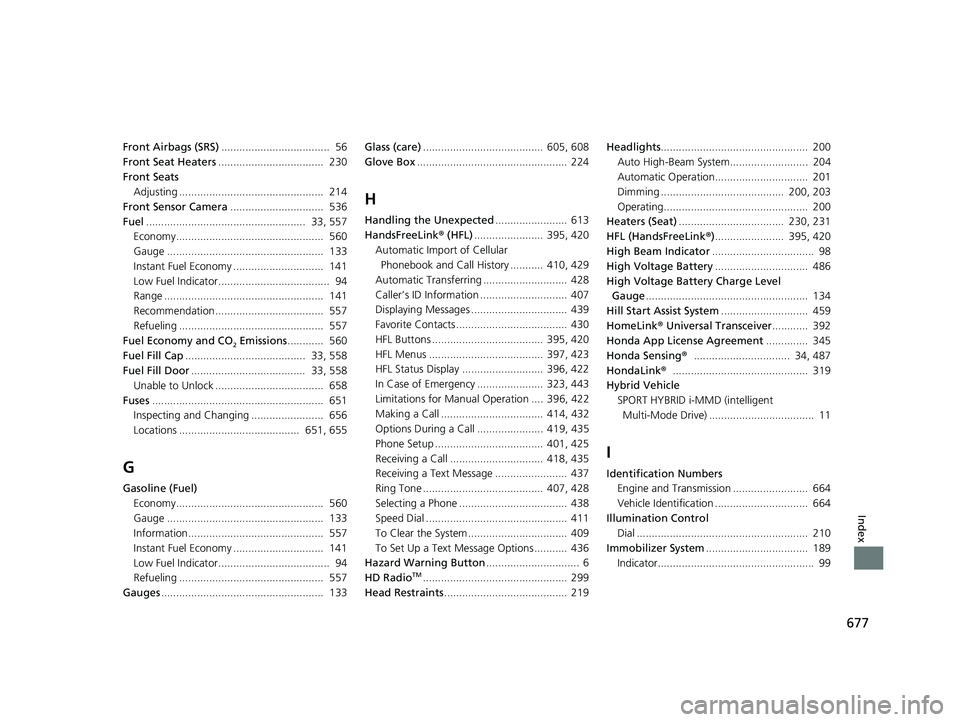

677
Index
Front Airbags (SRS).................................... 56
Front Seat Heaters ................................... 230
Front Seats Adjusting ................................................ 214
Front Sensor Camera ............................... 536
Fuel ..................................................... 33, 557
Economy................................................. 560
Gauge .................................................... 133
Instant Fuel Economy .............................. 141
Low Fuel Indicator..................................... 94
Range ..................................................... 141
Recommendation.................................... 557
Refueling ................................................ 557
Fuel Economy and CO
2 Emissions ............ 560
Fuel Fill Cap ........................................ 33, 558
Fuel Fill Door ...................................... 33, 558
Unable to Unlock .................................... 658
Fuses ......................................................... 651
Inspecting and Changing ........................ 656
Locations ........................................ 651, 655
G
Gasoline (Fuel)
Economy................................................. 560
Gauge .................................................... 133
Information............................................. 557
Instant Fuel Economy .............................. 141
Low Fuel Indicator..................................... 94
Refueling ................................................ 557
Gauges ...................................................... 133 Glass (care)
........................................ 605, 608
Glove Box .................................................. 224
H
Handling the Unexpected ........................ 613
HandsFreeLink ® (HFL) ....................... 395, 420
Automatic Import of Cellular Phonebook and Call History ........... 410, 429
Automatic Transferring ............................ 428
Caller’s ID Information ............................. 407
Displaying Messages ................................ 439
Favorite Contacts ..................................... 430
HFL Buttons ..................................... 395, 420
HFL Menus ...................................... 397, 423
HFL Status Display ........................... 396, 422
In Case of Emergency ...................... 323, 443
Limitations for Manual Operation .... 396, 422
Making a Call .................................. 414, 432
Options During a Call ...................... 419, 435
Phone Setup .................................... 401, 425
Receiving a Call ............................... 418, 435
Receiving a Text Message ........................ 437
Ring Tone ........................................ 407, 428
Selecting a Phone .................................... 438
Speed Dial ............................................... 411
To Clear the System ................................. 409
To Set Up a Text Message Options ........... 436
Hazard Warning Button ............................... 6
HD Radio
TM................................................ 299
Head Restraints ......................................... 219 Headlights
................................................. 200
Auto High-Beam System.......................... 204
Automatic Operation............................... 201
Dimming ......................................... 200, 203
Operating................................................ 200
Heaters (Seat) ................................... 230, 231
HFL (HandsFreeLink ®)....................... 395, 420
High Beam Indicator .................................. 98
High Voltage Battery ............................... 486
High Voltage Battery Charge Level Gauge ...................................................... 134
Hill Start Assist System ............................. 459
HomeLink ® Universal Transceiver ............ 392
Honda App License Agreement .............. 345
Honda Sensing ®................................ 34, 487
HondaLink ®............................................. 319
Hybrid Vehicle
SPORT HYBRID i-MMD (intelligent Multi-Mode Drive) ................................... 11
I
Identification Numbers Engine and Transmission ......................... 664
Vehicle Identification ............................... 664
Illumination Control Dial ......................................................... 210
Immobilizer System .................................. 189
Indicator.................................................... 99
