light HONDA INSIGHT 2021 Owner's Manual (in English)

Contents
Child Safety P. 68Exhaust Gas Hazard P. 81Safety Labels P. 82
Opening and Closing the Trunk P. 186 Security System P. 189 Opening and Closing the Windows P. 192
Operating the Switches Around the Steering Wheel P. 196 Adjusting the Mirrors P. 212
Interior Lights/Interior Convenience It ems P. 222 Climate Control System P. 232
Audio Error Messages P. 338General Information on the Audio System P. 343
Bluetooth ® HandsFreeLink ® P. 395, 420 Refuel Recommend P. 445
When Driving P. 454 Honda Sensing® P. 487 Braking P. 539
Refueling P. 557 Fuel Economy and CO
2 Emissions P. 560
Maintenance Under the Hood P. 572 Replacing Light Bulbs P. 585
Checking and Maintaining Tires P. 592 12-Volt Battery P. 601 Remote Transmitter Care P. 603
Cleaning P. 605 Accessories and Modifications P. 611
Power System Won’t Start P. 635 Jump Starting P. 638 Overheating P. 641
Emergency Towing P. 657 When You Cannot Unlock the Fuel Fill Door P. 658
Devices that Emit Radio Waves P. 665 Reporting Safety Defects P. 666
Authorized Manuals P. 671 Customer Service Information P. 672
Quick Reference GuideP. 6
Safe DrivingP. 41
Instrument PanelP. 83
ControlsP. 169
FeaturesP. 239
DrivingP. 447
MaintenanceP. 561
Handling the UnexpectedP. 613
InformationP. 661
IndexP. 674
21 INSIGHT-31TXM6200.book 5 ページ ２０２０年２月５日　水曜日　午前１０時０分

7
Quick Reference Guide❚Headlights/Turn Signals (P 199)
❚Fog Lights* (P 203)
❚Lane Keeping Assist System (LKAS) Button
(P 519)
❚Interval Button (P 510)
❚Steering Wheel Adjustments (P 211)
❚Bluetooth® HandsFreeLink ® System Voice Control Buttons (P 395, 420)
❚Audio Remote Controls (P 243)
❚Voice Control Buttons* (P 293)
❚Deceleration Paddle Selector (−) (P 470)
❚Left Selector Wheel (P 137)
❚ (home) Button (P 137)
❚MAIN Button (P 500)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons
(P 509)
❚Wipers/Washers (P 207)
❚Deceleration Paddle Selector (+) (P 470)
❚Horn (Press an area around .)
* Not available on all models
21 INSIGHT-31TXM6200.book 7 ページ ２０２０年２月５日　水曜日　午前１０時０分

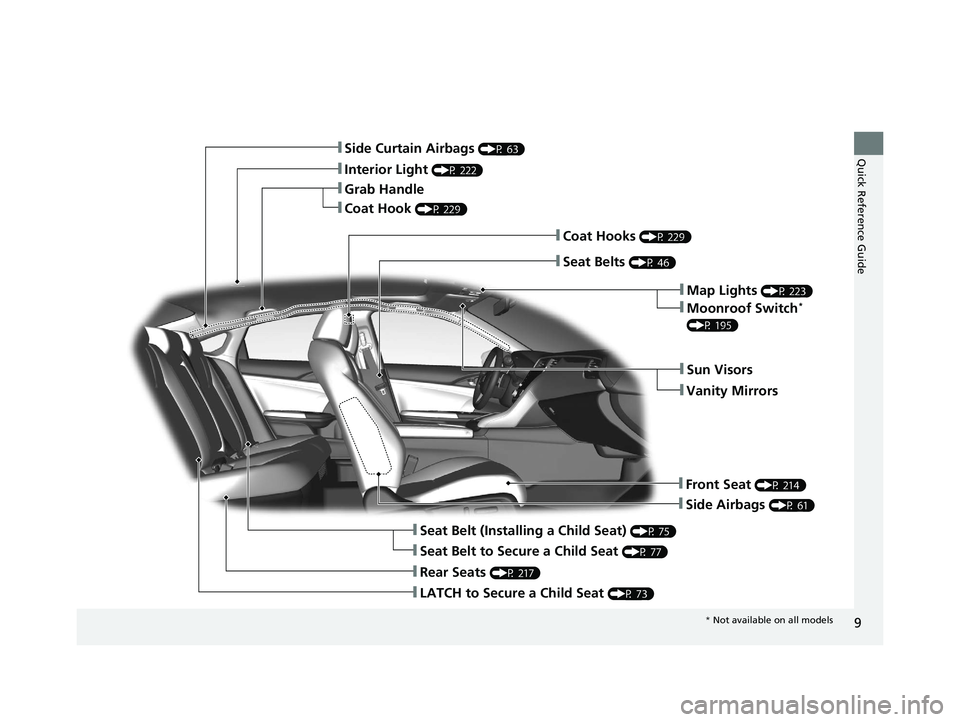

9
Quick Reference Guide❚Side Curtain Airbags (P 63)
❚Interior Light (P 222)
❚Grab Handle
❚Coat Hook (P 229)
❚Side Airbags (P 61)
❚Seat Belt (Installing a Child Seat) (P 75)
❚Seat Belt to Secure a Child Seat (P 77)
❚LATCH to Secure a Child Seat (P 73)
❚Rear Seats (P 217)
❚Seat Belts (P 46)
❚Coat Hooks (P 229)
❚Sun Visors
❚Vanity Mirrors
❚Front Seat (P 214)
❚Map Lights (P 223)
❚Moonroof Switch*
(P 195)
* Not available on all models
21 INSIGHT-31TXM6200.book 9 ページ ２０２０年２月５日　水曜日　午前１０時０分

Visual Index
10
Quick Reference Guide❚Maintenance Under the Hood (P 572)
❚Windshield Wipers (P 207, 589)
❚Door Lock/Unlock Control (P 175)
❚Power Door Mirrors (P 213)
❚Headlights (P 200, 585)
❚High-Mount Brake Light (P 588)
❚Emergency Trunk Opener (P 188)
❚Opening/Closing the Trunk (P 186)
❚Parking/Daytime Running Lights (P 199, 203, 585)
❚Fog Lights* (P 203, 585)
❚Trunk Release Button* (P 187)
❚Brake Lights (P 586)
❚Rear Side Marker Lights/Taillights (P 586)
❚Rear Turn Signal Lights (P 586)
❚Back-Up Lights (P 587)
❚How to Refuel (P 558)
❚Tires (P 592, 615, 621)
❚Taillights (P 587)
❚Multi-View Rear Camera (P 554)
❚Rear License Plate Light (P 588)
❚Front Turn Signal Lights (P 199, 585)
❚Front Side Marker Lights (P 200, 585)
❚Side Turn Signal Lights* (P 200, 585)
21 INSIGHT-31TXM6200.book 10 ページ ２０２０年２月５日　水曜日　午前１０時０分

11
Quick Reference Guide
SPORT HYBRID i-MMD (intelligent Multi-Mode
Drive)
Your SPORT HYBRID i-MMD vehicle uses both an electric motor and a gasoline engine as propulsion sources, with the electric motor
receiving electricity from an internal High Voltage battery or in ternal generator. The High Voltage battery is charged from the generator
driven by the engine or regenerative braking.
When driving, your vehicle is propelled exclusively by the electric motor, exclusively by the gasoline engine, or by a combination of the two.
The system selects which propulsion source is most appropriate and automatically switches to it. Under certain circumstances, pressing the
EV button can manually enable EV (driven only on electricity) mode.
●Energy efficiency
As with a gasoline-powered vehicle, hybrid vehicle fuel efficien cy and driving range is most impacted by your driving style. Aggressive
acceleration and high-speed driving can easily trigger the system to switch the propulsion source to the gasoline-powered engin e.
In addition, heavy climate control system use negatively affects vehicle range and efficiency. Either of these use patterns will more quickly
reduce the High Voltage battery's state of charge.
●Battery types
There are two types of batteries used in this vehicle; a standard 12-volt battery that powers the airbags, the interior and exterior lights, and
other standard 12-volt systems; and a high voltage battery that is used to power the propulsion motor and recharge the 12-volt battery.
* Not available on all models
21 INSIGHT-31TXM6200.book 11 ページ ２０２０年２月５日　水曜日　午前１０時０分

23
Quick Reference Guide
Turn Signals (P 199)
Lights (P 200)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P 207)
*1:Models with automatic intermittent wipers
*2:Models without auto matic intermittent
wipers
Wiper/Washer Control Lever
Adjustment Ring
(-: Low Sensitivity*1
(- : Lower speed, fewer sweeps*2
(+: High Sensitivity*1
(+ : Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
AUTO
should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Steering Wheel (P 211)
●To adjust, pull the adjustment lever
toward you, adjust to the desired
position, then lock the lever back in place.
Models with automatic intermittent wipers
To lock
To adjust
21 INSIGHT-31TXM6200.book 23 ページ ２０２０年２月５日　水曜日　午前１０時０分

35
Quick Reference Guide
Maintenance (P 561)
Under the Hood (P 572)
●Check engine oil, engine coolant, inverter coolant, and
windshield washer fluid. Add when necessary.
●Check brake fluid.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 585)
●Inspect all lights regularly.
Wiper Blades (P 589)
●Replace blades if they leave streaks
across the windshield.
Tires (P 592)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter
driving.
21 INSIGHT-31TXM6200.book 35 ページ ２０２０年２月５日　水曜日　午前１０時０分

37
Quick Reference Guide
What to Do If
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2Anti-lock Brake System (ABS) (P547)
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the
lock position. If so, open the rear door
with the outside door handle.
To cancel this function, slide the lever
up to the unlock position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
21 INSIGHT-31TXM6200.book 37 ページ ２０２０年２月５日　水曜日　午前１０時０分

Continued59
uuAirbags uFront Airbags (SRS)
Safe DrivingThe airbags have advanced features to help reduce the likelihood of airbag related
injuries to smaller occupants. The driver’s advanced airbag system includes a
seat position sensor.
Based on information from this sensor and the
severity of the impact, the advanced airbag
system determines the optimal deployment of
the driver’s airbag.
The front passenger’s ad vanced airbag system
has weight sensors. The sensors are used for
occupant classification to activate or
deactivate the front passenger’s airbag.
For adult size occupant s, the system will
automatically activate the front passenger’s
airbag. If a small adult sits in the front
passenger seat and the system does not
recognize him/her as an adult, see
2 Passenger Front Airbag Off Indicator P. 65
■Advanced Airbags1Advanced Airbags
If there is a problem with the driver’s seat position
sensor or the passenger’s s eat weight sensors, the
SRS indicator will come on, and in the event of a
crash, the airbag will deploy (regardless of the driver’s
seating position or passenger’s occupant
classification) with a force corresponding to the
severity of the impact. 2 Supplemental Restraint System (SRS)
Indicator P. 64
For the advanced front airbags to work properly,
confirm that:
•The occupant is sitting in an upright position,
wearing the seat belt prope rly and the seat back is
not excessively reclined.
•The occupant is not leaning against the door or
center console.
•The occupant’s feet are plac ed on the floor in front
of them.
•There are no objects ha nging from the front
passenger’s seat.
•Only small, lightweight objec ts are in the seat back
pocket.
•The steering wheel and passenger’s side dashboard
is not obstructed by any object.
•No liquid has been spille d on or under the seat.
Driver’s
Seat
Position
Sensor
Passenger’s
Seat
Weight
Sensors
21 INSIGHT-31TXM6200.book 59 ページ ２０２０年２月５日　水曜日　午前１０時０分

Continued65
uuAirbags uAirbag System Indicators
Safe Driving■When the passenger front airbag off
indicator comes on
The indicator comes on to alert you that the
front passenger’s airbag has been turned off.
This occurs if the seat is empty or when the
weight sensors determine that a small child or
infant is on the passenger seat.
Children age 12 or under shou ld always ride properly restrained in a back seat.
2Child Safety P. 68
If the indicator is on in the event of a cr ash, the front passenger’s airbag will not
deploy. If your vehicle is equipped with a front passenger’s knee airbag, this airbag
will not deploy either.
■Passenger Front Airbag Off Indicator1 Passenger Front Airbag Off Indicator
To ensure the passenger is detected properly, confirm
that:
•The occupant is sitting in an upright position,
wearing the seat belt prope rly and the seat back is
not excessively reclined.
•The occupant is not leaning against the door or
center console.
•The occupant’s feet are plac ed on the floor in front
of them.
•There are no objects ha nging from the front
passenger’s seat.
•Only small, lightweight objec ts are in the seat back
pocket.
•No liquid has been spille d on or under the seat.
•There is no child seat or other object pressing
against the rear of the seat or seat back.
•There is no rear passenger pushing or pulling on
the back of the front passenger’s seat.
•There are no objects placed under or beside the
front passenger’s seat . Improperly positioned
objects can interfere with the advanced airbag
sensors.
•The floor mat behind the front passenger’s seat is
hooked to the floor mat anchor. An improperly
placed mat can interfere with the advanced airbag
sensors.
•The head restraint is not contacting the roof.
U.S. Canada
