Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the da shboard label which may be removed by the owner), contact a deal er for a
replacement.
Sun Visor
Radiator Cap Dashboard
Air Conditioner SystemRadiator Cap
22 INSIGHT HMIN-31TXM6300.book 80 ページ ２０２１年２月２４日　水曜日　午後３時４５分

81
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 82
Driver Information Interface Warning and Information Messages .................... 104
Gauges and Driver Information Interface Gauges ............................................ 129
Driver Information Interface ............. 132
22 INSIGHT HMIN-31TXM6300.book 81 ページ ２０２１年２月２４日　水曜日　午後３時４５分

82
Instrument Panel
Indicators
Deceleration Paddle
Selector Indicator P. 89
1BSLJOH
#SBLF
BOE

#SBLF
4ZTUFN

*OEJDBUPS
3FE

1BSLJOH
#SBLF
BOE

#SBLF
4ZTUFN

*OEJDBUPS
"NCFS

"VUPNBUJD
#SBLF

)PME
4ZTUFN
*OEJDBUPS
"VUPNBUJD
#SBLF
)PME

*OEJDBUPS
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the power
system has started. If an indicator does not come on or turn off, there may be a malfunction in the corresponding system. To re solve the issue, follow the instructions in
the owner’s manual.
 P. 83
.BMGVODUJPO
*OEJDBUPS

-BNQ
7PMU
#BUUFSZ

$IBSHJOH
4ZTUFN

*OEJDBUPS
"OUJMPDL
#SBLF
4ZTUFN

ABS ) Indicator
Seat Belt Reminder
Indicator
Low Fuel Indicator
Vehicle Stability AssistTM
(VSA®) System Indicator
Vehicle Stability Assist
TM
(VSA®) OFF Indicator
Supplemental Restraint
System Indicator
Auto High-Beam
Indicator
Low Tire Pressure/TPMS
Indicator Electric Power Steering
(EPS) System Indicator
Turn Signal and Hazard
Warning Indicators
Lights On Indicator High Beam Indicator
Fog Light Indicator*
ECON Mode Indicator
System Message Indicator
SPORT
Mode Indicator
Adaptive Cruise Control
( ACC ) with Low Speed
Follow Indicator (Amber)
Lane Keeping Assist
System ( LKAS) Indicator
(Amber)
Safety Support Indicator
(Amber)
Safety Support Indicator
(Green/Gray)
 P. 84
 P. 85
 P. 85
 P. 88
 P. 89
*1
*1 *1

P. 94
*1
*1
Shift Position Indicator P. 89
Transmission System
Indicator P. 90
 P. 91
 P. 91
 P. 92
 P. 92
 P. 95

P. 93
*1
*1
*1
 P. 93
*1 P. 92
 P. 95 
P. 98
*1
 P. 95
 P. 95 
P. 97
 P. 95 
P. 97
 P. 97
 P. 99
 P. 100
 P. 103
*1
Adaptive Cruise Control
(ACC ) with Low Speed
Follow Indicator (Green) P. 99
*1
Lane Keeping Assist
System ( LKAS) Indicator
(Green) P. 99
*1
POWER SYSTEM
Indicator P. 86*1
READY Indicator P. 87
EV Indicator P. 87*1
EV Mode Indicator P. 87*1
*1
Immobilizer System
Indicator P. 96
4FDVSJUZ
4ZTUFN
"MBSN

*OEJDBUPS
 P. 96
*1 *1
* Not available on all models
22 INSIGHT HMIN-31TXM6300.book 82 ページ ２０２１年２月２４日　水曜日　午後３時４５分

83
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System
Indicator (Red)
•Comes on when the parking brake
is applied, and goes off when it is
released.
• Comes on when the brake fluid
level is low.
• Comes on if there is a problem with
the brake system.
• The beeper sounds and the
indicator comes on if you drive with
the parking brake applied.
• Comes on for about 30 seconds
when you pull or push the electric
parking brake switch when the
power mode is in ACCESSORY or
VEHICLE OFF.
• Stays on for about 30 seconds
when you set the power mode to
VEHICLE OFF while the electric
parking brake is set.•Comes on while driving - Make sure
the parking brake is released. Check the
brake fluid level.
2 What to do when the indicator
comes on while driving P. 572
•Comes on along with the brake system
indicator (amber) - Immediately stop in a
safe place. Contact a dealer for repair. The
brake pedal becomes harder to operate.
Depress the pedal further than you
normally do.
• Comes on along with the ABS
indicator - Have your vehicle checked by
a dealer.
2 If the Brake System Indicator (Red)
Comes On or Blinks P. 572
•Blinks and the brake system indicator
(amber) comes on at the same time -
There is a problem with the electric
parking brake system. The parking brake
may not be set.
Avoid using the parking brake and have
your vehicle checked by a dealer
immediately.
2 If the Brake System Indicator (Red)
Comes On or Blinks at the Same Time
When the Brake System Indicator
(Amber) Comes On P. 573
22 INSIGHT HMIN-31TXM6300.book 83 ページ ２０２１年２月２４日　水曜日　午後３時４５分

84
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System
Indicator
(Amber)
•Comes on if there is a problem with
a system related to braking other
than the conventional brake
system.
• Comes on if there is a problem with
the cooperative control with
regenerative braking, the electric
servo brake system, or the hill start
assist system.
• Comes on if there is a problem with
the electric parking brake system.• Stays on constantly - Avoid high speeds
and sudden braking. Take the vehicle to a
dealer immediately.
• Comes on while driving - Avoid using
the parking brake and have your vehicle
checked by a dealer immediately.
●Comes on if there is a problem with
the radar sensor.
●Indicator may come on temporarily
when the Maximum Load Limit is
exceeded.
●Make sure the total load is within the
Maximum Load Limit.
2 Maximum Load Limit P. 379●Stays on constantly - Have your vehicle
checked by a dealer.
• Comes on if there is a problem with
the automatic brake hold system.
2 Automatic Brake Hold P. 473
22 INSIGHT HMIN-31TXM6300.book 84 ページ ２０２１年２月２４日　水曜日　午後３時４５分

85
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Automatic
Brake Hold
System
Indicator
●Comes on when the automatic
brake hold system is on.
2Automatic Brake Hold P. 473
Automatic
Brake Hold
Indicator●Comes on when the automatic
brake hold is activated.
2Automatic Brake Hold P. 473—
22 INSIGHT HMIN-31TXM6300.book 85 ページ ２０２１年２月２４日　水曜日　午後３時４５分

86
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
POWER
SYSTEM
Indicator
●Comes on if there is a problem with
the electric vehicle system.
●Comes on when the High Voltage
battery temperature becomes high.
●Have your vehicle checked by a dealer.
22 INSIGHT HMIN-31TXM6300.book 86 ページ ２０２１年２月２４日　水曜日　午後３時４５分

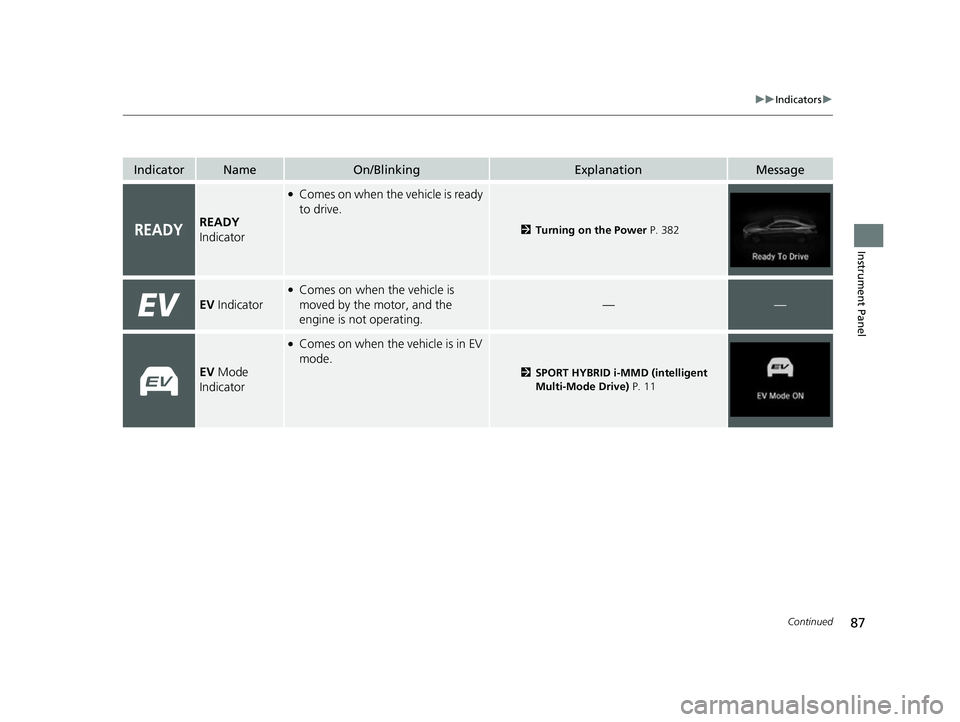

87
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
READY
Indicator
●Comes on when the vehicle is ready
to drive.
2 Turning on the Power P. 382
EV Indicator
●Comes on when the vehicle is
moved by the motor, and the
engine is not operating.
——
EV Mode
Indicator
●Comes on when the vehicle is in EV
mode.
2 SPORT HYBRID i-MMD (intelligent
Multi-Mode Drive) P. 11
22 INSIGHT HMIN-31TXM6300.book 87 ページ ２０２１年２月２４日　水曜日　午後３時４５分

88
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Malfunction
Indicator Lamp
•After you have set the power mode
to ON, the vehicle performs system
checks. However, if the readiness
codes have not been set by that
time, this indicator will blink five
times and then go off.
• Comes on if there is a problem with
the emissions control system.
• Blinks when a misfire in the
engine’s cylinders is detected.
• Comes on if the fuel fill cap is loose
or missing.• Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2 Testing of Readiness Codes P. 593
•Comes on while driving - Have your
vehicle checked by a dealer.
• Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the power system for 10
minutes or more, and wait for it to cool
down. Then, take your vehicle to a dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 571
•Comes on - Check the fuel cap before
taking your vehicle to a dealer.
22 INSIGHT HMIN-31TXM6300.book 88 ページ ２０２１年２月２４日　水曜日　午後３時４５分

89
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
12-Volt Battery
Charging
System
Indicator•Comes on when there is a problem
with the charging system.•Stop in a safe place and have your vehicle
checked by a dealer immediately.
2 If the 12-Volt Battery Charging
System Indicator Comes On P. 570
Shift Position
Indicator•Indicates the current shift position.
2 Shifting P. 391—
Deceleration
Paddle Selector
Indicator
•Comes on when the paddle selector
is pulled.
• Blinks when deceleration does not
occur while pulling the paddle
selector.
• Comes on with M when SPORT
mode is selected and pulling the
paddle selector.
2 Deceleration Paddle Selector P. 398—
