Page 9 of 609

Visual Index
8
Quick Reference Guide❚Power Window Switches (P 177)
❚Master Door Lock Switch (P 169)
❚Door Mirror Controls (P 198)
❚Trunk Opener (P 171)
❚Interior Fuse Box (P 581)
❚Hood Release Handle (P 500)
❚Driver’s Front Airbag (P 54)
❚Rearview Mirror (P 197)
❚HomeLink® Buttons* (P 347)
❚Accessory Power Socket (P 213)
❚Passenger’s Front Airbag (P 54)
❚USB Port(s) (P 225)
❚Glove Box (P 209)
❚ECON Button (P 401)
❚SPORT Button (P 397)
❚EV Button (P 14)
❚Shift Button
Electronic Gear Selector
(P 391)
❚Automatic Brake Hold Button (P 473)
❚Electric Parking Brake Switch (P 468)
22 INSIGHT HMIN-31TXM6300.book 8 ページ 2021年2月24日 水曜日 午後3時45分
Page 578 of 609

577Continued
Handling the Unexpected

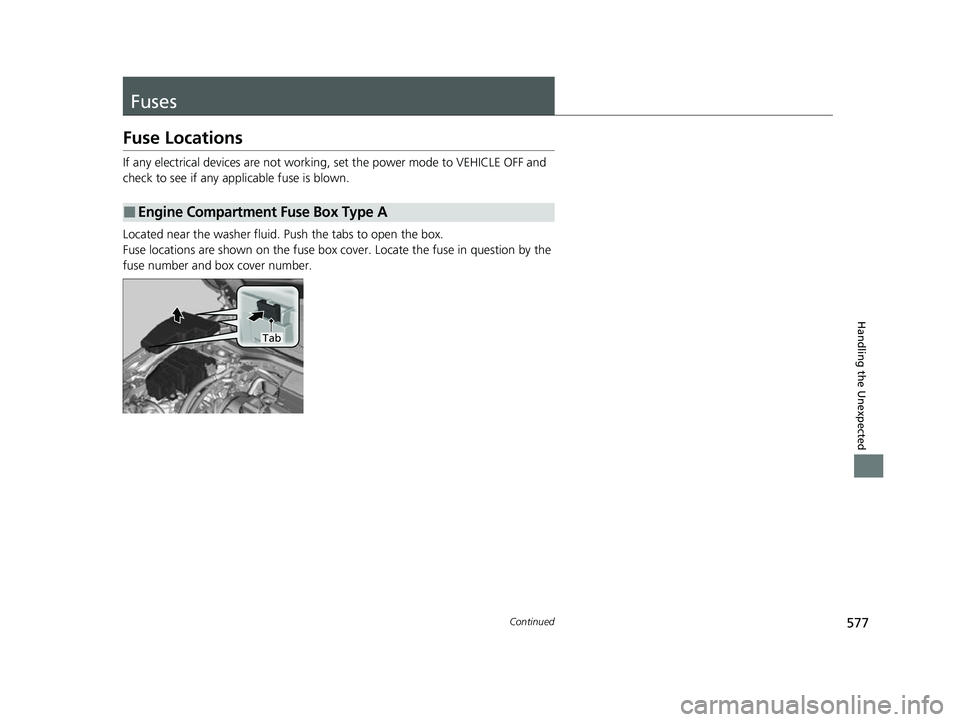

Fuses
Fuse Locations
If any electrical devices are not working, set the power mode to VEHICLE OFF and
check to see if any applicable fuse is blown.
Located near the washer fluid. Push the tabs to open the box.
Fuse locations are shown on the fuse box cove r. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box Type A
Tab
22 INSIGHT HMIN-31TXM6300.book 577 ページ 2021年2月24日 水曜日 午後3時45分
Page 579 of 609

578
uuFuses uFuse Locations
Handling the Unexpected

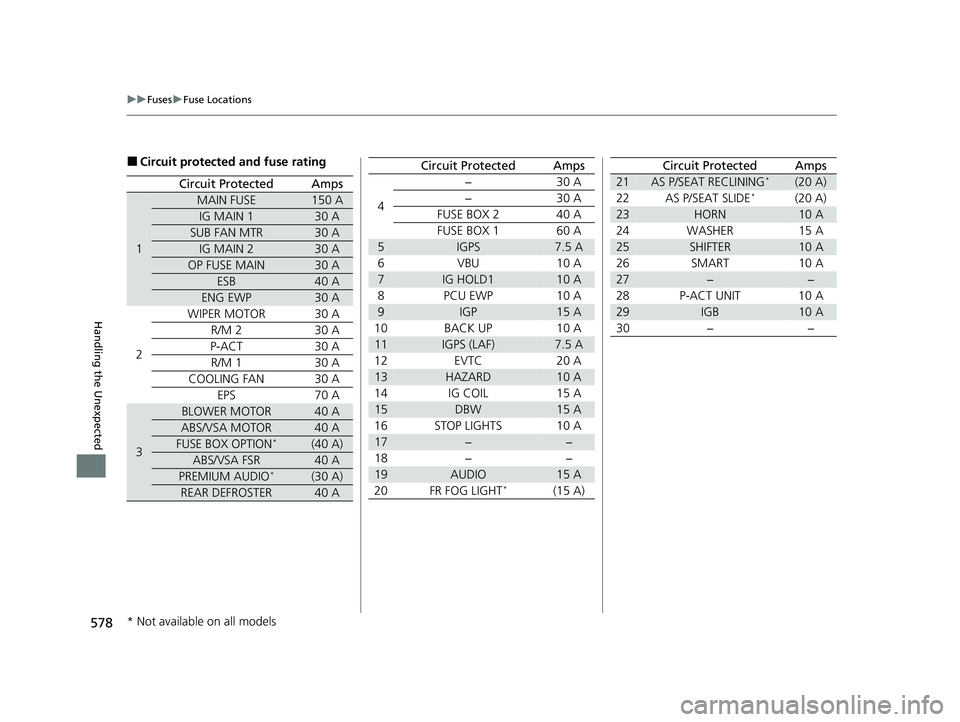

■Circuit protected and fuse rating
Circuit ProtectedAmps
1
MAIN FUSE150 A
IG MAIN 130 A
SUB FAN MTR30 A
IG MAIN 230 A
OP FUSE MAIN30 A
ESB40 A
ENG EWP30 A
2
WIPER MOTOR30 A
R/M 230 A
P-ACT 30 A R/M 1 30 A
COOLING FAN 30 A EPS 70 A
3
BLOWER MOTOR40 A
ABS/VSA MOTOR40 A
FUSE BOX OPTION*(40 A)
ABS/VSA FSR40 A
PREMIUM AUDIO*(30 A)
REAR DEFROSTER40 A
4−30 A
−30 A
FUSE BOX 2 40 A
FUSE BOX 1 60 A
5IGPS7.5 A
6VBU 10 A
7IG HOLD110 A
8 PCU EWP 10 A
9IGP15 A
10 BACK UP 10 A
11IGPS (LAF)7.5 A
12 EVTC 20 A
13HAZARD10 A
14 IG COIL 15 A
15DBW15 A
16 STOP LIGHTS 10 A
17−−
18 − −
19AUDIO15 A
20 FR FOG LIGHT*(15 A)
Circuit ProtectedAmps
21AS P/SEAT RECLINING*(20 A)
22 AS P/SEAT SLIDE*(20 A)
23HORN10 A
24 WASHER 15 A
25SHIFTER10 A
26 SMART 10 A
27−−
28 P-ACT UNIT 10 A
29IGB10 A
30 − −
Circuit ProtectedAmps
* Not available on all models
22 INSIGHT HMIN-31TXM6300.book 578 ページ 2021年2月24日 水曜日 午後3時45分
Page 580 of 609

579
uuFuses uFuse Locations
Continued
Handling the Unexpected

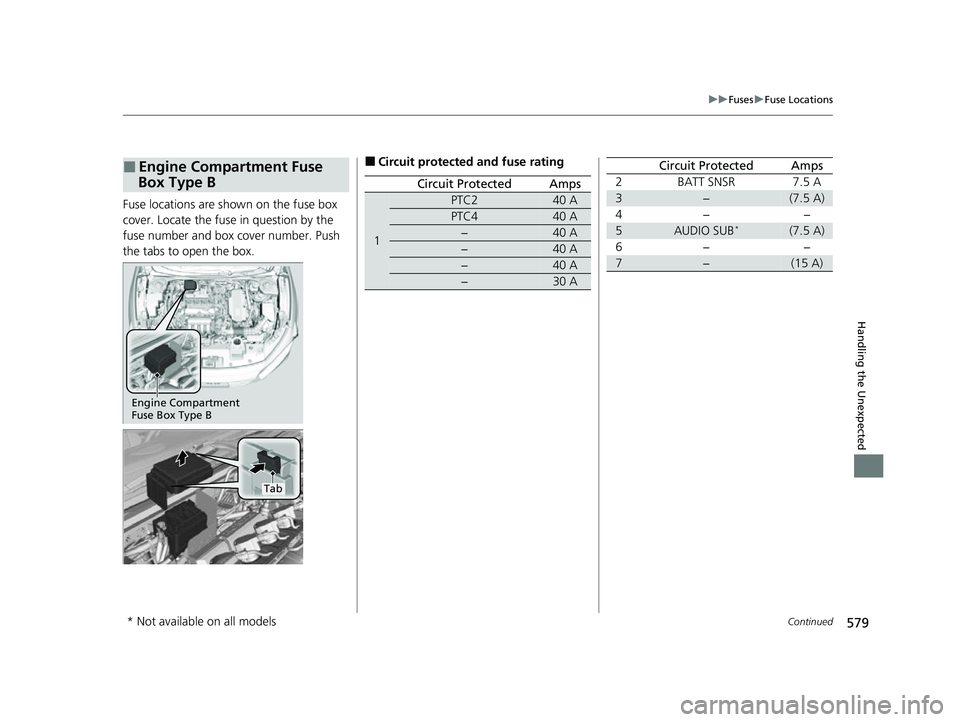

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number. Push
the tabs to open the box.
■Engine Compartment Fuse
Box Type B
Engine Compartment
Fuse Box Type B
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
PTC240 A
PTC440 A
−40 A
−40 A
−40 A
−30 A
2 BATT SNSR 7.5 A
3−(7.5 A)
4− −
5AUDIO SUB*(7.5 A)
6− −
7−(15 A)
Circuit ProtectedAmps
* Not available on all models
22 INSIGHT HMIN-31TXM6300.book 579 ページ 2021年2月24日 水曜日 午後3時45分
Page 581 of 609

580
uuFuses uFuse Locations
Handling the Unexpected

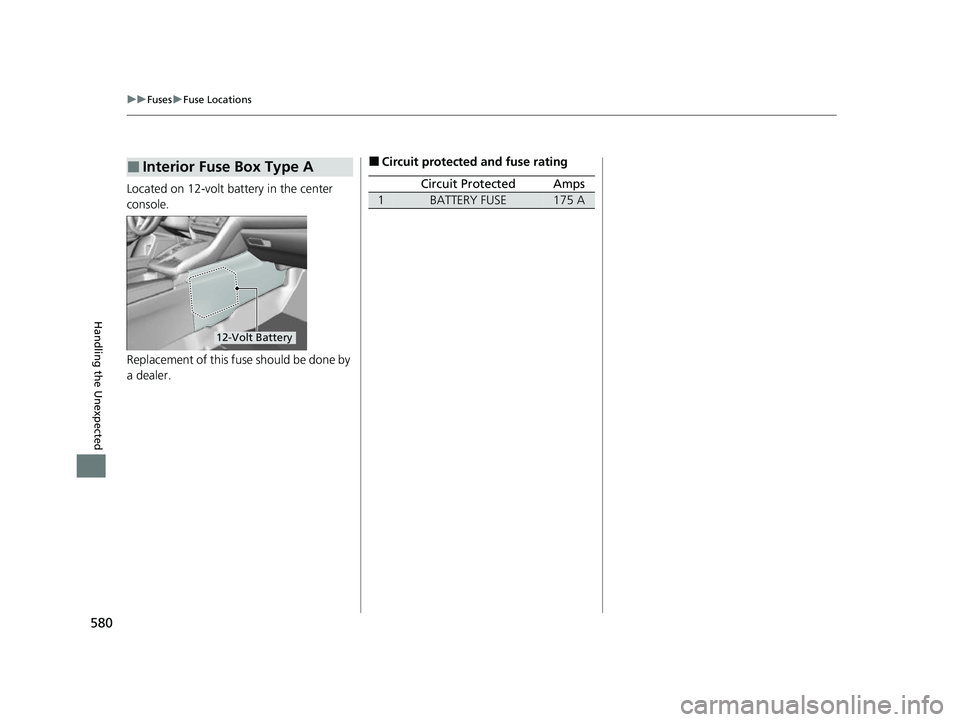

Located on 12-volt battery in the center
console.
Replacement of this fuse should be done by
a dealer.
■Interior Fuse Box Type A
12-Volt Battery
■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY FUSE175 A
22 INSIGHT HMIN-31TXM6300.book 580 ページ 2021年2月24日 水曜日 午後3時45分
Page 582 of 609

581
uuFuses uFuse Locations
Handling the Unexpected

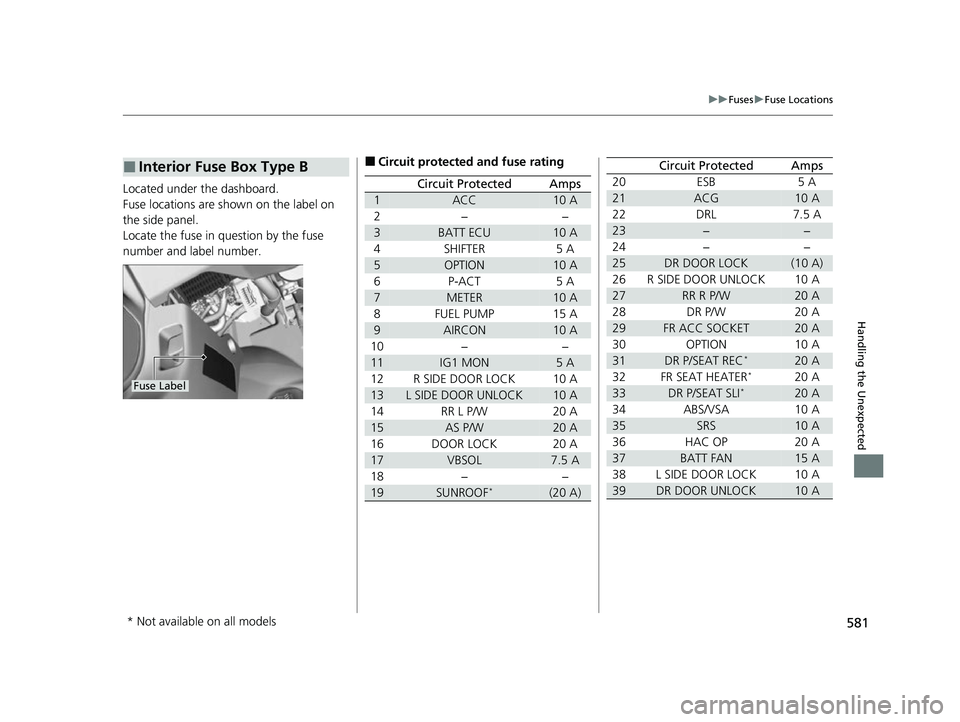

Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box Type B
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1ACC10 A
2−−
3BATT ECU10 A
4SHIFTER5 A
5OPTION10 A
6P-ACT5 A
7METER10 A
8FUEL PUMP15 A
9AIRCON10 A
10−−
11IG1 MON5 A
12R SIDE DOOR LOCK10 A
13L SIDE DOOR UNLOCK10 A
14RR L P/W20 A
15AS P/W20 A
16DOOR LOCK20 A
17VBSOL7.5 A
18−−
19SUNROOF*(20 A)
20ESB5 A
21ACG10 A
22DRL7.5 A
23−−
24−−
25DR DOOR LOCK(10 A)
26R SIDE DOOR UNLOCK10 A
27RR R P/W20 A
28DR P/W20 A
29FR ACC SOCKET20 A
30OPTION10 A
31DR P/SEAT REC*20 A
32FR SEAT HEATER*20 A
33DR P/SEAT SLI*20 A
34ABS/VSA10 A
35SRS10 A
36HAC OP20 A
37BATT FAN15 A
38L SIDE DOOR LOCK10 A
39DR DOOR UNLOCK10 A
Circuit ProtectedAmps
* Not available on all models
22 INSIGHT HMIN-31TXM6300.book 581 ページ 2021年2月24日 水曜日 午後3時45分
Page 583 of 609

582
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
5. Check the large fuse in the vehicle interior.
u If the fuse is blown, use a phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
6. Inspect the small fuses in the vehicle
interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse labelM 2 Fuse Locations P. 577
Replace fuse with a spare fuse of the same specified
amperage.
There is a fuse puller on the back of the cover of the
engine compartment fuse box type A.
Combined
Fuse Blown Fuse
Fuse Puller
22 INSIGHT HMIN-31TXM6300.book 582 ページ 2021年2月24日 水曜日 午後3時45分
