To remove exterior f rost or ice f rom
the windshield and side windows
after the vehicle has been sitting out
in cold weather:Start the engine.
Select .
When you select , the
system automatically switches to
Fresh Air mode and turns on the
A/C.
Switch the fan and temperature
controls to maximum.
To rapidly remove exterior f rost or
ice f rom the windshield (on very cold
days), f irst select the Recirculation
mode. Once the windshield is clear,
select the Fresh Air mode to avoid
f ogging the windows.
1.2. 3.
Comf ort and Convenience Feat ures
Heating and Cooling
142

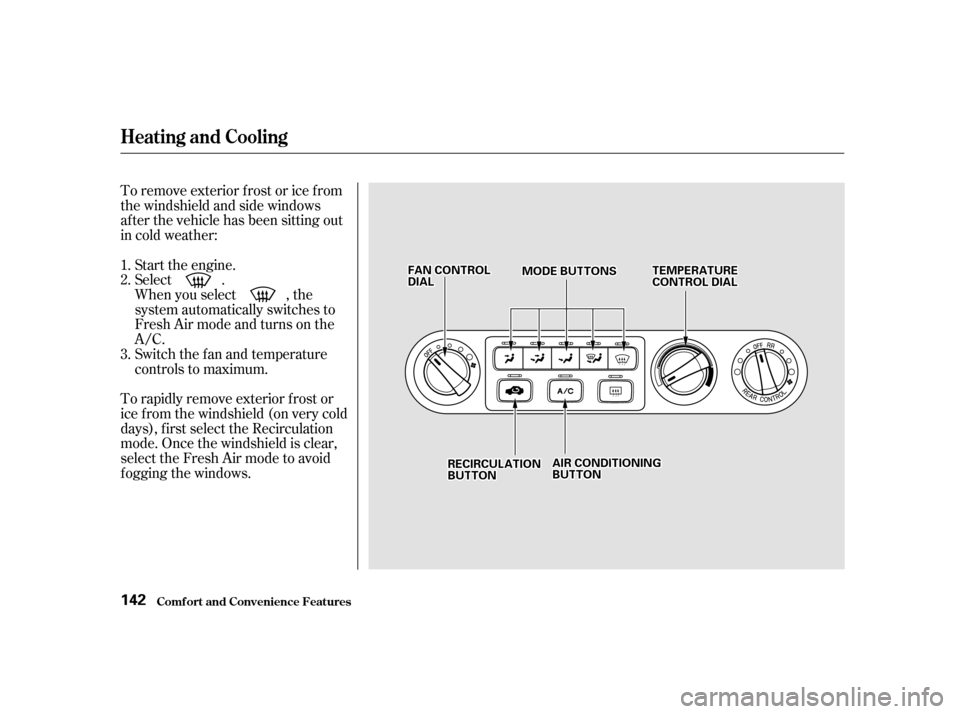

FFAANNCCOONNTTRROOLLDDIIAALLMMOODDEEBBUUTTTTOONNSSTTEEMMPPEERRAATTUURREECCOONNTTRROOLLDDIIAALL
AAIIRRCCOONNDDIITTIIOONNIINNGGBBUUTTTTOONNRREECCIIRRCCUULLAATTIIOONNBBUUTTTTOONN

For saf ety, make sure you have a
clear view through all the windows
bef ore driving away.
These settings direct all the air f low
to the defroster vents at the base of
the windshield and the side window
def roster vents. The air f low will get
warmer and clear the windows faster
as the engine warms up. You can
close the corner vents with the dial
beside each vent. This will send
more warm air to the windshield
defroster vents.
To shut of f the system temporarily,
turn the fan speed and temperature
control dials all the way to the lef t.
You should shut the system
completely of f only f or the f irst f ew
minutes of driving in cold weather,
until the engine coolant warms up
enough to operate the heater. Keep
the fan on at all other times so stale
air does not build up in the interior.
Heating and Cooling
Comf ort and Convenience Feat ures
To Turn Everything Of f
143

For the climate control system to
provide heating and cooling, the
engine must be running.
The automatic climate control
system in your Honda picks the
proper combination of air condi-
tioning, heating, and ventilation to
maintain the interior temperature
you select. The system also adjusts
the fan speed and air flow levels.

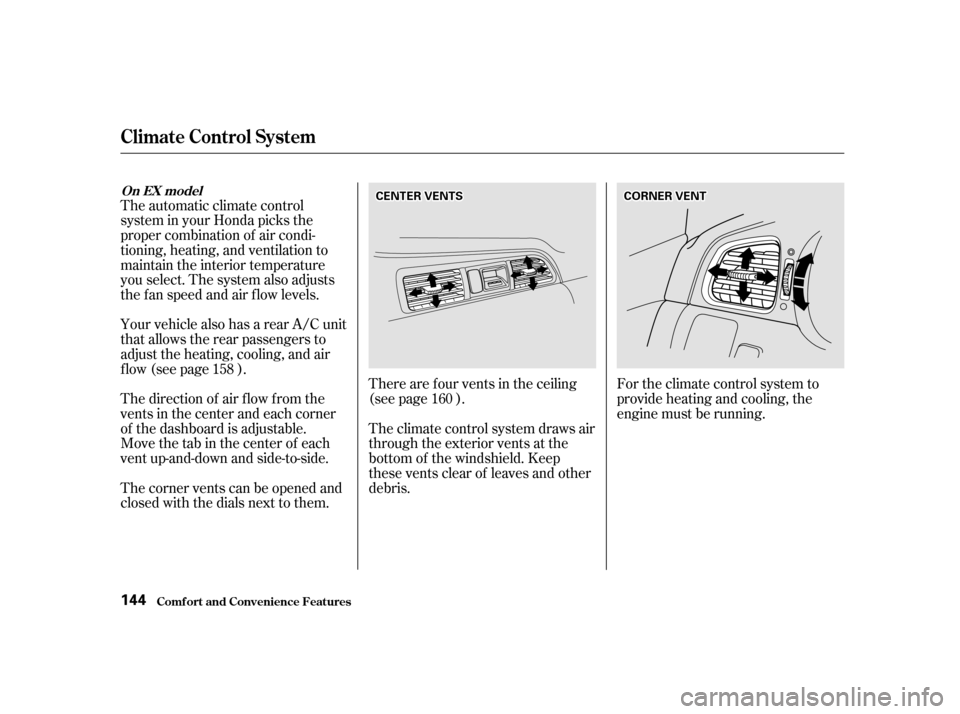

The direction of air f low f rom the
vents in the center and each corner
of the dashboard is adjustable.
Move the tab in the center of each
vent up-and-down and side-to-side.
Your vehicle also has a rear A/C unit
that allows the rear passengers to
adjust the heating, cooling, and air
f low (see page ).
The corner vents can be opened and
closed with the dials next to them.
The climate control system draws air
through the exterior vents at the
bottom of the windshield. Keep
these vents clear of leaves and other
debris.

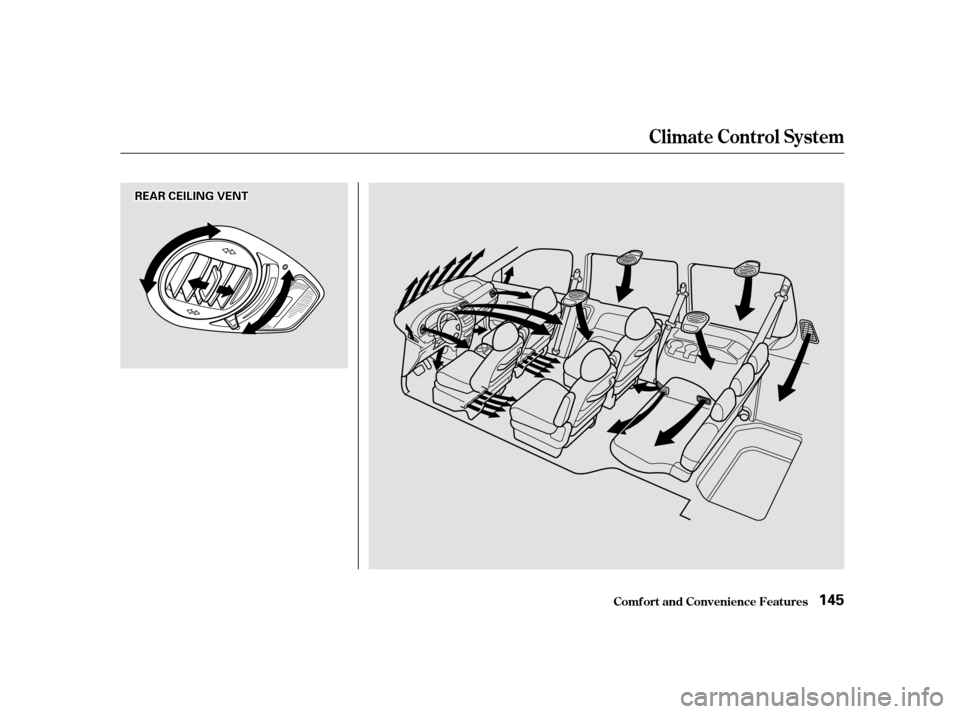

There are f our vents in the ceiling
(see page ).
158
160
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
On EX model
144
CCEENNTTEERRVVEENNTTSSCCOORRNNEERRVVEENNTT

Climat e Cont rol Syst em
Comf ort and Convenience Feat ures145
RREEAARRCCEEIILLIINNGGVVEENNTT

The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature f rom its current level to
the set temperature.

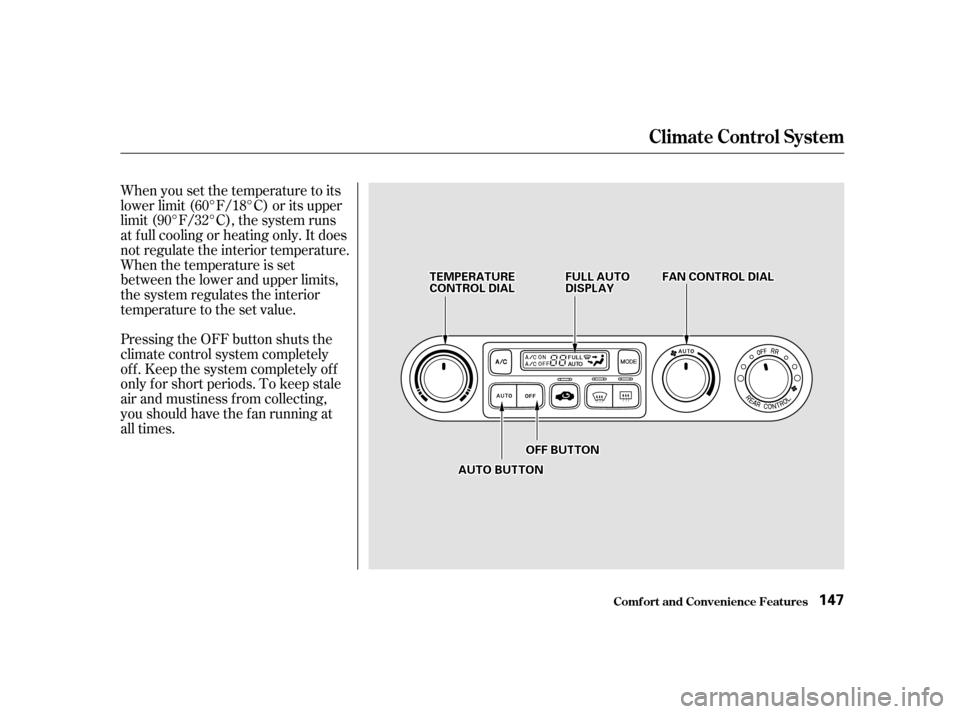

To put the Automatic Climate
Control in f ully-automatic mode,
press the AUTO button and set the
f an control dial to AUTO, then set
the desired temperature by turning
the temperature control dial. You will
see FULL AUTO in the system’s
display. The light above the
buttonalsoshowsyouwhich
mode, Recirculation or Fresh Air, is
selected.
EX model without Navigation System
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Fully-automatic Operation 146
AAUUTTOOBBUUTTTTOONN
OOFFFFBBUUTTTTOONN
TTEEMMPPEERRAATTUURREECCOONNTTRROOLLDDIIAALLFFUULLLLAAUUTTOODDIISSPPLLAAYYFFAANNCCOONNTTRROOLLDDIIAALL

When you set the temperature to its
lower limit (60°F/18°C) or its upper
limit (90°F/32°C), the system runs
at f ull cooling or heating only. It does
not regulate the interior temperature.
When the temperature is set
between the lower and upper limits,
the system regulates the interior
temperature to the set value.
Pressing the OFF button shuts the
climate control system completely
of f . Keep the system completely of f
only f or short periods. To keep stale
air and mustiness f rom collecting,
you should have the f an running at
all times.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures147
AAUUTTOOBBUUTTTTOONN
OOFFFFBBUUTTTTOONN
TTEEMMPPEERRAATTUURREECCOONNTTRROOLLDDIIAALLFFUULLLLAAUUTTOODDIISSPPLLAAYYFFAANNCCOONNTTRROOLLDDIIAALL

You can manually select various
f unctions of the Climate Control
system when it is in FULL AUTO.
All other f eatures remain auto-
matically controlled. Making any
manual selection causes the word
FULL to go out.
Press the A/C button to turn the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display.
When you turn the A/C of f , the sys-
tem cannot regulate the inside tem-
perature if you set the dial below the
outside temperature. With the A/C
on, use the temperature control dial
to adjust the temperature of the air
flow to a comfortable setting.This button controls the source of
the air going into the system. When
the indicator above this button is lit,
air f rom the vehicle’s interior is sent
through the system again (Recircula-
tion mode). When the indicator is off,
air is brought in f rom outside the
vehicle (Fresh Air mode).You can, for example, manually put
the system in recirculation mode
when driving through an area of
smoke or f umes.
Semi-automatic Operation
A ir Condit ioning (A /C) But t on
Recirculat ion But t on
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
148
TTEEMMPPEERRAATTUURREECCOONNTTRROOLLDDIIAALL
RREECCIIRRCCUULLAATTIIOONNBBUUTTTTOONNAAIIRRCCOONNDDIITTIIOONNIINNGGBBUUTTTTOONN

You can manually select the f an
speedbyturningthefancontroldial.
When you turn the dial clockwise,
the fan is taken out of automatic
mode and starts to run at its lowest
speed. Turning the dial f ully
clockwise increases the f an’s speed,
which increases air flow.
With this dial, you can adjust the
rear A/C unit heating, cooling, and
air flow (see page ).
Use the MODE button to select the
vents the air flows from. Some air
will f low f rom the dashboard corner
vents in all modes. Each time you
press the MODE button, the display
shows the mode selected. Press the
button four times to see all the
modes.158
CONT INUED
Fan Cont rol Dial
Rear A /C Cont rol DialMode Button
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures 149
MMOODDEEBBUUTTTTOONNFFAANNCCOONNTTRROOLLDDIIAALL
RREEAARRAA//CCCCOONNTTRROOLLDDIIAALL

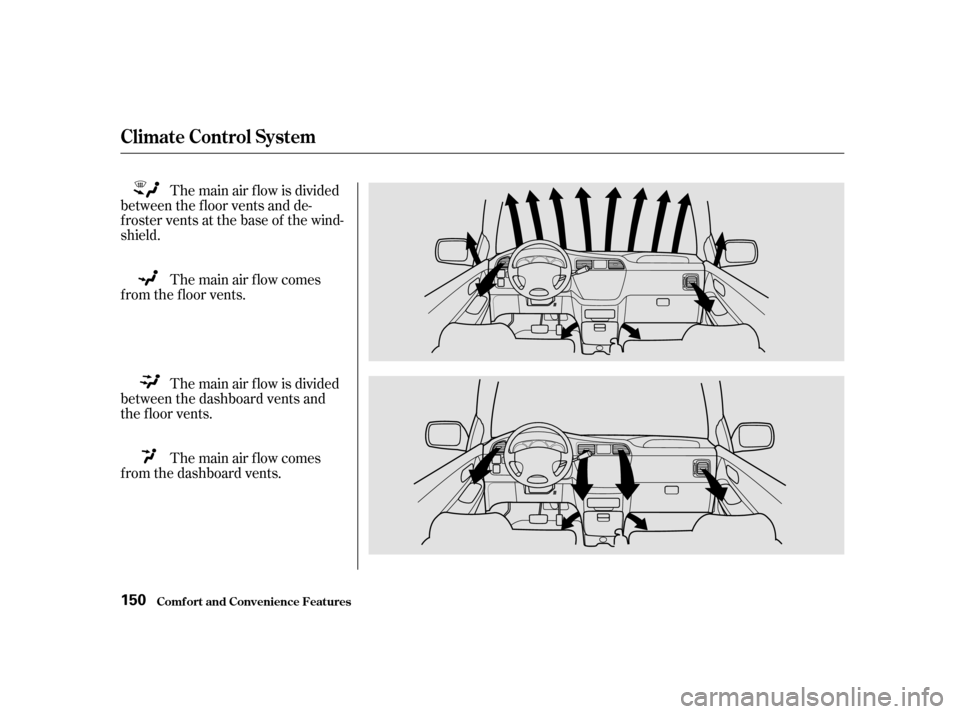

The main air f low is divided
between the f loor vents and de-
froster vents at the base of the wind-
shield.
The main air f low is divided
between the dashboard vents and
the f loor vents. The main air flow comes
f rom the f loor vents.
The main air flow comes
f rom the dashboard vents.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
150

The button directs the main
air f low to the windshield f or f aster
def rosting. It also overrides any
MODE selection you may have made.
When you select , the A/C
turns on automatically and the
system selects Fresh Air mode. If
thefancontroldialisinAUTO,the
f an speed increases automatically. If
it is not in AUTO, manually increase
the f an speed or set the dial to
AUTO. You can increase air f low to
thewindshieldbyclosingtheside
vents in the dashboard.
When you turn of f by
pressing the button again, the
system returns to its former settings.
This button turns the rear window
def ogger on and of f (see page ).75
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Rear Window Def ogger Button
151
RREEAARRWWIINNDDOOWWDDEEFFOOGGGGEERRBBUUTTTTOONN
