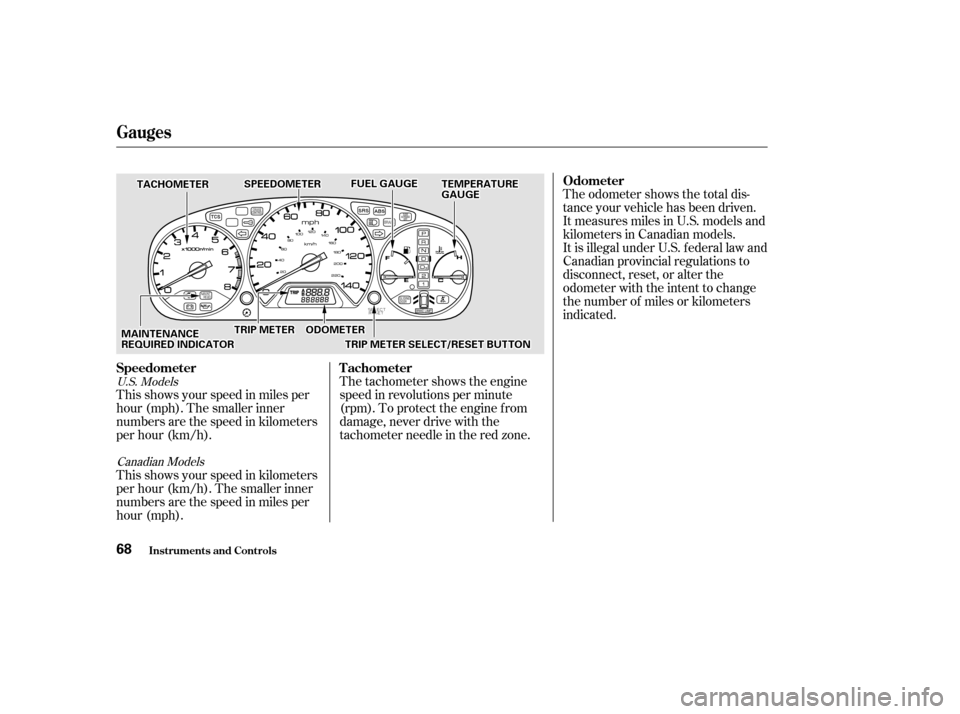

This shows your speed in miles per
hour (mph). The smaller inner
numbers are the speed in kilometers
per hour (km/h).
This shows your speed in kilometers
per hour (km/h). The smaller inner
numbers are the speed in miles per
hour (mph). The tachometer shows the engine
speed in revolutions per minute
(rpm). To protect the engine f rom
damage, never drive with the
tachometer needle in the red zone.The odometer shows the total dis-
tance your vehicle has been driven.
It measures miles in U.S. models and
kilometers in Canadian models.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.
Speedometer Odometer
T achometer
Gauges
Inst rument s and Cont rols68
T T E
EM
M P
PE
ER
RA A T
TU
UR REE
G
GA AU
UG GEE
S
SP
PE
EE
ED
D O
OM M E
ET
TE
ER
R
M
M A
AI
INNT TE
EN
NA AN
NC CEE
R
RE EQ
QU UIIRRE ED
D I
INND DI
ICCA A T
TO
OR R
T
T
A
A C
CHH O
OM M E
ET
TE
ER
R F
FU
UE EL
L G
GAAU
UG GEE
T
T R
RI IPP M
M E
ET
TE
ER
R O
ODDO
OM M E
ET
TE
ER
R
T
T R
RI IPP M
M E
ET
TE
ER
R S
SEEL
LEE C
CT T/
/R
RE ES
SE ET
T B
BUUT TT
TO
ON N

This shows how much f uel you have.
It is most accurate when the vehicle
is on level ground. It may show
slightly more or less than the actual
amount when you are driving on
curvy or hilly roads.
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to near
the upper white mark. If it reaches
the red (Hot) mark, pull safely to the
side of the road. Turn to page f or
instructions and precautions on
checking the engine’s cooling
system.
This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the Select/
Reset button repeatedly. Each trip
meter works independently, so you
can keep track of two dif f erent
distances.
To reset a trip meter, display it, and
then press and hold the Select/Reset
button until the number resets to
‘‘0.0’’.
The needle returns to the bottom
after you turn off the ignition. The
gauge shows the f uel level reading
immediately af ter you turn the
ignition switch back ON (II).
351
Gauges
Inst rument s and Cont rols
Trip Meter
Temperature GaugeFuel Gauge
69
Please ref uel early, as driving to the
last drop of f uel can result in damage
to the engine and/or three way catalytic
converter.

Ref er to the Maintenance Schedules
f or Normal and Severe Driving
Conditions on pages and .
For the f irst 6,000 miles (9,600 km)
af ter the Maintenance Required
Indicator is reset, it will come on f or
two seconds when you turn the
ignition switch ON (II).Between 6,000 miles (9,600 km) and
7,500 miles (12,000 km) this
indicator will light f or two seconds
when you first turn the ignition
switch ON (II), and then f lash f or
ten seconds.
If you exceed 7,500 miles (12,000
km) without having the scheduled
maintenance perf ormed, this
indicator will remain on as a constant
reminder.Your dealer will reset this indicator
af ter completing the scheduled
maintenance. If this maintenance is
done by someone other than your
Honda dealer, reset the indicator as
f ollows.

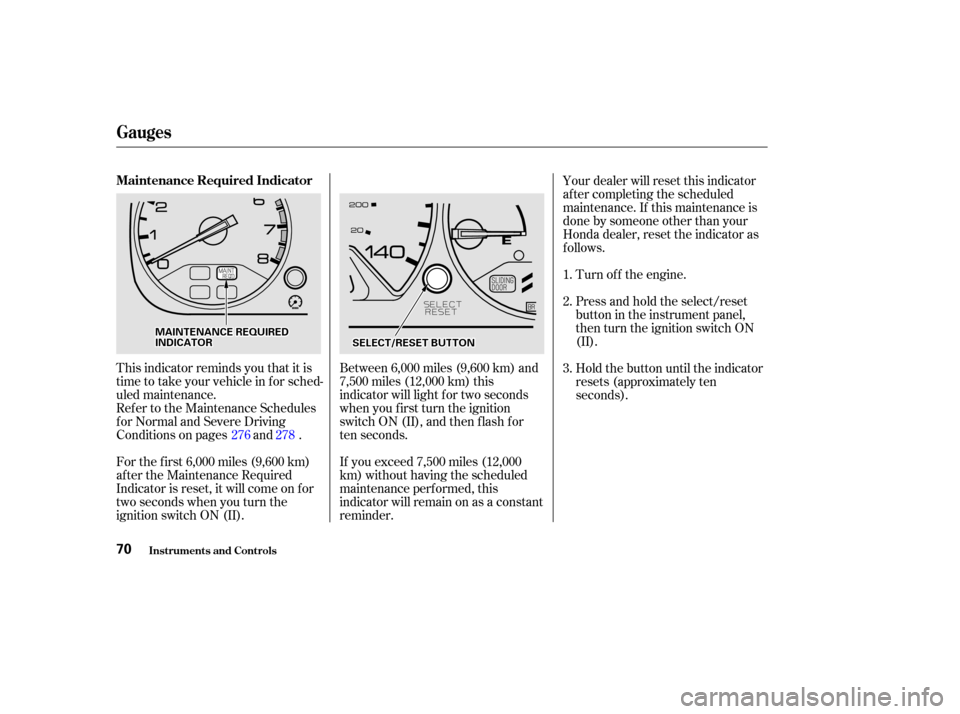

Turn of f the engine.
This indicator reminds you that it is
time to take your vehicle in for sched-
uled maintenance. Press and hold the select/reset
buttonintheinstrumentpanel,
then turn the ignition switch ON
(II).
Hold the button until the indicator
resets (approximately ten
seconds).
1.
2.
3.
276 278
Gauges
Maintenance Required Indicator
Inst rument s and Cont rols70
M M A
AI
INNT TE
EN
NA AN
NC CEE R
REEQ
QU UIIRRE ED
D
I
IN ND DI
ICCA A T
TO
OR R
S
SEEL
LEE C
CT T/
/R
RE ES
SE ET
T B
BUUT TT
TO
ON N

Î
ÎÎ

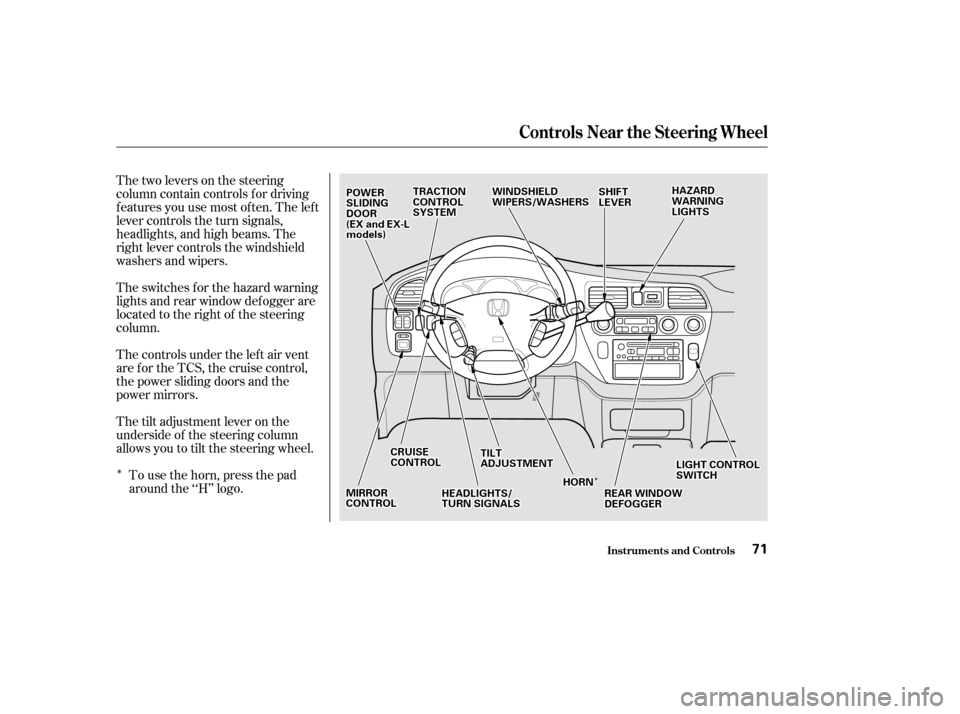

Thetwoleversonthesteering
column contain controls f or driving
f eatures you use most of ten. The lef t
lever controls the turn signals,
headlights, and high beams. The
right lever controls the windshield
washers and wipers.

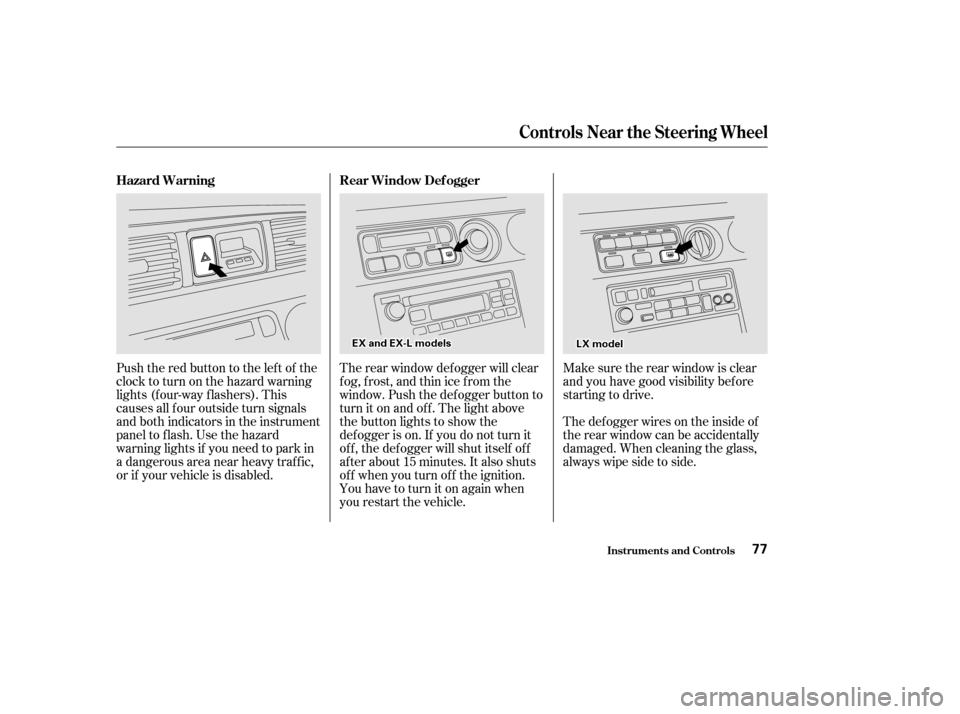

The switches for the hazard warning
lights and rear window def ogger are
located to the right of the steering
column.
The controls under the lef t air vent
arefortheTCS,thecruisecontrol,
the power sliding doors and the
power mirrors.
The tilt adjustment lever on the
underside of the steering column
allows you to tilt the steering wheel.To use the horn, press the pad
around the ‘‘H’’ logo.
Inst rument s and Cont rols
Controls Near the Steering Wheel
71
C CRRUUI ISSE E
C
CO ON NTTR
RO OL L
H
H E
EA
A D
DL
LIIGGH HT
TS
S/ /
T
T U
UR RNN S
SIIGGN NAAL
LSS
T
T
I
ILLT T
A
A D
DJ
JUUS STTM
M E
EN
NT T
R
REEA
A R
R W
WI INND DO
OW W
D
D E
EF
FOOG GGGEER
R
S
SH
H I
IFFT T
L
LE E V
V E
ER
R
W
WI
INND DS
SHH I
IEE L
LDD
W
WI IPP E
ER
RS S//W
WA AS
SHH E
ER
RS S
M
M I
IRRR ROOR R
C
CO ON NTTR
RO OL L H
H
O
OR RNN L
LI
IGGH HT
T C
COON NTTR
RO OL L
S
SW WI ITT C
CH H
H
H
A
AZ
ZA
A R
RDD
W
WA AR
RNNI INNG G
L
LI IGGH HT
TS
S
T
T
R
RA A C
CTTI
IOON N
C
CO ON NTTR
RO OL L
S
SY YSSTTE
EM
M
P
P
O
OW WE ER
R
S
SL LIIDD I
INNG G
D
D O
OO ORR
(
( E
E X
X a
ann d
d E
EX
X -
-L
L
m
m o
od
de
ellss) )

If you leave the lights on with the
ignition switch in ACCESSORY (I)
or LOCK (0), you will hear a
reminder chime when you open the
driver’s door.

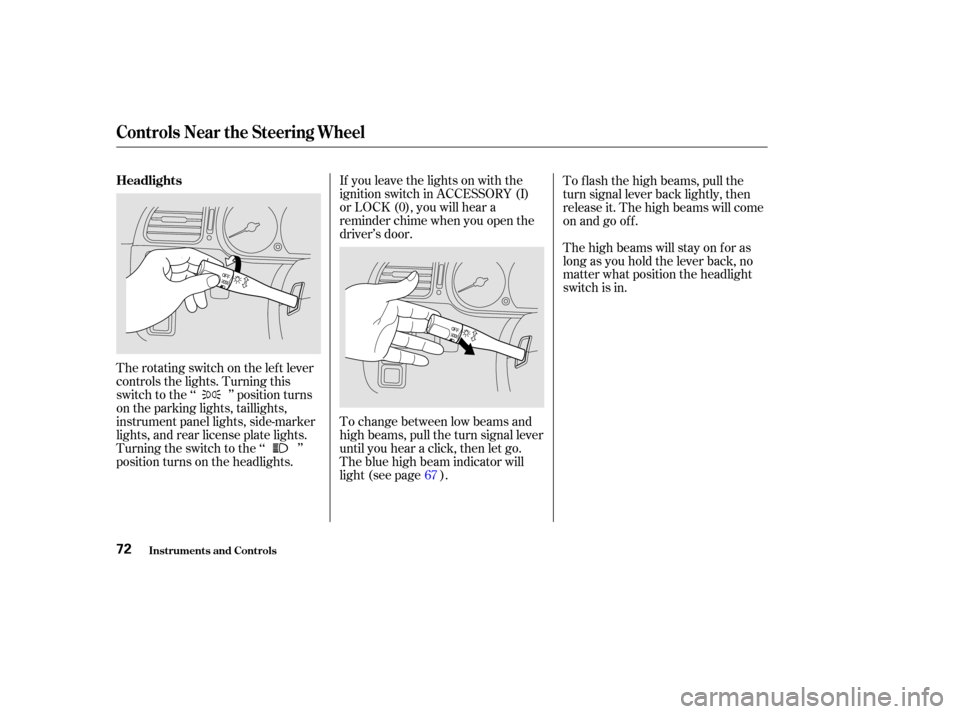

To change between low beams and
high beams, pull the turn signal lever
until you hear a click, then let go.
The blue high beam indicator will
light (see page ).To f lash the high beams, pull the
turn signal lever back lightly, then
release it. The high beams will come
on and go of f .
The high beams will stay on f or as
long as you hold the lever back, no
matter what position the headlight
switch is in.
The rotating switch on the lef t lever
controls the lights. Turning this
switch to the ‘‘ ’’ position turns
on the parking lights, taillights,
instrument panel lights, side-marker
lights, and rear license plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights. 67
Controls Near the Steering Wheel
Inst rument s and Cont rols
Headlights
72

The Automatic Lighting Of f f eature
turns of f the headlights, parking
lights, taillights, side marker lights,
license plate lights and instrument
panel lights within 15 seconds of
removing the key from the ignition
switch and closing the driver’s door.The lights will turn on again when
you unlock or open the driver’s door.
If you unlock the door, but do not
open it within 15 seconds, the lights
will go off. With the driver’s door
open, you will hear a lights-on
reminder chime.
With the headlight switch off, the
high beam headlights come on with
reduced brightness when you turn
the ignition switch to ON (II) and
release the parking brake. They
remain on until you turn the ignition
of f , even if you set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.
The knob on the instrument panel
controls the brightness of the instru-
ment panel lights. Turn the knob to
adjust the brightness.
This feature activates if you leave
the headlight switch in the or
position, remove the key, open,
then close the driver’s door.
If you remove the key f rom the
ignition switch with the headlight
switch on, but do not open the door
and get out, the lights will turn of f
af ter 10 minutes.
On EX and EX-L models
Controls Near the Steering Wheel
Inst rument s and Cont rols
Automatic Lighting Of f Feature
Daytime Running L ights
(Canadian Models)Instrument Panel Brightness
73
I IN
NS STTR
RU UM M E
EN
NT T P
PA
A N
NE EL
L B
BRRIIGGH HT
TN
NE ES
SS S
C
CO ON NTTR
RO OL L K
KNNO OBB

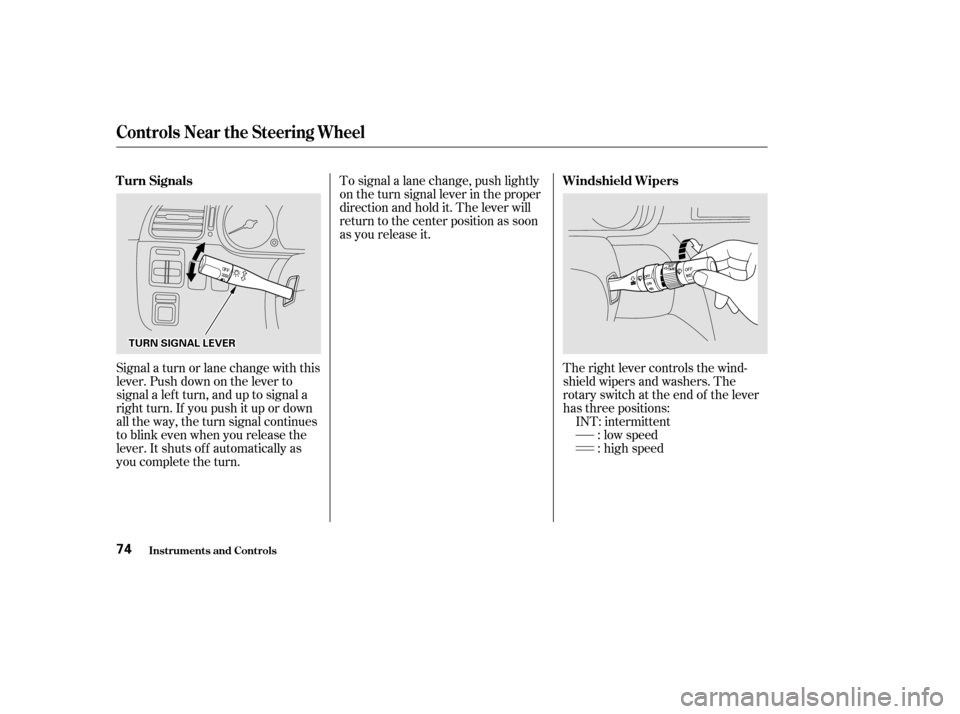

Signal a turn or lane change with this
lever. Push down on the lever to
signal a lef t turn, and up to signal a
right turn. If you push it up or down
all the way, the turn signal continues
to blink even when you release the
lever. It shuts off automatically as
you complete the turn.To signal a lane change, push lightly
on the turn signal lever in the proper
direction and hold it. The lever will
return to the center position as soon
as you release it.
The right lever controls the wind-
shield wipers and washers. The
rotary switch at the end of the lever
has three positions:INT: intermittent : low speed
: high speed
T urn Signals
Windshield Wipers
Inst rument s and Cont rols
Controls Near the Steering Wheel
74
T TU
UR RNN S
SIIGGN NAAL
L L
LEE V
V E
ER
R

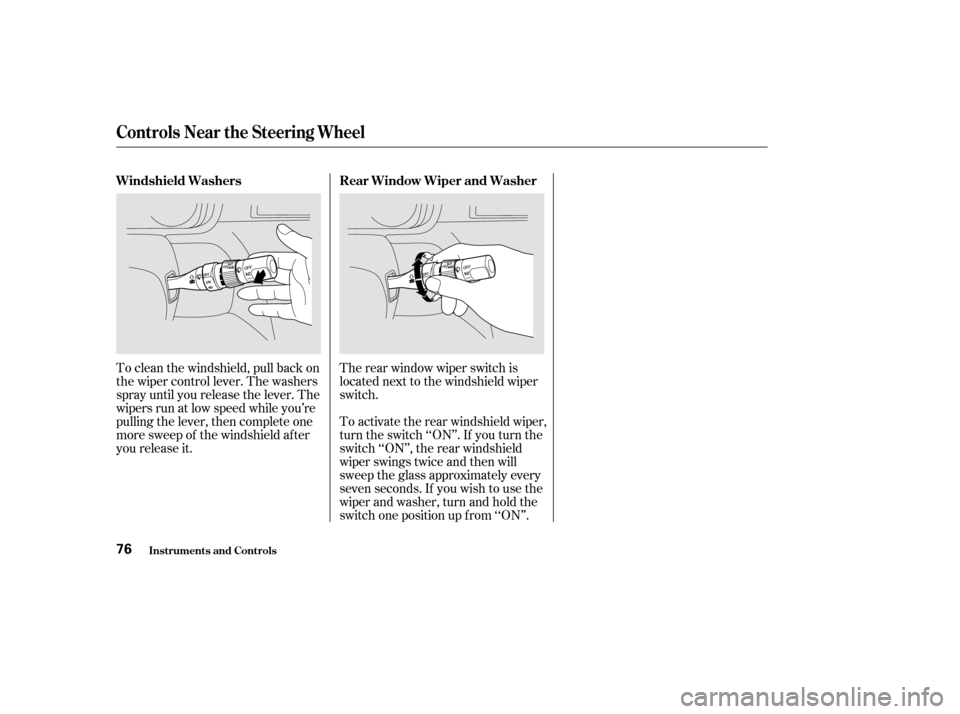

To operate the wipers in mist mode,
push the control lever down. The
wipers run at high speed until you
release the lever. This gives you a
quick way to clear the windshield.
In intermittent, the wipers operate
every f ew seconds. You can vary
how of ten the wipers sweep the
windshield by turning the INT TIME
ring next to the rotary switch. The
sweep interval will change slightly
with speed; getting shorter as you
drive f aster. In low speed
intermittent and high speed driving,
the wipers run continuously. If you turn the INT TIME ring to the
shortest delay, the wipers will
change from intermittent to low
speed operation when vehicle speed
exceeds 12 mph (20 km/h).
Controls Near the Steering Wheel
Inst rument s and Cont rols75

The rear window wiper switch is
located next to the windshield wiper
switch.
To clean the windshield, pull back on
the wiper control lever. The washers
spray until you release the lever. The
wipers run at low speed while you’re
pulling the lever, then complete one
more sweep of the windshield af ter
you release it. To activate the rear windshield wiper,
turn the switch ‘‘ON’’. If you turn the
switch ‘‘ON’’, the rear windshield
wiper swings twice and then will
sweep the glass approximately every
seven seconds. If you wish to use the
wiper and washer, turn and hold the
switch one position up f rom ‘‘ON’’. Rear Window Wiper and Washer
Windshield Washers
Controls Near the Steering Wheel
Inst rument s and Cont rols76

Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side to side.
The rear window def ogger will clear
fog, frost, and thin ice from the
window. Push the def ogger button to
turn it on and of f . The light above
the button lights to show the
def ogger is on. If you do not turn it
of f , the def ogger will shut itself of f
af ter about 15 minutes. It also shuts
of f when you turn of f the ignition.
You have to turn it on again when
you restart the vehicle.
Push the red button to the left of the
clocktoturnonthehazardwarning
lights (f our-way f lashers). This
causes all f our outside turn signals
and both indicators in the instrument
panel to f lash. Use the hazard
warning lights if you need to park in
a dangerous area near heavy traffic,
or if your vehicle is disabled.
Controls Near the Steering Wheel
Inst rument s and Cont rols
Rear Window Def ogger
Hazard Warning
77
L LX X m
mo
od
de
ell
E
E
X
X a
ann d
d E
EX
X -
-L
L m
m o
od
de
ellss
