If the light comes on at any other
time, or does not come on at all, you
should have the system checked by
your dealer. For example:If the light stays on after the
engine starts.
If the light comes on or f lashes on
andoff whileyoudrive. This light alerts you that
the passenger’s side airbag
has been automatically shut off.
Although Honda does not encourage
children to ride in the f ront, this
system is designed to shut of f the
side airbag if a child leans sideways
and the child’s head is in the side
airbag deployment path.
If the SRS indicator light does not
come on after you turn the ignition
switch to ON (II).
If you see any of these indications,
your f ront or side airbags may not
deploy, your passenger’s side airbag
automatic cutoff system may not
work properly, your seat belt
tensioners may not work, or the
sensors under the f ront seats may
not work properly when you need
them. See your Honda dealer as soon
as possible. It does not mean there is a problem
with your side airbags. It means that
thesideairbagcutoff systemhas
activated to prevent the side airbag
f rom deploying.
To reduce the risk of injury f rom an
inf lating side airbag, your vehicle has
an automatic cutoff system for the
passenger’s side airbag.
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
How the Side Airbag Cutof f
Indicator L ight Works
60
Ignoring the SRS indicator light
can result in serious injury or
death if the airbags, cutoff
system, or tensioners do not
work properly.
Have your vehicle checked by a
dealer as soon as possible if
the SRS light alerts you to a
potential problem.

If a small-statured adult leans
sideways, or larger adult slouches
and leans sideways into the
deployment path of the side airbag,
the system may also shut of f the side
airbag.A f ront seat passenger should not
use a cushion or other object as a
backrest. It may prevent the cutof f
system f rom working properly.
When you turn the ignition switch to
ON (II), the indicator should light
brief ly and go out (see page ). If it
doesn’t light, stays on, or comes on
while driving without a passenger in
the front seat, have the system
checked.
If the side airbag cutof f indicator
light comes on, you should have the
passenger sit upright. Once the
passenger is out of the deployment
path of the side airbag, the system
will turn the airbag back on and the
light will go out. 73
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety61

This light alerts you that the f ront
passenger’s airbag is shut of f .If the light is on, it does not mean
there is a problem with the f ront
passenger’s airbag. If there is a
problem in the weight sensors, the
SRS indicator in the instrument
panel comes on. In this case, the
passenger airbag cutof f indicator
turns of f , and the f ront passenger’s
airbag will inflate during a crash.
To reduce the chance of airbag-
caused injuries, the system shuts of f
the f ront passenger’s airbag when
the total weight on the f ront
passenger’s seat is about 65 lbs
(30 kg) or less. The passenger
airbag cutoff indicator comes on to
remind you the f ront passenger’s
airbag will not inf late during a crash.If there is no passenger in the f ront
passenger’s seat, this indicator does
not come on, however the system
shuts of f the f ront passenger’s
airbag.
If this indicator comes on with no
passenger in the f ront passenger’s
seat,orwithanadultintheseat,
there may be a problem in the
advanced airbag system. Have the
vehicle checked by the dealer as
soon as possible.
This indicator may come on or of f
repeatedly, if some objects are put
on the f ront passenger’s seat, or if
the temperature of the vehicle’s
interior changes suddenly when a
door is opened.
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
How the Passenger Airbag Cutof f
Indicator Works
62
PASSENGER AIRBAG CUTOFF
INDICATOR

CONT INUED
To ensure the f ront passenger’s seat
weight sensors keep the passenger’s
airbag activated when an adult or
large child weighing about 65 lbs/
30 kg or more sits in the front
passenger’s seat, do not allow
anything to decrease the weight on
the seat. This includes, but is not
limited to, these examples:Front passenger’s seat f orcibly
moved backward into luggage or
other items placed behind it. Front passenger’s seat f orcibly
pushed up by luggage or other
items placed under it. Rear passengers pushing up the
frontpassenger’sseatwiththeir
f eet. If a passenger is tall enough to use
the seat belt and sit properly, but the
passenger airbag cutof f indicator
comes on and of f repeatedly, we
recommend that the passenger sits
in a rear seat. If the passenger must
sit on the f ront seat, move the seat
as far to the rear as possible, have
the passenger sit upright, and make
sure the seat belt is worn securely.
To ensure the f ront passenger’s seat
weight sensors keep the passenger’s
airbag deactivated when an infant or
small child weighing about 65 lbs/
30 kg or less sits in the f ront
passenger’s seat, do not allow
anything to increase the weight on
the seat. This includes, but is not
limited to, these examples:
Rear passengers pushing or
pulling the f ront passenger’s seat-
back or pushing the seat rails with
their f eet.
Heavy items placed in the f ront
passenger’s seat-back pocket.
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety63

If the passenger airbag cutof f
indicator does not light, or comes on
and of f repeatedly while a child seat
is secured on the f ront passenger’s
seat, remove the child seat, then
secure it on a rear seat.
When you turn the ignition switch to
ON (II), the passenger airbag cutof f
indicator will light brief ly then go out.
This tells you that the system is
working properly.
The indicator may come on or of f a
f ew seconds later if the weight on
the f ront passenger’s seat changes.Your f ront and side airbag systems
are virtually maintenance-f ree, and
there are no parts you can saf ely
service. However, you must have
your vehicle serviced if :
Any
airbag that has deployed must be
replaced along with the control
unit, automatic seat belt
tensioners, and other related parts.
Do not try to remove or replace
anyairbagbyyourself.Thismust
be done by a Honda dealer or a
knowledgeable body shop.
Take your vehicle to
an authorized Honda dealer as
soon as possible. If you ignore this
indication, the airbags might not
inf late when you need them.
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
Airbag Service
Your airbags ever inf late.
T he SRS indicat or light alert s yout o a problem.
64

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your Honda. All the essential
controls are within easy reach............................
Control Locations .70
...............................
Indicator Lights .71
.............................................
Gauges .78
Controls Near the Steering .......................................
Wheel .81
...................................
Headlights .82
Automatic Lighting Off .....................................
Feature .83
............
Daytime Running Lights . 83
....
Instrument Panel Brightness . 83
................................
Turn Signals .84 .....................
Windshield Wipers .84
..................
Windshield Washers . 86
Rear Window Wiper and .....................................
Washer .86
..........................
Hazard Warning .87
.............
Rear Window Def ogger . 87
......
Steering Wheel Adjustment . 88
...............................
Keys and Locks .89
..............................................
Keys .89
....................
Immobilizer System . 90
............................
Ignition Switch .91
......................
Power Door Locks .92
...................
Remote Transmitter . 94
..............
Childproof Door Locks . 98
........................................
Tailgate .98
..................................
Glove Box .100
...................
Manual Sliding Doors . 101
.....................
Power Sliding Doors .103
...............................................
Seats .109
....................
Passenger Seating .109
......................
Seat Adjustments .110
Driver’s Seat Manual Height ............................
Adjustment .112
Driver’s Seat Power ..........................
Adjustments .113
.........
Driver’s Lumbar Support . 114....................................
Armrests .115
........................
Head Restraints .115
.....................
Third Seat Access .116
Moving the Second Row ...........................
Bucket Seat .117
Removing the Bucket Seats ................
in the Second Row . 119
Folding the Third Row .........................
‘‘Magic Seat’’ .120
..................................
Seat Heaters .123
............................
Power Windows .124
...........................................
Mirrors .128
...............................
Parking Brake .129
..................................
Digital Clock .130
..................................
Center Table .130
.........................
Beverage Holders .132
........................
Sunglasses Holder .134
........................................
Sun Visor .134
................................
Vanity Mirror .135
.......................
Rear Compartment .135
...............................
Center Pocket .136
...................................
Coin Holder .136
...................................
Storage Box .137
......................................
Coat Hook .137
............
Accessory Power Sockets . 138
...............................
Interior Lights .139
Instruments and Controls
Inst rument s and Cont rols69

ÃŽ
ÃŽ
ÃŽ

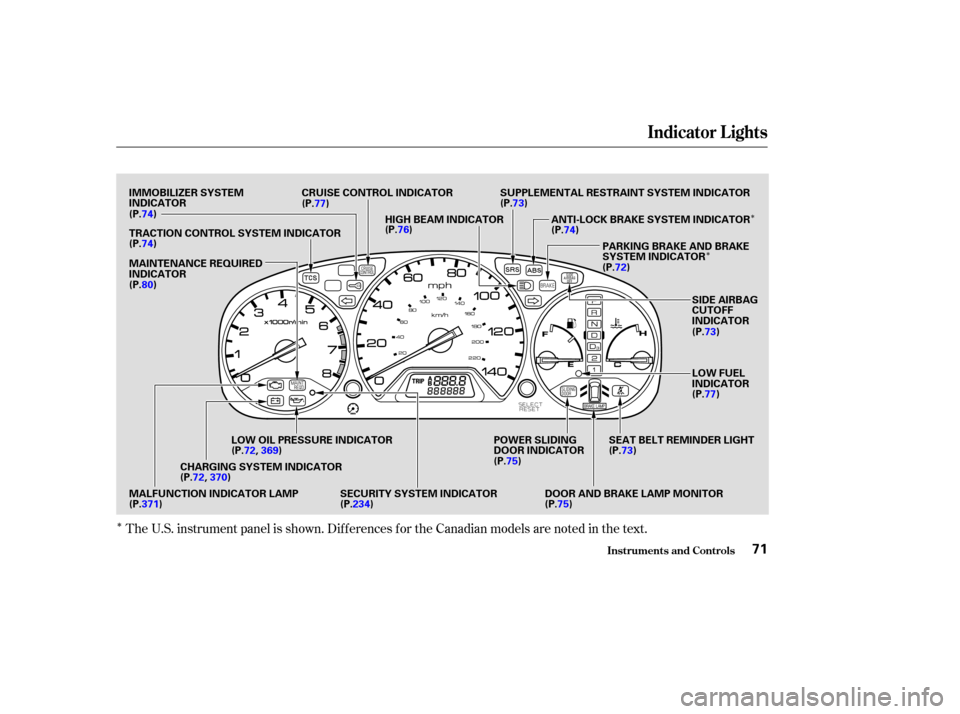

The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Indicator L ights
Inst rument s and Cont rols71
IMMOBILIZER SYSTEM
INDICATOR CRUISE CONTROL INDICATOR
HIGH BEAM INDICATOR SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
ANTI-LOCK BRAKE SYSTEM INDICATORPARKING BRAKE AND BRAKE
SYSTEM INDICATOR
SIDE AIRBAG
CUTOFF
INDICATOR
LOW FUEL
INDICATOR
SEAT BELT REMINDER LIGHT
DOOR AND BRAKE LAMP MONITOR
POWER SLIDING
DOOR INDICATOR
SECURITY SYSTEM INDICATOR
LOW OIL PRESSURE INDICATOR
CHARGING SYSTEM INDICATOR
MALFUNCTION INDICATOR LAMP MAINTENANCE REQUIRED
INDICATOR TRACTION CONTROL SYSTEM INDICATOR (P.74)
(P.74)
(P.80) (P.77)
(P.76) (P.73)
(P.74)
(P.72)
(P.73)
(P.77)
(P.73)
(P. 75)
(P.75)
(P.371) (P.72,
369)
(P.72, 370)
(P.234)

This light has two f unctions:This indicator comes on when you
turn the ignition switch ON (II). It
is a reminder to check the parking
brake. Driving with the parking
brake not f ully released can
damage the brakes and tires.
If this light comes on when the
engine is running, the battery is not
being charged. For complete
inf ormation, see page . The engine can be severely damaged
if this light f lashes or stays on when
the engine is running. For complete
inf ormation, see page . See page .
The instrument panel has many
indicators to give you important
inf ormation about your vehicle.
If the indicator remains lit after
you have f ully released the
parking brake while the engine is
running, or if it comes on while
driving, it can indicate a problem
in the brake system. For complete
inf ormation, see page .
1.
2.
371
369
370 373
Indicator L ights
Inst rument s and Cont rols
Charging System
Indicator L ow Oil Pressure
Indicator Malf unction Indicator
LampParking Brake and Brake System
Indicator
72
U.S. Canada

This indicator lights when you turn
the ignition switch ON (II). It is a
reminder to you and your passengers
to protect yourselves by f astening
the seat belts. A beeper also sounds
if you have not fastened your seat
belt.
If you do not f asten your seat belt,
the beeper will stop af ter a f ew
seconds but the light stays on until
you do. Both the light and the beeper
stay of f if you f asten your seat belt
bef ore turning on the ignition.This indicator lights when you turn
the ignition switch ON (II). If it
comes on at any other time, it
indicates a potential problem with
your f ront airbags or automatic seat
belt tensioners. This light will also
alert you to a potential problem with
your side airbags, passenger’s side
airbag automatic cutoff system,
driver’s seat position sensor, or f ront
passenger’s weight sensors. For
complete inf ormation, see page .
This indicator lights when you turn
the ignition switch ON (II). If it
comes on at any other time, it
indicates that the passenger’s side
airbag has automatically shut off.
For complete inf ormation, see page
.
60
59
Indicator L ights
Inst rument s and Cont rols
Supplemental Restraint
System Indicator Side A irbag Cutof f
Indicator
Seat Belt Reminder L ight
73

This light normally comes on f or a
f ew seconds when you turn the
ignition switch ON (II), and when
the ignition switch is turned to
START (III). If this light comes on at
any other time, there is a problem in
theABS.If thishappens,takethe
vehicle to your dealer to have it
checked. With the light on, your
vehicle still has normal braking
ability but no anti-lock. For complete
inf ormation, see page .This indicator has three f unctions:
This light also comes on when you
turn the ignition ON (II) and goes off
af ter the engine starts. See page
f or more inf ormation on the
TCS. If itcomesonandstaysonwhen
the Traction Control System is on,
it indicates that there is a problem
in the TCS. It f lashes when the TCS is
regulating wheelspin. Itcomesonasareminderthatyou
have turned off the Traction
Control System.
This indicator comes on f or a f ew
seconds when you turn the ignition
switch ON (II). It will then go of f if
you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink
and the engine will not start (see
page ).
This indicator also blinks several
times when you turn the ignition
switch f rom ON (II) to ACCESSORY
(I) or LOCK (0).
1.
2.
3.
90
268 269
Indicator L ights
Inst rument s and Cont rols
Anti-lock Brake System
(A BS) Indicator Traction Control System
(T CS) Indicator
Immobilizer System
Indicator
74
U.S. Canada
