Page 79 of 296
The Immobilizer System protects
your vehicle f rom thef t. If an
improperly-coded key (or other
device) is used, the engine’s f uel
system is disabled.
When you turn the ignition switch to
ON (II), the Immobilizer System
indicator should come on f or a f ew
seconds, then go out. If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to
LOCK (0), remove the key, reinsert
it, and turn the switch to ON (II)
again.The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
f ob) is near the ignition switch when
you insert the key.
If the system repeatedly does not
recognize the coding of your key,
contact your Honda dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle undriveable.
If you have lost your key and you
cannot start the engine, contact a
Honda dealer.As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Immobilizer Syst em
Inst rument s and Cont rols76
Page 80 of 296
µ
µ
µ
µ Use this position
only to start the engine. The switch
returns to ON (II) when you let go of
the key.
You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or
ACCESSORY (I) position and open
the driver’s door. Remove the key to
turn of f the beeper.
TheshiftlevermustbeinPark
bef ore you can remove the key f rom
the ignition switch.
The ignition switch has f our
positions: LOCK (0), ACCESSORY
(I), ON (II), and START (III). You can insert or
remove the key only in this position.
To turn the key, the shift lever must
be in Park, and you must push the
key in slightly.
If the f ront wheels are turned, the
anti-thef t lock may make it dif f icult
to turn the key. Firmly turn the
steering wheel to the lef t or right as
you turn the key.
You can
operate the audio system and the
accessory power sockets in this
position.
This is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch f rom ACCESSORY
(I) to ON (II).
Ignition Switch
Inst rument s and Cont rols
ST A RT (III)
LOCK (0)
A CCESSORY (I)
ON (II)
77
Page 90 of 296
µ
When parking f acing downhill, make
sure the doors are latched in the
f ully open position, and then hold the
door open f or your passengers. Do
not pull the inside or outside door
handle, or the door will slam shut.
Make sure the
MAIN switch is in the ON position.
When parking f acing downhill on a
steep grade, the power sliding doors
may not open or close as they do
normally. If the Power Sliding Door indicator
comesonandstayson,thereisa
problem in the system. Turn the
MAIN switch to OFF, and have the
system inspected by a Honda dealer.If the battery is disconnected or goes
dead, close the sliding door
completely by hand, or turn the
MAIN switch on, and hold the door
switch until each door closes
completely. If it still does not operate
properly af ter the battery is
reconnected, have your vehicle
checked by a Honda dealer.On EX, EX-L models
Sliding Doors
Inst rument s and Cont rols
Parking Facing Downhill
Power Sliding Door Problems
87
POWER SLIDING DOOR INDICATOR
Page 106 of 296
The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters off.To apply the parking brake, push the
parking brake pedal down with your
f oot. To release the parking brake,
push on the pedal again. The parking
brake indicator on the instrument
panel should go out when the
parking brake is f ully released with
the engine running (see page ).
60
Canadian Models
Mirrors, Parking Brake
Inst rument s and Cont rols
Power Mirror Heaters Parking Brake
103
NOTICE:
HEATED MIRROR BUTTON
PARKING BRAKE PEDAL
Driving the vehicle with the
parking brake applied can damage the
rear brakes and axles.
Page 129 of 296

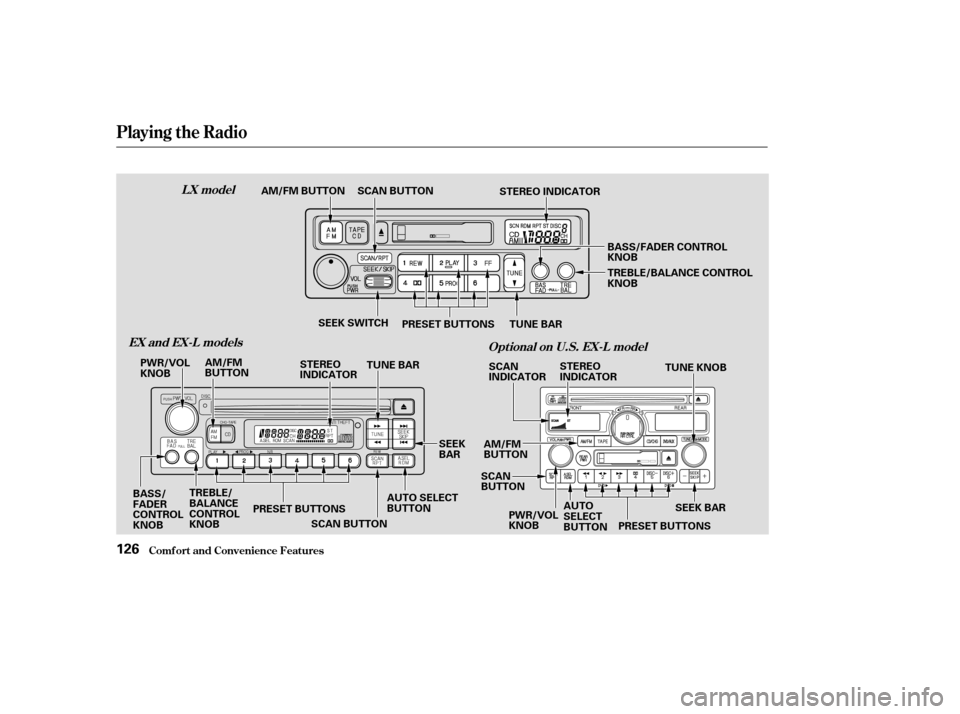

Playing the Radio
Comf ort and Convenience Feat ures
LX model
EX and EX-L models Opt ional on U.S. EX-L model
126
AM/FM BUTTON SCAN BUTTONSTEREO INDICATOR
BASS/FADER CONTROL
KNOB
TREBLE/BALANCE CONTROL
KNOB
SEEK SWITCH TUNE BAR
TUNE BAR
PRESET BUTTONS STEREO
INDICATOR
SCAN
INDICATOR
TUNE KNOB
AM/FM
BUTTON
SCAN
BUTTON
PRESET BUTTONS
PRESET BUTTONS
BASS/
FADER
CONTROL
KNOB TREBLE/
BALANCE
CONTROL
KNOB
AUTO SELECT
BUTTON
SCAN BUTTON
PWR/VOL
KNOB
AM/FM
BUTTON
STEREO
INDICATOR
SEEK
BARAUTO
SELECT
BUTTON
PWR/VOL
KNOB SEEK BAR
Page 133 of 296
You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is of f .
Your Honda’s radio can receive the
complete AM and FM bands.
Those bands cover these f requen-
cies:
AM band:
530 to 1,710 kilohertz
FM band:
87.7 to 107.9 megahertz
Radio stations on the AM band are
assigned f requencies at least ten
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned f requencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’
How well your Honda’s radio
receives stations is dependent on
many f actors, such as the distance
from the station’s transmitter,
nearby large objects, and atmos-
pheric conditions.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator willgo of f and the sound will f ade
completely as you get out of range of
the station’s signal.
Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
72
Playing the Radio, Radio Reception
Comf ort and Convenience Feat ures
A udio System L ighting
Radio Frequencies
Radio Reception
130
Page 135 of 296
Comf ort and Convenience Feat ures

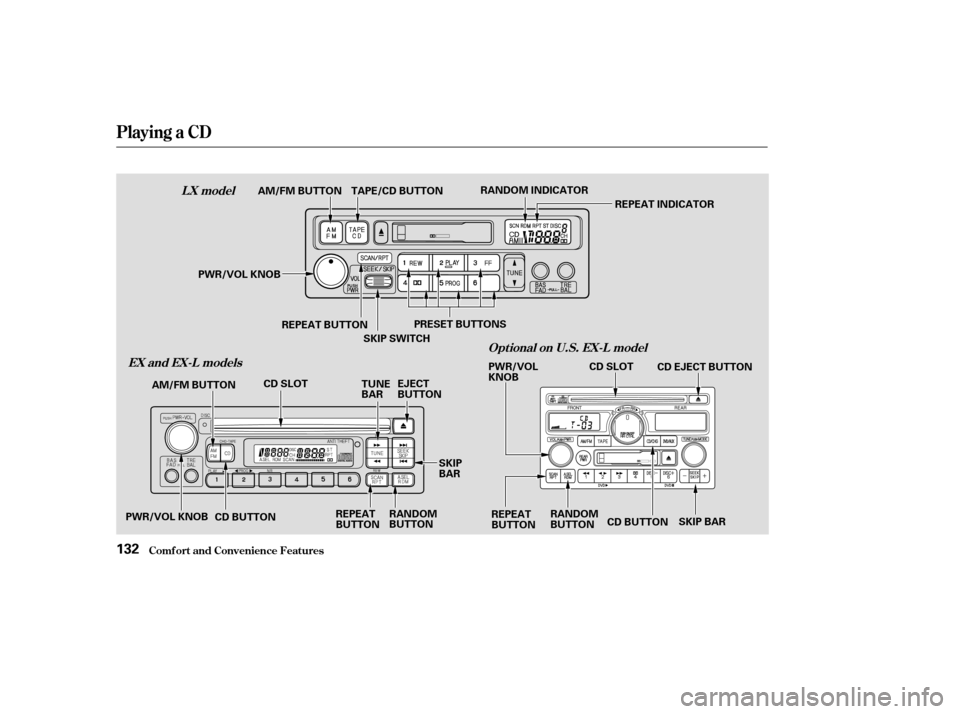

Playing a CD
LX model
EX and EX-L models Opt ional on U.S. EX-L model
132
PWR/VOL
KNOB
TAPE/CD BUTTON
AM/FM BUTTON RANDOM INDICATOR
REPEAT INDICATOR
PRESET BUTTONS
REPEAT BUTTON
SKIP SWITCH
PWR/VOL KNOB
RANDOM
BUTTONSKIP
BAR
TUNE
BAR
EJECT
BUTTON
CD SLOT
AM/FM BUTTON
PWR/VOL KNOB REPEAT
BUTTON SKIP BAR
CD BUTTON
RANDOM
BUTTON
REPEAT
BUTTON CD SLOT
CD EJECT BUTTON
CD BUTTON
Page 142 of 296
Comf ort and Convenience Feat ures

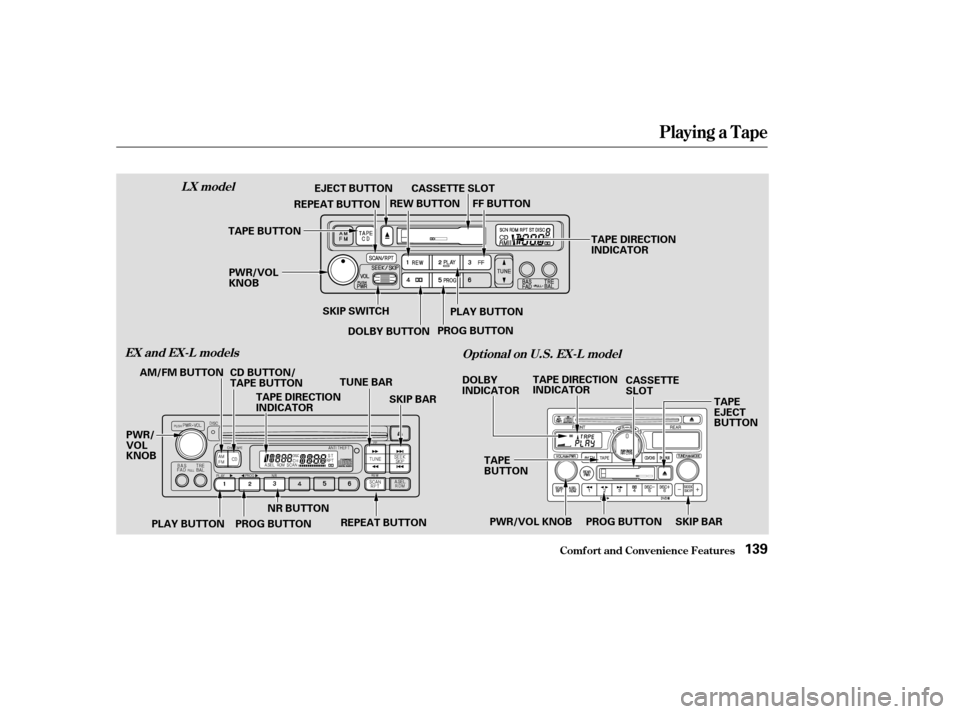

Playing a T ape
EX and EX-L modelsLX model
Opt ional on U.S. EX-L model
139
TUNE BARREW BUTTON
TAPE BUTTON
PWR/VOL
KNOB SKIP SWITCH PLAY BUTTON
REPEAT BUTTON
EJECT BUTTON
FF BUTTON
DOLBY BUTTON PROG BUTTON
PLAY BUTTON PROG BUTTON NR BUTTON
CD BUTTON/
TAPE BUTTON
SKIP BAR
REPEAT BUTTON
PWR/
VOL
KNOB
TAPE DIRECTION
INDICATOR
DOLBY
INDICATOR
TAPE
BUTTON PROG BUTTON SKIP BAR
TAPE DIRECTION
INDICATOR
CASSETTE
SLOT
TAPE
EJECT
BUTTON
PWR/VOL KNOB
CASSETTE SLOT
TAPE DIRECTION
INDICATOR
AM/FM BUTTON
Page 143 of 296
Ûµ
µ
Î
Î
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Make sure the open side of the tape
is facing right, then insert the tape
most of the way into the slot. The
system will pull the tape in the rest
of the way, and begin to play it.
The tape direction indicator will light
to show you which side of the tape is
playing. The indicates the side
youinsertedupwardinnowplaying.
If you want to play the other side,
press the PROG button. When the
player reaches the end of the tape, it
will automatically reverse direction
and play the other side. Dolby noise reduction turns on
when you insert a tape. The
indicator will come on in the
display. If the tape was not recorded
in Dolby, turn it of f by pressing the
NR ( ) button. Dolby remains
of f until you press the NR ( )
button again. To remove the tape, press the tape
EJECT button. If you want to turn
the player of f , press the PWR/VOL
knob or turn of f the ignition. The
tape will remain in the drive. When
youturnthesystembackon,the
tape will begin playing where it lef t
of f .
When you
turn the system back on, the tape
will be in pause mode. Press the
PLAY button to resume play.
You
can remove the tape with ignition
switch in any position, even if the
audio system is of f
To switch to the radio or CD player
while a tape is playing, press the
AM/FM or CD button. To change
back to the tape player, press the
TAPE button (CD button on EX and
EX-L).
Dolby noise reduction manuf actured under
license from Dolby Laboratories Licensing Corpo-
ration. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
EX and EX-L models
Optional on U.S. EX-L model
Optional on EX and EX-L models
Playing a T ape
Comf ort and Convenience Feat ures
To Play a Tape
To Stop Playing a Tape
140
Page 152 of 296
Use these buttons to select the
entertainment source (radio, tape
player, CD player/CD changer, or
DVD player/Auxiliary device). The
selected source will be shown in the
display. Make sure the rear control
operation has not been disabled with
theRRCTRLknobonthefront
panel.
Use the and buttons to
select from the stations on the radio
preset buttons. Pressing the orbutton will cause the system to
search up or down the band f or a
station with a strong signal. You will
seeSEEKinthedisplay.

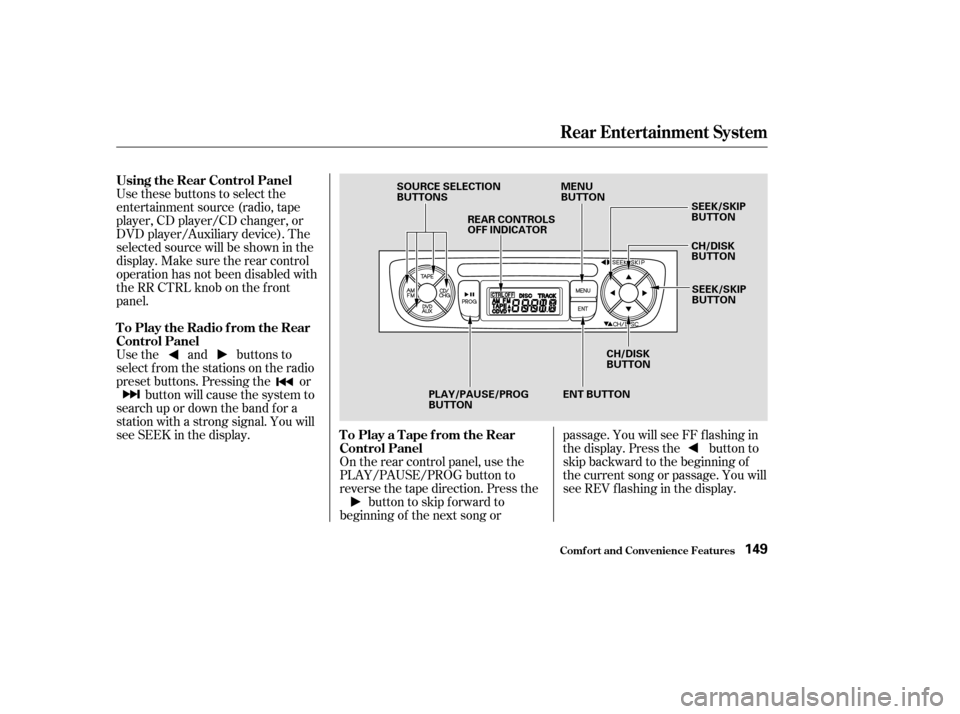

On the rear control panel, use the
PLAY/PAUSE/PROG button to
reverse the tape direction. Press thebutton to skip forward to
beginning of the next song or passage. You will see FF f lashing in
the display. Press the button to
skip backward to the beginning of
the current song or passage. You will
seeREVflashinginthedisplay.
Rear Entertainment System
Comf ort and Convenience Feat ures
Using the Rear Control Panel
To Play the Radio f rom the Rear
Control Panel
To Play a Tape f rom the Rear
Control Panel
149
SOURCE SELECTION
BUTTONSREAR CONTROLS
OFF INDICATOR MENU
BUTTON
SEEK/SKIP
BUTTON
CH/DISK
BUTTON
SEEK/SKIP
BUTTON
CH/DISK
BUTTON
ENT BUTTON
PLAY/PAUSE/PROG
BUTTON
