Devices intended to improve
occupant comf ort or reposition the
shoulder part of a seat belt can
reduce the protective capability of
the seat belt and increase the
chance of serious injury in a crash.
Carrying hard or sharp
objects on your lap, or driving with
a pipe or other sharp objects in
your mouth, can result in injuries
if your f ront airbag inf lates.
If your
hands or arms are close to an
airbag cover, they could be injured
if the airbag inf lates. Objects on
the covers marked ‘‘SRS AIRBAG’’
could interf ere with the proper
operation of the airbags. Or, if the
airbags inflate, the objects could
be propelled inside the vehicle and
hurt someone.
If a side airbag
inflates,acupholderorotherhard
object attached on or near the
door could be propelled inside the
vehicle and hurt someone.
This could make the driver’s
seat position sensor or the f ront
passenger’s seat weight sensors
inef f ective (see page f or
more inf ormation). This could
cause problems with the driver’s
seat position sensor or the f ront
passenger’s seat weight sensors
(see page f or more
inf ormation). 28
34
Protecting A dults and Teens
Driver and Passenger Saf ety
Do not put any accessories on seat belts.
Do not place hard or sharp object sbet ween yourself and a f rontairbag.
K eep your hands and arms awayf rom t he airbag covers. Do not at t ach or place object s on
the f ront airbag covers.
Do not at t ach hard object s on ornear a f ront door.
Do not modif y t he f ront seat s. Do not place any it ems under
t he f ront seat s.
19

Two side airbags, one f or the
driver and one f or a f ront
passenger. The airbags are stored
in the outer edges of the seat-
backs. Both are marked ‘‘SIDE
AIRBAG’’ (see page ).
Automatic seat belt tensioners
(see page ).
Sensors that can detect a
moderate to severe frontal or side
impact.
Your Airbag System includes:
Two SRS (Supplemental Restraint
System) f ront airbags. The driver’s
airbag is stored in the center of
the steering wheel; the f ront
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG’’ (see page ).
22 29
25
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
A irbag System Components
24
(8)
(3)
(4)
(6)
(10)
(5) (11) (1) (8) (9)
(2)
(10)
(4)
(7)
(5)
(7)

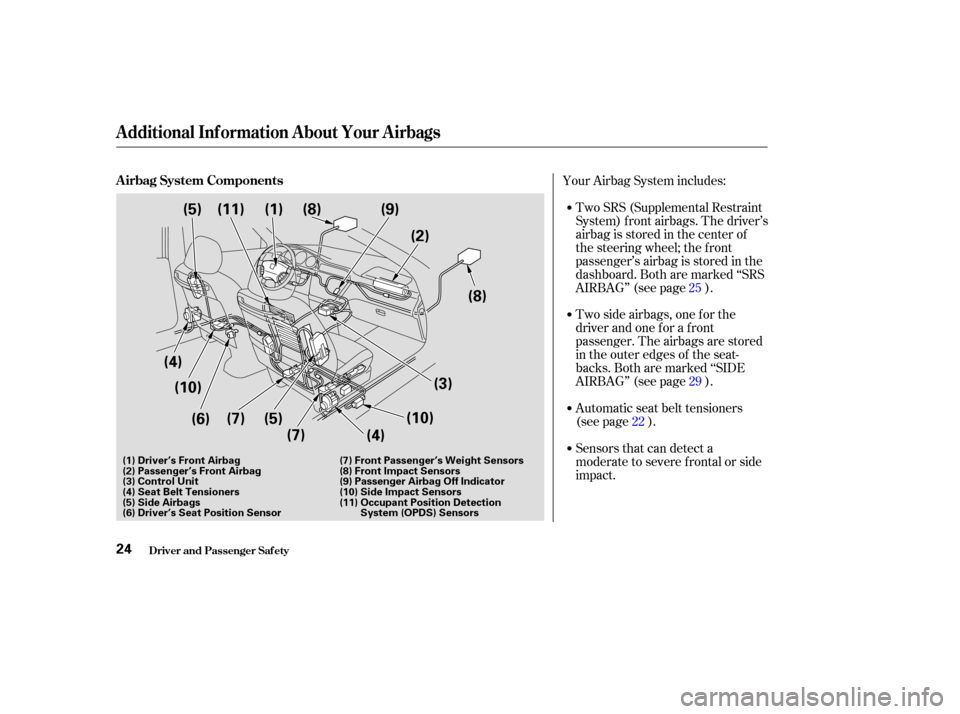

(1) Driver’s Front Airbag
(2) Passenger’s Front Airbag
(3) Control Unit
(4) Seat Belt Tensioners
(5) Side Airbags
(6) Driver’s Seat Position Sensor (7) Front Passenger’s Weight Sensors
(8) Front Impact Sensors
(9) Passenger Airbag Off Indicator
(10) Side Impact Sensors
(11) Occupant Position Detection
System (OPDS) Sensors

CONT INUED
A sophisticated electronic system
that continually monitors and
records inf ormation about the
sensors, the control unit, the
airbag activators, and driver and
frontpassengerseatbeltusewhen
the ignition is in the ON (II)
position.
Weight sensors that monitor the
weight on the f ront passenger’s
seat. These prevent the passenger’s
f ront airbag f rom inf lating if the
weight is less than about 65 lbs
(30 kg) (see page ).
An indicator on the instrument
panel that alerts you to a possible
problem with your airbags (see
page ).An indicator on the instrument
panel that alerts you that the f ront
passenger’s side airbag has been
turned of f (see page ).
An indicator on the dashboard that
alerts you that the passenger’s
f ront airbag has been turned of f
(see page ).
Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.
A driver’s seat position sensor that
monitors the seat position. If the
seat is too far forward, the airbag
will inf late with less f orce (see
page ).
If you ever have a moderate to
severe f rontal collision, sensors will
detect the vehicle’s rapid
deceleration. If the rate of
deceleration is high enough, the
control unit will instantly inf late the
driver’s and f ront passenger’s f ront
airbags, at the appropriate time and
with the f orce needed.
28
30 31
32
28
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
How Your Front Airbags Work
25

CONT INUED
Your f ront airbags are dual-stage
airbags. This means they have two
inf lation stages that can be ignited
sequentially or simultaneously,
depending on crash severity.
In acrash, both stages
will ignite simultaneously to provide
the quickest and greatest protection.
In a crash, one stage will
ignite first, then the second stage
will ignite a split second later. This
provides longer airbag inf lation time
with a little less force. Your f ront airbags are also dual-
threshold airbags. Airbags with this
f eature have two deployment
thresholds that depend on whether
or not the occupant is wearing a seat
belt.
If the occupant’s belt is
,
the airbag will deploy at the same
threshold as a conventional airbag,
because the occupant would need
extra protection.
It the occupant’s belt is , the
airbag will inf late at a slightly higher
threshold, when the airbag would be
needed to supplement the protection
provided by the seat belt. Your f ront airbags are also advanced
airbags. The main purpose of this
feature is to prevent airbag-caused
injuries to short drivers and children
who ride in f ront.
In addition, do not spill any liquids,
cover the sensors, or put any cargo
or metal objects under the f ront
seats. Ask second row passengers to
not put their f eet under the f ront
seats. Any of these actions could
damage the sensors or prevent them
f rom working properly. For the advanced airbags to work
properly, occupants must sit upright
and wear their seat belts properly. If
a child seat is installed in the f ront, it
must be properly secured.
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
Dual-Stage A irbags
more severeless severe Dual-T hreshold A irbags
not lat chedlatchedAdvanced Airbags
27

If there is a problem with the seat
position sensor, the SRS indicator
will come on in the instrument panel.
In this case, the driver’s airbag will
inf late in the normal manner during
a crash regardless of the driver’s
seating position. The driver’s advanced front airbag
system includes a seat position
sensor under the seat. If the seat is
positioned too f ar f orward, the
airbag will inf late sequentially,
regardless of the severity of the
impact.The passenger’s advanced f ront
airbag system has weight sensors
under the seat. If the sensors detect
a total weight on the seat of about 65
lbs (30 kg) or less, the system will
automatically turn the passenger’s
front airbag off.
When the airbag is turned of f , an
indicator in the center of the
dashboard will come on indicating
‘‘Passenger Airbag Of f ’’ (see page). If there is no passenger in the f ront
seat, the
but the
indicator .
To ensure that the passenger’s
advanced front airbag system will
work properly,
This includes: A rear passenger pushing or
pulling on the back of the
passenger’s seat.
Moving the f ront seat f orcibly
back against cargo on the seat or
f loor behind it.
Hanging heavy items on the f ront
passenger seat, or placing heavy
items in the seat-back pocket.
32
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
airbag will be of f will not come on
do not do anyt hing
t hat would increase or decrease t he weight on t he f ront passenger’s seat .
28

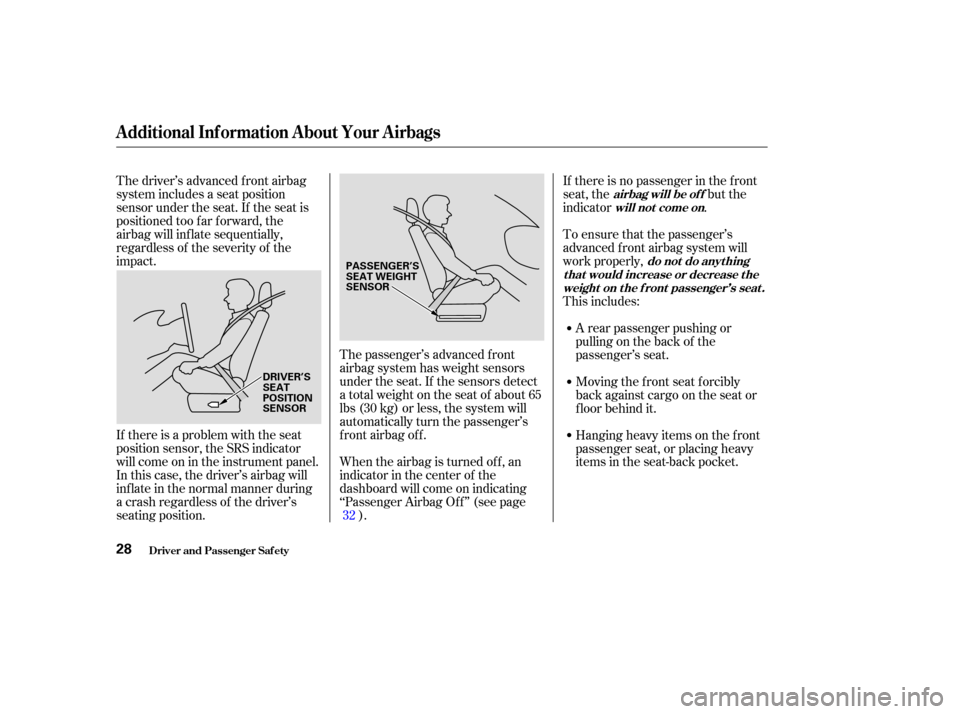

DRIVER’S
SEAT
POSITION
SENSOR PASSENGER’S
SEAT WEIGHT
SENSOR

If you ever have a moderate to
severe side impact, the sensors will
detect rapid deceleration and signal
the control unit to instantly inf late
either the driver’s or the passenger’s
side airbag.
Only one airbag will deploy during a
side impact. If the impact is on the
passenger’s side, the passenger’s
side airbag will deploy even if there
is no passenger.The passenger’s side airbag has a
cutof f system designed to turn of f
the passenger’s side airbag if a child’s
head is in the airbag’s deployment
path (see page ).
A f ront seat passenger should not
use a cushion or other object as a
backrest. It may prevent the cutof f
system f rom working properly.
If a short adult leans sideways, or a
larger adult slouches and leans
sideways into the side airbag
deployment path, the system may
also shut of f the side airbag.
If the side airbag of f indicator comes
on, have the passenger sit upright.
Once the passenger is out of the
deployment path of the side airbag,
the system will turn the airbag back
on and the indicator will go out.
To get the best protection f rom the
side airbags, front seat occupants
should wear their seat belts and sit
upright and well back in their seats. When you turn the ignition to ON
(II), the indicator should come on
brief ly and go out (see page ). If it
doesn’t come on, stays on, or comes
on while driving without a passenger
in the front seat, have the system
checked.
31
61
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
How Your Side A irbags Work
29

Your airbag systems are virtually
maintenance-f ree, and there are no
parts you can saf ely service.
However, you must have your
vehicle serviced if:Any airbag
that has deployed must be
replaced along with the control
unit and other related parts. If a
f ront airbag inf lates the seat belt
tensioners must also be replaced.
Do not try to remove or replace
anyairbagbyyourself.Thismust
be done by a Honda dealer or a
knowledgeable body shop.
Take your vehicle to an
authorized Honda dealer as soon
as possible. If you ignore this
indication, your airbags may not
operate properly. your dealer
should inspect the driver’s seat
position sensor and the f ront
passenger’s weight sensors to
make sure they are operating
properly.
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
Airbag Service
An airbag ever inf lates.
T he SRS indicat or alert s you t o aproblem. If your vehicle has a moderat e t o
severe impact , and even if yourairbags do not inf late,
33

Together, airbags and
seat belts provide the best
protection.
Tampering could cause
the airbags to deploy, possibly
causing very serious injury.
If water or another liquid
soaks into a seat-back, it can
prevent the side airbag cutof f
system f rom working properly.
This could make the
driver’s seat position sensor and
the f ront passenger’s weight
sensors inef f ective. Improperly
replacing or covering f ront seat-
back covers can prevent your side
airbags f rom inf lating during a
side impact.
This could make the driver’s seat
position sensor and the f ront
passenger’s weight sensors
inef f ective.
Pushing or
pulling on the back of the seat,
placing heavy items in the back
seat pocket, pushing cargo against
the seat, or hanging heavy items
on the seat back can interf ere with
the proper operation of the
passenger’s advanced front airbag. This could make the
driver’s seat position sensor or the
f ront passenger’s weight sensors
inef f ective. If it is necessary to
remove or modif y a f ront seat to
accommodate a person with
disabilities, f irst contact American
Honda at 800-999-1009.
Additional Saf ety Precautions
Donotattempttodeactivateyour
airbags.
Do not t amper wit h airbagcomponent s or wiring f or anyreason.
Do not expose t he f ront seat -backsto liquid.
Do not place any it ems under t hefront seats. Do not cover or replace f ront seat -
back covers wit hout consult ing aHonda dealer.
Do not modif y t he f ront seat s.Do not do anyt hing t hat wouldincrease or decrease weight on t hef ront passenger’s seat . Do not remove or modif y a f ront
seat wit hout consult ing a Hondadealer.
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety34

µ
Even if the passenger’s f ront airbag
is turned of f , we strongly
recommend that children age 12 and
under ride properly restrained in a
back seat where they will be saf er.
Front airbags have been designed to
help protect adults in a moderate to
severe f rontal collision. To do this
the passenger’s f ront airbag is quite
large and it can inf late with enough
f orce to cause very serious injuries.
To help prevent airbag-caused
injuries to children, this vehicle has
an advanced airbag system.
With this system, the front
passenger’s airbag is turned of f if
sensors detect a total weight of less
thanabout65lbs(30kg)intheseat.
(See page f or additional
inf ormation about how the f ront
passenger’s advanced airbag works.)
According to accident statistics,
children of all ages and sizes are
saf er when they are restrained in a
back seat. The National Highway
Traffic Safety Administration and
Transport Canada recommend that
all children age 12 and under be
properly restrained in a back seat.
Children who ride in back are less
likely to be injured by striking
interior vehicle parts during a
collision or hard braking. Also,
children cannot be injured by an
inf lating airbag when they ride in the
back.
27
Protecting Children General Guidelines
Driver and Passenger Saf ety
The Passenger’s Front Airbag
Can Pose Serious Risks
All Children Should Sit in a Back
Seat
36

This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates a potential problem with
your f ront airbags or automatic seat
belt tensioners. This indicator will
also alert you to a potential problem
with your side airbags, passenger’s
side airbag automatic cutoff system,
driver’s seat position sensor, or f ront
passenger’s weight sensors. For
more inf ormation, see page .This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates that the passenger’s side
airbag has automatically shut off.
For more inf ormation, see page .
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II), and when
the ignition switch is turned to
START (III). If it comes on at any
other time, there is a problem in the
ABS. If this happens, have your
vehicle checked by your Honda
dealer. With this indicator on, your
vehicle still has normal braking
ability but no anti-lock. For more
inf ormation, see page .
30 31
190
Instrument Panel Indicators
Inst rument s and Cont rols
Supplemental Restraint
System Indicator Side Airbag Of f Indicator
Anti-lock Brake System (ABS)
Indicator
61
Canada
U.S.
