Open the upper glove box by
pressing the button. The lid will
swing open. Close it with a f irm push.
Open the lower glove box by pulling
the bottom of the handle. Close it
with a f irm push. Lock or unlock the
glove box with the master key.
Interior Convenience Items
LowerGloveBox
UpperGloveBox
180
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove boxes
closed while driving.

Open the center pocket by pulling
thehandle.Closeitwithafirmpush.On vehicles without navigation
system, there is another pocket
under the heating and cooling
system control panel. Pull the handle
to open it. Close it with a f irm push.
Center Pocket
Interior Convenience Items
Inst rument s and Cont rols
181
Vehicles without RES
Vehicles with RES

There are three accessory power
sockets in your vehicle. Two
accessory power sockets are above
the center pocket for the front seat
passengers, and another is on the
cargo area sidewall on the driver’s
side.These sockets are intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).
None of the sockets will power an
automotive type cigarette lighter
element. When more than one
socket is being used, the combined
power rating of the accessories
should be 120 watts or less
(10 amps).
There is a 115 volt AC power outlet
in the rear compartment on the
driver’s side. To use the AC power
outlet, open the rear compartment
lid and open the outlet cover. Insert
the plug into the receptacle slightly,
turn it 90° clockwise, then push in
the plug all the way.
Always run the engine when you use
the AC Power Outlet.
A ccessory Power Sockets
A C Power Outlet
Interior Convenience Items
182

The individual map lights in the
second and third rows cannot be
turned on.
The cargo area light can be turned
on with the switch in the light.Door
Activated
The light control switch has three
positions: OFF, Door Activated, and
ON. OFF
None of the lights come on when a
door or the tailgate is opened.
The individual map lights in the
f ront can be turned on and of f by
pressing the lenses.
The maximum capacity f or this
power outlet is 115 volt AC at 100
watts or less. If you use an appliance
which requires more than 100 watts,
it automatically stops supplying the
power. If this happens, turn the
ignition switch of f and turn it on
again.
The AC power outlet is not
designed f or electric appliances
which require high initial peak
wattage such as cathode-ray tube
type televisions, ref rigerators,
electric pumps, etc. It is also not
suitable f or devices that process
precise data such as medical
equipment or measuring instruments.
Any appliances that require an
extremely stable power supply such
as microcomputer-controlled electric
blankets, touch sensor lamps, etc.,
should not be connected to this
outlet. The individual map lights in the
f ront come on when any door is
opened. When the doors are
closed, each light can be turned on
and of f by pressing the lenses.
The individual map lights in the
second and third rows come on
when any door is opened. When
the doors are closed, each light
canbeturnedonandoff by
pushingonthelens.
When the switch is in the
position:
When this switch is in the position:
CONT INUED
L ight Control Switch
Interior Convenience Items, Interior L ights
Inst rument s and Cont rols
183
NOTE:
ON DOOR ACTIVATED
POSITION
OFF
LIGHT CONTROL
SWITCH

Turn on the f ront and rear individual
map lights by pushing the lens of
each light. Push the lens again to
turn it of f . You can also operate
these lights with the light control
switch (see page ).
The lights go out about 30 seconds
after all the doors and the tailgate
are closed. They go out immediately
af ter all doors are locked.
With the light control switch in the
Door Activated position, all the
individual map lights come on when
you unlock the door with the remote
transmitter (see page ).
Withanydoororthetailgateleft
open, the lights stay on about 3
minutes, then go out.
ON
All the individual map lights come
onandstayonaslongasthe
switch remains in the ON position.
183
133
When the light control switch is in the
position: On EX and Touring modelsIndividual Map L ights
Interior Lights
184
FRONT

The ignition switch light comes on
when you open the driver’s door, and
stays on several seconds af ter you
close the door.
The cargo area light has a three-
position switch. In the OFF position,
the light does not come on. In the
center position, it comes on when
you open the tailgate. In the ON
position, it stays on continuously. Ignition Switch L ight
Cargo Area Light
Interior Lights
Inst rument s and Cont rols
185
OFF
ON
REAR

The courtesy lights in the f ront
doors come on when you open any
door.The courtesy light between the map
lights comes on when you turn the
parking lights on. To adjust its
brightness, turn the Select/Reset
knob on the instrument panel.
Interior Lights
Courtesy Lights
186

The standard audio system has
many f eatures. This section de-
scribes those f eatures and how to
use them. (If you selected an
optional audio system, ref er to the
operating instructions that came
with it.) The heating and air conditioning
systems in your vehicle provide a
comf ortable driving environment in
all weather conditions.
The security system helps to dis-
courage vandalism and thef t of your
vehicle. Your vehicle has an anti-theft audio
system that requires a code number
to enable it..............
Vents, Heating, and A/C . 188
Using Automatic Climate ...................................
Control .193
.........
Using the Rear A/C Unit . 194
...................
Rear Climate Control . 197
..............
Climate Control Sensors . 198
..........
Playing the AM/FM Radio . 199
............
AM/FM Radio Reception . 205
...
Playing the XM Satellite Radio . 207
..................................
Playing a CD .212
...................................
CD Changer .215
....................
Protecting Your CDs .221
.....
CD Changer Error Messages . 222
...............................
Playing a Tape .223
.............
Steering Wheel Controls . 228
.................
Radio Thef t Protection . 229
........
Rear Entertainment System . 230
..............................
Playable DVDs .258
............................
Security System .263
...............................
Cruise Control .264
HomeLink Universal ................................
Transceiver .267
................
Parking Sensor System . 271
.
Rear View Camera and Monitor . 275
Features
Features
187

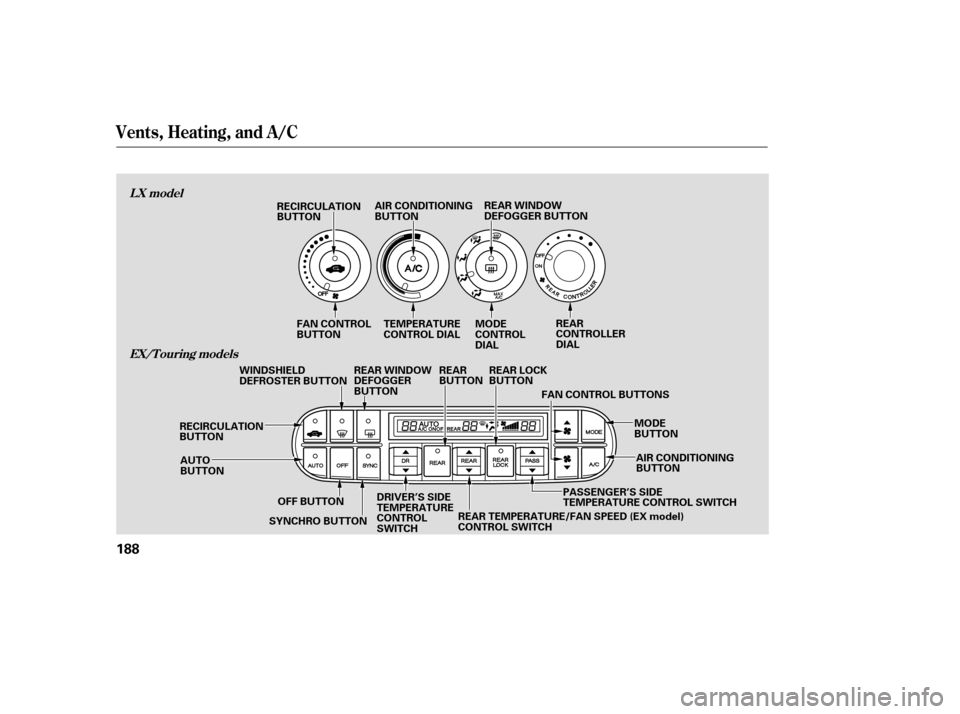

Vents, Heating, and A/C
LX modelEX/T ouring models
188
RECIRCULATION
BUTTON AIR CONDITIONING
BUTTON
REAR WINDOW
DEFOGGER BUTTON
FAN CONTROL
BUTTON MODE
CONTROL
DIAL
MODE
BUTTONAIR CONDITIONING
BUTTON
AUTO
BUTTON
RECIRCULATION
BUTTON TEMPERATURE
CONTROL DIAL
REAR
CONTROLLER
DIAL
WINDSHIELD
DEFROSTER BUTTON REAR WINDOW
DEFOGGER
BUTTONREAR
BUTTON
REAR LOCK
BUTTON
FAN CONTROL BUTTONS
OFF BUTTON
SYNCHRO BUTTON DRIVER’S SIDE
TEMPERATURE
CONTROL
SWITCH PASSENGER’S SIDE
TEMPERATURE CONTROL SWITCH
REAR TEMPERATURE/FAN SPEED (EX model)
CONTROL SWITCH

Û
Ý
ÛÝ
Turn the dial clockwise to increase
the fan speed and airflow. Turn the
dial counterclockwise to decrease it.
Press the button to increase
the fan speed and airflow. Press the button to decrease it.
Turning this dial clockwise increases
the temperature of the airflow.
The driver’s side temperature and
the passenger’s side temperature can
be set separately. On the Touring
model, the rear passenger
compartment temperature can also
be set separately. Press the top ( )
of the appropriate temperature
control button to increase the
temperature of airflow. Press the bottom ( ) of the button to
decrease it. Each set temperature is
shown in the display. When you turn
the A/C off, the system cannot
regulate the inside temperature if
you set the temperature control
below the outside temperature.
When you set the temperature to its
lower limit or its upper limit, it will be
displayed as ‘‘Lo’’ or ‘‘Hi’’.
When you press this button, the
indicator in the button comes on, and
the passenger’s side temperature
(and the temperature of the rear
passenger compartment on the
Touring model) is synchronized to
the driver’s side set temperature.
Changing the passenger’s side
temperature (or the temperature of
the rear passenger compartment on
the Touring model) makes the
indicator to go of f , and takes thesystem out of SYNC mode.
This button turns the air
conditioning on and of f . On the LX
model, the indicator in the button is
on when the A/C is on. On the EX
and Touring models, you will see
A/C ON or A/C OFF in the display.
The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris. When the indicator in the button is
on, air f rom the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode).
CONT INUED
LX model
LX modelEX and Touring models
EX and Touring models
On EX and Touring models
Vents, Heating, and A/C
Fan Control
T emperature Control Air Conditioning (A/C) Button
Recirculation Button
SYNC Button
Features
