The standard audio system has
many f eatures. This section de-
scribes those f eatures and how to
use them. (If you selected an
optional audio system, ref er to the
operating instructions that came
with it.) The heating and air conditioning
systems in your vehicle provide a
comf ortable driving environment in
all weather conditions.
The security system helps to dis-
courage vandalism and thef t of your
vehicle. Your vehicle has an anti-theft audio
system that requires a code number
to enable it..............
Vents, Heating, and A/C . 188
Using Automatic Climate ...................................
Control .193
.........
Using the Rear A/C Unit . 194
...................
Rear Climate Control . 197
..............
Climate Control Sensors . 198
..........
Playing the AM/FM Radio . 199
............
AM/FM Radio Reception . 205
...
Playing the XM Satellite Radio . 207
..................................
Playing a CD .212
...................................
CD Changer .215
....................
Protecting Your CDs .221
.....
CD Changer Error Messages . 222
...............................
Playing a Tape .223
.............
Steering Wheel Controls . 228
.................
Radio Thef t Protection . 229
........
Rear Entertainment System . 230
..............................
Playable DVDs .258
............................
Security System .263
...............................
Cruise Control .264
HomeLink Universal ................................
Transceiver .267
................
Parking Sensor System . 271
.
Rear View Camera and Monitor . 275
Features
Features
187

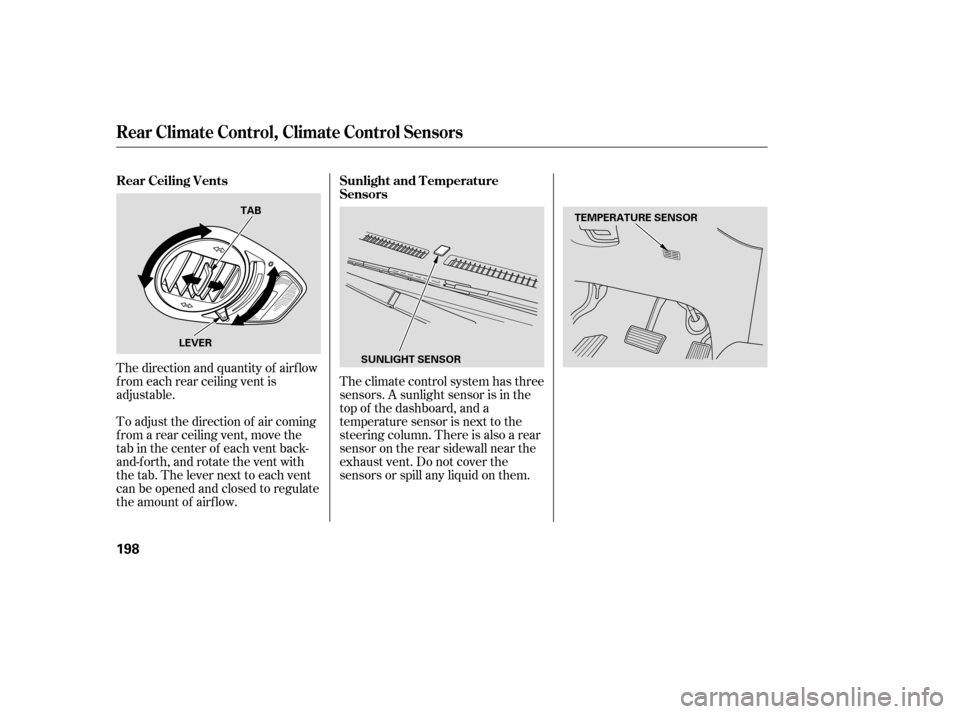

The direction and quantity of airf low
f rom each rear ceiling vent is
adjustable.
To adjust the direction of air coming
f rom a rear ceiling vent, move the
tab in the center of each vent back-
and-forth, and rotate the vent with
the tab. The lever next to each vent
can be opened and closed to regulate
the amount of airf low.Theclimatecontrolsystemhasthree
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. There is also a rear
sensor on the rear sidewall near the
exhaust vent. Do not cover the
sensors or spill any liquid on them. Sunlight and T emperature
Sensors
Rear Ceiling Vents
Rear Climate Control, Climate Control Sensors
198
SUNLIGHT SENSOR TEMPERATURE SENSOR
TAB
LEVER

Your vehicle has a parking sensor
system. The system lets you know
theapproximatedistancebetween
your vehicle and most obstacles
while you are parking. When the
system is on and your vehicle is
nearinganobstacle,youwillhear
beeping and see parking messages in

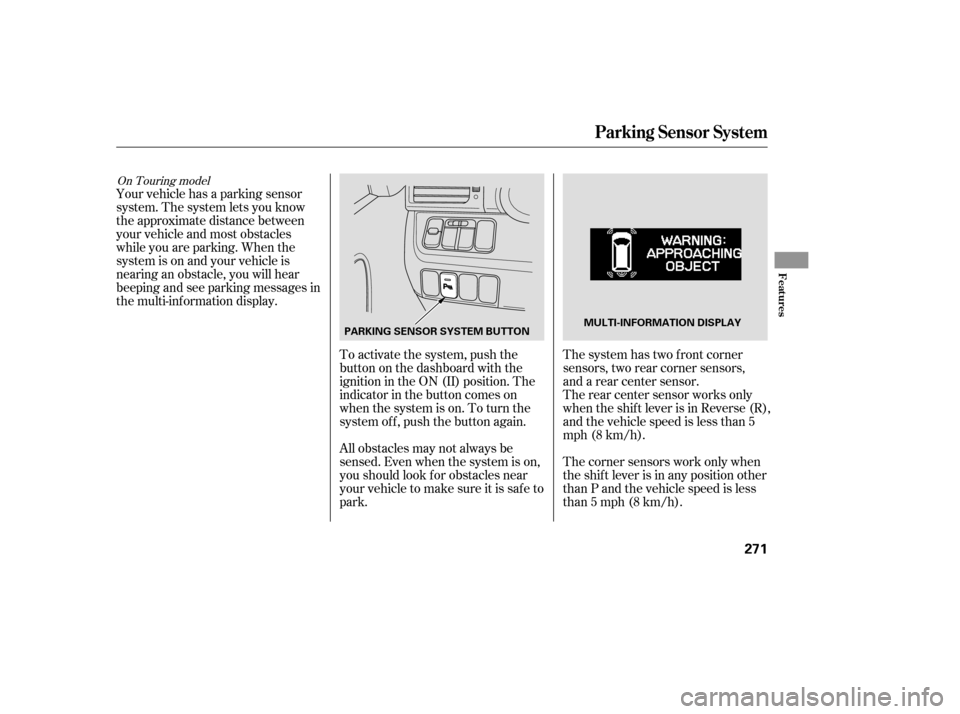

the multi-information display.To activate the system, push the
button on the dashboard with the
ignition in the ON (II) position. The
indicator in the button comes on
when the system is on. To turn the
system of f , push the button again.The system has two front corner
sensors, two rear corner sensors,
and a rear center sensor.
The rear center sensor works only
when the shif t lever is in Reverse (R),
and the vehicle speed is less than 5
mph (8 km/h).
The corner sensors work only when
the shif t lever is in any position other
than P and the vehicle speed is less
than 5 mph (8 km/h).
All obstacles may not always be
sensed. Even when the system is on,
you should look f or obstacles near
yourvehicletomakesureitissafeto
park.
On Touring model
Parking Sensor System
Features
271
PARKING SENSOR SYSTEM BUTTON
MULTI-INFORMATION DISPLAY

Example shown: Obstacle is at the lef t f ront of the vehicle
When the system senses an obstacle,
the appropriate indicator comes on,
and a beeper sounds as shown in the
f ollowing tables. When you turn the system on, all
indicators come on in the multi-
inf ormation display, and a beeper
sounds once. Distance
BeeperAbout 16-20 in
(40-50 cm)
About 12-16 in
(30-40 cm)
Upper lef t
indicator stays on
Short beeps Continuous
beep
Indicators
and
Messages
Very short beepsAbout 12 in
(30 cm) or less
Upper lef t
indicator stays on Upper lef t
indicator stays on
Parking Sensor System
Corner Sensor Operat ionMulti-Inf ormation Display
Messages and Beeper Operation
272

If the system develops a problem,
you will see a ‘‘CHECK PARKING
SENSOR SYSTEM’’ message in the
multi-inf ormation display, and a
beeper sounds continuously. Very
of ten, a sensor covered with mud, ice,
snow,etc.isthecauseof this
message. Check the sensors f irst. If
the message stays on or the beeper
does not stop, have the system
checked by your dealer.
Distance
Beeper Short beeps
Continuous
beeps
Indicators
and
Messages
Very short beeps
Bottom
indicator stays on About 40-70 in
(1-1.8 m)
About 24-40 in
(0.6-1 m)
About 24 in
(0.6 m) or less
Bottom
indicator stays on Bottom
indicator stays on
CONT INUED
Parking Sensor System
Rear Cent er Sensor Operat ion
Features
273

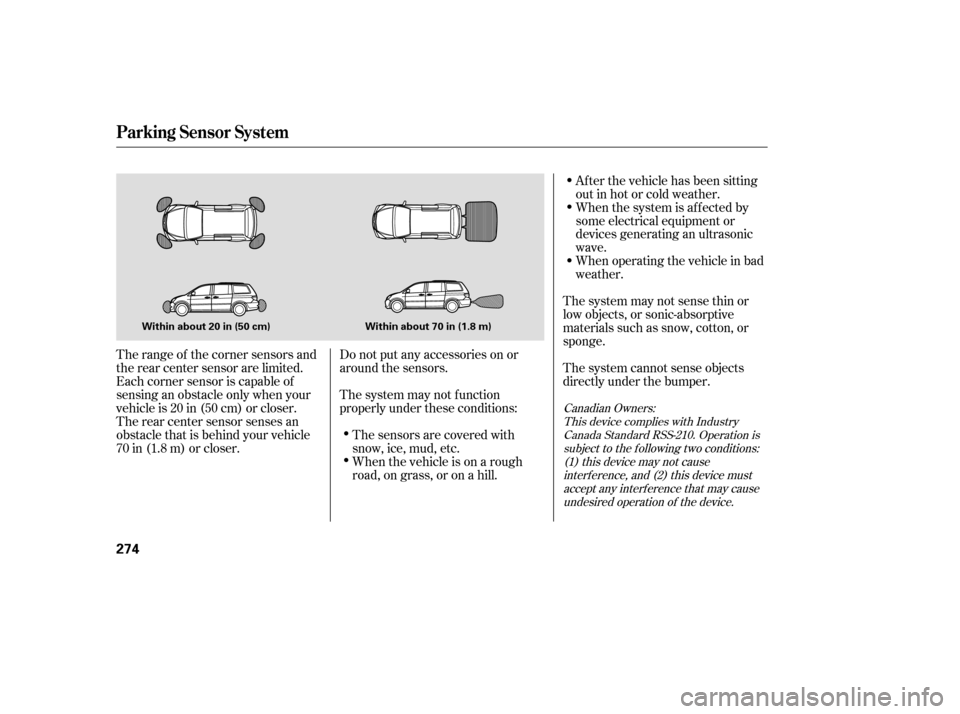

The range of the corner sensors and
the rear center sensor are limited.
Each corner sensor is capable of
sensing an obstacle only when your
vehicleis20in(50cm)orcloser.
The rear center sensor senses an
obstacle that is behind your vehicle
70 in (1.8 m) or closer.Do not put any accessories on or
around the sensors.
The system may not f unction
properly under these conditions: After the vehicle has been sitting
out in hot or cold weather.
When the system is af f ected by
some electrical equipment or
devices generating an ultrasonic
wave.
When operating the vehicle in bad
weather.
The system may not sense thin or
low objects, or sonic-absorptive
materials such as snow, cotton, or
sponge.
The system cannot sense objects
directly under the bumper.
The sensors are covered with
snow,ice,mud,etc.
When the vehicle is on a rough
road, on grass, or on a hill.
This device complies with Industry Canada Standard RSS-210. Operation issubject to the f ollowing two conditions:(1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Canadian Owners:
Parking Sensor System
274
Within about 20 in (50 cm)
Within about 70 in (1.8 m)

Your vehicle is equipped with a tire
pressure monitoring system (TPMS)
that turns on every time you start the
engine and monitors the pressure in
your tires while driving.
You will see the above display on the
multi-inf ormation display when you
turn the ignition switch to ON (II)
andpresstheINFObuttononthe
steering wheel six times.To see the inf lation pressures of all
f our tires, press the SEL/RESET
buttononthesteeringwheel.The
display changes as shown above.
Each tire has its own pressure
sensor. If the air pressure of a tire
becomes signif icantly low, the
sensor in that tire immediately sends
a signal that causes the low tire
pressure indicator in the instrument
panel to come on. If this happens,
you will see which tire is losing the
pressure in the multi-information
display along with a ‘‘CHECK TIRE
PRESSURE’’ message.
CONT INUED
On U.S. Touring model only
Tire Pressure Monitoring System (TPMS)
Driving
303

The exhaust emissions controls
include f our systems: PGM-FI,
ignition timing control, exhaust gas
recirculation and three way catalytic
converter. These f our systems work
together to control the engine’s
combustion and minimize the
amount of HC, CO, and NOx that
comes out the tailpipe. The exhaust
emissions control systems are
separate f rom the crankcase and
evaporative emissions control
systems.
The PGM-FI system uses sequential
multiport f uel injection.
It has three subsystems: air intake,
engine control, and f uel control. The
powertrain control module (PCM)
uses various sensors to determine
how much air is going into the
engine. It then controls how much
f uel to inject under all operating
conditions.This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
The exhaust gas recirculation (EGR)
system takes some of the exhaust
gas and routes it back into the intake
manif old. Adding exhaust gas to the
air/f uel mixture reduces the amount
of NOx produced when the f uel is
burned.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), nitrogen
(N ), and water vapor.
The emissions control systems are
designed and certif ied to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Honda replacement parts or their
equivalent f or repairs. Using lower
qualitypartsmayincreasethe
emissions f rom your vehicle.
The emissions control systems are
covered by warranties separate from
the rest of your vehicle. Read your
warranty manual f or more informa-
tion.
2
2
Exhaust Emissions Controls Replacement Parts
PGM-FI Syst emIgnit ion T iming Cont rol Syst em
Exhaust Gas Recirculat ion (EGR)Syst em
Three Way Catalytic Converter
Emissions Cont rols
T echnical Inf ormation
393

........................
Low Coolant Level .282
.........................
Low Fuel Indicator .68
...
Low Oil Pressure Indicator . 63,371
................................
Lower Anchors .45
..........................
Lower Glove Box .180
...
Lubricant Specif ications Chart . 386
...........
Luggage Net (Cargo Net) . 289
...........
Luggage, Storing (Cargo) . 286
..................................
Maintenance .313
................................
Minder .315-324
...
Owner Maintenance Checks . 323
.................................
Record .325-326
......................
Required Indicator .70
..........................................
Saf ety .314
.
Malf unction Indicator Lamp . 63,372
...................
Manual Sliding Doors . 142
...............................
Meters, Gauges .71
..................
Michilen PAX System . 356
........................
Mirrors, Adjusting .167
.................................
Modif ications .284
...............
Modif ying Your Vehicle . 284
.......................................
Moonroof .166 Moving the Second Row Bucket
.............................................
Seat .154
.............
Multi-Inf ormation Display . 74
...................
Neutral Gear Position . 295
..................
New Vehicle Break-in . 278
...................
NOTICE, Explanation of . i
...............
Numbers, Identif ication . 384
...
Octane Requirement, Gasoline . 278
.........................................
Odometer .72
...............................
Odometer, Trip .72
Oil ........................
Change, How to .329
......................
Change, When to .315
......................
Checking Engine .281
..............
Pressure Indicator . 63,371
Selecting Proper Viscosity ......................................
Chart .328
.........
ON (Ignition Key Position) . 130
Onboard Ref ueling Vapor ....................................
Recovery .392 ............................
Outside Mirrors .167
....................
Overheating, Engine .369
.......
Owner Maintenance Checks . 323
.........................
Oxygenated Fuels .278
............
Panel Brightness Control . 125
........................
Park Gear Position .295
...........................................
Parking .298
...............................
Parking Brake .169
Parking Brake and Brake .................
System Indicator . 63,373
...............................
Parking Lights .122
................
Parking Sensor System . 271
..
Parking Over Things that Burn . 298
....
Passenger Airbag Of f Indicator . 33
...................................
PAX System .356
.............................
PGM-FI System .393
........................
Power Door Locks .137
Power Sliding Doors .......................................
Indicator .67
...................................
Operation .142
.....................................
Switches .143
...............
Power Socket Locations . 182
..............................
Power Tailgate .139
Index
M N
OP
VI

Î
.....................................
Tachometer .71
..........................................
Tailgate .138
...............................
Opening the .138
...................
Open Monitor Light . 67
..
Taillights, Changing Bulbs . 341,342
...............................................
Seats .148
......................
Adjustments .149, 151
..........
Drivers Lumbar Support . 152
.............
Folding the Third Seat . 158
........................
Head Restraints .152
Installing the Stowable Second ...............
Row Plus-One Seat . 156
.....
Manual Height Adjustment . 150
....................
Passenger Seating .148
.......
Reclining the Second Seat . 150
..........
Reclining the Third Seat . 150
....
Removing the Second Seats . 155
.....................
Third Seat Access .153
............................
Security System .263
Sensors Front Passenger’s Weight .....................................
Sensors .29
....
Driver’s Seat Position Sensor . 29
...............................
Serial Number .384
...........................
Service Intervals .315
...........................
Service Manual .401
...........
Service Station Procedure . 279
..........................
Setting the Clock .227
...
Shif t Lever Position Indicators . 294
........................
Shif t Lock Release .297
..............................
Side Airbags .11, 30 ..........................
Of f Indicator .33, 64
Side Marker Lights, Bulb ..............................
Replacement .339
.............................
Signaling Turns .122
.................................
Sliding Doors .142
.....................................
Snow Tires .350
................................
Sound System .199
Spare Tire ......................................
Inf lating .359
............................
Specif ications .387
....................................
Spark Plugs .387
....................
Specif ications Charts . 386
................................
Speed Control .264
...................................
Speedometer .71
..........
SRS, Additional Inf ormation . 25
...
Additional Safety Precautions . 35
.............................
Airbag Service .34
..
How the SRS Indicator Works . 32
How Your Airbags ............................
Work .27, 30,32
........................
SRS Components .25
.............................
SRS Indicator .32 ,64
..
START (Ignition Key Position) . 130
.......................
Starting the Engine .293
In Cold Weather at High ..................................
Altitude .293 ................
With a Dead Battery . 367
..............
State Emissions Testing . 395
........
Steam Coming f rom Engine . 369
Steering Wheel ................................
Adjustment .127
...........
Anti-thef t Column Lock . 130
.................................
Buttons .75, 228
...................
Stereo Sound System . 199
....................
Storing Your Vehicle .353
Stowable Second Row Plus-One .............................................
Seat .156
........................
Sunglasses Holder .174
........................................
Sun Visor .175
Supplemental Restraint System ......................................
Servicing .34
.........................
SRS Indicator .32 ,64
...................
System Components . 25
..................................
Synthetic Oil .329
Index
T
VIII
