Navigation HONDA ODYSSEY 2006 RB1-RB2 / 3.G Owners Manual

While the multi-information display
shows ‘‘METER SETUP,’’ press the
SEL/RESET button on the steering
wheel. The display changes to the
‘‘CUSTOMIZE MENU.’’ Press the
INFO button repeatedly until you see
‘‘COMPASS ZONE SELECTION’’ in
the lower segment as shown above.Press the SEL/RESET button. The
display changes as shown above.
The highlighted ‘‘- -’’ display in the
lower segment is the zone number; it
changes f rom ‘‘1’’ thru ‘‘15’’ each
time you press the INFO button.
In most areas, there is a variation
between magnetic north and true
north. Zone selection is required so
the compass can compensate f or this
variation. To check and select the
zone set into the compass, do the
procedure on the f ollowing pages.
On Touring models without Navigation
System
Compass Zone Select ion
Multi-Inf ormation Display
102

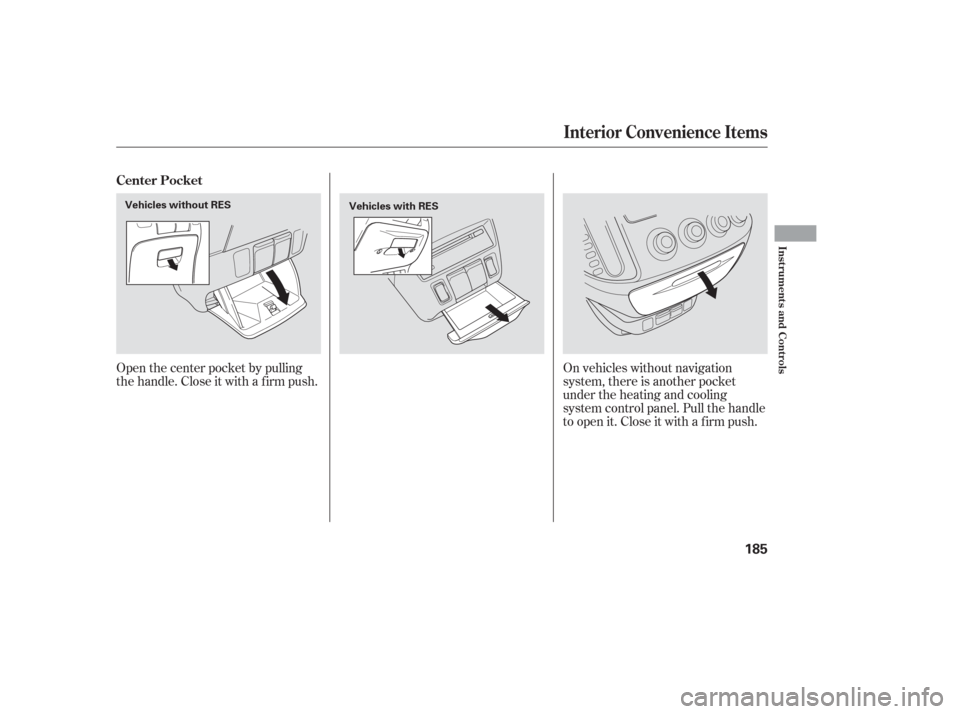

Open the center pocket by pulling
thehandle.Closeitwithafirmpush.On vehicles without navigation
system, there is another pocket
under the heating and cooling
system control panel. Pull the handle
to open it. Close it with a f irm push.
Center Pocket
Interior Convenience Items
Inst rument s and Cont rols
185
Vehicles without RES
Vehicles with RES

µ
µ
In addition to the knobs and buttons
on the radio control panel, you can
operate some of the radio controls
on the navigation system screen.
While you are listening to the radio,
you can change to another band by
pressing the AUDIO button next to
the navigation system screen, and
then touching the desired band icon (FM1, FM2, or AM).
You can also adjust the sound from
the navigation screen.
To adjust the sound, push the
AUDIO DISPLAY button, then enter
the sound grid by touching the
SOUNDicononthedisplay.
AUTO SELECT, SCAN, and SEEK
are adjustable f rom the navigation
screen. For an explanation of these
f unctions, see pages and .
Touch the
AUTO SELECT icon to activate the
auto select f unction. You will see
AUTO SEL f lashing in the upper
display.
Touch the SCAN icon to
activate the scan function. You will
see SCAN in the display. Touch the
icon again to deactivate it. 205 206
CONT INUED
On models with Navigation System
Operating the Radio on the
Navigation System Screen
AUTO SELECT
SCANA djust ing t he Sound
Playing the AM/FM Radio
Features
207
AUDIO DISPLAY BUTTON

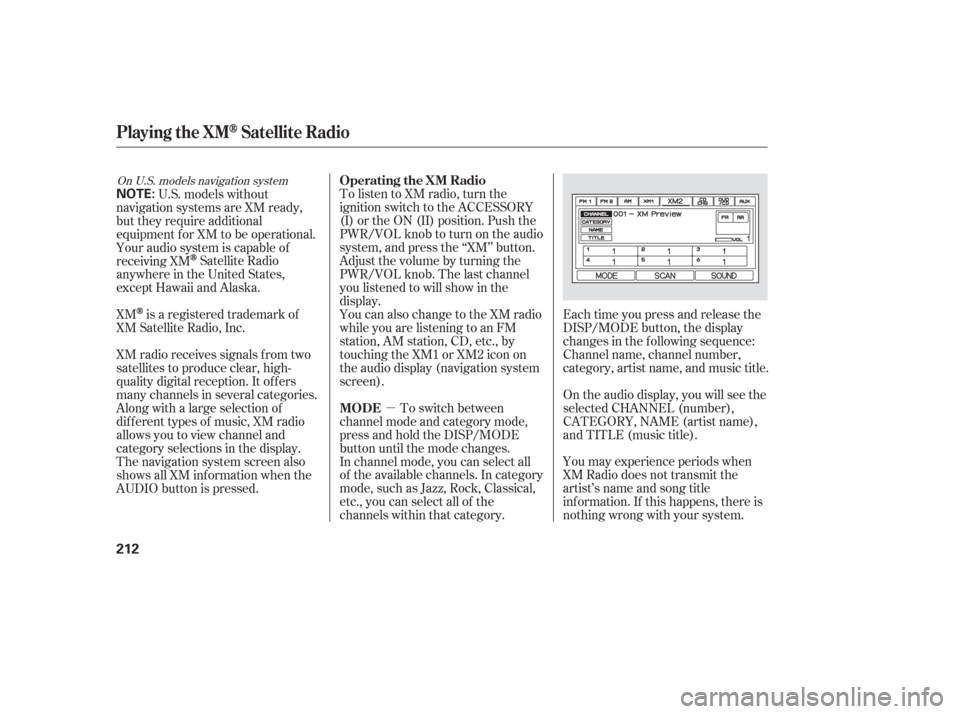

µYou may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system. On the audio display, you will see the
selected CHANNEL (number),
CATEGORY, NAME (artist name),
and TITLE (music title). Each time you press and release the
DISP/MODE button, the display
changes in the f ollowing sequence:
Channel name, channel number,
category, artist name, and music title.
XM
is a registered trademark of
XM Satellite Radio, Inc.
In channel mode, you can select all
of the available channels. In category
mode, such as Jazz, Rock, Classical,
etc., you can select all of the
channels within that category. To listen to XM radio, turn the
ignition switch to the ACCESSORY
(I) or the ON (II) position. Push the
PWR/VOL knob to turn on the audio
system, and press the ‘‘XM’’ button.
Adjust the volume by turning the
PWR/VOL knob. The last channel
you listened to will show in the
display.
U.S. models without
navigation systems are XM ready,
but they require additional
equipment f or XM to be operational.
Your audio system is capable of
receiving XM
Satellite Radio
anywhere in the United States,
except Hawaii and Alaska.
XM radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM radio
allows you to view channel and
category selections in the display.
The navigation system screen also
shows all XM inf ormation when the
AUDIO button is pressed. You can also change to the XM radio
while you are listening to an FM
station, AM station, CD, etc., by
touching the XM1 or XM2 icon on
the audio display (navigation system
screen).
To switch between
channel mode and category mode,
press and hold the DISP/MODE
button until the mode changes.
On U.S. models navigation system
Playing the XMSatellite Radio
Operating the XM Radio
MODE
212
NOTE:

µµ
µ´ µ
µ

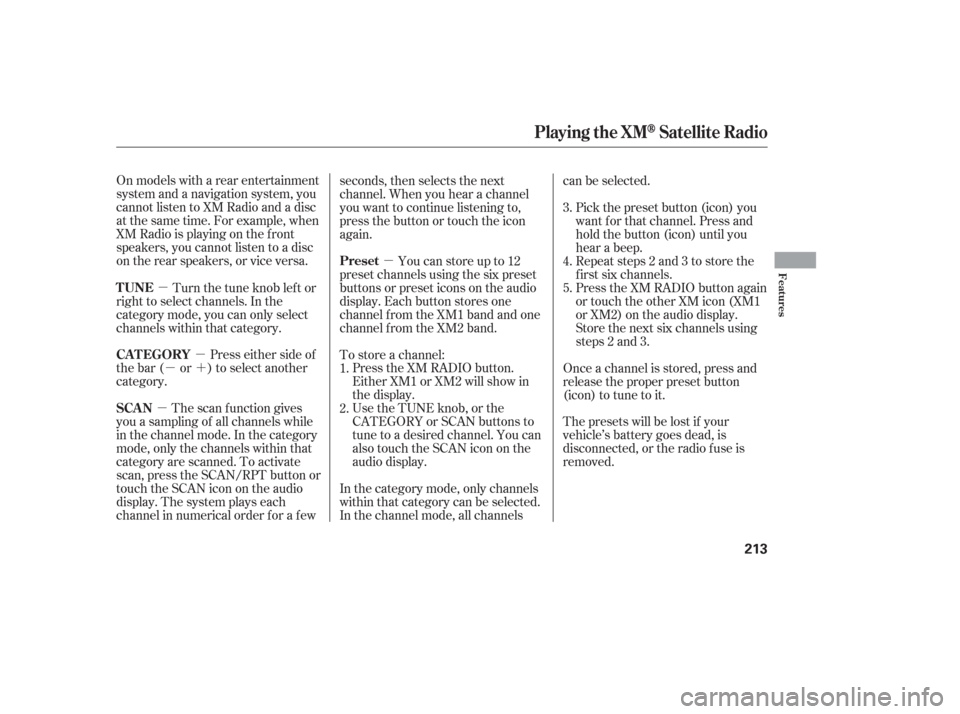

On models with a rear entertainment
system and a navigation system, you
cannot listen to XM Radio and a disc
at the same time. For example, when
XM Radio is playing on the f ront
speakers, you cannot listen to a disc
on the rear speakers, or vice versa.
The scan f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the channels within that
category are scanned. To activate
scan, press the SCAN/RPT button or
touch the SCAN icon on the audio
display. The system plays each
channel in numerical order f or a f ew seconds, then selects the next
channel. When you hear a channel
you want to continue listening to,
press the button or touch the icon
again.
Press either side of
the bar ( or ) to select another
category.
In the category mode, only channels
within that category can be selected.
In the channel mode, all channelscan be selected.
Use the TUNE knob, or the
CATEGORY or SCAN buttons to
tune to a desired channel. You can
also touch the SCAN icon on the
audio display. Press the XM RADIO button.
Either XM1 or XM2 will show in
the display.
To store a channel: Youcanstoreupto12
preset channels using the six preset
buttons or preset icons on the audio
display. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band.
The presets will be lost if your
vehicle’s battery goes dead, is
disconnected, or the radio f use is
removed. Once a channel is stored, press and
release the proper preset button
(icon) to tune to it.Press the XM RADIO button again
or touch the other XM icon (XM1
or XM2) on the audio display.
Store the next six channels using
steps 2 and 3. Repeat steps 2 and 3 to store the
f irst six channels. Pick the preset button (icon) you
want f or that channel. Press and
hold the button (icon) until you
hear a beep.
Turn the tune knob lef t or
right to select channels. In the
category mode, you can only select
channels within that category.
1.
2.3.
4.
5.
Playing the XMSatellite Radio
SCAN CATEGORY
Preset
TUNE
Features
213

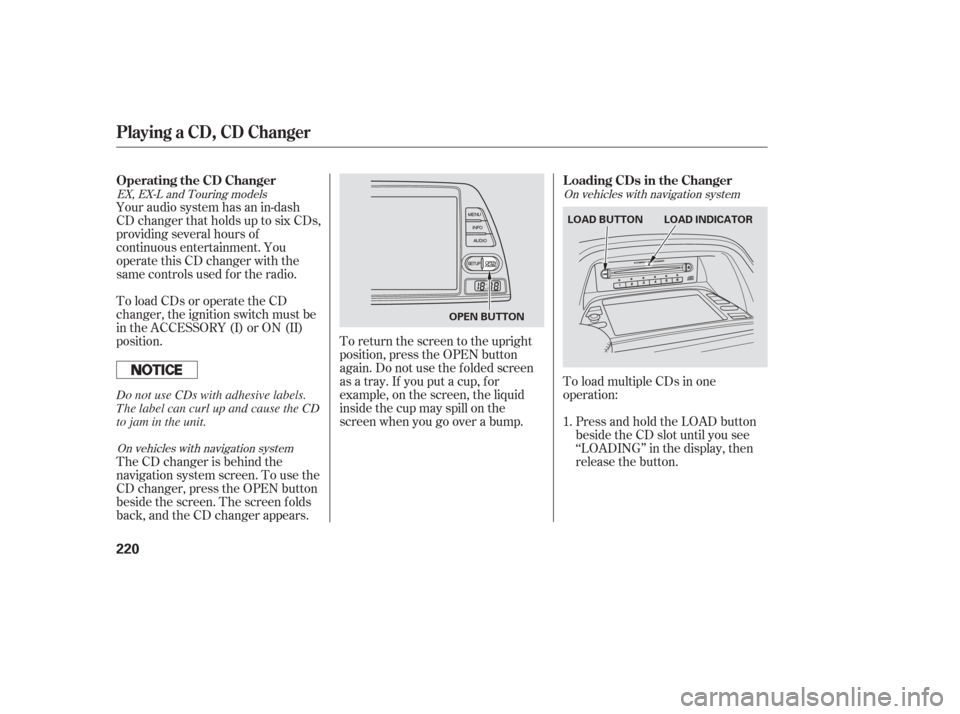

Your audio system has an in-dash
CD changer that holds up to six CDs,
providing several hours of
continuous entertainment. You
operate this CD changer with the
same controls used f or the radio.
To load CDs or operate the CD
changer, the ignition switch must be
in the ACCESSORY (I) or ON (II)
position.Press and hold the LOAD button
beside the CD slot until you see
‘‘LOADING’’ in the display, then
release the button.
To load multiple CDs in one
operation:
The CD changer is behind the
navigation system screen. To use the
CD changer, press the OPEN button
beside the screen. The screen f olds
back, and the CD changer appears. To return the screen to the upright
position, press the OPEN button
again. Do not use the f olded screen
as a tray. If you put a cup, f or
example, on the screen, the liquid
inside the cup may spill on the
screen when you go over a bump. 1.
On vehicles with navigation system On vehicles with navigation system
EX, EX-L and Touring models
Operating the CD Changer L oading CDs in the Changer
Playing a CD, CD Changer
220
OPEN BUTTONLOAD BUTTON LOAD INDICATOR
Do not use CDs with adhesive labels.
The label can curl up and cause the CD
to jam in the unit.

On vehicles without navigation system
To load multiple CDs in one
operation:Press and hold the LOAD button
until you hear a beep and see
‘‘LOAD’’ in the display, then
release the button.
On the upper right side of the
display, the disc number f or an
empty position will begin blinking,
and the green CD load indicator
will come on.
Insert the CD into the CD slot.
Insert it only about halfway; the
drive will pull it in the rest of the
way. You will see ‘‘BUSY’’ in the
display. The CD loaded indicator
turns red and blinks as the CD is
loaded. To load a single CD:
Press and release the LOAD
button.
When the disc number f or an
empty position starts to blink and
the green CD load indicator comes
on, you will see LOAD in the
display. Insert the disc into the CD
slot. Insert it only about half way,
the drive will pull it in the rest of
the way.
The system will load the CD and
begin playing it.
Repeat this until all six positions
are loaded. The system will then
begin playing last CD loaded.
If you are not loading CDs into all six
positions, press the LOAD button
again after the last CD has loaded.
The system will begin playing the
last CD loaded.
If you stop loading CDs bef ore all six
positions are f illed, the system will
wait f or ten seconds, then stop the
load operation and begin playing the
last CD loaded. When ‘‘LOAD’’ appears again in
the display, insert the next CD into
the CD slot.
1. 1.
2.
3. 4.
5.
2.
3.
Playing a CD, CD Changer
222

µ
µ´ ´
µ
´µ µ
µ

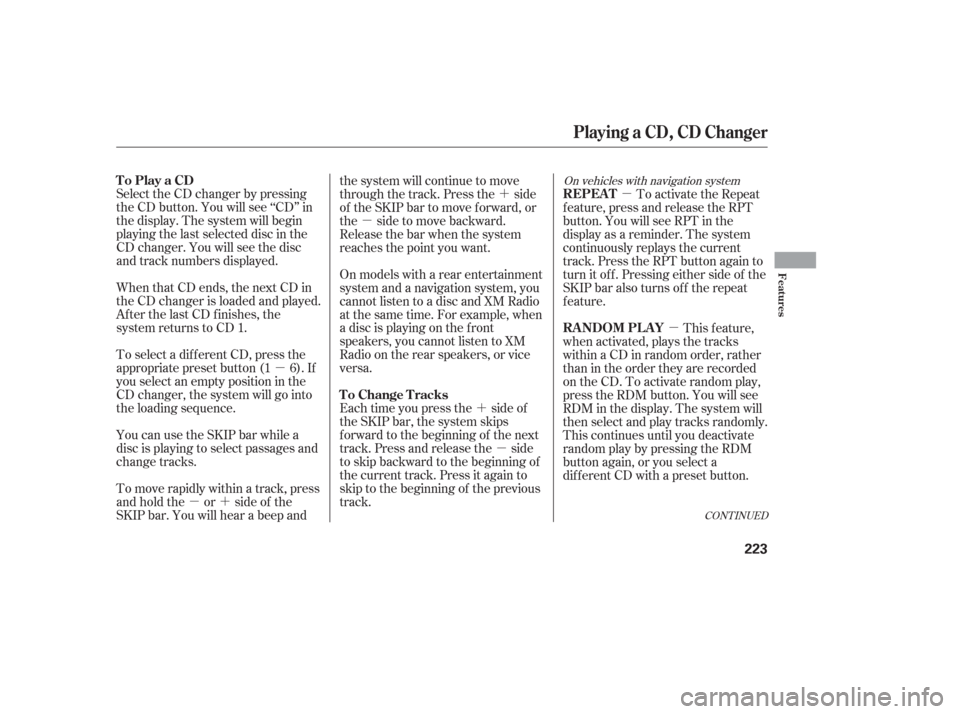

Select the CD changer by pressing
the CD button. You will see ‘‘CD’’ in
the display. The system will begin
playing the last selected disc in the
CD changer. You will see the disc
and track numbers displayed.
When that CD ends, the next CD in
the CD changer is loaded and played.
Af ter the last CD f inishes, the
system returns to CD 1.
You can use the SKIP bar while a
disc is playing to select passages and
change tracks. To select a dif f erent CD, press the
appropriate preset button (1 6). If
youselectanemptypositioninthe
CD changer, the system will go into
the loading sequence.
To move rapidly within a track, press
and hold the or side of the
SKIP bar. You will hear a beep and the system will continue to move
through the track. Press the side
of the SKIP bar to move forward, or
the sidetomovebackward.
Release the bar when the system
reaches the point you want.
On models with a rear entertainment
system and a navigation system, you
cannot listen to a disc and XM Radio
at the same time. For example, when
a disc is playing on the f ront
speakers, you cannot listen to XM
Radio on the rear speakers, or vice
versa.
Each time you press the side of
the SKIP bar, the system skips
f orward to the beginning of the next
track. Press and release the side
to skip backward to the beginning of
the current track. Press it again to
skip to the beginning of the previous
track.
To activate the Repeat
f eature, press and release the RPT
button. You will see RPT in the
display as a reminder. The system
continuously replays the current
track. Press the RPT button again to
turn it off. Pressing either side of the
SKIP bar also turns of f the repeat
feature.
This feature,
when activated, plays the tracks
within a CD in random order, rather
than in the order they are recorded
on the CD. To activate random play,
press the RDM button. You will see
RDM in the display. The system will
then select and play tracks randomly.
This continues until you deactivate
randomplaybypressingtheRDM
button again, or you select a
dif f erent CD with a preset button.
CONT INUED
On vehicles with navigation systemTo Play a CD
To Change TracksREPEAT
RANDOM PLAY
Playing a CD, CD Changer
Features
223

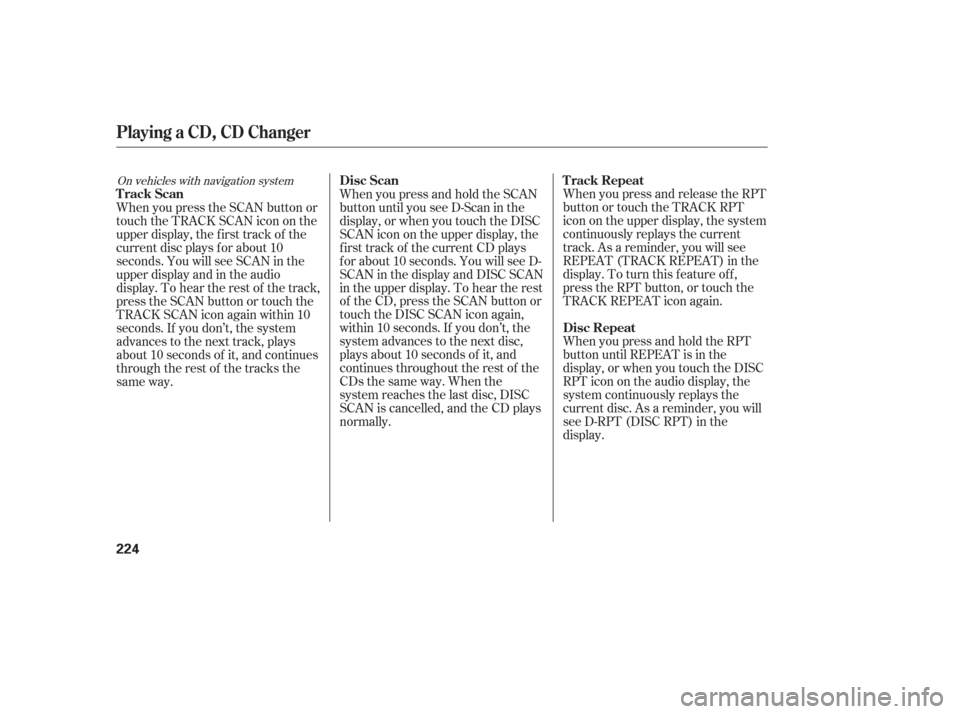

When you press and release the RPT
button or touch the TRACK RPT
icon on the upper display, the system
continuously replays the current
track. As a reminder, you will see
REPEAT (TRACK REPEAT) in the
display. To turn this feature off,
press the RPT button, or touch the
TRACK REPEAT icon again.
WhenyoupressandholdtheRPT
button until REPEAT is in the
display, or when you touch the DISC
RPTiconontheaudiodisplay,the
system continuously replays the
current disc. As a reminder, you will
see D-RPT (DISC RPT) in the
display.
WhenyoupressandholdtheSCAN
button until you see D-Scan in the
display, or when you touch the DISC
SCAN icon on the upper display, the
f irst track of the current CD plays
f or about 10 seconds. You will see D-
SCAN in the display and DISC SCAN
in the upper display. To hear the rest
of the CD, press the SCAN button or
touch the DISC SCAN icon again,
within 10 seconds. If you don’t, the
system advances to the next disc,
plays about 10 seconds of it, and
continues throughout the rest of the
CDs the same way. When the
system reaches the last disc, DISC
SCAN is cancelled, and the CD plays
normally.
When you press the SCAN button or
touchtheTRACKSCANicononthe
upper display, the f irst track of the
current disc plays f or about 10
seconds. You will see SCAN in the
upper display and in the audio
display. To hear the rest of the track,
press the SCAN button or touch the
TRACK SCAN icon again within 10
seconds. If you don’t, the system
advances to the next track, plays
about 10 seconds of it, and continues
through the rest of the tracks the
same way.
On vehicles with navigation systemT rack Repeat
Disc Repeat
Disc Scan
Track Scan
Playing a CD, CD Changer
224

If your vehicle’s battery is
disconnected or goes dead, you will
need to set the clock.You can quickly set the time to the
nearest hour. If the displayed time is
bef ore the half hour, pressing and
holding the CLOCK button, then
pressing the R (RESET) button sets
the clock back to the previous hour.
If the displayed time is after the half
hour, the clock sets f orward to the
beginning of the next hour. When you are f inished, press the
CLOCK button again.For example: 1:06 will reset to 1:00
1:52 will reset to 2:00
Press and hold the CLOCK button
until the clock f lashes. Change the
hours by pressing the H button until
the numbers advance to the desired
time. Change the minutes by
pressing the M button until the
numbers advance to the desired time. Ref er to the Navigation system
manual f or how to adjust the time.
On models with Navigation System
On models without navigation system
Setting the Clock
LX model
EX and EX-L models
232
CLOCK BUTTON
H BUTTON R BUTTON
M BUTTON CLOCK BUTTON
H BUTTON R BUTTON
M BUTTON
