HONDA ODYSSEY 2008 RB1-RB2 / 3.G Owners Manual

Pivot the blade assembly toward
the wiper arm until it releases
from the wiper arm.
When replacing a wiper blade,
make sure not to drop the wiper
blade or wiper arm down on the
windshield.Examine the new wiper blades. If
they have no plastic or metal
reinf orcement along the back
edge, remove the metal
reinf orcement strips f rom the old
wiper blade, and install them in
the slots along the edge of the new
blade.
Remove the blade f rom its holder
by grabbing the tabbed end of the
blade. Pull f irmly until the tabs
come out of the holder.
3. 4.
Wiper Blades
438
BLADE
WIPER ARM
——y

y
(yy
2008 Odyssey

Slide the wiper blade assembly
onto the wiper arm. Push down
the lock tab. Make sure the wiper
blade assembly locks in place.
Lower the wiper arm down against
the windshield, the passenger’s
side first, then the driver’s side.

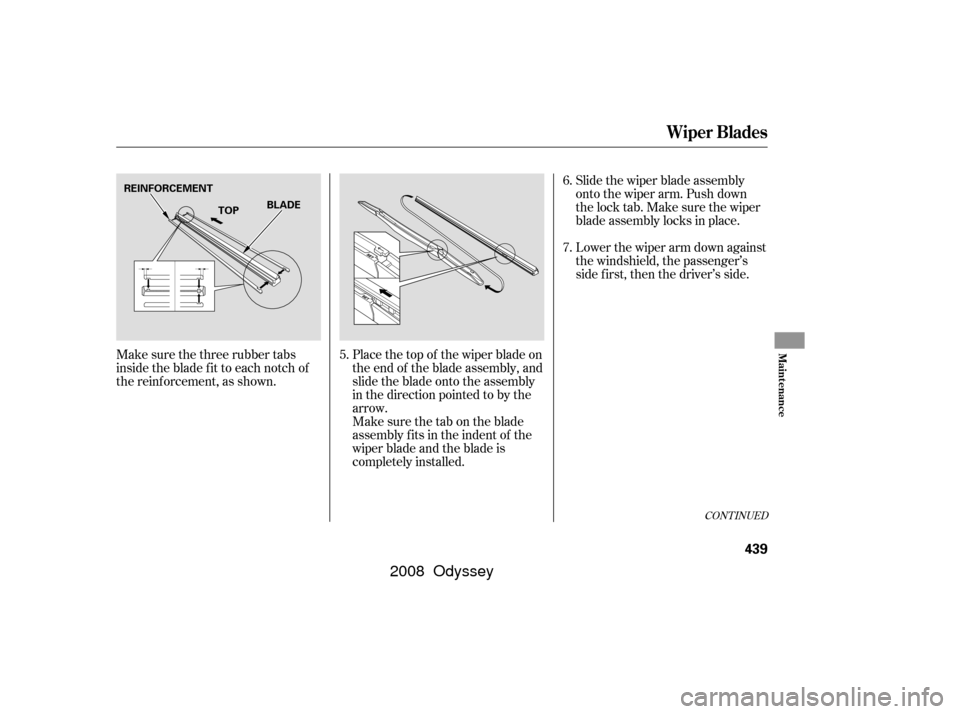

Place the top of the wiper blade on
the end of the blade assembly, and
slide the blade onto the assembly
in the direction pointed to by the
arrow.
Make sure the tab on the blade
assembly fits in the indent of the
wiper blade and the blade is
completely installed.
Make sure the three rubber tabs
inside the blade f it to each notch of
the reinf orcement, as shown.
5.6.
7.
CONT INUED
Wiper Blades
Maint enance
439
REINFORCEMENT
BLADE
TOP
——y

y
(yy
2008 Odyssey

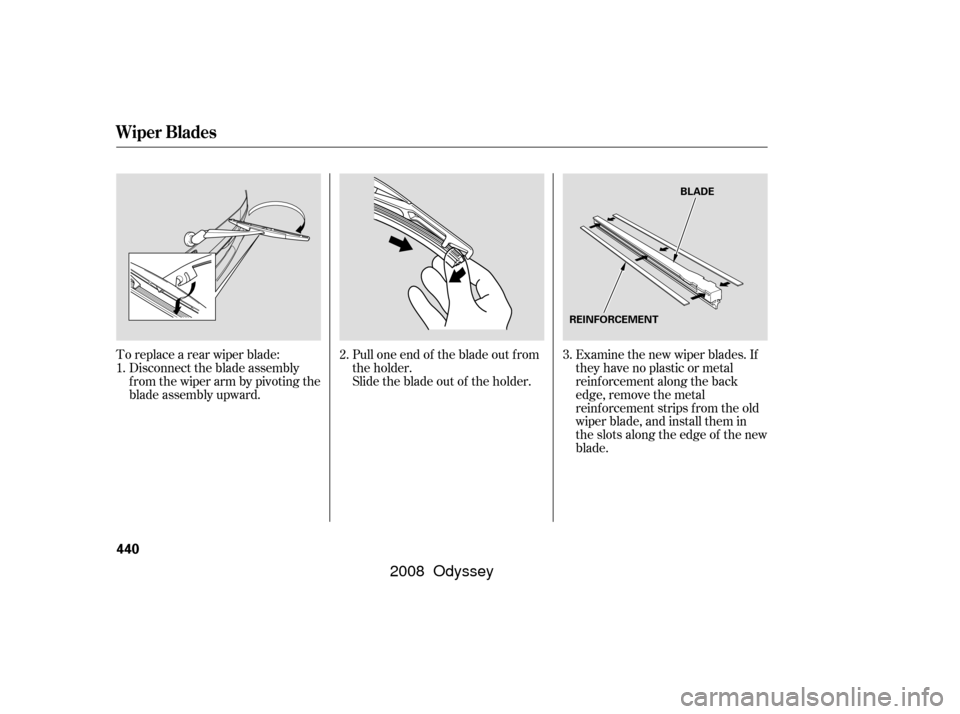

Pull one end of the blade out f rom
the holder.
Slide the blade out of the holder.
To replace a rear wiper blade:
Disconnect the blade assembly
f rom the wiper arm by pivoting the
blade assembly upward. Examine the new wiper blades. If
they have no plastic or metal
reinf orcement along the back
edge, remove the metal
reinf orcement strips f rom the old
wiper blade, and install them in
the slots along the edge of the new
blade.
1.
2. 3.
Wiper Blades
440
BLADE
REINFORCEMENT
——y
y
(yy
2008 Odyssey

Slide the new blade into the wiper
arm. Make sure it is engaged in
the slot along its f ull length.
Insert both ends of the blade into
the holder. Make sure they are
secure.Install the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
Lower the wiper arm against the
windshield.
4. 5.
6.
Wiper Blades
Maint enance
441
——y

y
(yy
2008 Odyssey

Keeping the tires properly inf lated
provides the best combination of
handling, tread lif e, and riding
comf ort.Underinf lated tires wear unevenly,
adversely affect handling and fuel
economy, and are more likely to
fail from being overheated.
Overinf lated tires can make your
vehicleridemoreharshly,are
more prone to damage f rom road
hazards, and wear unevenly.
The tire pressure monitoring system
(TPMS)willwarnyouwhenatire
pressure is low. See page f or
inf ormation on the TPMS.
To saf ely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inf lated.
The f ollowing pages give more
detailed inf ormation on how to take
care of your tires and what to do
when they need to be replaced.
Clean the wheels as you would the
rest of the exterior. Wash them with
thesamesolution,andrinsethem
thoroughly.
Aluminum alloy wheels have a
protective clear-coat that keeps the
aluminum f rom corroding and
tarnishing. Cleaning the wheels with
harsh chemicals (including some
commercial wheel cleaners) or a stif f
brush can damage the clear-coat. To
clean the wheels, use a mild
detergent and a sof t brush or sponge.
388
If equipped
Inf lation Guidelines
Tires
Wheels
Wheels, Tires
442
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
——y
y
(yy
2008 Odyssey

CONT INUED
Even though your vehicle is
equipped with TPMS, we
recommend that you visually check
your tires every day. If you think a
tire might be low, check it
immediately with a tire gauge.
Use a gauge to measure the air
pressure in each tire at least once a
month. Even tires that are in good
condition may lose 1 to 2 psi (10 to
20 kPa, 0.1 to 0.2 kgf /cm ) per
month. Remember to check the
sparetireatthesametime.
Check the air pressures when the
tires are cold. This means the
vehicle has been parked f or at least 3
hours, or driven less than 1 mile (1.6
km). Add or release air, if needed, to
match the recommended cold tire
pressures.If you check air pressures when the
tires are hot [driven f or several miles
(kilometers)], you will see readings 4
to6psi(30to40kPa,0.3to0.4
kgf /cm ) higher than the cold
readings. This is normal. Do not let
air out to match the recommended
cold air pressure. The tire will be
underinf lated.
Youshoulduseyourowntire
pressure gauge whenever you check
your tire pressures. This will make it
easier f or you to tell if a pressure
loss is due to a tire problem and not
due to a variation between gauges.
While tubeless tires have some
ability to self -seal if they are
punctured, you should look closely
for punctures if a tire starts losing
pressure.
The following chart shows the
recommended cold tire pressures f or
most normal and high-speed driving
conditions.
Tire Size
Tire Size
Cold Tire Pressure for
Normal Driving
Front:
Rear: Front:
Rear:
Cold Tire Pressure for
Normal Driving
EX-L models
LX, EX and Canadian DX models
Tires
Recommended T ire Pressures
Maint enance
443
235/65R16 103T
35 psi (240 kPa ,2.4 kgf/cm
)
33 psi (230 kPa ,
2.3 kgf/cm
)
235/65R16 103T 35 psi (240 kPa ,
2.4 kgf/cm
)
35 psi (240 kPa , 2.4 kgf/cm
)
—

—y
y
(yy
2008 Odyssey

Every time you check inf lation, you
should also examine the tires f or
damage, f oreign objects, and wear.
Youshouldlookfor:Bumps or bulges in the tread or
side of the tire. Replace the tire if
youfindeitherof theseconditions.
Cuts, splits, or cracks in the side
of the tire. Replace the tire if you
can see f abric or cord.
Excessive tread wear.
A tire this worn gives very little
traction on wet roads. You should
replace the tire if you can see three
or more tread wear indicators.
Thecompactsparetirepressureis:
For convenience, the recommended
tire sizes and cold tire pressures are
on a label on the driver’s doorjamb.
For additional inf ormation about
your tires, see page .
Your tires have wear indicators
molded into the tread. When the
tread wears down, you will see a 1/2
inch (12.7 mm) wide band across the
tread. This shows there is less than
1/16 inch (1.6 mm) of tread lef t on
the tire.
490
Tire Size
Tire Size Cold Tire Pressure for Normal Driving
Front:
Rear: Cold Tire Pressure for
Normal Driving
Front:
Rear:
U.S. Touring model with the Michelin PAX system
Touring model without the Michelin
PAX system
Tires
Tire Inspection
444
INDICATOR
LOCATION
MARKS
TREAD WEAR
INDICATORS
60 psi (420 kPa , 4.2 kgf/cm)
235-710R460A
104T 35 psi (240 kPa ,
2.4 kgf/cm
)
33 psi (230 kPa ,
2.3 kgf/cm
)
235/60R17 102T
33 psi (230 kPa ,
2.3 kgf/cm
)
35 psi (240 kPa , 2.4 kgf/cm
)
——y
y
(yy
2008 Odyssey

To help increase tire lif e and
distribute wear more evenly, rotate
the tires according to the
maintenance messages displayed on
the inf ormation display or multi-
inf ormation display (depending on
models). Move the tires to the
positions shown in the diagram each
time they are rotated. If you
purchase directional tires, rotate
only f ront-to-back.
In addition to proper inf lation,
correct wheel alignment helps to
decrease tire wear. If you f ind a tire
is worn unevenly, have your dealer
check the wheel alignment.
Have your dealer check the tires if
you f eel a consistent vibration while
driving. A tire should always be
rebalanced if it is removed f rom the
wheel. When you have new tires
installed, make sure they are
balanced. This increases riding
comf ort and tire lif e. For best results,
have the installer perform a dynamic
balance.
The service lif e of your tires is
dependent on many f actors,
including, but not limited to, driving
habits, road conditions, vehicle
loading, inf lation pressure,
maintenance history, speed, and
environmental conditions (even
when the tires are not in use).
The last f our digits of the TIN (tire
identif ication number) are f ound on
the sidewall of the tire and indicate
the date of manufacture (See
on page ).
In addition to your regular
inspections and inf lation pressure
maintenance, it is recommended that
you have annual inspections
perf ormed once the tires reach f ive
years old. It is also recommended
that all tires, including the spare, be
removed from service after 10 years
from the date of manufacture,
regardless of their condition or state
of wear.
490
If equipped
Tires
Tire Rotation
T ire Maintenance
Tire Service Lif e
Tire
Labeling
Maint enance
445
Front Front
(For Non-directional
Tires and Wheels) (For Directional
Tires and Wheels)
Improper wheel weights can damage
your vehicle’s aluminum wheels. Use
only genuine Honda wheel weights f or
balancing.
——y

y
(yy
2008 Odyssey

Replace your tires with radial tires of
the same size, load range, speed
rating, and maximum cold tire
pressure rating (as shown on the
tire’s sidewall).
Mixing radial and bias-ply tires on
your vehicle can reduce braking
ability, traction, and steering
accuracy. Using tires of a dif f erent
size or construction can cause the
ABS and vehicle stability assist
system (VSA) to work inconsistently.
The ABS and VSA system work by
comparing the speed of each wheel.
When replacing tires, use the same
size originally supplied with the
vehicle. Tire size and construction
can af f ect wheel speed and may
cause the system to activate.Your vehicle is not designed f or
Michelin PAX system wheels or tires.
Useonlythewheelsandtires
designated in this owner’s manual.
Never mix conventional wheels or
tires with PAX system wheels or
tires.
It is best to replace all f our tires at
thesametime.If thatisnotpossible
or necessary, replace the two f ront
tires or two rear tires as a pair.
Replacing just one tire can seriously
af f ect your vehicle’s handling.
If you ever replace a wheel, make
sure that the wheel’s specif ications
match those of the original wheels.
Also be sure you use only TPMS
specif ic wheels. If you do not, the
tire pressure monitoring system will
not work.Replacement wheels are available at
your dealer.
Vehicles without the Michelin PAX
system
Tires
Replacing T ires and Wheels
446
Installing improper tires on your
vehicle can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner’s manual.
——y
y
(y
y
2008 Odyssey

´Ì
Wheels: Tires marked ‘‘M S’’ or ‘‘All
Season’’ on the sidewall have an all-
weather tread design suitable for
most winter driving conditions.
For the best perf ormance in snowy
or icy conditions, you should install
snow tires or tire chains. They may
be required by local laws under
certain conditions.
If you mount snow tires on your
vehicle, make sure they are radial
tires of the same size and load range
as the original tires. Mount snow
tires on all f our wheels. The traction
provided by snow tires on dry roads
maybelowerthanyouroriginaltires.
Check with the tire dealer f or
maximum speed recommendations.
There are no snow tires compatible
with the PAX system.
Tires:
Mount tire chains on your tires when
required by driving conditions or
local laws. Install them only on the
f ront tires.
Because your vehicle has limited tire
clearance, Honda strongly
recommends using the chains listed
below.
See page f or inf ormation about
DOT Tire Quality Grading, and page f or tire size and labeling
inf ormation. 488
490 Link-type: SCC Quick Grip QG1142
Cable-type: SCC SC Cable SC1042
Link-type: Laclede 1142
Cable-type: SCC SC Cable SC1042 Link-type: SCC Quick Grip QG1138
Cable-type: SCC SC Cable SC1038
CONT INUED
On models with the Michelin PAX
system
On models with the Michelin PAXsystem
All models except Touring models
All models except Touring models
Touring models without the Michelin
PAX system
Touring models without the MichelinPAX system All except Touring models
On models with Michelin PAX system
On Touring models
Tires
Wheel and T ire Specif ications Winter Driving
Snow T iresTire Chains
Maint enance
447
16x7J
225 x 460A
235/65R16 103T
235-710R460A 104T 17x7J
235/60R17 102T
(TPMS) (TPMS)
(TPMS&PAX)
(PAX)
——y
y
(yy
2008 Odyssey
