Your vehicle’s audio system has an
in-dash disc changer that holds up to
six discs. You operate this disc
changer with the same controls used
f or the radio. To operate the disc
changer, the ignition switch must be
in the ACCESSORY (I) or ON (II)
position.
This audio system can also play
CD-Rs and CD-RWs compressed in
MP3 or WMA f ormats. When
playing a disc in MP3, you will see
‘‘MP3’’ in the display. In WMA
f ormat, ‘‘WMA’’ will appear in the
display. You can select up to 99
f olders, or up to 255 tracks/f iles. NOTE:
If a f ile on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio unit
displays UNSUPPORTED FORMAT,
andthenskipstothenextfile.
Video CDs and DVDs do not work in
this unit.
The specif ications f or compatible
MP3 f iles are:
Compatible with variable bitrate
and multi-session
Maximum layers
(including ROOT): 8 layers
Sampling f requency:
32/44.1/48 kHz (MPEG1)
24/22.05/16 kHz (MPEG2)
Bitrate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
(MPEG1)
8/16/24/32/40/48/56/64/80/96/
112/128/160 kbps (MPEG2) The specif ications f or compatible
WMA f iles are:
Sampling f requency:
32/44.1/48 kHz
Compatible with variable bitrate
and multi-session
Maximum layers
(including ROOT): 8 layers
Bitrate:
48/64/80/96/128/160/192 kbps
To load multiple discs in one
operation: On the upper right side of the
display, the disc number f or an
empty position will begin blinking,
and the green CD load indicator
will come on.
Press and hold the LOAD button
beside the CD slot until you see
‘‘LOAD’’ in the display, then
release the button.
1.
2.
CONT INUED
Playing Discs (EX and EX-L models without navigation system)
Operating the CD Changer
L oading CDs in t he Changer
Features
245
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
\f—\f—
y

\fy
(\fy\f\fy
2009 Odyssey

Insert the disc into the CD slot.
Insert it only about halfway; the
drive will pull it in the rest of the
way. You will see ‘‘BUSY’’ in the
display. The CD loaded indicator
turns red and blinks as the disc is
loaded.
Repeat this until all six positions
are loaded. The system will then
begin playing the last disc loaded.
If you are not loading discs into all
six positions, press the LOAD button
again after the last disc has loaded.
The system will begin playing the
last disc loaded.
If you stop loading discs bef ore all
six positions are f illed, the system
will wait f or 10 seconds, stop the load
operation, and begin playing the last
disc loaded. To load a single disc:
Press and release the LOAD
button.
When the disc number f or an
empty position starts to blink and
the green CD load indicator comes
on, you will see LOAD in the
display. Insert the disc into the CD
slot. Insert it only about half way,
the drive will pull it in the rest of
the way.
The system will load the disc and
begin playing it. If you press the LOAD button
while a disc is playing, the system
will stop playing that disc and start
the loading sequence. It will then
play the disc just loaded.
You can also load a disc into an
empty position while a disc is
playing by pressing the
appropriate preset button. Select
an empty position (the disc
number indicator is of f ), and press
the preset button for that position
(1 to 6). The system will stop
playing the current disc and start
the loading sequence. It will then
play the disc just loaded.
You cannot load and play 3-inch
(8-cm)discsinthissystem.
When ‘‘LOAD’’ appears again in
the display, insert the next disc
into the CD slot.
1.
3.
4.
5. 2.
3.
Playing Discs (EX and EX-L models without navigation system)
246
\f—\f—
y


y
(\fy\f
y
2009 Odyssey

µ´
µ
¼
Each time you press the DISP button,
the display shows you the text data
on a disc, if the disc was recorded
with text data.
You can see the album, artist, and
track name in the display. If a disc is
recorded in MP3 or WMA, you can
see the f older and f ile name, and the
album, artist, and track tag.
With the f older name, you will see
the FOLDER indicator in the display.
The TRACK indicator is shown with
the file or track name.
When you press and release the
DISP button while a disc without text
data is playing, you will see ‘‘NO
INFO’’ on the display.
The display shows up to 16
characters of selected text data (the
f older name, f ile name, etc.). If the text data has more than 16
characters, you will see the first 15
characters and the indicator in
the display. Press and hold the DISP
button until the next 16 characters
are shown. You can see up to 31
characters of the text data.
If youpressandholdtheDISP
button again, the display shows the
f irst 16 characters again.
If any letter is not available, it is
replaced with ‘‘ . ’’ (dot) in the display.
When the disc has no text data, you
will see ‘‘NO INFO’’ on the display.
You will also see some text data
under these conditions:
When a new f older, f ile, or track is
selected.
When you change the audio mode
to play a disc with text data or in
MP3 or WMA.
When you insert a disc, and the
system begins to play. When playing a CD-DA with text
data, the album and track name are
showninthedisplay.Withadiscin
MP3 or WMA, the display shows the
f older and f ile name.
When you turn on the audio system
next time, the system keeps your
selection with the DISP button.
You can use the SKIP bar while a
disc is playing to select passages and
change tracks (f iles in MP3/WMA
mode).
Each time you press and
release the SKIP bar, the player
skips forward to the beginning of the
next track (f ile in MP3 or WMA
mode). Press and release the
SKIPbartoskipbackwardtothe
beginning of the current track. Press
itagaintoskiptothebeginningof
the previous track.
To move rapidly within a track, press
andholdthe or SKIPbar.
Playing Discs (EX and EX-L models without navigation system)
T ext Data Display Function
T o Change or Select T racks/Files
SK IP
Features
247
\f—\f—
y

y
(\fy\fy
2009 Odyssey

µµ µ
µ
In MP3 or WMA mode
In MP3 or WMA mode
To
select a different folder, turn the
TUNE knob to move to the
beginning of the next f older. Turn
the knob to the right until it clicks
once to skip to the next folder, and to
the lef t to move to the beginning of
the current f older. Turn it again to
skip to the beginning of the previous
f older. Turning the TUNE knob
more than two clicks skips several
folders.
The scan f unction samples all tracks
(f iles in MP3 or WMA) on the disc in
the order they are recorded on the
disc. To activate scan, press and hold
the SCAN/RPT button. You will see
SCAN in the display. You will get a
10 second sampling of each track/
f ile on the disc. Press and hold the
SCAN/RPT button f or about 2
seconds to get out of scan mode and
play the last track/f ile sampled. This
feature, when activated, samples the
f irst f ile of each f older on the disc.
To activate f older scan, press and
hold the SCAN/RPT button to select
SCAN, then press and release the
button again to select f older scan.
You will see F-SCAN in the display.
The system plays the f irst f ile in the
f irst f older f or about 10 seconds. If
you do nothing, the system will then
play the f irst f iles in the next f olders
for 10 seconds. After playing the first
file of the last folder, the system
plays normally.
Press and hold the SCAN/RPT
button f or 2 seconds to get out of
scan mode and play the last f ile
sampled. This f eature, when
activated, samples the first track (file
in MP3 or WMA) in each disc. To
activate the DISC SCAN feature,
press and hold the SCAN/RPT
button to select SCAN, then press
and release the button twice to select
disc scan. You will see D-SCAN in
the display. The system will then
play the f irst track/f ile in the disc f or
about 10 seconds. If you do nothing,
the system will then play the first
track/f ile in the remaining discs f or
10 seconds each. Af ter playing the
f irst track/f ile of the last disc, the
system plays normally.
Each time you press and release the
SCAN/RPT button, the mode
changes f rom scan, to f older scan, to
disc scan, then to normal playing.
Playing Discs (EX and EX-L models without navigation system)
FOLDER SELECTION
SCA N (T RA CK /FIL E SCA N) F-SCAN (FOLDER SCAN)
DISC SCAN
248
\f—\f—
y

y
(\fy\fy
2009 Odyssey

µµ
µ µ
µ
To continuously replay
a track (f ile in MP3 or WMA mode),
press and release the SCAN/RPT
button. You will see RPT in the
display. Press and hold the SCAN/
RPT button for 2 seconds to turn it
off. This
feature, when activated, plays all
f iles on the selected f older in random
order. To activate f older random,
press the RDM button. You will see
F-RDM in the display. The system
will then select and play f iles
randomly. This continues until you
deactivate f older random by pressing
and holding the RDM button f or 2
seconds.
Each time you press and release the
RDM button, the mode changes
f rom f older random play to random
play (within a disc random play),
then to normal play.
This feature,
when activated, replays all f iles on
the selected f older in the order they
are compressed. To activate folder
repeat, press the SCAN/RPT button
twice. You will see F-RPT in the
display. The system continuously
replays the current f older. Press and
hold the SCAN/RPT button for 2
seconds to turn it off. To activate the
DISC REPEAT f eature, press the
SCAN/RPT button three times. You
will see ‘‘D-RPT’’ in the display as a
reminder. The system continuously
replays the current disc. Press the
SCAN/RPT button again to turn it
off.
Each time you press and release the
SCAN/RPT button, the mode
changes f rom f ile repeat, to f older
repeat, to disc repeat, then to normal
playing.
This f eature plays the
tracks (the files in MP3 or WMA
mode) within a disc in random order.
To activate random play, press and
release the RDM button. In MP3 or
WMA mode, press the RDM button
twice to select RDM (within a disc
random play). You will see RDM in
the display. Press the RDM button
again to turn it off.
In MP3 or WMA mode In MP3 or WMA mode
Playing Discs (EX and EX-L models without navigation system)
REPEAT (TRACK/FILE
REPEAT)
FOLDER-RANDOM
FOL DER-REPEA T DISC REPEAT
RANDOM (Random within a
disc)
Features
249
\f—\f—
y

y
(\fy\fy
2009 Odyssey

For inf ormation on how to handle
and protect compact discs, see page.
To remove the disc that is currently
playing, press the eject button. You
will see ‘‘EJECT’’ in the display.
When you remove the disc f rom the
slot, the system automatically begins
the load sequence so you can load
another disc in that position. If you
do not load another disc af ter 15
seconds, the system selects the
previous mode (AM, FM, or XM).
If you do not remove the disc f rom
the slot, the system will reload the
disc af ter 10 seconds, and select the
previous mode (AM, FM, or XM). To
begin playing the disc, press the CD
button.
To remove a different disc from the
changer,firstselectitwiththe
appropriate preset button. When that
disc begins playing, press the eject
button. If you press the eject button while
listening to the radio, or with the
audio system turned of f , the disc
that was last selected is ejected.
Af ter that disc is ejected, pressing
the eject button again will eject the
next disc in numerical order. By
doing this six times, you can remove
all the CDs f rom the changer.
In any mode, if you press the eject
button and hold it until you hear a
beep, the system will eject all of the
discs in the changer.
You can also eject discs when the
ignition switch is of f . The disc that
was last selected is ejected f irst. You
can eject up to six discs, one at a
time.
272
Playing Discs (EX and EX-L models without navigation system)
Protecting Compact DiscsRemoving Discs f rom t he In-dash
Disc Changer
250
\f—\f—
y

y
(\fy\fy
2009 Odyssey

If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
For additional information on
damaged discs, see page .
Theaudiosystemwilltrytoplaythe
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.Cause
Solution
Error Message
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
273
High temperature
Track/File format not
supported
Mechanical Error
Servo Error Will disappear when the temperature returns to
normal.
Current track will be skipped. The next
supported track or file plays automatically.
Press the EJECT button and pull out the disc(s).
Check the disc for serious damage, signs of
deformation, excessive scratches, and/or dirt
(see page273). Insert the disc again. If the
code does not disappear, or the disc(s) cannot
be removed, consult your dealer. Do not try to
force the disc out of the player.
Disc Changer Error Messages (EX and EX-L models without navigation system)
Features
251
HEAT ERROR
UNSUPPORTED FORMAT
BAD DISC
PLEASE CHECK OWNER’S
MANUAL PUSH EJECT
BAD DISC
PLEASE CHECK OWNER’SMANUAL
\f—\f—
y

\f
y
(\fy\fy
2009 Odyssey

The audio system f or your vehicle
can also be operated by voice control.
See the navigation section in your
quick start guide f or an overview of
this system, and the navigation
system manual f or complete details.
Playing the A M/FM Radio (Models with navigation system)
Voice Control System
252

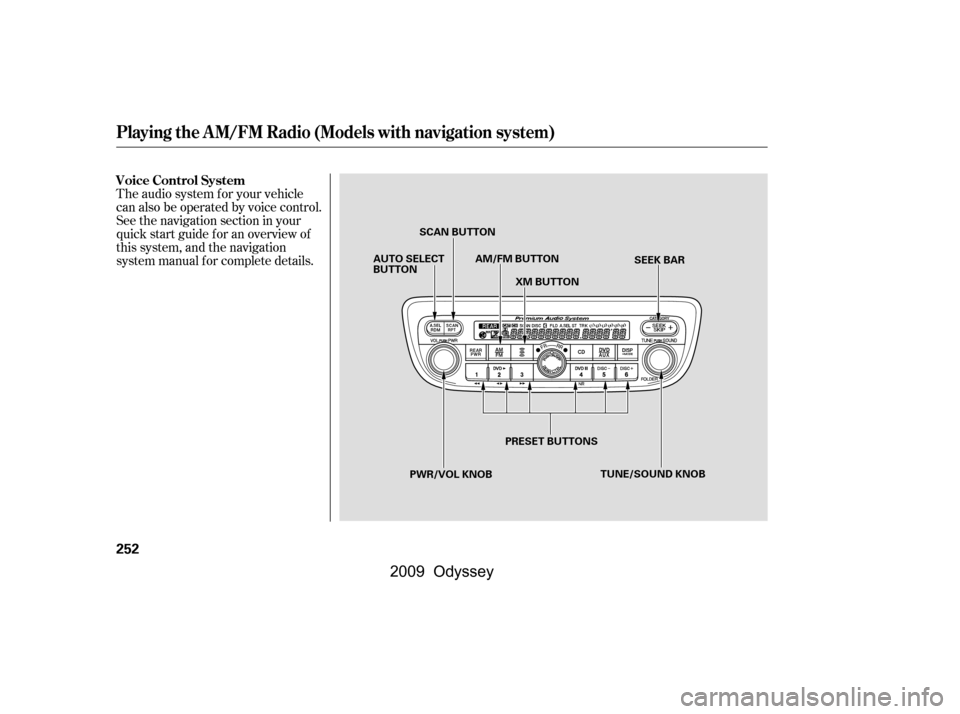

SCAN BUTTON
AUTO SELECT
BUTTON
PWR/VOL KNOB PRESET BUTTONS
TUNE/SOUND KNOBSEEK BAR
AM/FM BUTTON
XM BUTTON
\f—\f—
y

\fy
(\fy\fy
2009 Odyssey

µ
µ ´µ
µ µ
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR/VOL knob. Adjust the volume
by turning the same knob.
You can also operate the audio
system using the control icons on the
audio screen.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is
broadcasting in stereo. Stereo
reproduction in AM is not available. Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob right to tune to a
higher f requency, or lef t to tune to a
lower f requency.
The SEEK f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it
press the or side of the bar,
then release it.
The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
The system will scan f or a station
with a strong signal. When it f inds
one, it will stop and play that station
f or about 10 seconds. If you do nothing, the system will
scan f or the next strong station and
play it f or 10 seconds. When it plays
a station that you want to listen to,
press the SCAN button again.
Each preset button can
store one f requency on AM and two
f requencies on FM.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
Pick a preset button (icon), and
hold it until you hear a beep.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, seek, scan, the preset
buttons, and auto select. Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
button (icon).
1.
2.
3.
4.
CONT INUED
Playing the A M/FM Radio (Models with navigation system)
To Play the AM/FM Radio
To Select a Station TUNE
SEEK
SCAN
Preset
Features
253
\f—\f—
y


y
(\fy\fy
2009 Odyssey

µµµ
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
Press the A. SEL button. ‘‘A. SEL’’
appears in the display, and the
system goes into scan mode f or
several seconds. It stores the
f requencies of six AM and twelve
FM stations in the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
that preset button.
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons (icons) as previously
described. press the
A.SEL button or touch the AUTO
SELECTicon.Thisrestoresthe
presets you originally set.
For inf ormation on AM/FM radio
f requencies and reception, see page . Press the SOUND (TUNE) knob
repeatedly to display the bass, treble,
balance, and f ader settings.
Use the TRE/BAS
modes to adjust the tone to your
liking.
These two
modes adjust the strength of the
sound coming f rom each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the f ront-to-back
strength.
Eachmodeisshowninthedisplayas
it changes. Turn the SOUND
(TUNE) knob to adjust the setting to
your liking. When the level reaches
the center, you will see ‘‘C’’ in the
display. The system will
automatically return the display to
the selected audio mode about 5
seconds af ter you stop adjusting a
mode.
275To turn of f auto select,
Playing the A M/FM Radio (Models with navigation system)
AUTO SELECT
Adjusting the Sound
Treble/Bass
Balance/Fader
254
\f—\f—
y

y
(\fy\fy
2009 Odyssey
