2009 Odyssey

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .64
............................
Instrument Panel .65
..........
Instrument Panel Indicators .67
.............................................
Gauges .77
.............
Multi-Inf ormation Display .81
Controls Near the Steering
.........................................
Wheel .133Windshield Wipers and
.................................
Washers .134
Rear Window Wiper and ...................................
Washer .135
.........
Turn Signal and Headlights .135
......
Instrument Panel Brightness .139
...............
Hazard Warning Button .140
...............
Rear Window Def ogger .140
........
Steering Wheel Adjustment .141
.............................
Keys and Locks .142
......................
Immobilizer System .143
..............................
Ignition Switch .144
.....................
Remote Transmitter .145
Opening or Closing the Power .........................
Sliding Doors .148
Opening or Closing the Power ..................................
Tailgate .148
....................................
Door Locks .151
....................
Power Door Locks .151
Auto Door Locking/
..............................
Unlocking .152
............
Childproof Door Locks .157
..........................................
Tailgate .157
..........................
Power Tailgate .158
.................................
Sliding Doors .161
...............................................
Seats .167..................................
Seat Heaters .183
Driving Position Memory ........................................
System .184
............................
Power Windows .186
.......................................
Moonroof .189
...........................................
Mirrors .190
...............................
Parking Brake .192
.
Adjustable Driver’s Foot Pedals .193
.........
Interior Convenience Items .194
..........
Retractable Center Tray .195
.....................
Beverage Holders .195
................
Integrated Sunshade .197
....................
Sunglasses Holder .197
................
Conversation Mirror .198
...................................
Sun Visor .198
............................
Vanity Mirror .199
...................
Rear Compartment .199
................
Second Row Console .199
...............
In-Floor Storage Area .200
..............................
Glove Boxes .201
...........................
Center Pocket .202
...............................
Coin Pocket .202
........
Accessory Power Sockets .203
.......................
AC Power Outlet .203
...............................
Interior Lights .205
Instruments and Controls
Inst rument s and Cont rols
63
\f—\f—
y

\fy
(\fy\f\fy
2009 Odyssey

The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Instrument Panel
Inst rument s and Cont rols
LX, EX, EX-L and Canadian DX models
65
HIGH BEAM
INDICATOR
IMMOBILIZER
SYSTEM
INDICATOR
POWER SLIDING
DOOR INDICATOR
DOOR AND
TAILGATE OPEN
INDICATOR
CHARGING
SYSTEM
INDICATOR FUEL ECONOMY
INDICATOR
MALFUNCTION
INDICATOR
LAMP LOW TIRE PRESSURE
INDICATOR
LIGHTS ON INDICATOR CRUISE MAIN INDICATOR
VEHICLE STABILITY ASSIST
(VSA) SYSTEM INDICATOR
ANTI-LOCK BRAKE
SYSTEM (ABS)
INDICATOR
CRUISE CONTROL
INDICATOR
LOW FUEL INDICATOR
SEAT BELT REMINDER
INDICATOR SIDE AIRBAG OFF
INDICATOR
SUPPLEMENTAL
RESTRAINT
SYSTEM (SRS)
INDICATOR
PARKING BRAKE AND BRAKE
SYSTEM INDICATOR SECURITY
SYSTEM
INDICATOR
(P.70)
(P.75)
(P.76) (P.34,67)
(P.75)(P.76)
(P.21,68)(P.35,68)
(P.74) (P.75)
(P.75)
(P.75)
(P.73)
(P.73)TIRE PRESSURE MONITORING
SYSTEM (TPMS) INDICATOR
(P.73)
MAINTENANCE MINDER
INDICATOR DAYTIME RUNNING LIGHTS
(DRL) INDICATOR VSA ACTIVATION
INDICATOR
POWER TAILGATE OPEN
INDICATOR
(P.74)
(P.70,394)
(P.67,479) (P.67,480)
LOW OIL PRESSURE
INDICATOR(P.67,479) (P.70,394)
(P.71,396)
(P.72,397)
(P.69,392)
(P.69,481)
——
y


y
(yy
2009 Odyssey

ÎThe U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Instrument Panel
T ouring models
66
SEAT BELT REMINDER
INDICATORDOOR AND TAILGATE
OPEN INDICATOR
SECURITY SYSTEM
INDICATOR SIDE AIRBAG OFF
INDICATOR
(P.76) (P.21,68)
(P.35,68) (P.75)
(P.75)
(P.70)
(P.76)
FUEL ECONOMY
INDICATOR
(P.75)
MALFUNCTION
INDICATOR LAMP
LIGHTS ON INDICATOR
ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR
CRUISE CONTROL INDICATOR
CRUISE MAIN INDICATOR (P.75)
CHARGING SYSTEM INDICATOR
FOG LIGHT INDICATOR IMMOBILIZER SYSTEM INDICATOR
HIGH BEAM INDICATOR
SYSTEM MESSAGE
INDICATOR
LOW OIL PRESSURE INDICATOR LOW FUEL
INDICATOR
PARKING BRAKE AND BRAKE SYSTEM
INDICATOR
SUPPLEMENTAL RESTRAINT SYSTEM
(SRS) INDICATOR (P.74)
(P.34,67)
(P.73)
(P.73)
DAYTIME RUNNING LIGHTS (DRL)
INDICATOR (P.73) (P.73)
LOW TIRE PRESSURE/TPMS
INDICATOR
VSA ACTIVATION
INDICATOR
VEHICLE STABILITY ASSIST (VSA) SYSTEM
INDICATOR
(P.67,479)
(P.67,480)
(P.67,479) (P.70,394)
(P.70,394)
(P.71,399)
(P.69,392)
(P.69,481)
\f—\f—
y
\f
y
(\fy\f\f
y
2009 Odyssey

This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button on the
steering wheel (see page ).
This indicator comes on when you
set the cruise control. See pagef or inf ormation on operating the
cruise control.
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. If it
comes on at any other time, there is
a problem in the power sliding door
system. With this indicator on, move
themainswitchonthedashboardto
the OFF position, and have the
system checked by your dealer as
soon as possible. You can still open
or close each sliding door manually.
For more inf ormation on the power
sliding doors, see page .
The appropriate light comes on in
this indicator if the tailgate or any
door is not closed tightly.
All the lights in the indicator come
on f or a f ew seconds when you turn
the ignition switch to the ON (II)
position.
While the engine is operating in its
most economical range, this
indicator may come on and stay on.
It goes of f when your vehicle uses
extra f uel.
The door and tailgate open indicator
also appears on the multi-inf ormation
display.
You will also see a ‘‘CHECK LEFT
SLIDING DOOR’’ or ‘‘CHECK
RIGHT SLIDING DOOR’’ message
on the multi-information display (see
page ). 161 319
319
89
On EX and EX-L models
On Touring models On EX-L and Touring models
On Touring models
Instrument Panel Indicators
Cruise Main Indicator
Cruise Control Indicator
Fuel Economy Indicator
Power Sliding
Door Indicator
Door and Tailgate Open Indicator
Inst rument s and Cont rols
75
U.S. Canada
——
y

y
(yy
2009 Odyssey

If there is a problem with the power
tailgate, the display shows ‘‘CHECK
POWER TAILGATE.’’ See pagef or more inf ormation.
If there is a problem with either
power sliding door, the multi-
inf ormation display shows ‘‘CHECK
LEFT SLIDING DOOR’’ or ‘‘CHECK
RIGHT SLIDING DOOR.’’ See page
f or more inf ormation. If you see a ‘‘CHECK DRL
SYSTEM’’ message on the multi-
inf ormation display, there is a
problem in the high beam headlight’s
circuit. Take your vehicle to a dealer
to have it checked.
166 158
CONT INUED
Multi-Inf ormation Display
Check DRL Syst em
Check Power Tailgate
Check L ef t /Right Sliding Door
Inst rument s and Cont rols
99
U.S.
Canada
U.S.
Canada
\f—\f—
y


y
(\fy\f
\fy
2009 Odyssey

The headlights, parking lights,
taillights, and license plate light turn
of f af ter the selected time when you
remove the key from the ignition

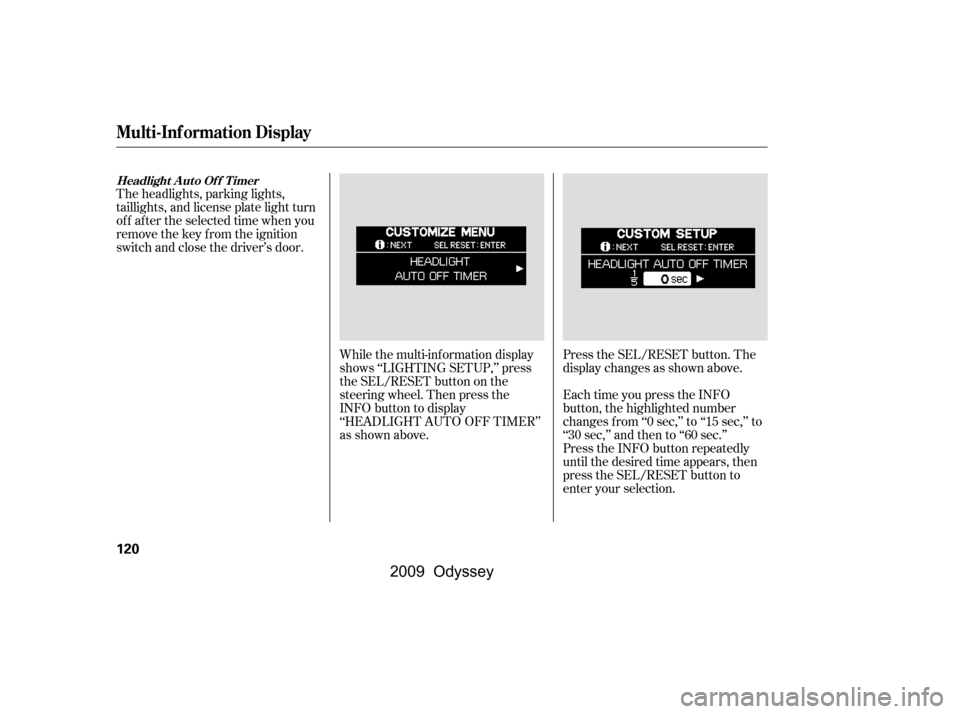

switch and close the driver’s door.While the multi-information display
shows ‘‘LIGHTING SETUP,’’ press
the SEL/RESET button on the
steering wheel. Then press the
INFO button to display
‘‘HEADLIGHT AUTO OFF TIMER’’
as shown above.Press the SEL/RESET button. The
display changes as shown above.
Each time you press the INFO
button, the highlighted number
changes f rom ‘‘0 sec,’’ to ‘‘15 sec,’’ to
‘‘30 sec,’’ and then to ‘‘60 sec.’’
Press the INFO button repeatedly
until the desired time appears, then
press the SEL/RESET button to
enter your selection.
Headlight A uto Of f T imer
Multi-Inf ormation Display
120
\f—\f—
y

\f
y
(\fy\f
y
2009 Odyssey

Each time you press the INFO
button, the display changes to ‘‘ON,’’
to ‘‘OFF,’’ then to ‘‘EXIT.’’
Select ‘‘ON’’ or ‘‘OFF’’ by pressing
the INFO button, and enter your
selection by pressing the SEL/
RESET button.
When you press the UNLOCK
button on the remote transmitter to
unlock the doors and the tailgate, the
exterior lights blink twice to verif y
that the doors and the tailgate are
unlocked and the security system is
turned off.
When you push the LOCK button on
the remote transmitter, some
exterior lights f lash, and a beeper
sounds when you push the LOCK
button again within 5 seconds to
verify that the doors and the tailgate
arelockedandthesecuritysystem
has set (see page ). You can
customize the exterior lights not to
f lash and the beeper not to sound.

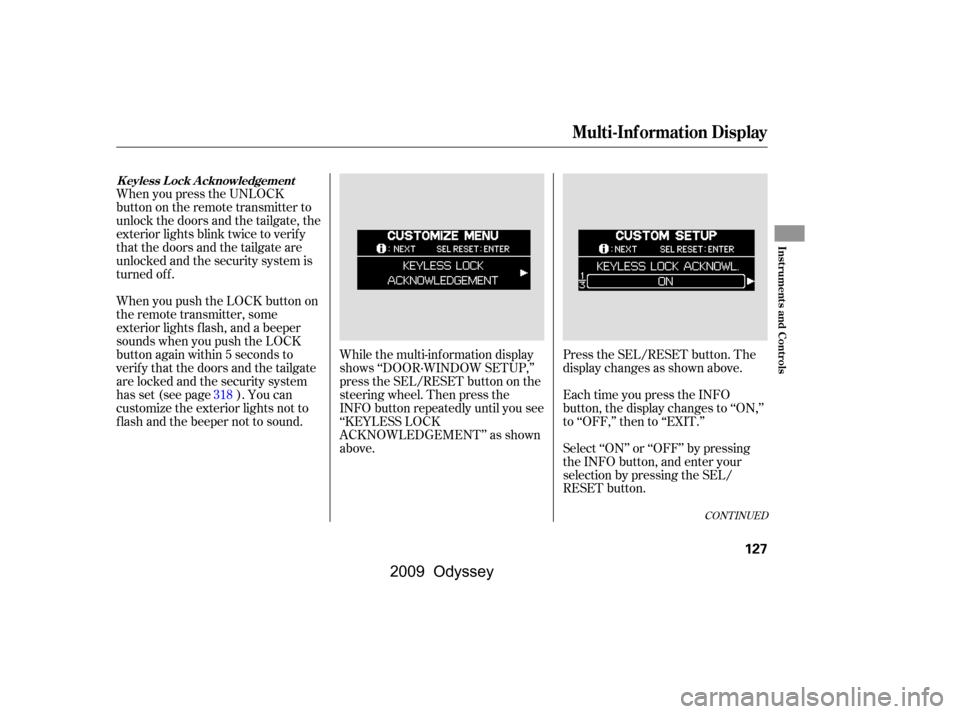

While the multi-information display
shows ‘‘DOOR·WINDOW SETUP,’’
press the SEL/RESET button on the
steering wheel. Then press the
INFO button repeatedly until you see
‘‘KEYLESS LOCK
ACKNOWLEDGEMENT’’ as shown
above.Press the SEL/RESET button. The
display changes as shown above.
318
CONT INUED
K eyless L ock A cknowledgement
Multi-Inf ormation Display
Inst rument s and Cont rols
127
\f—\f—
y


\fy
(\fy\f
y
2009 Odyssey

ÎÎ
Î
Î Î
Î Î ÎÎ
Î
Î
Î
Î
Î
Î
ÎOnly on vehicles equipped with navigation system. Ref er to the navigation system manual.
To use the horn, press the center pad of the steering wheel.
1:
2:
3: If equipped
Controls Near the Steering Wheel
Inst rument s and Cont rols
133
HAZARD WARNING
BUTTON
WINDSHIELD WIPERS/WASHERS
REAR WINDOW WIPER/WASHER
CRUISE CONTROL
BUTTONS
VEHICLE STABILITY
ASSIST (VSA) OFF
SWITCH PASSENGER
AIRBAG OFF
INDICATOR
LIGHT CONTROL
SWITCH
STEERING WHEEL
ADJUSTMENT (P.35)
NAVIGATION
SYSTEM
BUTTONS HORN
(P.193)
(P.189) (P.282)
(P.352) (P.141) (P.134)
(P.135)
(P.319)
(P.281)
(P.140)
(P.221,285)
(P.205) REAR WINDOW
DEFOGGER BUTTON
(P.140)
PEDAL POSITION
ADJUSTMENT SWITCH
POWER SLIDING DOOR
SWITCH
MOONROOF SWITCH
POWER TAILGATE
SWITCHPARKING SENSOR
SYSTEM SWITCH MULTI-INFORMATION
BUTTONSAUDIO SYSTEM/
REAR
ENTERTAINMENT
SYSTEM
CLOCK
HEADLIGHTS/TURN SIGNAL/
FOG LIGHTS
(P.162)
(P.158)/
(P.82)
(P.135,138)
REMOTE AUDIO
CONTROL BUTTONS (P.395)
VEHICLE STABILITY
ASSIST (VSA) OFF
SWITCH (P.395) BLUETOOTH
HANDSFREELINKBUTTONS (P.327)
2 1
3
3 3
3 3 33
3
3
3
3
\f—\f—
y


y
(\fy\f
y
2009 Odyssey

µµµ
Push down on the
lever to signal a lef t turn and up to
signal a right turn. To signal a lane
change, push lightly on the lever,
and hold it. The lever will return to
center when you release it or
complete a turn. The rotating switch
on the lef t lever controls the lights.
Turning this switch to the ‘‘ ’’
position turns on the parking lights,
taillights, instrument panel lights,
side-marker lights, and rear license
plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights. If you leave the lights on with the
key removed f rom the ignition
switch, you will hear a reminder
chime when you open the driver’s
door.
When the light switch is in the
‘‘ ’’ or ‘‘ ’’ position, the
lights on indicator comes on as a
reminder. This indicator stays on if
you leave the light switch on and
turn the ignition switch to the
ACCESSORY (I) or the LOCK (0)
position. To switch f rom low
beams to high beams, push the lef t
lever f orward until you hear a click.
The high beam indicator will come
on (see page ). Pull it back to
return to low beams. To flash the
high beams, pull the lever back
lightly, then release it. The high
beams will stay on as long as you
hold the lever back. 73
Turn Signal
Headlights
High Beams
Turn Signal, Headlights
136
\f—\f—
y


y
(\fy\f

y
2009 Odyssey
