light HONDA ODYSSEY 2009 RB3-RB4 / 4.G Owners Manual

Î
Î
Î
Î
Î
Î
Î
Î
ÎÎ Î
Î
Î
Î
Î
Î
To use the horn, press the center pad of the steering wheel.
Only on vehicles equipped with navigation system. Ref er to the navigation system manual.
1:
2:
If equipped
3:
Your Vehicle at a Glance
4
VEHICLE STABILITY
ASSIST (VSA) OFF
SWITCH WINDSHIELD WIPERS/WASHERS
PASSENGER
AIRBAG OFF
INDICATOR
CRUISE CONTROL
BUTTONS
HAZARD WARNING
BUTTONREAR WINDOW
DEFOGGER
BUTTON
HORN (P.35)
NAVIGATION
SYSTEM
BUTTONS
VEHICLE STABILITY
ASSIST (VSA) OFF
SWITCH
STEERING WHEEL
ADJUSTMENTLIGHT
CONTROL
SWITCH
REAR WINDOW WIPER/WASHER
(P.162)
(P.282) (P.141) (P.134)
(P.135)
(P.319)
(P.140) (P.140)
(P.221,285)
(P.205)
PEDAL POSITION
ADJUSTMENT SWITCH
POWER SLIDING
DOOR SWITCH
MOONROOF
SWITCH
PARKING SENSOR
SYSTEM SWITCH
REMOTE AUDIO
CONTROL BUTTONS
AUDIO SYSTEM/
REAR
ENTERTAINMENT
SYSTEM
CLOCK
HEADLIGHTS/TURN SIGNAL/
FOG LIGHTS
(P.193)
(P.189) (P.281)
(P.135,138)
MULTI-INFORMATION
BUTTONS (P.82)
POWER TAILGATE
SWITCH (P.158)/
(P.395)
(P.361) (P.395) BLUETOOTH
HANDSFREELINKBUTTONS(P.327)
1
2
3
3
3
33 3
3
3
3
3
3
\f—\f—
y


\f
y
(\fy\f\f\fy
2009 Odyssey

Your f ront airbags are also dual-
threshold airbags. Airbags with this
f eature have two deployment
thresholds that depend on whether
sensors detect the occupant is
wearing a seat belt or not.
If the occupant’s belt is,
the airbag will deploy at a slightly
lower threshold, because the
occupant would need extra
protection.
Your f ront airbags are dual-stage
airbags. This means they have two
inf lation stages that can be ignited
sequentially or simultaneously,
depending on crash severity.
In a
crash, both stages
will ignite simultaneously to provide
the quickest and greatest protection.
In a crash, one stage will
ignite first, then the second stage
will ignite a split second later. This
provides longer airbag inf lation time
with a little less force.
The total time for inflation and
def lation is one-tenth of a second, so
f ast that most occupants are not
aware that the airbags deployed until
they see them lying in their laps.
After a crash, you may see what
looks like smoke. This is actually
powder f rom the airbag’s surf ace.
Although the powder is not harmf ul,
people with respiratory problems
mayexperiencesometemporary
discomf ort. If this occurs, get out of
the vehicle as soon as it is saf e to do
so.
If the occupant’s belt is , the
airbag will inf late at a slightly higher
threshold, when the airbag would be
needed to supplement the protection
provided by the seat belt.
CONT INUED
Dual-T hreshold A irbags
not lat ched
Dual-Stage A irbags
more severeless severe latched
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
29
\f—\f—
y



y
(\fy\f\fy
2009 Odyssey

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .64
............................
Instrument Panel .65
..........
Instrument Panel Indicators .67
.............................................
Gauges .77
.............
Multi-Inf ormation Display .81
Controls Near the Steering
.........................................
Wheel .133Windshield Wipers and
.................................
Washers .134
Rear Window Wiper and ...................................
Washer .135
.........
Turn Signal and Headlights .135
......
Instrument Panel Brightness .139
...............
Hazard Warning Button .140
...............
Rear Window Def ogger .140
........
Steering Wheel Adjustment .141
.............................
Keys and Locks .142
......................
Immobilizer System .143
..............................
Ignition Switch .144
.....................
Remote Transmitter .145
Opening or Closing the Power .........................
Sliding Doors .148
Opening or Closing the Power ..................................
Tailgate .148
....................................
Door Locks .151
....................
Power Door Locks .151
Auto Door Locking/
..............................
Unlocking .152
............
Childproof Door Locks .157
..........................................
Tailgate .157
..........................
Power Tailgate .158
.................................
Sliding Doors .161
...............................................
Seats .167..................................
Seat Heaters .183
Driving Position Memory ........................................
System .184
............................
Power Windows .186
.......................................
Moonroof .189
...........................................
Mirrors .190
...............................
Parking Brake .192
.
Adjustable Driver’s Foot Pedals .193
.........
Interior Convenience Items .194
..........
Retractable Center Tray .195
.....................
Beverage Holders .195
................
Integrated Sunshade .197
....................
Sunglasses Holder .197
................
Conversation Mirror .198
...................................
Sun Visor .198
............................
Vanity Mirror .199
...................
Rear Compartment .199
................
Second Row Console .199
...............
In-Floor Storage Area .200
..............................
Glove Boxes .201
...........................
Center Pocket .202
...............................
Coin Pocket .202
........
Accessory Power Sockets .203
.......................
AC Power Outlet .203
...............................
Interior Lights .205
Instruments and Controls
Inst rument s and Cont rols
63
\f—\f—
y

\fy
(\fy\f\fy
2009 Odyssey

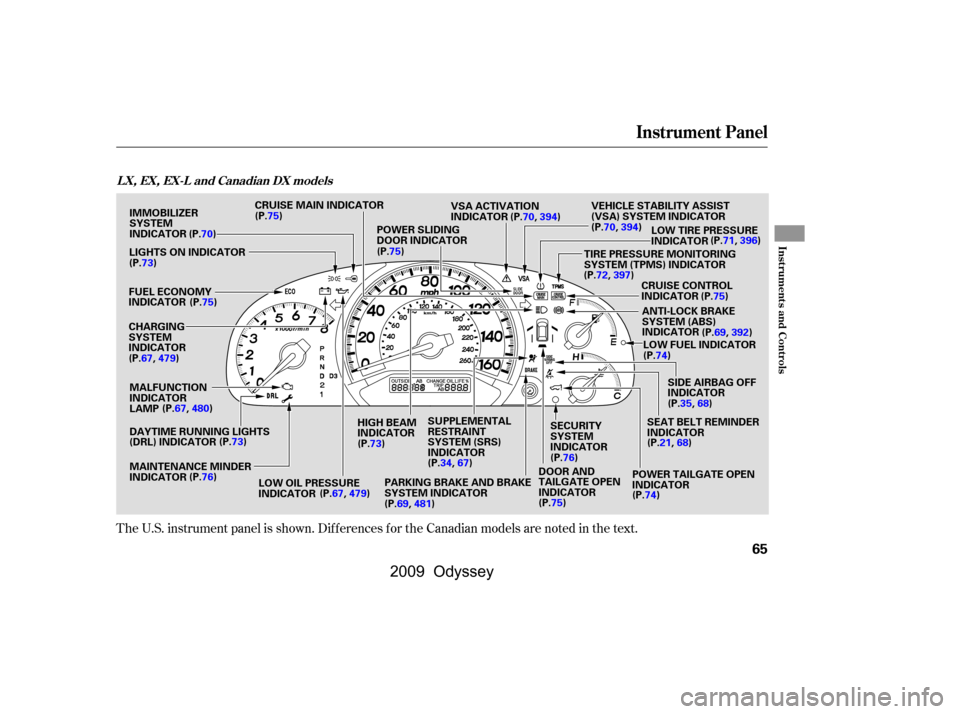

The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Instrument Panel
Inst rument s and Cont rols
LX, EX, EX-L and Canadian DX models
65
HIGH BEAM
INDICATOR
IMMOBILIZER
SYSTEM
INDICATOR
POWER SLIDING
DOOR INDICATOR
DOOR AND
TAILGATE OPEN
INDICATOR
CHARGING
SYSTEM
INDICATOR FUEL ECONOMY
INDICATOR
MALFUNCTION
INDICATOR
LAMP LOW TIRE PRESSURE
INDICATOR
LIGHTS ON INDICATOR CRUISE MAIN INDICATOR
VEHICLE STABILITY ASSIST
(VSA) SYSTEM INDICATOR
ANTI-LOCK BRAKE
SYSTEM (ABS)
INDICATOR
CRUISE CONTROL
INDICATOR
LOW FUEL INDICATOR
SEAT BELT REMINDER
INDICATOR SIDE AIRBAG OFF
INDICATOR
SUPPLEMENTAL
RESTRAINT
SYSTEM (SRS)
INDICATOR
PARKING BRAKE AND BRAKE
SYSTEM INDICATOR SECURITY
SYSTEM
INDICATOR
(P.70)
(P.75)
(P.76) (P.34,67)
(P.75)(P.76)
(P.21,68)(P.35,68)
(P.74) (P.75)
(P.75)
(P.75)
(P.73)
(P.73)TIRE PRESSURE MONITORING
SYSTEM (TPMS) INDICATOR
(P.73)
MAINTENANCE MINDER
INDICATOR DAYTIME RUNNING LIGHTS
(DRL) INDICATOR VSA ACTIVATION
INDICATOR
POWER TAILGATE OPEN
INDICATOR
(P.74)
(P.70,394)
(P.67,479) (P.67,480)
LOW OIL PRESSURE
INDICATOR(P.67,479) (P.70,394)
(P.71,396)
(P.72,397)
(P.69,392)
(P.69,481)
 — —
y


y
( y   y
2009 Odyssey

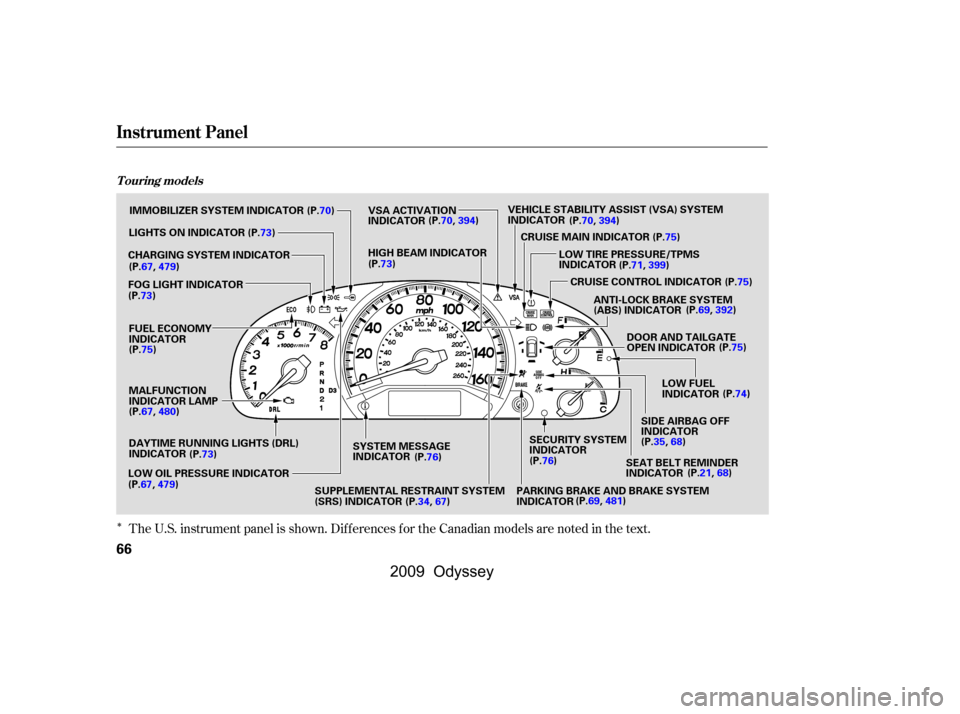

ÎThe U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Instrument Panel
T ouring models
66
SEAT BELT REMINDER
INDICATORDOOR AND TAILGATE
OPEN INDICATOR
SECURITY SYSTEM
INDICATOR SIDE AIRBAG OFF
INDICATOR
(P.76) (P.21,68)
(P.35,68) (P.75)
(P.75)
(P.70)
(P.76)
FUEL ECONOMY
INDICATOR
(P.75)
MALFUNCTION
INDICATOR LAMP
LIGHTS ON INDICATOR
ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR
CRUISE CONTROL INDICATOR
CRUISE MAIN INDICATOR (P.75)
CHARGING SYSTEM INDICATOR
FOG LIGHT INDICATOR IMMOBILIZER SYSTEM INDICATOR
HIGH BEAM INDICATOR
SYSTEM MESSAGE
INDICATOR
LOW OIL PRESSURE INDICATOR LOW FUEL
INDICATOR
PARKING BRAKE AND BRAKE SYSTEM
INDICATOR
SUPPLEMENTAL RESTRAINT SYSTEM
(SRS) INDICATOR (P.74)
(P.34,67)
(P.73)
(P.73)
DAYTIME RUNNING LIGHTS (DRL)
INDICATOR (P.73) (P.73)
LOW TIRE PRESSURE/TPMS
INDICATOR
VSA ACTIVATION
INDICATOR
VEHICLE STABILITY ASSIST (VSA) SYSTEM
INDICATOR
(P.67,479)
(P.67,480)
(P.67,479) (P.70,394)
(P.70,394)
(P.71,399)
(P.69,392)
(P.69,481)
\f—\f—
y
\f
y
(\fy\f\f
y
2009 Odyssey

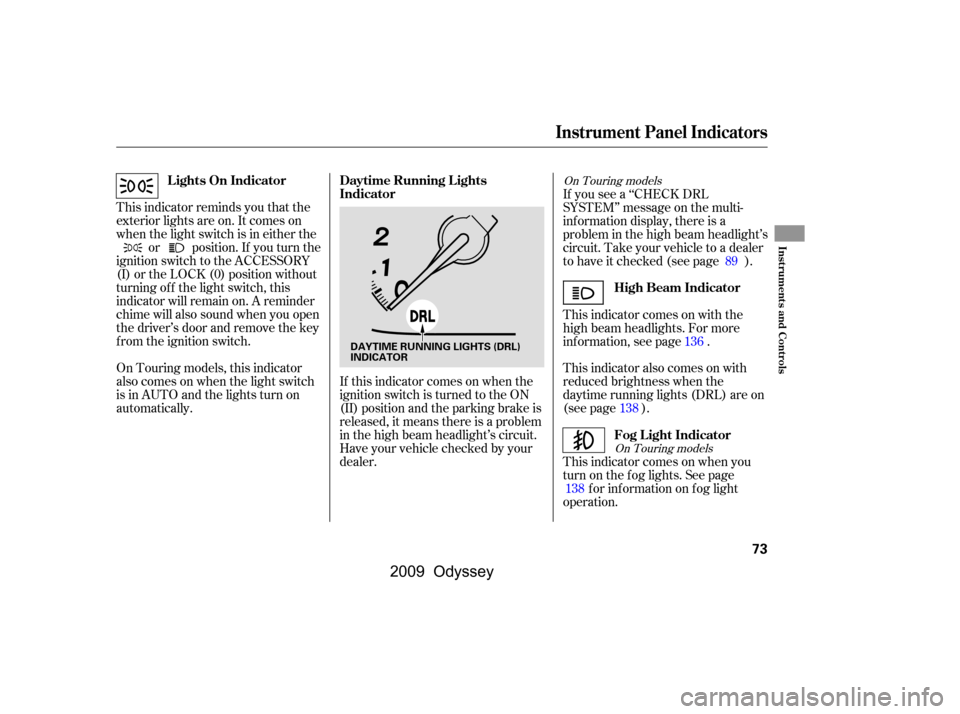

This indicator also comes on with
reduced brightness when the
daytime running lights (DRL) are on
(see page ).
If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
in the high beam headlight’s circuit.
Have your vehicle checked by your
dealer.
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position without
turning of f the light switch, this
indicator will remain on. A reminder
chime will also sound when you open
the driver’s door and remove the key
from the ignition switch.
On Touring models, this indicator
also comes on when the light switch
is in AUTO and the lights turn on
automatically. If you see a ‘‘CHECK DRL
SYSTEM’’ message on the multi-
inf ormation display, there is a
problem in the high beam headlight’s
circuit. Take your vehicle to a dealer
to have it checked (see page ).
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator comes on when you
turn on the fog lights. See page
f or inf ormation on f og light
operation. 89
136
138
138
On Touring models
On Touring models
Instrument Panel Indicators
Daytime Running L ights
Indicator Fog L ight Indicator
Lights On Indicator
High Beam Indicator
Inst rument s and Cont rols
73
DAYTIME RUNNING LIGHTS (DRL)
INDICATOR
\f—\f—
y

y
(\fy\f\fy
2009 Odyssey

This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button on the
steering wheel (see page ).
This indicator comes on when you
set the cruise control. See pagef or inf ormation on operating the
cruise control.
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. If it
comes on at any other time, there is
a problem in the power sliding door
system. With this indicator on, move
themainswitchonthedashboardto
the OFF position, and have the
system checked by your dealer as
soon as possible. You can still open
or close each sliding door manually.
For more inf ormation on the power
sliding doors, see page .
The appropriate light comes on in
this indicator if the tailgate or any
door is not closed tightly.
All the lights in the indicator come
on f or a f ew seconds when you turn
the ignition switch to the ON (II)
position.
While the engine is operating in its
most economical range, this
indicator may come on and stay on.
It goes of f when your vehicle uses
extra f uel.
The door and tailgate open indicator
also appears on the multi-inf ormation
display.

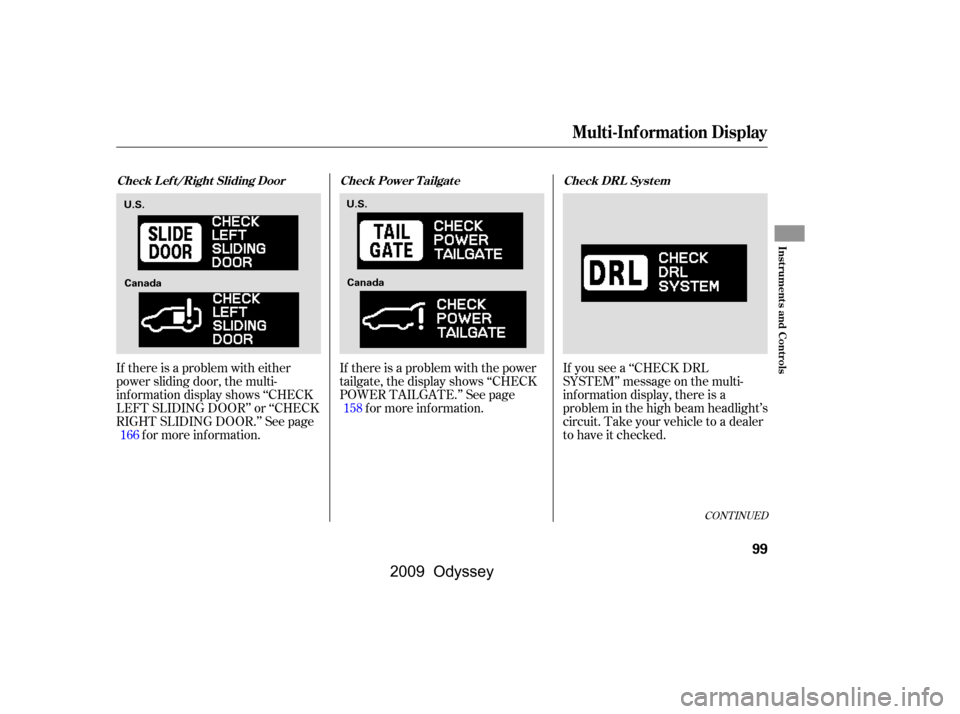

You will also see a ‘‘CHECK LEFT
SLIDING DOOR’’ or ‘‘CHECK
RIGHT SLIDING DOOR’’ message
on the multi-information display (see
page ). 161 319
319
89
On EX and EX-L models
On Touring models On EX-L and Touring models
On Touring models
Instrument Panel Indicators
Cruise Main Indicator
Cruise Control Indicator
Fuel Economy Indicator
Power Sliding
Door Indicator
Door and Tailgate Open Indicator
Inst rument s and Cont rols
75
U.S. Canada
 — —
y

 y
( y   y
2009 Odyssey

This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, the pointer
may rise to the upper zone. If it
reaches the red (hot) mark, pull
safely to the side of the road. For
instructions and precautions on
checking the engine’s cooling
system, see page .477
Temperature Gauge
Fuel Gauge
Gauges
Inst rument s and Cont rols
77
SPEEDOMETER
TEMPERATURE
GAUGE
FUEL GAUGE
TEMPERATURE
GAUGE
TACHOMETER
SELECT/RESET KNOB
SELECT/RESET KNOB
TACHOMETER SPEEDOMETER
FUEL GAUGE
MULTI-INFORMATION DISPLAY INFORMATION DISPLAY
LX, EX, EX-L and Canadian DX models
Touring models
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
\f—\f—
y

y
(\fy\f\fy
2009 Odyssey

If there is a problem with the power
tailgate, the display shows ‘‘CHECK
POWER TAILGATE.’’ See pagef or more inf ormation.
If there is a problem with either
power sliding door, the multi-
inf ormation display shows ‘‘CHECK
LEFT SLIDING DOOR’’ or ‘‘CHECK
RIGHT SLIDING DOOR.’’ See page
f or more inf ormation. If you see a ‘‘CHECK DRL
SYSTEM’’ message on the multi-
inf ormation display, there is a
problem in the high beam headlight’s
circuit. Take your vehicle to a dealer
to have it checked.
166 158
CONT INUED
Multi-Inf ormation Display
Check DRL Syst em
Check Power Tailgate
Check L ef t /Right Sliding Door
Inst rument s and Cont rols
99
U.S.
Canada
U.S.
Canada
\f—\f—
y


y
(\fy\f
\fy
2009 Odyssey

ÎÎÎ
Î Î
Î Î
Î
µ™¶ ™
µ™¶ ™
Î Menu Item
LANGUAGE
SELECTION
ADJUST OUTSIDE
TEMP. DISPLAY
TRIP A RESET WITH
REFUEL
ELAPSED TIME
RESET
MEMORY POSIT ION
LINK
INTERIOR LIGHT
DIMMING T IME
HEADLIGHT AUT O
OFF TIMER Description
Changes the language used in the display.
Changes the outside temperature reading above or
below its current reading.
Causes trip meter A and the average fuel economy to
reset when you refuel.
Resets the elapsed time of your current trip.
Changes the driver’s seat to a stored setting.
Changes how long (in seconds) the interior lights stay
on after you close the doors.
Changes how long (in seconds) the exterior lights
stay on after you close the driver’s door. Setting Option
ENGLISH
FRENCH
SPANISH 5F° 0°F 5F° (U.S.)
3C° 0°C 3C°
(Canada)
ON
OFF
IGN RESET
TRIP A RESET
TRIP B RESET
ON
OFF
15 sec
30 sec
60 sec
0sec
15 sec
30 sec
60 sec Page
108
110
112
114
116
118
120
Group Setup
MET ER SET UP
(P.107)
POSITION SETUP
(P.116)
LIGHTING
SETUP
(P.118)
Default setting
:
Multi-Inf ormation Display
102
 — —
y

 y
( y
 y
2009 Odyssey
