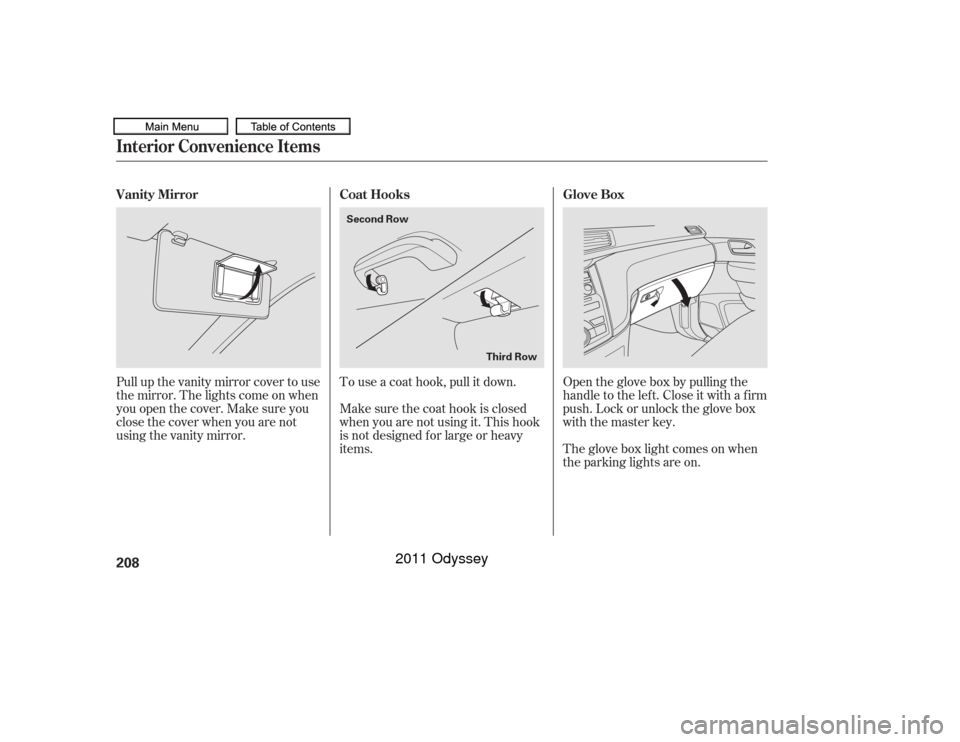

Open the glove box by pulling the
handle to the lef t. Close it with a f irm
push. Lock or unlock the glove box
with the master key.
The glove box light comes on when
the parking lights are on.
To use a coat hook, pull it down.
Make sure the coat hook is closed
when you are not using it. This hook
is not designed f or large or heavy
items.
Pull up the vanity mirror cover to use
the mirror. The lights come on when
you open the cover. Make sure you
close the cover when you are not
using the vanity mirror.
Interior Convenience Items
Glove Box
Coat Hooks
Vanity Mirror
208
Second Row
Third Row
10/07/17 10:02:01 31TK8600_213
2011 Odyssey

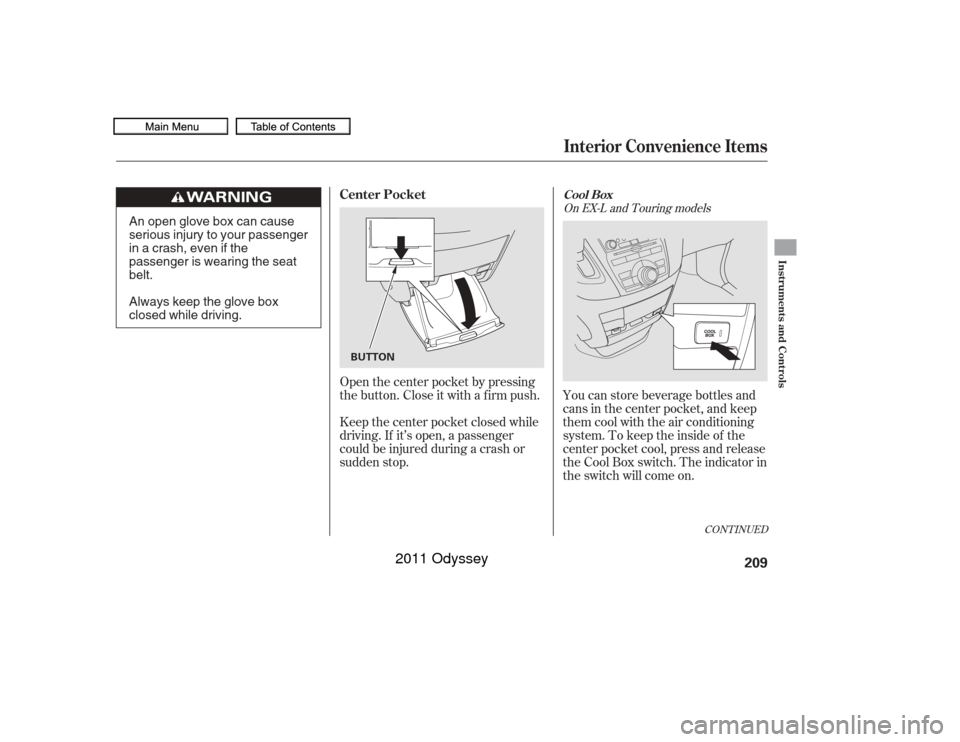

You can store beverage bottles and
cans in the center pocket, and keep
them cool with the air conditioning
system. To keep the inside of the
center pocket cool, press and release
the Cool Box switch. The indicator in
the switch will come on.
Open the center pocket by pressing
the button. Close it with a firm push.
Keep the center pocket closed while
driving. If it’s open, a passenger
could be injured during a crash or
sudden stop.
CONT INUED
On EX-L and Touring models
Cool Box
Center Pocket
Interior Convenience Items
Instruments and Controls
209
BUTTON
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
10/07/17 10:02:08 31TK8600_214
2011 Odyssey

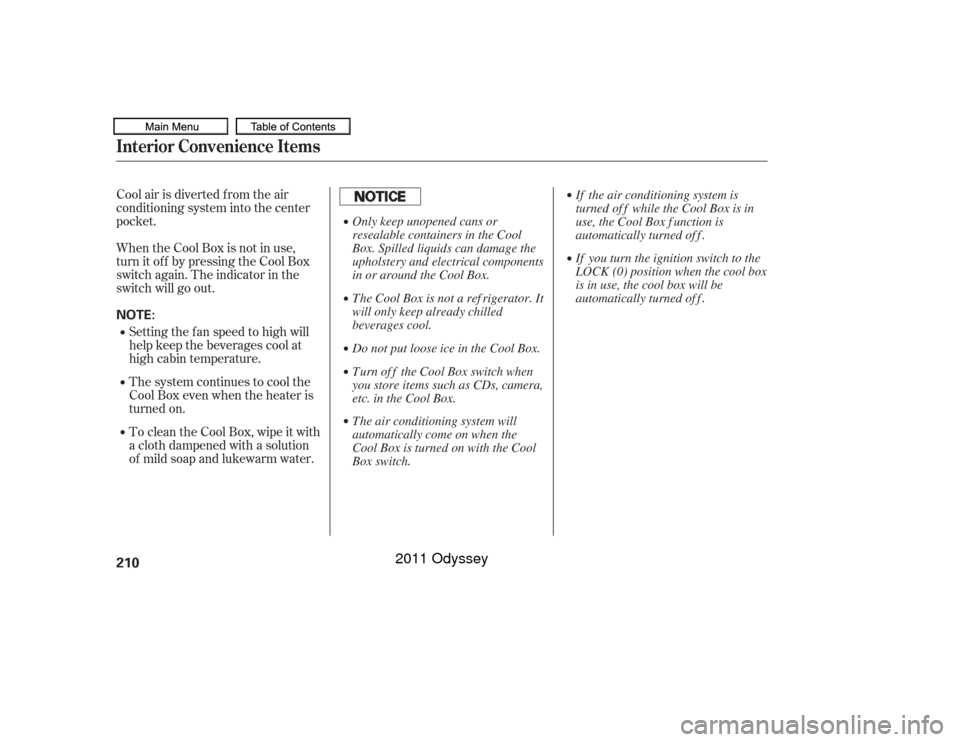

Cool air is diverted from the air
conditioning system into the center
pocket.
When the Cool Box is not in use,
turn it of f by pressing the Cool Box
switch again. The indicator in the
switch will go out.Setting the fan speed to high will
help keep the beverages cool at
high cabin temperature.
The system continues to cool the
Cool Box even when the heater is
turned on.
To clean the Cool Box, wipe it with
a cloth dampened with a solution
of mild soap and lukewarm water.Interior Convenience Items210NOTE: Only keep unopened cans or
resealable containers in the Cool
Box. Spilled liquids can damage the
upholstery and electrical components
in or around the Cool Box.
The Cool Box is not a ref rigerator. It
will only keep already chilled
beverages cool.
Do not put loose ice in the Cool Box.
Turn of f the Cool Box switch when
you store items such as CDs, camera,
etc. in the Cool Box.
The air conditioning system will
automatically come on when the
Cool Box is turned on with the Cool
Box switch.If the air conditioning system is
turned of f while the Cool Box is in
use, the Cool Box f unction is
automatically turned of f .
If you turn the ignition switch to the
LOCK (0) position when the cool box
is in use, the cool box will be
automatically turned of f .
10/07/17 10:02:17 31TK8600_215
2011 Odyssey

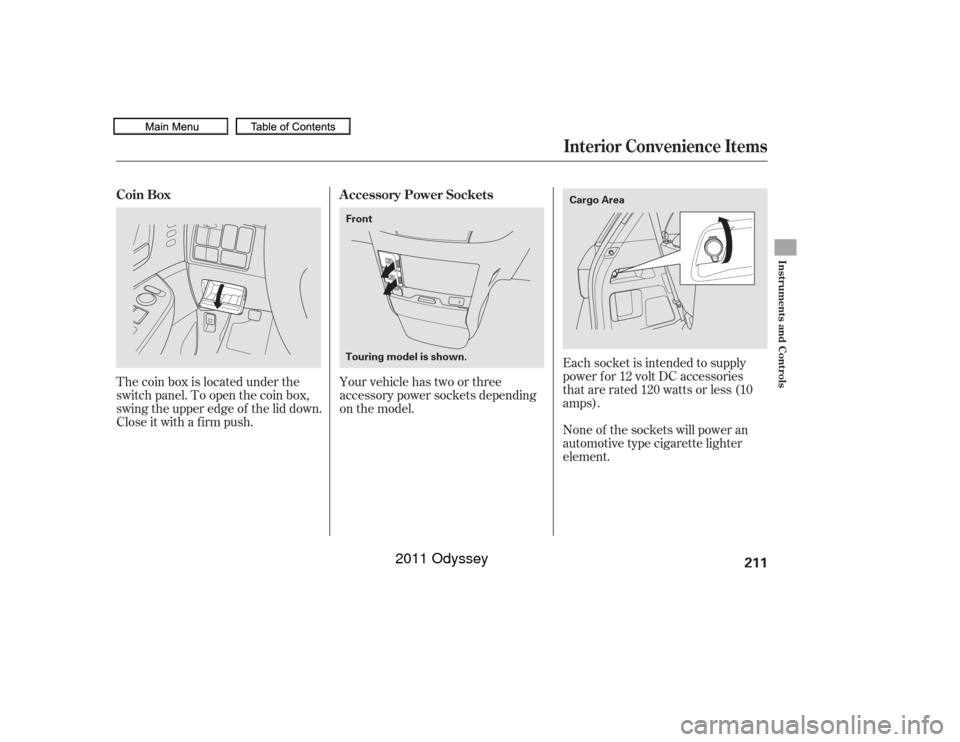

Each socket is intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).
None of the sockets will power an
automotive type cigarette lighter
element.
The coin box is located under the
switch panel. To open the coin box,
swing the upper edge of the lid down.
Close it with a f irm push.
Your vehicle has two or three
accessory power sockets depending
on the model. A ccessory Power Sockets
Coin BoxInterior Convenience Items
Instruments and Controls
211
Front
Touring model is shown. Cargo Area
10/07/17 10:02:25 31TK8600_216
2011 Odyssey

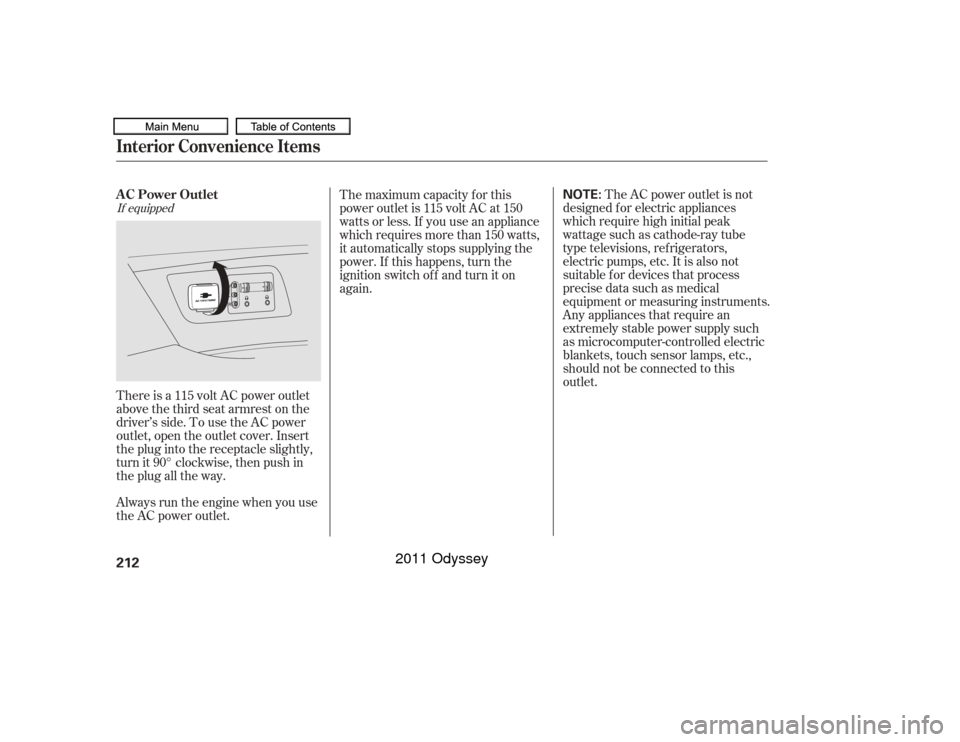

The AC power outlet is not
designed f or electric appliances
which require high initial peak
wattage such as cathode-ray tube
type televisions, ref rigerators,
electric pumps, etc. It is also not
suitable f or devices that process
precise data such as medical
equipment or measuring instruments.
Any appliances that require an
extremely stable power supply such
as microcomputer-controlled electric
blankets, touch sensor lamps, etc.,
should not be connected to this
outlet.
The maximum capacity f or this
power outlet is 115 volt AC at 150
watts or less. If you use an appliance
which requires more than 150 watts,
it automatically stops supplying the
power. If this happens, turn the
ignition switch of f and turn it on
again.
Always run the engine when you use
the AC power outlet. There is a 115 volt AC power outlet
above the third seat armrest on the
driver’s side. To use the AC power
outlet, open the outlet cover. Insert
the plug into the receptacle slightly,
turn it 90° clockwise, then push in
the plug all the way.
If equippedAC Power OutletInterior Convenience Items212
NOTE:
10/07/17 10:02:31 31TK8600_217
2011 Odyssey

When the switch is in the OFF position: When the switch is in the door activatedposition:
None of the lights come on when a
door is opened.

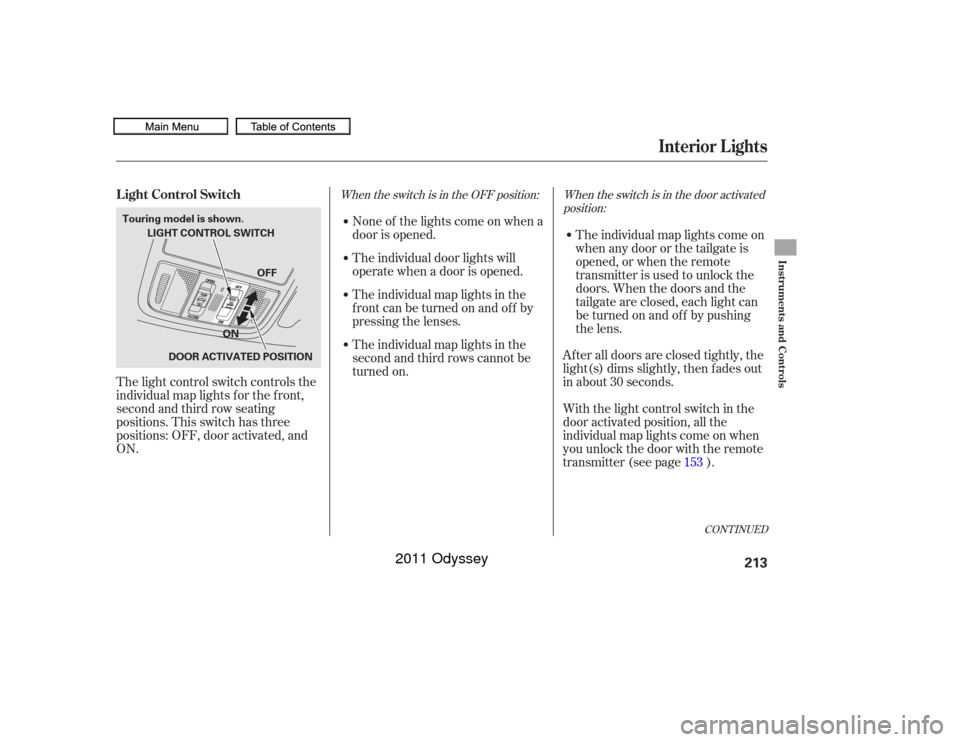

The light control switch controls the
individual map lights f or the f ront,
second and third row seating
positions. This switch has three
positions: OFF, door activated, and
ON. The individual door lights will
operate when a door is opened.
The individual map lights in the
frontcanbeturnedonandoff by
pressing the lenses.
The individual map lights in the
second and third rows cannot be
turned on.
The individual map lights come on
when any door or the tailgate is
opened, or when the remote
transmitter is used to unlock the
doors. When the doors and the
tailgate are closed, each light can
be turned on and of f by pushing
the lens.
After all doors are closed tightly, the
light(s) dims slightly, then f ades out
in about 30 seconds.
With the light control switch in the
door activated position, all the
individual map lights come on when
you unlock the door with the remote
transmitter (see page ). 153
CONT INUED
L ight Control Switch
Interior Lights
Instruments and Controls
213
LIGHT CONTROL SWITCH
DOOR ACTIVATED POSITION
Touring model is shown.
OFF
ON
10/07/17 10:02:41 31TK8600_218
2011 Odyssey

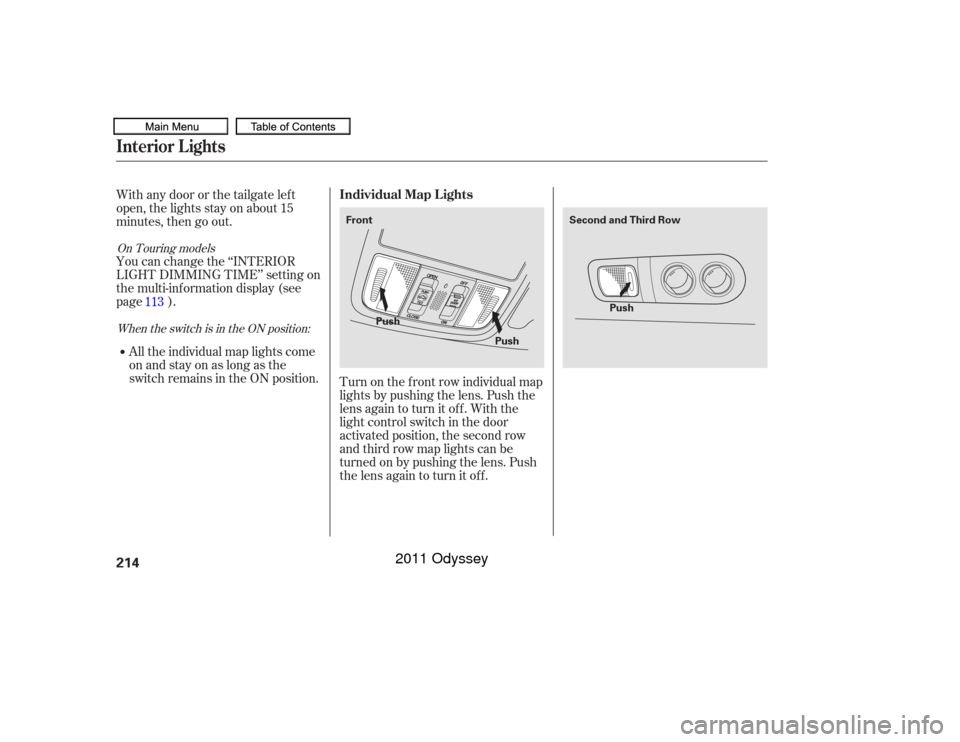

Turn on the f ront row individual map
lights by pushing the lens. Push the
lens again to turn it off. With the
light control switch in the door
activated position, the second row
and third row map lights can be
turned on by pushing the lens. Push
the lens again to turn it off.
Withanydoororthetailgateleft
open, the lights stay on about 15
minutes, then go out.
You can change the ‘‘INTERIOR
LIGHT DIMMING TIME’’ setting on
the multi-information display (see
page ).
All the individual map lights come
onandstayonaslongasthe
switch remains in the ON position. 113
When the switch is in the ON position:
On Touring models
Individual Map L ights
Interior Lights214
Front
Second and Third Row
Push PushPush
10/07/17 10:02:48 31TK8600_219
2011 Odyssey

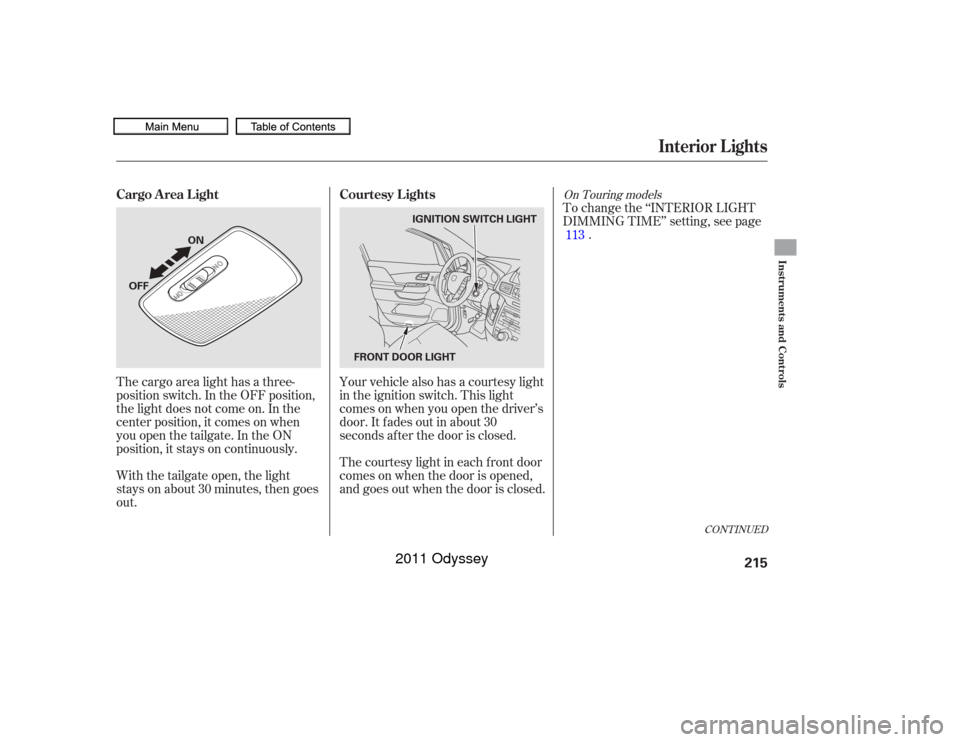

The cargo area light has a three-
position switch. In the OFF position,
the light does not come on. In the
center position, it comes on when
you open the tailgate. In the ON
position, it stays on continuously.To change the ‘‘INTERIOR LIGHT
DIMMING TIME’’ setting, see page
.
Your vehicle also has a courtesy light
in the ignition switch. This light
comesonwhenyouopenthedriver’s
door. It f ades out in about 30
seconds af ter the door is closed.
The courtesy light in each f ront door
comes on when the door is opened,
and goes out when the door is closed.
With the tailgate open, the light
stays on about 30 minutes, then goes
out. 113
CONT INUED
On Touring models
Cargo Area Light
Courtesy Lights
Interior Lights
Instruments and Controls
215
OFFON
FRONT DOOR LIGHTIGNITION SWITCH LIGHT
10/07/17 10:02:56 31TK8600_220
2011 Odyssey

The courtesy light between the map
lights come on when you turn the
parking lights on. To adjust its
brightness, turn the select/reset
knob on the instrument panel.
In addition to the courtesy light on
the ceiling, the driver’s and f ront
passenger’s ambient f oot light (if
equipped) comes on.Interior Lights216
COURTESY LIGHT
10/07/17 10:03:00 31TK8600_221
2011 Odyssey

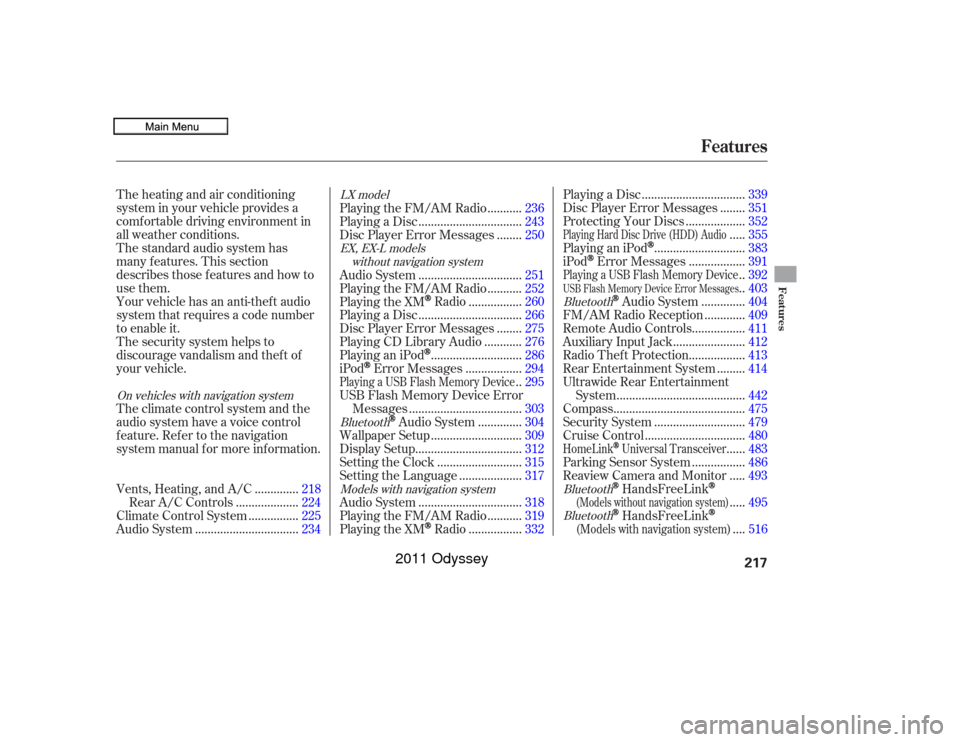

The heating and air conditioning
system in your vehicle provides a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
The security system helps to
discourage vandalism and thef t of
your vehicle.
Theclimatecontrolsystemandthe
audio system have a voice control
feature. Refer to the navigation
system manual f or more inf ormation..............
Vents, Heating, and A/C . 218
...................
Rear A/C Controls . 224
...............
Climate Control System . 225
................................
Audio System .234 ..........
Playing the FM/AM Radio . 236
................................
Playing a Disc .243
.......
Disc Player Error Messages . 250
................................
Audio System .251
..........
Playing the FM/AM Radio . 252
................
Playing the XM
Radio . 260
................................
Playing a Disc .266
.......
Disc Player Error Messages . 275
...........
Playing CD Library Audio . 276
............................
PlayinganiPod
. 286
.................
iPod
Error Messages . 294
.. 295
USB Flash Memory Device Error ...................................
Messages .303
.............
Audio System . 304
............................
Wallpaper Setup .309
.................................
Display Setup .312
..........................
Setting the Clock .315
...................
Setting the Language . 317
................................
Audio System .318
..........
Playing the FM/AM Radio . 319
................
Playing the XM
Radio . 332 ................................
Playing a Disc .339
.......
Disc Player Error Messages . 351
..................
Protecting Your Discs . 352
..... 355
............................
PlayinganiPod
. 383
.................
iPod
Error Messages . 391
.. 392
.. 403
.............
Audio System . 404
............
FM/AM Radio Reception . 409
................
Remote Audio Controls . 411
......................
Auxiliary Input Jack .412
.................
Radio Thef t Protection . 413
........
Rear Entertainment System . 414
Ultrawide Rear Entertainment ........................................
System .442
.........................................
Compass .475
............................
Security System .479
...............................
Cruise Control .480
...... 483
................
Parking Sensor System . 486
....
Reaview Camera and Monitor . 493HandsFreeLink
.....495
HandsFreeLink
....516
LX model
EX, EX-L models without navigation system
BluetoothModels with navigation system Bluetooth
BluetoothBluetooth
On vehicles with navigation systemPlaying a USB Flash Memory Device
Playing a USB Flash Memory Device
HomeLink
Universal Transceiver
(Models with navigation system)
Playing Hard Disc Drive (HDD) Audio
(Models without navigation system)USB Flash Memory Device Error Messages
Features
Features
217
