HONDA ODYSSEY 2011 RB3-RB4 / 4.G Owners Manual

This indicator and the warning
message on the multi-inf ormation
display will go of f , af ter several miles
(kilometers) driving, when the spare
tire is replaced with the specified
regular tire equipped with the tire
pressure monitor sensor.
Each wheel is equipped with a tire
pressure sensor mounted inside the
tire behind the valve stem. You must
use TPMS specif ic wheels. It is
recommended that you always have
your tires serviced by your dealer or
a qualif ied technician.
Never use a puncture-repairing agent
in a f lat tire. If used, you will have to
replace the tire pressure sensor.
Havetheflattirerepairedbyyour
dealer as soon as possible.If the low tire pressure/TPMS
indicator and the low tire position on
the low tire pressure monitor do not
go out af ter inf lating the tires to the
specified values, have your dealer
check the system as soon as possible.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Tire Pressure Monitoring System (TPMS)578
10/07/17 10:52:06 31TK8600_583
2011 Odyssey

If the system detects vehicles in
adjacent lanes, it automatically
illuminates the appropriate indicator
to provide assistance when you
change lanes. It is not a substitute
for visual confirmation that it is safe
to change lanes.
The blind spot inf ormation system
(BSI) is designed to assist you when
you are changing lanes.
On Touring Elite and Canadian Touring
models
Blind Spot Inf ormation System (BSI)
Driving
579
Failure to visually confirm that it
is safe to change lanes before
doing so may result in a crash
and serious injury or death.
Do not rely only on the blind
spot information system when
changing lanes.
Always look in your mirrors, to
either side of your vehicle, and
behind you for other vehicles
before changing lanes.
10/07/17 10:52:11 31TK8600_584
2011 Odyssey

A: Approximately 1.6 f t. (0.5 m)
B: Approximately 10 f t. (3 m)
C: Approximately 10 f t. (3 m)
BSI system is designed to detect
vehicles in specif ied alert zones
adjacent to your vehicle, particularly
in harder to see areas commonly
known as ‘‘blind spots.’’When BSI detects a vehicle in an
alert zone, a BSI alert indicator
comes on near the corresponding
outside rearview mirror.
While your vehicle is moving
f orward at a speed between 6 mph
(10 km/h) and 100 mph (160 km/h),
the BSI alert indicator comes on
under either of the f ollowing
conditions:
The system will not alert you to all
vehicles in blind spot zones (such as
vehicles you have just passed which
youshouldalreadybeawareof)
unless it remains in the alert zone f or
approximately 2 or more seconds.
While the system is on, BSI is active
whenever the shif t lever is in the D
or D4 position.
Another vehicle overtakes you,
entering the alert zone from
behind, at a speed that dif f ers
f rom your vehicle’s speed by no
more than 31 mph (50 km/h).
You pass a vehicle at a speed that
differs from that vehicle’s speed
by no more than 12 mph (20
km/h). The indicator comes on
approximately 2 seconds af ter the
vehicle enters the alert zone.Blind Spot Inf ormation System (BSI)BSI System Operation580A B
CALERT
ZONE
10/07/17 10:52:19 31TK8600_585
2011 Odyssey

CONT INUED
Blind Spot Inf ormation System (BSI)
Driving
581

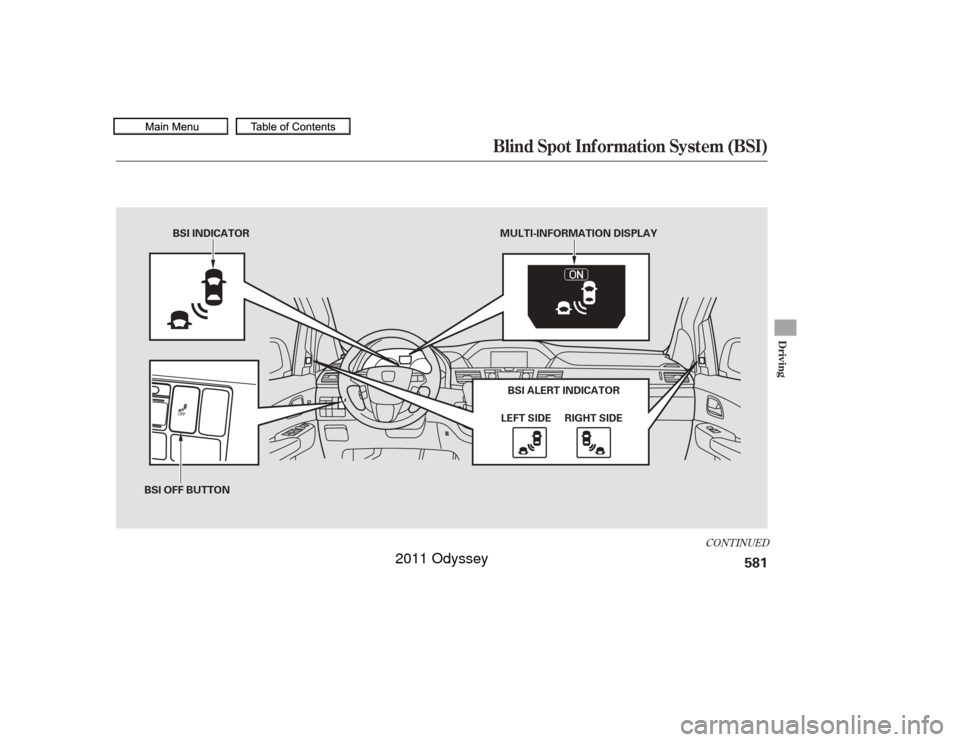

MULTI-INFORMATION DISPLAYBSI ALERT INDICATOR RIGHT SIDE
LEFT SIDE
BSI INDICATOR
BSI OFF BUTTON
10/07/17 10:52:23 31TK8600_586
2011 Odyssey

The BSI alert indicator starts to blink
as a reminder if you move the turn
signal lever in the direction of the
detected vehicle.Radar sensors, located underneath
each corner of the rear bumper,
detect objects. Do not cover this area
with labels or stickers of any kind.
Always keep this area f ree of any
kind of dirt every time you get in the
vehicle. Impacts to the radar sensors or the
area around them can af f ect system
perf ormance. If an impact occurs,
have the system checked by your
dealer.Blind Spot Inf ormation System (BSI)582
LEVER
INDICATOR
BLINK
ILLUMINATE
10/07/17 10:52:29 31TK8600_587
2011 Odyssey

Like all assistance systems, BSI has
limitations. Over-reliance on BSI may
result in a collision. Always look in
your mirrors, to either side of your
vehicle, and behind you f or other
vehicles bef ore changing lanes.The system should be turned of f
when towing a trailer. Due to the
added mass and resulting changes in
radar coverage, the system cannot
operate as intended, and detection of
the trailer itself by the radar sensors
may cause the BSI alert indicators to
illuminate.
The speed dif f erence between
your vehicle and a vehicle
approaching f rom behind is
greaterthan31mph(50km/h).
A vehicle is parked in a side lane.
The speed dif f erence between
your vehicle and the vehicle you
are passing is greater than 6 mph
(10 km/h).
An object not detected by the
radar sensors approaches or
passes your vehicle.
The BSI alert indicators may not
illuminate under the f ollowing
circumstances:
CONT INUED
Blind Spot Inf ormation System (BSI)
Important Precautions
Limitations
Driving
583
10/07/17 10:52:37 31TK8600_588
2011 Odyssey

BSI may be adversely af f ected under
the f ollowing circumstances:When objects such as guard rails,
poles, trees, etc., are detected.
When an object that doesn’t
reflect radio waves well, such as a
motorcycle, is in the alert zone.
A vehicle is behind or approaching
your vehicle while on a curved
road.
When towing a trailer.
A vehicle is moving f rom a f ar lane
to the adjacent lane.
The system picks up external
electrical interf erence.
The rear bumper has been
def ormed, or improperly repaired. The system is f or your convenience.
Even if an object is within the alert
zone, the system may not detect it,
depending on its shape.
Always look in your mirrors, to
either side of your vehicle, and
behind you f or other vehicles bef ore
changing lanes.
The orientation of the sensors has
been changed.
Bad weather conditions, such as
heavy rain, snow and f og.Blind Spot Inf ormation System (BSI)584
EXAMPLES
GUARD RAILPOLE OR TREE
MOTORCYCLE
: BSIAlertindicatorison BSIAlertindicatorisoff
:
10/07/19 14:54:53 31TK8600_589
2011 Odyssey

To turn the system off, press the BSI
OFF button when the ignition switch
is in the ON (II) position. The BSI
indicator on the instrument panel
glows amber, indicating that the
system is turned of f . The multi-
inf ormation display indicates that the
system is of f .To turn the system on again, press
the same button. The BSI indicator
on the instrument panel turns off.
The multi-inf ormation display
indicates that the system is on.
When the ignition switch is turned to
the ON (II) position, the system will
be in the previously selected ON or
OFF setting.
Blind Spot Inf ormation System (BSI)
BSI OFF Button
Driving
585
10/07/17 10:52:52 31TK8600_590
2011 Odyssey

Î
µ
Î
SystemStatus
ON
OFF
ON/OFF OFF Multi-Inf ormation
Display Message BSI Indicator
Description
When you push the BSI OFF button, a BSI ON or OFF message is displayed on the multi-
information display for about 5 seconds.
The BSI indicator will remain on while the system is off.
A chime sounds to indicate that the system has been turned ON or OFF.
If while driving, mud, snow, or ice accumulates in the vicinity of sensor:
The system may shut down
The BSI indicator illuminates, a message is displayed on the multi-information display, and a
chime sounds.
The BSI indicator will turn off and the system will return to normal once the obstacle is removed,
and you begin to drive.
Always keep the area around the radar sensors clean. BSI may not operate properly if the sensors
are obstructed.
The BSI alert indicator: May come on when a vehicle enters one of the alert zones, even if this message is displayed.
May not come on due to obstruction (splashes, etc.) even if this message is not displayed.
: System status may remain on even when the BLIND SPOT NOT AVAILABLE message is displayed.
If the system is faulty, the BSI indicator illuminates and a message is displayed on the multi-
information display.
Have your vehicle inspected by your Honda dealer.
Blind Spot Inf ormation System (BSI)BSI Status Displays586
10/07/17 10:53:01 31TK8600_591
2011 Odyssey

As required by the FCC:This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Blind Spot Inf ormation System (BSI)
Driving
587
