Page 171 of 433
170
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
Controls

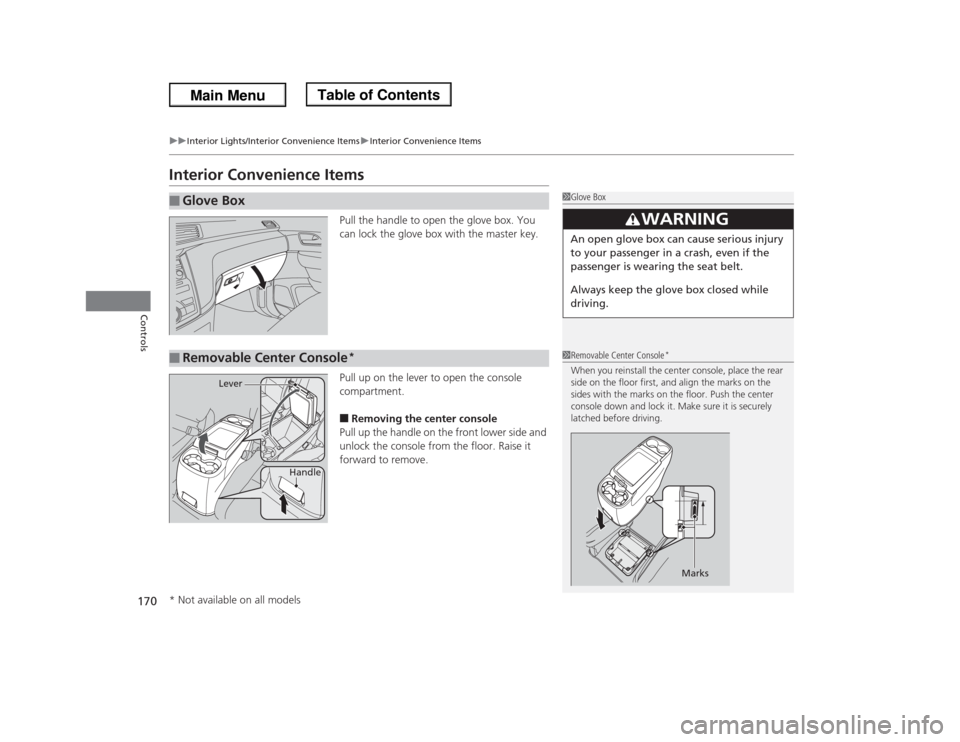

Interior Convenience Items
Pull the handle to open the glove box. You
can lock the glove box with the master key.
Pull up on the lever to open the console
compartment.■Removing the center console
Pull up the handle on the front lower side and
unlock the console from the floor. Raise it
forward to remove.
■
Glove Box
1Glove Box
3
WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
■
Removable Center Console
*
1Removable Center Console
*
When you reinstall the center console, place the rear
side on the floor first, and align the marks on the
sides with the marks on the floor. Push the center
console down and lock it. Make sure it is securely
latched before driving.
Marks
Handle
Lever
* Not available on all models
Page 172 of 433
Continued
171
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
Controls

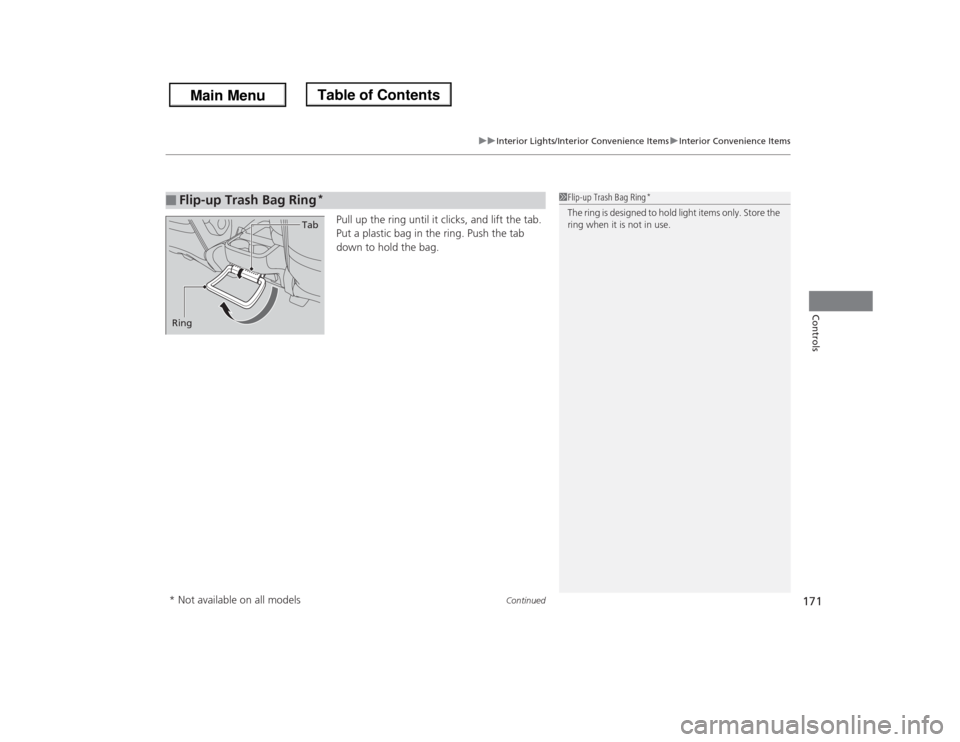

Pull up the ring until it clicks, and lift the tab.
Put a plastic bag in the ring. Push the tab
down to hold the bag.
■
Flip-up Trash Bag Ring
*
1Flip-up Trash Bag Ring
*
The ring is designed to hold light items only. Store the
ring when it is not in use.
RingTab* Not available on all models
Page 173 of 433
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
172Controls

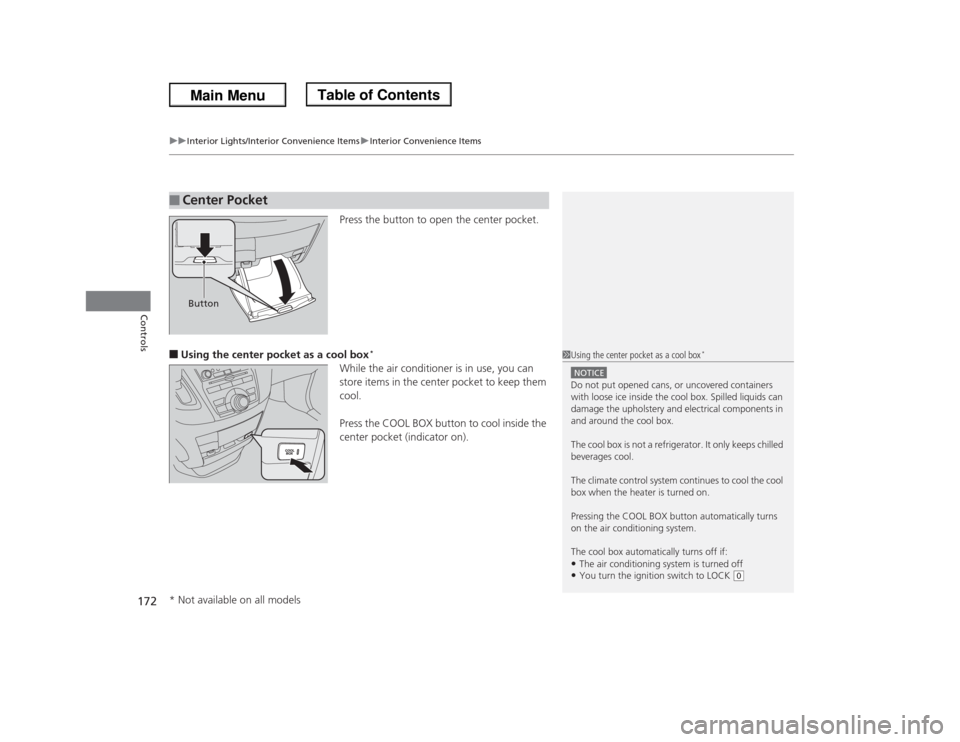

Press the button to open the center pocket.
■Using the center pocket as a cool box
*
While the air conditioner is in use, you can
store items in the center pocket to keep them
cool.
Press the COOL BOX button to cool inside the
center pocket (indicator on).
■
Center PocketButton
1Using the center pocket as a cool box
*
NOTICEDo not put opened cans, or uncovered containers
with loose ice inside the cool box. Spilled liquids can
damage the upholstery and electrical components in
and around the cool box.
The cool box is not a refrigerator. It only keeps chilled
beverages cool.
The climate control system continues to cool the cool
box when the heater is turned on.
Pressing the COOL BOX button automatically turns
on the air conditioning system.
The cool box automatically turns off if:•The air conditioning system is turned off•You turn the ignition switch to LOCK
(0
* Not available on all models
Page 174 of 433
Continued
173
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
Controls
■Front panel beverage holder
Pull the beverage holder arm inside the front
panel tray until the arm contacts the tray
front.■Removable center console beverage
holders
*
■Front seat beverage holders
*
■

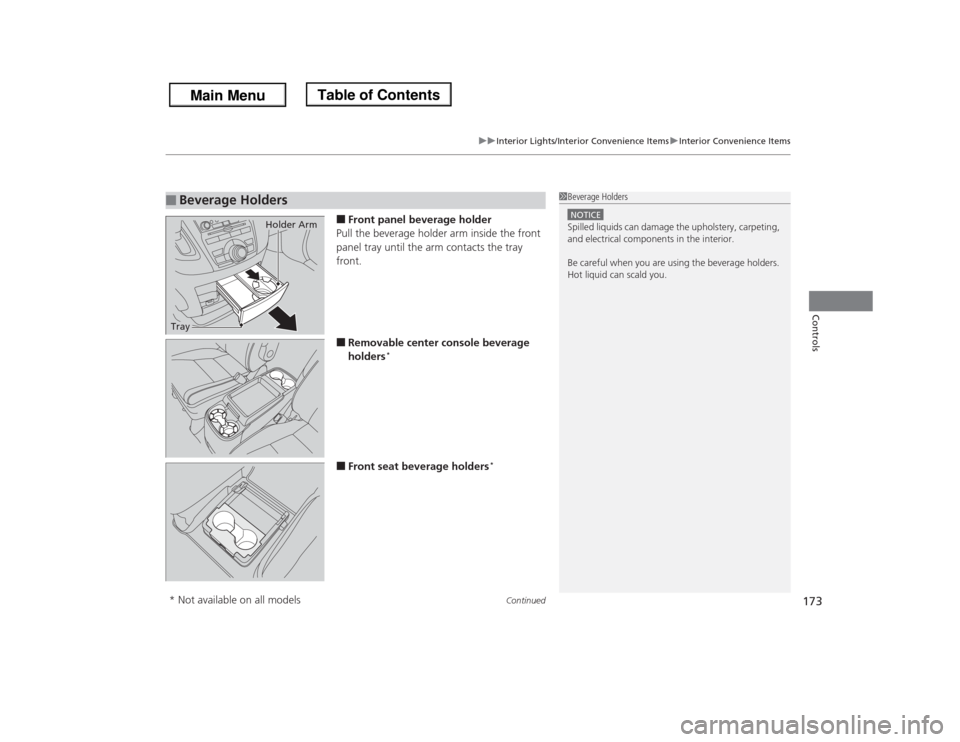

Beverage Holders
1Beverage HoldersNOTICESpilled liquids can damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are using the beverage holders.
Hot liquid can scald you.
Tray
Holder Arm
* Not available on all models
Page 175 of 433
174
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
Controls

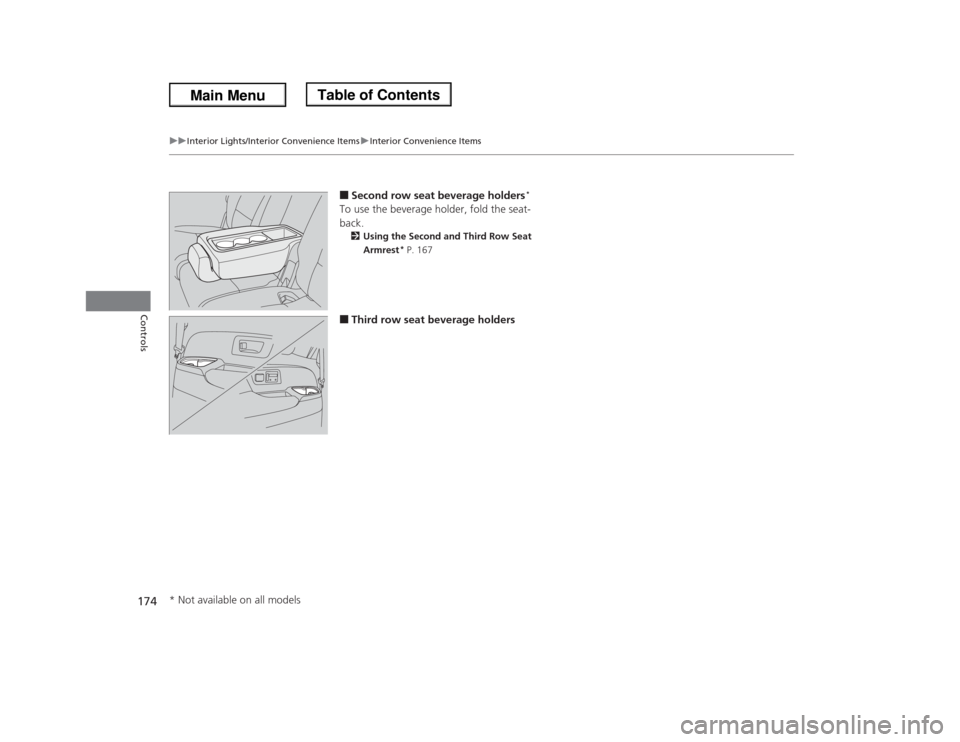

■Second row seat beverage holders
*
To use the beverage holder, fold the seat-
back.2Using the Second and Third Row Seat
Armrest
* P. 167
■Third row seat beverage holders
* Not available on all models
Page 176 of 433
Continued
175
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
Controls
The accessory power sockets can be used when the ignition switch is in ACCESSORY (q
or ON
(w
.
■Accessory power socket(s) (console
panel)
Open the cover to use it.■Accessory power socket (cargo area)
Open the cover to use it.
■
Accessory Power Sockets
1Accessory Power SocketsNOTICEDo not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
The accessory power socket is designed to supply
power for 12 volt DC accessories that are rated 120
watts or less (10 amps).
To prevent battery drain, only use the power socket
with the engine run.
When each socket is being used simultaneously, the
combined power rating of the accessories should not
exceed 120 watts (10 amps).
Page 177 of 433
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
176Controls
The AC power outlet can be used when the engine is running.
Open the cover to use it. Plug in the appliance
slightly, turn it 90° clockwise, then push it all
the way.■
AC Power Outlet
*
1AC Power Outlet
*
NOTICEDo not use the AC power outlet for electric
appliances that require high initial peak wattage,
such as cathode-ray tube type televisions,
refrigerators, electric pumps, etc. It is not suitable for
devices that process precise data, such as medical
equipment, and that require an extermely stable
power supply, such as microcomputer-controlled
electric blankets, touch sensor lamps, etc.
The AC power outlet is designed to supply power for
up to 115 volt appliances that are rated 150 watts or
less.
* Not available on all models
Page 178 of 433
Continued
177
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
Controls
There are coat hooks on the both side of the
grab handle and the window frame. Pull it
down to use it.
Use the floor cargo hooks to secure luggage in
the cargo area.
■
Coat Hooks
1Coat Hooks
The coat hooks are not designed for large or heavy
items.
Second row
Third row
■
Cargo Hooks
Page 179 of 433
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
178Controls
■Front
Pull out the hook on the instrument panel
from the side.■Rear
■
Grocery Bag Hooks
1Grocery Bag Hooks
The hooks are designed to hold light items. Heavy
objects may damage the hook.
Hook
Hooks
Page 180 of 433
Continued
179
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
Controls
To open the sunglasses holder, push and
release the indent. To close, push it again until
it latches.
You can store eyeglasses and other small
items in this holder.■Conversation mirror
*
The sunglasses holder comes with a mirror.
Open the sunglasses holder fully, then push it
back to the first detent. You can use the
mirror to view the rear seats.
■
Sunglasses Holder
1Sunglasses Holder
Keep the holder closed while driving except when
accessing stored items.
Push
* Not available on all models
