HONDA ODYSSEY 2016 RC1-RC2 / 5.G Owners Manual

480
uuReplacing Light Bulbs uFront Turn Signal/Parking/Side Marker Light Bulbs
Maintenance
Front Turn Signal/Parking/Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Turn the socket c ounterclockwise and
remove it.
2. Remove the old bulb and insert a new bulb.
Side Turn Signal/Emergency Indicator Lights*
Side turn light bulbs are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
Front Turn Signal/Parking/Side Marker Light: 28/8 W
Bulb
Socket
* Not available on all models
16 US ODYSSEY-31TK86500.book 480 ページ ２０１５年６月２４日　水曜日　午後３時０分

481
uuReplacing Light Bulbs uBrake Light, Rear Turn Signal Light Bu lbs, and Rear Side Marker/Taillights
Continued
Maintenance
Brake Light, Rear Turn Signal Light Bulbs, and Rear
Side Marker/Taillights
When replacing, use the following bulbs.
1.Remove the mounting bolts.
Brake Light: 21 W
Rear Turn Signal Light: 21 W (Amber)
Rear Side Marker/Taillight: LED
1Brake Light, Rear Turn Signal Light Bulbs, and Rear Side Marker/
Taillights
Rear side marker /taillights are LED type. Have an
authorized Honda dealer in spect and replace the light
assembly.
Mounting
Bolts
16 US ODYSSEY-31TK86500.book 481 ページ ２０１５年６月２４日　水曜日　午後３時０分

uuReplacing Light Bulbs uBrake Light, Rear Turn Signal Light Bul bs, and Rear Side Marker/Taillights
482
Maintenance
2.Place one hand on the outer corner of the
taillight assembly and other hand on the
lower edge of the taillight, near the cargo
area.
3. Pull the outer corner of the taillight
assembly toward yo u while supporting the
assembly with the hand closest to the cargo
area.
4. Turn the socket c ounterclockwise and
remove it.
5. Remove the old bulb and insert a new bulb.1Brake Light, Rear Turn Signal Light Bulbs, and Rear Side Marker/
Taillights
To reinstall, insert the fasteners into the grommets
and push the assembly back into place.
u Do not reinstall the assembly if the grommets are
loose or out of the holes . Contact a dealer to
replace them.
Grommet
Bulb
Socket
Upper
Fastener
Lower
Fastener
16 US ODYSSEY-31TK86500.book 482 ページ ２０１５年６月２４日　水曜日　午後３時０分

483
uuReplacing Light Bulbs uBack-Up Light Bulbs/Taillights
Maintenance

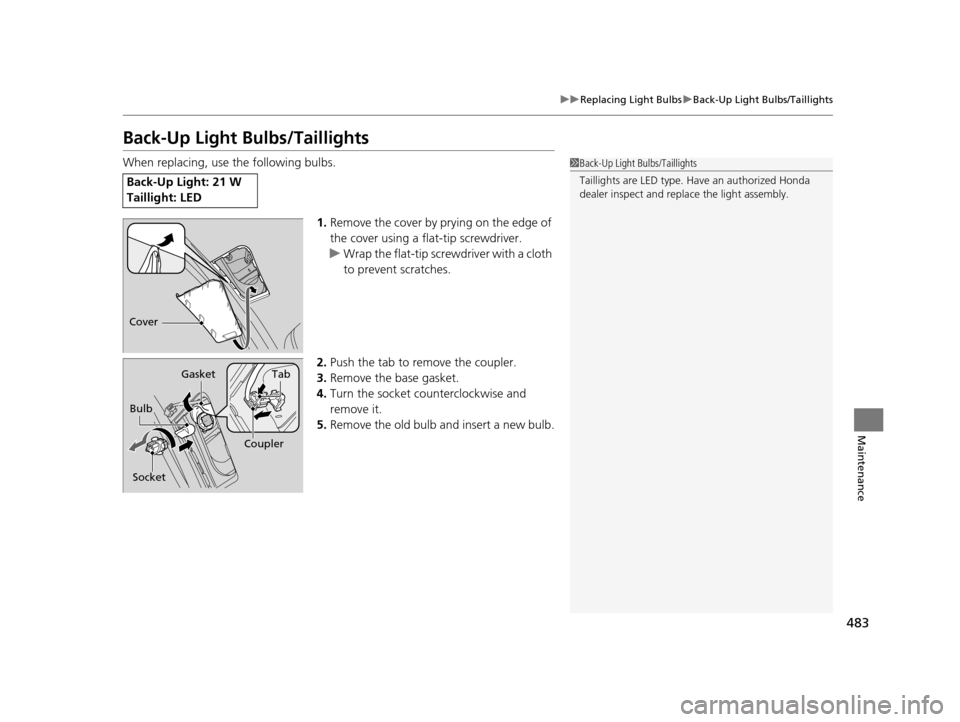

Back-Up Light Bulbs/Taillights
When replacing, use the following bulbs.
1.Remove the cover by prying on the edge of
the cover using a flat-tip screwdriver.
u Wrap the flat-tip scre wdriver with a cloth
to prevent scratches.
2. Push the tab to remove the coupler.
3. Remove the base gasket.
4. Turn the socket counterclockwise and
remove it.
5. Remove the old bulb and insert a new bulb.
Back-Up Light: 21 W
Taillight: LED
1Back-Up Light Bulbs/Taillights
Taillights are LE D type. Have an authorized Honda
dealer inspect and replace the light assembly.
Cover
Bulb
CouplerTab
Socket Gasket
16 US ODYSSEY-31TK86500.book 483 ページ ２０１５年６月２４日　水曜日　午後３時０分

484
uuReplacing Light Bulbs uRear License Plate Light Bulbs
Maintenance

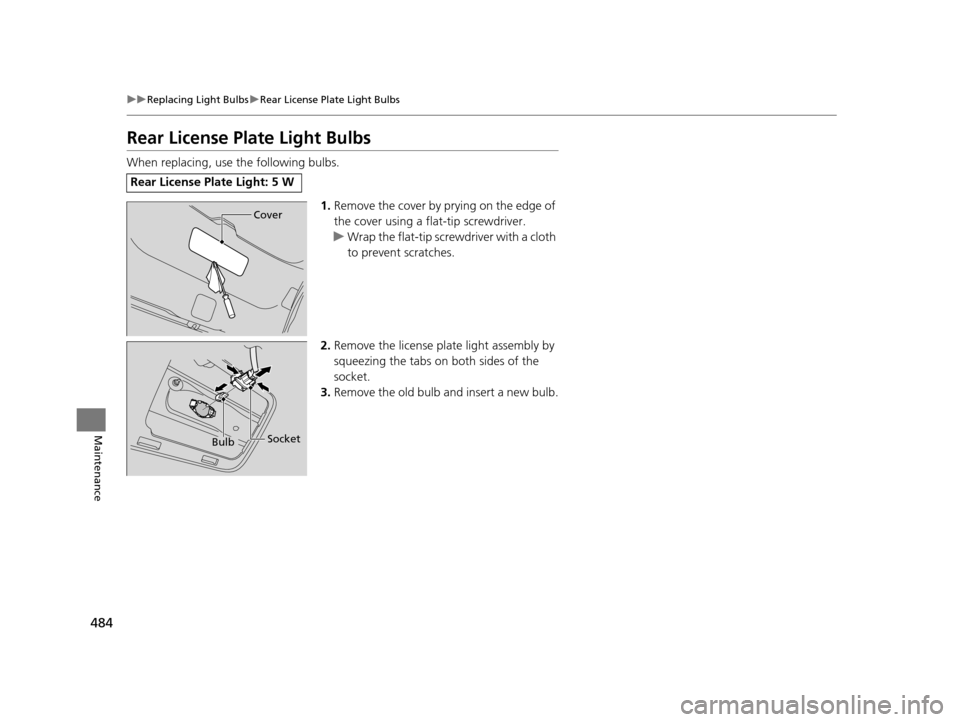

Rear License Plate Light Bulbs
When replacing, use the following bulbs.
1.Remove the cover by prying on the edge of
the cover using a fl at-tip screwdriver.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. Remove the license plate light assembly by
squeezing the tabs on both sides of the
socket.
3. Remove the old bulb and insert a new bulb.
Rear License Plate Light: 5 W
Cover
BulbSocket
16 US ODYSSEY-31TK86500.book 484 ページ ２０１５年６月２４日　水曜日　午後３時０分

485
uuReplacing Light Bulbs uHigh-Mount Brake Light Bulb
Maintenance

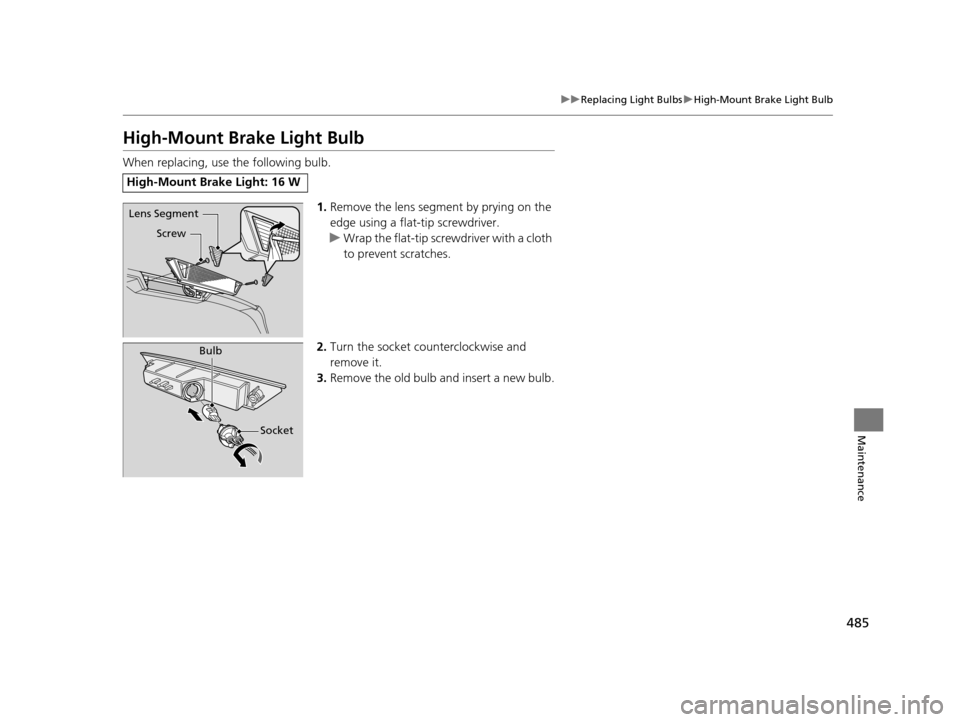

High-Mount Bra ke Light Bulb
When replacing, use the following bulb.
1.Remove the lens segment by prying on the
edge using a flat-tip screwdriver.
u Wrap the flat-tip scre wdriver with a cloth
to prevent scratches.
2. Turn the socket counterclockwise and
remove it.
3. Remove the old bulb and insert a new bulb.
High-Mount Brake Light: 16 W
Screw
Lens Segment
Bulb
Socket
16 US ODYSSEY-31TK86500.book 485 ページ ２０１５年６月２４日　水曜日　午後３時０分

486
Maintenance

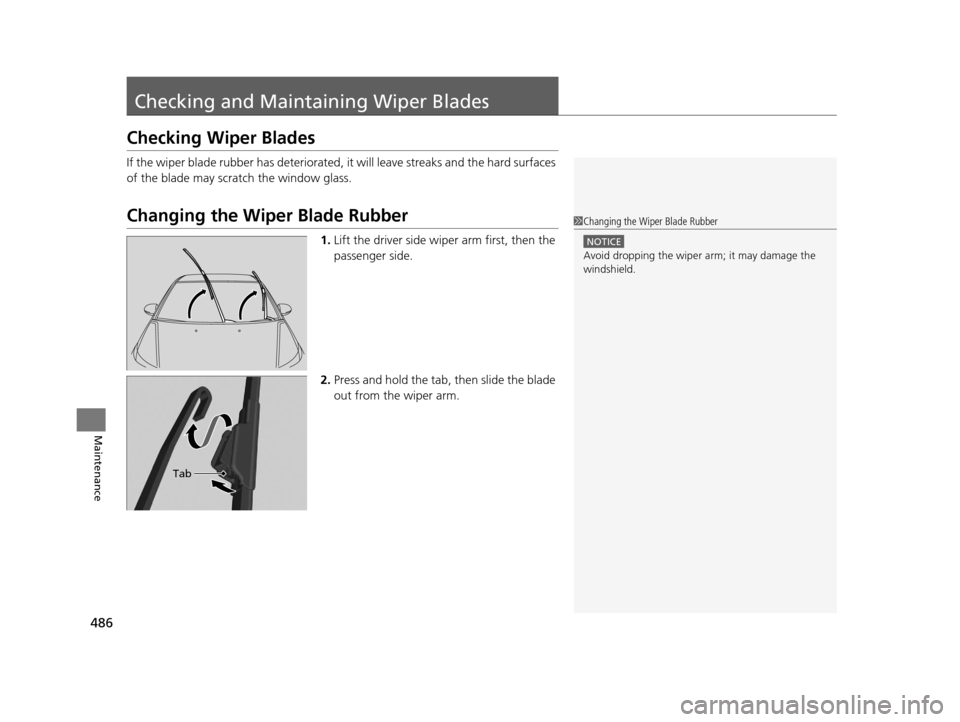

Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Wiper Blade Rubber
1. Lift the driver side wiper arm first, then the
passenger side.
2. Press and hold the tab, then slide the blade
out from the wiper arm.
1 Changing the Wiper Blade Rubber
NOTICE
Avoid dropping the wiper ar m; it may damage the
windshield.
Tab
16 US ODYSSEY-31TK86500.book 486 ページ ２０１５年６月２４日　水曜日　午後３時０分

487
uuChecking and Maintaining Wiper Blades uChanging the Wiper Blade Rubber
Maintenance

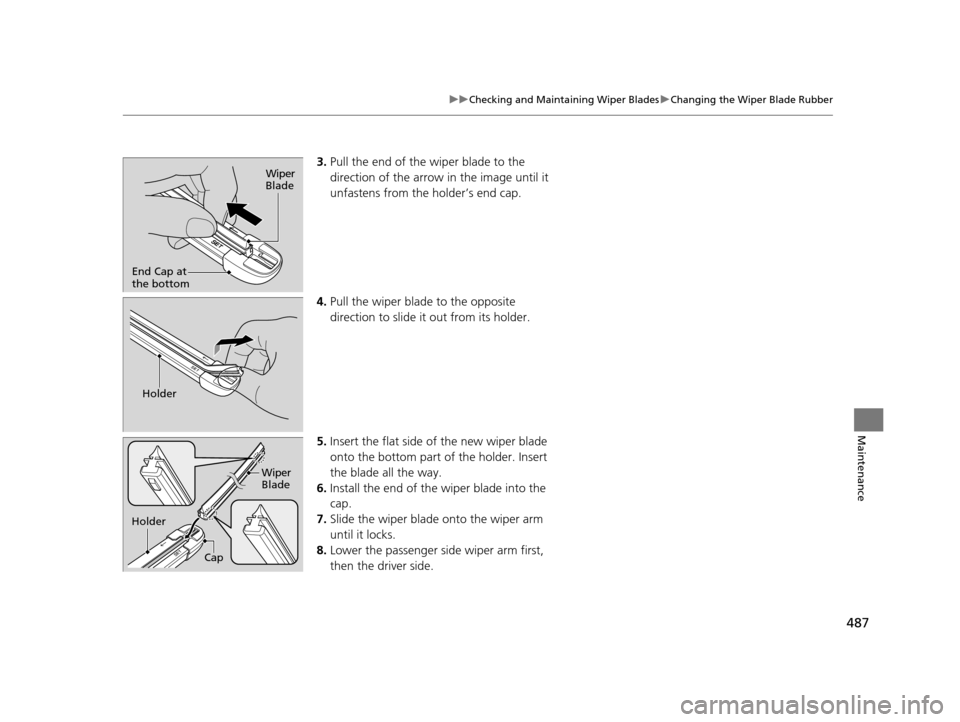

3. Pull the end of the wiper blade to the
direction of the arrow in the image until it
unfastens from the holder’s end cap.
4. Pull the wiper blade to the opposite
direction to slide it out from its holder.
5. Insert the flat side of the new wiper blade
onto the bottom part of the holder. Insert
the blade all the way.
6. Install the end of the wiper blade into the
cap.
7. Slide the wiper blade onto the wiper arm
until it locks.
8. Lower the passenger side wiper arm first,
then the driver side.Wiper
Blade
End Cap at
the bottom
Holder
Cap Wiper
Blade
Holder
16 US ODYSSEY-31TK86500.book 487 ページ ２０１５年６月２４日　水曜日　午後３時０分

488
uuChecking and Maintaining Wiper Blades uChanging the Rear Wiper Blade Rubber
Maintenance

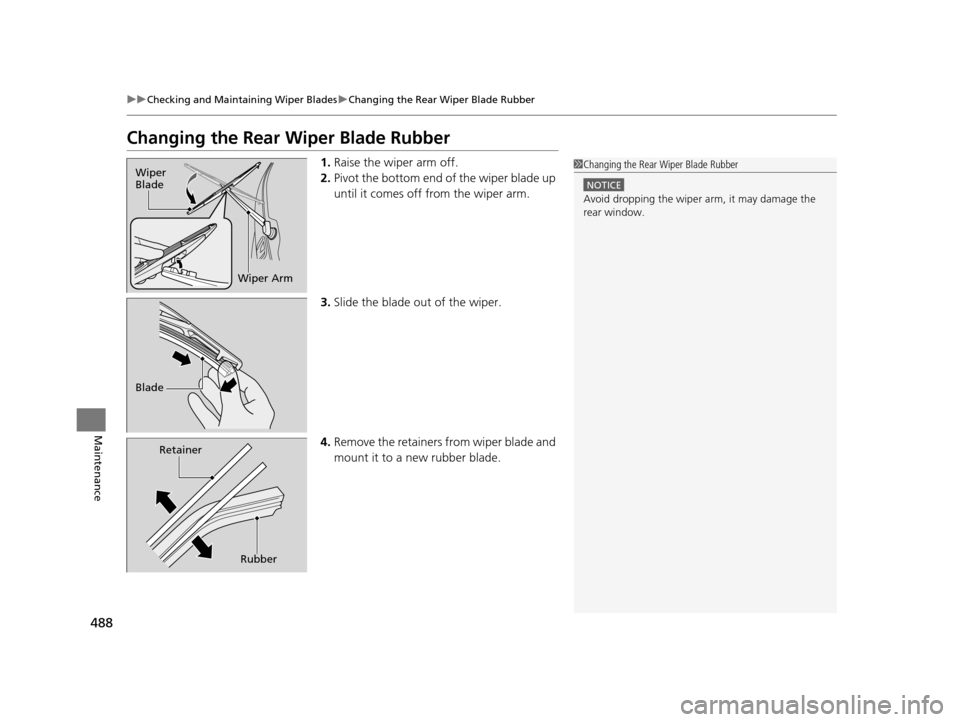

Changing the Rear Wiper Blade Rubber
1. Raise the wiper arm off.
2. Pivot the bottom end of the wiper blade up
until it comes off from the wiper arm.
3. Slide the blade out of the wiper.
4. Remove the retainers from wiper blade and
mount it to a new rubber blade.1Changing the Rear Wiper Blade Rubber
NOTICE
Avoid dropping the wiper ar m, it may damage the
rear window.
Wiper
Blade
Wiper Arm
Blade
Retainer
Rubber
16 US ODYSSEY-31TK86500.book 488 ページ ２０１５年６月２４日　水曜日　午後３時０分

489
uuChecking and Maintaining Wiper Blades uChanging the Rear Wiper Blade Rubber
Maintenance

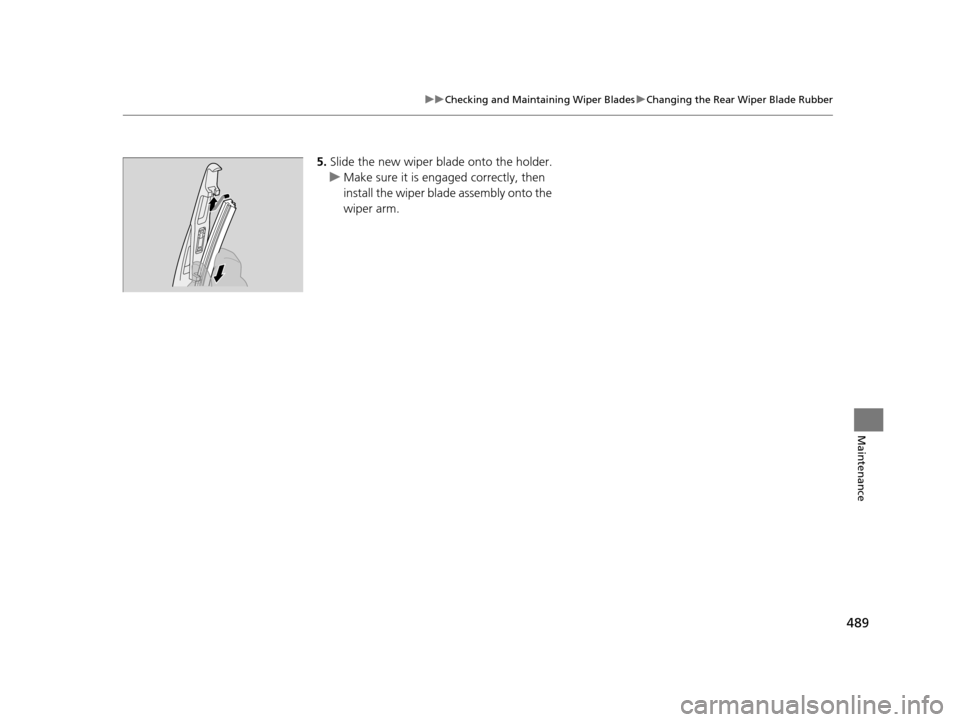

5. Slide the new wiper bl ade onto the holder.
u Make sure it is engaged correctly, then
install the wiper blade assembly onto the
wiper arm.
