457

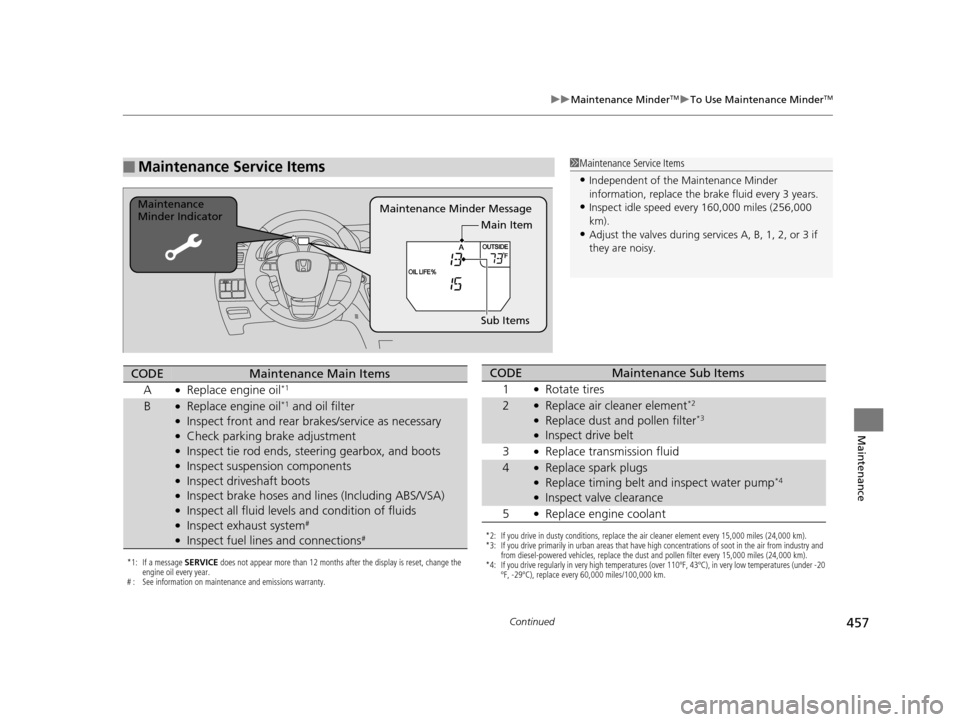

uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
Maintenance
Minder Indicator
Sub Items
Main Item
*1: If a message
SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear bra kes/service as necessary●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: If you drive regularly in very high temperatures (over 110ºF, 43ºC), in very low temperatures (under -20 ºF, -29ºC), replace every 60,000 miles/100,000 km.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid
4●Replace spark plugs●Replace timing belt and inspect water pump*4
●Inspect valve clearance
5
●Replace engine coolant
16 US ODYSSEY-31TK86500.book 457 ページ ２０１５年６月２４日　水曜日　午後３時０分

461

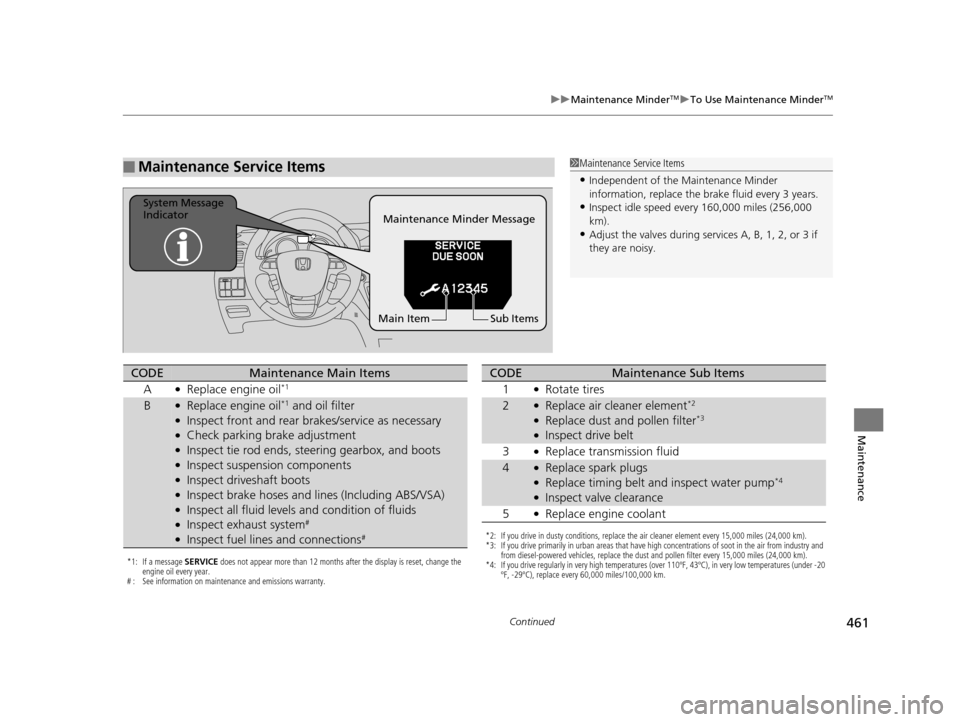

uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear bra kes/service as necessary●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: If you drive regularly in very high temperatures (over 110ºF, 43ºC), in very low temperatures (under -20 ºF, -29ºC), replace every 60,000 miles/100,000 km.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid
4●Replace spark plugs●Replace timing belt and inspect water pump*4
●Inspect valve clearance
5
●Replace engine coolant
16 US ODYSSEY-31TK86500.book 461 ページ ２０１５年６月２４日　水曜日　午後３時０分

559

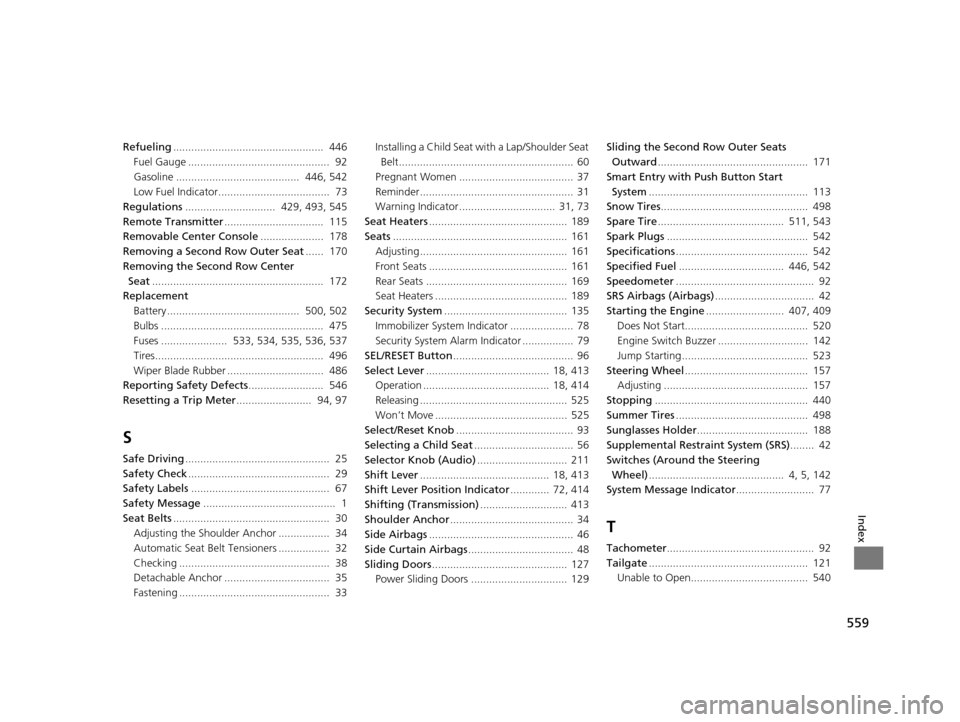

Index
Refueling.................................................. 446
Fuel Gauge ............................................... 92
Gasoline ......................................... 446, 542
Low Fuel Indicator..................................... 73
Regulations .............................. 429, 493, 545
Remote Transmitter ................................. 115
Removable Center Console ..................... 178
Removing a Second Row Outer Seat ...... 170
Removing the Second Row Center Seat ......................................................... 172
Replacement
Battery ............................................ 500, 502
Bulbs ...................................................... 475
Fuses ...................... 533, 534, 535, 536, 537
Tires........................................................ 496
Wiper Blade Rubber ................................ 486
Reporting Safety Defects ......................... 546
Resetting a Trip Meter ......................... 94, 97
S
Safe Driving................................................ 25
Safety Check ............................................... 29
Safety Labels .............................................. 67
Safety Message ............................................ 1
Seat Belts .................................................... 30
Adjusting the Shoulder Anchor ................. 34
Automatic Seat Belt Tensioners ................. 32
Checking .................................................. 38
Detachable Anchor ................................... 35
Fastening .................................................. 33 Installing a Child Seat with a Lap/Shoulder Seat
Belt.......................................................... 60
Pregnant Women ...................................... 37
Reminder................................................... 31
Warning Indicator ................................ 31, 73
Seat Heaters .............................................. 189
Seats .......................................................... 161
Adjusting ................................................. 161
Front Seats .............................................. 161
Rear Seats ............................................... 169
Seat Heaters ............................................ 189
Security System ......................................... 135
Immobilizer System Indicator ..................... 78
Security System Alarm Indicator ................. 79
SEL/RESET Button ........................................ 96
Select Lever ......................................... 18, 413
Operation .......................................... 18, 414
Releasing ................................................. 525
Won’t Move ............................................ 525
Select/Reset Knob ....................................... 93
Selecting a Child Seat ................................. 56
Selector Knob (Audio) .............................. 211
Shift Lever ........................................... 18, 413
Shift Lever Position Indicator ............. 72, 414
Shifting (Transmission) ............................. 413
Shoulder Anchor ......................................... 34
Side Airbags ................................................ 46
Side Curtain Airbags ................................... 48
Sliding Doors ............................................. 127
Power Sliding Doors ................................ 129 Sliding the Second Row Outer Seats
Outward .................................................. 171
Smart Entry with Push Button Start System ..................................................... 113
Snow Tires ................................................. 498
Spare Tire .......................................... 511, 543
Spark Plugs ............................................... 542
Specifications ............................................ 542
Specified Fuel ................................... 446, 542
Speedometer .............................................. 92
SRS Airbags (Airbags) ................................. 42
Starting the Engine .......................... 407, 409
Does Not Start......................................... 520
Engine Switch Buzzer .............................. 142
Jump Starting .......................................... 523
Steering Wheel ......................................... 157
Adjusting ................................................ 157
Stopping ................................................... 440
Summer Tires ............................................ 498
Sunglasses Holder ..................................... 188
Supplemental Restraint System (SRS) ........ 42
Switches (Around the Steering
Wheel) ............................................. 4, 5, 142
System Message Indicator .......................... 77
T
Tachometer................................................. 92
Tailgate ..................................................... 121
Unable to Open....................................... 540
