HONDA ODYSSEY 2017 RC1-RC2 / 5.G Owners Manual

uuOpening and Closing the Sliding Doors uOpening/Closing the Power Sliding Doors*
130
Controls

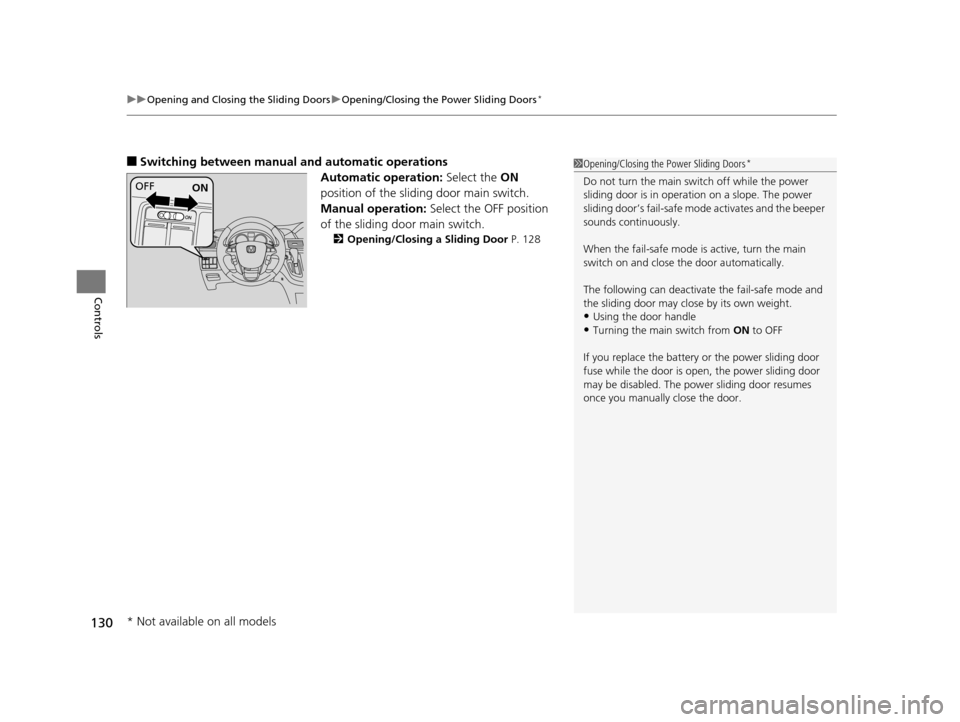

■Switching between manual and automatic operations
Automatic operation: Select the ON
position of the sliding door main switch.
Manual operation: Select the OFF position
of the sliding door main switch.
2 Opening/Closing a Sliding Door P. 128
1Opening/Closing the Power Sliding Doors*
Do not turn the main switch off while the power
sliding door is in opera tion on a slope. The power
sliding door’s fail-safe mode activates and the beeper
sounds continuously.
When the fail-safe mode is active, turn the main
switch on and close the door automatically.
The following can deactivate the fail-safe mode and
the sliding door may close by its own weight.
•Using the door handle
•Turning the main switch from ON to OFF
If you replace the battery or the power sliding door
fuse while the door is ope n, the power sliding door
may be disabled. The power sliding door resumes
once you manually close the door.
OFF ON
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 130 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

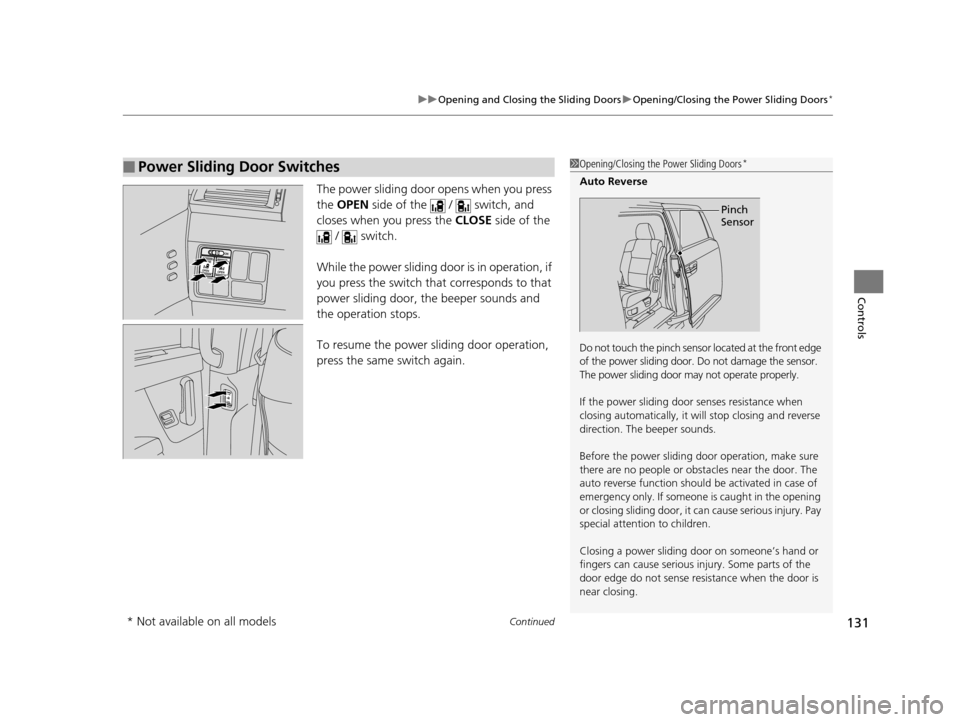

Continued131
uuOpening and Closing the Sliding Doors uOpening/Closing the Power Sliding Doors*
Controls
The power sliding door opens when you press
the OPEN side of the / switch, and
closes when you press the CLOSE side of the
/ switch.
While the power sliding door is in operation, if
you press the switch that corresponds to that
power sliding door, the beeper sounds and
the operation stops.
To resume the power sliding door operation,
press the same switch again.
■Power Sliding Door Switches1 Opening/Closing the Power Sliding Doors*
Auto Reverse
Do not touch the pinch sensor located at the front edge
of the power sliding door. Do not damage the sensor.
The power sliding door ma y not operate properly.
If the power sliding door senses resistance when
closing automatically, it wi ll stop closing and reverse
direction. The beeper sounds.
Before the power sliding door operation, make sure
there are no people or obsta cles near the door. The
auto reverse function should be activated in case of
emergency only. If someone is caught in the opening
or closing sliding door, it ca n cause serious injury. Pay
special attention to children.
Closing a power sliding door on someone’s hand or
fingers can cause serious injury. Some parts of the
door edge do not sense resi stance when the door is
near closing.
Pinch
Sensor
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 131 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

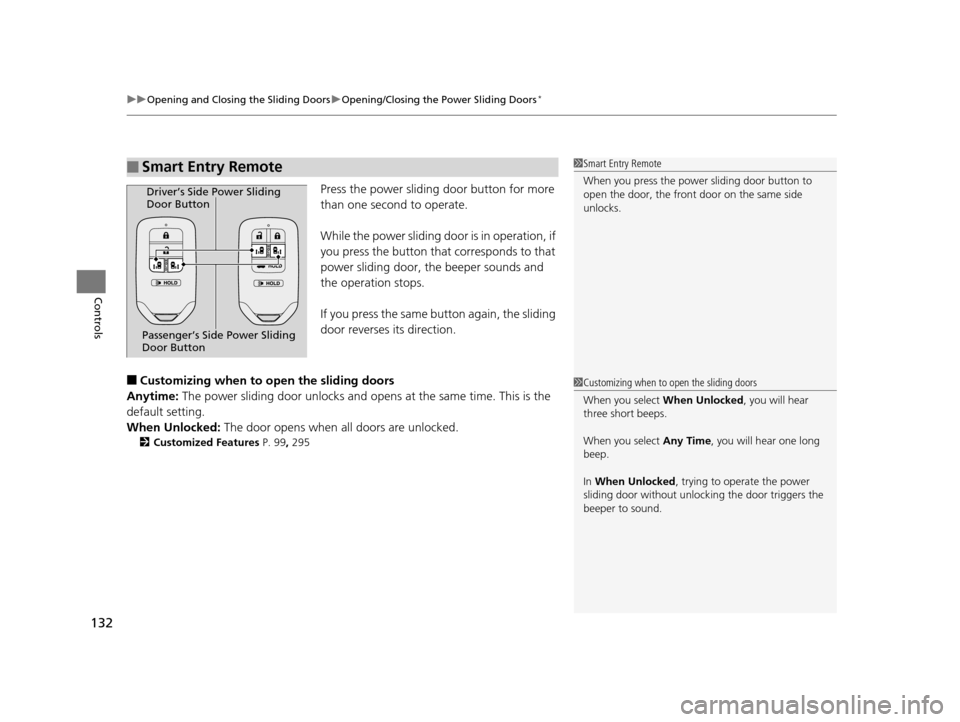

uuOpening and Closing the Sliding Doors uOpening/Closing the Power Sliding Doors*
132
Controls
Press the power sliding door button for more
than one second to operate.
While the power sliding door is in operation, if
you press the button that corresponds to that
power sliding door, the beeper sounds and
the operation stops.
If you press the same button again, the sliding
door reverses its direction.
■Customizing when to open the sliding doors
Anytime: The power sliding door unlocks and op ens at the same time. This is the
default setting.
When Unlocked: The door opens when a ll doors are unlocked.
2Customized Features P. 99 , 295
■Smart Entry Remote1Smart Entry Remote
When you press the power sliding door button to
open the door, the front door on the same side
unlocks.
Driver’s Side Power Sliding
Door Button
Passenger’s Side Power Sliding
Door Button
1 Customizing when to open the sliding doors
When you select When Unlocked , you will hear
three short beeps.
When you select Any Time , you will hear one long
beep.
In When Unlocked , trying to operate the power
sliding door without unlocki ng the door triggers the
beeper to sound.
17 US ODYSSEY (KA KC)-31TK86600.book 132 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

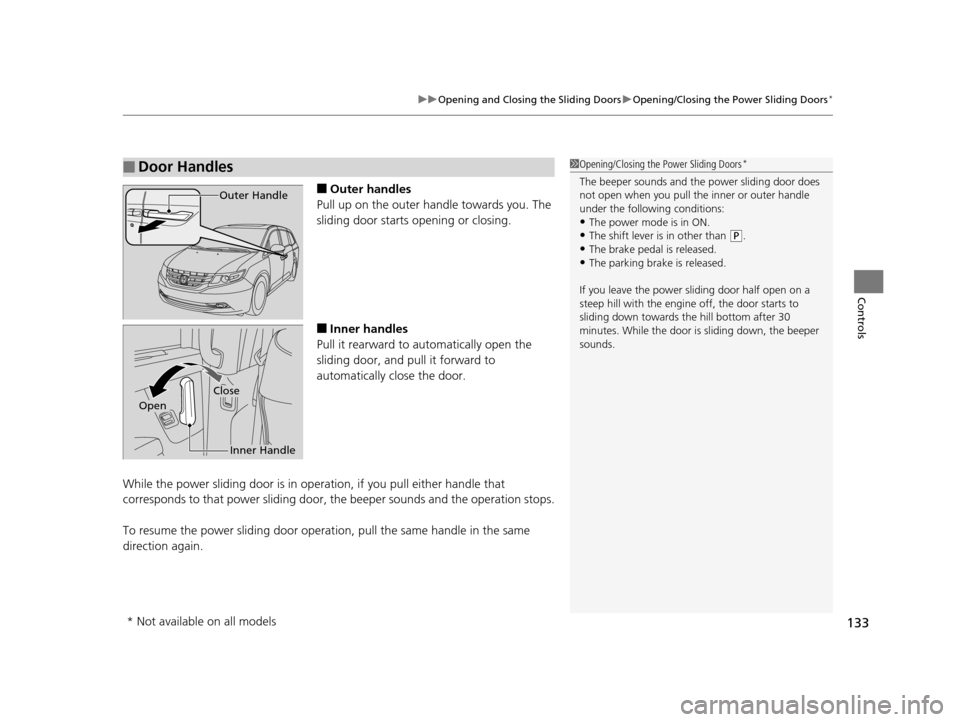

133
uuOpening and Closing the Sliding Doors uOpening/Closing the Power Sliding Doors*
Controls
■Outer handles
Pull up on the outer handle towards you. The
sliding door starts opening or closing.
■Inner handles
Pull it rearward to automatically open the
sliding door, and pull it forward to
automatically close the door.
While the power sliding door is in operat ion, if you pull either handle that
corresponds to that power sl iding door, the beeper sounds and the operation stops.
To resume the power sliding door operat ion, pull the same handle in the same
direction again.
■Door Handles1 Opening/Closing the Power Sliding Doors*
The beeper sounds and the power sliding door does
not open when you pull the inner or outer handle
under the following conditions:
•The power mode is in ON.
•The shift lever is in other than (P.
•The brake pedal is released.•The parking brake is released.
If you leave the power sliding door half open on a
steep hill with the engine off, the door starts to
sliding down towards th e hill bottom after 30
minutes. While the door is sliding down, the beeper
sounds.
Outer Handle
Inner Handle
Close
Open
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 133 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

134
uuOpening and Closing the Sliding Doors uAuto-Closer
Controls

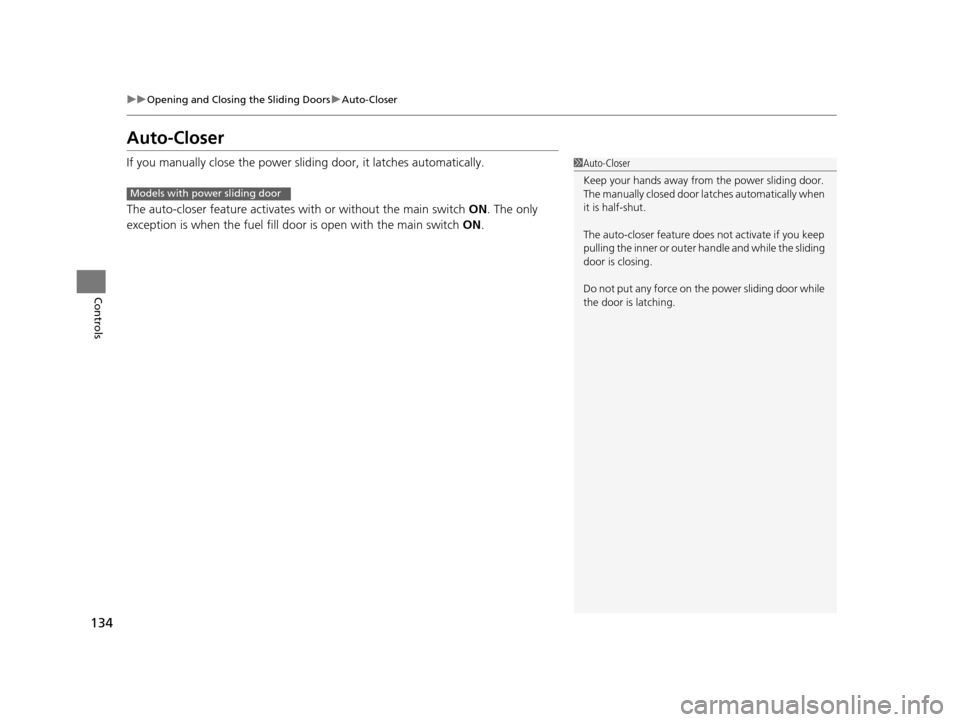

Auto-Closer
If you manually close the power sliding door, it latches automatically.
The auto-closer feature activates wi th or without the main switch ON. The only
exception is when the fuel fill door is open with the main switch ON.1Auto-Closer
Keep your hands away from the power sliding door.
The manually closed door la tches automatically when
it is half-shut.
The auto-closer feature does not activate if you keep
pulling the inner or outer ha ndle and while the sliding
door is closing.
Do not put any force on the power sliding door while
the door is latching.
Models with power sliding door
17 US ODYSSEY (KA KC)-31TK86600.book 134 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

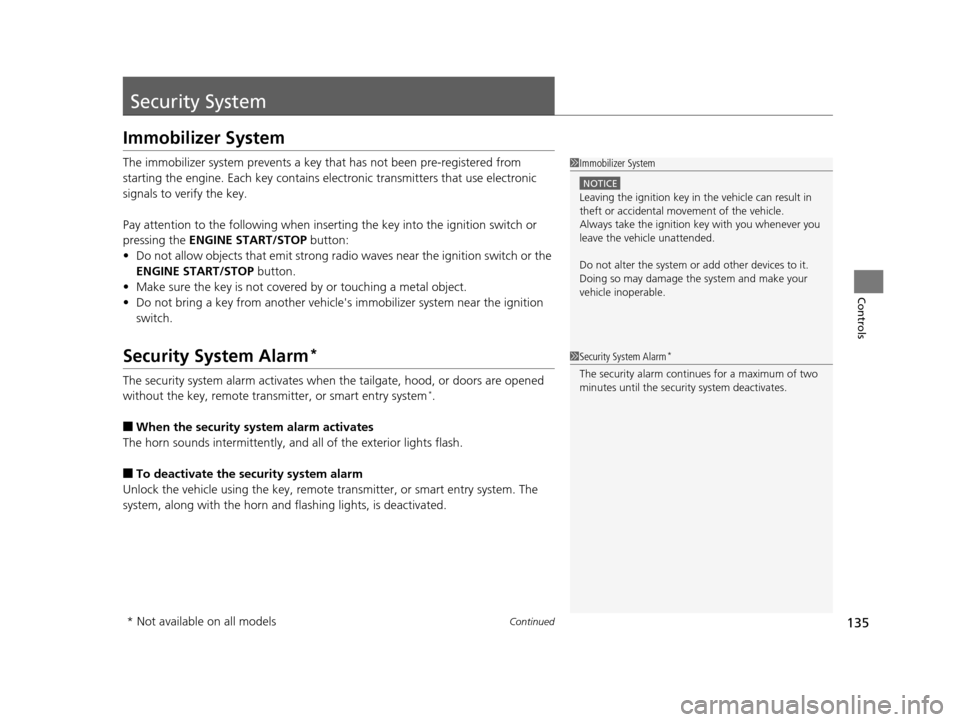

135Continued
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains electronic transmitters that use electronic
signals to verify the key.
Pay attention to the following when insert ing the key into the ignition switch or
pressing the ENGINE START/STOP button:
• Do not allow objects that emit strong ra dio waves near the ignition switch or the
ENGINE START/STOP button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle's immobilizer system near the ignition
switch.
Security System Alarm*
The security system alarm activates when the tailgate, hood, or doors are opened
without the key, remote transmitter, or smart entry system*.
■When the security system alarm activates
The horn sounds intermittently, an d all of the exterior lights flash.
■To deactivate the security system alarm
Unlock the vehicle using the key, remote transmitter, or smart entry system. The
system, along with the horn and flashing lights, is deactivated.
1 Immobilizer System
NOTICE
Leaving the ignition key in the vehicle can result in
theft or accidental move ment of the vehicle.
Always take the ignition key with you whenever you
leave the vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
1 Security System Alarm*
The security alarm continues for a maximum of two
minutes until the security system deactivates.
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 135 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

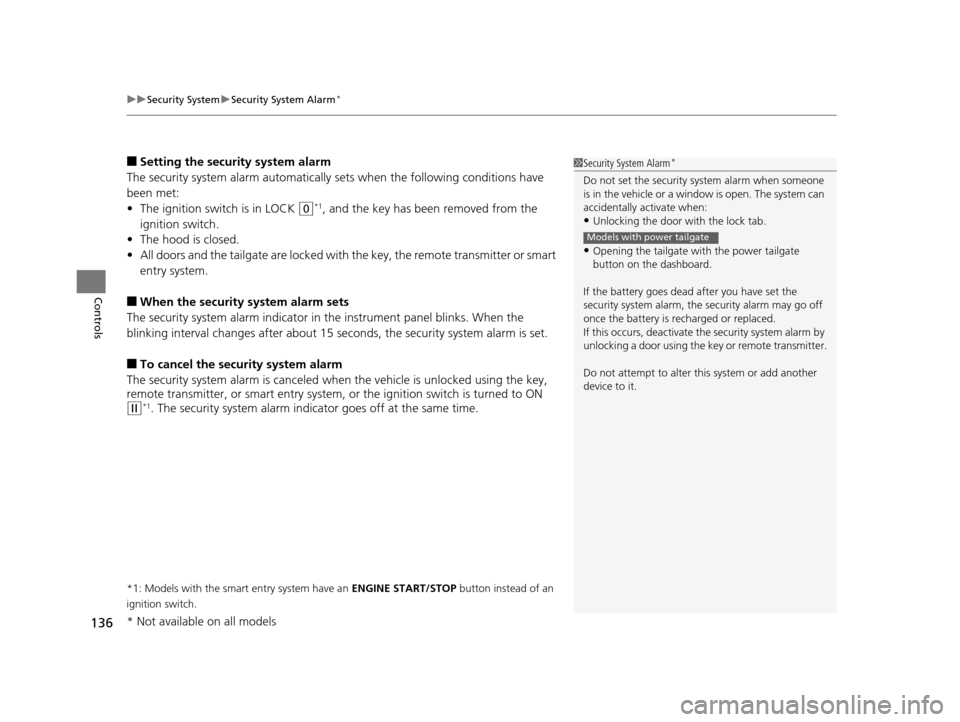

uuSecurity System uSecurity System Alarm*
136
Controls
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The ignition switch is in LOCK
(0*1, and the key has been removed from the
ignition switch.
• The hood is closed.
• All doors and the tailgate are locked with the key, the remote transmitter or smart
entry system.
■When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 seconds, the security system alarm is set.
■To cancel the security system alarm
The security system alarm is canceled when the vehicle is unlocked using the key,
remote transmitter, or smart entry system, or the ignition switch is turned to ON
(w*1. The security system alarm indica tor goes off at the same time.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Security System Alarm*
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.
•Opening the tailgate with the power tailgate
button on the dashboard.
If the battery goes dead after you have set the
security system alarm, the security alarm may go off
once the battery is re charged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the ke y or remote transmitter.
Do not attempt to alter th is system or add another
device to it.
Models with power tailgate
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 136 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

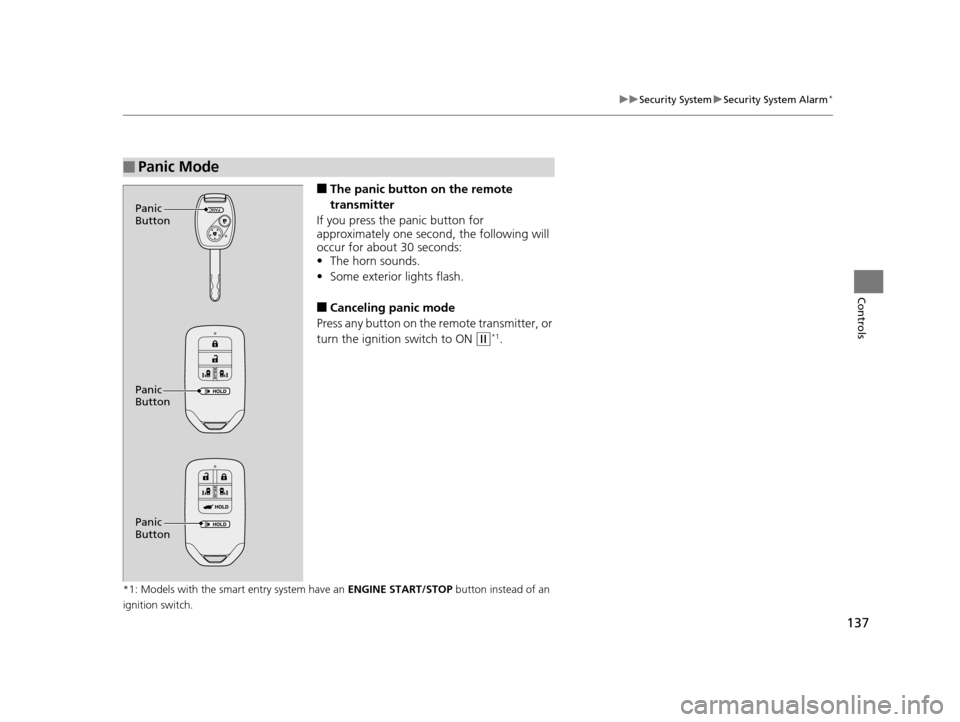

137
uuSecurity System uSecurity System Alarm*
Controls
■The panic button on the remote
transmitter
If you press the panic button for
approximately one second, the following will
occur for about 30 seconds:
• The horn sounds.
• Some exterior lights flash.
■Canceling panic mode
Press any button on the remote transmitter, or
turn the ignition switch to ON
(w*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Panic Mode
Panic
Button
Panic
Button
Panic
Button
17 US ODYSSEY (KA KC)-31TK86600.book 137 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

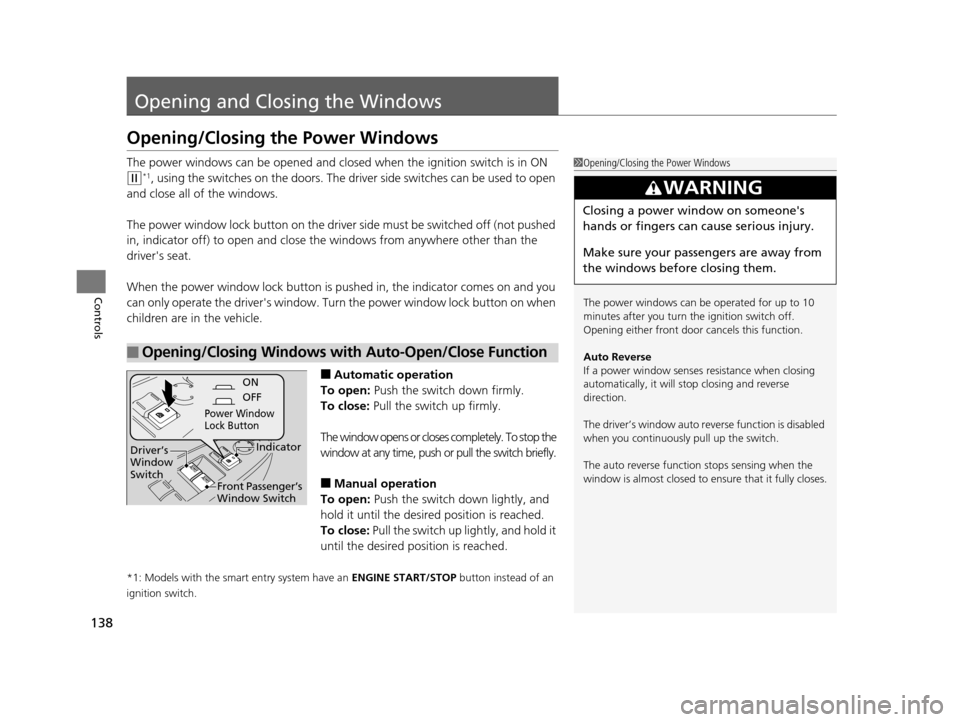

138
Controls
Opening and Closing the Windows
Opening/Closing the Power Windows
The power windows can be opened and closed when the ignition switch is in ON
(w*1, using the switches on the doors. The driver side switches can be used to open
and close all of the windows.
The power window lock button on the driver side must be switched off (not pushed
in, indicator off) to open and close th e windows from anywhere other than the
driver's seat.
When the power window lock button is pu shed in, the indicator comes on and you
can only operate the driver's window. Turn the power window lock button on when
children are in the vehicle.
■Automatic operation
To open: Push the switch down firmly.
To close: Pull the switch up firmly.
The window opens or closes completely. To stop the
window at any time, push or pull the switch briefly.
■Manual operation
To open: Push the switch down lightly, and
hold it until the desired position is reached.
To close: Pull the switch up lightly, and hold it
until the desired position is reached.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Opening/Closing Windows with Auto-Open/Close Function
1 Opening/Closing the Power Windows
The power windows can be operated for up to 10
minutes after you turn the ignition switch off.
Opening either front door cancels this function.
Auto Reverse
If a power window senses resistance when closing
automatically, it will stop closing and reverse
direction.
The driver’s window auto re verse function is disabled
when you continuously pull up the switch.
The auto reverse function stops sensing when the
window is almost closed to en sure that it fully closes.
3WARNING
Closing a power window on someone's
hands or fingers can cause serious injury.
Make sure your passengers are away from
the windows before closing them.
ON
OFF
Power Window
Lock Button
IndicatorDriver’s
Window
Switch
Front Passenger’s
Window Switch
17 US ODYSSEY (KA KC)-31TK86600.book 138 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

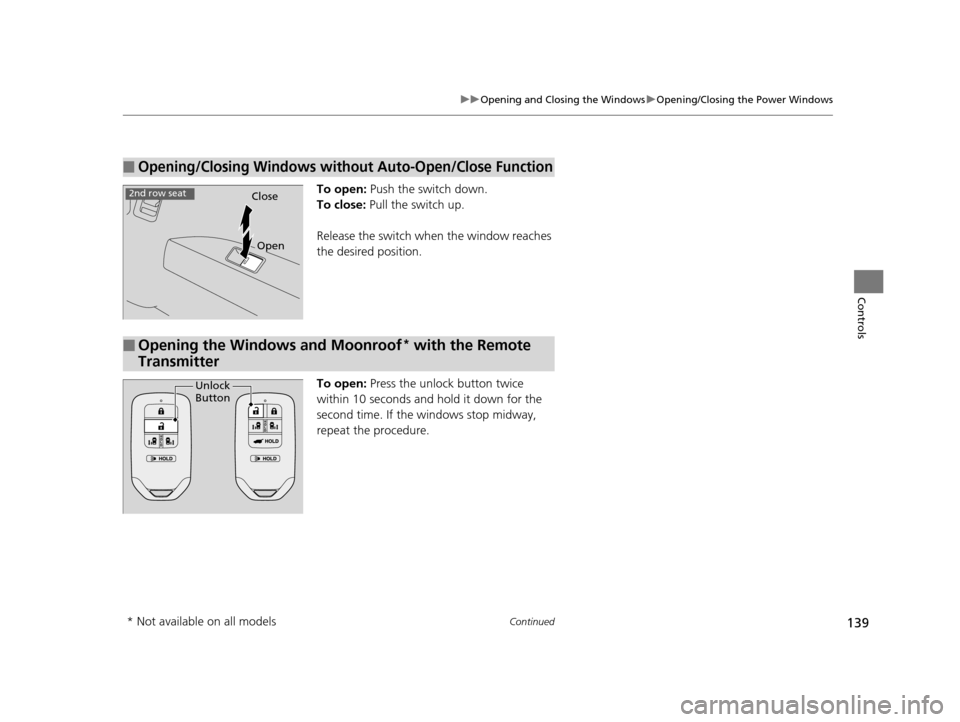

139
uuOpening and Closing the Windows uOpening/Closing the Power Windows
Continued
Controls
To open: Push the switch down.
To close: Pull the switch up.
Release the switch when the window reaches
the desired position.
To open: Press the unlock button twice
within 10 seconds and hold it down for the
second time. If the windows stop midway,
repeat the procedure.
■Opening/Closing Windows without Auto-Open/Close Function
Close
Open
2nd row seat
■Opening the Windows and Moonroof* with the Remote
Transmitter
Unlock
Button
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 139 ページ ２０１６年１０月２４日　月曜日　 午後４時２分
