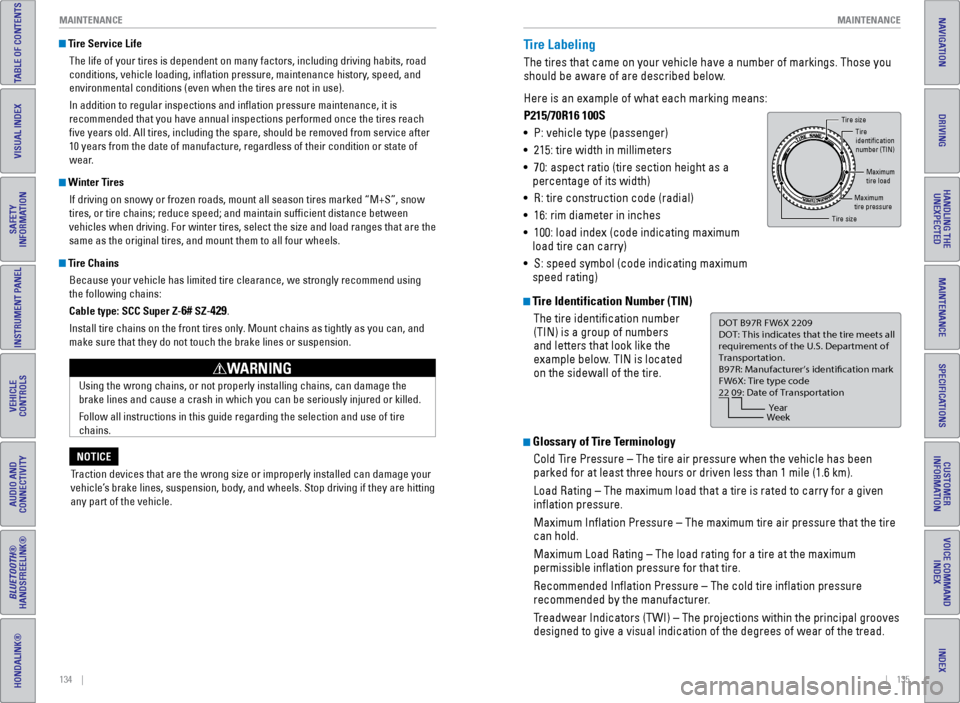

Tire Service Life
The life of your tires is dependent on many factors, including driving h\
abits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even when the tires are not in use).
In addition to regular inspections and inflation pressure maintenance,\
it is
recommended that you have annual inspections performed once the tires re\
ach
five years old. All tires, including the spare, should be removed from\
service after
10 years from the date of manufacture, regardless of their condition or \
state of
wear.
Winter TiresIf driving on snowy or frozen roads, mount all season tires marked “M\
+S”, snow
tires, or tire chains; reduce speed; and maintain sufficient distance \
between
vehicles when driving. For winter tires, select the size and load ranges\
that are the
same as the original tires, and mount them to all four wheels.
Tire ChainsBecause your vehicle has limited tire clearance, we strongly recommend u\
sing
the following chains:
Cable type: SCC Super Z-
6# SZ-429.
Install tire chains on the front tires only. Mount chains as tightly as you can, and
make sure that they do not touch the brake lines or suspension.
Using the wrong chains, or not properly installing chains, can damage th\
e
brake lines and cause a crash in which you can be seriously injured or k\
illed.
Follow all instructions in this guide regarding the selection and use of\
tire
chains.
WARNING
Traction devices that are the wrong size or improperly installed can dama\
ge your
vehicle’s brake lines, suspension, body, and wheels. Stop driving if they are hitting
any part of the vehicle.
NOTICE
Tire Labeling
The tires that came on your vehicle have a number of markings. Those you\
should be aware of are described below.
Here is an example of what each marking means:
P215/70R16 100S
• P: vehicle type (passenger)
• 215: tire width in millimeters
• 70: aspect ratio (tire section height as a
percentage of its width)
• R: tire construction code (radial)
• 16: rim diameter in inches
• 100: load index (code indicating maximum
load tire can carry)
• S: speed symbol (code indicating maximum
speed rating)
Tire Identification Number (TIN)
The tire identification number
(TIN) is a group of numbers
and letters that look like the
example below. TIN is located
on the sidewall of the tire.
Glossary of Tire TerminologyCold Tire Pressure – The tire air pressure when the vehicle has been
parked for at least three hours or driven less than 1 mile (1.6 km).
Load Rating – The maximum load that a tire is rated to carry for a gi\
ven
inflation pressure.
Maximum Inflation Pressure – The maximum tire air pressure that the\
tire
can hold.
Maximum Load Rating – The load rating for a tire at the maximum
permissible inflation pressure for that tire.
Recommended Inflation Pressure – The cold tire inflation pressure\
recommended by the manufacturer.
Treadwear Indicators (TWI) – The projections within the principal gr\
ooves
designed to give a visual indication of the degrees of wear of the tread\
.
Tire size
Tire
identi cation
number (TIN)
Maximum
tire load
Maximum
tire pressure
Tire size
DOT B97R FW6X 2209\n
DOT: This in\ficat\bs t\nhat th\b tir\b m\b\bts all
r\bquir\bm\bnts of th\b U.S\n. D\bpartm\bnt of
Transportation.
B97R: Manufactur\br’s \ni\f\bntifcation mark
FW6X: Tir\b typ\b co\f\b
22 09: Dat\b of Transp\nortation
Year
Week
Page 72 of 81
136 || 137
MAINTENANCE
MAINTENANCE
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION

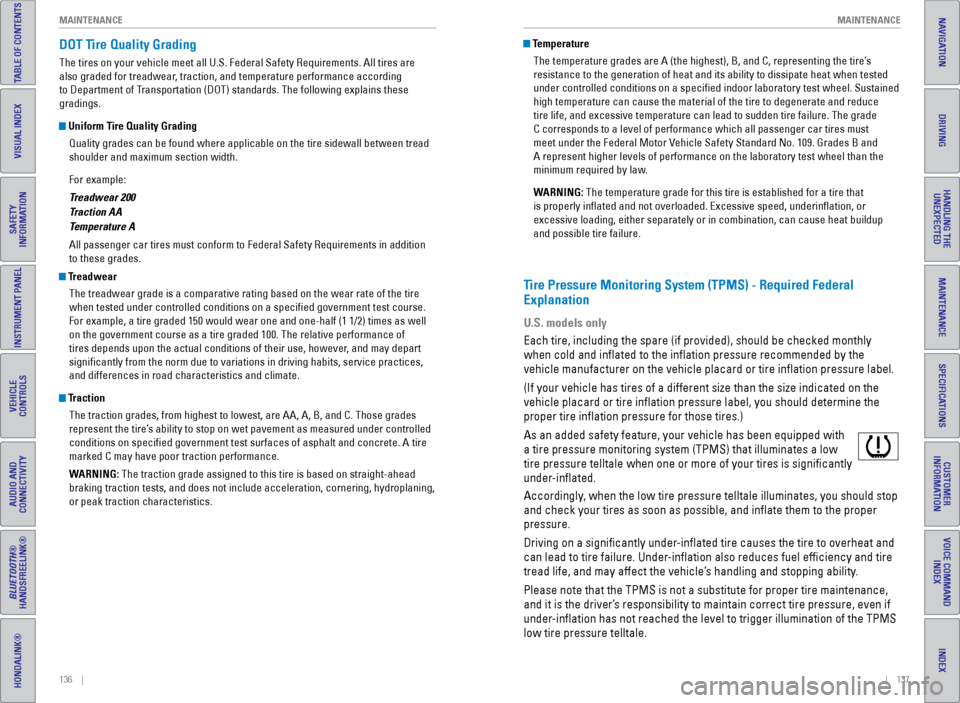

DOT Tire Quality Grading
The tires on your vehicle meet all U.S. Federal Safety Requirements. All\
tires are
also graded for treadwear, traction, and temperature performance according
to Department of Transportation (DOT) standards. The following explains these
gradings.
Uniform Tire Quality Grading
Quality grades can be found where applicable on the tire sidewall betwee\
n tread
shoulder and maximum section width.
For example:
Treadwear 200
Traction AA
Temperature A
All passenger car tires must conform to Federal Safety Requirements in a\
ddition
to these grades.
TreadwearThe treadwear grade is a comparative rating based on the wear rate of th\
e tire
when tested under controlled conditions on a specified government test\
course.
For example, a tire graded 150 would wear one and one-half (1 1/2) tim\
es as well
on the government course as a tire graded 100. The relative performance \
of
tires depends upon the actual conditions of their use, however, and may depart
significantly from the norm due to variations in driving habits, servi\
ce practices,
and differences in road characteristics and climate.
TractionThe traction grades, from highest to lowest, are AA, A, B, and C. Those \
grades
represent the tire’s ability to stop on wet pavement as measured under controlled
conditions on specified government test surfaces of asphalt and concre\
te. A tire
marked C may have poor traction performance.
WARNING: The traction grade assigned to this tire is based on straight-ahead
braking traction tests, and does not include acceleration, cornering, hy\
droplaning,
or peak traction characteristics.
TemperatureThe temperature grades are A (the highest), B, and C, representing the\
tire’s
resistance to the generation of heat and its ability to dissipate heat w\
hen tested
under controlled conditions on a specified indoor laboratory test whee\
l. Sustained
high temperature can cause the material of the tire to degenerate and re\
duce
tire life, and excessive temperature can lead to sudden tire failure. Th\
e grade
C corresponds to a level of performance which all passenger car tires must
meet under the Federal Motor v ehicle Safety Standard No. 109. Grades B and
A represent higher levels of performance on the laboratory test wheel th\
an the
minimum required by law.
WARNING: The temperature grade for this tire is established for a tire that
is properly inflated and not overloaded. excessive speed, underinflation, or
excessive loading, either separately or in combination, can cause heat b\
uildup
and possible tire failure.
Tire Pressure Monitoring System (TPMS) - Required Federal
Explanation
U.S. models only
each tire, including the spare (if provided), should be checked monthly\
when cold and inflated to the inflation pressure recommended by the \
vehicle manufacturer on the vehicle placard or tire inflation pressure\
label.
(If your vehicle has tires of a different size than the size indicated \
on the
vehicle placard or tire inflation pressure label, you should determine\
the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with
a tire pressure monitoring system (TPMS) that illuminates a low
tire pressure telltale when one or more of your tires is significantly\
under-inflated.
Accordingly, when the low tire pressure telltale illuminates, you should stop
and check your tires as soon as possible, and inflate them to the prop\
er
pressure.
Driving on a significantly under-inflated tire causes the tire to overheat and
can lead to tire failure. Under-inflation also reduces fuel efficiency and tire
tread life, and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire maintenanc\
e,
and it is the driver’s responsibility to maintain correct tire pressure, even if
under-inflation has not reached the level to trigger illumination of the TP\
MS
low tire pressure telltale.
Page 73 of 81
138 || 139
MAINTENANCE
MAINTENANCE
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION
Models with information display
Your vehicle has also been equipped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is provided by a separate telltale,
which displays the symbol “TPMS” when illuminated.
When the malfunction indicator is illuminated, the system may not be
able to detect low tire pressure as intended.
Models with multi-information display
Your vehicle has also been equipped with a TPMS malfunction indicator to \
indicate when the system is not operating properly. The TPMS malfunction
indicator is combined with the low tire pressure telltale. When the syst\
em
detects a malfunction, the telltale will flash for approximately one m\
inute
and then remain continuously illuminated. This sequence will continue up\
on
subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may not be abl\
e
to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including the
installation of replacement or alternate tires or wheels on the vehicle \
that
prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or altern\
ate
tires and wheels allow the TPMS to continue to function properly.Testing of Readiness Codes
Your vehicle has readiness codes as part of the onboard self-diagnostic s\
ystem.
Some states use these codes for testing to verify whether your vehicle’\
s emissions
components are working properly. The codes may not be read if you go through the
testing just after the battery has gone dead or been disconnected.
To check if they are set, turn the vehicle on without starting the engine\
. The
malfunction indicator lamp will come on for several seconds. If it goes \
off, the
readiness codes are set. If it blinks five times, the readiness codes \
are not set.
If you are required to have your vehicle tested before the readiness cod\
es are set,
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°\
C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle\
for 20
seconds.
5. Keep the vehicle in Park (P). Increase the engine speed to 2,000 rpm, \
and hold it
there for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
7. Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the \
highway with
the vehicle in Drive. Do not use cruise control. When traffic allows, \
drive for 90
seconds without using the accelerator pedal. (v ehicle speed may vary slightly;
this is OK.) If you cannot do this for a continuous 90 seconds because \
of traffic
conditions, drive for at least 30 seconds, then repeat two more times (\
for a total of
90 seconds).
8. Drive in city or suburban traffic for at least 10 minutes. When traffi\
c conditions
allow, let the vehicle coast for several seconds without using the accelerator
pedal or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
The readiness codes are erased when the battery is disconnected, and set\
again
only after several days of driving under a variety of conditions.
If a testing facility determines that the readiness codes are not set, y\
ou may be
requested to return at a later date to complete the test, or see your de\
aler.
Page 74 of 81
140 || 141
CUSTOMER INFORMATION
SPECIFICATIONS
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION
Vehicle
Engine and Fuel
Tires
Light Bulbs
Fluids
*1: LX mode l
ModelHonda OdysseyNo. of Passengers:
Front 2
Rear 2nd Row3 (2
*1)
3r d Row3
Tota l
8 (7*1)Weights:
Gross Vehicle
Weight Rating Gross Axle Weight U.S.: 6,019 lbs (2,730 kg
)
Canada: 2,730 kgRating (Front)
Gross Axle Weight U.S.: 2,910 lbs (1,320 kg
)
Canada: 1,320 kgRating (Rear)
Gross Combined U.S.: 3,340 lbs (1,515 kg
)
Canada: 1,515 kg
Weight Rating
U.S.: 8,565 lbs (3,885 kg )
Canada: 3,885 kg
Air Conditioning:Refrigerant Type Charge Quantit yLubricant Type
HFC-134a (R-134a)
24.9 – 26.6 oz (705 – 755 g)
ND-OIL8
Engine Speci cation s
FuelDisplacement212 cu-in (3,471 cm3)
Spark Plug sN GKDILZKR7A11 G
Fuel:
TypeUnleaded gasoline, Pump octane
number of 87 or higher
Fuel Tank Capacit y21 US gal (79.5 )
*1:T ouring models
Regula rSizeP235/65R17 103TP235/60R18 102T*1Pressure
psi(kPa[kgf/cm2])33 (23 0 [2.3])
35 (24 0 [2.4])*1
Compact
Spar e Size
T135/80D17 103M
Pressure
ps i(kPa[kgf/cm2]) 60 (42
0 [4.2])
Wheel Siz eRegular17 x 7J
18 x 7J*1Compact Spar e17 x 4T
Headlights (Low Beam)35W (D2S )*55W (H11)
60W (HB3 )
21W
5W 21W (Amber)*Head lights (High Beam )Fog Lights*55W (H11)
Front Turn Signal/Park ing/Side
Marker Lights 28/8
W
Side Turn Si gnal Lights
(on Door Mirrors)*
LE
D
Brake Lights
Rear Side Marker/TaillightsLE D
Rear Turn Signal Lights
Back-Up Lights21W D
E
L
s
t
h
g
i
l
l
i
a
T
High-Mount Brake Ligh t16W
Rear License Plate Lights
Map Lights (F ront)5W
5W
1.4W
1.4W
Map Lights (Rear)
Cargo Area Ligh
t8W
Vanity Mirror Lights
Door Courtesy Lights3.8W (2CP )
Glove Box Li ght
Foot Ligh t*LED
Brake Fluid
Automatic Transmission Flui
d
Speci e dHonda Heavy Duty Brake Fluid DOT 3
Speci edHonda ATF DW- 1
(automatic transmission uid )
Ca pacity Change 3.3 US qt (3.1 )
Engine Oil
Engine Coolant
Recommended·Honda Genuine Motor Oil 0W-2 0
·API Premium-grade 0W-20 detergent oi l
Capacity Change
4.2 US qt (4.0 )
Change
including
lter 4.5 US qt (4.3 )
Speci e
dHonda Long-Life Anti freeze/Coolant Type2
Rati o5 0/50 with distilled wate r
Capacity1.93 US gal (7.3 )
(change in cluding the remaining
0.225 US gal (0.85 ) in the reserve tank )
Washer Fluid
Tank CapacityU.S.: 2.6 US qt (2.5 )
Canada: 4.5 US qt (4.3 )
SPECIFICATIONS
*if equipped
Learn about information specific to you as a Honda customer and how to\
get help.
Frequently Asked Questions/Troubleshooting
Below are some frequently asked questions and troubleshooting items that\
you may
have about the vehicle.
Q: How do I set the vehicle clock?
A: For vehicles without navigation, see page 55. For vehicles with navigati\
on, the
time is automatically set using GPS signals.
Q: Why doesn’t the vehicle start when I press the ENGINE START/STOP button*?
A: The brake pedal must be pressed to start the engine.
Q: What is the AUTO setting on my headlight lever?
A: When in the AUTO position, the vehicle’s exterior lights will automatically turn
on or off depending on the ambient lighting.
Q: Why won’t the driver’s door unlock when I grab the door handle, even though
the keyless access remote is within range?
A: If you pull the handle too quickly, the system may not have time to confirm the
door is unlocked. Wait to hear a beep to confirm the door is unlocked. If you are
wearing gloves, the system may be slow to respond.
Q: After my battery was disconnected or went dead, the audio system is aski\
ng for
a code. Where do I find this?
A: In most cases, you do not need to enter a code. Turn on the vehicle and the
audio system, and press and hold the power button until the system react\
ivates.
Q: Why can’t I operate Pandora through the audio system?
A: Audio may be streaming through Bluetooth Audio. Make sure Pandora mode
is selected and the phone cable is properly connected to the USB adapter\
.
Some phones may prompt you to “Allow” a connection.
Q: Is my phone compatible with Bluetooth features?
A: visit handsfreelink.honda.com (U.S.) or www.handsfreelink.ca (Canada) to
check phone compatibility for Bluetooth Audio, Bluetooth HandsFreeLink,
and SMS text messaging.
Q: Every time I press the Talk button, the system gives me voice prompts. Can I turn
these off?*
A: Press the SeTTINGS button. Use the interface dial to select System Settings
then v oice Rec. For the v oice Prompt option, select Off.
CUSTOMER INFORMATION
*if equipped
Page 75 of 81
142 || 143
CUSTOMER INFORMATION
CUSTOMER INFORMATION
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION

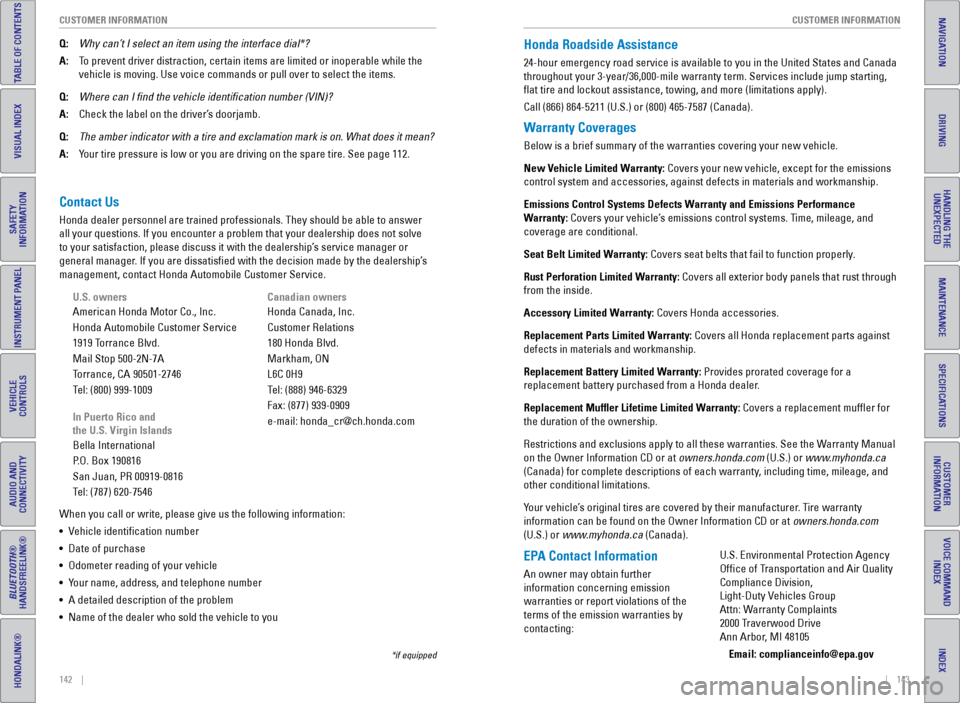

Contact Us
Honda dealer personnel are trained professionals. They should be able to\
answer
all your questions. If you encounter a problem that your dealership does\
not solve
to your satisfaction, please discuss it with the dealership’s service manager or
general manager. If you are dissatisfied with the decision made by the dealership’\
s
management, contact Honda Automobile Customer Service.
U.S. owners
American Honda Motor Co., Inc.
Honda Automobile Customer Service
1919 Torrance Blvd.
Mail Stop 500-2N-7A
Torrance, CA 90501-2746
Tel: (800) 999-1009
In Puerto Rico and
the U.S. Virgin Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-7546
When you call or write, please give us the following information:
• vehicle identification number
• Date of purchase
• Odometer reading of your vehicle
• Your name, address, and telephone number
• A detailed description of the problem
• Name of the dealer who sold the vehicle to you Canadian owners
Honda Canada, Inc.
Customer Relations
180 Honda Blvd.
Markham, ON
L6C 0H9
Tel: (888) 946-6329
Fax: (877) 939-0909
e-mail: [email protected]
Q:
Why can’t I select an item using the interface dial*?
A: To prevent driver distraction, certain items are limited or inoperable wh\
ile the
vehicle is moving. Use voice commands or pull over to select the items.
Q: Where can I find the vehicle identification number (VIN)?
A: Check the label on the driver’s doorjamb.
Q: The amber indicator with a tire and exclamation mark is on. What does it\
mean?
A: Your tire pressure is low or you are driving on the spare tire. See page \
112.
*if equipped
Honda Roadside Assistance
24-hour emergency road service is available to you in the United States \
and Canada
throughout your 3-year/36,000-mile warranty term. Services include jump starting,
flat tire and lockout assistance, towing, and more (limitations apply\
).
Call (866) 864-5211 (U.S.) or (800) 465-7587 (Canada).
Warranty Coverages
Below is a brief summary of the warranties covering your new vehicle.
New Vehicle Limited Warranty: Covers your new vehicle, except for the emissions
control system and accessories, against defects in materials and workman\
ship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty: Covers your vehicle’s emissions control systems. Time, mileage, and
coverage are conditional.
Seat Belt Limited Warranty: Covers seat belts that fail to function properly.
Rust Perforation Limited Warranty: Covers all exterior body panels that rust through
from the inside.
Accessory Limited Warranty: Covers Honda accessories.
Replacement Parts Limited Warranty: Covers all Honda replacement parts against
defects in materials and workmanship.
Replacement Battery Limited Warranty: Provides prorated coverage for a
replacement battery purchased from a Honda dealer.
Replacement Muffler Lifetime Limited Warranty: Covers a replacement muffler for
the duration of the ownership.
Restrictions and exclusions apply to all these warranties. See the Warranty Manual
on the Owner Information CD or at owners.honda.com (U.S.) or www.myhonda.ca
(Canada) for complete descriptions of each warranty, including time, mileage, and
other conditional limitations.
Your vehicle’s original tires are covered by their manufacturer. Tire warranty
information can be found on the Owner Information CD or at owners.honda.com
(U.S.) or www.myhonda.ca (Canada).
EPA Contact Information
An owner may obtain further
information concerning emission
warranties or report violations of the
terms of the emission warranties by
contacting: U.S. environmental Protection Agency
Office of Transportation and Air Quality
Compliance Division,
Light-Duty v
ehicles Group
Attn: Warranty Complaints
2000 Traverwood Drive
Ann Arbor, MI 48105
Email: [email protected]
Page 76 of 81
144 || 145

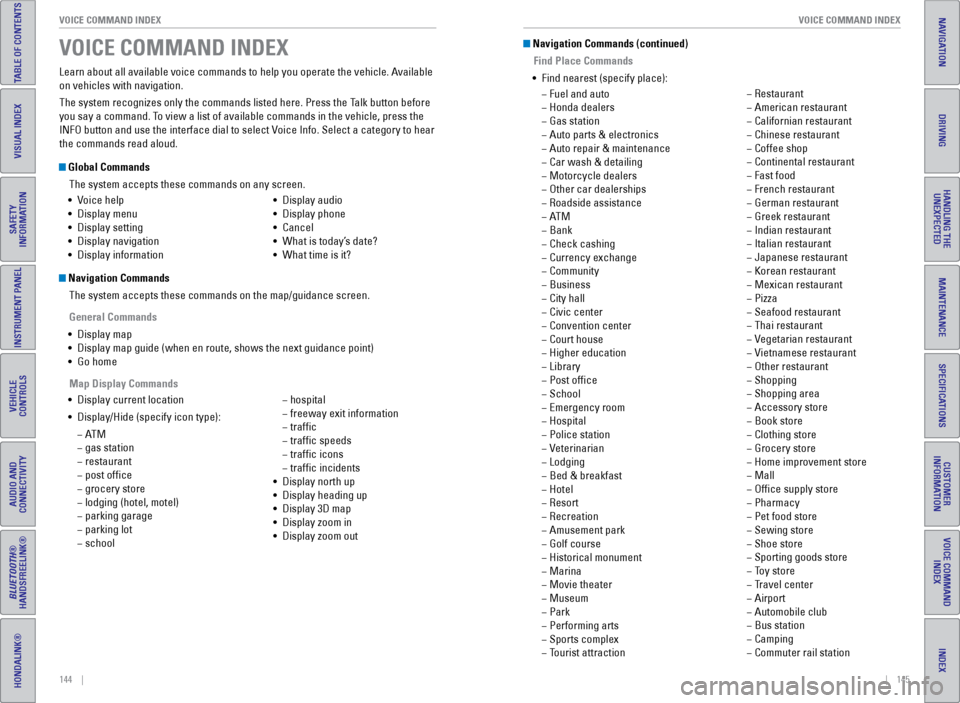

VOICE COMMAND INDEX
VOICE COMMAND INDEX
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION
Global Commands
The system accepts these commands on any screen.
Navigation CommandsThe system accepts these commands on the map/guidance screen.
General Commands
• Display map
• Display map guide (when en route, shows the next guidance point)
• Go home
• Display current location
• Display/Hide (specify icon type):
− AT M
− gas station
− restaurant
− post office
− grocery store
− lodging (hotel, motel)
− parking garage
− parking lot
− school
− hospital
− freeway exit information
− traffic
− traffic speeds
− traffic icons
− traffic incidents
• Display north up
• Display heading up
• Display 3D map
• Display zoom in
• Display zoom out
Learn about all available voice commands to help you operate the vehicle\
. Available
on vehicles with navigation.
The system recognizes only the commands listed here. Press the Talk button before
you say a command. To view a list of available commands in the vehicle, press the
INFO button and use the interface dial to select v
oice Info. Select a category to hear
the commands read aloud.
VOICE COMMAND INDEX
• voice help
• Display menu
• Display setting
• Display navigation
• Display information •
Display audio
• Display phone
• Cancel
• What is today’s date?
• What time is it?
Map Display Commands
Navigation Commands (continued) Find Place Commands
• Find nearest (specify place):
− Fuel and auto
− Honda dealers
− Gas station
− Auto parts & electronics
− Auto repair & maintenance
− Car wash & detailing
− Motorcycle dealers
− Other car dealerships
− Roadside assistance
− AT M
− Bank
− Check cashing
− Currency exchange
− Community
− Business
− City hall
− Civic center
− Convention center
− Court house
− Higher education
− Library
− Post office
− School
− emergency room
− Hospital
− Police station
− veterinarian
− Lodging
− Bed & breakfast
− Hotel
− Resort
− Recreation
− Amusement park
− Golf course
− Historical monument
− Marina
− Movie theater
− Museum
− Park
− Performing arts
− Sports complex
− Tourist attraction
− Restaurant
− American restaurant
− Californian restaurant
− Chinese restaurant
− Coffee shop
− Continental restaurant
− Fast food
− French restaurant
− German restaurant
− Greek restaurant
− Indian restaurant
− Italian restaurant
− Japanese restaurant
− Korean restaurant
− Mexican restaurant
− Pizza
− Seafood restaurant
− Thai restaurant
− vegetarian restaurant
− vietnamese restaurant
− Other restaurant
− Shopping
− Shopping area
− Accessory store
− Book store
− Clothing store
− Grocery store
− Home improvement store
− Mall
− Office supply store
− Pharmacy
− Pet food store
− Sewing store
− Shoe store
− Sporting goods store
− Toy store
− Travel center
− Airport
− Automobile club
− Bus station
− Camping
− Commuter rail station
Page 77 of 81
146 || 147
VOICE COMMAND INDEX
VOICE COMMAND INDEX
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION

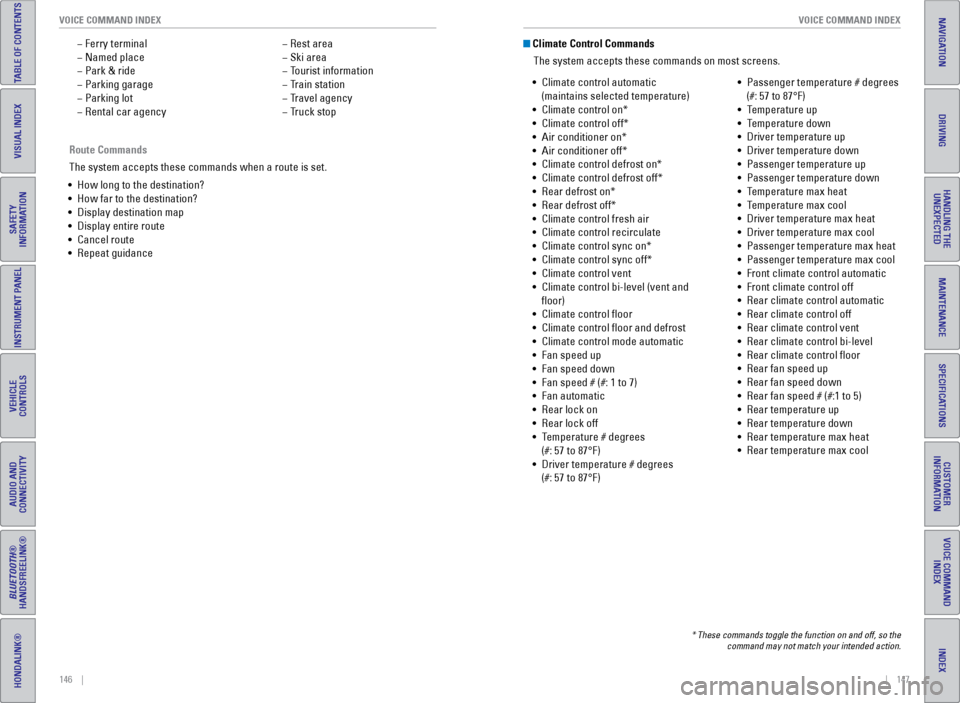

Route Commands
The system accepts these commands when a route is set.
• How long to the destination?
• How far to the destination?
• Display destination map
• Display entire route
• Cancel route
• Repeat guidance
− Ferry terminal
− Named place
− Park & ride
− Parking garage
− Parking lot
− Rental car agency
− Rest area
− Ski area
− Tourist information
− Train station
− Travel agency
− Truck stop
Climate Control Commands
The system accepts these commands on most screens.
* These commands toggle the function on and off, so the command may not match your intended action.
• Climate control automatic
(maintains selected temperature)
• Climate control on*
• Climate control off*
• Air conditioner on*
• Air conditioner off*
• Climate control defrost on*
• Climate control defrost off*
• Rear defrost on*
• Rear defrost off*
• Climate control fresh air
• Climate control recirculate
• Climate control sync on*
• Climate control sync off*
• Climate control vent
• Climate control bi-level (vent and
floor)
• Climate control floor
• Climate control floor and defrost
• Climate control mode automatic
• Fan speed up
• Fan speed down
• Fan speed # (#: 1 to 7)
• Fan automatic
• Rear lock on
• Rear lock off
• Temperature # degrees
(#: 57 to 87°F)
• Driver temperature # degrees
(#: 57 to 87°F) •
Passenger temperature # degrees
(#: 57 to 87°F)
• Temperature up
• Temperature down
• Driver temperature up
• Driver temperature down
• Passenger temperature up
• Passenger temperature down
• Temperature max heat
• Temperature max cool
• Driver temperature max heat
• Driver temperature max cool
• Passenger temperature max heat
• Passenger temperature max cool
• Front climate control automatic
• Front climate control off
• Rear climate control automatic
• Rear climate control off
• Rear climate control vent
• Rear climate control bi-level
• Rear climate control floor
• Rear fan speed up
• Rear fan speed down
• Rear fan speed # (#:1 to 5)
• Rear temperature up
• Rear temperature down
• Rear temperature max heat
• Rear temperature max cool
Page 78 of 81
148 || 149
VOICE COMMAND INDEX
VOICE COMMAND INDEX
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION

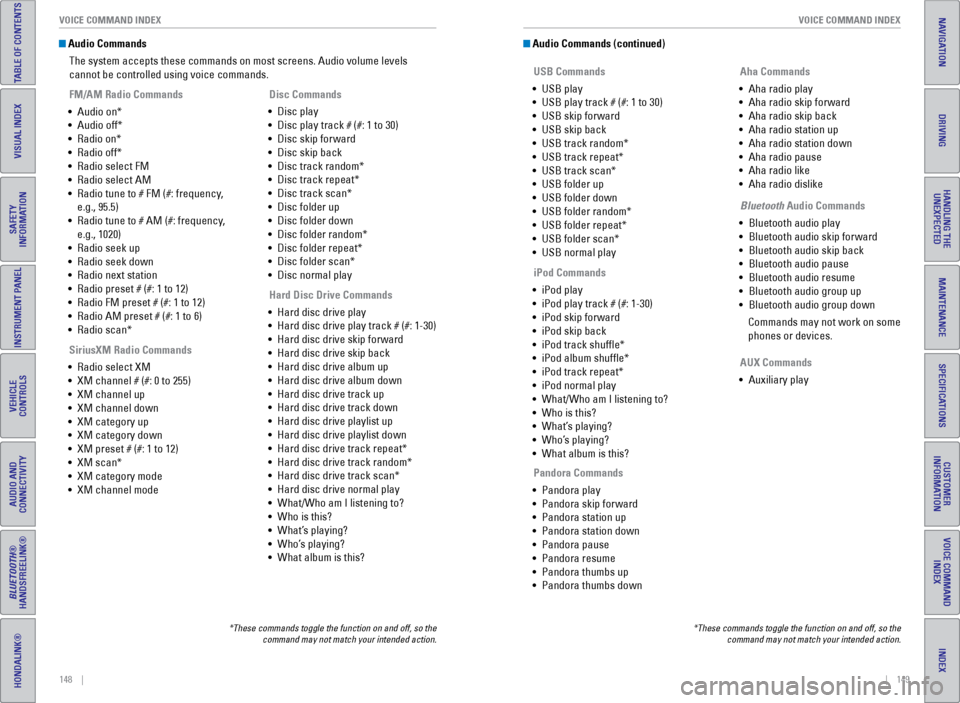

Audio Commands
The system accepts these commands on most screens. Audio volume levels
cannot be controlled using voice commands.
FM/AM Radio Commands
• Audio on*
• Audio off*
• Radio on*
• Radio off*
• Radio select FM
• Radio select AM
• Radio tune to # FM (#: frequency,
e.g., 95.5)
• Radio tune to # AM (#: frequency,
e.g., 1020)
• Radio seek up
• Radio seek down
• Radio next station
• Radio preset # (#: 1 to 12)
• Radio FM preset # (#: 1 to 12)
• Radio AM preset # (#: 1 to 6)
• Radio scan*
SiriusXM Radio Commands
• Radio select XM
• XM channel # (#: 0 to 255)
• XM channel up
• XM channel down
• XM category up
• XM category down
• XM preset # (#: 1 to 12)
• XM scan*
• XM category mode
• XM channel mode Disc Commands
• Disc play
• Disc play track # (#: 1 to 30)
• Disc skip forward
• Disc skip back
• Disc track random*
• Disc track repeat*
• Disc track scan*
• Disc folder up
• Disc folder down
• Disc folder random*
• Disc folder repeat*
• Disc folder scan*
• Disc normal play
Hard Disc Drive Commands
• Hard disc drive play
• Hard disc drive play track # (#: 1-30)
• Hard disc drive skip forward
• Hard disc drive skip back
• Hard disc drive album up
• Hard disc drive album down
• Hard disc drive track up
• Hard disc drive track down
• Hard disc drive playlist up
• Hard disc drive playlist down
• Hard disc drive track repeat*
• Hard disc drive track random*
• Hard disc drive track scan*
• Hard disc drive normal play
• What/Who am I listening to?
• Who is this?
• What’s playing?
• Who’s playing?
• What album is this?
*These commands toggle the function on and off, so the
command may not match your intended action.
Audio Commands (continued)
USB Commands
• USB play
• USB play track # (#: 1 to 30)
• USB skip forward
• USB skip back
• USB track random*
• USB track repeat*
• USB track scan*
• USB folder up
• USB folder down
• USB folder random*
• USB folder repeat*
• USB folder scan*
• USB normal play
Pandora Commands
• Pandora play
• Pandora skip forward
• Pandora station up
• Pandora station down
• Pandora pause
• Pandora resume
• Pandora thumbs up
• Pandora thumbs down
*These commands toggle the function on and off, so the
command may not match your intended action.
iPod Commands
• iPod play
• iPod play track # (#: 1-30)
• iPod skip forward
• iPod skip back
• iPod track shuffle*
• iPod album shuffle*
• iPod track repeat*
• iPod normal play
• What/Who am I listening to?
• Who is this?
• What’s playing?
• Who’s playing?
• What album is this? Aha Commands
• Aha radio play
• Aha radio skip forward
• Aha radio skip back
• Aha radio station up
• Aha radio station down
• Aha radio pause
• Aha radio like
• Aha radio dislike
Bluetooth Audio Commands
• Bluetooth audio play
• Bluetooth audio skip forward
• Bluetooth audio skip back
• Bluetooth audio pause
• Bluetooth audio resume
• Bluetooth audio group up
• Bluetooth audio group down
Commands may not work on some
phones or devices.
AUX Commands
• Auxiliary play
Page 79 of 81
150 || 151
INDEX
VOICE COMMAND INDEX
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION
• Music search
• List album (specify album)
• List artist (specify artist)
• List composer (specify composer)
• List genre (specify genre)
• List playlist (specify playlist)
• Play album (specify album)
• Play artist (specify artist)
• Play composer (specify composer) •
Play genre (specify genre)
• List playlist (specify playlist)
• Play song (specify song)
• What/Who am I listening to?
• Who is this?
• What’s playing?
• Who’s playing?
• What album is this?
Song By Voice Commands
Available for tracks stored on the HDD or iPod.
Audio Commands (continued)
Rear Audio Commands
On vehicles with rear entertainment system, voice commands for certain rear
audio functions are available.
To view a list of rear audio commands in the vehicle, press the INFO butt\
on and
use the interface dial to select v oice Info. Select Rear Audio Commands, and
press the interface dial to hear the commands read aloud.
Phone Commands
The system accepts these commands on most screens.
• Dial/call by number
• Dial/call by voice tag
Info Commands
The system accepts these commands on most screens.
• Trip computer
• Traffic information •
Display clock
• Display wallpaper
On-screen Commands
The system accepts these commands on any screen where applicable. All
available commands are highlighted in yellow when you press the Talk button.
• Next (or Down)
• Previous (or Up)
• Return •
OK (excluding startup screen)
• Delete
INDEX
ABS ........................................................................\
...... 25
Active Head Restraints ............................................ 43
Address ....................................................................... 88
Advanced Airbags ...................................................... 9
Aha ........................................................................\
...... 74
Aha Commands ....................................................... 149
Airbags ........................................................................\
.. 9
About Your Airbags ................................................ 11
Advanced Airbags .................................................... 9
Airbag Care ............................................................. 14
Airbag System Components ................................. 13
Airbag System Indicators ..................................... 11
Front Airbags (SRS) .................................................. 9
Passenger Airbag Off Indicator ........................... 12
Side Airbags ............................................................ 10
Side Curtain Airbags .............................................. 10
SRS (Supplemental Restraint System) Indicator 11
Air Conditioning System ........................................... 52
Anti-lock Brake System (ABS) .......................... 25, 98
Audio Commands .................................................... 148
Audio Operation ........................................................ 57
Auxiliary Input Jack ......................................... 57, 58
Bluetooth Audio ................................................ 63, 72
Compact Disc (CD) ........................................... 61, 69
DvD ........................................................................\
... 75
FM/AM Radio .................................................... 60, 67
Hard Disc Drive (HDD) Audio ............................... 70
HDMI ........................................................................\
76
HondaLink featuring Aha ...................................... 74
iPod ..................................................................... 62, 71
Pandora .............................................................. 64, 73
Rear Audio Commands ........................................150
Rear entertainment System .................................. 75
SiriusXM Radio ....................................................... 68
Sound ....................................................................... 58
Steering Wheel Controls ....................................... 58
Touchscreen Operation ......................................... 66
USB Flash Drive ...................................................... 62
USB Port .................................................................. 57
Wireless Headphones ........................................... 76
Automatic Dimming Rearview Mirror .................... 48
Automatic Headlights ............................................... 39
AUX Commands ....................................................... 149
Auxiliary Input Jack ............................................ 57, 58
Battery ...................................................................... 129
Blind Spot Indicator (BSI) ........................................25
Blind Spot Information (BSI) ................................. 103
Bluetooth Audio ................................................... 63, 72
Bluetooth Audio Commands ..................................149
Bluetooth Handsfreelink (HFL) ................................ 79
Call History .............................................................. 83
e-Mail ....................................................................... 84
HFL Controls ............................................................ 79Making a Call ..........................................................
82
Pairing a Phone ...................................................... 81
Phonebook ............................................................... 82
SMS Text Messaging ............................................. 84
Speed Dial ............................................................... 83
v oice Recognition Tips .......................................... 80
Brake Assist System ................................................. 98
Brake system ....................................................... 24, 25
Braking ........................................................................\
97
Brightness Control .................................................... 38
BSI ........................................................................\
. 25, 27
Call History ................................................................. 83
Carbon Monoxide Gas ................................................ 4
Cargo Area Lights ..................................................... 39
Change a Setting ....................................................... 55
Changing a Flat Tire ................................................ 112
Changing Wiper Blades .........................................130
Charging system ........................................................ 24
Child Safety ................................................................ 15
Childproof Door Locks ........................................... 33
Installing a LATCH-Compatible Child Seat ......... 18
Selecting a Child Seat ........................................... 17
Child Seat ................................................................... 17
Adding Security with a Tether .............................. 20
Installing a LATCH-Compatible Child Seat ......... 18
Selecting a Child Seat ........................................... 17
Climate Control Commands ................................... 147
Climate Control System ............................................ 53
Clock ........................................................................\
.... 55
Compact Disc (CD) .............................................. 61, 69
Contact Us ................................................................ 142
Coolant ...................................................................... 128
Cool Box ...................................................................... 51
Cruise Control ............................................................ 99
Customer Information ............................................. 141
Customized Features ................................................ 55
Dashboard and Ceiling Controls ............................... 2
Daytime Running Lights (DRL) .................................25
Destination ................................................................. 88
Detour ........................................................................\
. 90
Dialing a Number ...................................................... 82
Door Mirrors .............................................................. 48
Door Operation .......................................................... 33
Sliding Doors ........................................................... 34
Doors ........................................................................\
... 31
DOT Tire Quality Grading .......................................136
Driving ........................................................................\
. 91
Blind Spot Information (BSI) ...............................103
Braking ..................................................................... 97
Cruise Control ......................................................... 99
Forward Collision Warning (FCW) ..................... 101
Ignition ..................................................................... 96
Lane Departure Warning (LDW) ........................ 102
Page 80 of 81
152 || 153
INDEX
INDEX
TABLE OF CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CUSTOMER
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
HONDALINK®
NAVIGATION
LaneWatch ............................................................ 100
Maximum Load Limit .............................................. 92
Multi-view Rear Camera .....................................106
Parking Sensor System .......................................104
Power Mode ............................................................ 96
Rearview Camera ................................................. 105
Refueling ................................................................ 107
Shifting ..................................................................... 97
Towing a Trailer ...................................................... 94
Driving Position Memory System ........................... 47
DRL ........................................................................\
...... 25
Dual Screen ............................................................... 78
DvD ........................................................................\
...... 75
emergency engine Stop .........................................111
emergency Towing ................................................. 111
engine and Fuel ....................................................... 140
engine Coolant ......................................................... 128
engine Oil .................................................................. 126
eNGINe START/STOP button .................................. 96
exterior Lights ...................................................... 27, 39
Fastening a Seat Belt ................................................. 7
FCW ................................................................. 25, 26, 27
Find Nearest Place ................................................... 89
Find Place Commands ............................................ 145
Flat Tire ..................................................................... 112
Floor Mats .................................................................. 43
Fluids ........................................................................\
. 140
FM/AM Radio ....................................................... 60, 67
FM/AM Radio Commands ......................................148
FM Traffic ................................................................... 90
Fog lights .............................................................. 27, 39
Foot Brake .................................................................. 97
Forward Collision Warning (FCW) .................. 26, 101
Frequently Asked Questions ................................. 141
Front Airbags (SRS) .................................................... 9
Front Seats ................................................................. 41
Front Wipers .............................................................. 40
Fuel Information ...................................................... 107
Fuse Locations ......................................................... 116
Garage Opener .......................................................... 49
Hang-Up/Back button ............................................... 79
Hard Disc Drive (HDD) Audio .................................. 70
Hazard lights .............................................................. 27
HDMI ........................................................................\
... 76
Headlight-Wiper Integration ................................... 40
Head Restraints ......................................................... 42
High beams ................................................................ 27
Home Address ........................................................... 88
HomeLink .................................................................... 49
HondaLink featuring Aha .........................................74
Honda Roadside Assistance ................................. 143
Hondav AC .................................................................. 50
Hood ........................................................................\
.. 125
Ignition ........................................................................\
96
Info buttons ................................................................ 29Info Commands
........................................................ 150
Information Display ................................................... 28
Instrument Panel ....................................................... 24
Condition Indicators ............................................... 26
Malfunction Indicators .......................................... 24
On/Off Indicators .................................................... 27
Interface Dial ................................................. 80, 86, 87
Interior Lights ............................................................. 38
Intermittent Wipers ................................................... 40
iPod ........................................................................\
62, 71
iPod Commands ....................................................... 149
Jump Starting .......................................................... 109
Key ........................................................................\
....... 30
Lane Departure Warning (LDW) ............... 25, 26, 102
LaneWatch ............................................................... 100
Lap/Shoulder Seat Belts ............................................ 5
LATCH-Compatible Child Seat ................................. 18
LDW ....................................................................... 25, 26
Light Bulbs ................................................................ 140
Lights ........................................................................\
... 38
Locking the Doors ..................................................... 31
Locking the Tailgate .................................................. 31
Lock Tab ...................................................................... 33
Low fuel ...................................................................... 26
Low oil pressure ........................................................ 24
Low tire pressure ...................................................... 26
Maintenance ............................................................ 122
Maintenance Minder ........................................... 123
Safety Precautions ............................................... 122
Service Codes ....................................................... 124
Under the Hood ..................................................... 125
Maintenance Minder ................................................ 26
Malfunction indicator lamp ..................................... 25
Map Display Commands ........................................144
Map Legend ............................................................... 90
Map Lights .................................................................. 38
Master Door Lock Switch ........................................33
Maximum Load Limit ................................................. 92
MeNU button ..................................... 59, 65, 79, 80, 86
Mirrors ........................................................................\
48
Moonroof .................................................................... 37
Multi-Information Display ........................................29
Multi-view Rear Camera .......................................106
Music search ........................................................... 150
Navigation .................................................................. 85
Detour ....................................................................... 90
Display and Controls .............................................. 86
entering a Destination ........................................... 88
Find Nearest Place ................................................. 89
Home Address ........................................................ 88
Map Legend ............................................................ 90
Place Category ....................................................... 89
Routing ..................................................................... 90
Steering Wheel Controls ....................................... 85
Street Address ........................................................ 88Traffic .......................................................................
90
v oice Command Tips .............................................. 85
Navigation Commands ........................................... 144
One-Motion Third-Row Magic Seat .......................46
One-Touch Turn Signal ............................................. 39
On-screen Commands ............................................ 150
Overheating .............................................................. 110
Pairing a Phone ......................................................... 81
Pandora ................................................................ 64, 73
Pandora Commands ............................................... 149
Parking brake ....................................................... 26, 97
Parking Sensor System
.......................................... 104
Passenger Airbag Off Indicator .............................. 12
Phone ........................................................................\
.. 81
Phonebook ................................................................. 82
PHONe button ...................................................... 79, 80
Phone Commands ................................................... 150
Pick-Up button ........................................................... 79
Place Category .......................................................... 89
Playing a DvD ............................................................ 75
Power Door Mirrors .................................................. 48
Power Mode .............................................................. 96
Power Moonroof ....................................................... 37
Power Sliding Doors ........................................... 25, 34
Power Tailgate ..................................................... 25, 32
Power Window .......................................................... 36
Readiness Codes ..................................................... 139
Rear Audio Commands ........................................... 150
Rear entertainment System (ReS) .......................... 75
Dual Screen ............................................................. 78
DvD ........................................................................\
... 75
HDMI ........................................................................\
76
Remote Control ....................................................... 77
Wireless Headphones ........................................... 76
Rear Seats .................................................................. 44
Rearview Camera .................................................... 105
Rearview Mirror ........................................................ 48
Rear Wiper ................................................................. 40
Refueling ................................................................... 107
Remote Battery Strength ....................................... 108
Remote Control .......................................................... 77
Remote Transmitter .................................................. 30
Reporting Safety Defects .........................................23
Reverse Tilt Door Mirrors ........................................48
Roadside Assistance .............................................. 143
Route Commands .................................................... 146
Routing ........................................................................\
90
Safety Information ...................................................... 3
Carbon Monoxide Gas ............................................. 4
Childproof Door Locks ........................................... 33
Child Safety ............................................................. 15
Reporting Safety Defects ...................................... 23
Safety Label Locations .......................................... 22
Safety Messages ...................................................... 3
Seat Belts ..................................................................... 5Fastening a Seat Belt
............................................... 7
Lap/Shoulder Seat Belts ......................................... 5
Seat Belt Inspection ................................................ 6
Seat Belt with Detachable Anchor ........................8
Shoulder Anchor ...................................................... 7
Seat Heaters .............................................................. 54
Seats ........................................................................\
... 41
Front Seats .............................................................. 41
Second-Row Passenger’s Seats ......................... 44
Third-Row Passenger’s Seats .............................. 44
Select/Reset knob ..................................................... 28
SeL/ReSeT button ..................................................... 29
Service Codes .......................................................... 124
Setting ........................................................................\
. 55
SeTTINGS button ..............................59, 65, 79, 80, 86
Setting the Clock ....................................................... 55
Shifting ........................................................................\
97
Shift Lever Does Not Move ...................................108
Shoulder Anchor ......................................................... 7
Side Airbags ............................................................... 10
Side Curtain Airbags ................................................. 10
SiriusXM Radio .......................................................... 68
SiriusXM Radio Commands ................................... 148
Sliding Doors .............................................................. 34
Smart entry System ............................................ 24, 31
SMS Text Messaging ............................................... 84
Song By v oice Commands .................................... 150
Sound ........................................................................\
.. 58
Specifications .......................................................... 140
Speed Dial .................................................................. 83
SRS (Supplemental Restraint System) Indicator . 11
Starter system ........................................................... 25
Steering Wheel .......................................................... 47
Steering Wheel and Nearby Controls ..................... 1
Steering Wheel Controls ....................................58, 85
Street Address ........................................................... 88
Supplemental Restraint System (SRS) .................. 24
System Guidance v olume ........................................ 87
System message ....................................................... 26
Tailgate ....................................................................... 31
Talk button .................................................................. 79
Text Messaging ......................................................... 84
Third-Row Magic Seat ............................................. 46
Tire Chains ................................................................ 134
Tire Information ....................................................... 132
DOT Tire Quality Grading .....................................136
Inflation Guidelines .............................................. 132
Tire and Loading Information Label ................... 133
Tire and Wheel Replacement ............................. 133
Tire Identification Number (TIN) ........................ 135
Tire Labeling .......................................................... 135
Tire Service Life .................................................... 134
Tire Terminology ................................................... 135
Wear Indicators .................................................... 132
