HONDA ODYSSEY 2019 Owner's Manual (in English)

Continued219
uuAdjusting the Seats uSecond Row Seats
Controls

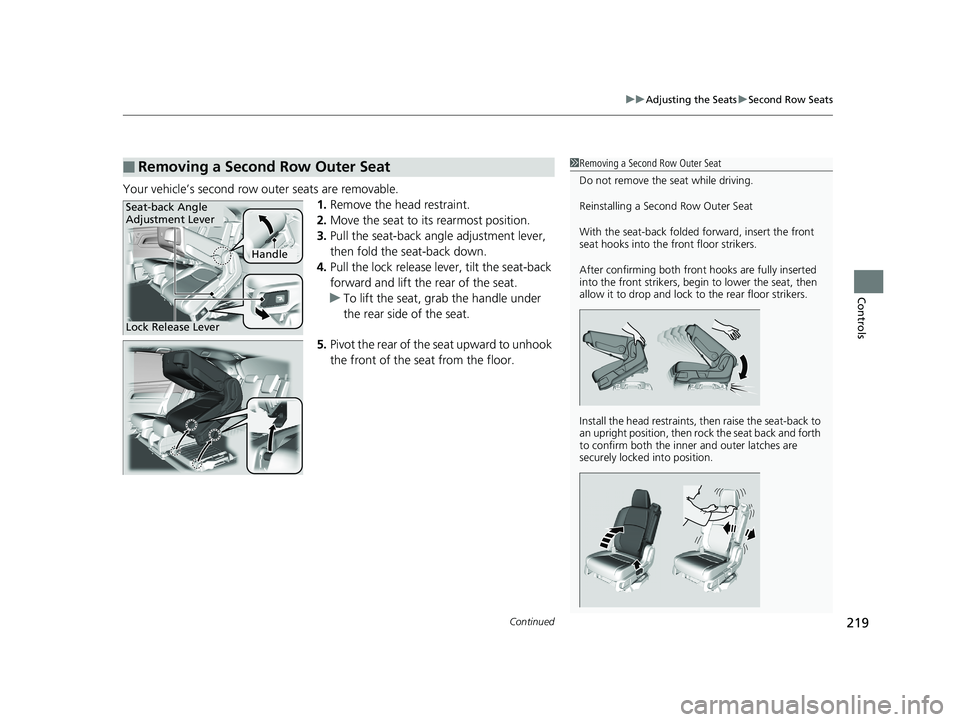

Your vehicle’s second row outer seats are removable.
1.Remove the head restraint.
2. Move the seat to its rearmost position.
3. Pull the seat-back angle adjustment lever,
then fold the seat-back down.
4. Pull the lock release le ver, tilt the seat-back
forward and lift the rear of the seat.
u To lift the seat, gr ab the handle under
the rear side of the seat.
5. Pivot the rear of the seat upward to unhook
the front of the seat from the floor.
■Removing a Second Row Outer Seat1Removing a Second Row Outer Seat
Do not remove the seat while driving.
Reinstalling a Second Row Outer Seat
With the seat-back folded forward, insert the front
seat hooks into the front floor strikers.
After confirming both front hooks are fully inserted
into the front strikers, begin to lower the seat, then
allow it to drop and lock to the rear floor strikers.
Install the head restraints, then raise the seat-back to
an upright position, then rock the seat back and forth
to confirm both the inner and outer latches are
securely locked into position.
Handle
Seat-back Angle
Adjustment Lever
Lock Release Lever
19 ODYSSEY-31THR6120.book 219 ページ ２０１８年１２月６日　木曜日　午後４時３５分

uuAdjusting the Seats uSecond Row Seats
220
Controls

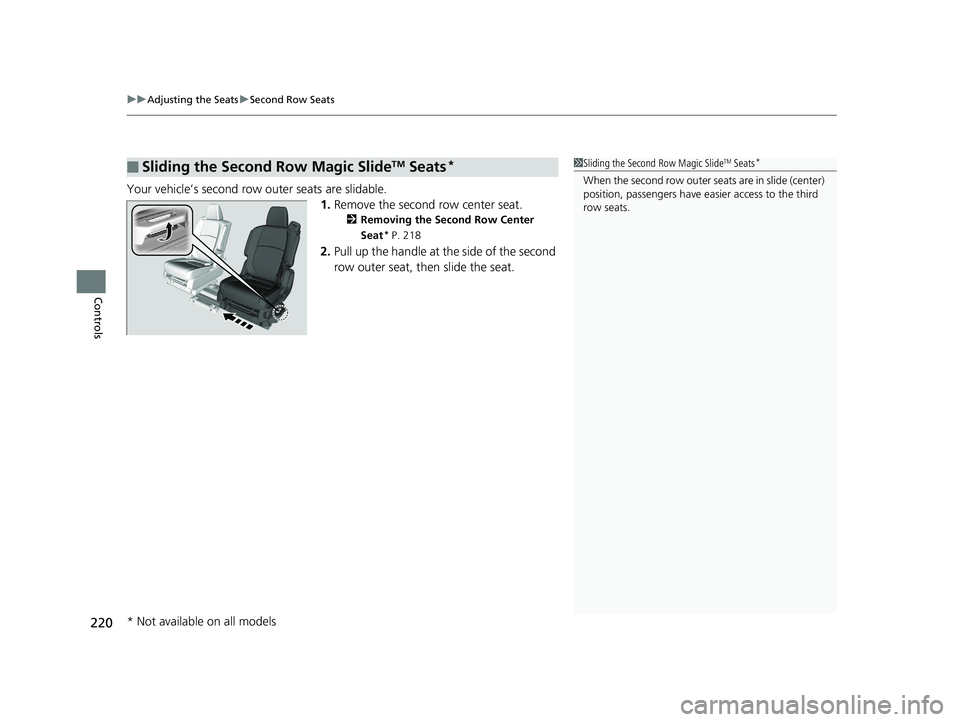

Your vehicle’s second row outer seats are slidable.
1.Remove the second row center seat.
2 Removing the Second Row Center
Seat* P. 218
2.Pull up the handle at the side of the second
row outer seat, then slide the seat.
■Sliding the Second Row Magic SlideTM Seats*1Sliding the Second Row Magic SlideTM Seats*
When the second row outer seats are in slide (center)
position, passengers have eas ier access to the third
row seats.
* Not available on all models
19 ODYSSEY-31THR6120.book 220 ページ ２０１８年１２月６日　木曜日　午後４時３５分

221
uuAdjusting the Seats uThird Row Seats
Continued
Controls

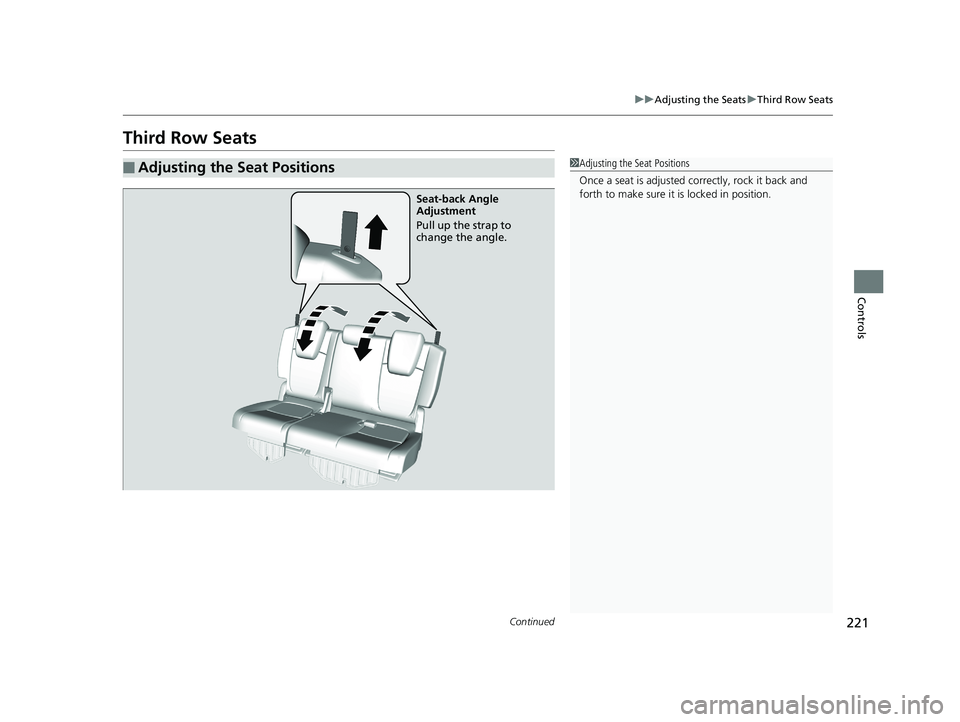

Third Row Seats
■Adjusting the Seat Positions1Adjusting the Seat Positions
Once a seat is adjusted co rrectly, rock it back and
forth to make sure it is locked in position.
Seat-back Angle
Adjustment
Pull up the strap to
change the angle.
19 ODYSSEY-31THR6120.book 221 ページ ２０１８年１２月６日　木曜日　午後４時３５分

uuAdjusting the Seats uThird Row Seats
222
Controls

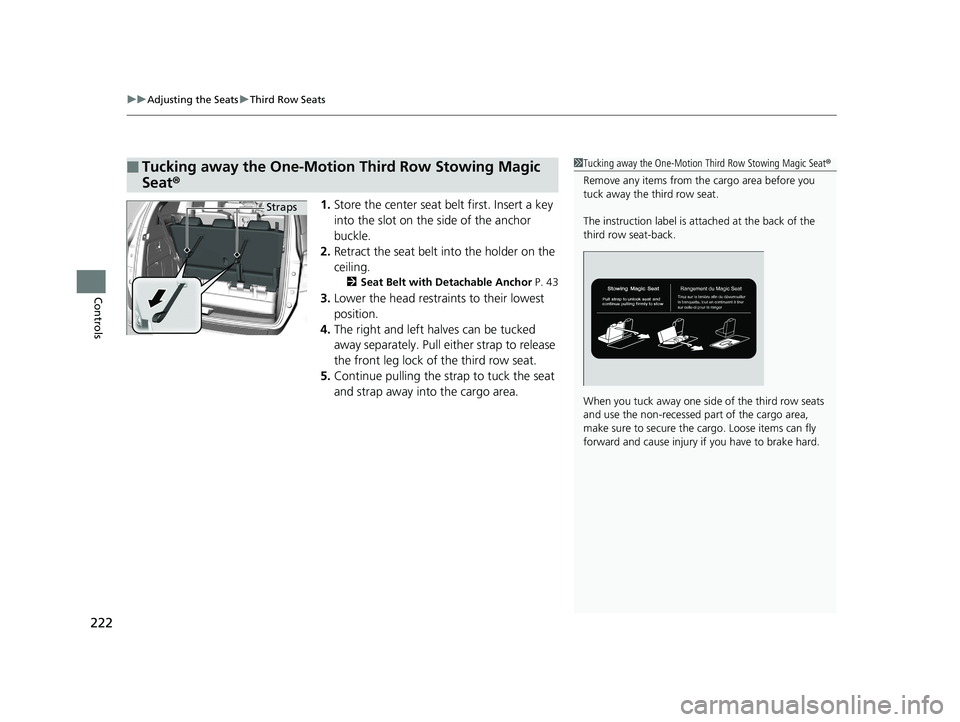

1. Store the center seat belt first. Insert a key
into the slot on the side of the anchor
buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 43
3.Lower the head restraints to their lowest
position.
4. The right and left halves can be tucked
away separately. Pull either strap to release
the front leg lock of the third row seat.
5. Continue pulling the strap to tuck the seat
and strap away in to the cargo area.
■Tucking away the One-Motion Third Row Stowing Magic
Seat®1Tucking away the One-Motion Third Row Stowing Magic Seat®
Remove any items from the cargo area before you
tuck away the third row seat.
The instruction label is atta ched at the back of the
third row seat-back.
When you tuck away one si de of the third row seats
and use the non-recessed pa rt of the cargo area,
make sure to secure the cargo. Loose items can fly
forward and cause injury if you have to brake hard.
Straps
19 ODYSSEY-31THR6120.book 222 ページ ２０１８年１２月６日　木曜日　午後４時３５分

223
uuAdjusting the Seats uThird Row Seats
Controls
■When returning the seat to the upright position:
1.Grab the handle from outside.
Pull up the folded seat, begin to pivot it
forward, then allow it to drop into position.
2. The front leg latches wh en it contacts the
floor striker.
Pull the strap to put the seat-back(s)
upright. Rock the seat back and forth to
confirm the seat is securely locked in
position. There should be no movement.1 When returning the seat to the upright position:
Make sure the seat is securely latched before driving
by rocking the seat back and forth.
Handles
Straps
19 ODYSSEY-31THR6120.book 223 ページ ２０１８年１２月６日　木曜日　午後４時３５分

224
uuAdjusting the Seats uArmrest
Controls

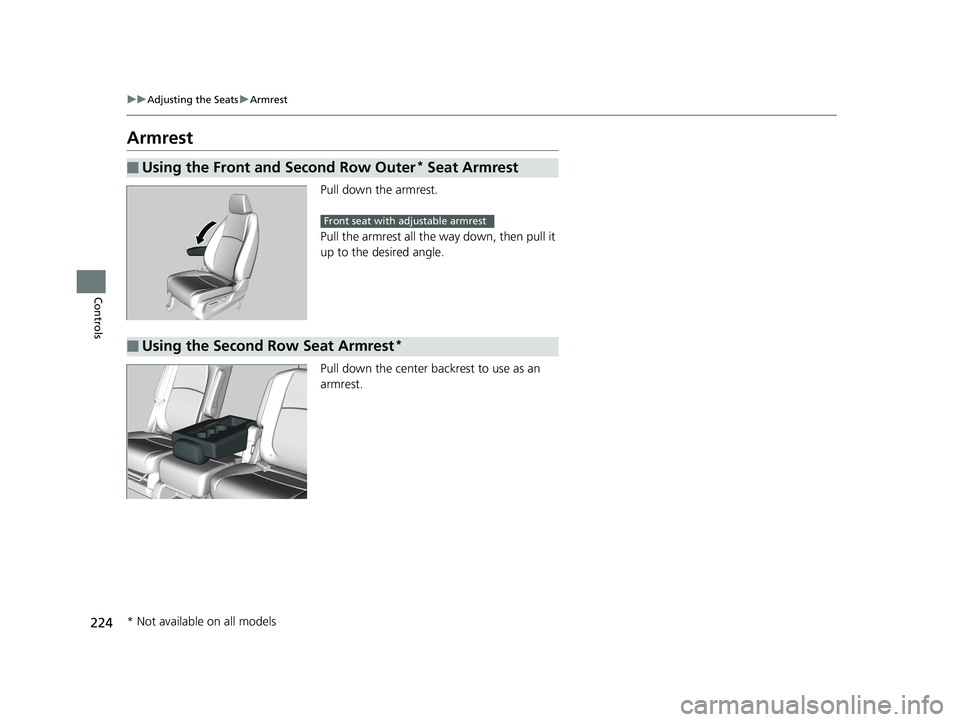

Armrest
Pull down the armrest.
Pull the armrest all the way down, then pull it
up to the desired angle.
Pull down the center backrest to use as an
armrest.
■Using the Front and Second Row Outer* Seat Armrest
Front seat with adjustable armrest
■Using the Second Row Seat Armrest*
* Not available on all models
19 ODYSSEY-31THR6120.book 224 ページ ２０１８年１２月６日　木曜日　午後４時３５分

225Continued
Controls
Interior Lights/Interior Convenience Items

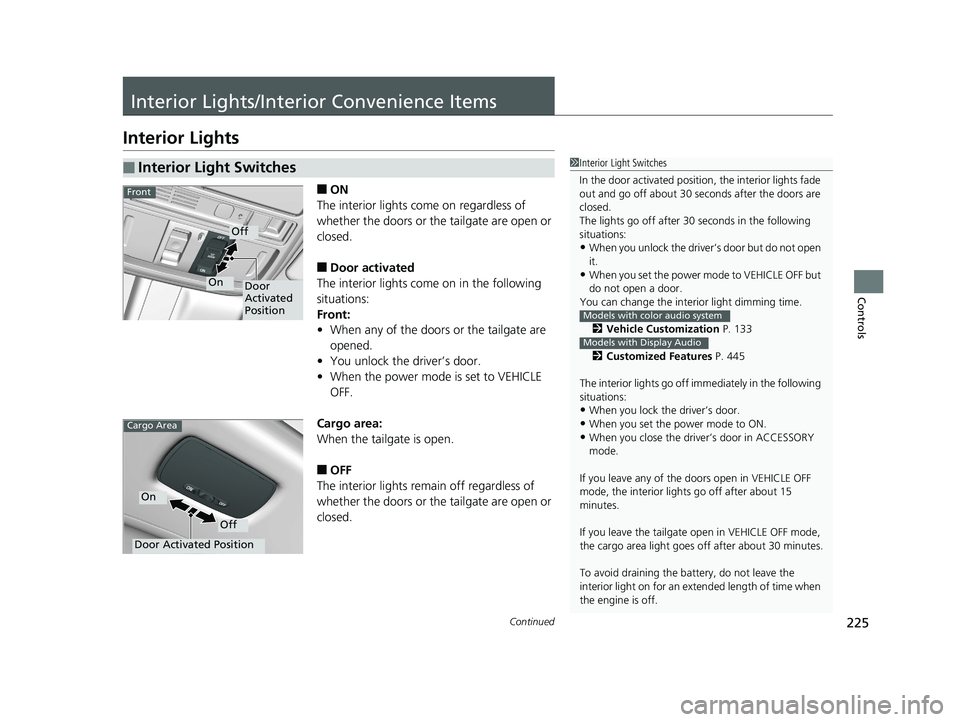

Interior Lights
■ON
The interior lights come on regardless of
whether the doors or the tailgate are open or
closed.
■Door activated
The interior lights come on in the following
situations:
Front:
• When any of the doors or the tailgate are
opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE
OFF.
Cargo area:
When the tailgate is open.
■OFF
The interior lights remain off regardless of
whether the doors or the tailgate are open or
closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver’s door but do not open
it.
•When you set the power mode to VEHICLE OFF but
do not open a door.
You can change the inte rior light dimming time.
2 Vehicle Customization P. 133
2 Customized Features P. 445
The interior lights go off i mmediately in the following
situations:
•When you lock the driver’s door.
•When you set the power mode to ON.
•When you close the driver’s door in ACCESSORY
mode.
If you leave any of the doors open in VEHICLE OFF
mode, the interior light s go off after about 15
minutes.
If you leave the tailgate open in VEHICLE OFF mode,
the cargo area light goes of f after about 30 minutes.
To avoid draining the ba ttery, do not leave the
interior light on for an extended length of time when
the engine is off.
Models with color audio system
Models with Display Audio
Door
Activated
Position
Off
On
Front
Door Activated Position
Off
On
Cargo Area
19 ODYSSEY-31THR6120.book 225 ページ ２０１８年１２月６日　木曜日　午後４時３５分

uuInterior Lights/Interior Convenience Items uInterior Lights
226
Controls

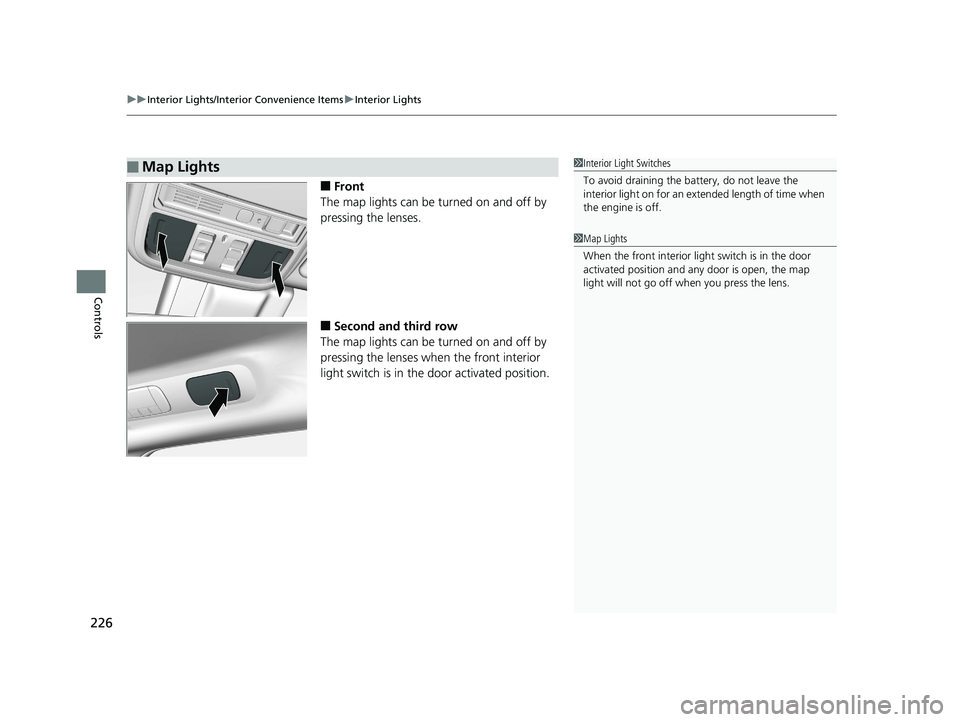

■Front
The map lights can be turned on and off by
pressing the lenses.
■Second and third row
The map lights can be turned on and off by
pressing the lenses when the front interior
light switch is in the door activated position.
■Map Lights1Interior Light Switches
To avoid draining the ba ttery, do not leave the
interior light on for an extended length of time when
the engine is off.
1 Map Lights
When the front interior li ght switch is in the door
activated position and any door is open, the map
light will not go off when you press the lens.
19 ODYSSEY-31THR6120.book 226 ページ ２０１８年１２月６日　木曜日　午後４時３５分

227
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls
Interior Convenience Items

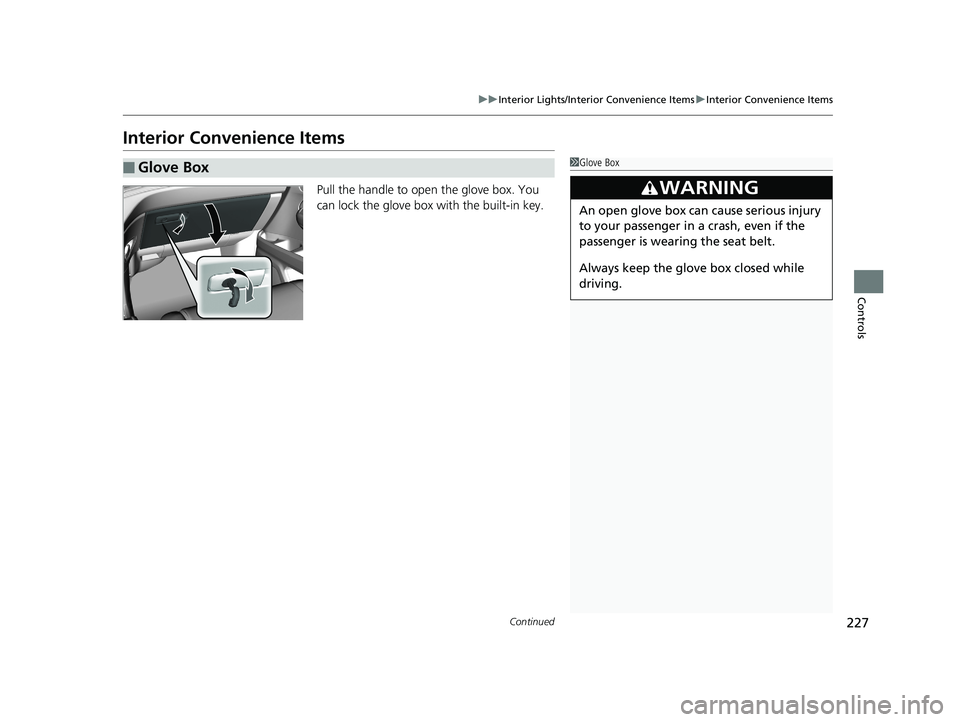

Pull the handle to open the glove box. You
can lock the glove box with the built-in key.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
19 ODYSSEY-31THR6120.book 227 ページ ２０１８年１２月６日　木曜日　午後４時３５分

228
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

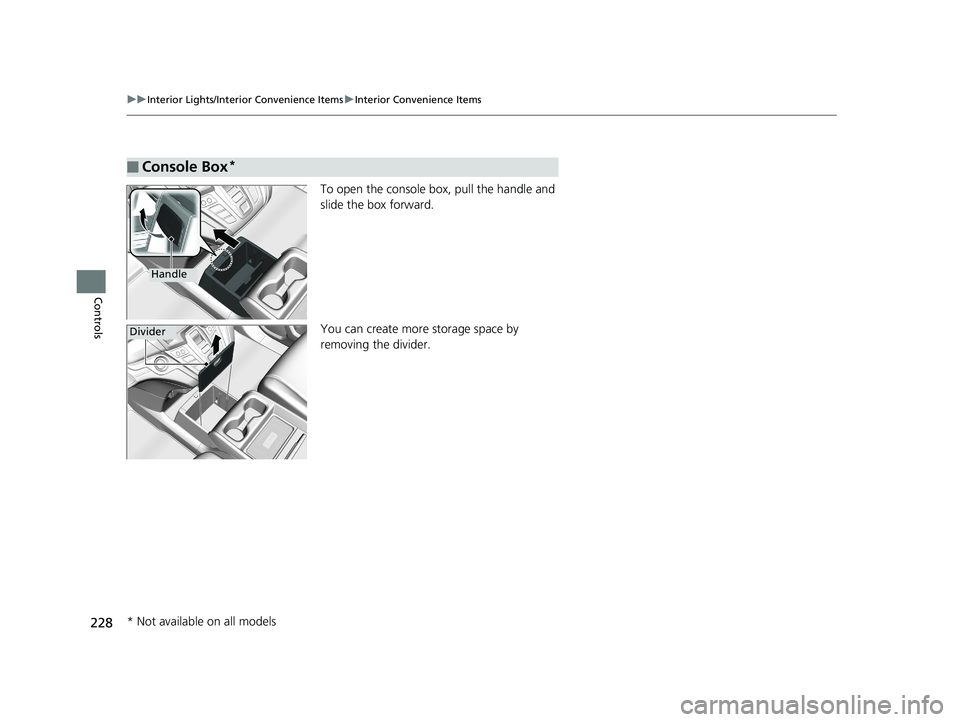

To open the console box, pull the handle and
slide the box forward.
You can create more storage space by
removing the divider.
■Console Box*
Handle
Divider
* Not available on all models
