Page 4 of 767
Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 33
For Safe Driving P. 34 Seat Belts P. 38 Airbags P. 47
2Instrument Panel P. 83
Indicators P. 84 Gauges and Displays P. 119
2Controls P. 141
Clock P. 142 Locking and Unlocking the Doors P. 144
Security System P. 179 Opening and Closing the Windows P. 182
Adjusting the Mirrors P. 206 Adjusting the Seats P. 209
2Features P. 259
Audio System P. 260 Audio System Basic Operation P. 267, 285
Blu-ray/DVD Rear Entertainment System* P. 396
CabinWatchTM * P. 523 CabinTalkTM* P. 524
2Driving P. 525
Before Driving P. 526 Towing a Trailer P. 532
Multi-View Rear Camera P. 630 Refueling P. 632
2 Maintenance P. 637
Before Performing Maintenance P. 638 Maintenance MinderTM P. 641
Checking and Maintaining Wiper Blades P. 671
Remote Control and Wireless Headphone Care
* P. 687
2 Handling the Unexpected P. 699
Tools P. 700 If a Tire Goes Flat P. 701
Indicator, Coming On/Blinking P. 718 Fuses P. 724
When You Cannot Open the Tailgate P. 733
2 Information P. 739
Specifications P. 740 Identification Numbers P. 742
Warranty Coverages P. 748 Authorized Manuals P. 750
19 ODYSSEY-31THR6120.book 2 ページ 2018年12月6日 木曜日 午後4時35分

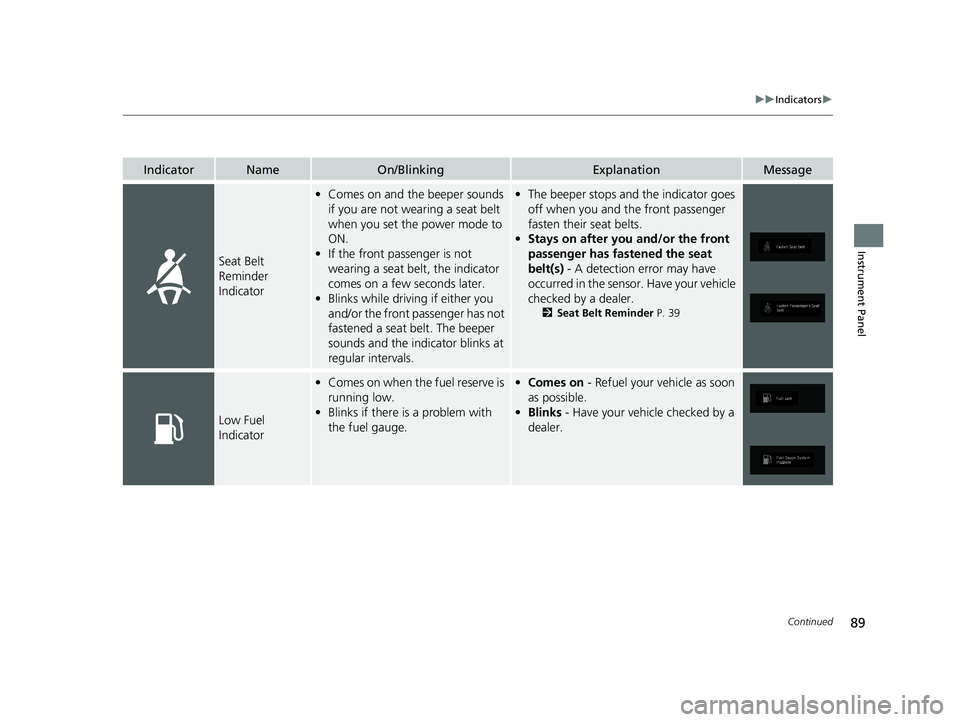

Page 91 of 767
89
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Seat Belt
Reminder
Indicator
•Comes on and the beeper sounds
if you are not wearing a seat belt
when you set the power mode to
ON.
• If the front passenger is not
wearing a seat belt, the indicator
comes on a few seconds later.
• Blinks while driving if either you
and/or the front passenger has not
fastened a seat belt. The beeper
sounds and the indicator blinks at
regular intervals.•The beeper stops and the indicator goes
off when you and the front passenger
fasten their seat belts.
• Stays on after you and/or the front
passenger has fastened the seat
belt(s) - A detection error may have
occurred in the sensor. Have your vehicle
checked by a dealer.
2 Seat Belt Reminder P. 39
Low Fuel
Indicator
•Comes on when the fuel reserve is
running low.
• Blinks if there is a problem with
the fuel gauge.•Comes on - Refuel your vehicle as soon
as possible.
• Blinks - Have your vehicle checked by a
dealer.
19 ODYSSEY-31THR6120.book 89 ページ 2018年12月6日 木曜日 午後4時35分

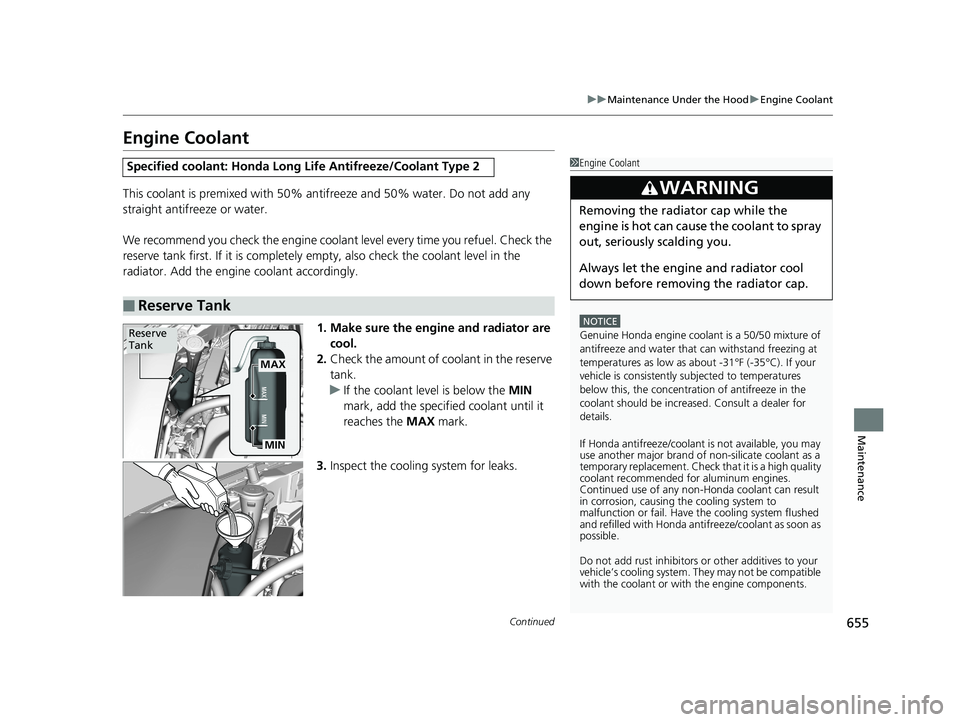

Page 657 of 767
655
uuMaintenance Under the Hood uEngine Coolant
Continued
Maintenance
Engine Coolant
This coolant is premixed with 50% an tifreeze and 50% water. Do not add any
straight antifreeze or water.
We recommend you check the engine coolant level every time you refuel. Check the
reserve tank first. If it is completely empty, also check the coolant level in the
radiator. Add the engine coolant accordingly.
1. Make sure the engine and radiator are cool.
2. Check the amount of coolant in the reserve
tank.
u If the coolant level is below the MIN
mark, add the specified coolant until it
reaches the MAX mark.
3. Inspect the cooling system for leaks.
Specified coolant: Ho nda Long Life Antifreeze/Coolant Type 2
■Reserve Tank
1Engine Coolant
NOTICE
Genuine Honda engine coolan t is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as a bout -31°F (-35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult a dealer for
details.
If Honda antifreeze /coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda anti freeze/coolant as soon as
possible.
Do not add rust inhibitors or other additives to your
vehicle’s cooling system. They may not be compatible
with the coolant or with the engine components.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve
Tank
MAX
MIN
19 ODYSSEY-31THR6120.book 655 ページ 2018年12月6日 木曜日 午後4時35分
Page 757 of 767
755
Index
Emergency................................................ 731
Emergency Engine Stop ........................... 712
Emissions Testing (Readiness Codes) ...... 746
Engine ....................................................... 742
Coolant .................................................. 655
Jump Starting ......................................... 713
Oil .......................................................... 650
Starting................................................... 538
Engine Coolant ........................................ 655
Adding to the Radiator ........................... 656
Adding to the Reserve Tank .................... 655
Overheating ............................................ 715
Temperature Gauge ................................ 119
Engine Oil ................................................. 650
Adding ................................................... 652
Checking ................................................ 651
Displaying Maintenance Minder Information ........................................... 642
Low Oil Pressure Symbol ......................... 718
Recommended Engine Oil ....................... 650
ENGINE START/STOP Button .................... 186
Exhaust Gas Hazard (Carbon Monoxide) .. 80
Exterior Care (Cleaning) .......................... 693
Exterior Mirrors ........................................ 207
F
Features.................................................... 259
File Manager ............................................ 306
Filters
Dust and Pollen....................................... 689 Oil ........................................................... 653
Flat Tire ..................................................... 701
Floor Mats ................................................. 691
Fluids Automatic Transmission ........................... 657
Brake ....................................................... 658
Engine Coolant ........................................ 655
Windshield Washer .................................. 659
FM/AM Radio .................................... 274, 318
Fog Light Indicator ..................................... 93
Folding Down the Rear Seats .................. 222
Foot Brake ................................................. 605
Front Airbags (SRS) ..................................... 50
Front Knee Airbags .................................... 54
Front Seat Heaters .................................... 242
Front Seat Heaters and Seat Ventilation .............................................. 243
Front Seats ................................................ 209
Adjusting ................................................. 209
Fuel ...................................................... 26, 632
Economy ................................................. 635
Gauge ..................................................... 119
Instant Fuel Economy ............................... 125
Low Fuel Indicator ..................................... 89
Range ...................................................... 125
Recommendation .................................... 632
Refueling ................................................. 632
Fuel Economy ............................................ 635
Fuel Fill Door ....................................... 26, 633
Fuses .......................................................... 724
Inspecting and Changing ......................... 730 Locations................................. 724, 726, 729
G
Gasoline (Fuel)
Economy ................................................. 635
Gauge ..................................................... 119
Information ............................................. 632
Instant Fuel Economy .............................. 125
Low Fuel Indicator ..................................... 89
Refueling................................................. 632
Gauges ...................................................... 119
Gear Position Indicator .............................. 87
Glass (care) ........................................ 690, 694
Glove Box .................................................. 227
Grocery Bag Hook .................................... 239
H
Halogen Bulbs.................................. 660, 663
Handling the Unexpected ........................ 699
HandsFreeLink ® (HFL) ....................... 473, 498
Automatic Import of Cellular Phonebook and
Call History .................................... 487, 507
Automatic Transferring............................ 506
Caller’s ID Information............................. 485
Displaying Messages................................ 517
Favorite Contacts .................................... 508
HFL Buttons..................................... 473, 498
HFL Menus ...................................... 475, 501
HFL Status Display ........................... 474, 500
19 ODYSSEY-31THR6120.book 755 ページ 2018年12月6日 木曜日 午後4時35分
