Page 17 of 767
15
Quick Reference Guide
Turn Signals (P189)
Lights (P189)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P197)
*1:Models with automatic intermittent wipers
*2:Models without auto matic intermittent
wipers
AUTO should always be turned OFF before
the following situation in order to prevent
severe damage to the wiper system:
● Cleaning the windshield
● Driving through a car wash
● No rain present
Wiper/Washer Control Lever
Adjustment Ring
( -: Low sensitivity*1
(-: Lower speed, fewer sweeps*2
(+: High sensitivity*1
(+: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO: Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Models with automatic intermittent wipers
Steering Wheel (P205)
● To adjust, push the adjustment lever
down, adjust to the de sired position, then
pull up the lever back in place.
19 ODYSSEY-31THR6120.book 15 ページ 2018年12月6日 木曜日 午後4時35分
Page 30 of 767
28
Quick Reference Guide
Maintenance (P637)
Under the Hood (P647)
● Check engine oil, engine coolant, and window washer fluid. Add
when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the dashboard.
bLocate the hood latch lever, pull it up, and then raise the hood.
Once you have raised the hood slightly, you can release the lever.
cWhen finished, close the hood and make sure it is firmly locked in
place.
Lights (P660)
● Inspect all lights regularly.
Wiper Blades (P671)
● Replace blades if they leave
streaks across the windshield.
Tires (P675)
● Inspect tires and wheels
regularly.
● Check tire pressures
regularly.
● Install snow tires for winter
driving.
19 ODYSSEY-31THR6120.book 28 ページ 2018年12月6日 木曜日 午後4時35分
Page 199 of 767
197
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Continued
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*1/AUTO*2, LO,
HI)
Move the lever up or down to change the
wiper settings.
■Adjusting wiper operation*
Turn the adjustment ring to adjust wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the le ver for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
*1: Models with manual intermittent operation
*2: Models with automati c intermittent operation
■Windshield Wiper/Washer1Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defrost er or heated windshield
*
to warm the windshield, then turn the wipers on.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
Models with intermittent time adjustment ring
Intermittent Time
Adjustment Ring
MIST
INT
*1/AUTO*2
OFF
LO : Low speed wipe
HI: High speed wipe Pull to
use
washer.
Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
19 ODYSSEY-31THR6120.book 197 ページ 2018年12月6日 木曜日 午後4時35分
Page 639 of 767
637
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 638
Safety When Performing Maintenance .... 639
Parts and Fluids Used in Maintenance Service ........................................... 640
Maintenance Minder
TM..................... 641
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 647
Opening the Hood ........................... 648
Recommended Engine Oil ................ 650
Oil Check ......................................... 651
Adding Engine Oil ............................ 652
Changing the Engine Oil and Oil Filter ..... 653Engine Coolant ................................ 655
Transmission Fluid ............................ 657
Brake Fluid ....................................... 658
Refilling Window Washer Fluid......... 659
Replacing Light Bulbs ....................... 660
Checking and Maintaining Wiper Blades.... 671Checking and Maintaining Tires
Checking Tires ................................. 675
Tire and Loading Information Label ..... 676Tire Labeling .................................... 676DOT Tire Quality Grading (U.S. Vehicles) ...... 678Wear Indicators................................ 680 Tire Service Life ................................ 680
Tire and Wheel Replacement ........... 681
Tire Rotation .................................... 682
Winter Tires ..................................... 683
Battery ............................................... 684
Remote Transmitter Care ................. 686
Remote Control and Wireless Headphone Care
*........................... 687Climate Control System Maintenance.... 689Cleaning Interior Care .................................... 690
Exterior Care.................................... 693
Accessories and Modifications ........ 696
* Not available on all models
19 ODYSSEY-31THR6120.book 637 ページ 2018年12月6日 木曜日 午後4時35分

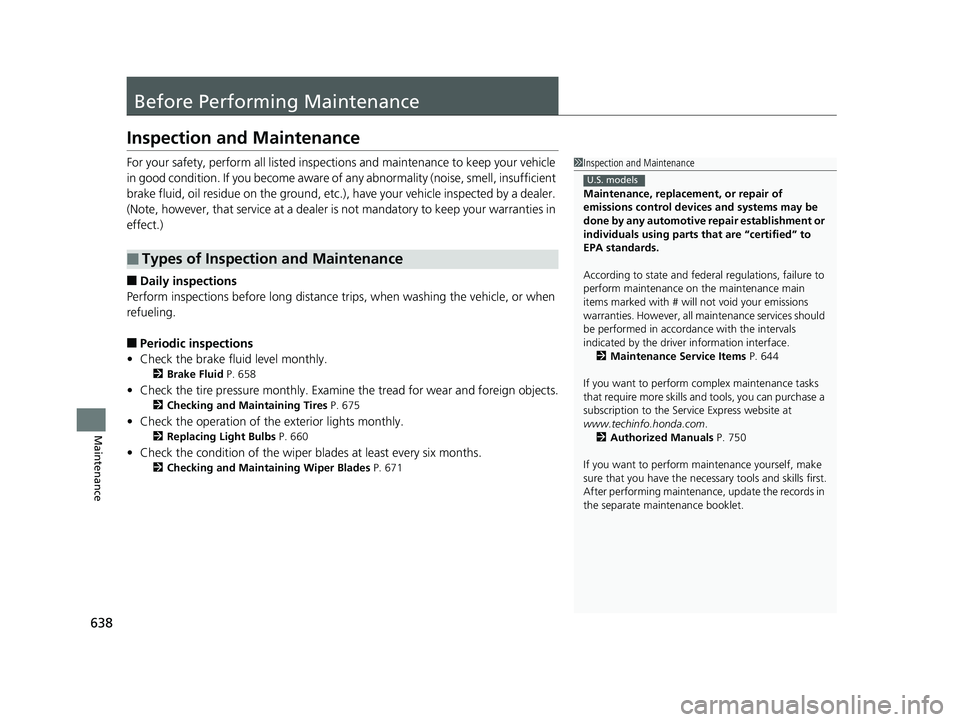

Page 640 of 767
638
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.)
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake fluid level monthly.
2 Brake Fluid P. 658
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 675
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 660
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 671
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the driver information interface.
2 Maintenance Service Items P. 644
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 750
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet.
U.S. models
19 ODYSSEY-31THR6120.book 638 ページ 2018年12月6日 木曜日 午後4時35分
Page 762 of 767
760
Index
Wear Indicators ....................................... 680
Winter ..................................................... 683
Tools .......................................................... 700
Towing a Trailer ........................................ 532
Equipment and Accessories...................... 533
Load Limits .............................................. 532
Towing Your Vehicle ................................ 537
Emergency............................................... 731
TPMS (Tire Pressure Monitoring System)
Indicator ............................................ 92, 722
Transmission .............................................. 546
Automatic ............................................... 545
Fluid ........................................................ 657
Gear Position Indicator............................... 87
Number ................................................... 742
Transmission System Indicator ............................................ 88, 723
Trip Computer ........................................... 124
Trip Meter ................................................. 125
Troubleshooting ....................................... 699
Blown Fuse .............................. 724, 726, 729
Brake Pedal Vibrates .................................. 30
Buzzer Sounds When Opening Door .......... 31
Emergency Towing .................................. 731
Engine Won’t Start .................................. 710
Noise When Braking .................................. 31
Overheating............................................. 715
Puncture/Flat Tire ..................................... 701
Sliding Door Won’t Open................... 30, 157
Warning Indicators ............................ 84, 718 Tucking away the One-Motion Third Row
Stowing Magic Seat ®.............................. 222
Turn Signals .............................................. 189
Indicators (Instrument Panel) ..................... 92
U
Units .......................................................... 128
Unlocking the Doors ................................ 147
Unlocking the Front Doors from the
Inside ....................................................... 154
USB Flash Drives ....................... 279, 338, 375
USB Ports ................................................... 261
Using the Smart Entry with Push Button Start System ..................................................... 147
V
Vacuum ..................................................... 245
Vanity Mirrors ............................................... 7
Vehicle Customization ............................. 133
Vehicle Identification Number ................ 742
Vehicle Stability Assist (VSA ®).................. 591
Off Button............................................... 592
Off Indicator.............................................. 91
System Indicator ........................................ 91
Ventilation ................................................ 248
Viscosity (Oil) .................................... 650, 741
Voice Control Operation .......................... 315
Audio Commands ................................... 317
Phone Commands ................................... 317 Voice Portal Screen ................................. 316
Voice Recognition ................................... 315
VSA ® (Vehicle Stability Assist) ................. 591
W
Wallpaper......................................... 270, 290
Warning and Information Messages ...... 102
Warning Indicator On/Blinking ............... 718
Warning Labels .......................................... 81
Warnings .................................................. 126
Warranties (Warranty Manual provided separately) .............................................. 748
Watts ........................................................ 740
Wear Indicators (Tire) .............................. 680
Wheel Nut Wrench (Jack Handle) ........... 704
Wi-Fi Connection ..................................... 354
Window Washers ..................................... 197
Adding/Refilling Fluid .............................. 659
Switch .................................................... 197
Windows (Opening and Closing) ............ 182
Windshield ............................................... 197
Cleaning ......................................... 690, 694
Defrosting....................................... 249, 253
Washer Fluid ........................................... 659
Wiper Blades........................................... 671
Wipers and Washers ............................... 197
Winter Tires Snow Tires .............................................. 683
Tire Chains.............................................. 683
19 ODYSSEY-31THR6120.book 760 ページ 2018年12月6日 木曜日 午後4時35分
