HONDA ODYSSEY 2023 Owner's Manual

19
Quick Reference Guide

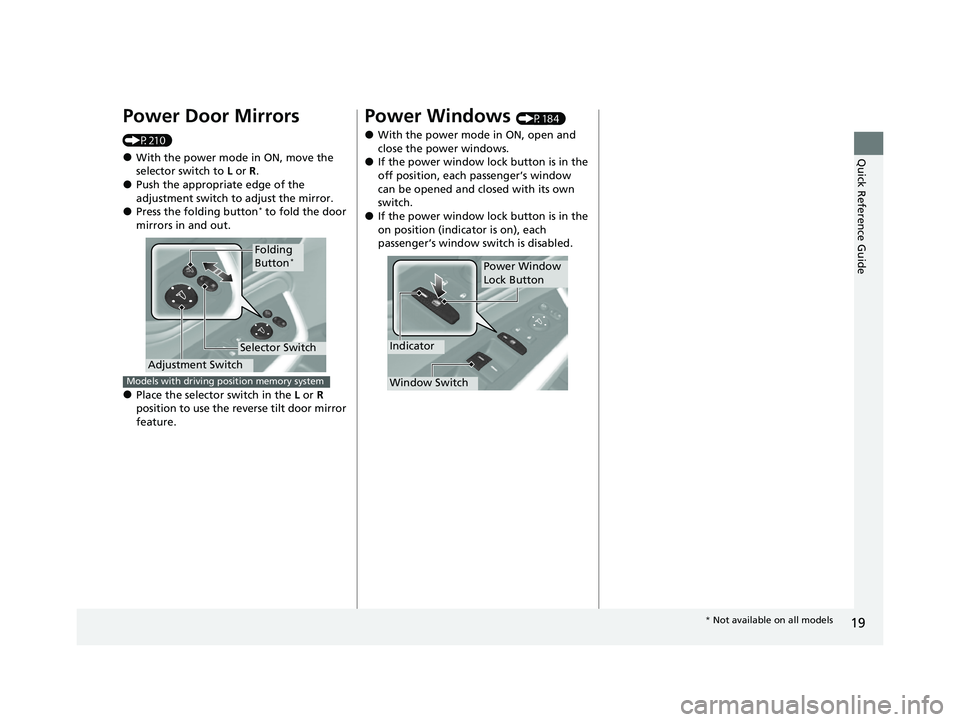

Power Door Mirrors
(P210)
●With the power mode in ON, move the
selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
●Press the folding button* to fold the door
mirrors in and out.
●Place the selector switch in the L or R
position to use the reverse tilt door mirror
feature.
Selector Switch
Adjustment Switch
Folding
Button*
Models with driving position memory system
Power Windows (P184)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
Power Window
Lock Button
Window Switch
Indicator
* Not available on all models
23 US ODYSSEY-31THR6500.book 19 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

20
Quick Reference Guide

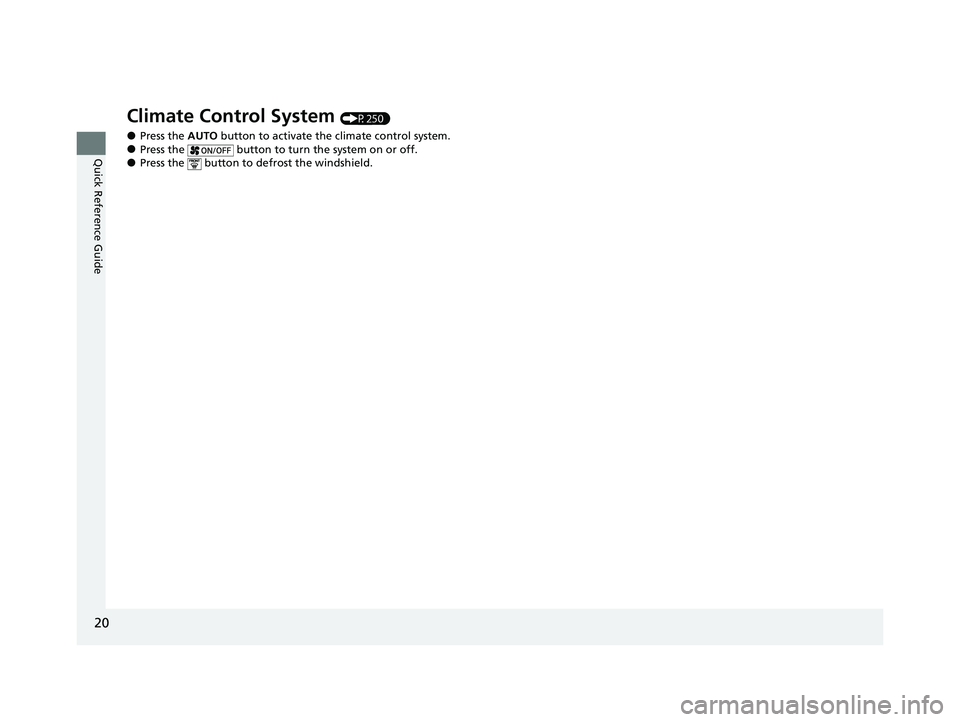

Climate Control System (P250)
●Press the AUTO button to activate the climate control system.●Press the button to turn the system on or off.●Press the button to defrost the windshield.
23 US ODYSSEY-31THR6500.book 20 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

21
Quick Reference Guide

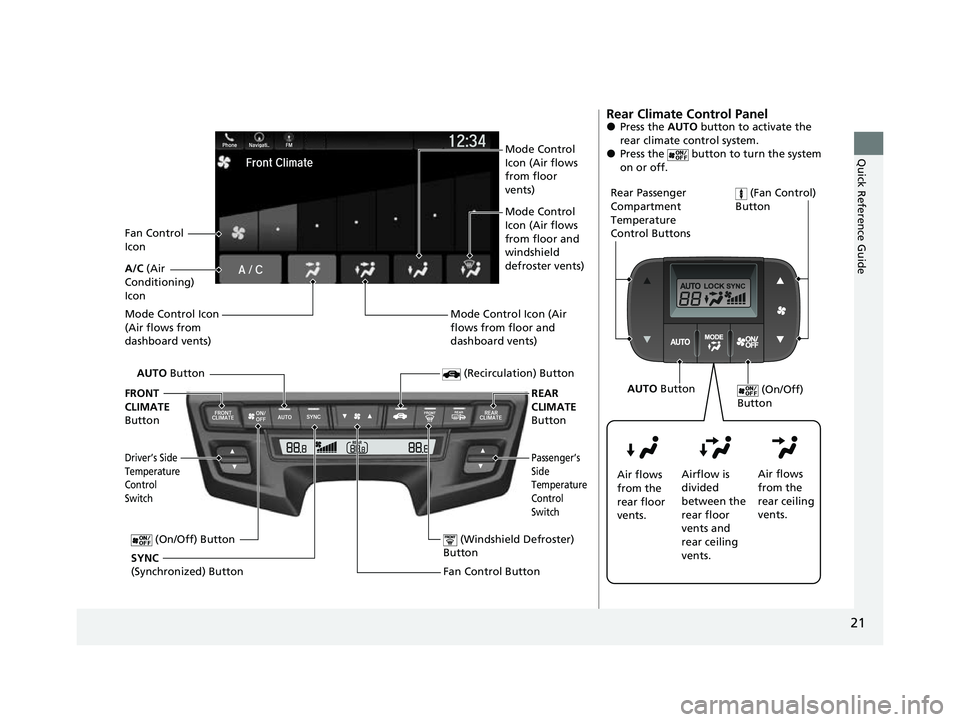

Fan Control Button (Windshield Defroster)
Button
A/C (Air
Conditioning)
Icon
(Recirculation) Button
Passenger’s
Side
Temperature
Control
Switch
AUTO Button
Driver’s Side
Temperature
Control
Switch
Mode Control Icon
(Air flows from
dashboard vents)
SYNC
(Synchronized) Button (On/Off) Button
FRONT
CLIMATE

Button REAR
CLIMATE

Button
Fan Control
Icon Mode Control
Icon (Air flows
from floor
vents)
Mode Control
Icon (Air flows
from floor and
windshield
defroster vents)
Mode Control Icon (Air
flows from floor and
dashboard vents)
Rear Climate Control Panel●Press the AUTO button to activate the
rear climate control system.
●Press the button to turn the system
on or off.
Rear Passenger
Compartment
Temperature
Control Buttons (Fan Control)
Button
Air flows
from the
rear floor
vents. Airflow is
divided
between the
rear floor
vents and
rear ceiling
vents. Air flows
from the
rear ceiling
vents. (On/Off)
Button
AUTO Button
23 US ODYSSEY-31THR6500.book 21 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

22
Quick Reference Guide

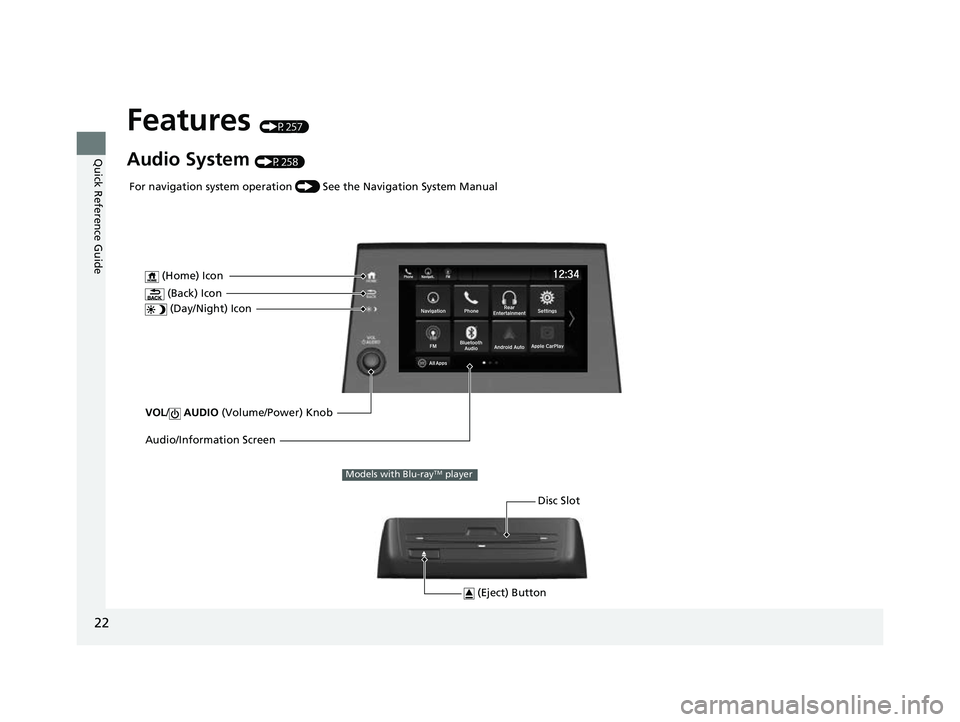

Features (P257)
Audio System (P258)
VOL/ AUDIO (Volume/Power) Knob
(Home) Icon
(Back) Icon
(Day/Night) Icon
Audio/Information Screen
For navigation system operation () See the Navigation System Manual
(Eject) Button
Disc Slot
Models with Blu-rayTM player
23 US ODYSSEY-31THR6500.book 22 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

23
Quick Reference Guide

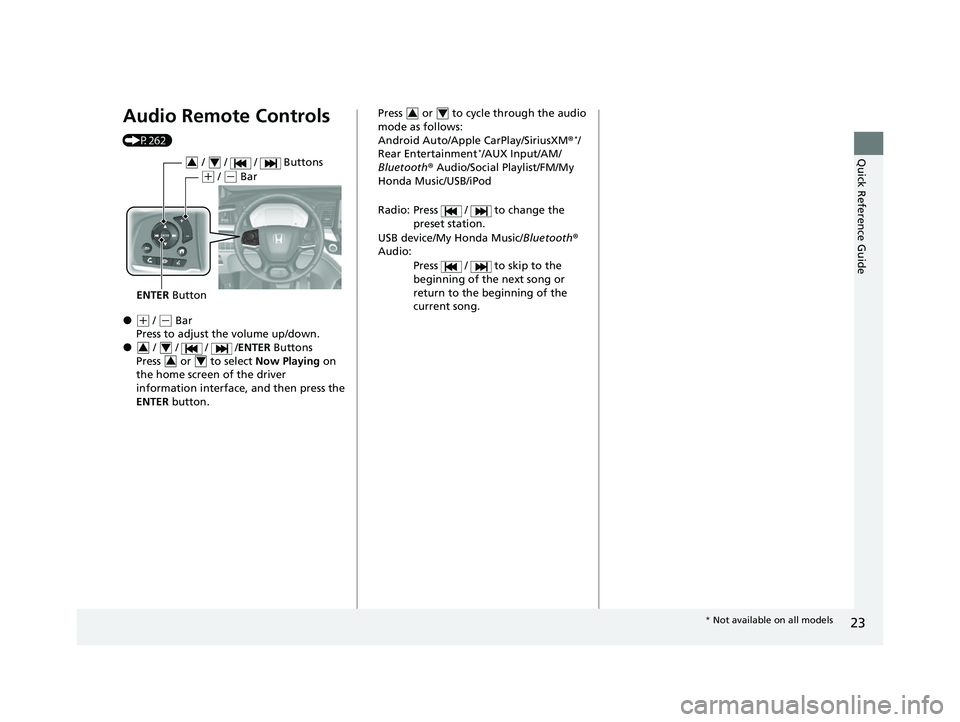

Audio Remote Controls
(P262)
●(+ / (- Bar
Press to adjust the volume up/down.
● / / / /ENTER Buttons
Press or to select Now Playing on
the home screen of the driver
information interface, and then press the
ENTER button.
ENTER Button
/ / / Buttons34
(+ / (- Bar
3434
Press or to cycle through the audio
mode as follows:
Android Auto/Apple CarPlay/SiriusXM ®
*/
Rear Entertainment*/AUX Input/AM/
Bluetooth ® Audio/Social Playlist/FM/My
Honda Music/USB/iPod
Radio: Press / to change the preset station.
USB device/My Honda Music/ Bluetooth®
Audio:
Press / to skip to the
beginning of the next song or
return to the beginning of the
current song.
34
* Not available on all models
23 US ODYSSEY-31THR6500.book 23 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

24
Quick Reference Guide

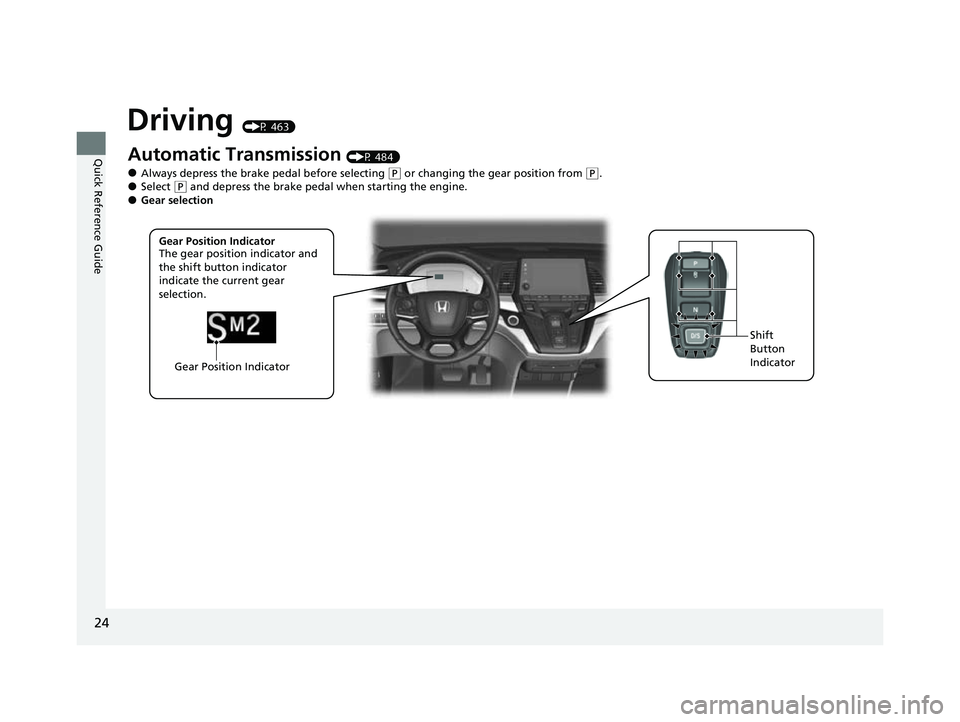

Driving (P 463)
Gear Position IndicatorShift
Button
Indicator
Automatic Transmission (P 484)
●Always depress the brake pedal before selecting (
P or changing the gear position from (P.●Select (P and depress the brake pedal when starting the engine.●Gear selection
Gear Position Indicator
The gear position indicator and
the shift button indicator
indicate the current gear
selection.
23 US ODYSSEY-31THR6500.book 24 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

25
Quick Reference Guide

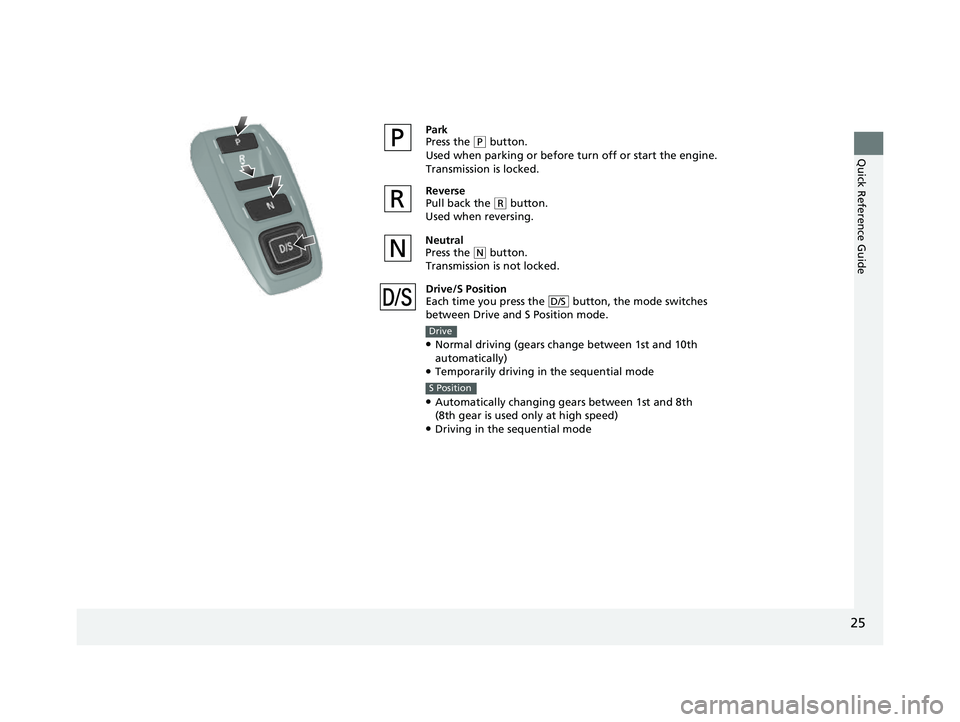

Park
Press the (P button.
Used when parking or before turn off or start the engine.
Transmission is locked.
Reverse
Pull back the
( R button.
Used when reversing.
Neutral
Press the
( N button.
Transmission is not locked.
Drive/S Position
Each time you press the button, the mode switches
between Drive and S Position mode.
●Normal driving (gears change between 1st and 10th
automatically)
●Temporarily driving in the sequential mode
●Automatically changing gears between 1st and 8th
(8th gear is used only at high speed)
●Driving in the sequential mode
D/S
Drive
S Position
23 US ODYSSEY-31THR6500.book 25 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

26
Quick Reference Guide
M (sequential
mode)
Indicator
Gear Position Indicator
Shift Down (
-
Paddle Shifter Shift Up (
+
Paddle Shifter

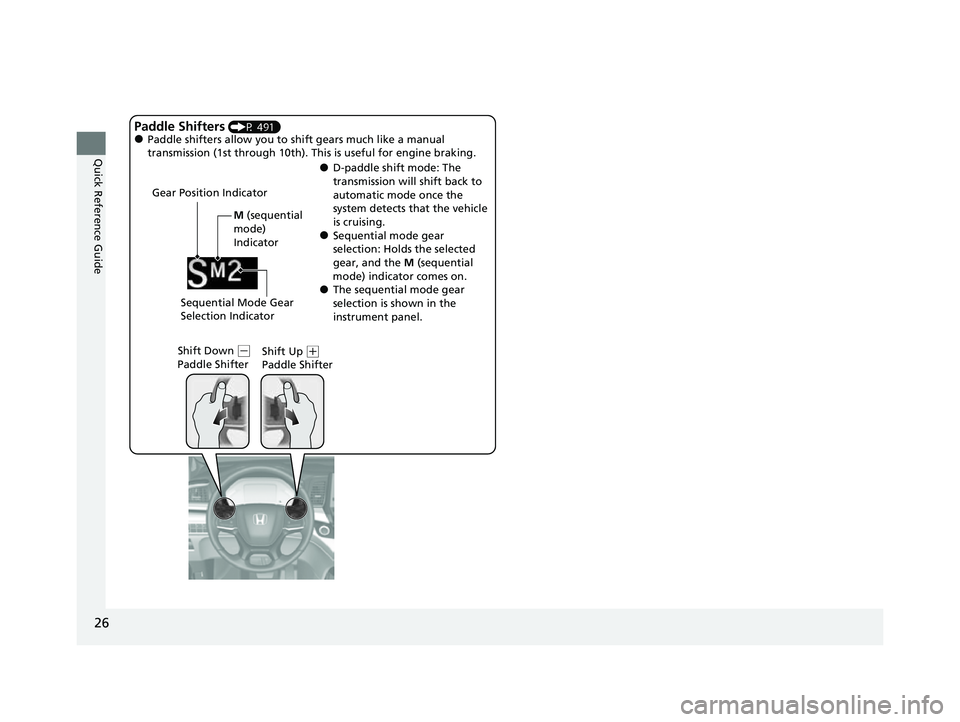

Paddle Shifters (P 491)●Paddle shifters allow you to sh ift gears much like a manual
transmission (1st through 10th). This is useful for engine braking.
●D-paddle shift mode: The
transmission will shift back to
automatic mode once the
system detects that the vehicle
is cruising.
●Sequential mode gear
selection: Holds the selected
gear, and the M (sequential
mode) indicator comes on.
●The sequential mode gear
selection is shown in the
instrument panel.
Sequential Mode Gear
Selection Indicator
23 US ODYSSEY-31THR6500.book 26 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

27
Quick Reference Guide

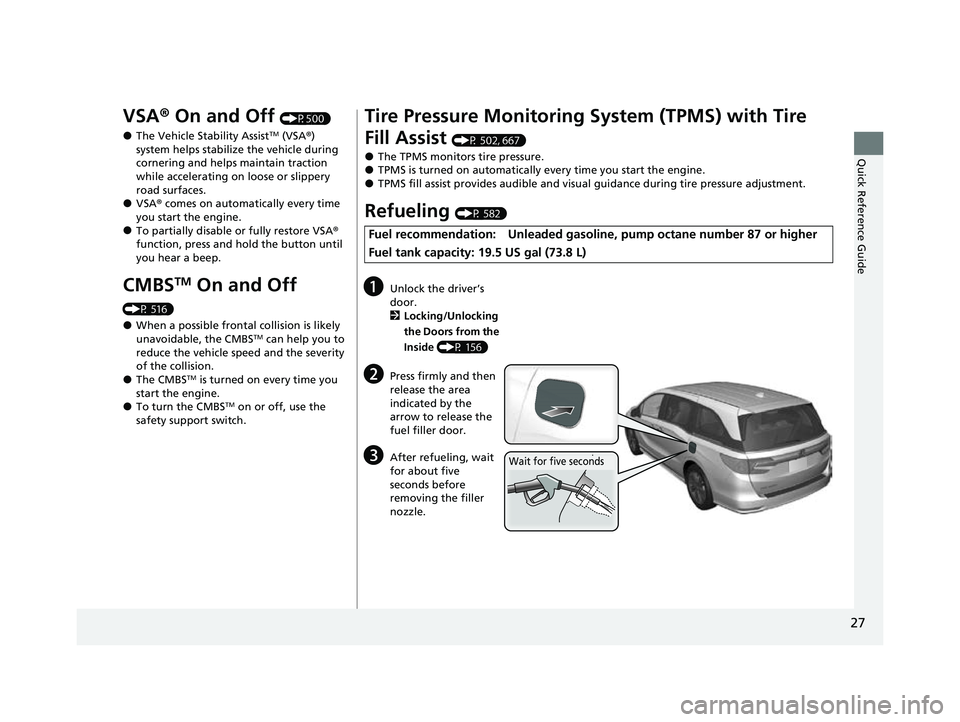

VSA® On and Off (P500)
●The Vehicle Stability AssistTM (VSA® )
system helps stabilize the vehicle during
cornering and helps maintain traction
while accelerating on loose or slippery
road surfaces.
●VSA ® comes on automatically every time
you start the engine.
●To partially disable or fully restore VSA®
function, press and ho ld the button until
you hear a beep.
CMBSTM On and Off
(P 516)
●When a possible frontal collision is likely
unavoidable, the CMBSTM can help you to
reduce the vehicle speed and the severity
of the collision.
●The CMBSTM is turned on every time you
start the engine.
●To turn the CMBSTM on or off, use the
safety support switch.
Tire Pressure Monitoring System (TPMS) with Tire
Fill Assist
(P 502, 667)
●The TPMS monitors tire pressure.●TPMS is turned on automatically every time you start the engine.●TPMS fill assist provides audible and visual guidance during tire pressure adjustment.
Refueling (P 582)
Fuel recommendation: Unleaded gasoline, pump octane number 87 or higher
Fuel tank capacity: 19.5 US gal (73.8 L)
aUnlock the driver’s
door. 2 Locking/Unlocking
the Doors from the
Inside (P 156)
bPress firmly and then
release the area
indicated by the
arrow to release the
fuel filler door.
cAfter refueling, wait
for about five
seconds before
removing the filler
nozzle.Wait for five seconds
23 US ODYSSEY-31THR6500.book 27 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

28
Quick Reference Guide

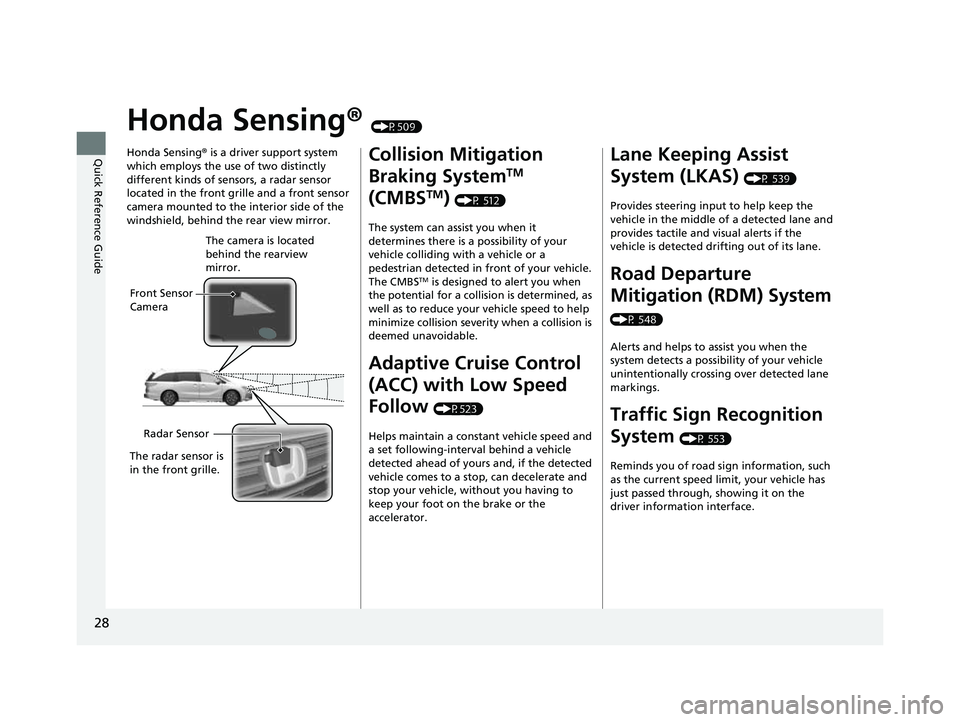

Honda Sensing® (P509)
Honda Sensing ® is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located in the front grille and a front sensor
camera mounted to the interior side of the
windshield, behind the rear view mirror.
Front Sensor
Camera The camera is located
behind the rearview
mirror.
Radar Sensor
The radar sensor is
in the front grille.
Collision Mitigation
Braking System
TM
(CMBS
TM) (P 512)
The system can assist you when it
determines there is a possibility of your
vehicle colliding with a vehicle or a
pedestrian detected in front of your vehicle.
The CMBS
TM is designed to alert you when
the potential for a collision is determined, as
well as to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
Adaptive Cruise Control
(ACC) with Low Speed
Follow
(P523)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, wi thout you having to
keep your foot on the brake or the
accelerator.
Lane Keeping Assist
System (LKAS)
(P 539)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Road Departure
Mitigation (RDM) System
(P 548)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings.
Traffic Sign Recognition
System
(P 553)
Reminds you of road sign information, such
as the current speed limit, your vehicle has
just passed through, showing it on the
driver information interface.
