Continued79
uuChild Safety uSafety of Infants and Small Children

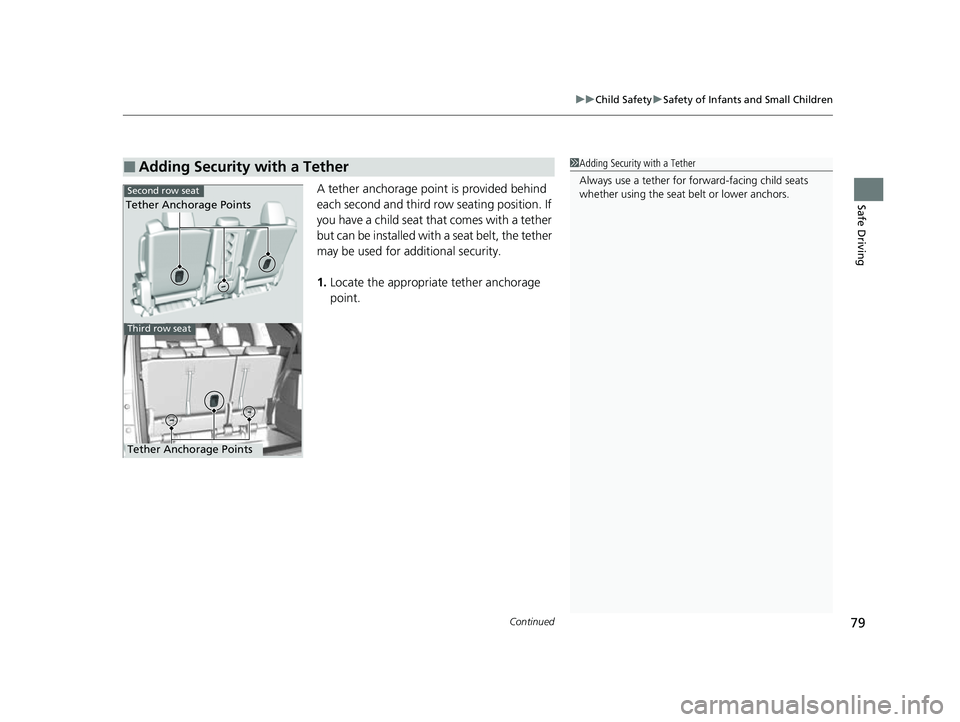

Safe DrivingA tether anchorage point is provided behind
each second and third row seating position. If
you have a child seat that comes with a tether
but can be installed with a seat belt, the tether
may be used for additional security.
1. Locate the appropriate tether anchorage
point.
■Adding Security with a Tether1Adding Security with a Tether
Always use a tether for forward-facing child seats
whether using the seat belt or lower anchors.
Second row seat
Third row seat
Tether Anchorage Points
Tether Anchorage Points
23 US ODYSSEY-31THR6500.book 79 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

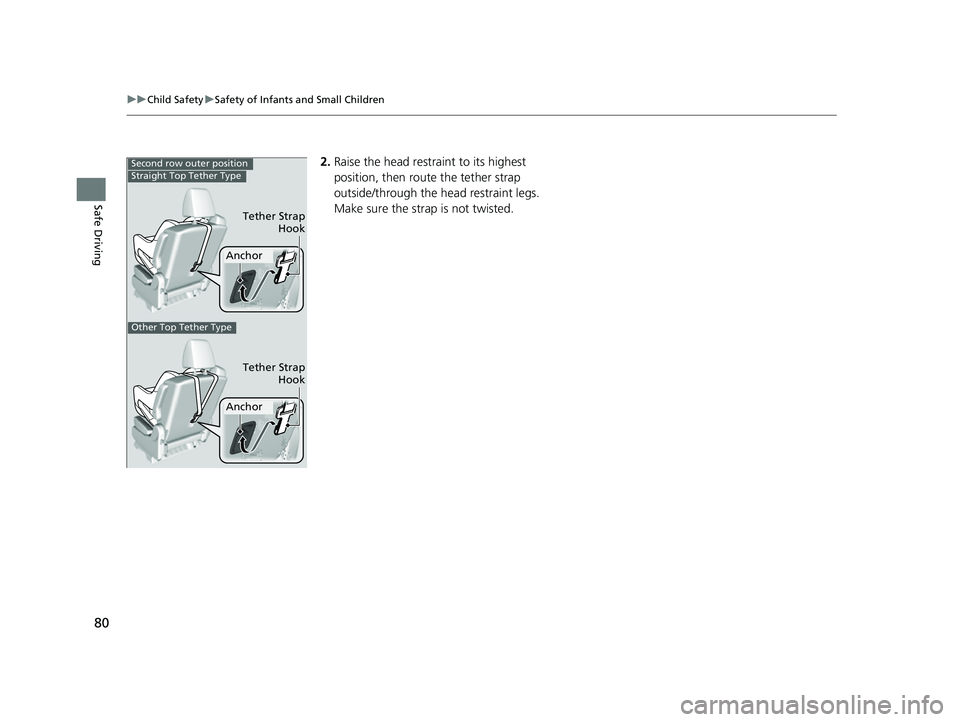

80
uuChild Safety uSafety of Infants and Small Children
Safe Driving
2. Raise the head restraint to its highest
position, then rout e the tether strap
outside/through the h ead restraint legs.
Make sure the strap is not twisted.Second row outer position
Tether Strap Hook
Anchor
Straight Top Tether Type
Other Top Tether Type
Tether StrapHook
Anchor
23 US ODYSSEY-31THR6500.book 80 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

81
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving

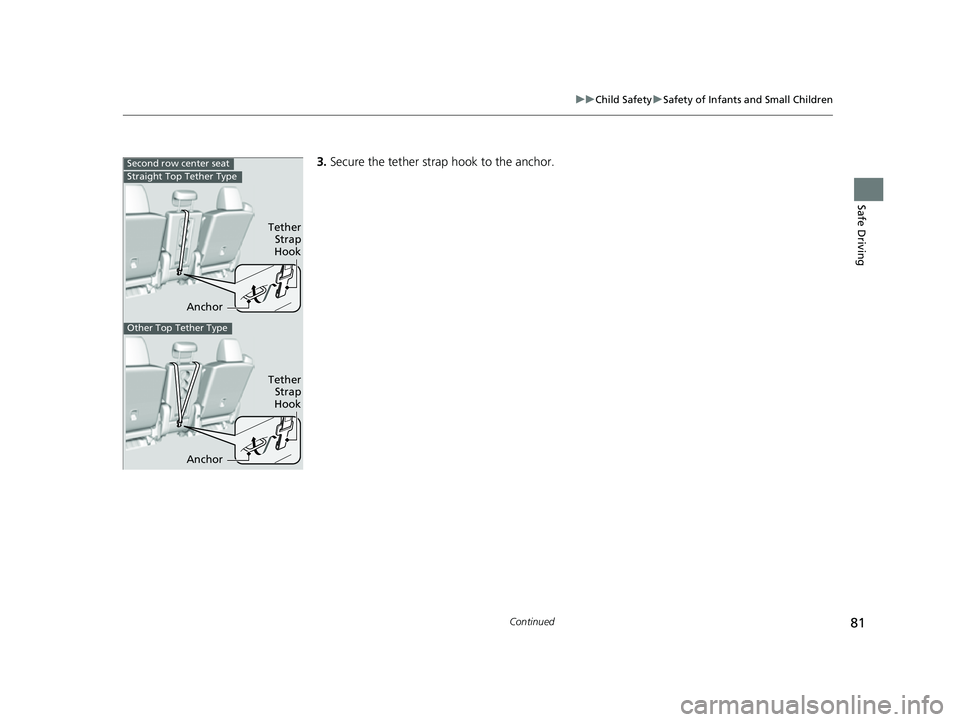

3. Secure the tether strap hook to the anchor.Second row center seat
Anchor
Tether
Strap
Hook
Straight Top Tether Type
Other Top Tether Type
Anchor
Tether Strap
Hook
23 US ODYSSEY-31THR6500.book 81 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

82
uuChild Safety uSafety of Infants and Small Children
Safe Driving

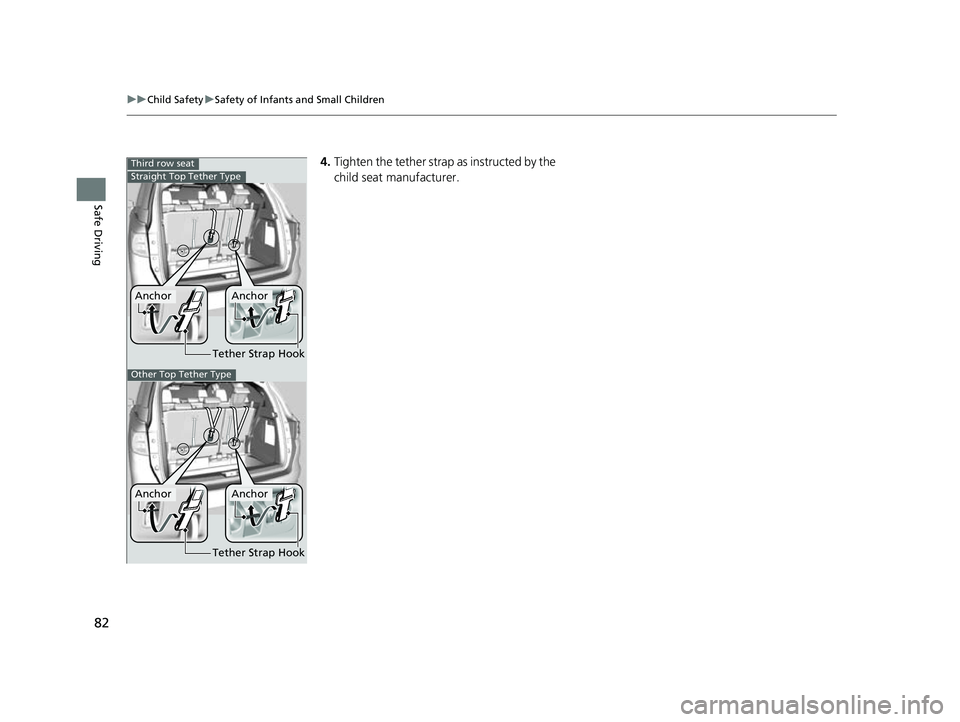

4. Tighten the tether strap as instructed by the
child seat manufacturer.Third row seat
Tether Strap Hook
AnchorAnchor
Straight Top Tether Type
Other Top Tether Type
Tether Strap Hook
AnchorAnchor
23 US ODYSSEY-31THR6500.book 82 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

83
uuChild Safety uSafety of Larger Children
Continued
Safe Driving

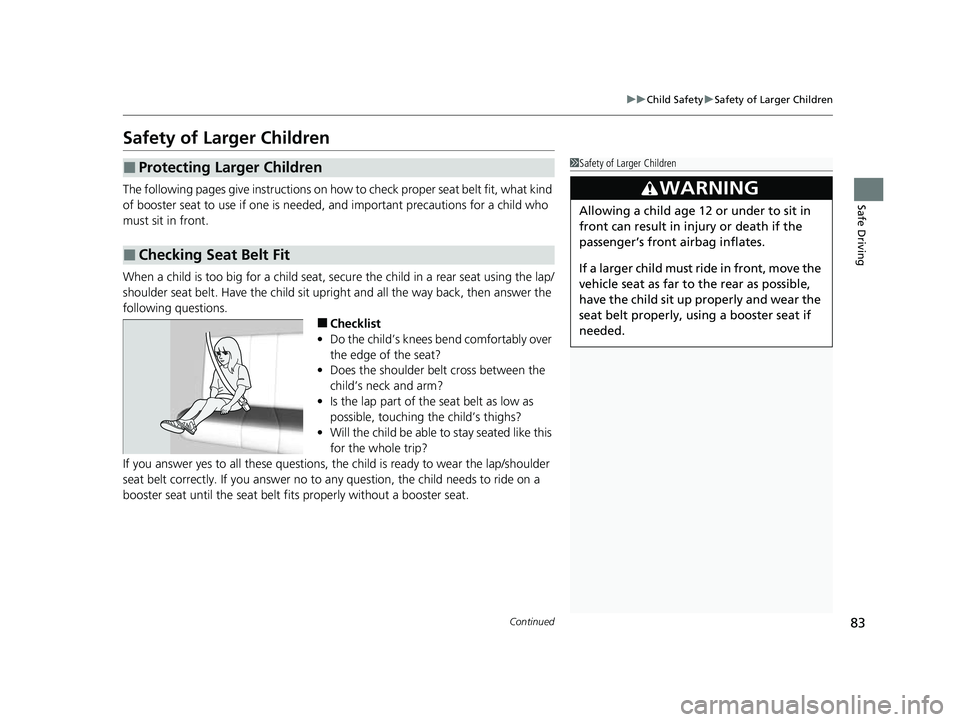

Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed, and important precautions for a child who
must sit in front.
When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upri ght and all the way back, then answer the
following questions.
■Checklist
• Do the child’s knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child’s neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child’s thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all these questions, th e child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1 Safety of Larger Children
3WARNING
Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger’s front airbag inflates.
If a larger child must ride in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, using a booster seat if
needed.
23 US ODYSSEY-31THR6500.book 83 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

uuChild Safety uSafety of Larger Children
84

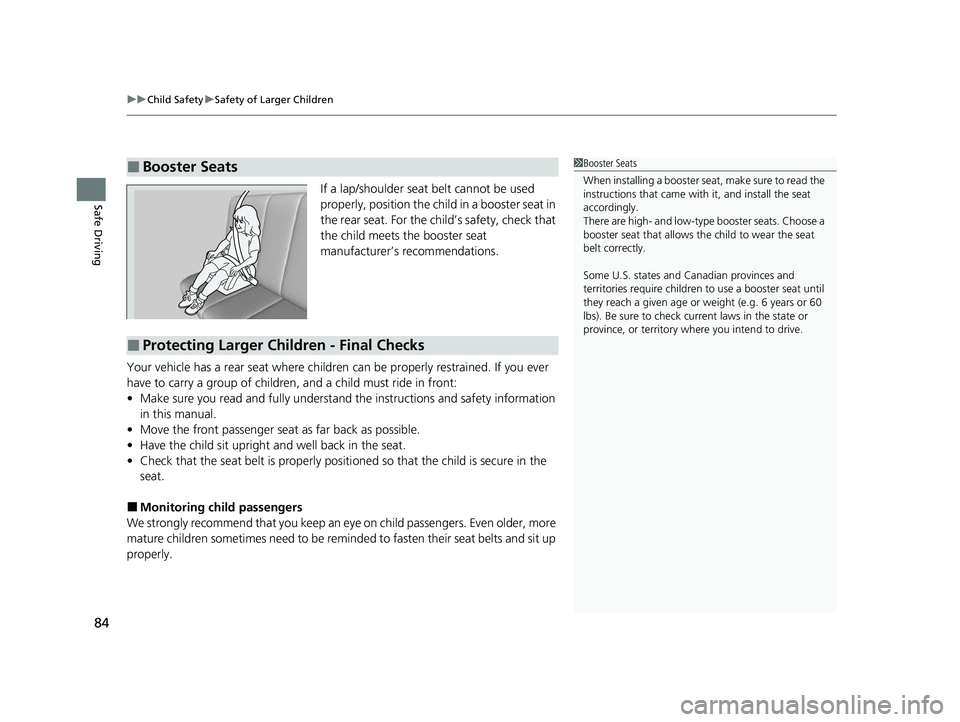

Safe DrivingIf a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
the rear seat. For the ch ild’s safety, check that
the child meets the booster seat
manufacturer’s recommendations.
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
• Make sure you read and full y understand the instructions and safety information
in this manual.
• Move the front passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positi oned so that the child is secure in the
seat.
■Monitoring child passengers
We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be remind ed to fasten their seat belts and sit up
properly.
■Booster Seats1 Booster Seats
When installing a booster seat , make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or weight (e.g. 6 years or 60
lbs). Be sure to check current laws in the state or
province, or territory where you intend to drive.
■Protecting Larger Children - Final Checks
23 US ODYSSEY-31THR6500.book 84 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

85
Safe Driving

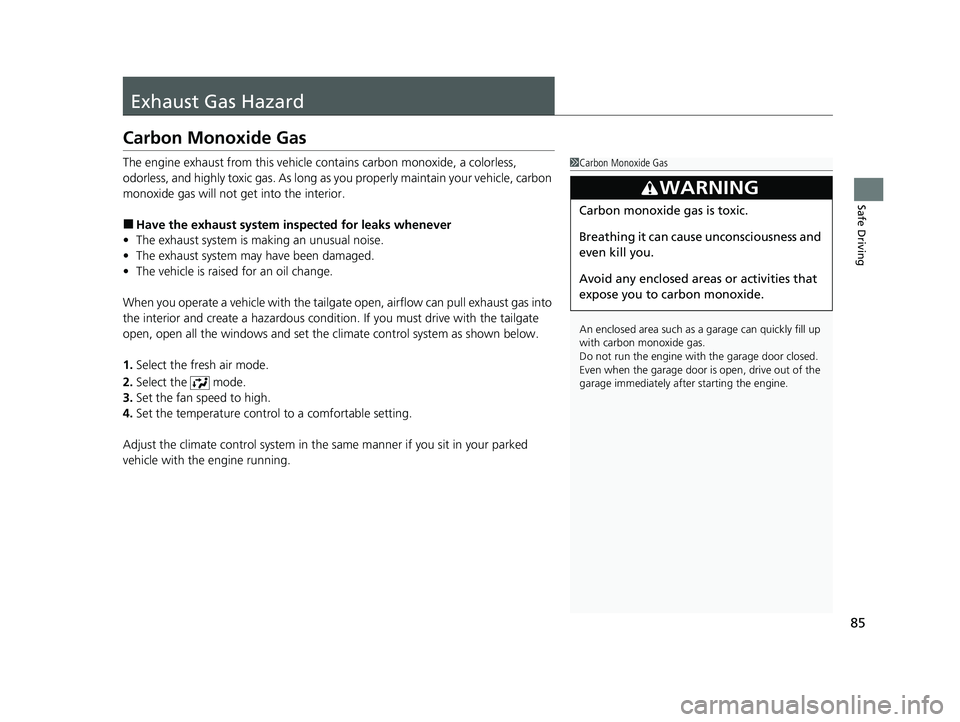

Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is making an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the tailga te open, airflow can pull exhaust gas into
the interior and create a hazardous conditio n. If you must drive with the tailgate
open, open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediat ely after starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
23 US ODYSSEY-31THR6500.book 85 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

86
Safe Driving

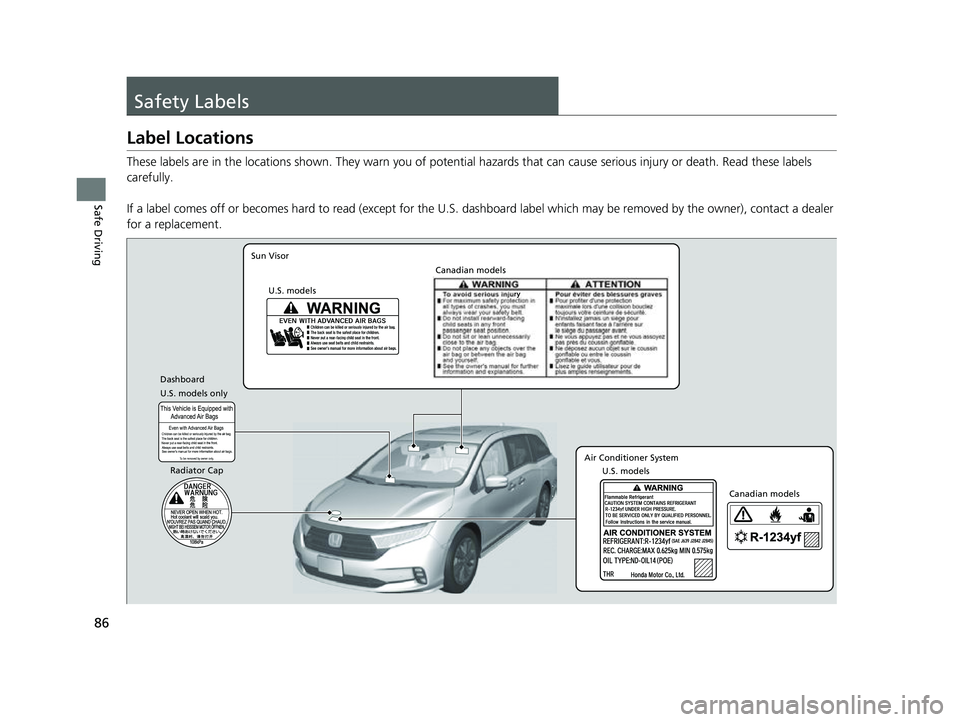

Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.
Radiator Cap
Dashboard
U.S. models only
Sun Visor
U.S. models Canadian models
U.S. models
Canadian models
Air Conditioner System
23 US ODYSSEY-31THR6500.book 86 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

87
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 88
Driver Information Interface Warning and Information Messages .................... 108
Gauges and Driver Information Interface Gauges ............................................ 127
Driver Information Interface ............. 128
23 US ODYSSEY-31THR6500.book 87 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

88
Instrument Panel

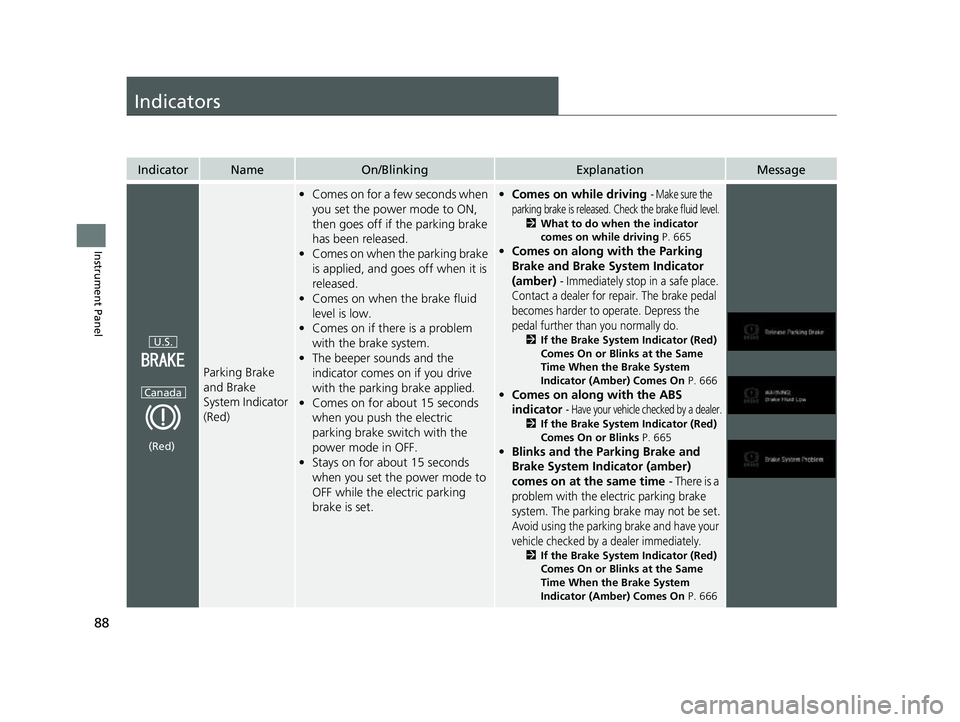

Indicators
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Red)
•Comes on for a few seconds when
you set the power mode to ON,
then goes off if the parking brake
has been released.
• Comes on when the parking brake
is applied, and goes off when it is
released.
• Comes on when the brake fluid
level is low.
• Comes on if there is a problem
with the brake system.
• The beeper sounds and the
indicator comes on if you drive
with the parking brake applied.
• Comes on for about 15 seconds
when you push the electric
parking brake switch with the
power mode in OFF.
• Stays on for about 15 seconds
when you set the power mode to
OFF while the electric parking
brake is set.•Comes on while driving - Make sure the
parking brake is released. Check the brake fluid level.
2 What to do when the indicator
comes on while driving P. 665
•Comes on along wi th the Parking
Brake and Brake System Indicator
(amber)
- Immediately stop in a safe place.
Contact a dealer for repair. The brake pedal
becomes harder to operate. Depress the
pedal further than you normally do.
2 If the Brake System Indicator (Red)
Comes On or Blinks at the Same
Time When the Brake System
Indicator (Amber) Comes On P. 666
•Comes on along with the ABS
indicator
- Have your vehicle checked by a dealer.
2 If the Brake System Indicator (Red)
Comes On or Blinks P. 665
•Blinks and the Parking Brake and
Brake System Indicator (amber)
comes on at the same time
- There is a
problem with the electric parking brake
system. The parking brake may not be set.
Avoid using the parking brake and have your
vehicle checked by a dealer immediately.
2 If the Brake System Indicator (Red)
Comes On or Blinks at the Same
Time When the Brake System
Indicator (Amber) Comes On P. 666
U.S.
Canada
(Red)
